    Products / Fiber Optic Cables / MTP/MPO Cables / MTP Conversion Cables / 102506
    Product image
    Product image

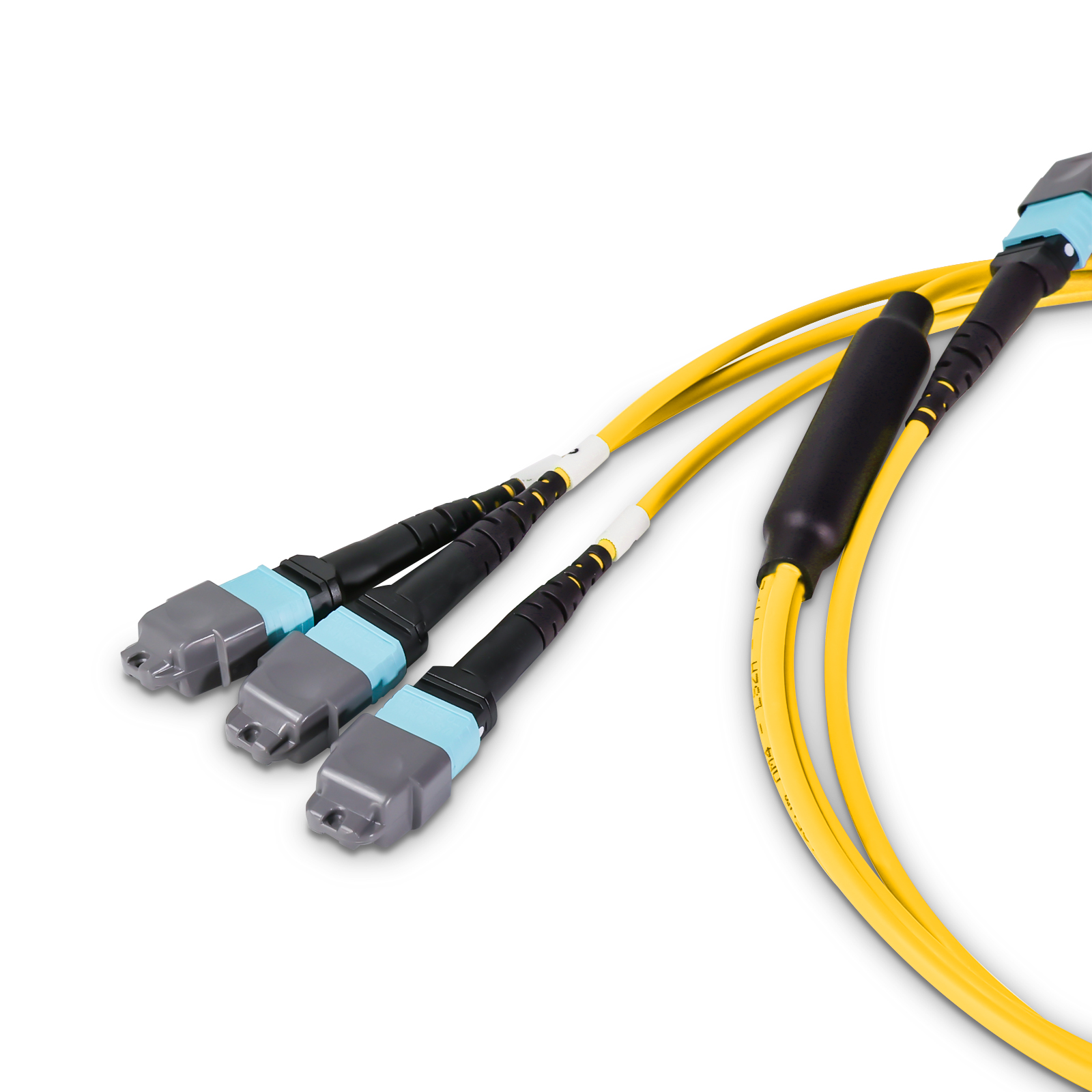

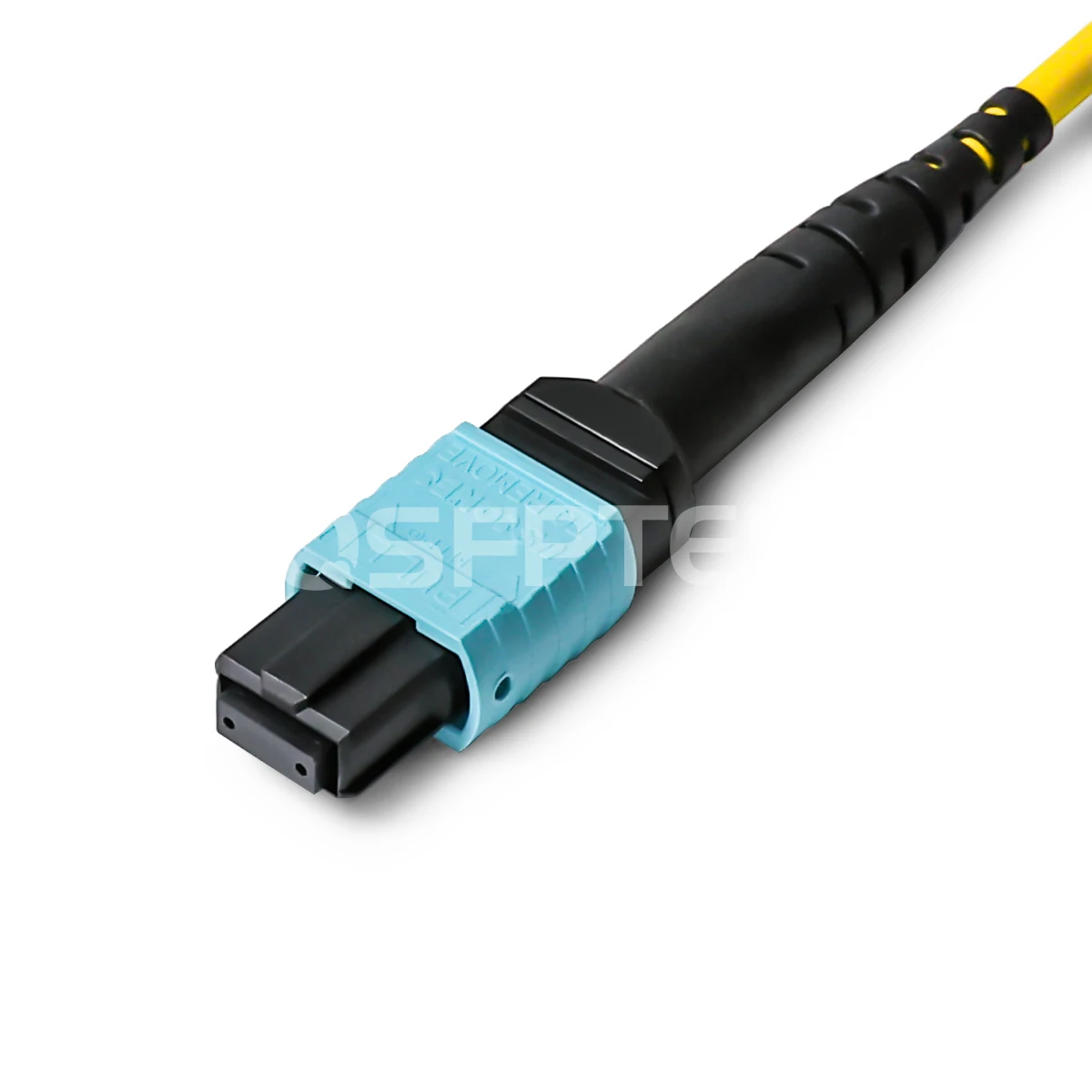

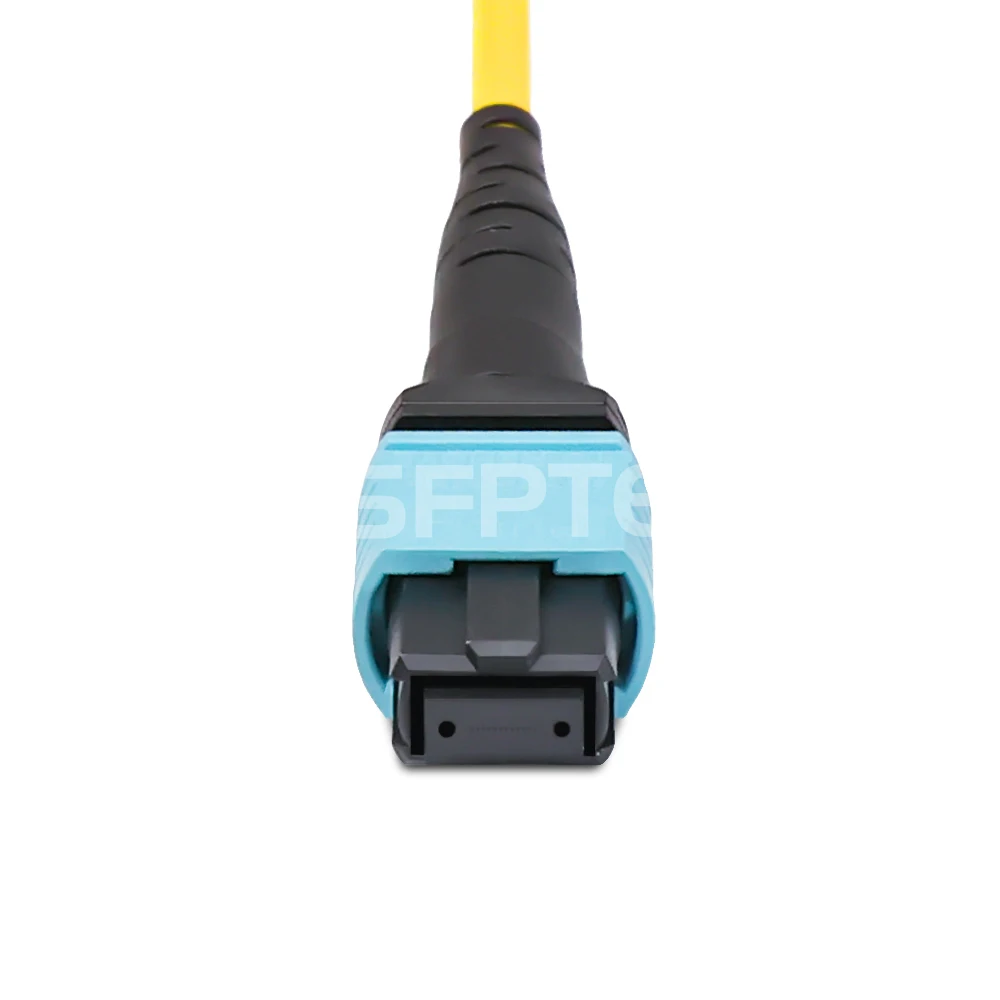

    12m (39ft) 1× 24 MTP Female to 3× 8 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH

    Product No: 102506
    0 Reviews
    944 Sold
    $148.70
    Series
    Length
    33 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. With 0.35dB Low Insertion Loss.
2. Flexible 10mm Min. Bend Radius.
3. LSZH Jacket, flame-retardant and environmentally friendly.
4. Provides a cost-effective and efficient 40G/100G network connection solution.
5. Available in OS2 and OM4.
    See more

    Specifications

    12m (39ft) 1× 24 MTP Female to 3× 8 MTP OS2 9/125 Single Mode Elite Conversion Cable, 24 Fibers, Type B, LSZH



    The MTP conversion cable is crafted to offer an adaptable multi-fiber cabling system utilizing MTP products. In contrast to MTP harness cables, MTP conversion cables terminate with MTP connectors at both ends, introducing greater flexibility to the existing 24-fiber cabling system.



    These 40/100G MTP conversion cables eradicate the inefficiencies associated with unused fibers in the current 40G transmission and upcoming 100G transmission. Opting for MTP conversion cables proves to be a more cost-effective and less loss-prone alternative when compared to the procurement and installation of separate conversion cassettes.



    Fiber Connector MTP Gender Female
    Fiber Count 24 Fibers Fiber Type OS2 9/125μm
    Polish Type UPC to UPC Wavelength 1310/1550nm
    Insertion Loss ≤0.35 Return Loss ≥60dB
    Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18dB/km
    Cable Diameter 3.0mm Breakout Length 0.5m
    Minimum Bend Radius 10mm Cable Jacket LSZH
    Operating Temperature -10°C to 70°C (14 to 158°F) Storage Temperature -40°C to 85°C (-40 to 185°F)
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Cisco QSFP-4X10G-LR-S Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km MTP/MPO Optical Transceiver Module

    $106.90 $129.00
    405 Sold
    17 Reviews

    1m (3ft) MPO-24 APC (Female) to MPO-24 APC (Female) OS2 Singlemode Elite Trunk Cable, 24 Fibers, Type B, LSZH, Yellow

    $52.80
    9.1K Sold
    79 Reviews
    Hot

    S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

    $2409.40 $2999.00
    123 Sold
    171 Reviews

    S7600-24X2Q, 24-Port Ethernet L3+ Switch, 24x 10G SFP+, with 2x 40G QSFP+ Uplinks, Support MLAG, VXLAN

    $1438.00 $1699.00
    138 Sold
    171 Reviews

    1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch

    $6.00 $10.00
    110 Sold
    1 Reviews

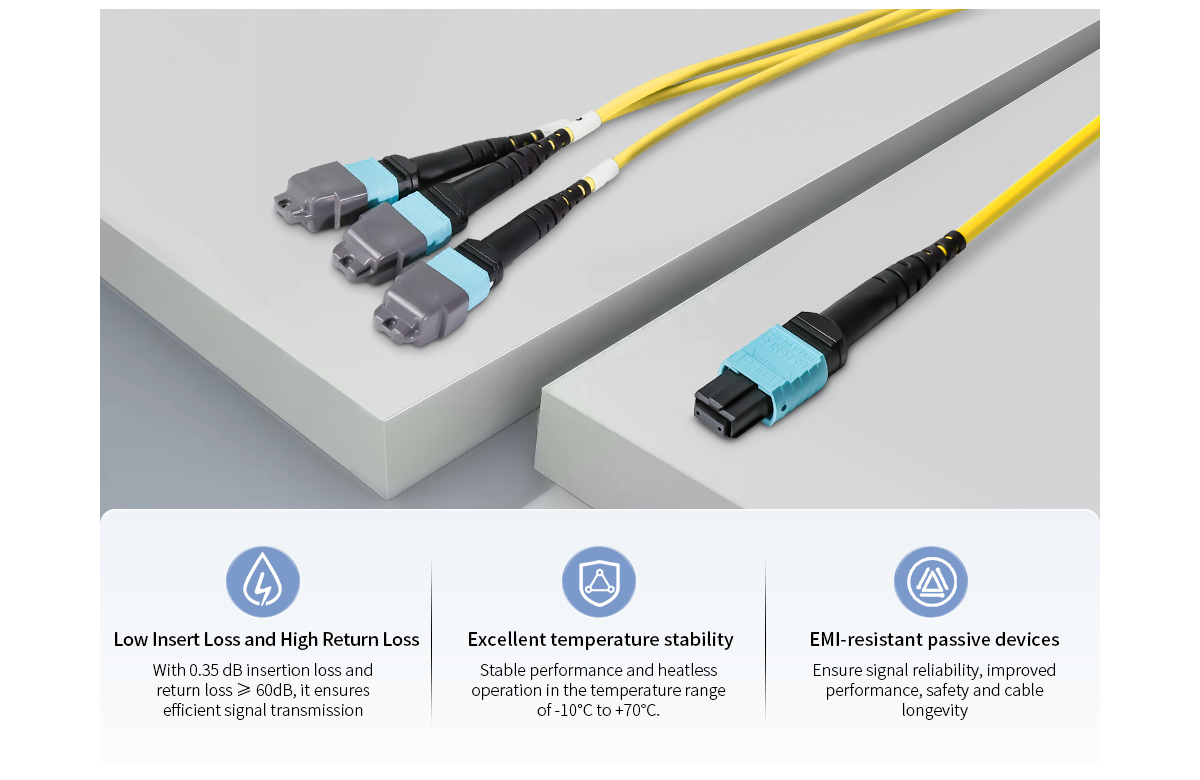

    Features

    • 10mm Min. Bend Radius
      Allow tighter cable bends for slack storage and routing.
    • 0.35dB Max. IL
      Always provide stable signal and realize flexible system design.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

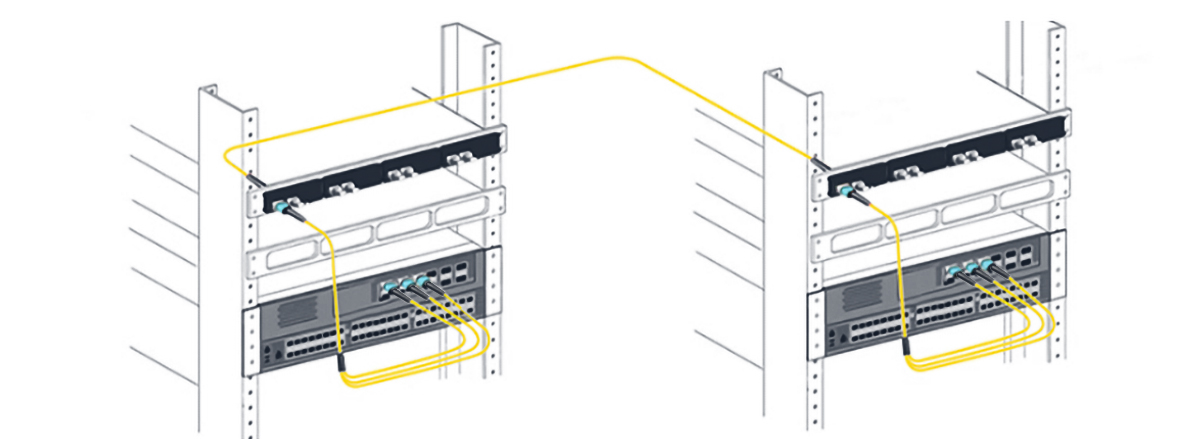

    Applications

    Connection 1:

    Connection 1: 1× 24 MTP Female to 3× 8 MTP OS2

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.



    Robust Cabling for Diverse Environments



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience. And they can enable seamless conversion from 24 to 8 fibers connectivity, ensuring 100% fiber utilization across various environments.

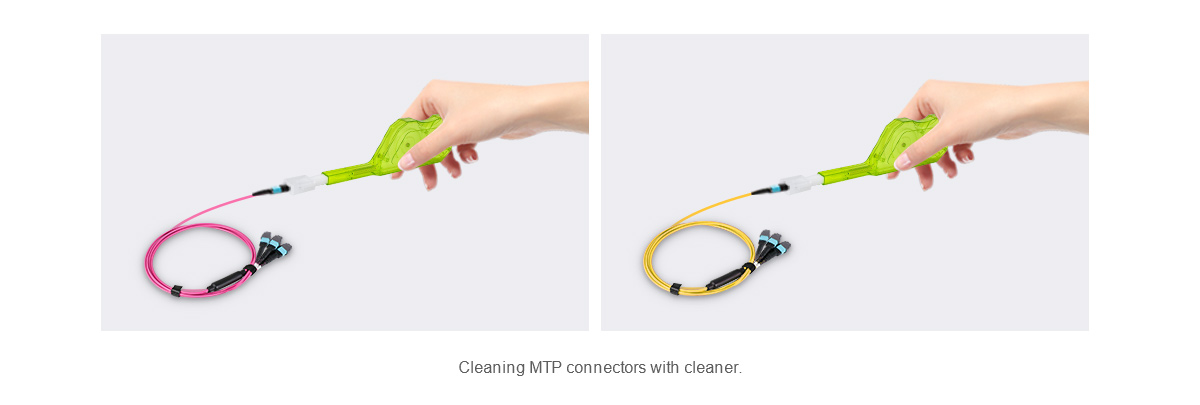

    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.



    Questions & Answers

    • All (3)
    • What is the difference between this conversion cable and other MTP breakout cables?
      MTP converter fiber optic patch cords have the same fan-out structure as MTP branch fiber optic patch cords, but the number and type of fibers are different. MTP converter fiber optic patch cords have MTP/MPO connectors at both ends, which are suitable for high-density cabling, such as 10G-40G/40G-40G/40G-100G/40G-120G network connections, which can effectively avoid fiber waste.
    • How many types of conversion cables are there now?
      Currently, there are three different types of MTP converter fiber optic patch cords: 1x2 MTP converter fiber optic patch cords, 1x3 MTP converter fiber optic patch cords, and 2x3 MTP converter fiber optic patch cords, which are suitable for different application environments.
    • What are the advantages of LSZH?
      LSZH (Low Smoke Zero Halogen) materials typically produce less smoke and harmful gases in the event of a fire than PVC (Polyvinyl Chloride) materials. This is because LSZH materials produce less smoke when burned and do not contain halogenated compounds and therefore do not release harmful gases such as chlorine.
