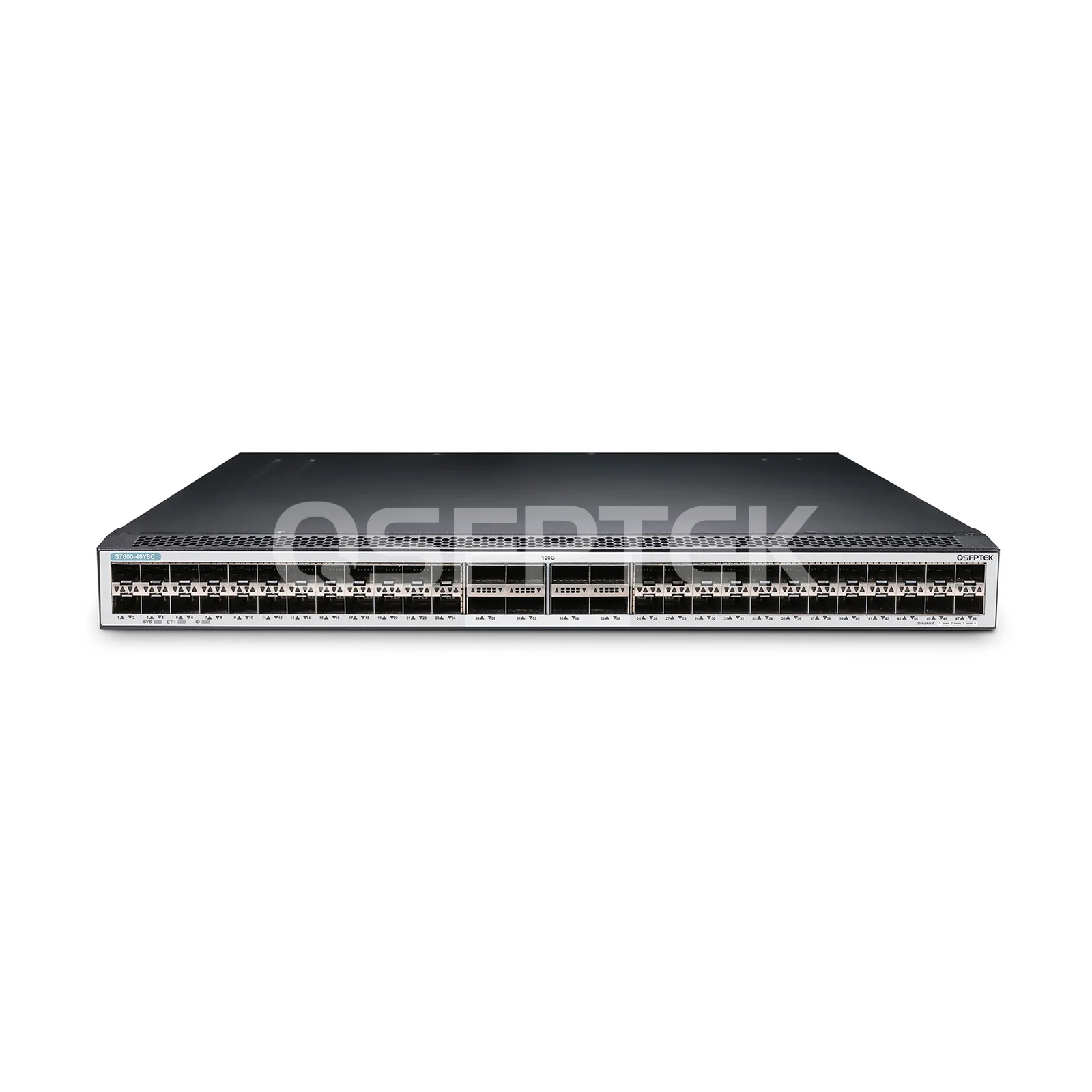

S7600-48Y8C, 48-Port Ethernet L3 Switch, 48x 25G SFP28, 8x 100G QSFP28, Support MLAG, VXLAN

Product No :100493
US$ 5085.90  US$ 7599.00
Series
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=55B2ABA56A91F1788D9A3145BF1D55F0
-
+
1. 48x 25G SFP28 ports and 8x 100G QSFP28 uplink ports
2. 2 hot-swap AC power supplies (1+1 redundancy), 4 hot-swap smart fans
3. Up to 4 Tbps Switch capability and 2976 Mbps forwarding rate
4. Support Data Center features including VARP, VXLAN, EVPN, GRE, NVGRE
5. Support MLAG (Multi-Chassis Link Aggregation) for Networking Reliability
6. Support LACP/ECMP/VRRP/VARP/STP/RSTP/MSTP to protect the network traffic all around effectively
See more

Specifications

S7600-48Y8C, 48-Port Ethernet L3 Switch, 48x 25G SFP28, 8x 100G QSFP28 Uplinks, Support MLAG, VXLAN



QSFPTEK S7600-48Y8C L3 aggregation switch is designed with 48x 25G SFP28 ports and 8x 100G QSFP28 uplinks. This network switch delivers a 4 Tbps switching capacity and 2976 Mpps forwarding rate to meet high-performance aggregation layer requirements. With 2 hot-swap AC power supplies (1+1 redundancy) and 4 hot-swap smart fans, the switch provides hardware redundancy for high reliability.



As a layer 3+ managed switch, it supports full layer 3 features (static routing, RIP, OSPF, BGP, etc.) and advanced data center features such as MLAG for high-reliability and VXLAN, NVGRE, GENEVE tunnel technology for virtual networking.



S7600 series Aggregation switches support remote direct memory access (RDMA), which over other network APIs for lower latency, CPU load and higher bandwidth. This 48-port 25G switch caters to the Ethernet aggregation platform to HCI (hyper-converged infrastructure), cloud networking, data center, and enterprise applications.



Part Number S7600-48Y8C Vendor Name QSFPTEK
Ports 48x 25G SFP28 | 8x 100G QSFP28 Switching Capacity 4 Tbps
MAC Address 122880 Forwarding Rate 2976 Mpps
Number of VLANs 4K ARP Table 16K IPv4
Flash 8GB Memory 2GB
Packet Buffer 36 Mpps Jumbo Frame 9.6K
IPv4 Routes 60K IPv6 Routes 4K
Power Supply 2 hot-swap AC power supplies (default), DC optional Fan Number 4 hot-swap smart fans
Airflow Front-to-Back DHCP Support
Dimensions (H x W x D) 44 x 442 x 422.5 mm
(1.73 x 17.40 x 16.63″)
Weight 9.2 kg
MTBF >162213 hours Warranty 5 Years

Quality Testing Program
Quality Certifications

Features

  • High capacity, high availability and multi-service support
    Support 10G/25G/40G/100G ports to meet different network requirements.
  • Support diverse data center features
    The S7600 series supports leading edge Data Center features: MLAG, VXLAN, EVPN, Priority Flow Control (PFC), explicit Congestion Notification (ECN) and Data Center TCP, etc.
  • Highly controlled QOS and security function
    Support WDRR (Weighted Deficit Round Robin)/SP (Strict Priority) and TD (Tail Drop) and other multi-level scheduling technologies )/WRED (Weighted Random Early Detection) to prevent congestion.
  • Convenient and easy-to-use management
    Support multiple management interfaces, including Console port/inband network port/outband network port/USB interface. Support SNMP v1/v2/v3, support CLI (Command Line Interface), Web management, Telnet and FTP connections.

Applications

Scenario 1:





Reated Products:

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100M optical transceiver Module

7m (23ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Breakout Cable

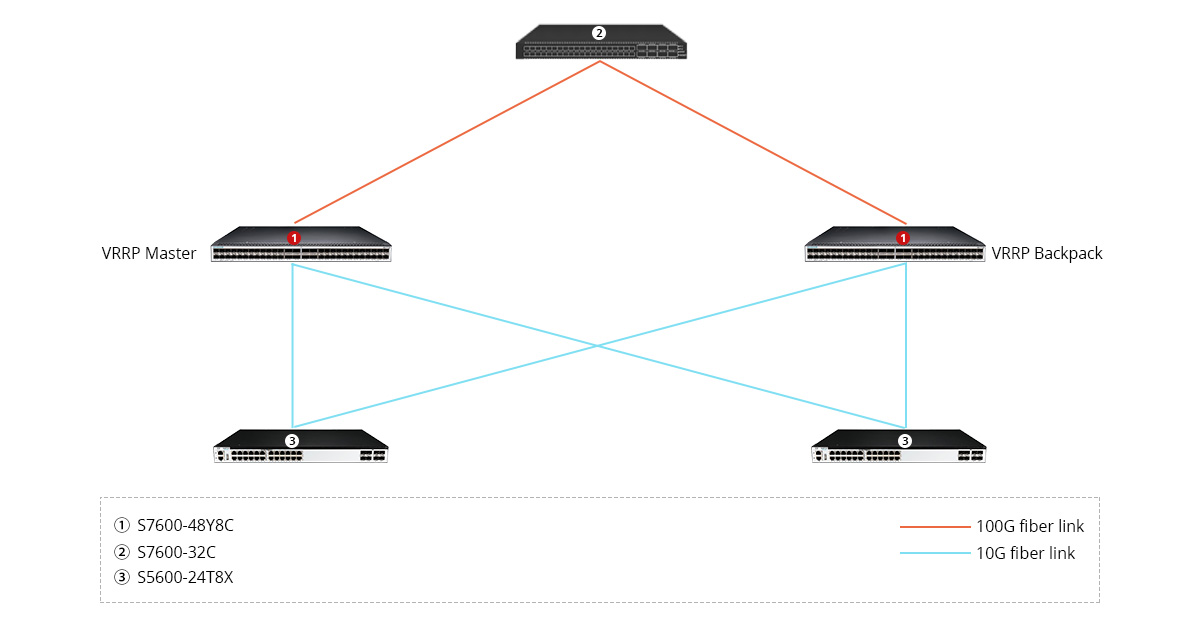

Scenario 2:



Reated Products:

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support MLAG

Cisco QSFP-100G-SR4-S Compatible 100GBASE-SR4 QSFP28 850nm 100m Optical Transceiver Module

Cisco SFP-10G-SR-S Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

1m (3ft) MTP-12 (Female) to MTP-12 (Female) OM4 Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

LC UPC to LC UPC Duplex OM4 2.0mm PVC Multimode Fiber Optic Patch Cable 0.5m



Scenario 3:



Reated Products:

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support MLAG

Cisco SFP-10G-SR-S Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OM4 2.0mm PVC Multimode Fiber Optic Patch Cable 0.5m

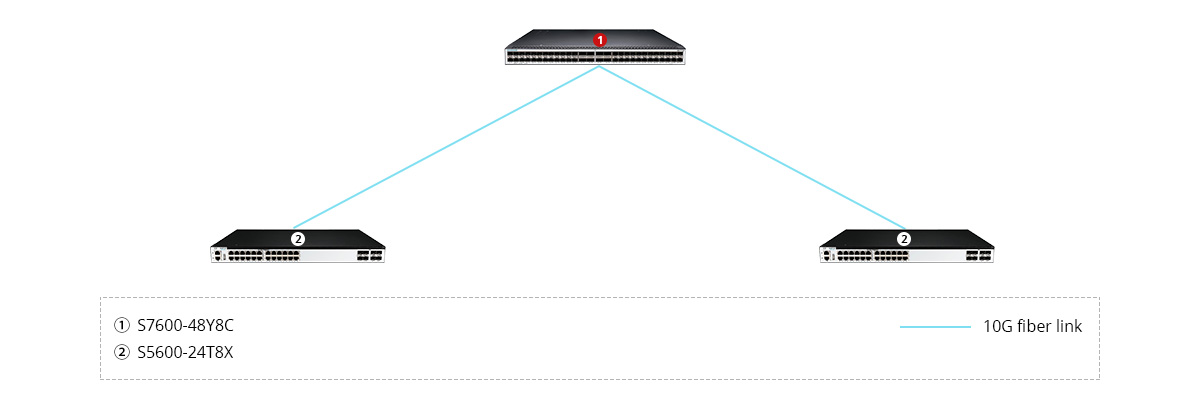

Scenario 4:



Reated Products:

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support MLAG

Cisco SFP-10G-SR-S Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OM4 2.0mm PVC Multimode Fiber Optic Patch Cable 0.5m

Product details

48x 25G/8x 100G Ports for Variety of Client Types



25G SFP28 ports for access or aggregation switches, 100G uplinks for core switches. 56 Ports Meet the needs of high-density deployment.

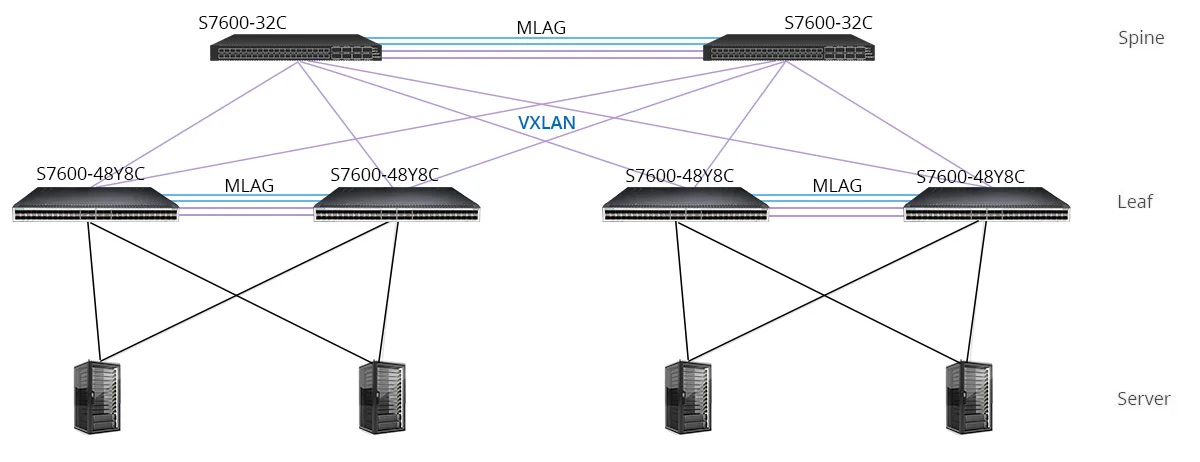

Upgrading your network to high density and high flexibility



Using high-density 100G devices (S7600-32C) as the core (Spine) of the data center and high-density 25G devices (S7600-48Y8C) as the access layer (Leaf), deploying a spine-leaf network architecture enables VXLAN data center networking. This setup ensures extensive virtual machine migration and flexible deployment of user services.

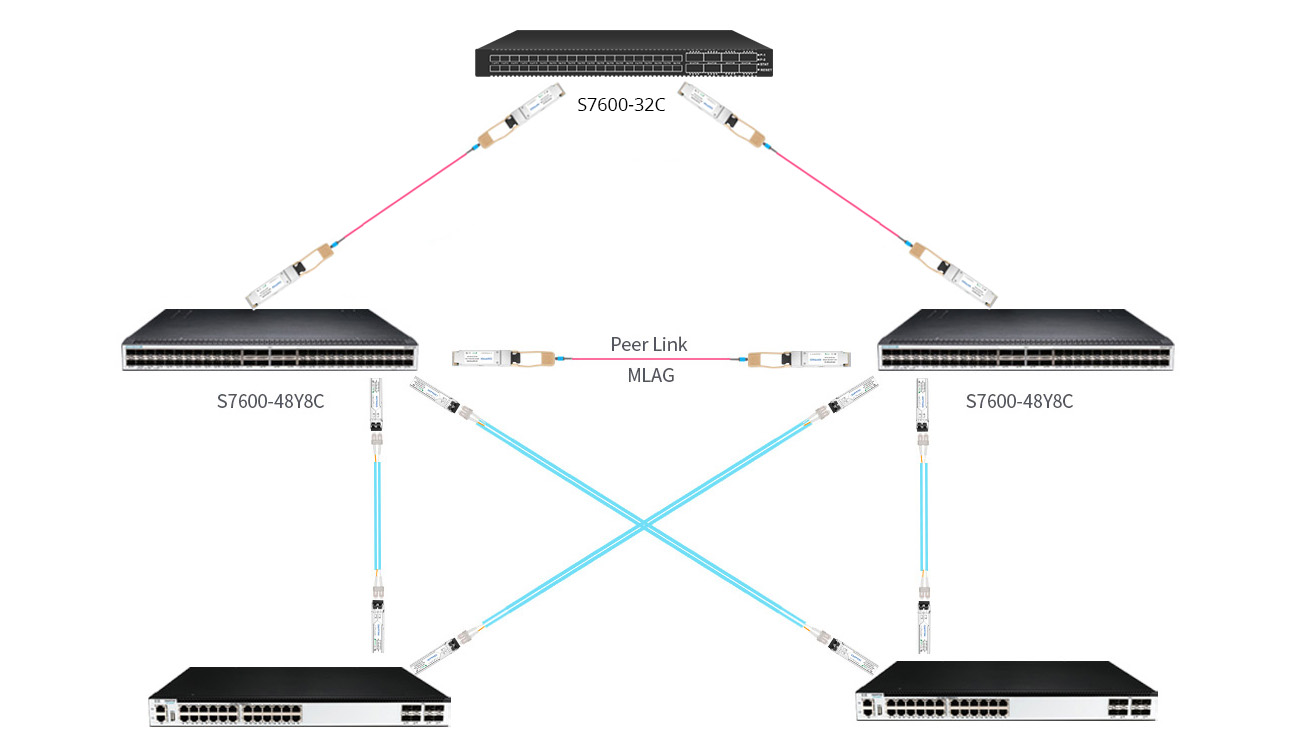

MLAG Implements Device-level Link Reliability



The switch running MLAG can be connected through a peer-link link and perform link aggregation negotiation with the host in the same state. After the M-LAG member devices receive the traffic sent by the access device through link bundling and load sharing, they can jointly perform negotiate link aggregation traffic forwarding.

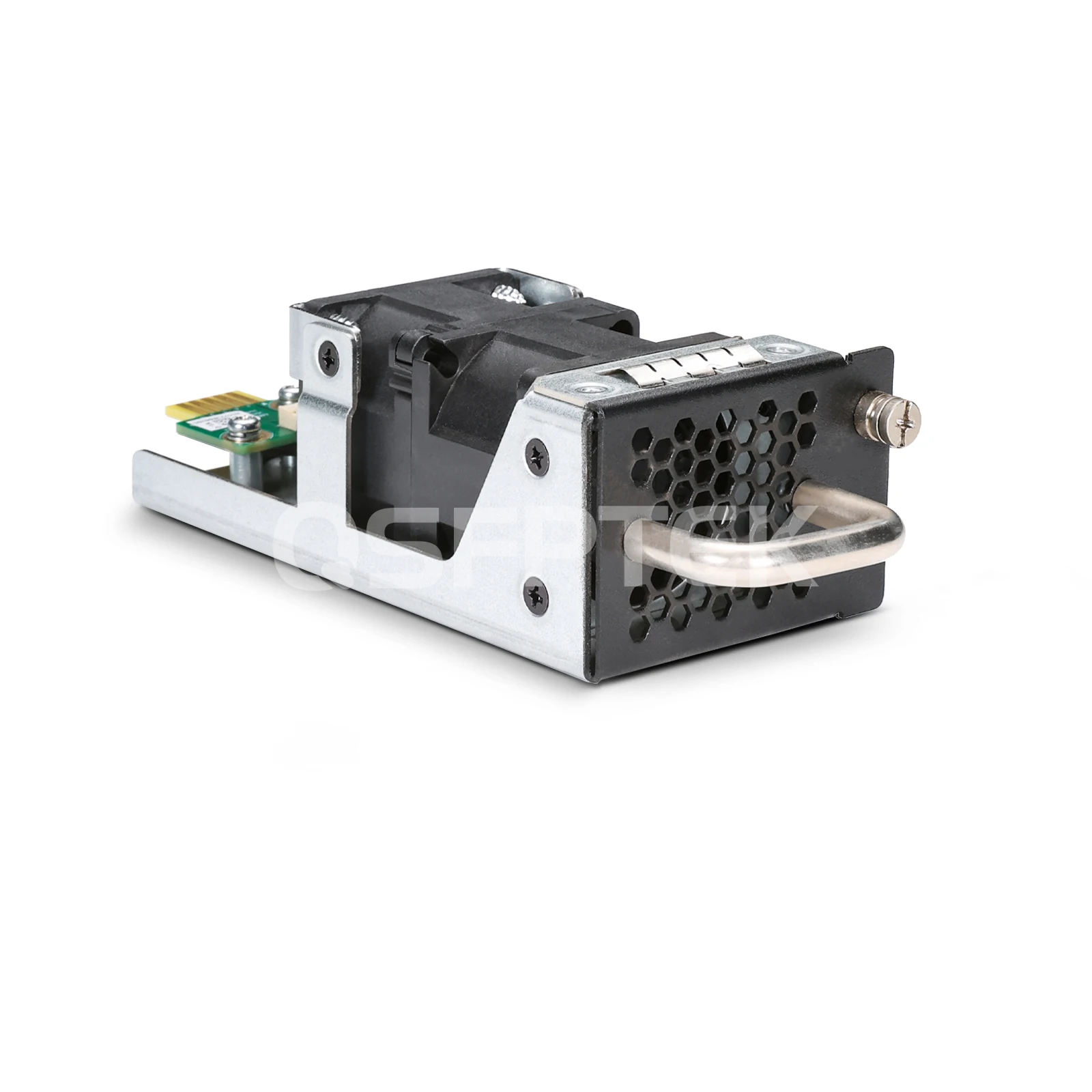

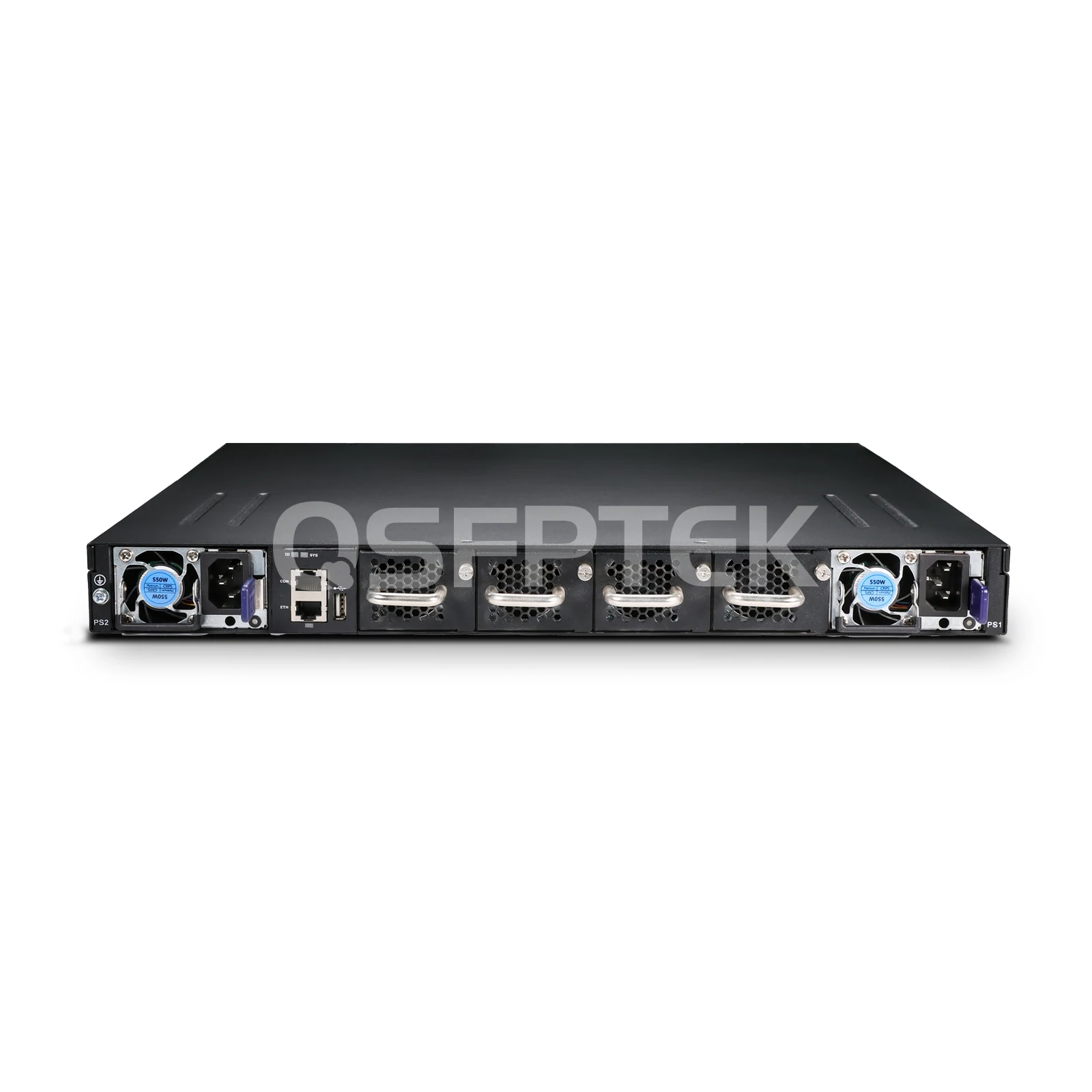

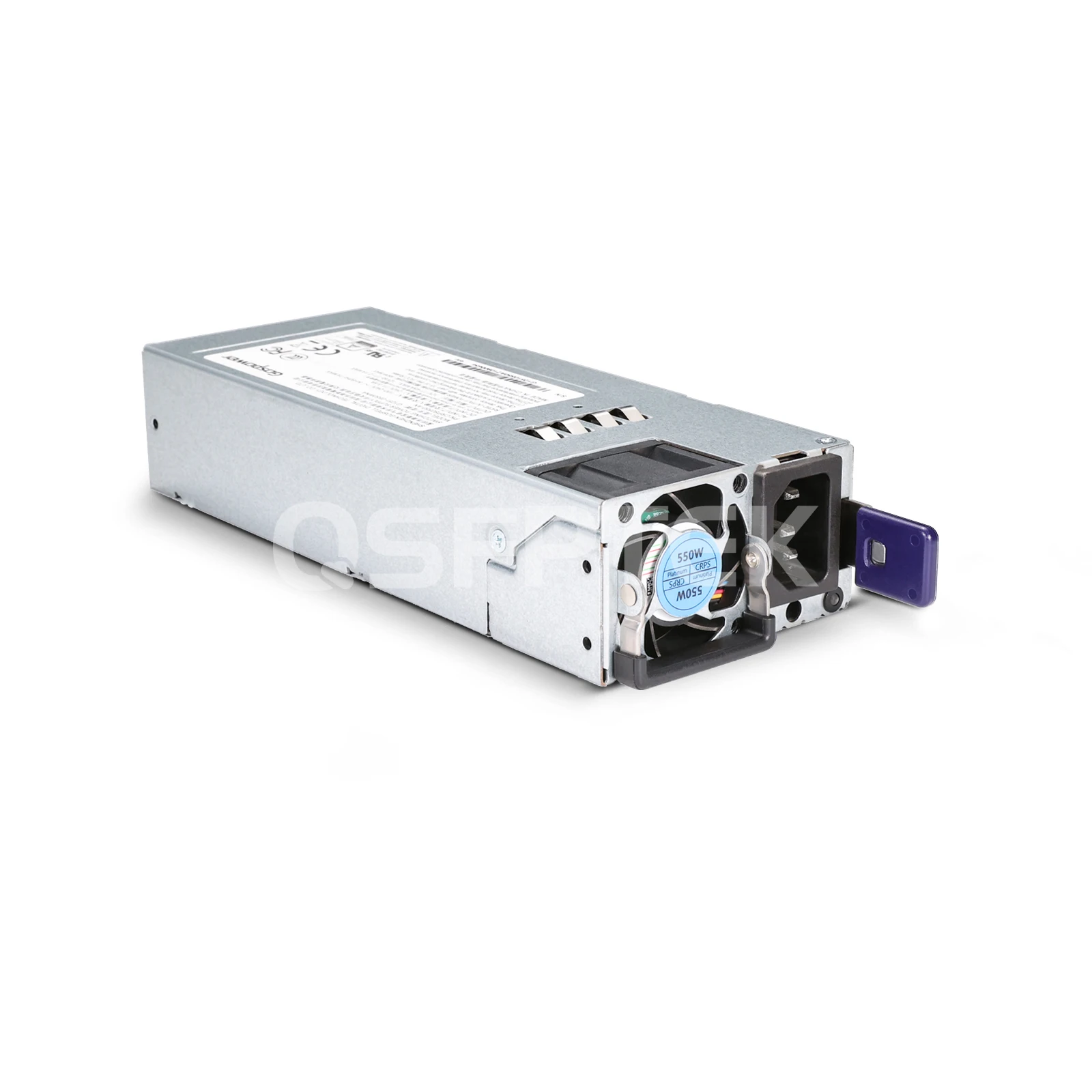

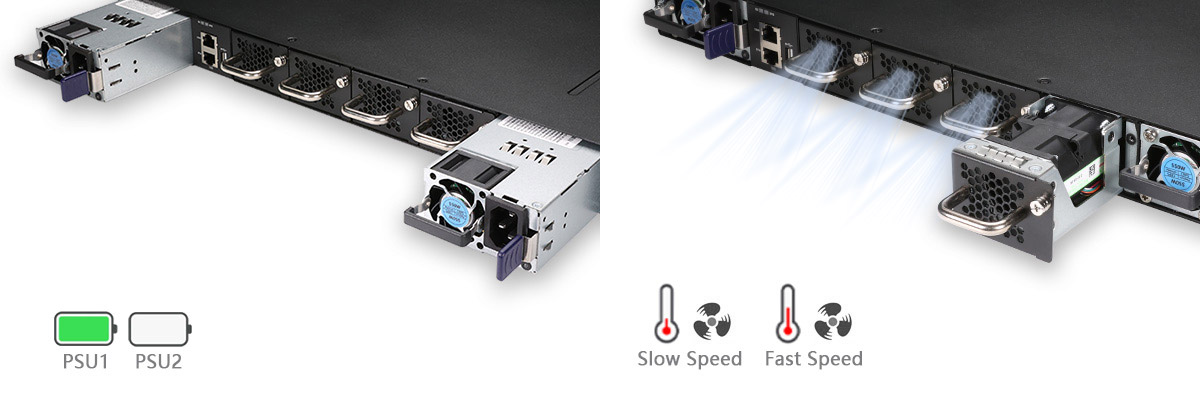

1+1 Hot-Swappable Power Supplies and 4 Modular Pluggable Fans



Dual power supplies allow for on-the-fly replacements, the chassis features front-to-back airflow, and fans automatically adjust speed to control noise and power consumption.





Outstanding QOS for Precise Traffic Control

Each port of the S7600-48Y8C provides 10 hardware queues (8 unicast queues, 1 multicast queue, and 1 listening queue). Support WDRR (Weighted Deficit Round Robin)/SP (Strict Priority) and TD (Tail Drop) and other multi-level scheduling technologies )/WRED (Weighted Random Early Detection) to prevent congestion.



S7600 Series L3+ Switches



Model S7600-24X2Q S7600-24X2C S7600-24Y4C S7600-48X8C S7600-48Y8C
RJ45 Ports
Fiber Ports 24x 10G SFP+ | 2x 40G QSFP+ 24x 10G SFP+ | 2x 100G QSFP28 24x 25G SFP28 | 4x 100G QSFP28 48x 10G SFP+ | 8x 100G QSFP28 48x 25G SFP28 | 8x 100G QSFP28
Management Layer L3+ Managed L3+ Managed L3+ Managed L3+ Managed L3+ Managed
1+1 Hot-Swap Power Supplies
Fan 3 Built-in Fans 3 Built-in Fans 4 Hot-Swap Fans 4 Hot-Swap Fans 4 Hot-Swap Fans
MLAG
Data Link Layer VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN, private VLAN VXLAN, QinQ, VPLS, L2VPN, private VLAN VXLAN, QinQ, VPLS, L2VPN, private VLAN
Routing RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN
Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, MAC security, Dot1x IGMP snooping, MLD Snooping, MAC security, Dot1x IGMP snooping, MLD Snooping, MAC security, Dot1x
IPv6 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3
Reliability MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN

Questions & Answers

more+
  • Do your S5600 or S7600 series switches support NG-mVPN?
    Sorry, Our S5600 and S7600 series switches support BGP EVPN, L2VPN, and L3VPN, but don't support NG-mVPN.
  • What's the airflow of the S7600-48Y8C switch's fan?
    The switch comes with 2+2 redundant intelligent fans for front-to-back air flow. In addition, these 4 fans all support hot swapping.
  • Can the S7600-48Y8C support advanced features such as VXLAN/EVPN?
    Yes, the switch supports VXLAN and EVPN. You can check all the functions it supports through the datasheet.
