Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Breakout Cables / 103310

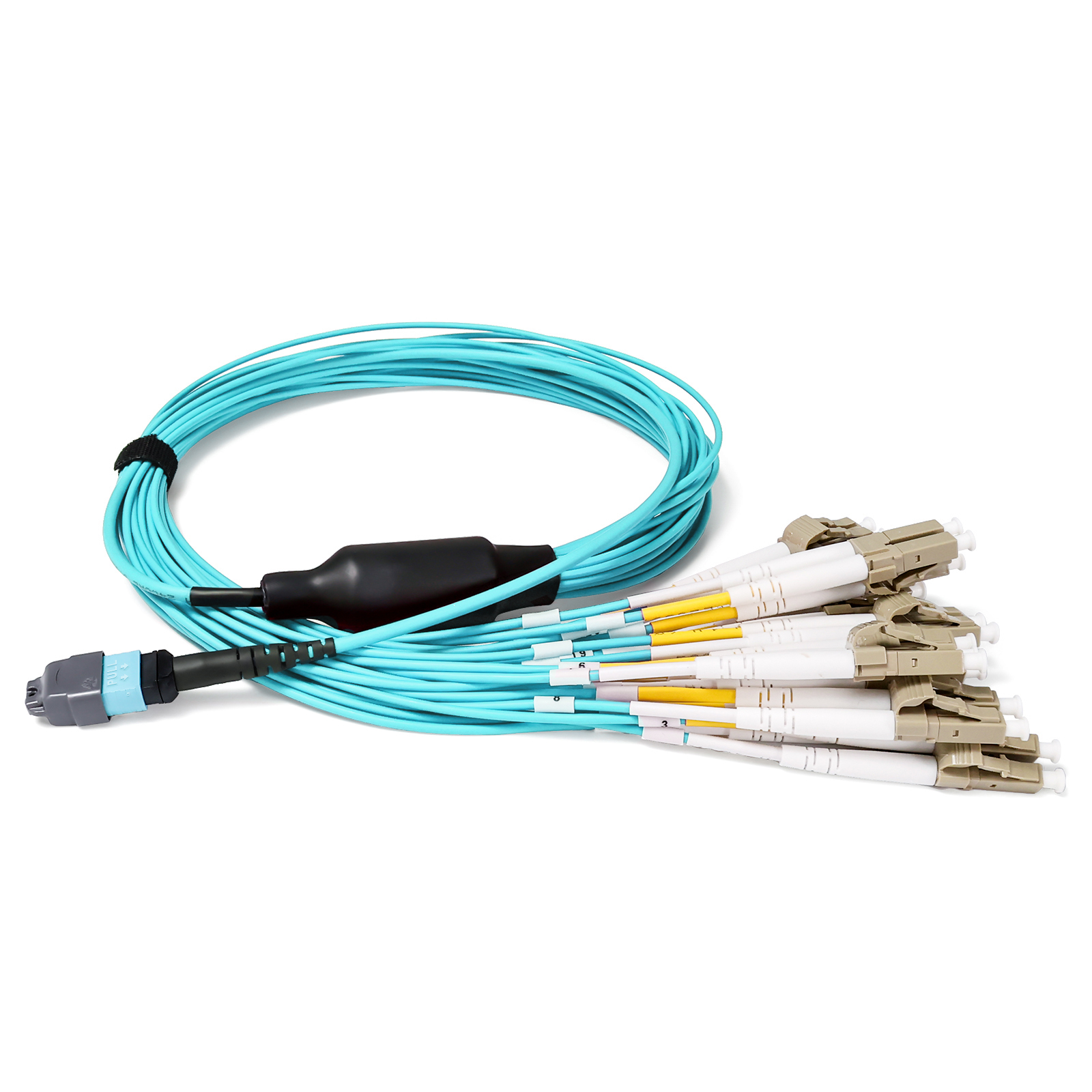

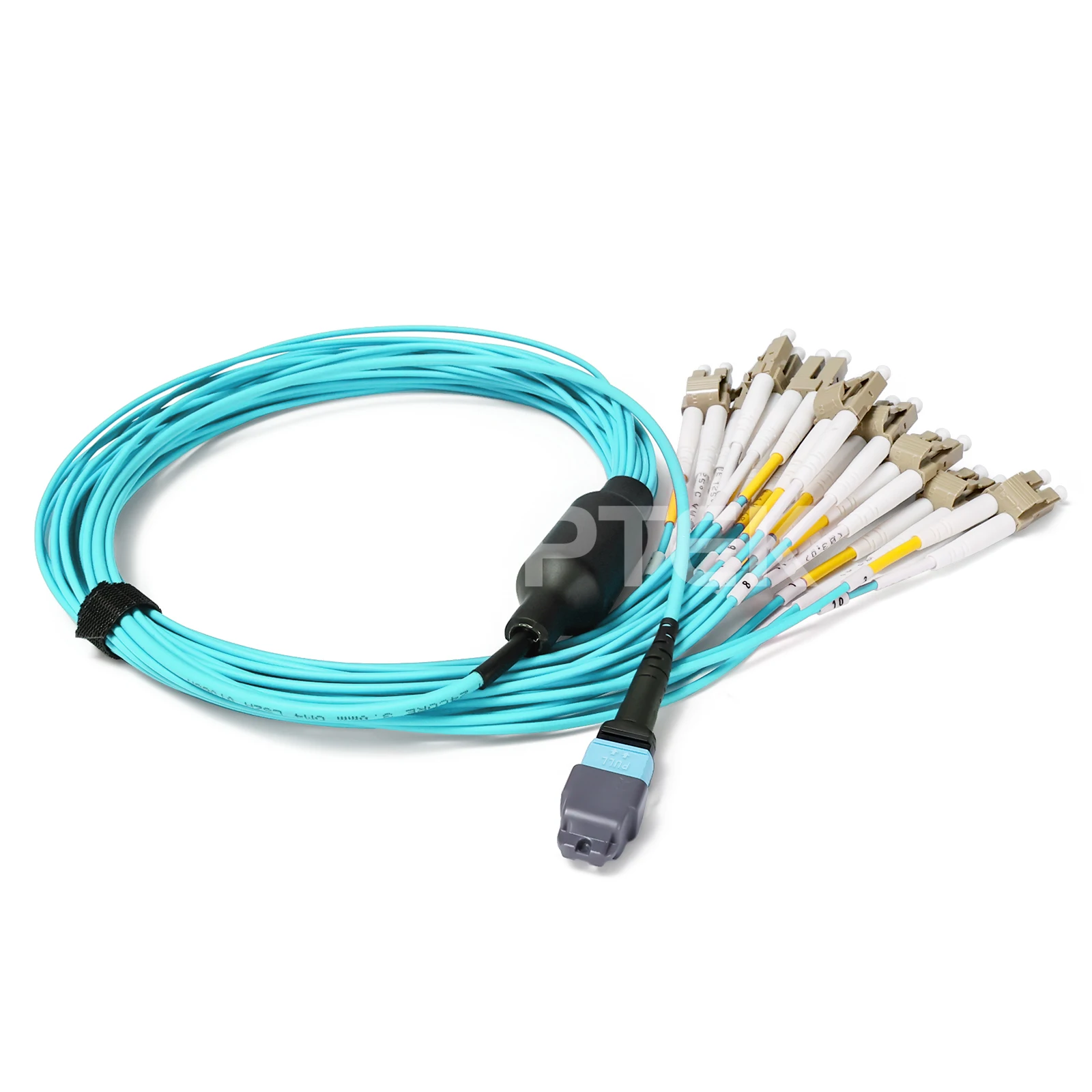

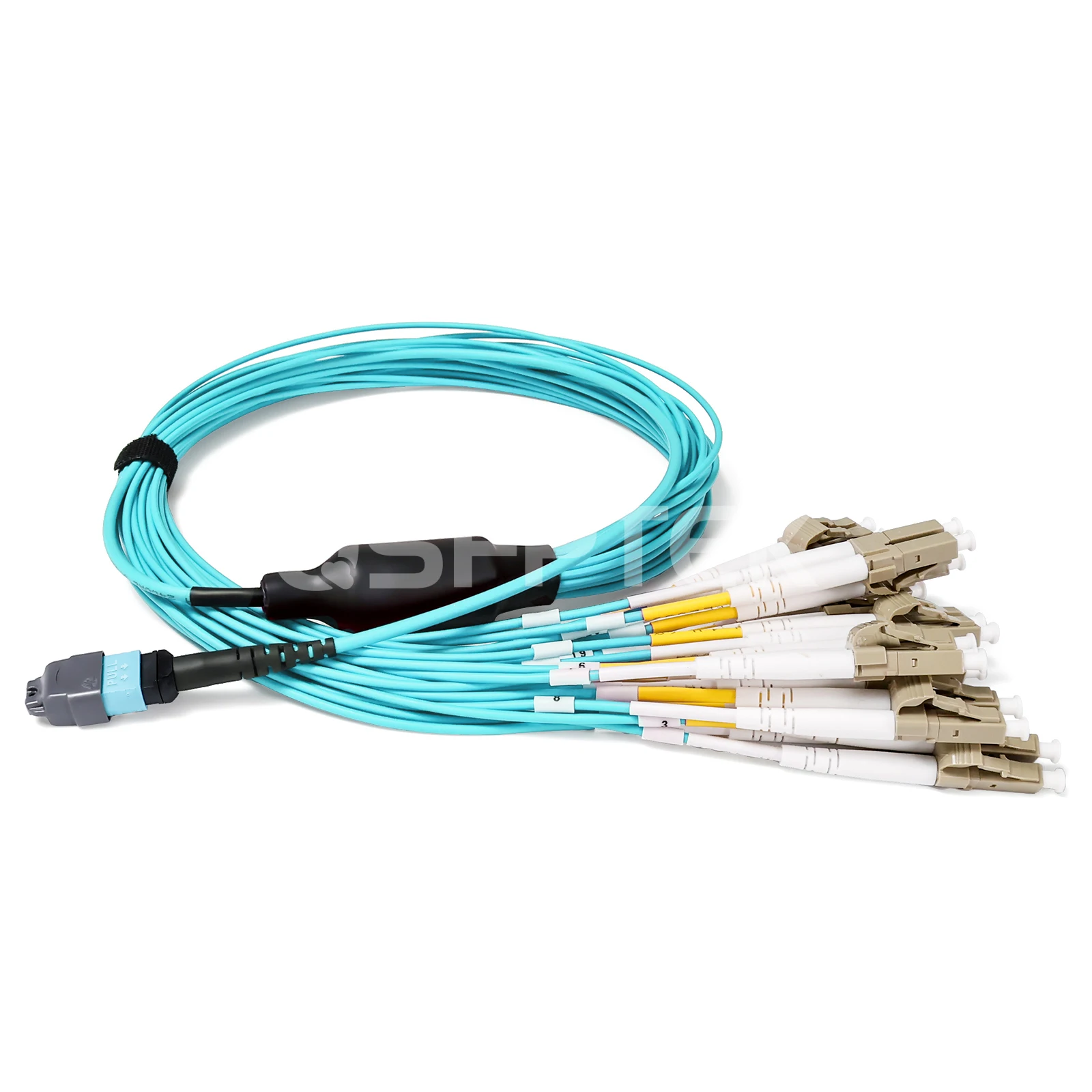

7m (23t) MPO-24 UPC (Female) to 12x LC UPC Duplex OM3 Multimode Elite Breakout Cable, 24 Fibers, Type B, LSZH, Aqua

Product No :103310
US$ 62.10
Series
Length
64 in real-time stock, 01Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 7.5mm Min. Bend Radius
2. With 0.35dB low insertion loss
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly
4. Support 100G CPAK to multiple 10G breakout applications
5. Meticulous design and standard testing ensure stable high-speed data transmission
See more

Specifications

7m (23t) MPO-24 UPC (Female) to 12x LC UPC Duplex OM3 Multimode Elite Breakout Harness Cable, 24 Fibers, Type B, LSZH, Aqua



The MPO-24 multimode breakout cable converts an MPO connector to 12x LC duplex connectors, providing a cost-effective high-density cabling solution for scenarios where rack space saving and cable management is in concern. This 24 fibers MPO to 12 LC OM3 multimode breakout cable is commonly used for data rata conversion, such as splitting a single high-speed link (like a 100G CPAK transceiver) into multiple 10G channels, which are then routed to individual LC SFP+ transceivers.

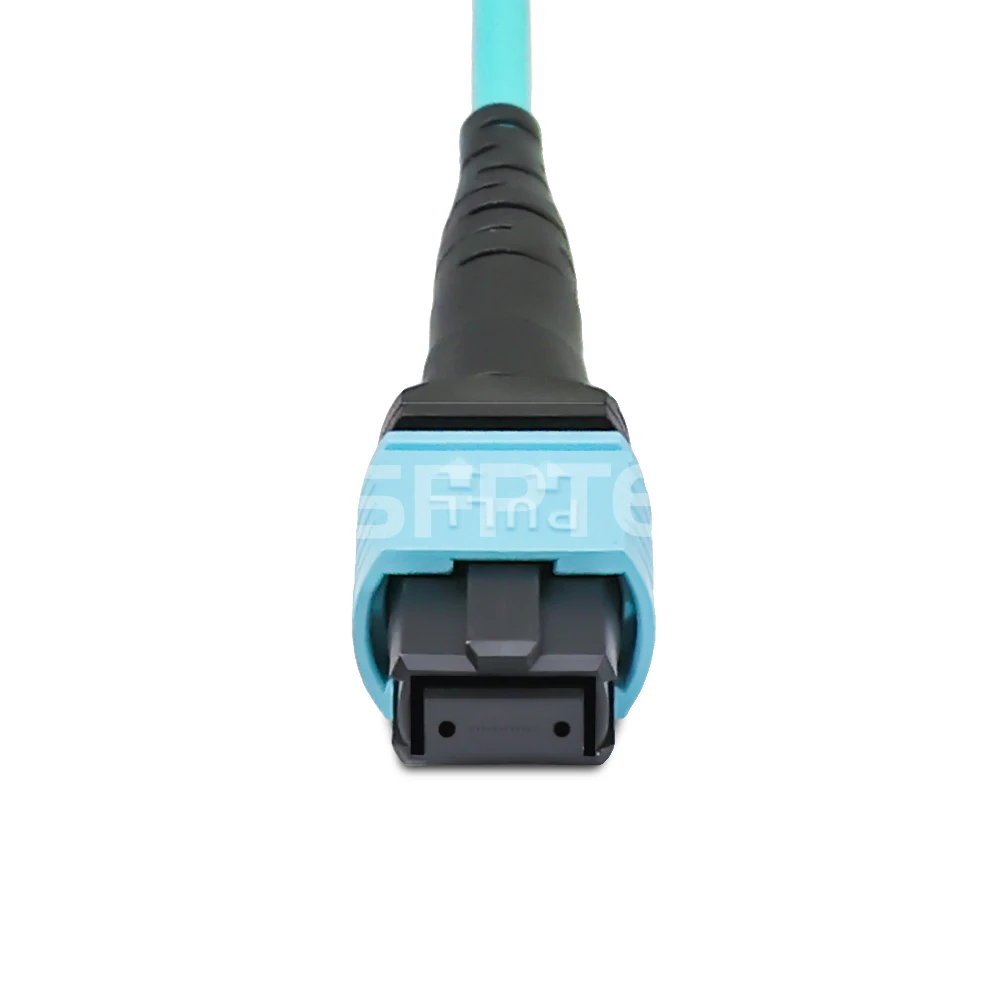

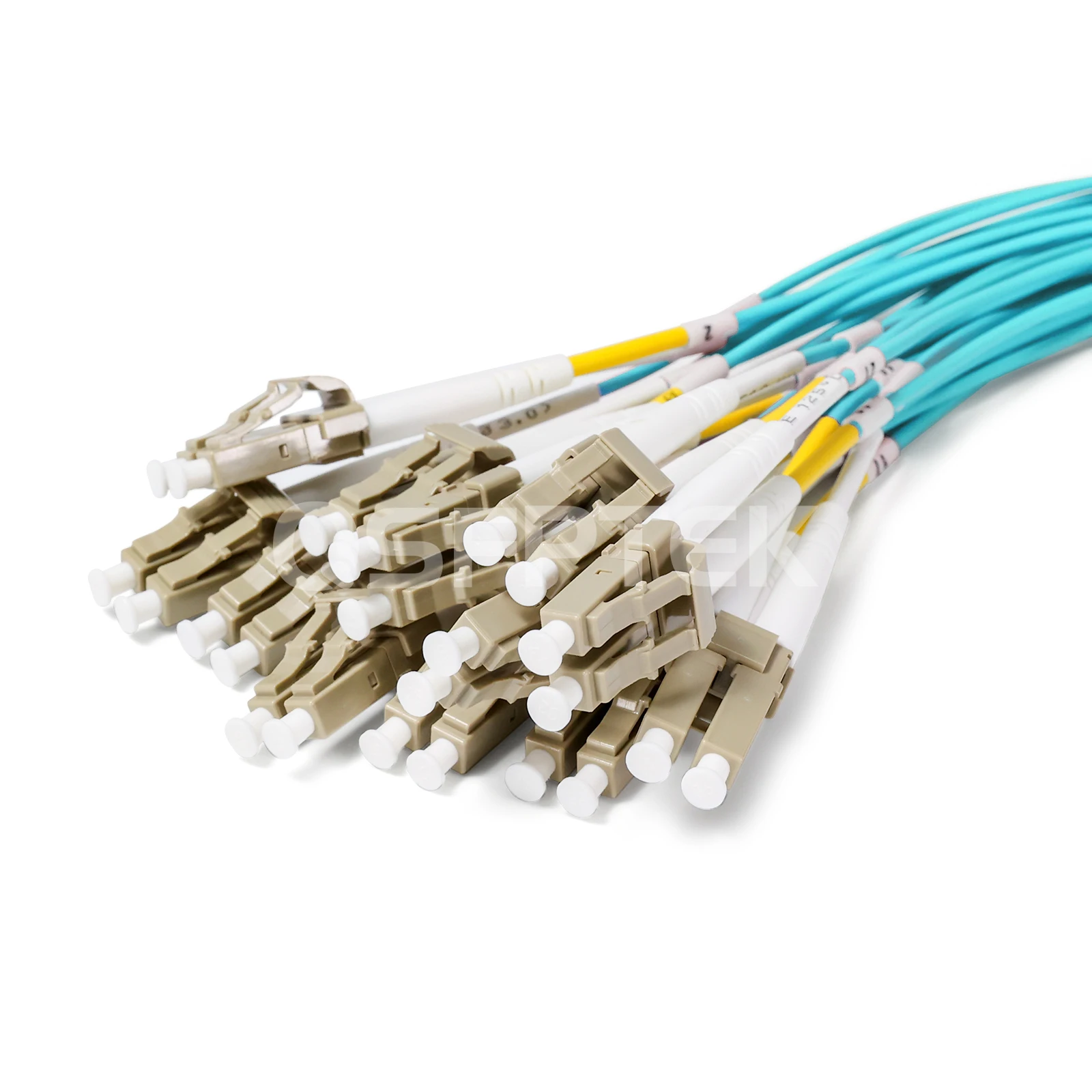

Connector A MPO Female Connector B LC UPC Duplex
Fiber Count 24 Fibers Fiber Type OM3 MMF 50/125μm
Polish Type UPC to UPC Cable Material LSZH
Armoured No Wavelength 850/1300nm
Insert Loss ≤0.35dB Return Loss ≥30dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤2.3 at 850nm, ≤0.6 at 1300nm Polarity Type B
Max. Transmission Distance 300m Effective Bandwidth ≥2000MHz·km at 850nm
Operating Temperature -10℃~ to 70℃ Storage Temperature -40℃ to +85℃



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 7.5mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term)
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

 100G CPAK to 10x 10G Connection:

100G CPAK to 10x 10G Connection

Related Products:

S7300-48X2Q4C, 48-Port Ethernet L3 Switch, 48x 10G SFP+, with 2x 40G QSFP+ and 4x 100G QSFP28 Uplinks, Support Stacking

Cisco SFP-10G-SR-S Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module



Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



These cables prioritize attention to detail and high-quality construction. Additionally, MPO-24 connectors adopt optimized design and precise manufacturing processes, effectively reducing signal loss during optical transmission, ensuring the stability and reliability of data transmission.

 Excellent Transmission Stability Ensured by Superior Craftsmanship







High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.



High-Performance Fiber with Superior Durability




Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



Reliable Transmission Quality with Carrier-Grade Cables



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
