    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Breakout Cables / 103164
    Product image
    Product image

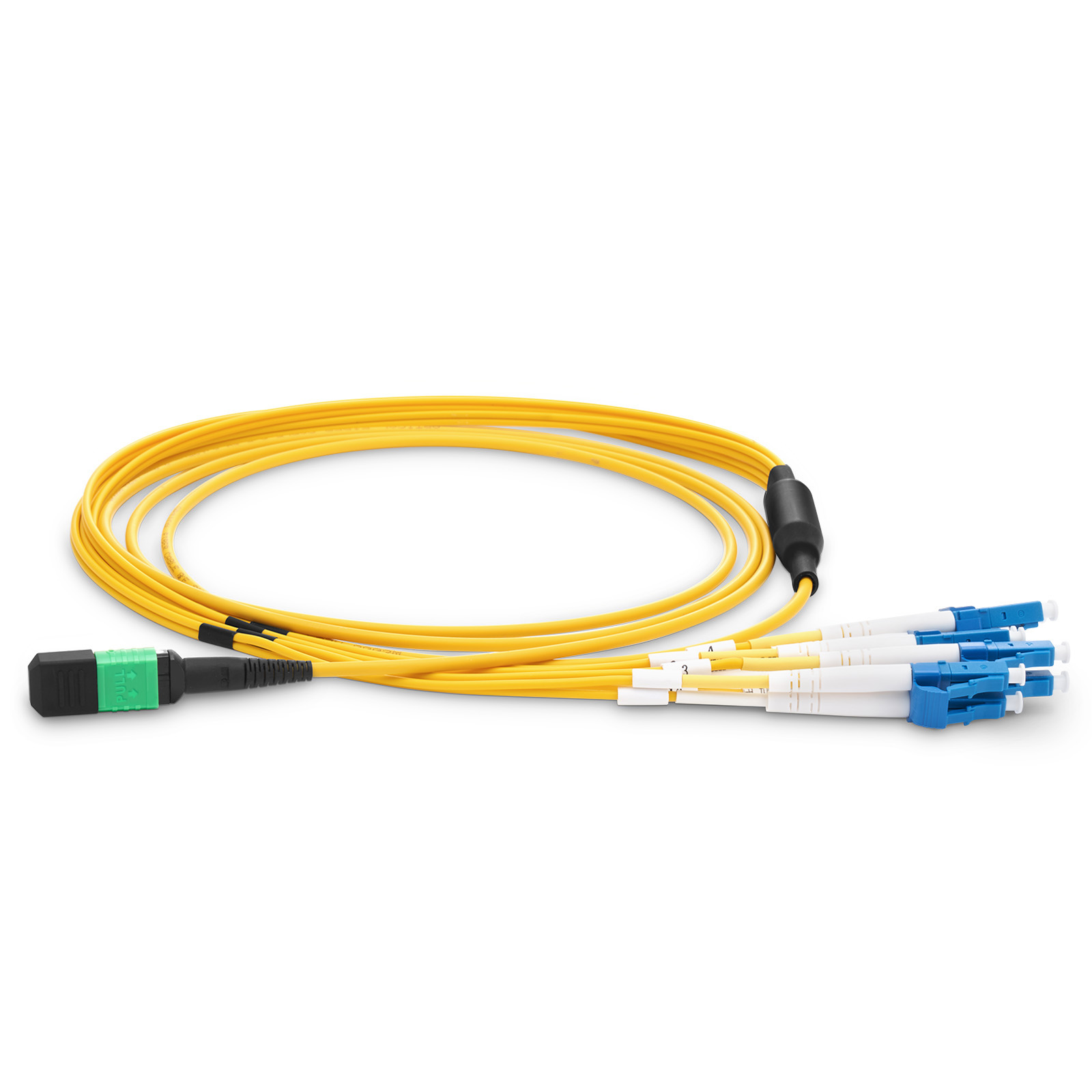

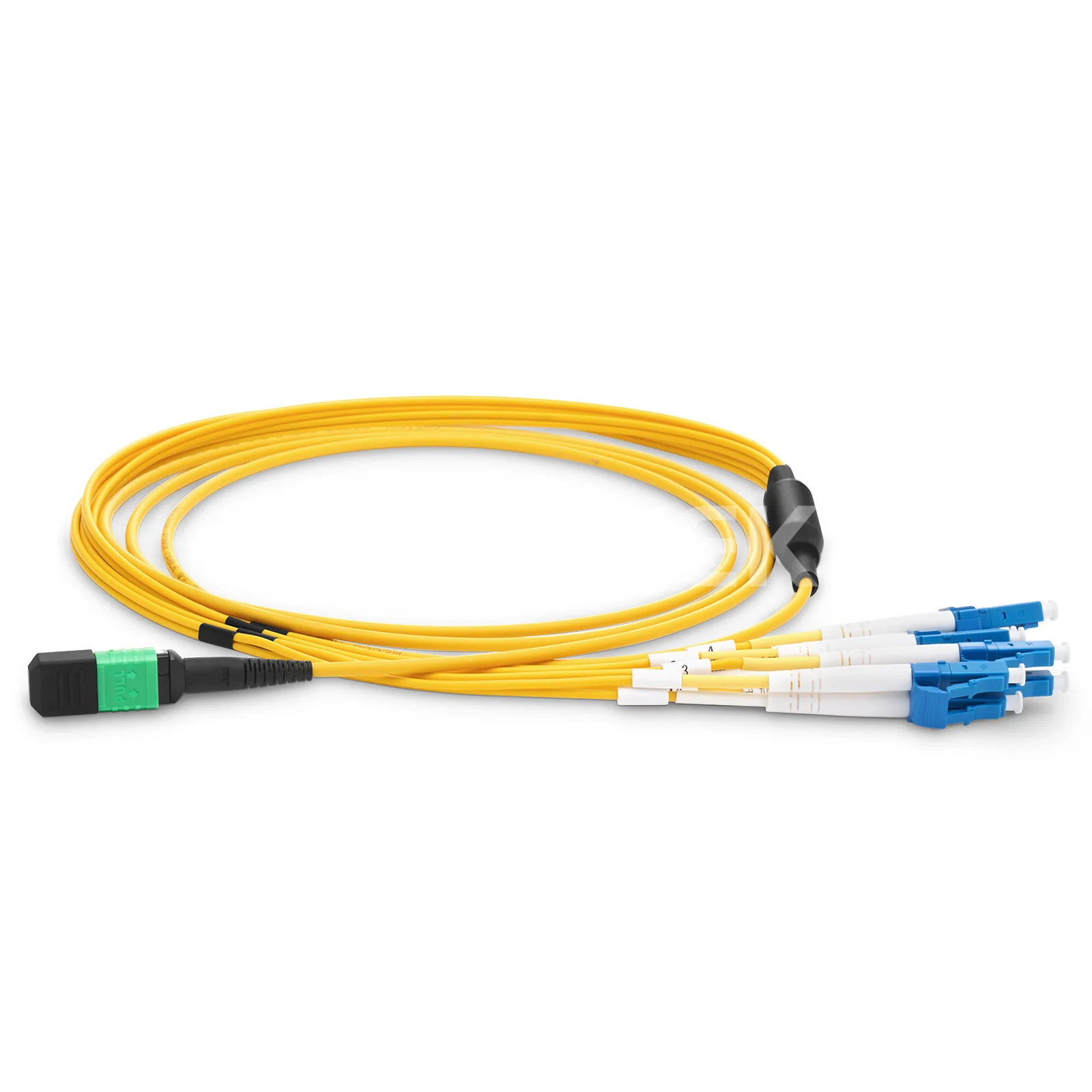

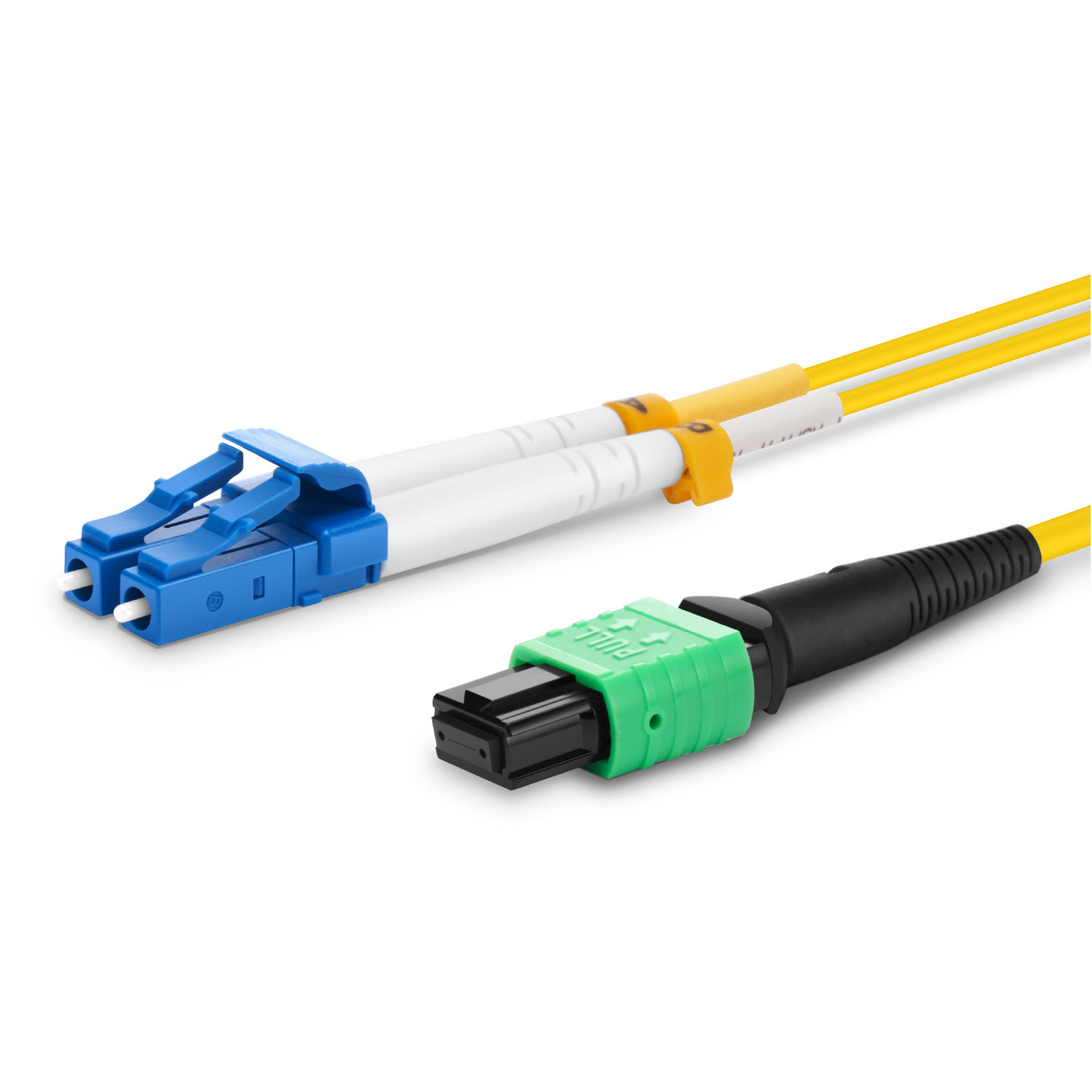

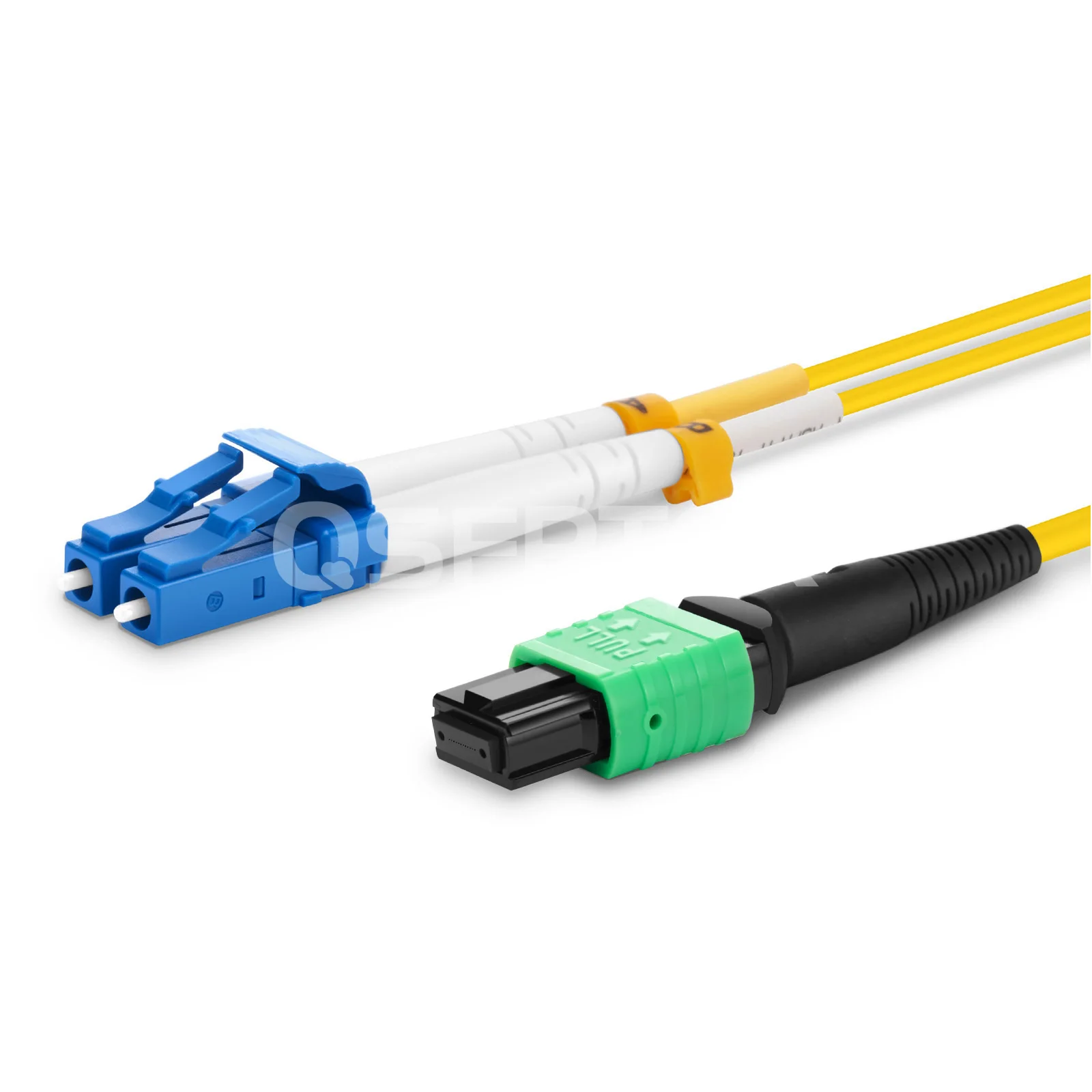

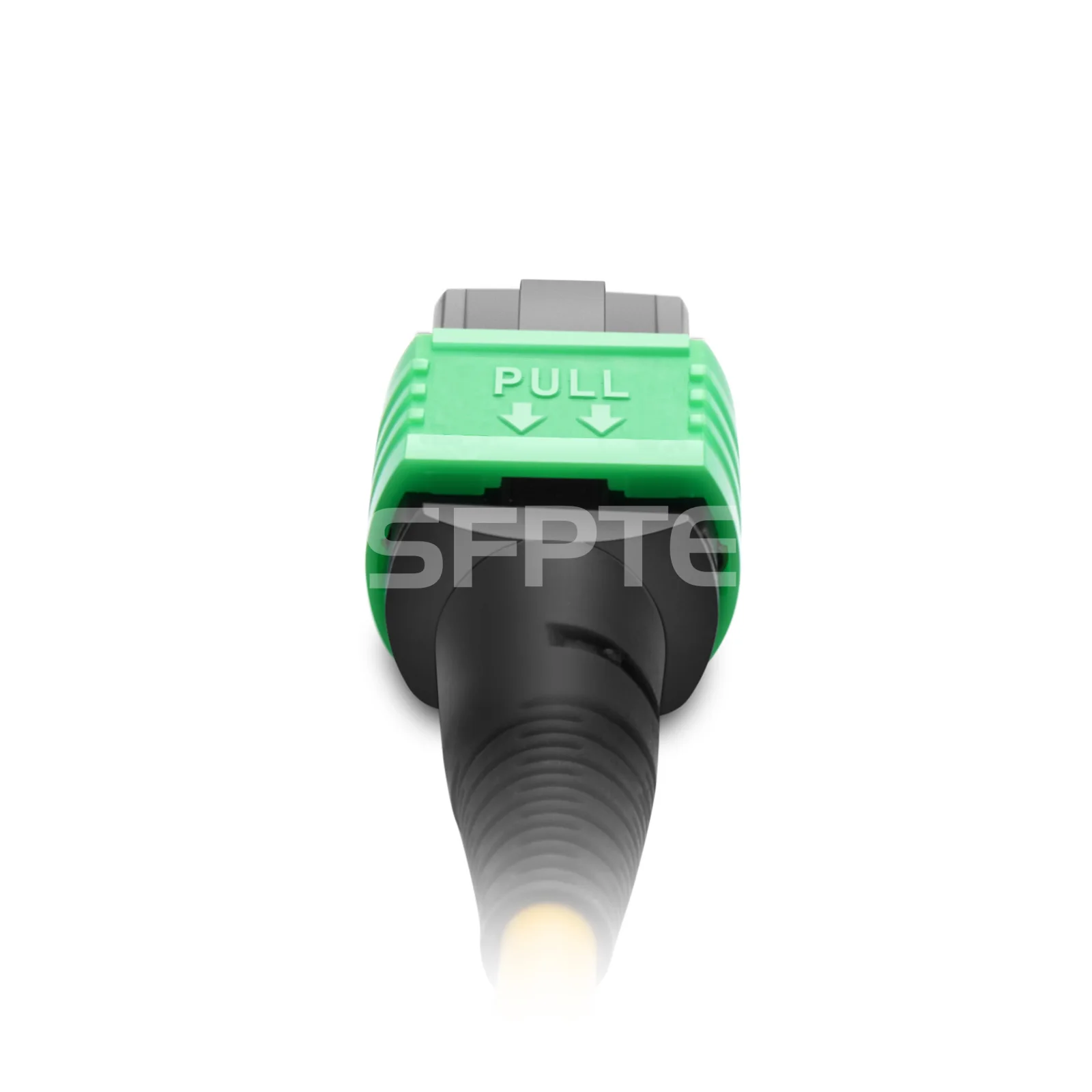

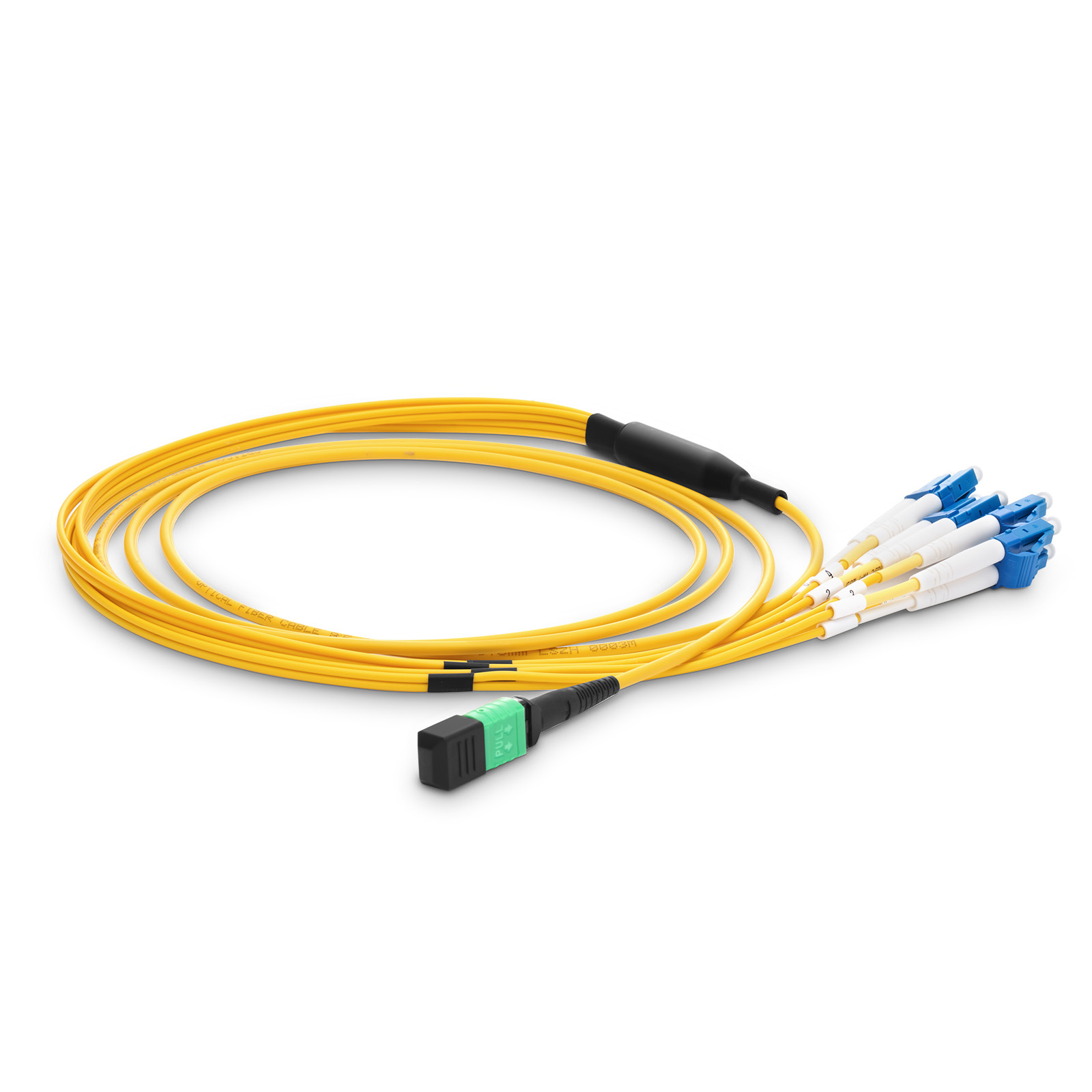

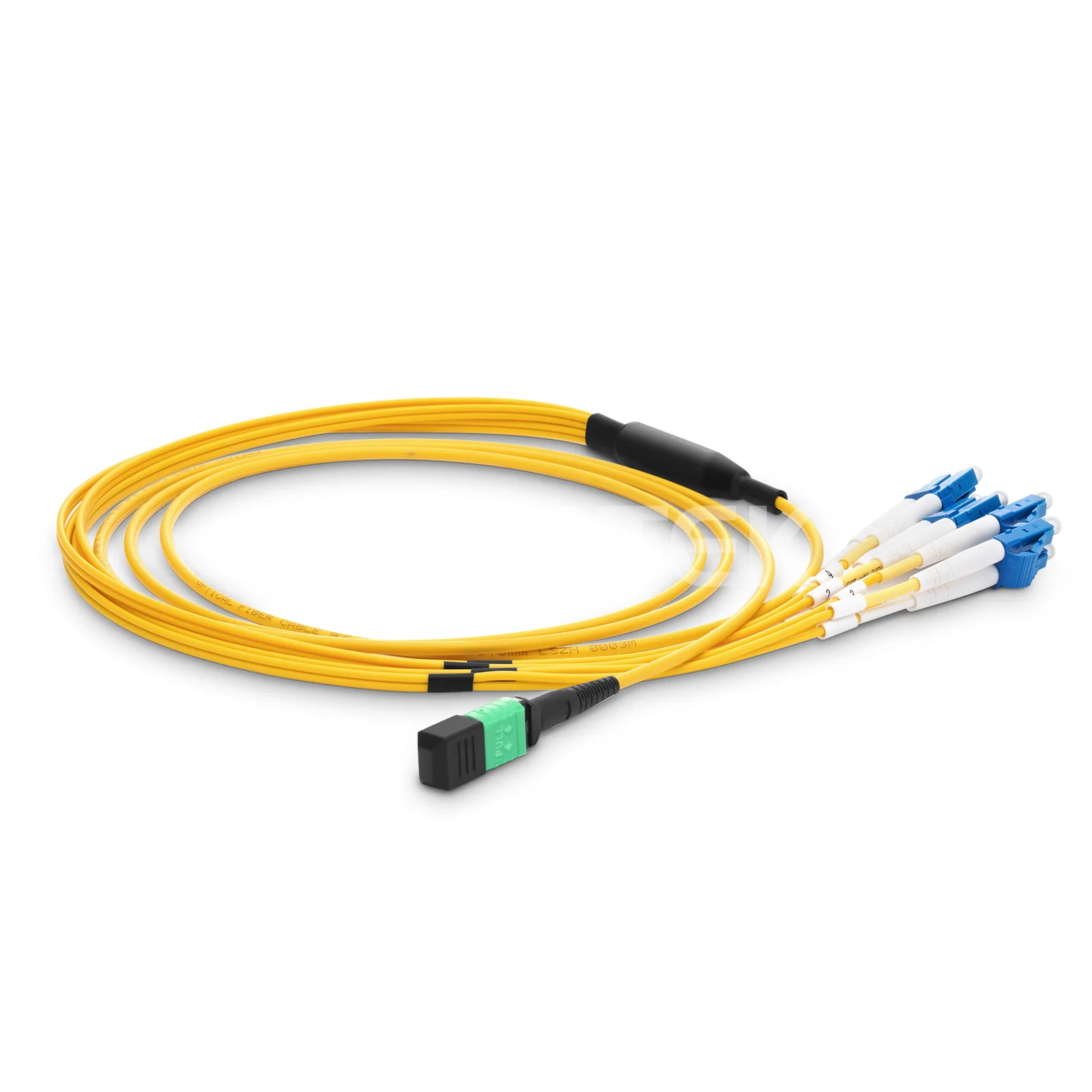

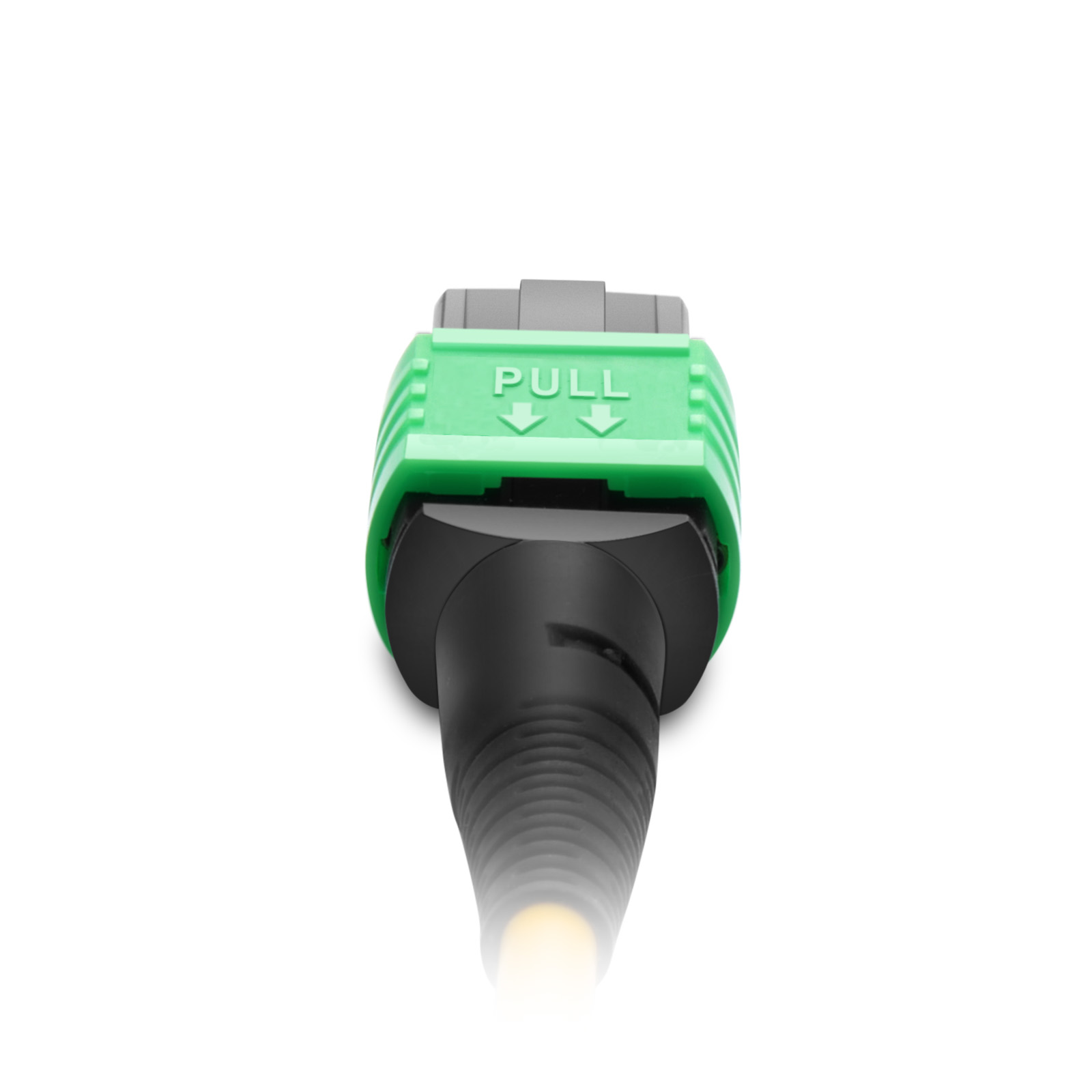

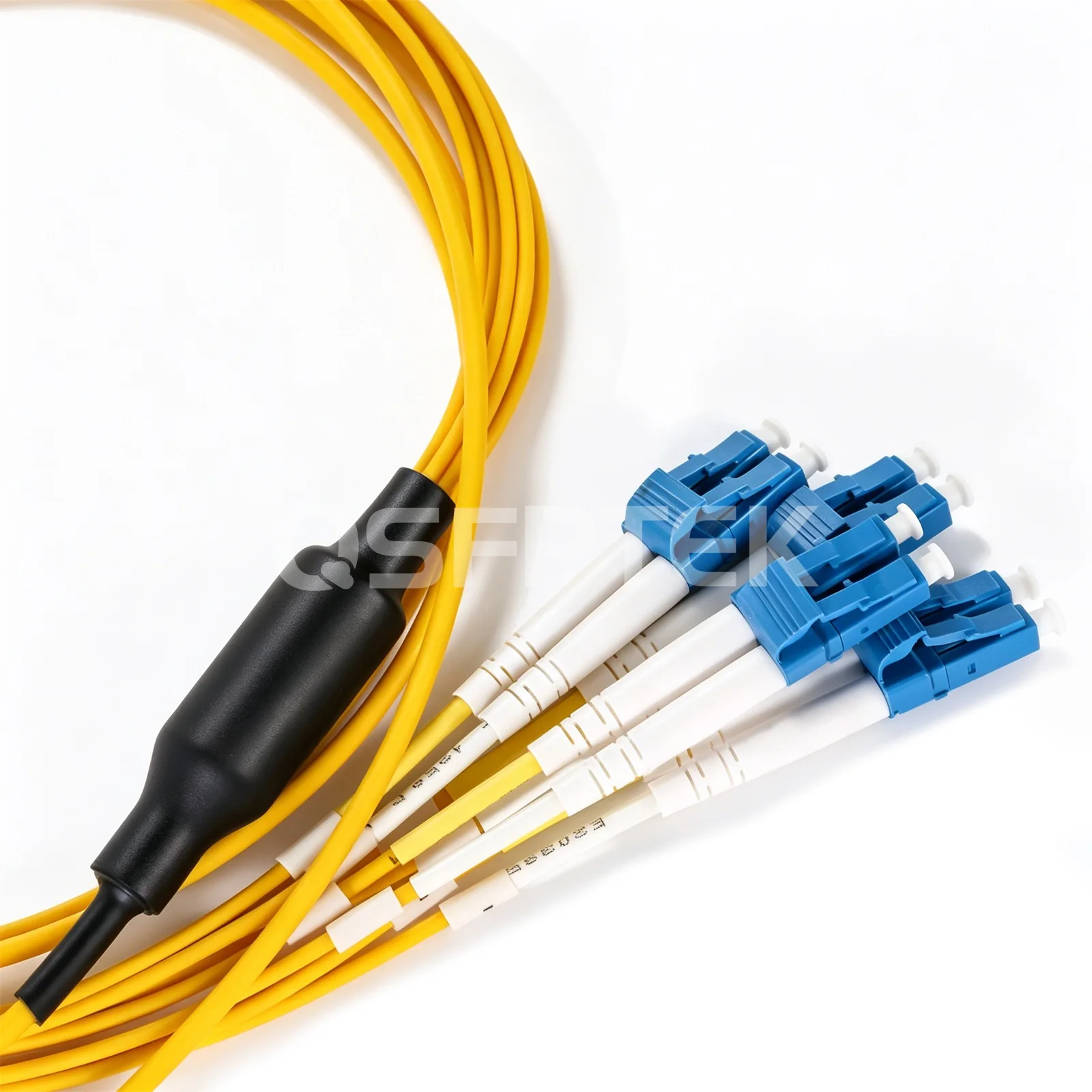

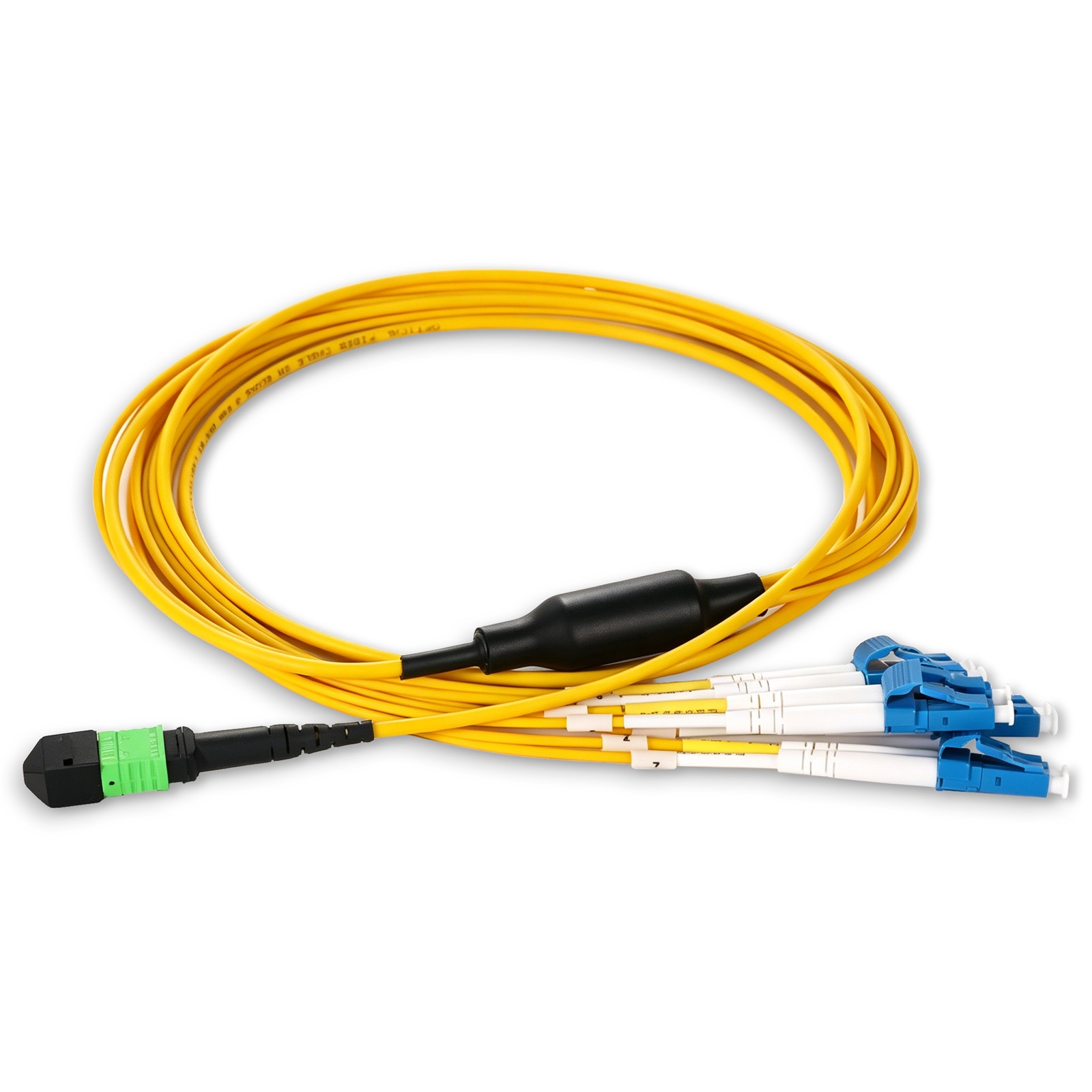

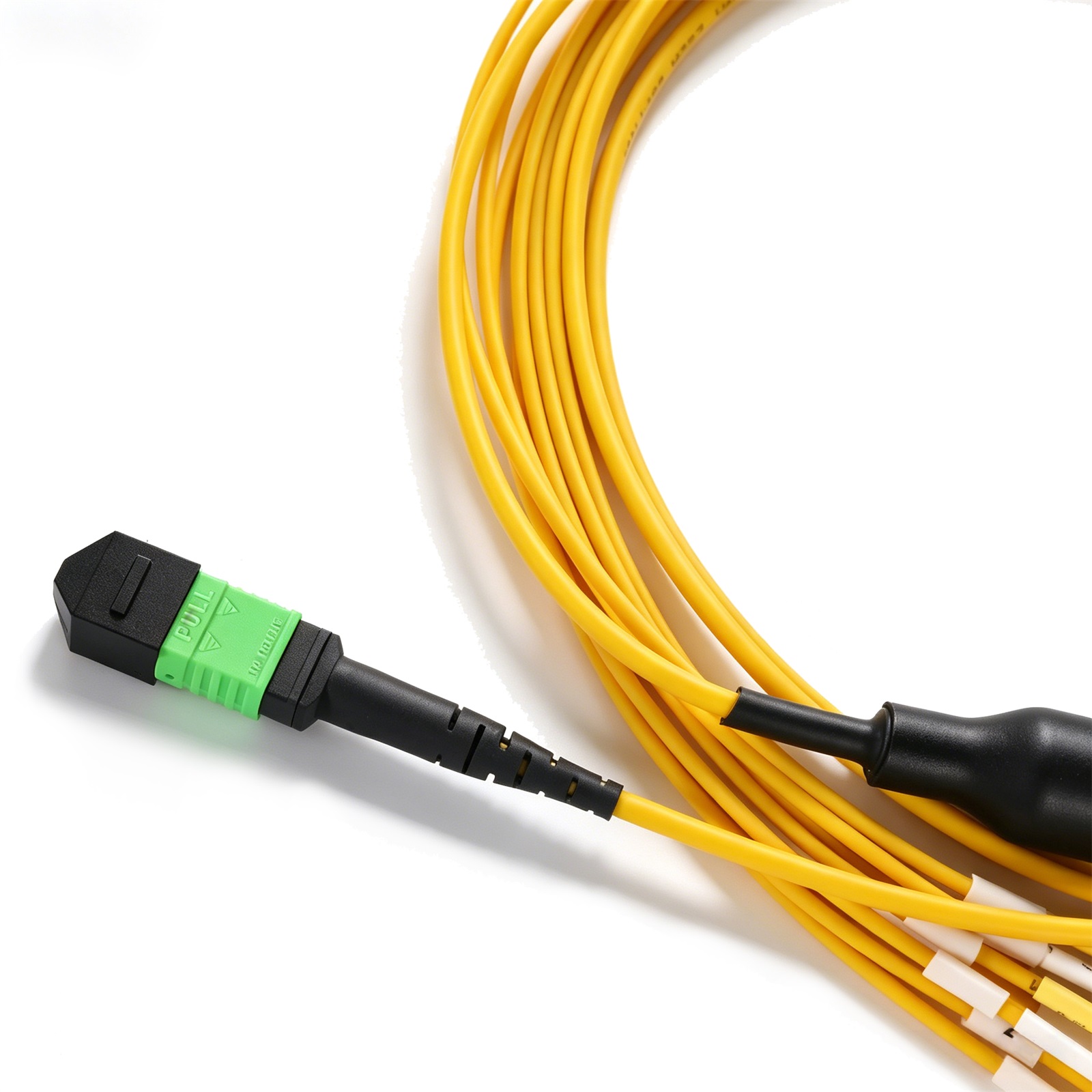

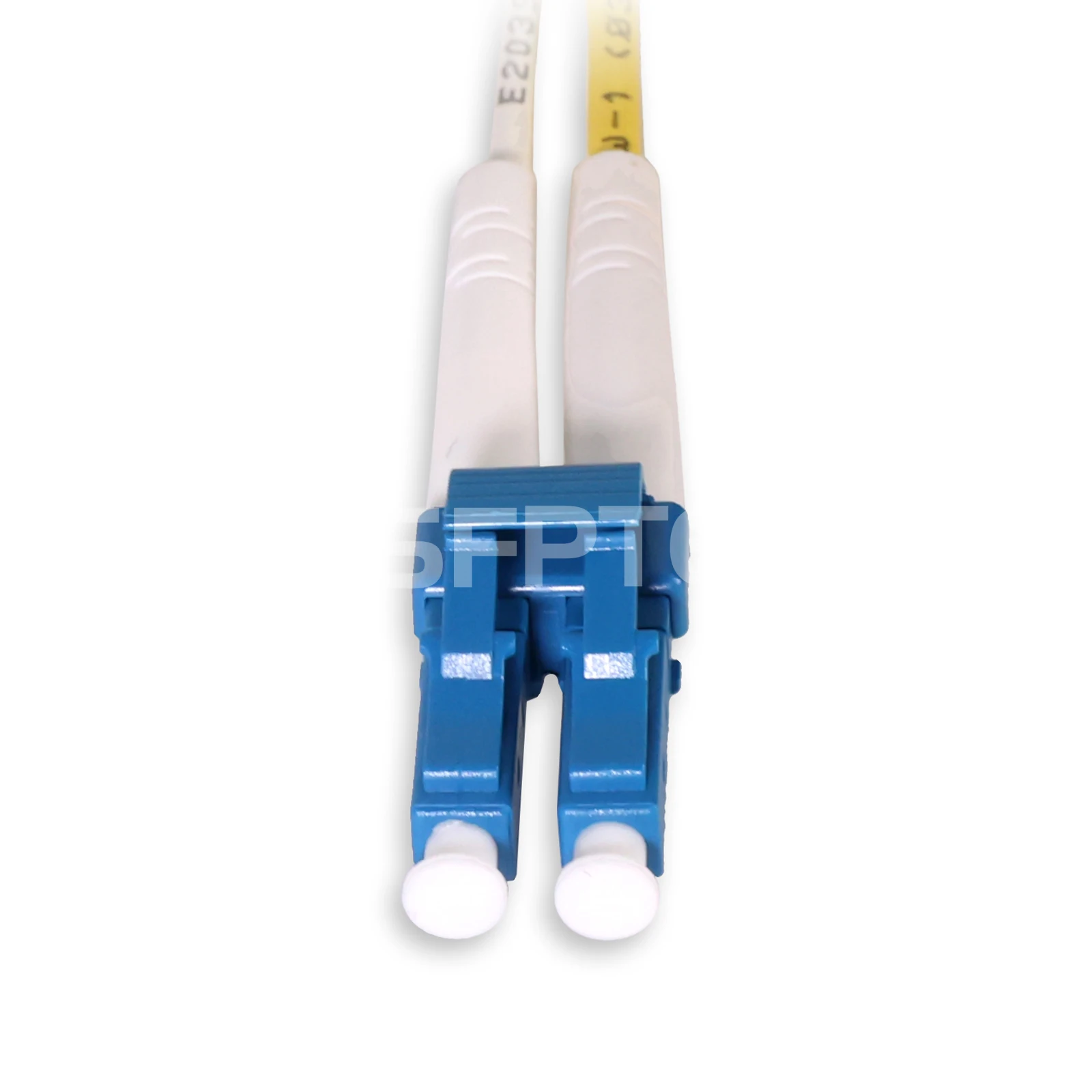

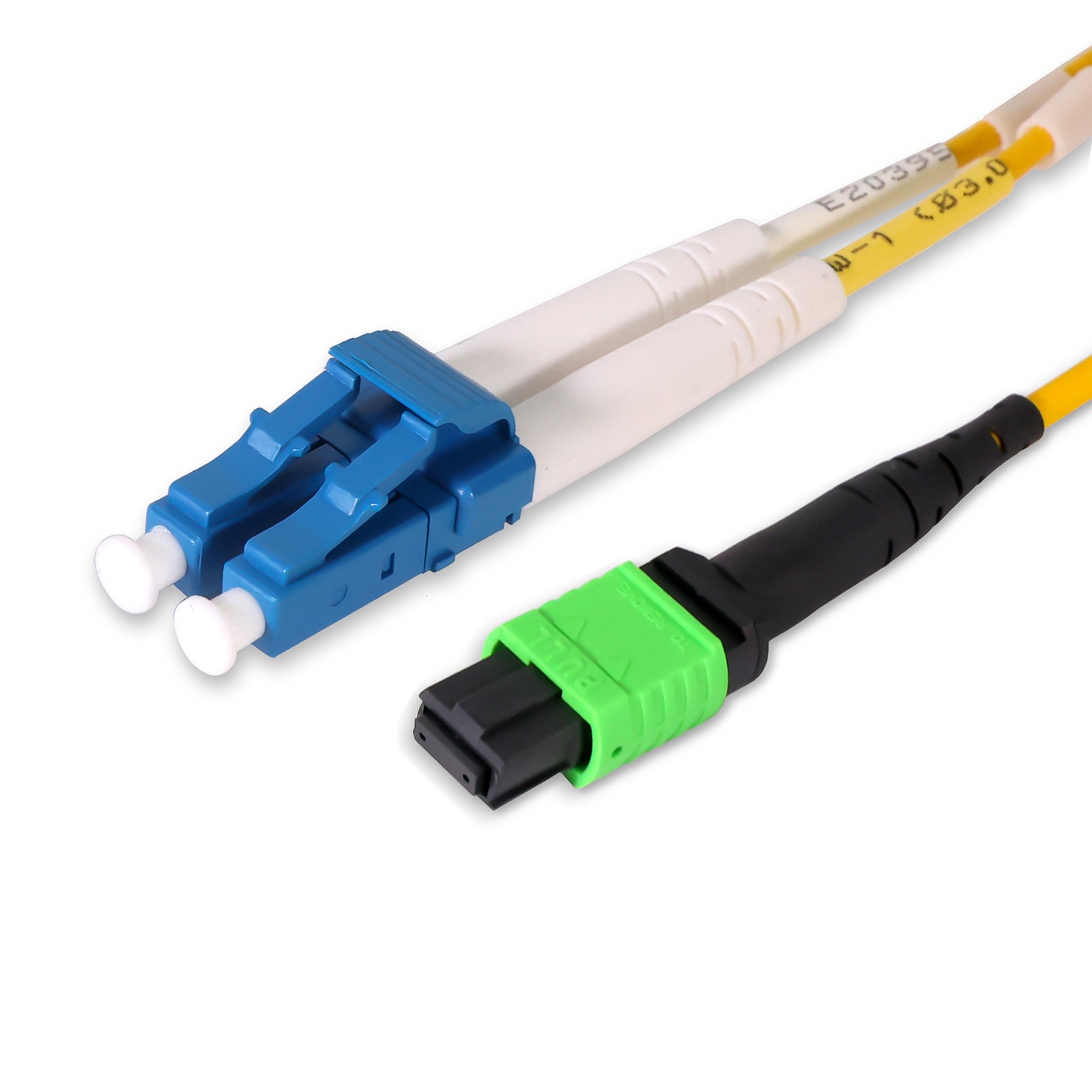

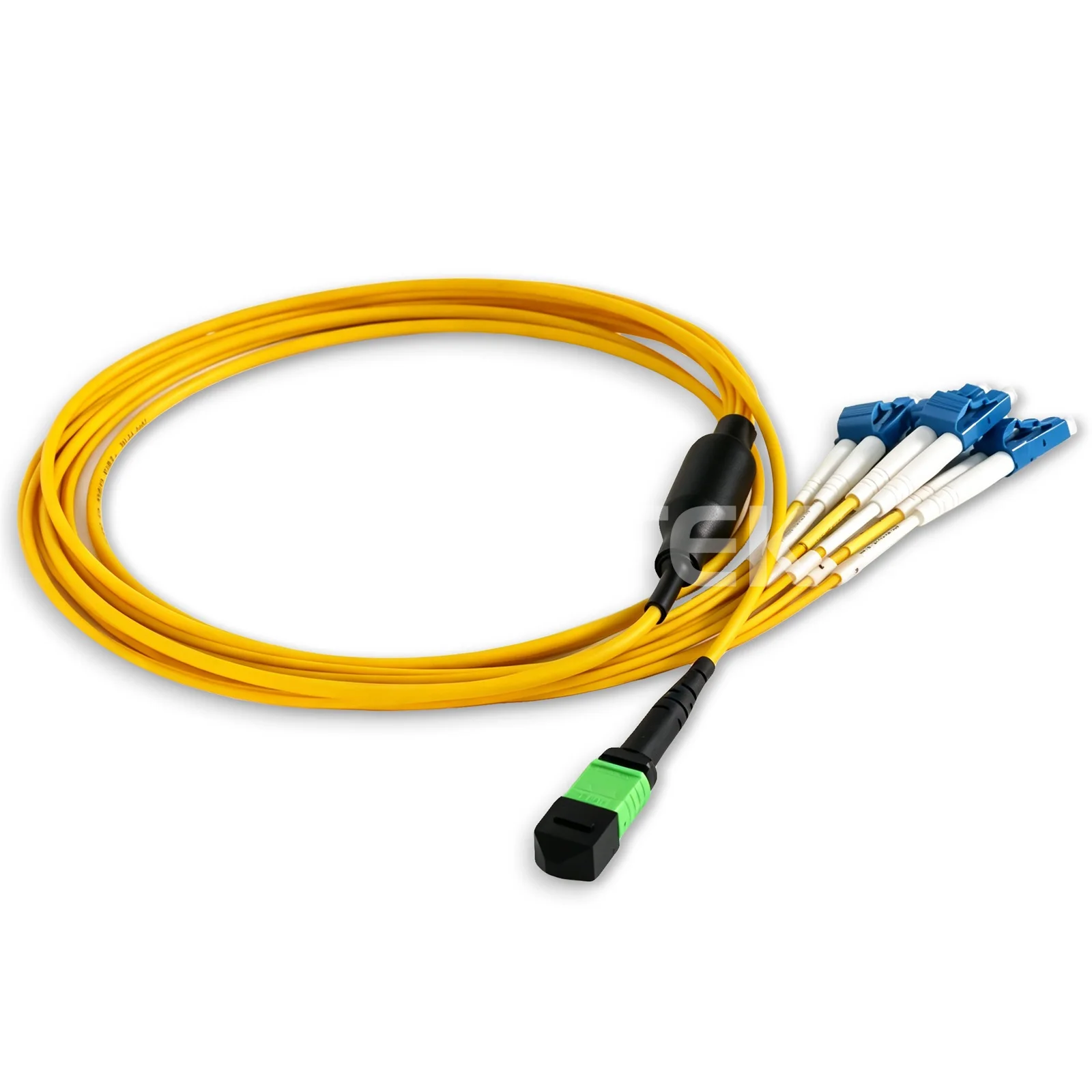

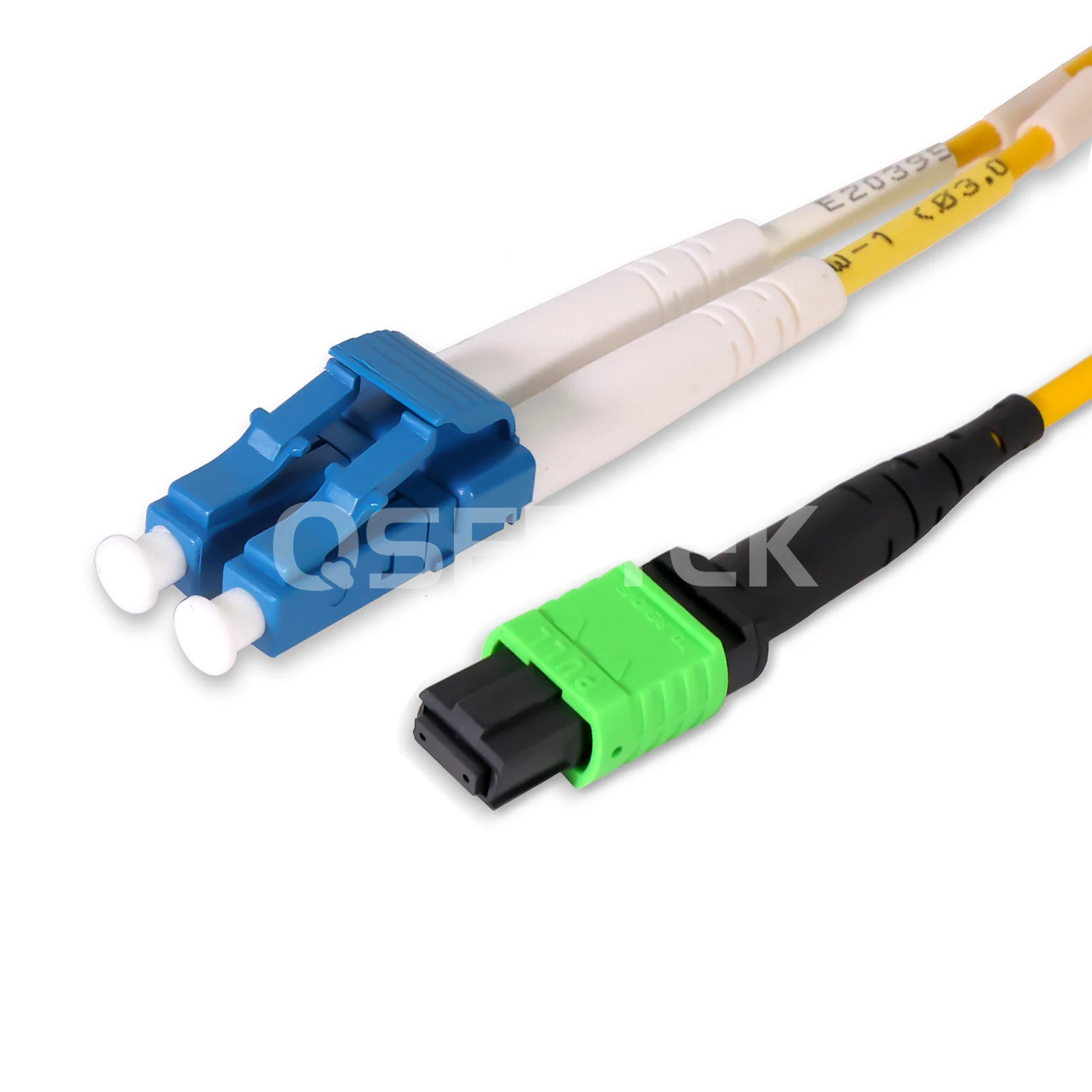

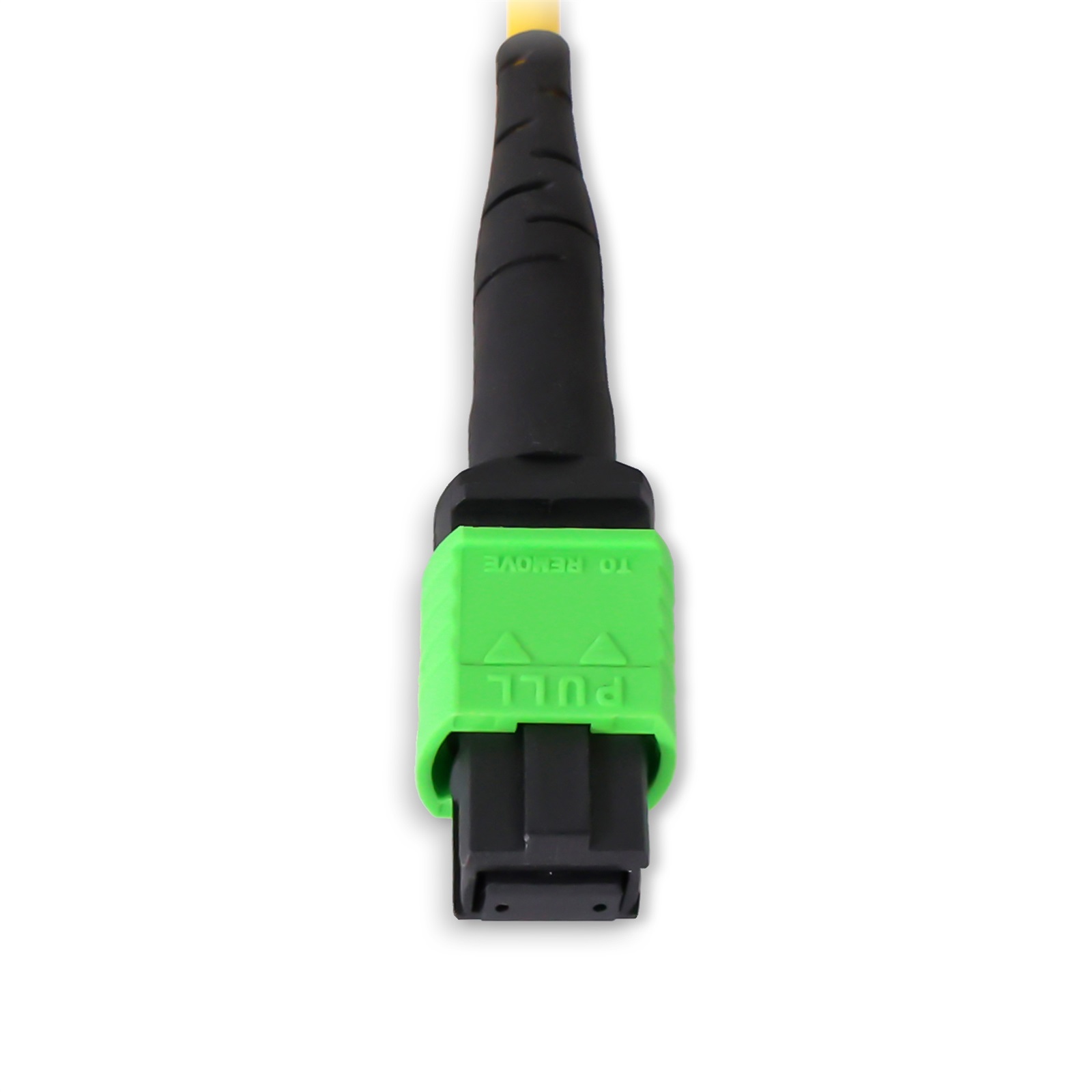

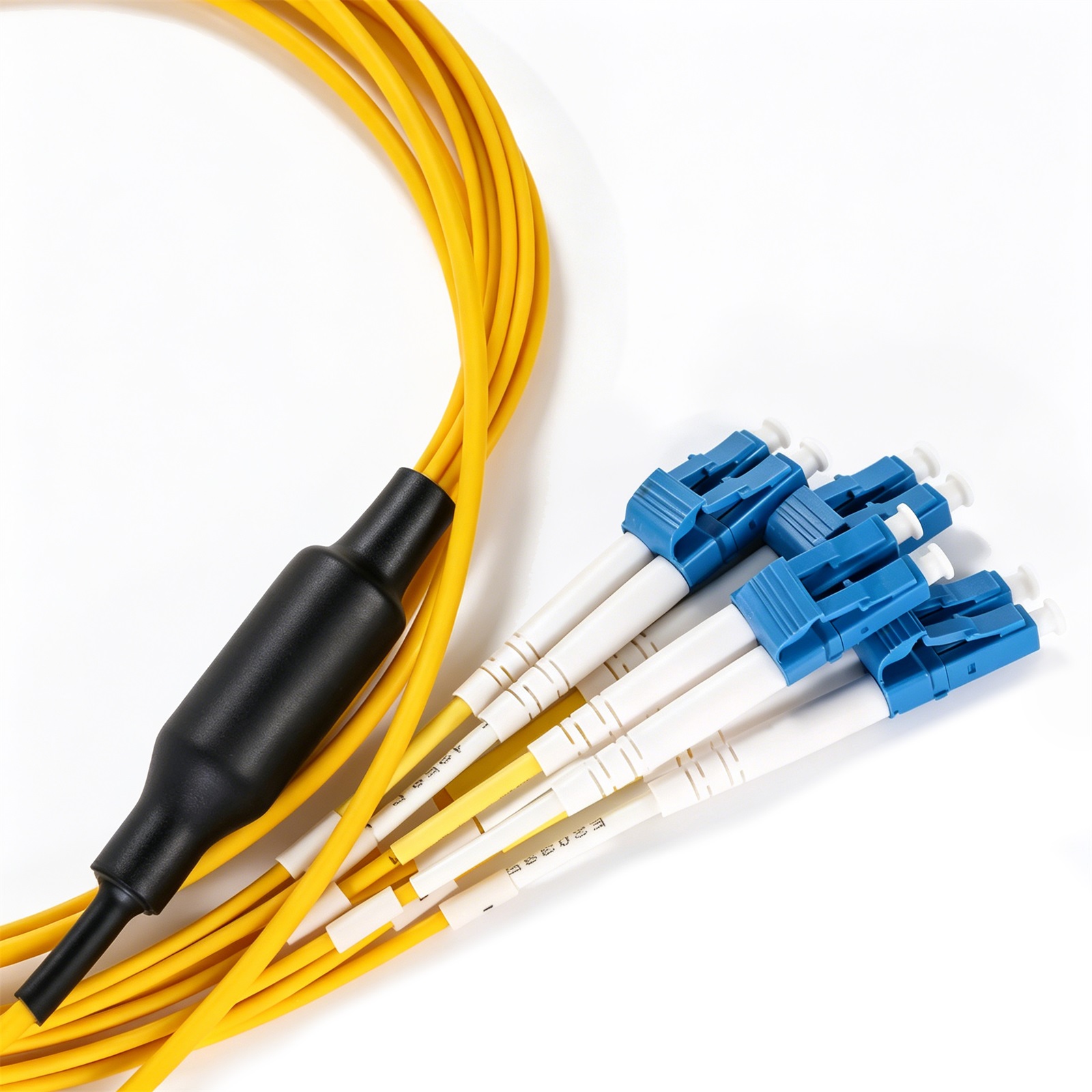

    7m (23ft) MPO-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

    Product No: 103164
    0 Reviews
    2.6K Sold
    $37.06
    Series
    Length
    82 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 10mm Min. Bend Radius.
2. With 0.35dB low insertion loss.
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
4. Optimized for 40G/100G/200G/400G Transmission.
5. Meticulous design and standard testing ensure stable high-speed data transmission.
    See more

    Specifications

    7m (23ft) MPO-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers Jumper, Type B, LSZH



    The MPO breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MPO connector to LC duplex connectors. This MPO female to 4 LC UPC Duplex OS2 single-mode breakout cable is specially optimized for 40G QSFP28 PSM4 to 10G SFP+ LR, 100G QSFP28 PSM4 to 25G SFP28 LR optics direct connection, data centers, and telecommunications systems applications.

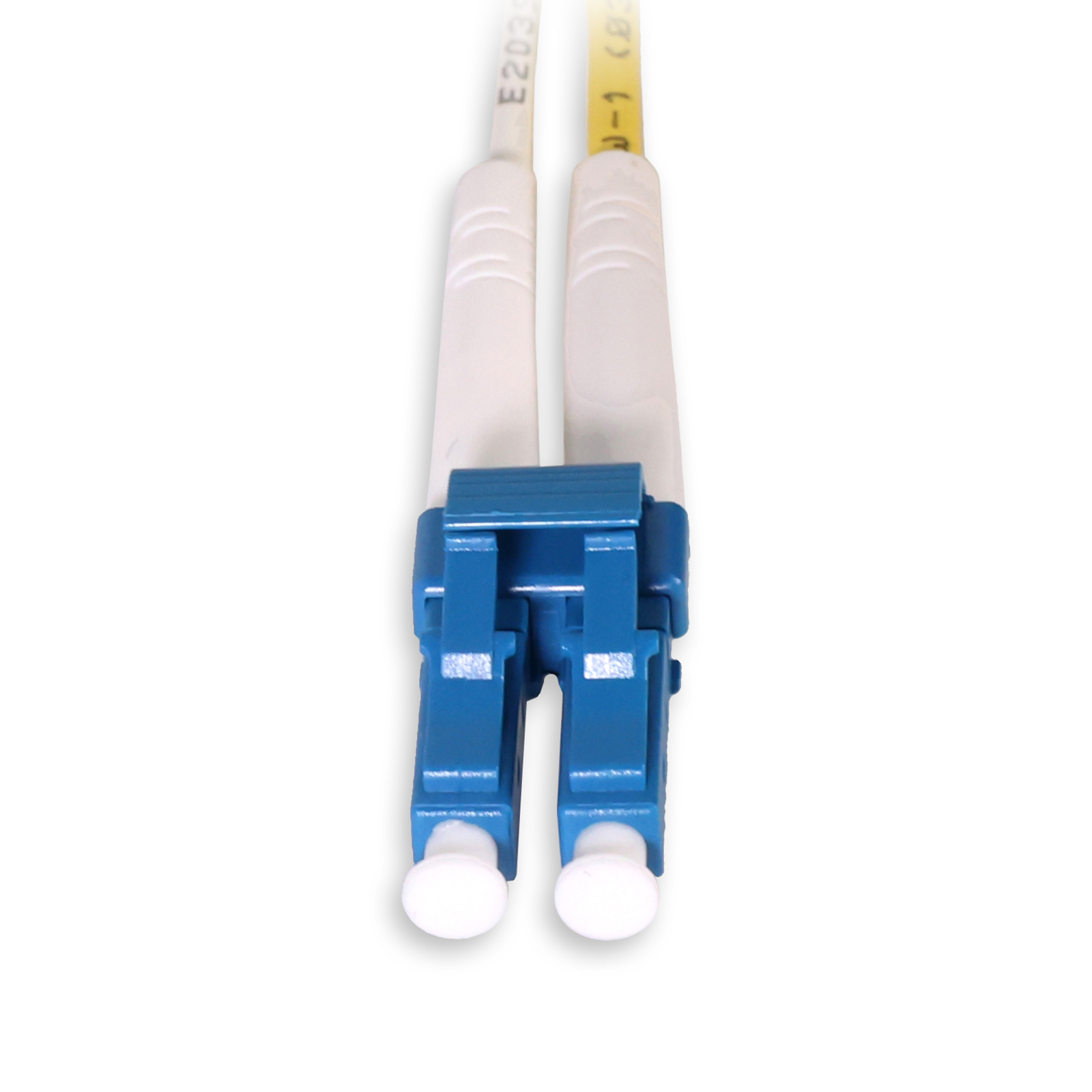

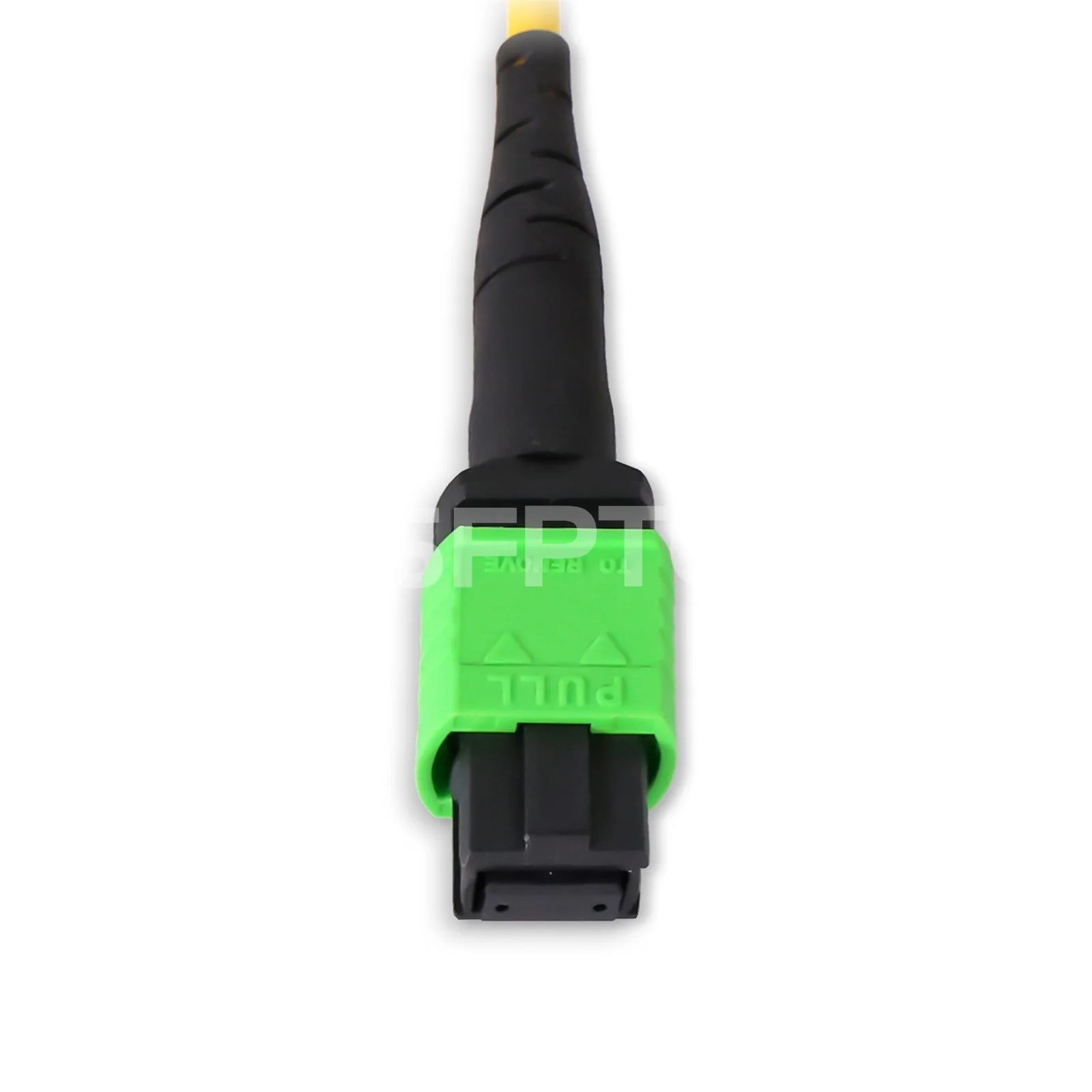

    Connector A MPO Female Connector B LC UPC Duplex
    Fiber Count 8 Fibers Fiber Type OS2 SMF 9/125μm
    Polish Type APC to UPC Cable Material LSZH
    Armoured No Wavelength 1310/1550nm
    Insert Loss ≤0.35dB Return Loss ≥60dB
    Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
    Min. Bend Radius
    (Fiber Core)    		 10mm Min. Bend Radius
    (Fiber Cable)    		 20/10D (Dynamic/Static)
    Attenuation (dB/km) ≤0.32 at 1310nm, ≤0.18 at 1550nm Polarity Type B
    Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    S5300-48T6X, 48-Port Gigabit Ethernet Managed L3 Switch, 48x 1G RJ45 Ports, with 6x 10G SFP+ Uplinks, Support Stacking

    $457.00 $799.00
    93 Sold
    171 Reviews
    Hot

    S5300-48M6X, 48-Port Gigabit Ethernet Managed L3 Switch, 24x 1G RJ45 Ports, 24x 1G SFP Ports, with 6x 10G SFP+ Uplinks, Support Stacking

    $1316.00 $1499.00
    192 Sold
    157 Reviews

    Cisco QSFP-4X10G-LR-S Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km MTP/MPO Optical Transceiver Module

    $106.90 $129.00
    405 Sold
    17 Reviews
    Hot

    Cisco SFP-10G-LR-S Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver

    $11.90 $15.90
    4.1K Sold
    45 Reviews
    Hot

    S7600-48Y8C, 48-Port Ethernet L3 Switch, 48x 25G SFP28, 8x 100G QSFP28, Support MLAG, VXLAN

    $4936.00 $7599.00
    82 Sold
    31 Reviews

    Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 1310nm 500m MTP/MPO-12 SMF DDM Optical Transceiver Module

    $153.90
    384 Sold
    5 Reviews

    Cisco SFP-25G-LR Compatible 25GBASE-LR SFP28 1310nm 10KM DDM LC SMF Optical Transceiver Module

    $26.90 $45.00
    1.7K Sold
    17 Reviews

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 10mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 80/150N (Long/Short Term) Tensile Strength
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    MTP Breakout OS2 Connection 40G to 10G

    Connection 2:

    MTP Breakout OS2 Connection 100G to 25G

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.







    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.



    OS2 Cable





    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



    MTP Breakout OS2 Transmission



    Optimizing Network Upgrade Solutions for Superior Efficiency



    Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    Questions & Answers

    • All (6)
    • Does the fiber optic cable need to clean the end face?
      The fiber optic cable needs to clean the end face, similar to the module, if the dust on the end face is not cleaned in time, it will affect the signal transmission and equipment performance.
    • What's the different between LSZH and PVC?
      LSZH cables generate less smoke and toxic gases during combustion, while PVC cables release toxic smoke and acidic gases when burned.
    • How many times can I mate/demate the MTP connector and still maintain good performance?
      If the connector is always in a suitable operating environment and properly cleaned, it can still maintain the best performance after 1000 times of mate and demate.
