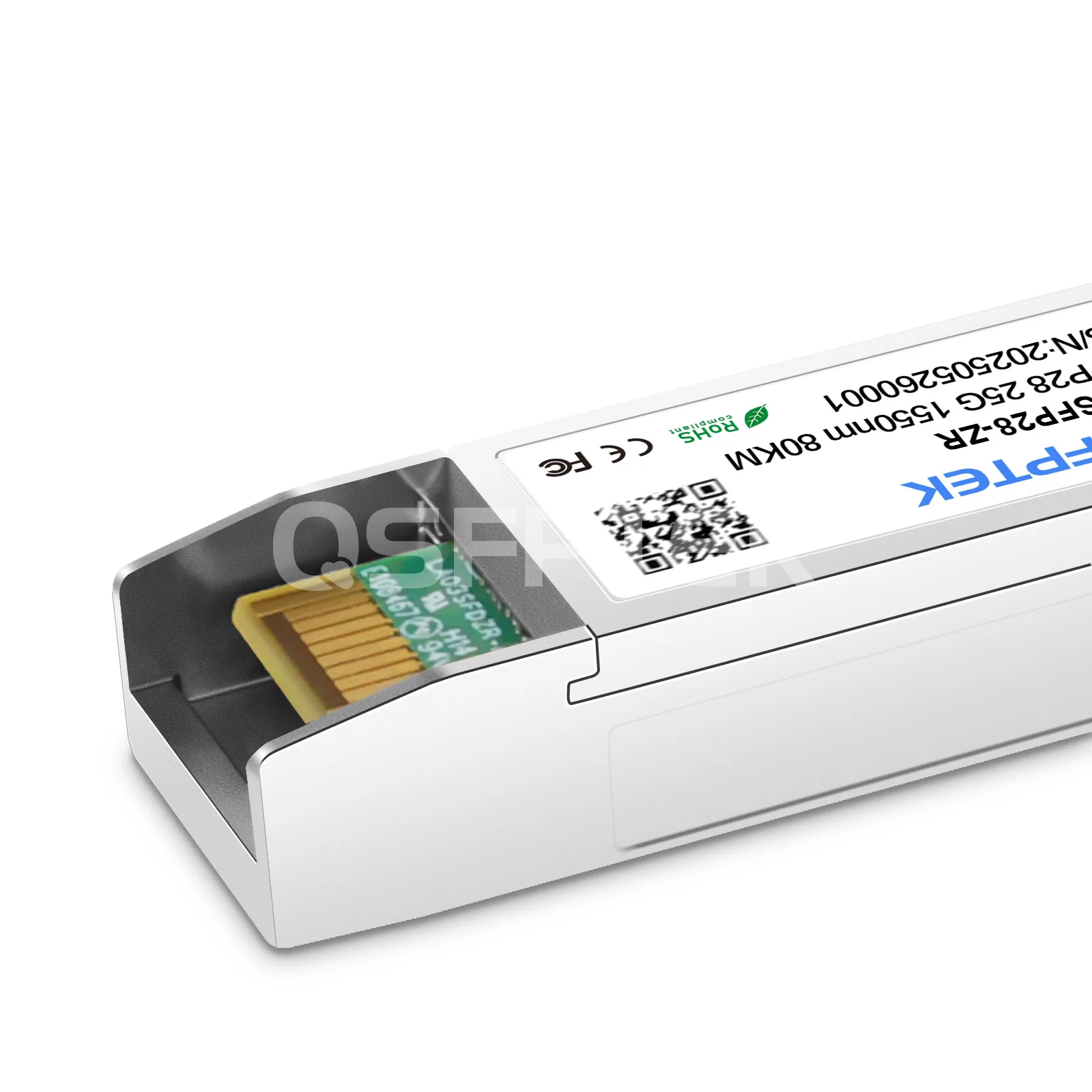

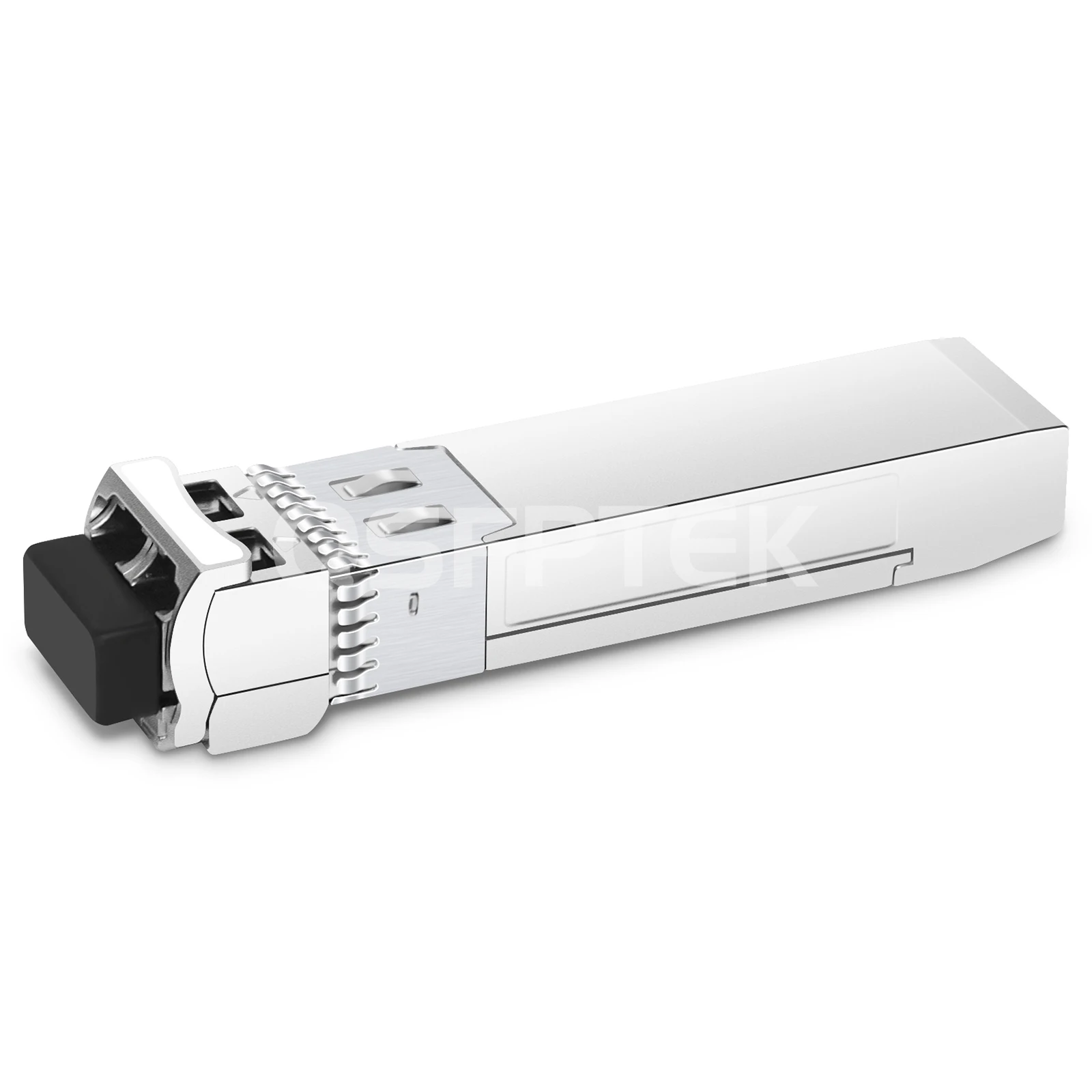

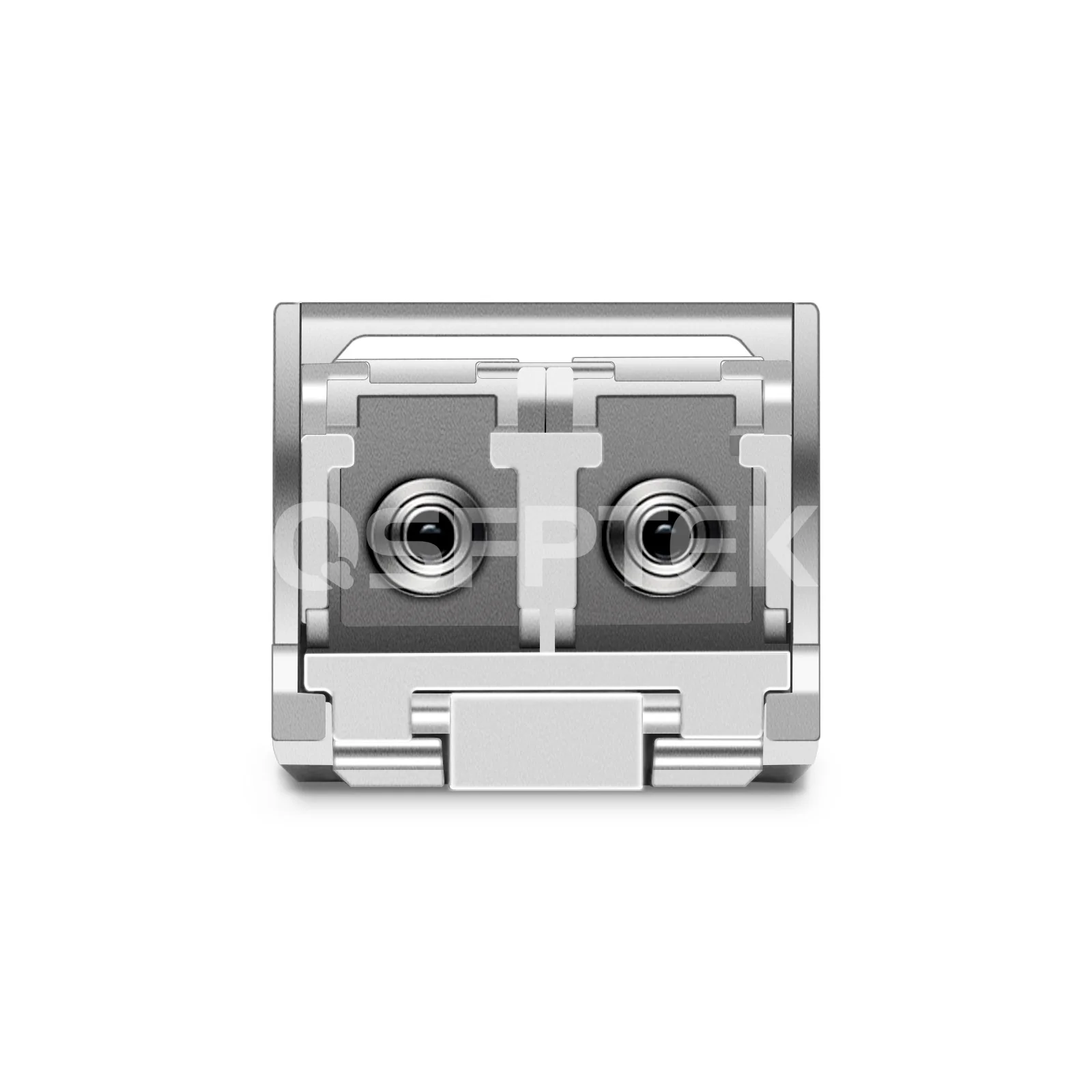

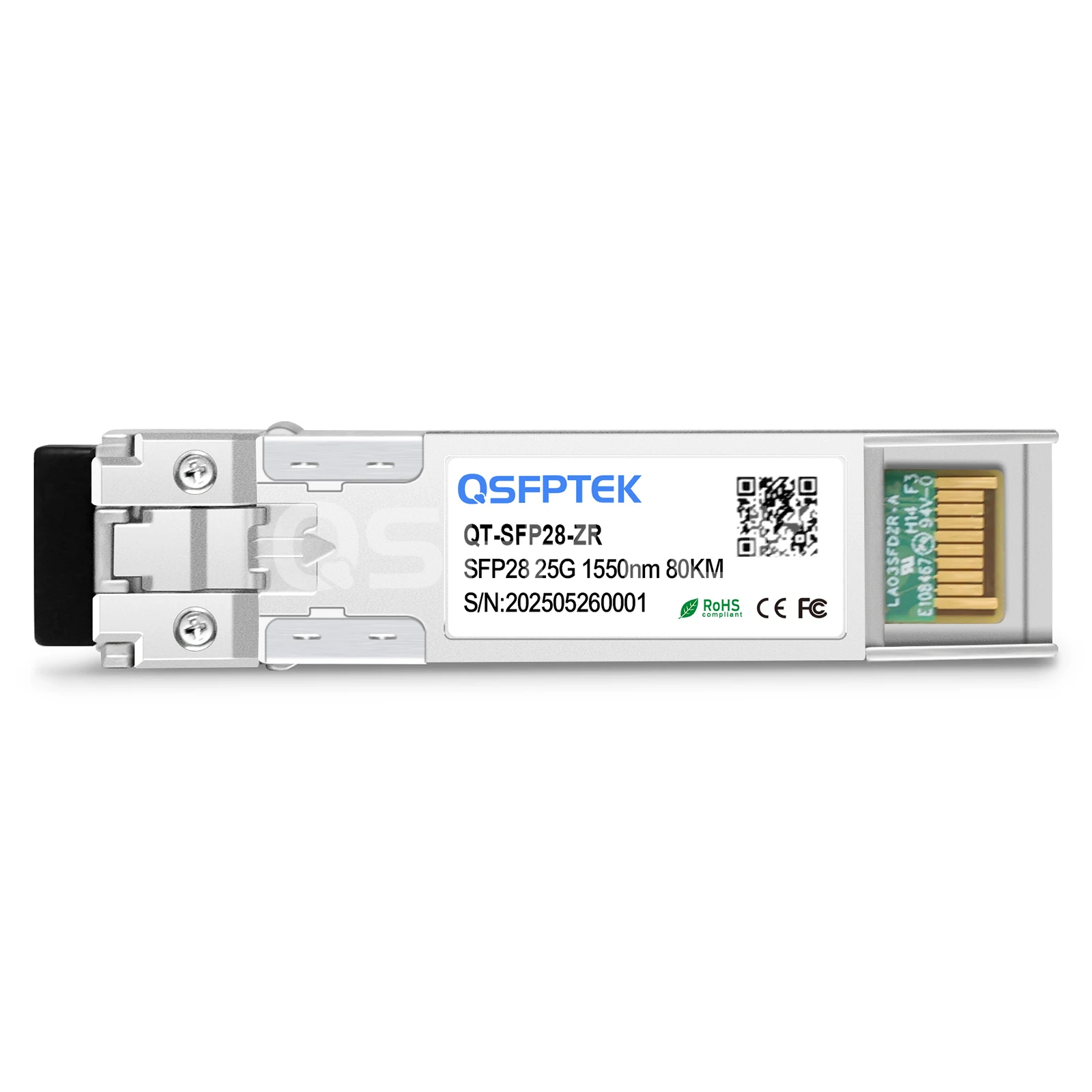

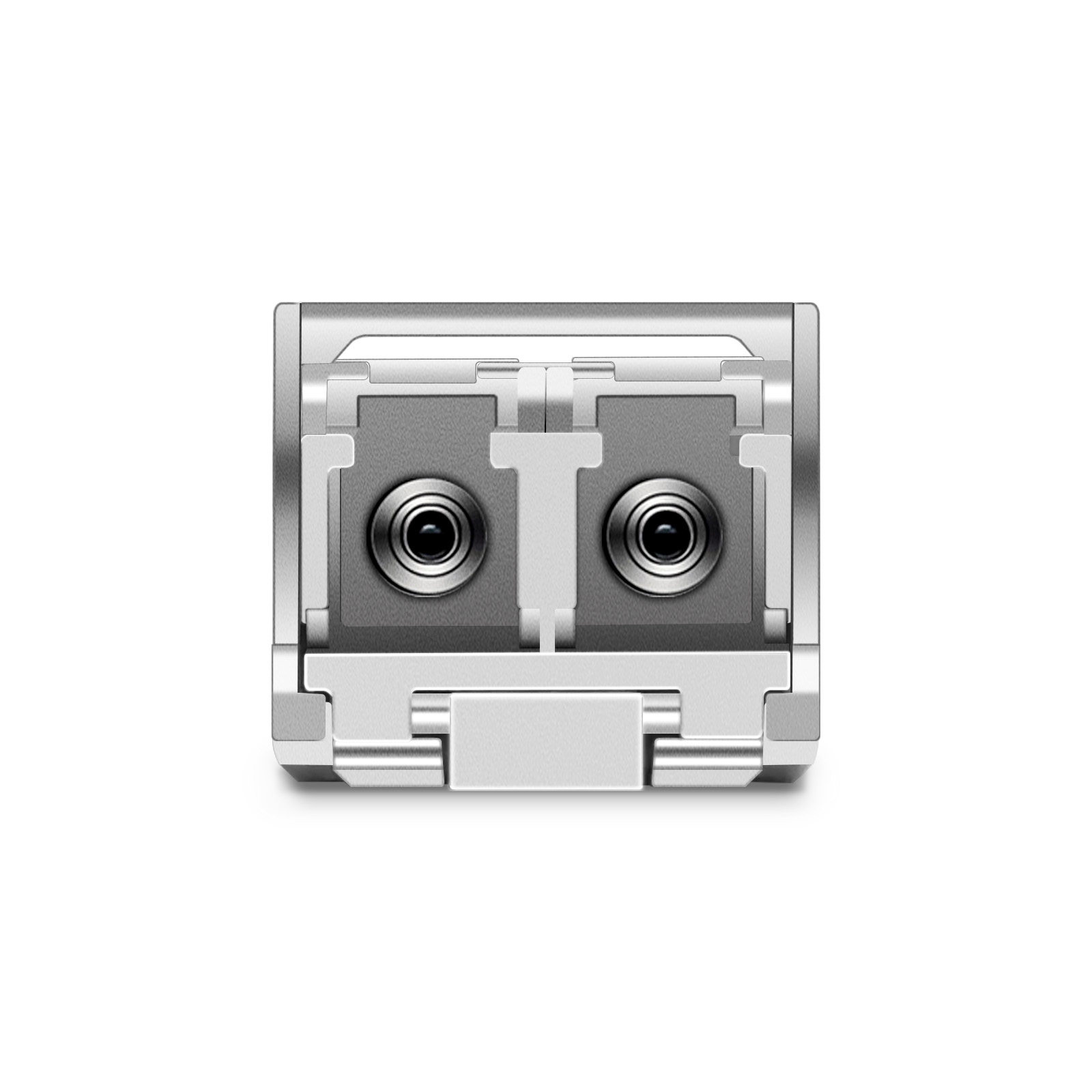

Arista SFP-25G-ZR Compatible 25GBASE-ZR SFP28 1310nm 80KM DDM LC SMF Optical Transceiver Module

Product No :103455
US$ 899.00
Compatible
Transceivers type
1700 in real-time stock, 03Jul, 2025

Free Shipping over US$ 79.8

Global warehouses in stock

30-day Return and Refund

-
+
Add to Cart Bulk Order Quotes
1. Rate: 25G; Connector: Duplex lC
2. EML+SOA&PIN; Low Power Consumption <2.5W
3. Applied in Data Center, 25G Ethernet
4. Fully Compatible with 100+ Vendors
5. SFP28 MSA Compliant
See more

Specifications

Arista SFP-25G-ZR Compatible 25GBASE-ZR SFP28 Optical Transceiver Module (SMF, 1310nm, 80km, LC, DDM)



The Arista SFP-25G-ZR compatible 25G SFP28 transceiver module is equipped with LC duplex connectors, reaching a link up to 80km over OS2 single-mode fiber (SMF). This 25G optical transceiver comes with an SFP28 connector, enabling 25 Gbps bandwidth. DOM/DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring.



QSFPTEK manufactured 25GBASE-ZR SFP28 module is compliant with SFP28 MSA, IEEE 802.3cc SFP28 specifications. Besides, the small form-factor pluggable 28 (SFP28) LR optic has been tested on host devices to ensure full compatibility with Arista equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 25G SFP module is an ideal substitute to the Arista SFP-25G-ZR SFP28 25G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 25G connectivity.



ZR 25G SFP28 transceiver caters to 25 Gigabit Ethernet (25GbE) optical fiber connections, ideal for long-distance applications in the campus, metro networks, ISP operators, etc.



Model Name SFP-25G-ZR Vendor Name QSFPTEK
Form Factor SFP28 Data Rate 25 Gbps
Wavelength 1310nm Distance 80km@OS2
Connector LC Duplex Cable Type OS2 SMF
Transmitter Type EML Receiver Type SOA&PIN
TX Power 2~7dBm Receiver Sensitivity <-28dBm
Power Consumption <2.5W Modulation Format NRZ
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3cc, SFF-8472, SFP28 MSA Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Wide Application Scenarios
    Fully compatible with almost all Cisco devices. Ideal for metro and campus networks.
  • 3. Protocols
    Compliant with IEEE 802.3cc, SFP28 MSA.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

Connection 1: 25GBASE-ZR Connectivity

Related Products:

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

S7600-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48 x25Gb SFP28, 8 x100Gb QSFP28, Support MLAG, VXLAN



Connection 2 : 25GBASE-ZR Connectivity with NIC

Related Products:

S7600-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48 x25Gb SFP28, 8 x100Gb QSFP28, Support MLAG, VXLAN

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

Intel XXV710-AM2 Network Interface Card, 25G Dual-Port SFP28, PCIe 3.0 X 8, Half & Full Bracket

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack





Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.



QSFPTEK Test Devices
