    Home / Products / Transceivers / 400G/800G Ethernet Transceivers / 800G OSFP / 103594

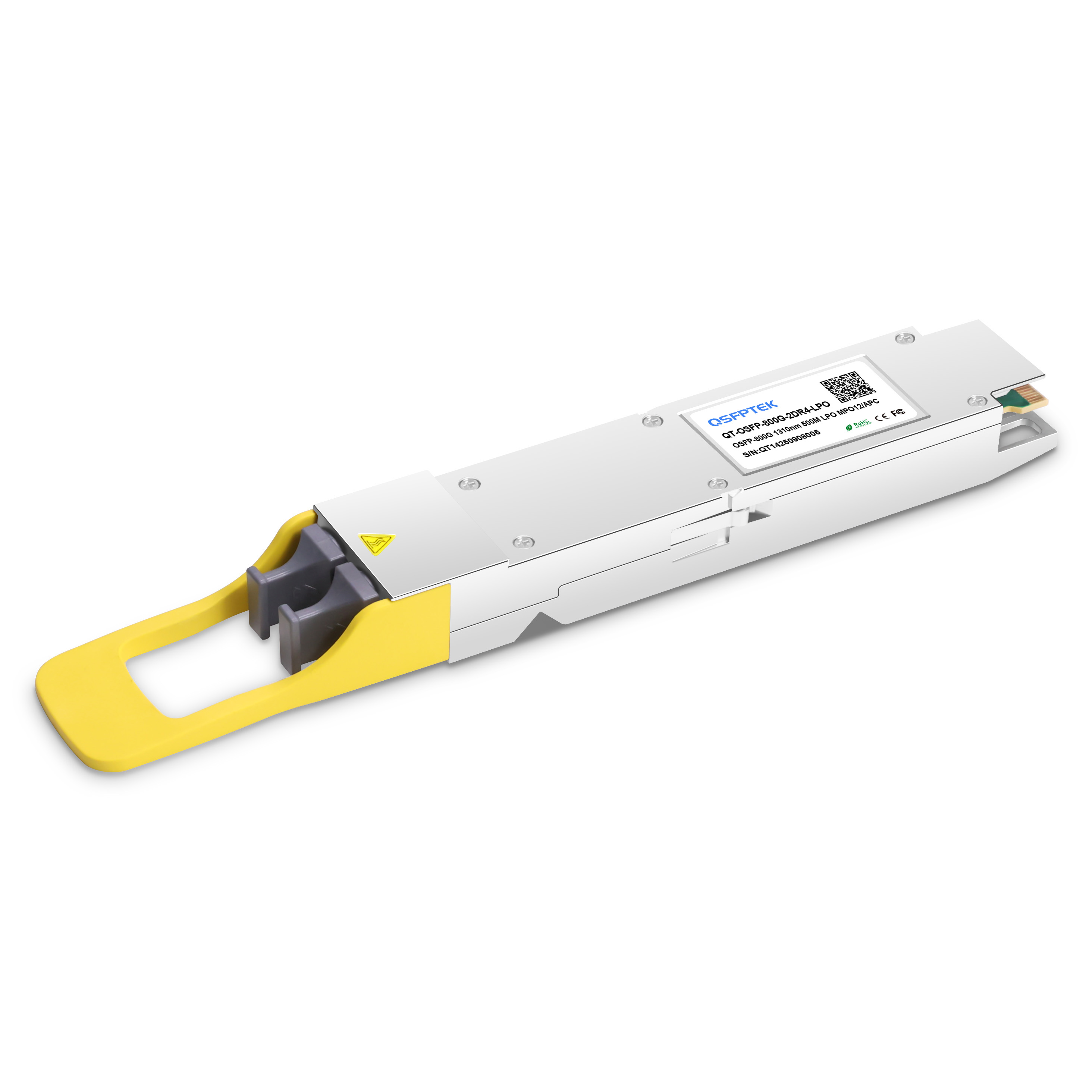

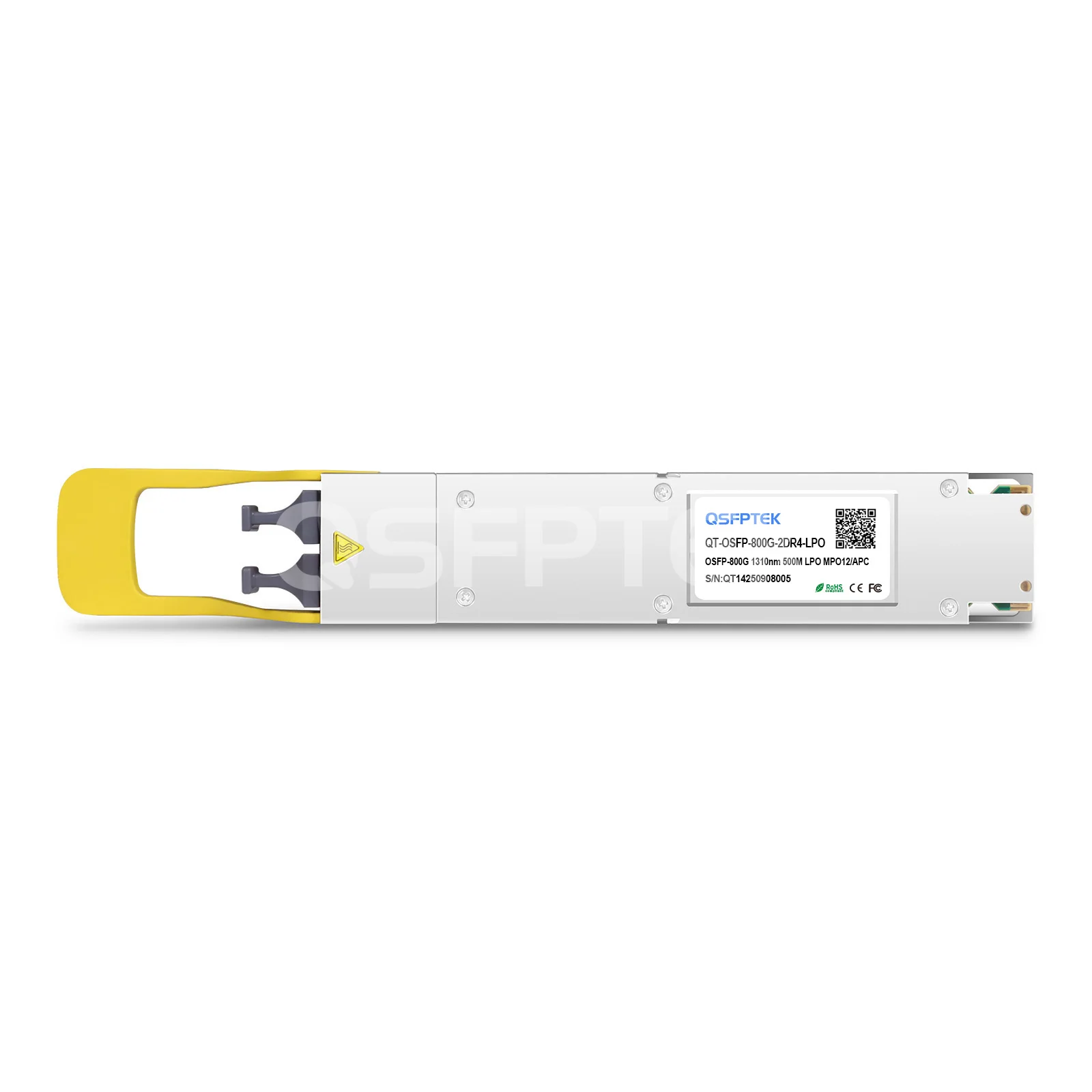

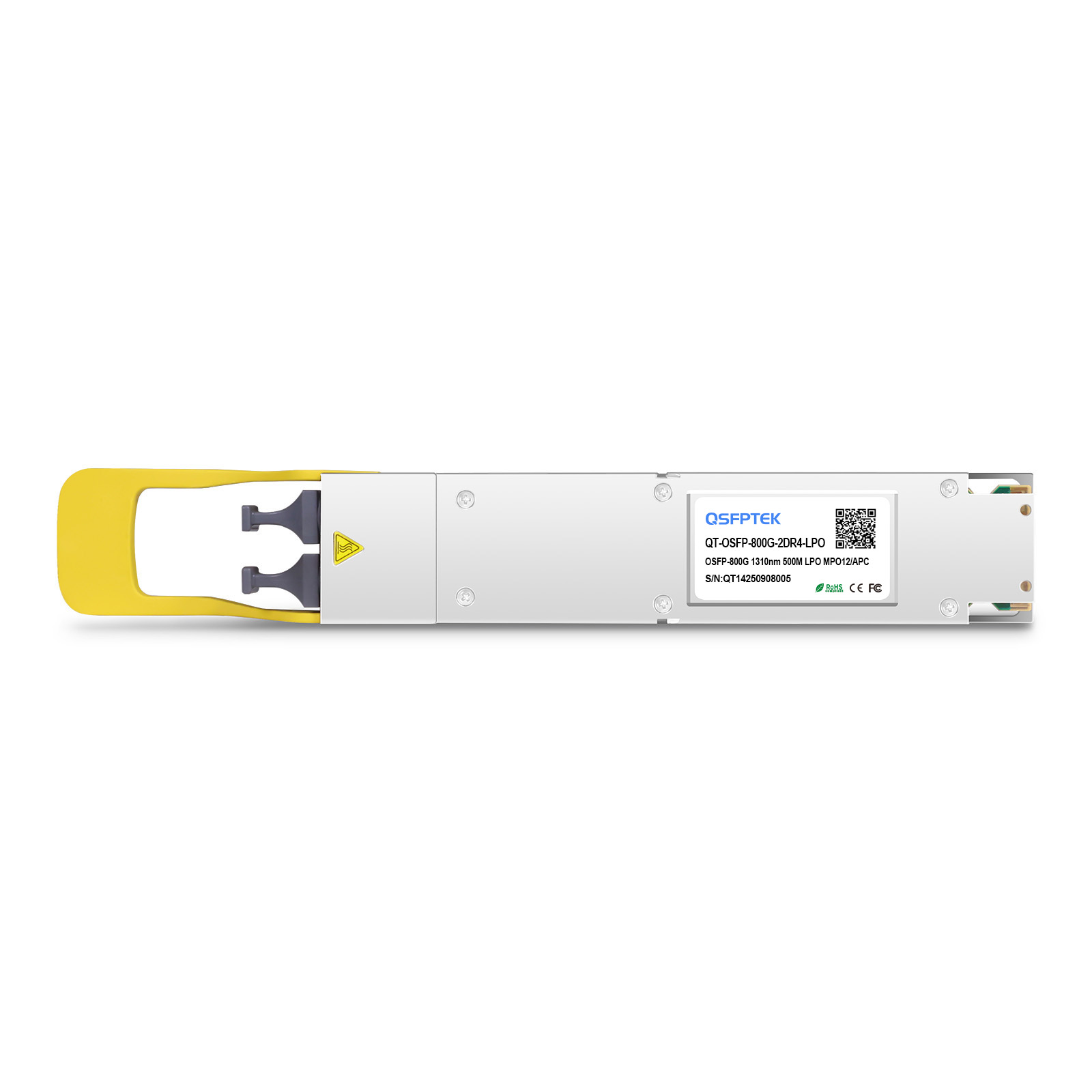

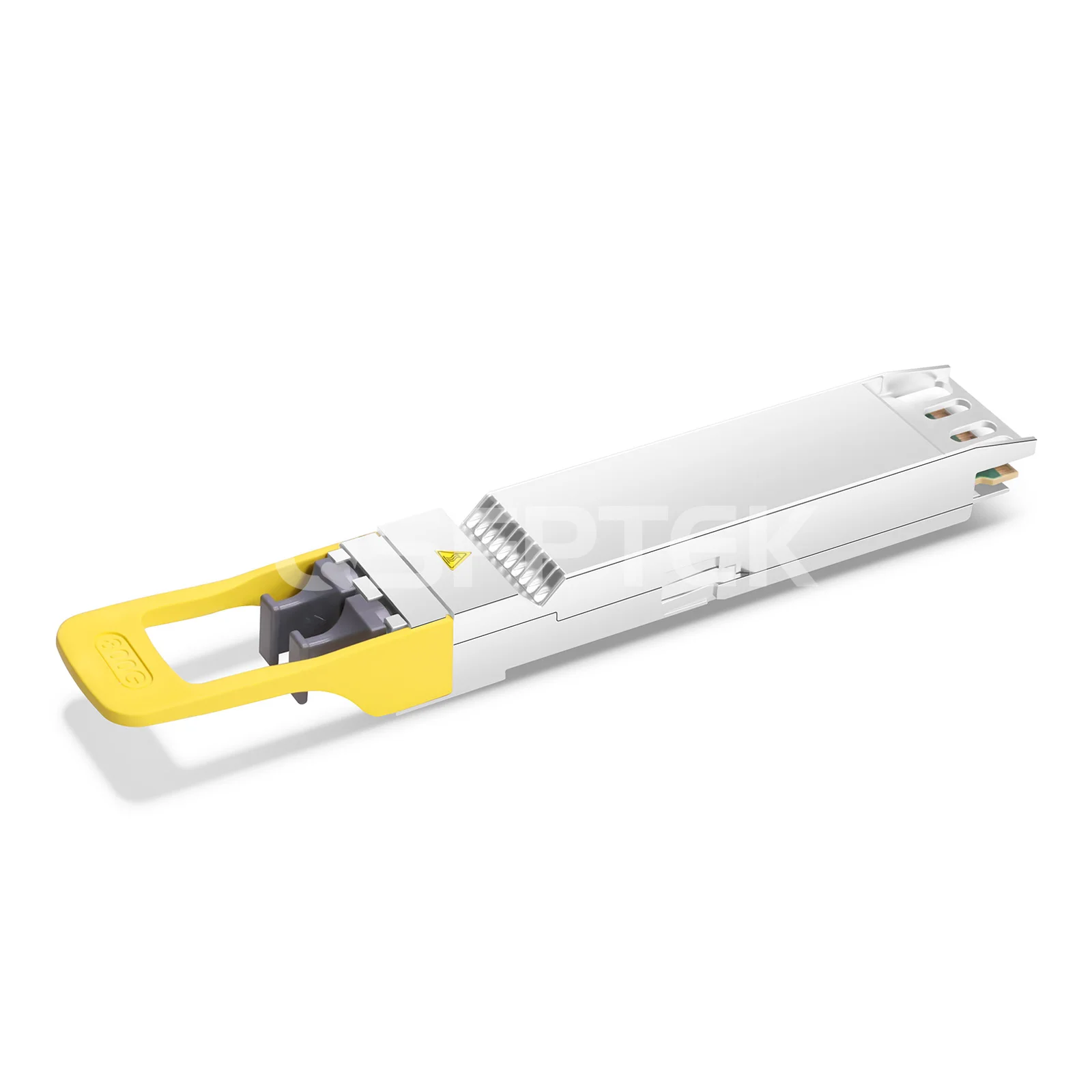

    Arista Compatible 800GBASE-DR8 (2x 400G DR4) Twin-port OSFP IHS/Closed Finned Top PAM4 1310nm 500m Dual MPO-12/APC DDM SMF LPO (Linear-drive Pluggable Optics) Optical Transceiver Module

    Product No: 103594
    0 Reviews
    8 Sold
    US$ 1,499.00
    Compatible
    Transceivers type
    6 in real-time stock, 11 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Use linear-drive chips instead of DSP to reduce power and latency
2. Support 1x 800G/2x 400G Ethernet
3. Support 850Gb/s aggregate bit rate, Power consumption <8W

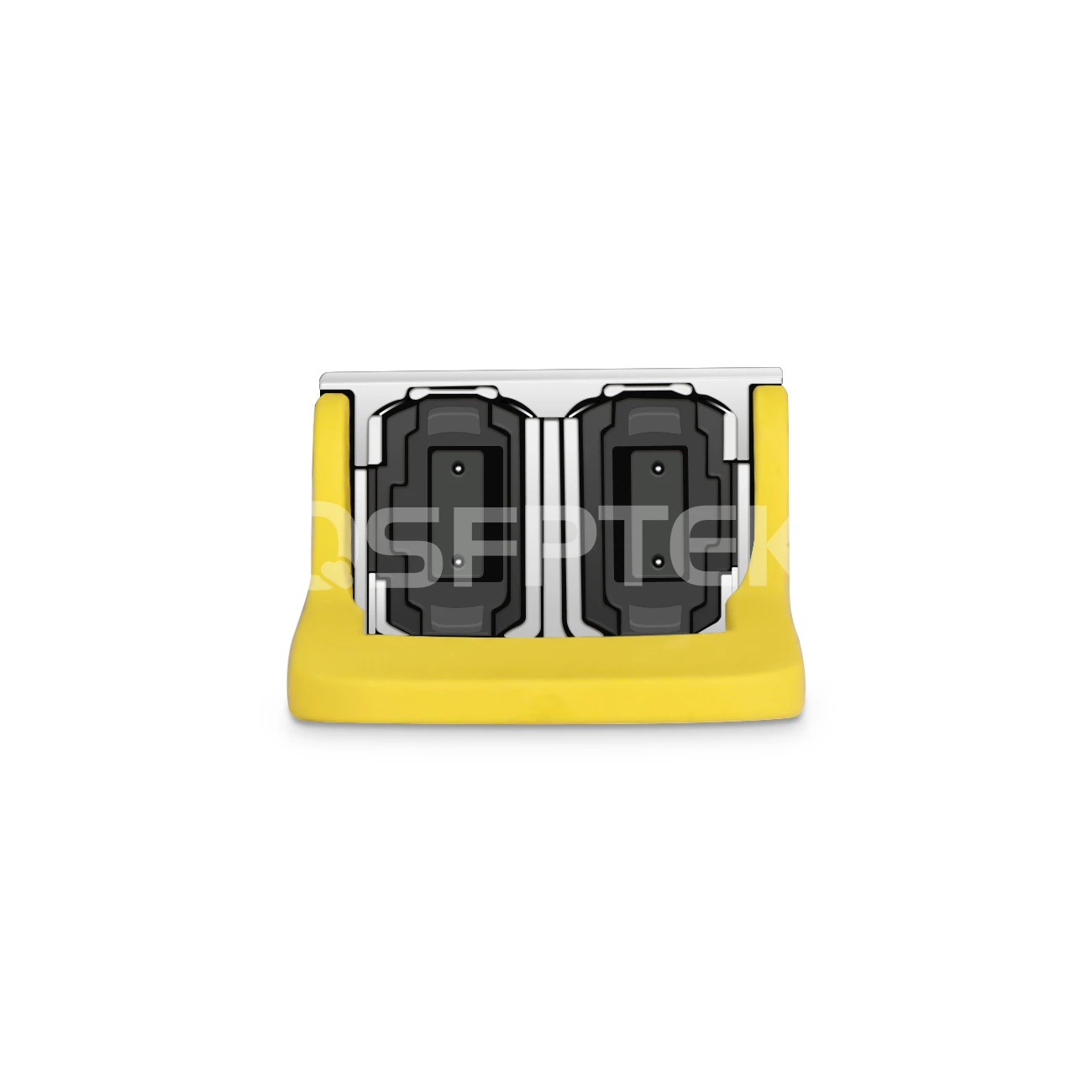

4. Hot-pluggable OSFP with dual MPO-12/APC connectors
5. Maximum link length of 500m on SMF
6. I2C management interface
7. Compliant with LPO MSA 100G-DR-LPO Draft Rev 0.5 optical specifications and CEI-112G-LINEAR-PAM4 electrical specifications
8. Compliant with RoHS, CMIS Rev 4.0
    See more

    Specifications

    Arista Compatible 800GBASE-DR8 (2x400G DR4) LPO (Linear-drive Pluggable Optics) OSFP PAM4 Optical Transceiver Module (1310nm, 500m, Dual MPO-12 APC, SMF, 0°C to 70°C, DDM)



    Arista Compatible 800GBASE-DR8 (2x400G DR4) OSFP Linear-drive Pluggable Optics (LPO) transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 500m over single-mode fiber (SMF) with dual MPO-12 APC connectors. QSFPTEK manufactured  800GBASE-DR8 (2x 400GBASE DR4) OSFP LPO module complies with LPO MSA 100G-DR-LPO Draft Rev 0.5 optical specifications, CEI-112G-LINEAR-PAM4 electrical specifications, CMIS Rev 4.0 and RoHS. DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the DR8 OSFP achieves 800 Gigabit Ethernet through 8x 106.25 PAM4. The 800G DR8 OSFP is widely used for 800 gigabit Ethernet, 800G to 8x 100GBASE-DR, or 2x 400GBASE-DR4 breakout, and data center interconnect.



    Part Number QT-OSFP-800G-2DR4-LPO Vendor Name QSFPTEK
    Form Factor Twin-port OSFP Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m
    Connector Dual MTP/MPO-12/APC Cable Type SMF
    Transmitter Type DFB Receiver Type PIN
    TX Power -2.9 to 4 dBm Receiver Sensitivity <-5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption <8W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols LPO MSA 0.5, CEI-112G-LINEAR-PAM4, CMIS Rev 4.0, RoHS Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

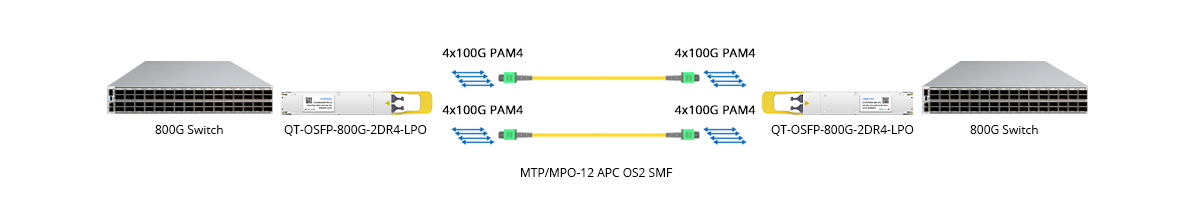

    Scenario 1: 800G to 800G Direct Connectivity

    Scenario 1: 800G to 800G Direct Connectivity

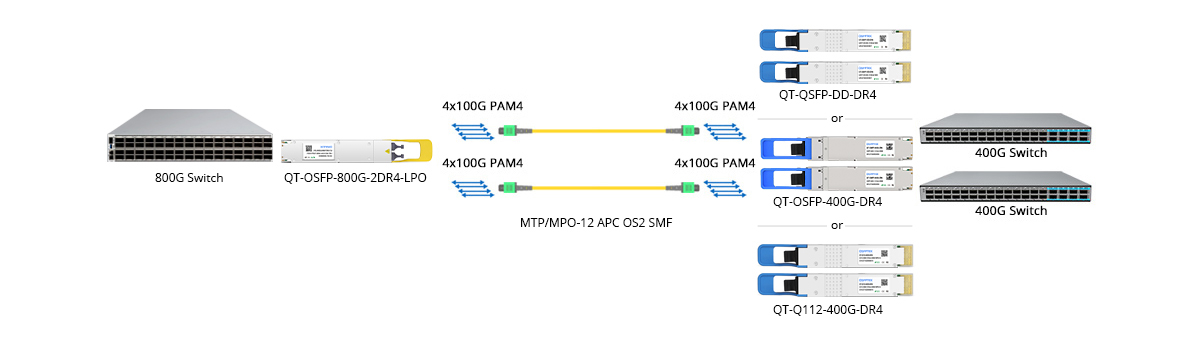

    Scenario 2: 800G to 2x 400GE Breakout Connectivity

    Scenario 2: 800G to 2x 400GE Breakout Connectivity

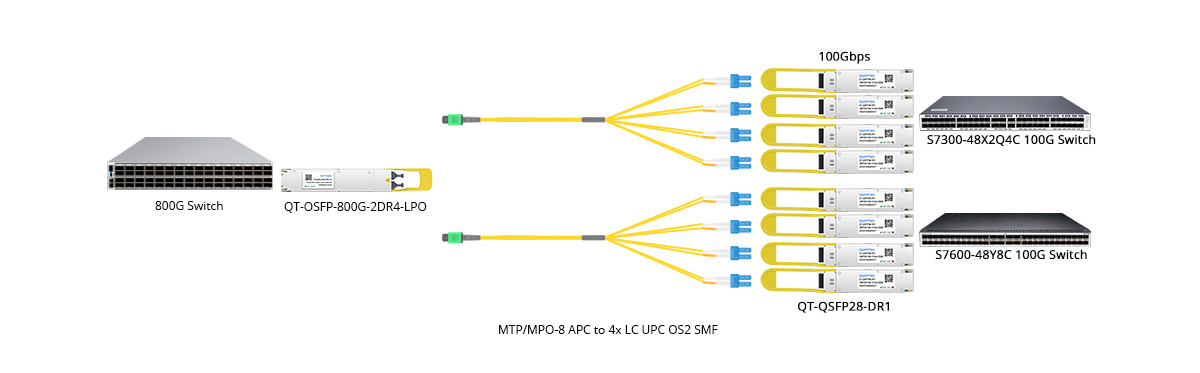

    Scenario 3: 800G to 8x 100GE Breakout Connectivity

    Scenario 3: 800G to 8x 100GE Breakout Connectivity

    Product details

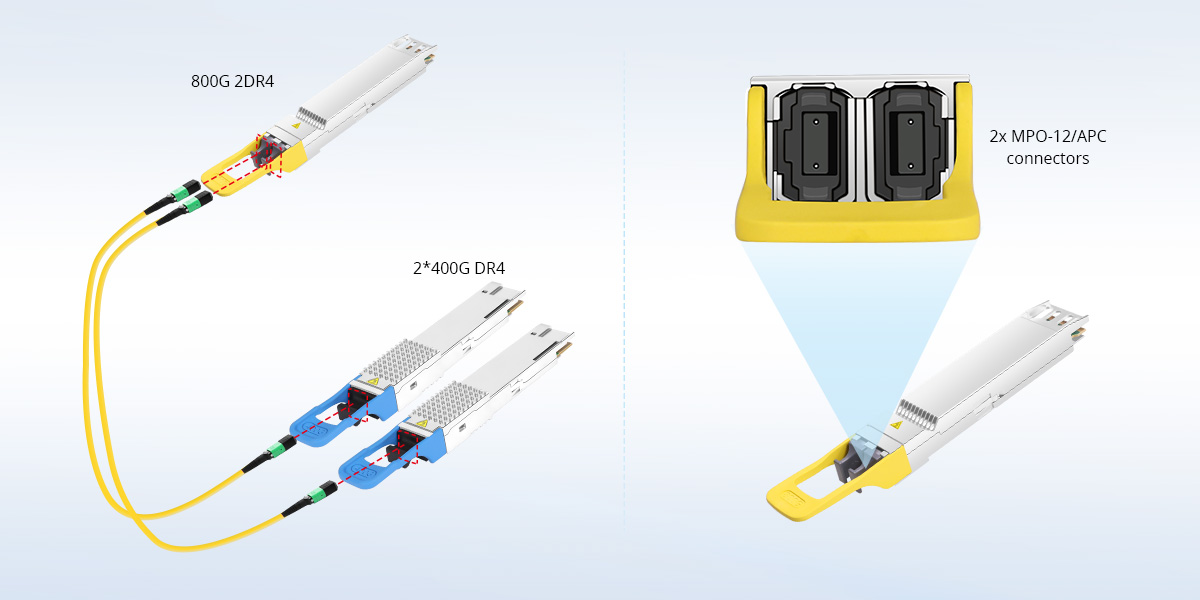

    Easy 800G to 2x 400G breakout with MTP/MPO SMFs

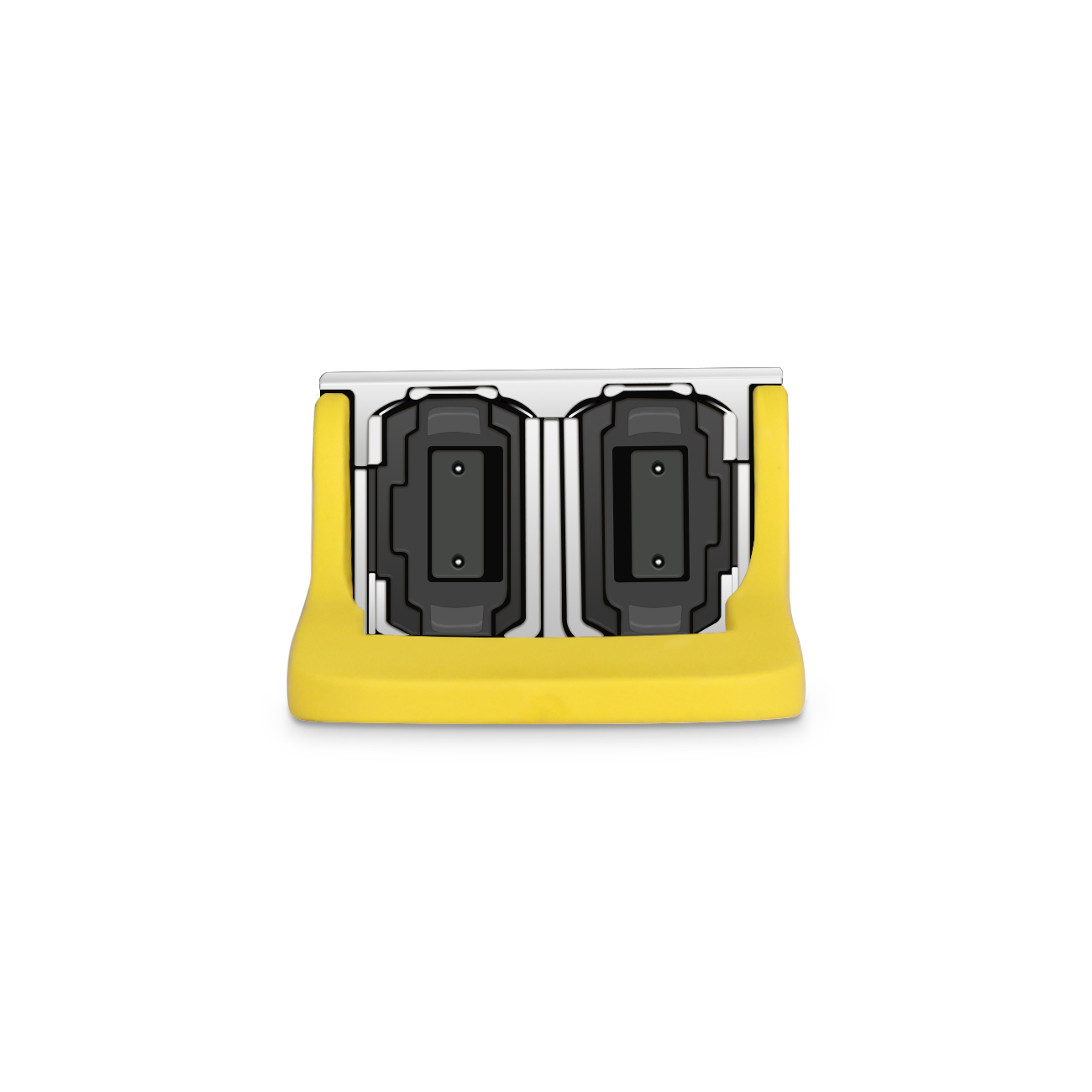

    The 800G OSFP 2DR4 LPO module is designed with dual MPO-12/APC connectors, while each connector can connect to a physically separate 400G DR4 OSFP/QSFP-DD/QSFP112 module via an MTP/MPO-12 APC OS2 SMF. This enables 800G to 2x 400G breakout links without the need for using breakout fiber optic cables.



    Easy 800G to 2x 400G breakout with OS2 SMFs

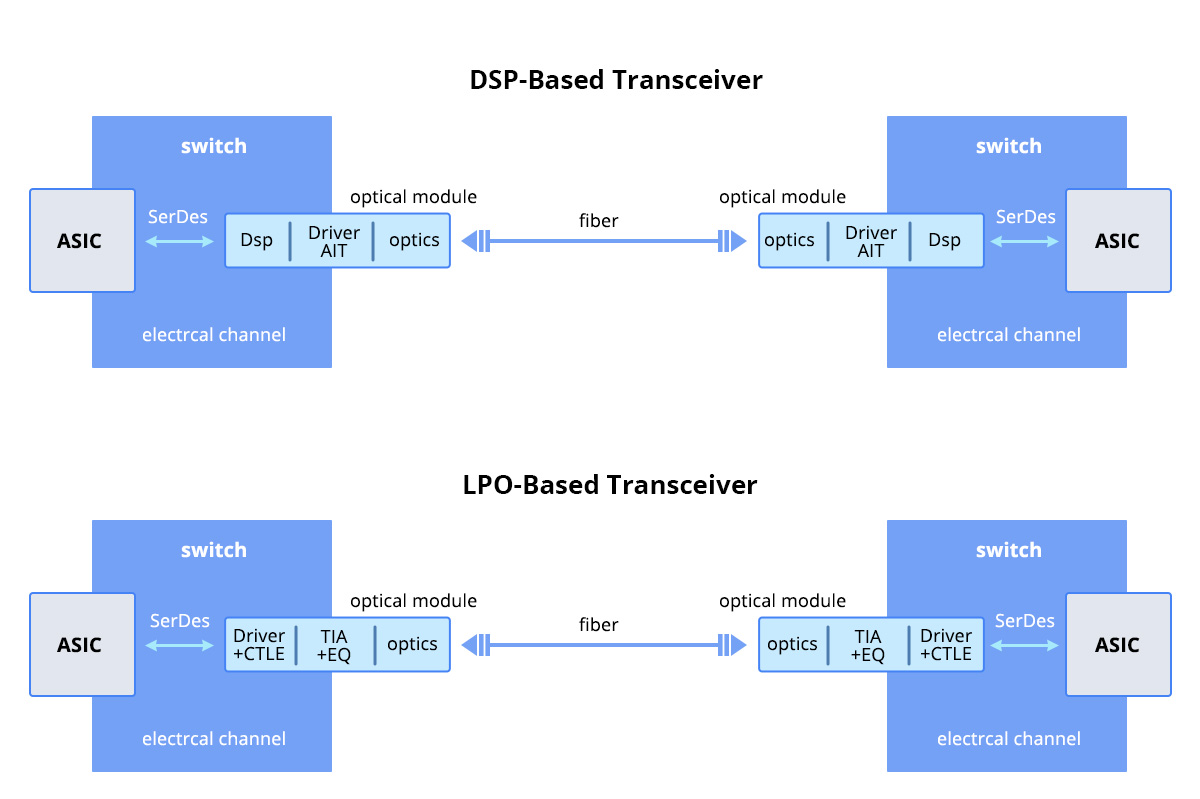

    Revolutionize Data Center Connectivity with LPO

    Traditional DSPs are a bottleneck for power and latency. Linear-Drive Pluggable Optics (LPO) removes this bottleneck by using linear-drive chips instead, enabling next-generation high-speed networks that are both extremely power-efficient and low-latency—critical for scaling AI and compute infrastructure.

    Revolutionize Data Center Connectivity with LPO

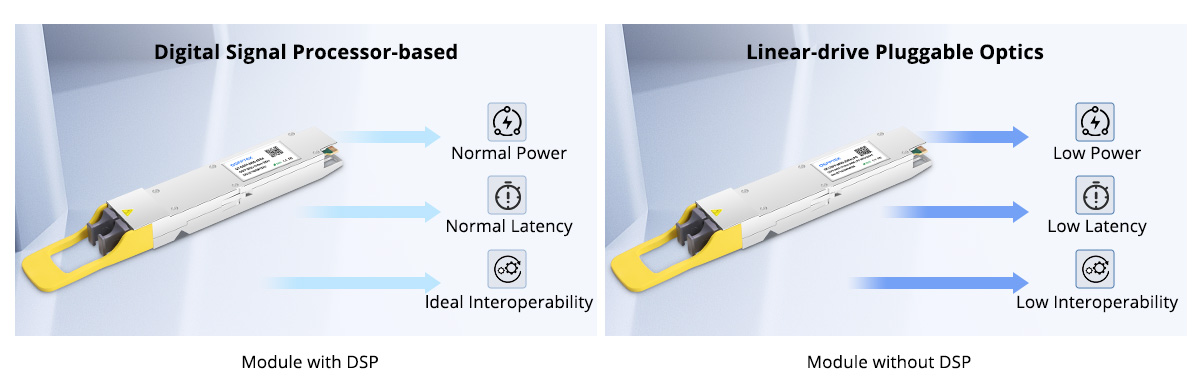

    Remove DSP to Achieve Lower Power and Latency

    DSP Module:

    Pros: Excellent performance and interoperability, reliable for diverse, long-reach applications.

    Cons: Higher power consumption and cost due to complex DSP circuitry.

    LPO Module:

    Pros: Drastically lower power and latency, ideal for short-reach, power-sensitive environments like AI clusters.

    Cons: Interoperability relies heavily on the host switch, requiring a more ecosystem-specific approach.

    Remove DSP to Achieve Lower Power and Latency



    8x 100Gbps PAM4 Modulation Technology

    Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.



    8x 100Gbps PAM4 Modulation Technology





    800G OSFP Optical Transceivers Contrast Table



    Part Number

    QT-OSFP-800G-2VR4

    QT-OSFP-800G-2SR4

    QT-OSFP-800G-2DR4

    QT-OSFP-800GSi-2DR4


    Data Rate

    800G

    800G

    800G

    800G

    Optical Connector

    Dual MPO-12/APC

    Dual MPO-12/APC

    Dual MPO-12/APC

    Dual MPO-12/APC

    Cable Type

    MMF

    MMF

    SMF

    SMF

    Wavelength

    850nm

    850nm

    1310nm

    1310nm

    Reach

    50m

    100m@OM4 MMF

    60m@OM3 MMF

    500m

    500m

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    Max Power Consumption

    < 16W

    < 13.5W

    < 16.5W

    < 16W

    Matching Transceivers

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    QT-QSFP-DD-DR4

    QT-QSFP28-DR1

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    Application

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 8x100G breakout

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    Part Number

    QT-OSFP-800G-2DR4-LPO

    QT-OSFP-800G-2XDR4

    QT-OSFP-800G-2FR4

    QT-OSFP-800G-2LR4


    Data Rate

    800G

    800G

    800G

    800G

    Optical Connector

    Dual MPO-12/APC

    Dual MPO-12/APC

    Dual Duplex LC/UPC

    Dual Duplex LC/UPC

    Cable Type

    SMF

    SMF

    SMF

    SMF

    Wavelength

    1310nm

    1310nm

    1271nm, 1291nm, 1311nm and 1331nm

    1271nm, 1291nm, 1311nm, and 1331nm

    Reach

    500m

    2km

    2km

    10km

    Modulation

    PAM4

    PAM4

    PAM4

    PAM4

    Max Power Consumption

    < 8W

    < 16.5W

    ≤ 16.5W

    < 15W

    Matching Transceivers

    QT-OSFP-400G-SR4

    QT-QSFP-DD-SR4

    QT-Q112-400G-SR4

    QT-QSFP-DD-DR4+

    QT-QSFP-DD-FR4

    QT-QSFP-DD-LR4

    Application

    800G to 800G, 800G to 2x400G breakout, 800G to 4x200G breakout

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout

    800G to 800G, 800G to 2x400G breakout
