    Home / Products / Transceivers / 400G/800G Ethernet Transceivers / 400G QSFP112 / 103683

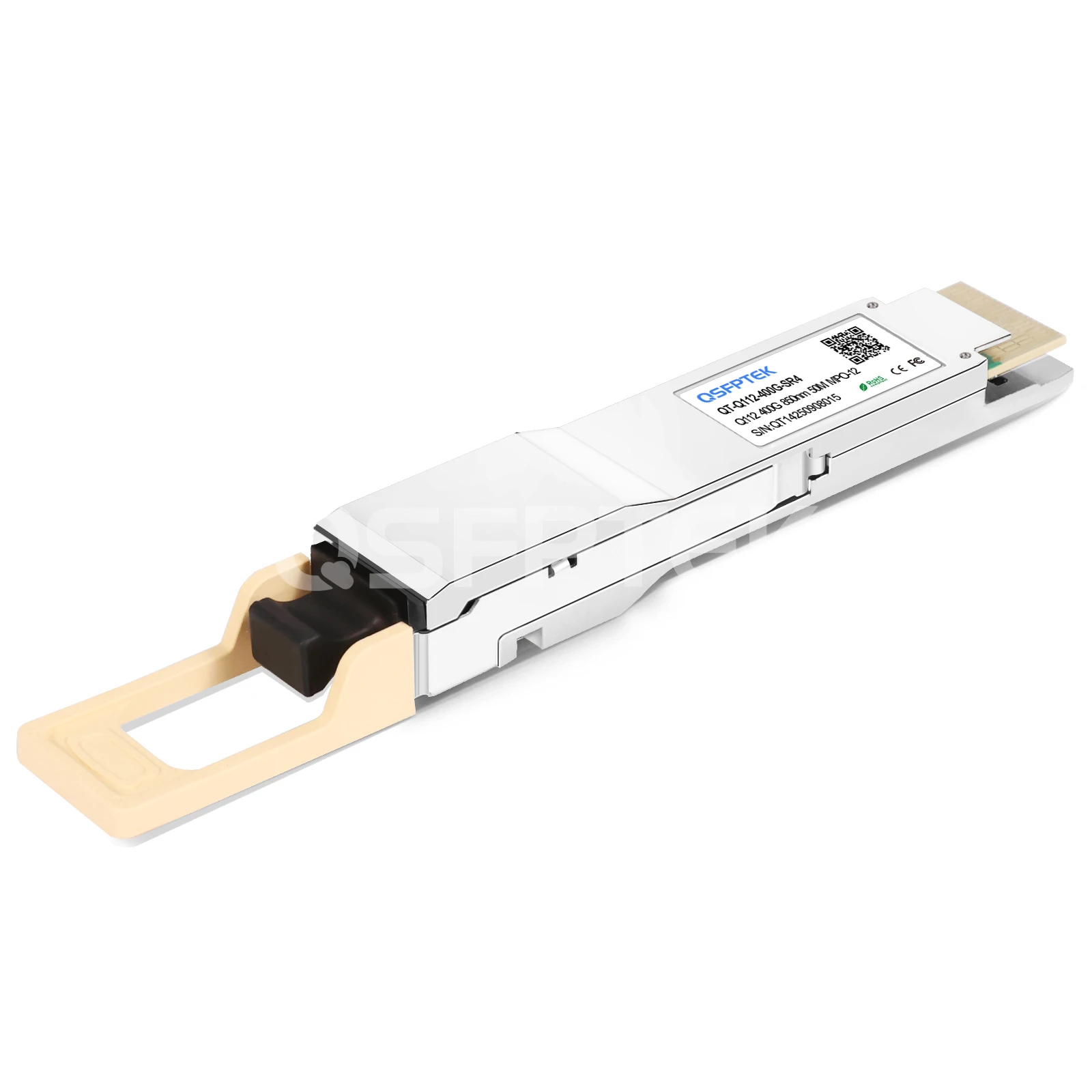

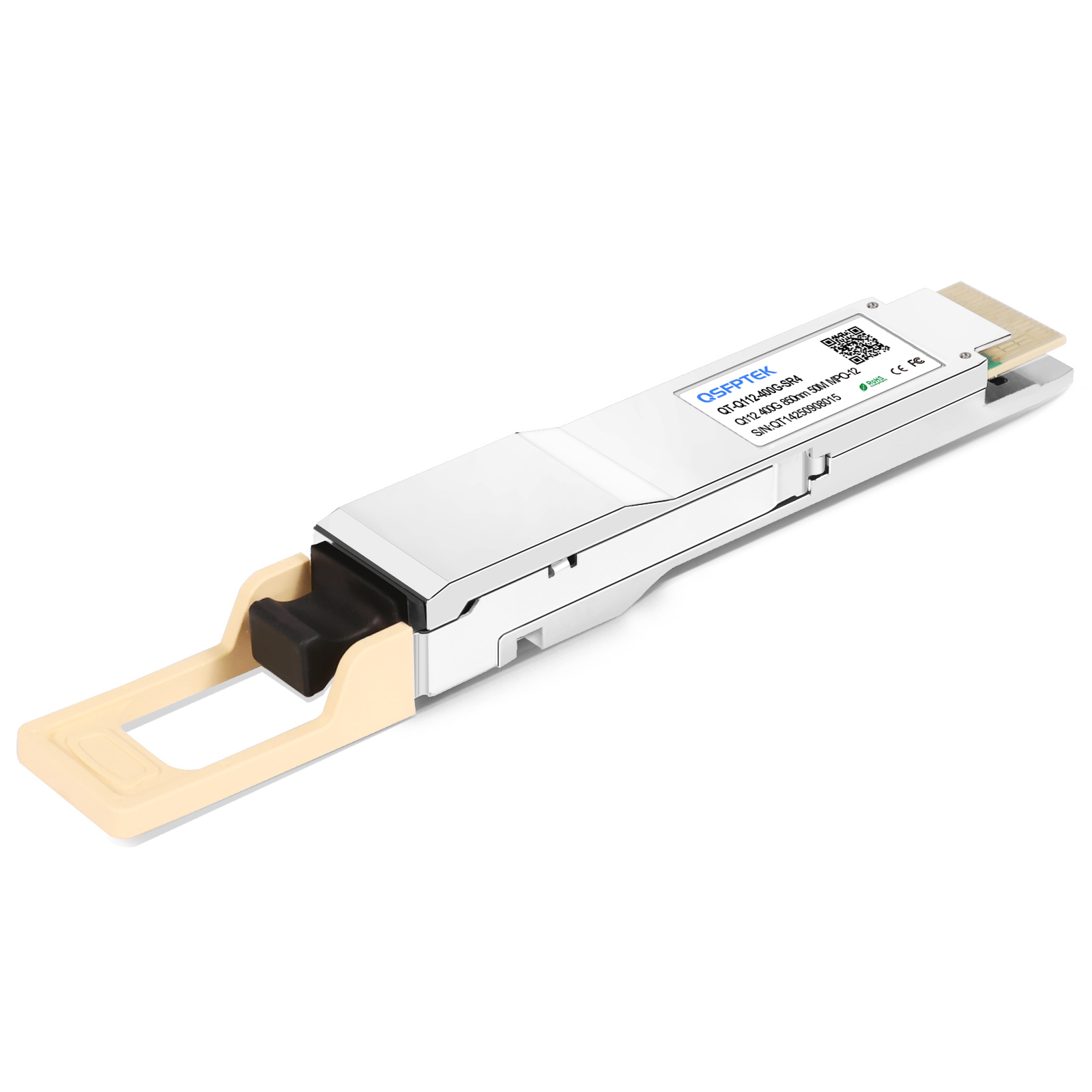

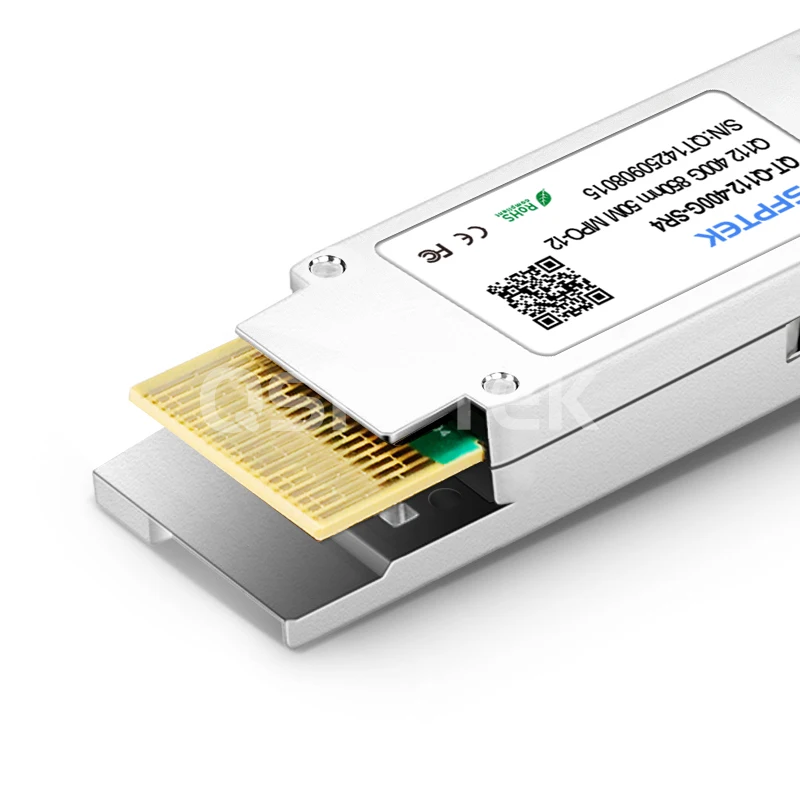

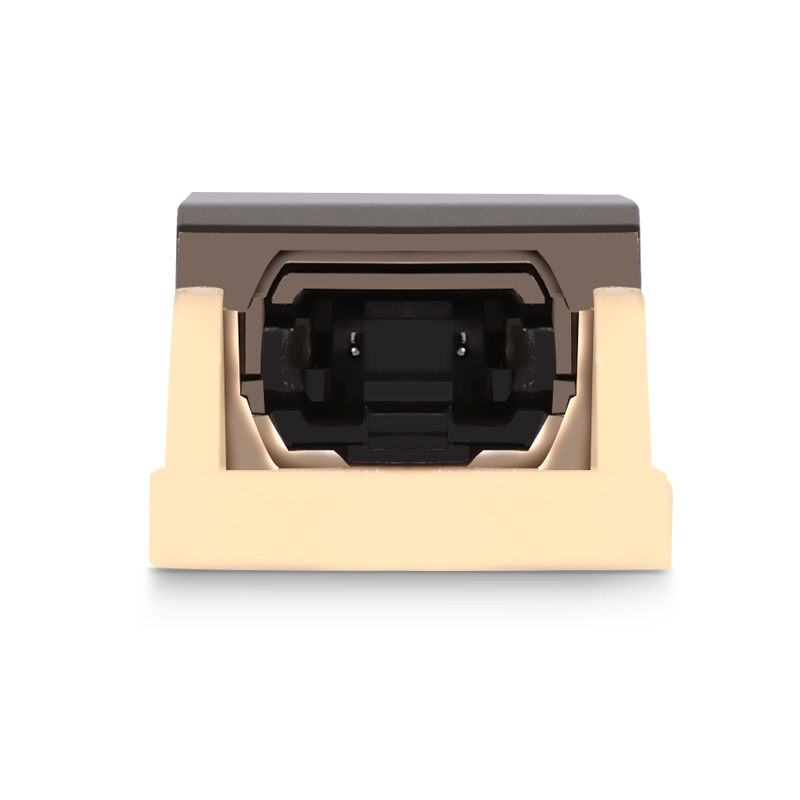

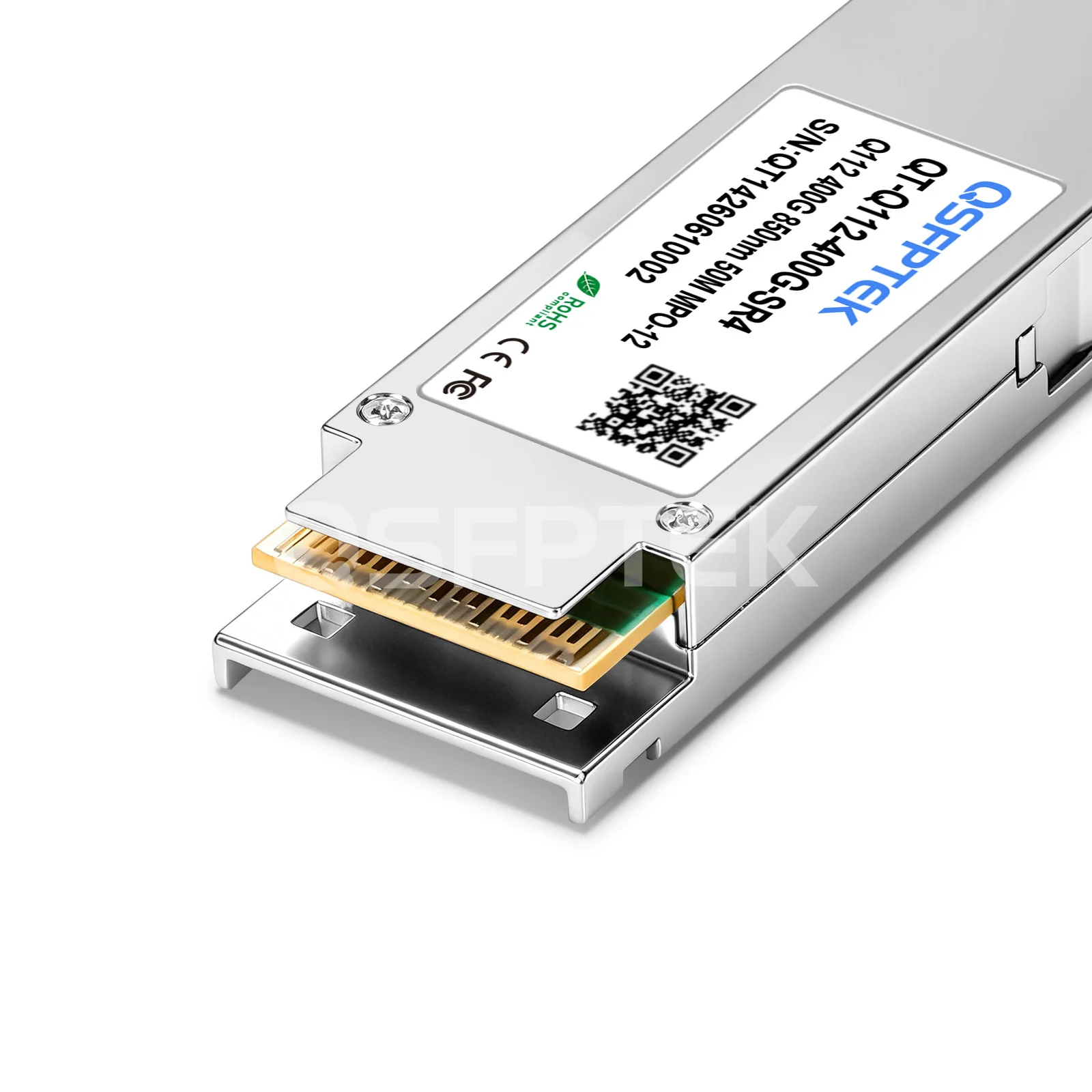

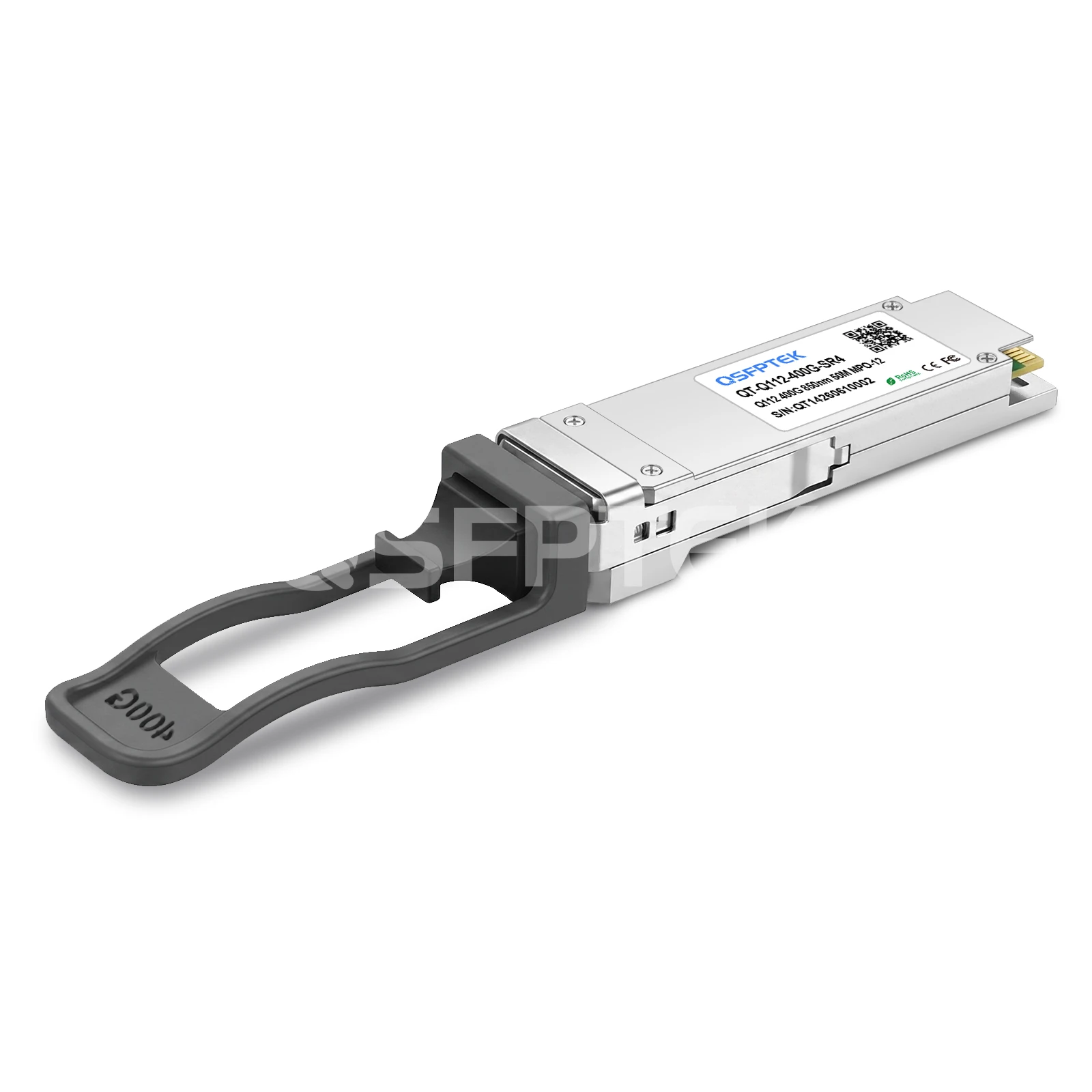

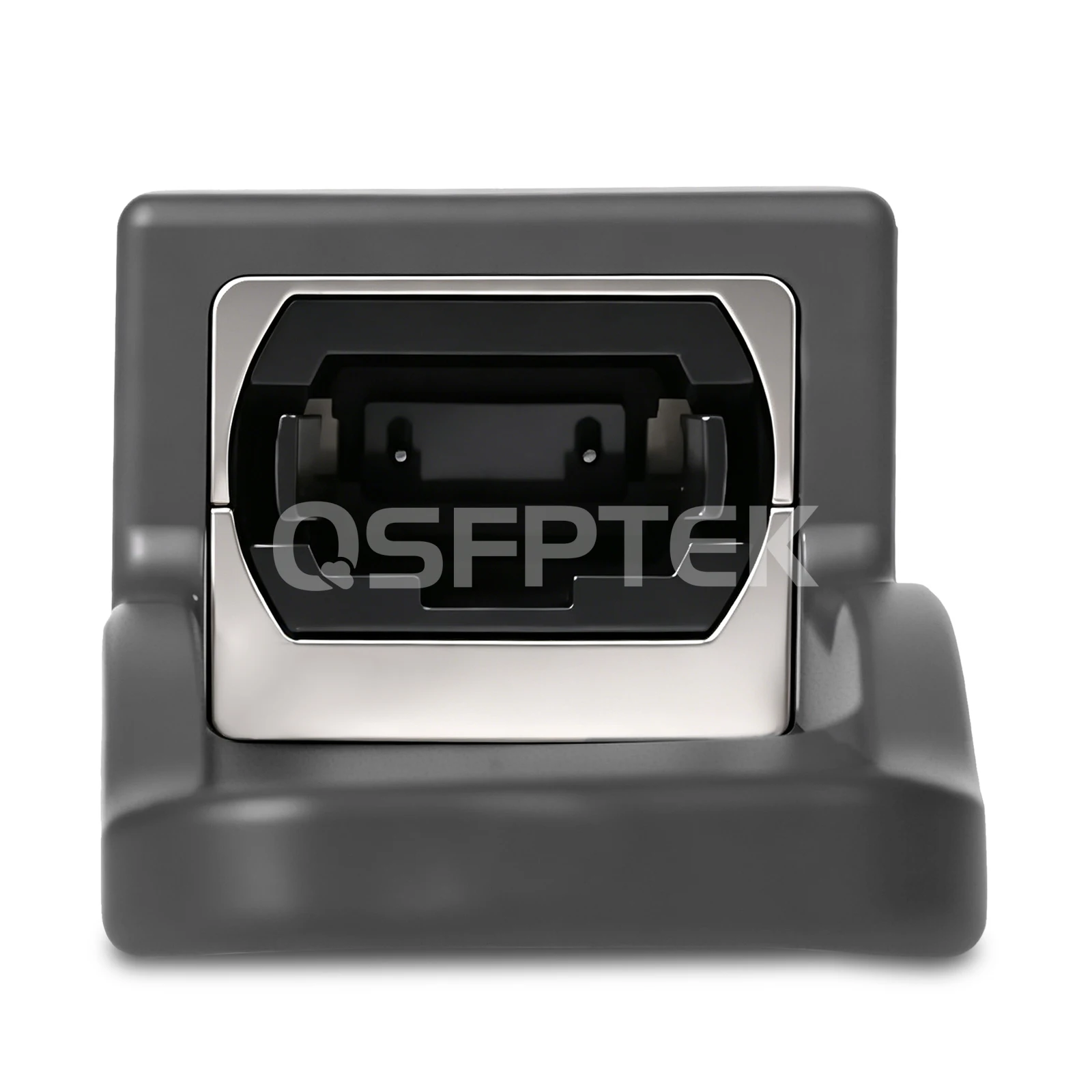

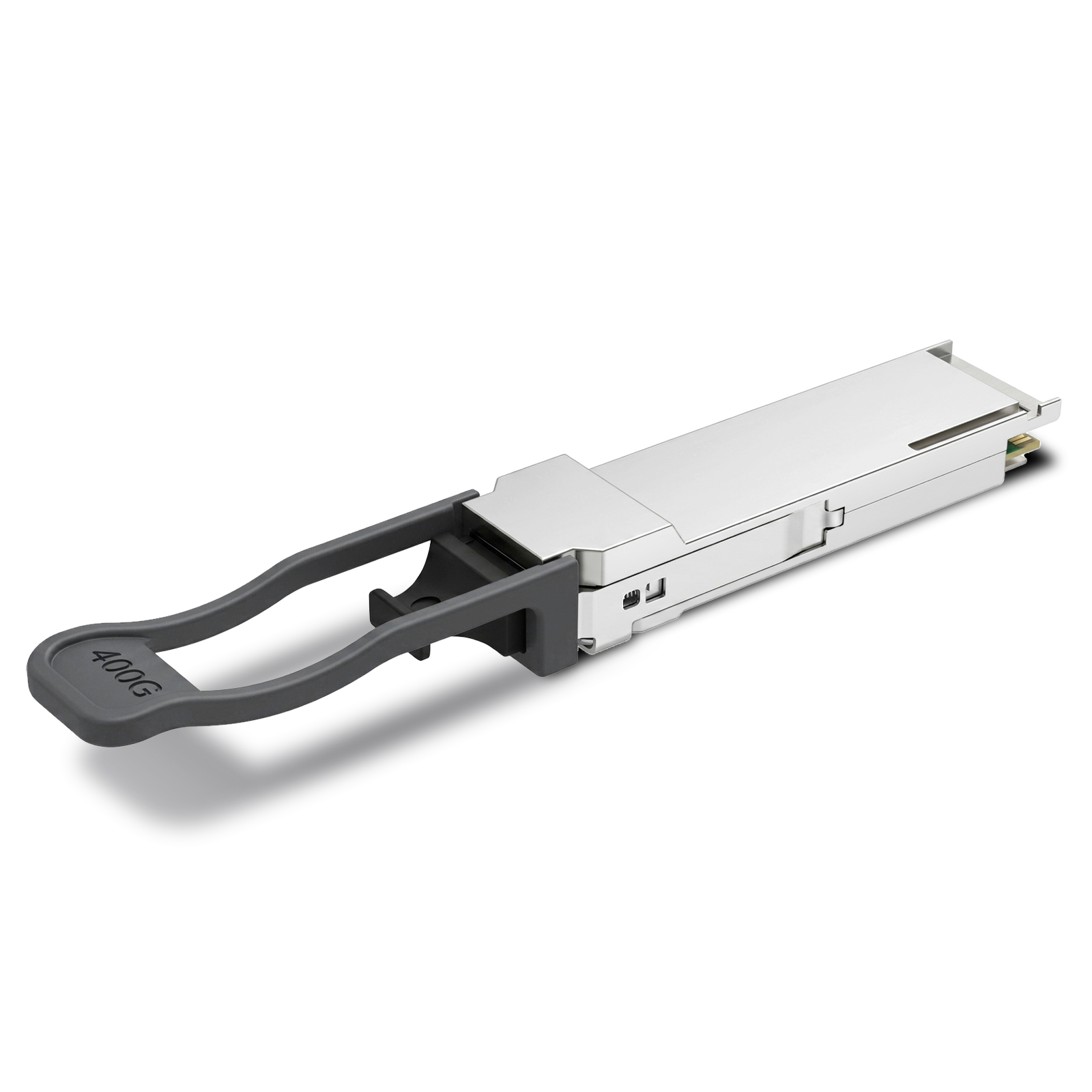

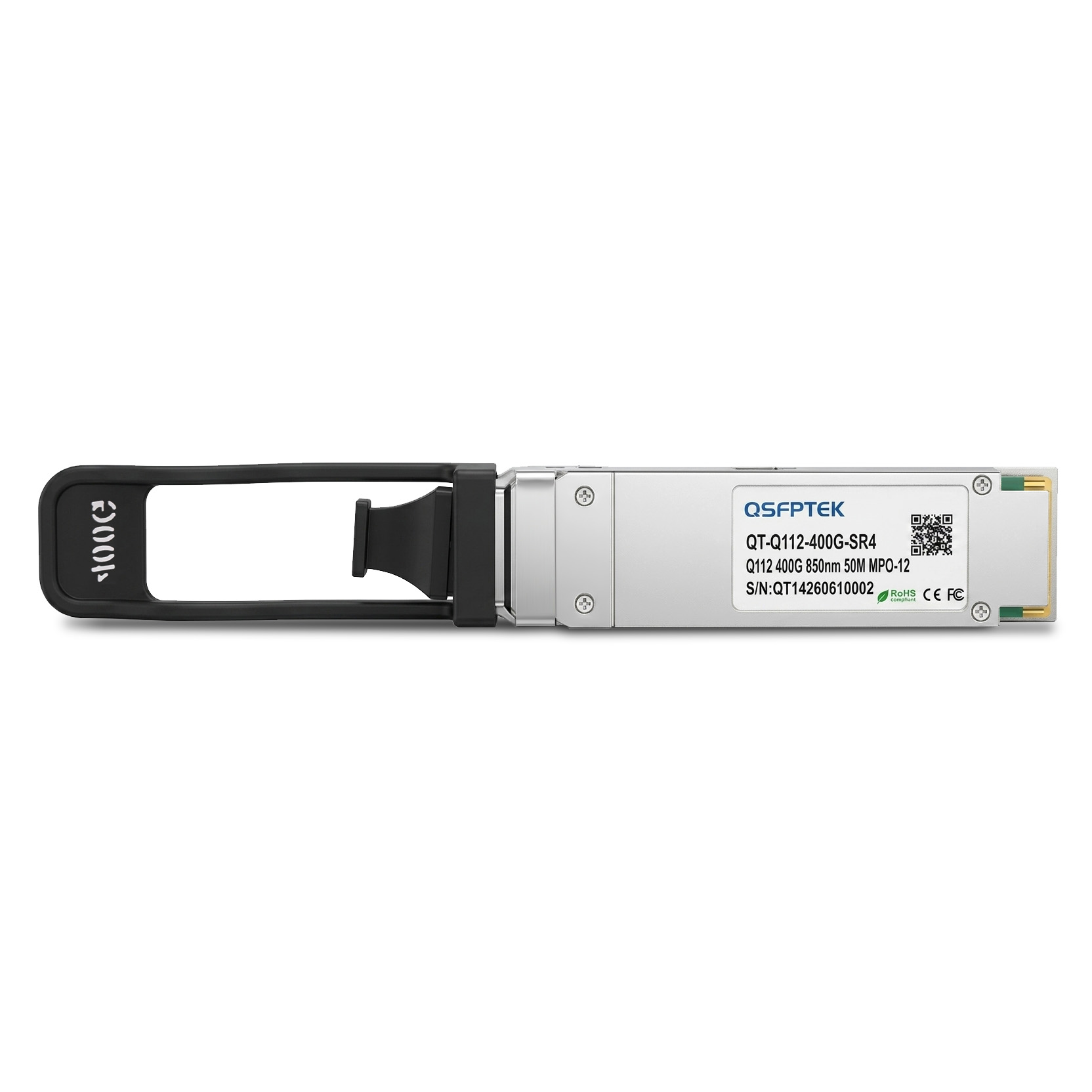

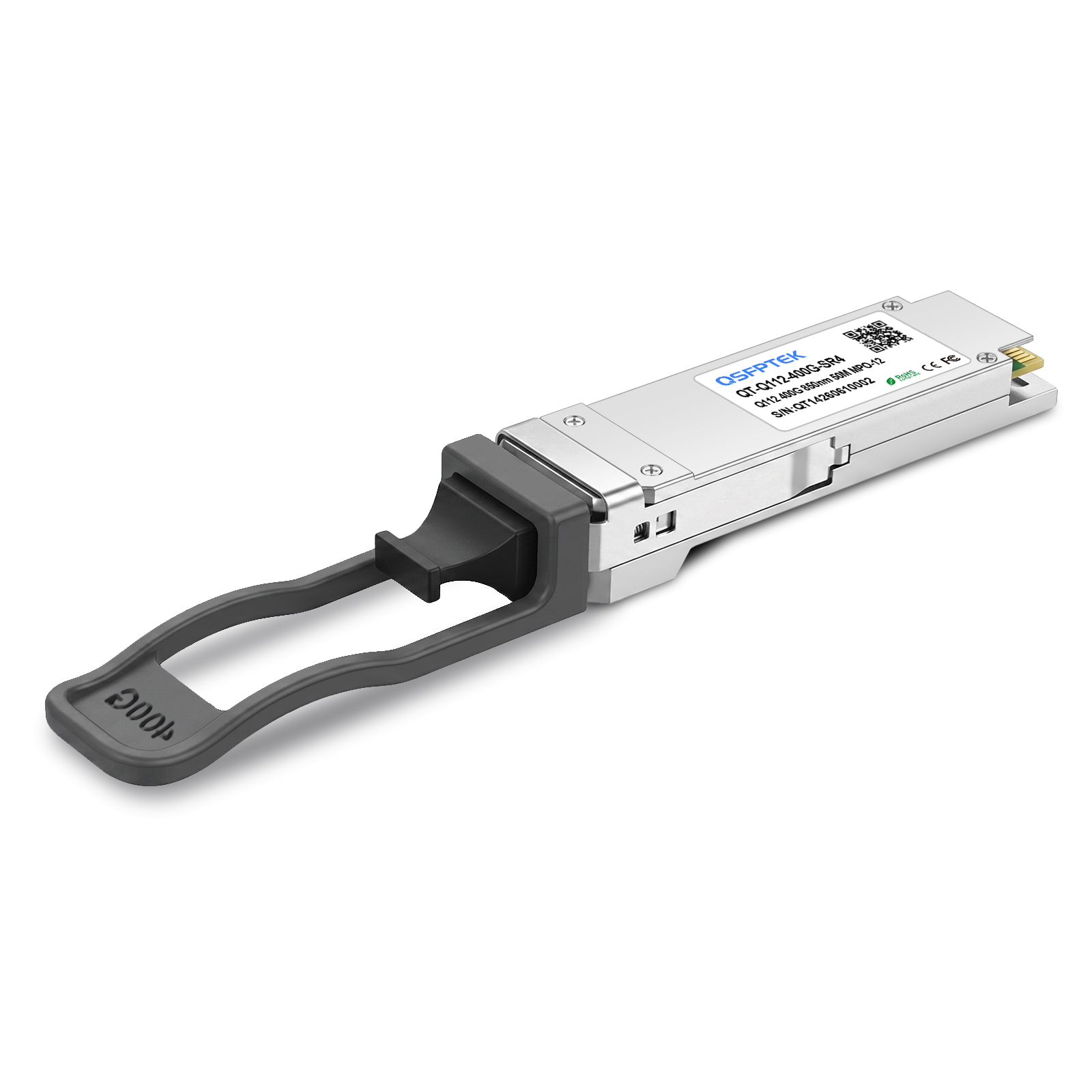

    NVIDIA/Mellanox MMA1Z00-NS400 (980-9I693-00NS00) Compatible 400GBASE-SR4 QSFP112 RHS/Flat Top PAM4 850nm 50m DOM MPO-12/APC MMF Optical Transceiver Module

    Product No: 103683
    4 Reviews
    0 Sold
    US$ 459.00
    Compatible
    Transceivers type
    8 in real-time stock, 07 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 4x100GAUI-1/2x200GAUI-2/1x400GAUI-4 C2M electrical interface
2. Built-in Broadcom DSP chip
3. InfiniBand NDR support
4. Max power consumption ≤9W
5. Compliant with QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0
    See more

    Specifications

    NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400G QSFP112 SR4 PAM4 Optical Transceiver Module (850nm, 50m, MPO-12 APC Connectors, MMF, 0℃ to +70℃, DOM)



    The NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 transceiver module supports a max data rate of 425Gbps. It enables the fiber link of 50m over MMF with MPO-12 APC connectors. QSFPTEK manufactured  400GBASE-SR4 QSFP112 complies with QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0. DOM function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the SR4 QSFP112 achieves 400 Gigabit Ethernet through 4x 106.25 PAM4 Retimed 4x100GAUI-1/2x200GAUI-2/1x400GAUI-4 C2M electrical interface. The 400G SR4 QSFP112 is widely used for 400 gigabit Ethernet, 800G to 2x 400GBASE-SR4 breakout, data center and InfiniBand NDR applications.



    Part Number QT-Q112-400G-SR4 Vendor Name QSFPTEK
    Form Factor QSFP112 Max Data Rate 425 Gbps (4x 106.25 Gbps)
    Wavelength 850nm Distance 50m
    Connector MPO-12/APC Cable Type MMF
    Transmitter Type VCSEL Receiver Type PIN PD
    TX Power -4.6 to +4dBm Receiver Sensitivity < -6.4dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤9W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Advanced Technology
      Features with PAM4 modulation technology, DSP chip and COB packaging technology.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0 standard
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

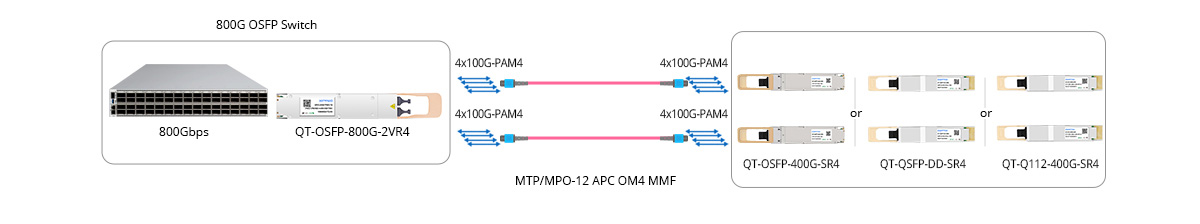

    800G to 2x 400G Breakout Connectivity:

    800G to 2x 400GE Breakout Connectivity

    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







     400G QSFP112 Optical Transceivers Contrast Table



    Part Number

    QT-Q112-400G-SR4

    QT-Q112-400G-DR4

    QT-Q112-400G-DR4+

    QT-Q112-400G-FR4


    NVIDIA Part Number

    MMA1Z00-NS400

    MMS1X00-NS400

    —

    —

    Data Rate

    400Gb/s

    400Gb/s

    400Gb/s

    400Gb/s

    Optical Connector

    MPO-12/APC

    MPO-12/APC

    MPO-12/APC

    Duplex LC/UPC

    Cable Type

    MTP/MPO-12/APC OM4 MMF

    MTP/MPO-12/APC OS2 SMF

    MTP/MPO-12/APC OS2 SMF

    LC UPC Duplex OS2 SMF

    Wavelength

    850nm

    1310nm

    1310nm

    1310nm

    Reach

    30m@OM3

    50m@OM4

    500m

    2 KM

    2 KM

    Modulation

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    Max Power Consumption

    9W

    10W

    10W

    10W

    Matching 800G Transceivers

    MMA4Z00-NS (Finned top)

    MMS4X00-NM (Finned top)

    OSFP800-XDR8-B2

    MMS4X50-NM (Finned top)

    Application

    800G-to-two 400G Links

    800G-to-four 200G Links

    800G-to-two 400G Links

    800G-to-four 200G Links

    800G-to-two 400G Links

    800G-to-two 400G Links
