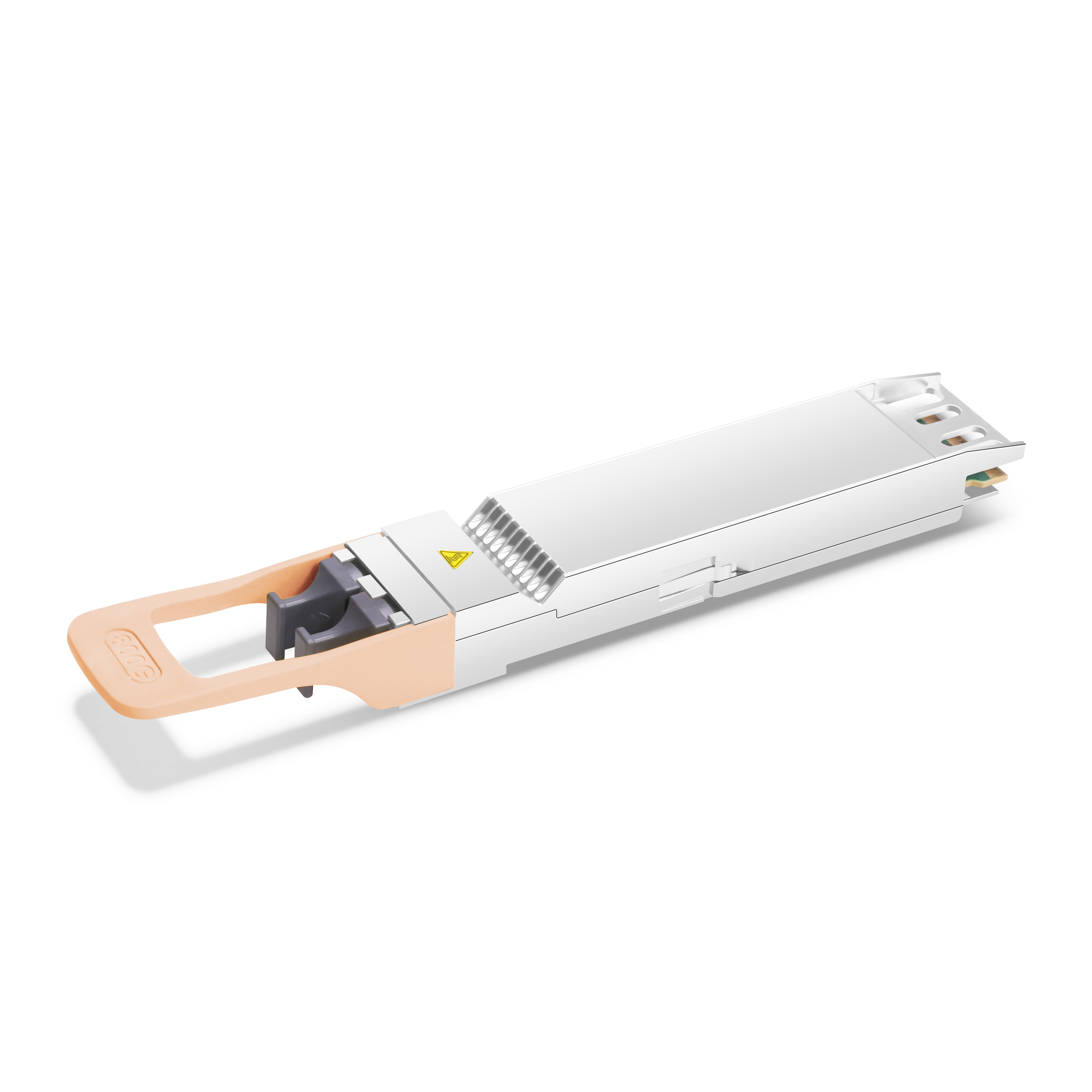

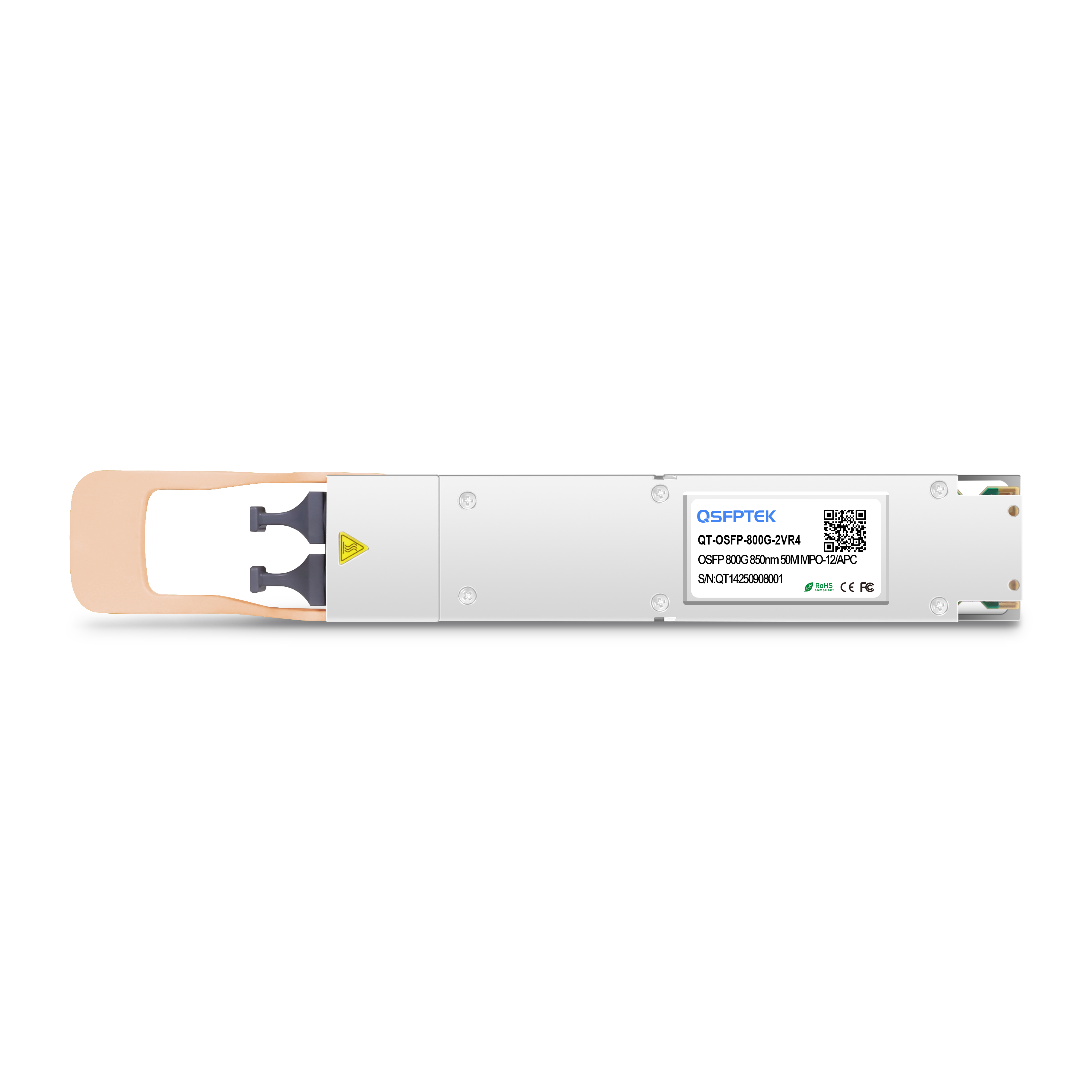

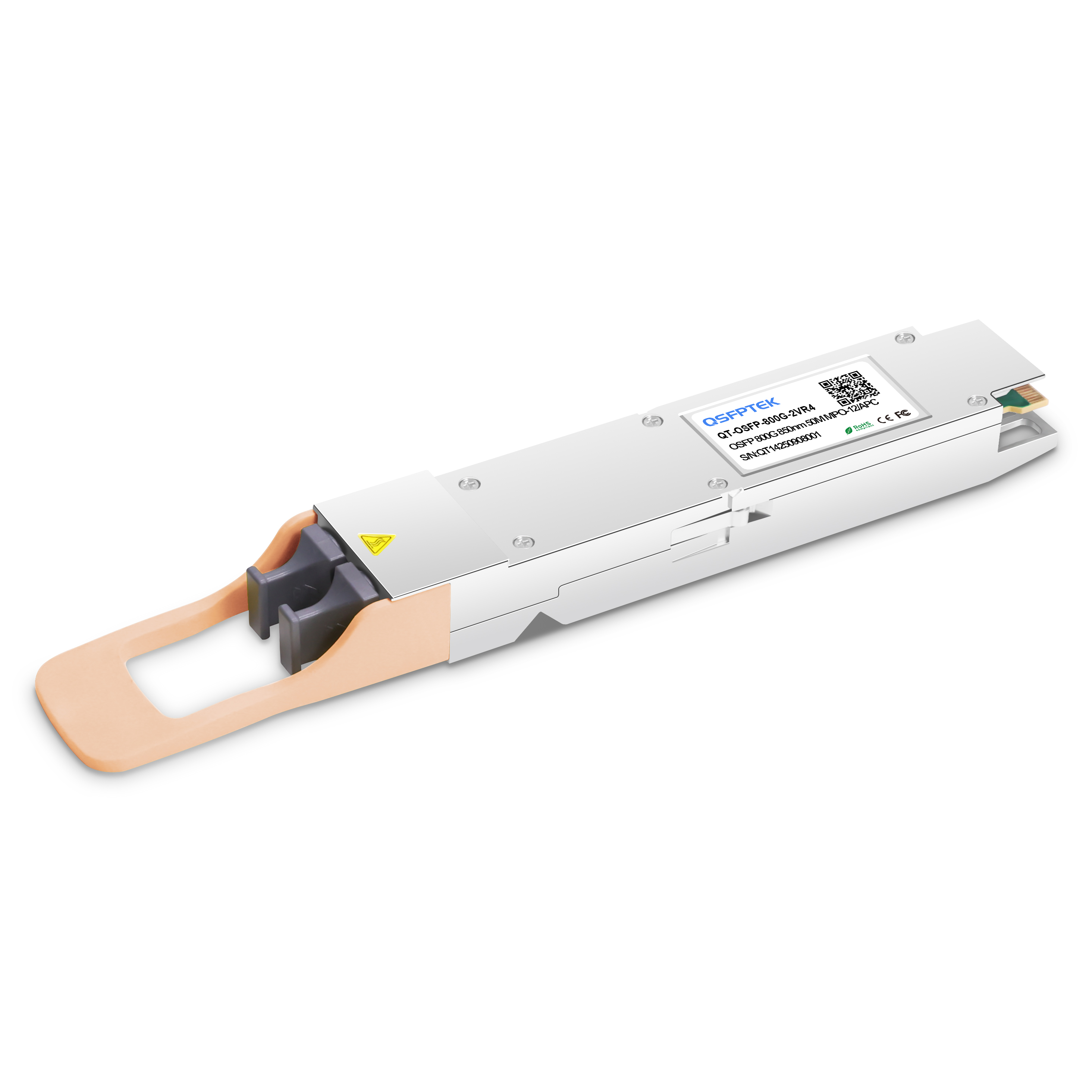

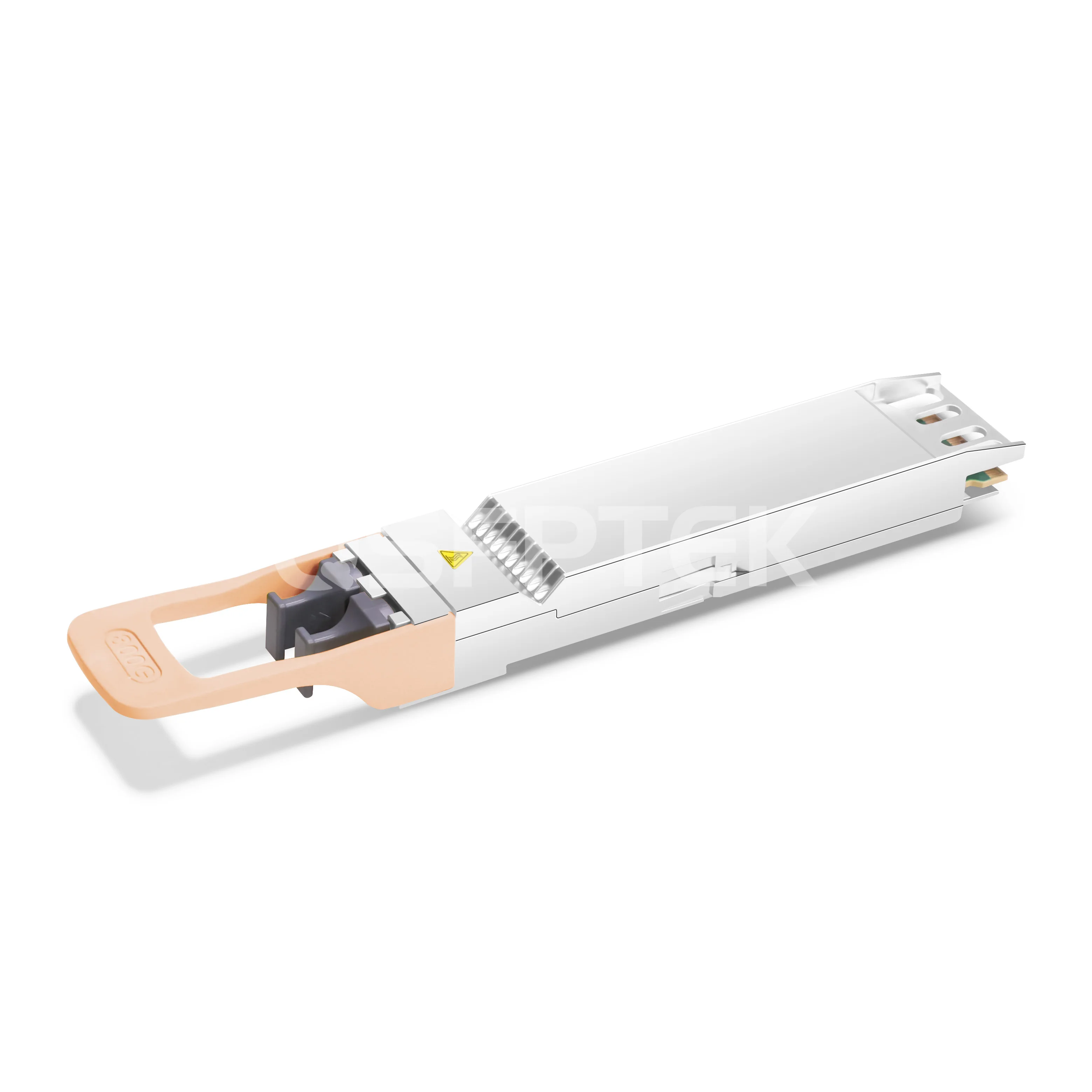

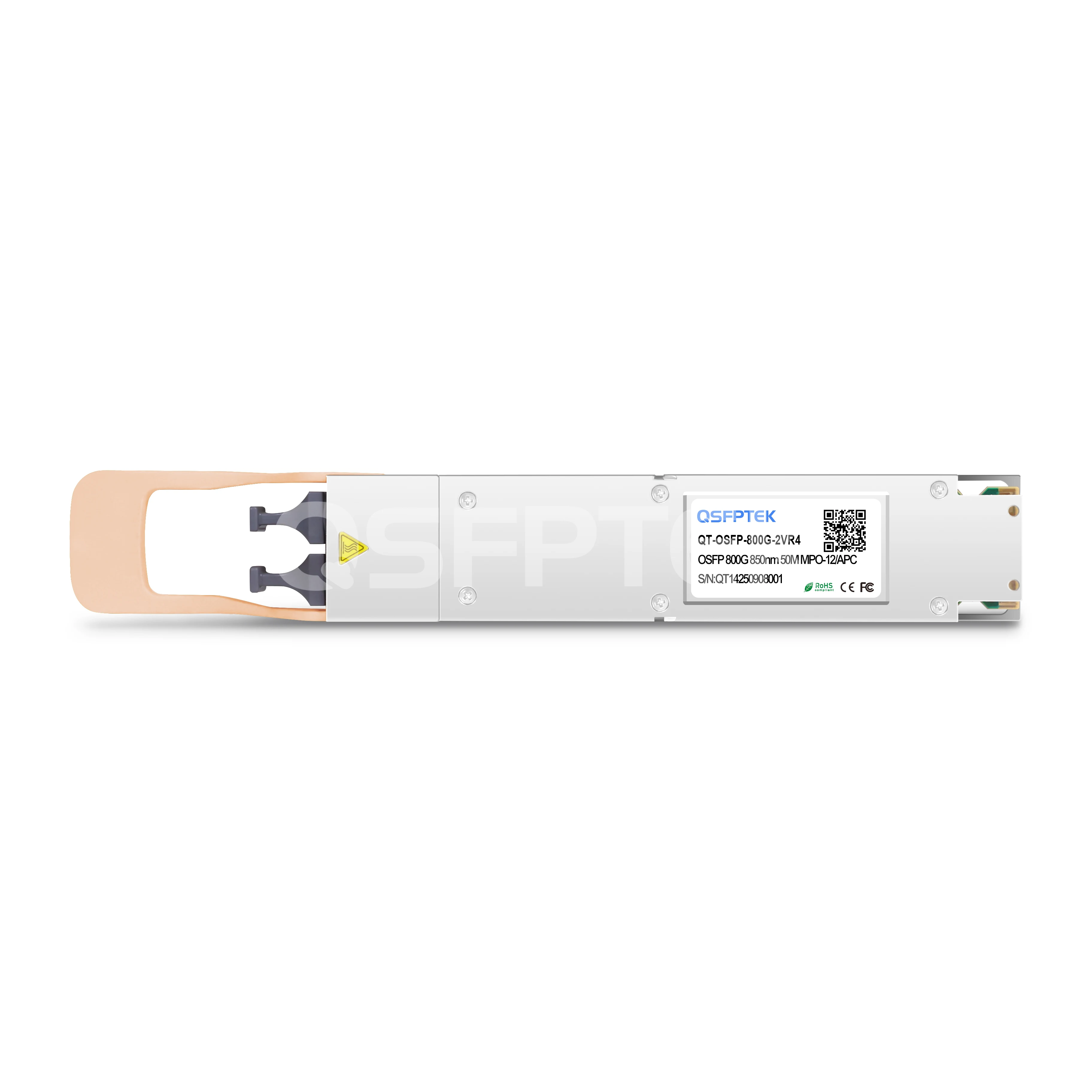

NVIDIA/Mellanox MMA4Z00-NS Compatible 800GBASE-SR8 (2xSR4) Twin-port OSFP IHS/Closed Finned Top PAM4 850nm 50m Dual MPO-12/APC DDM MMF InfiniBand NDR Optical Transceiver Module

Product No: 103584
38 Reviews
106 Sold
US$ 599.00
28 in real-time stock, 24 Jun, 2026

Free Shipping over US$ 79.8

Global warehouses in stock

5-Year Warranty 1-Year Exchange
Warranty
Providing industry-leading limited lifetime warranty.
Please check our warranty policy for details.
Returns & Exchange
Exchanges caused by the customer's reasons will not be accepted.
Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
Please check our Return Policy for details.
-
+
1. Built-in Broadcom DSP chip
2. Support 1x 800G/2x 400G/4x 200G/8x 100G Ethernet and InfiniBand NDR
3. VCSEL transmitter + PIN PD receiver, Class 1 Laser

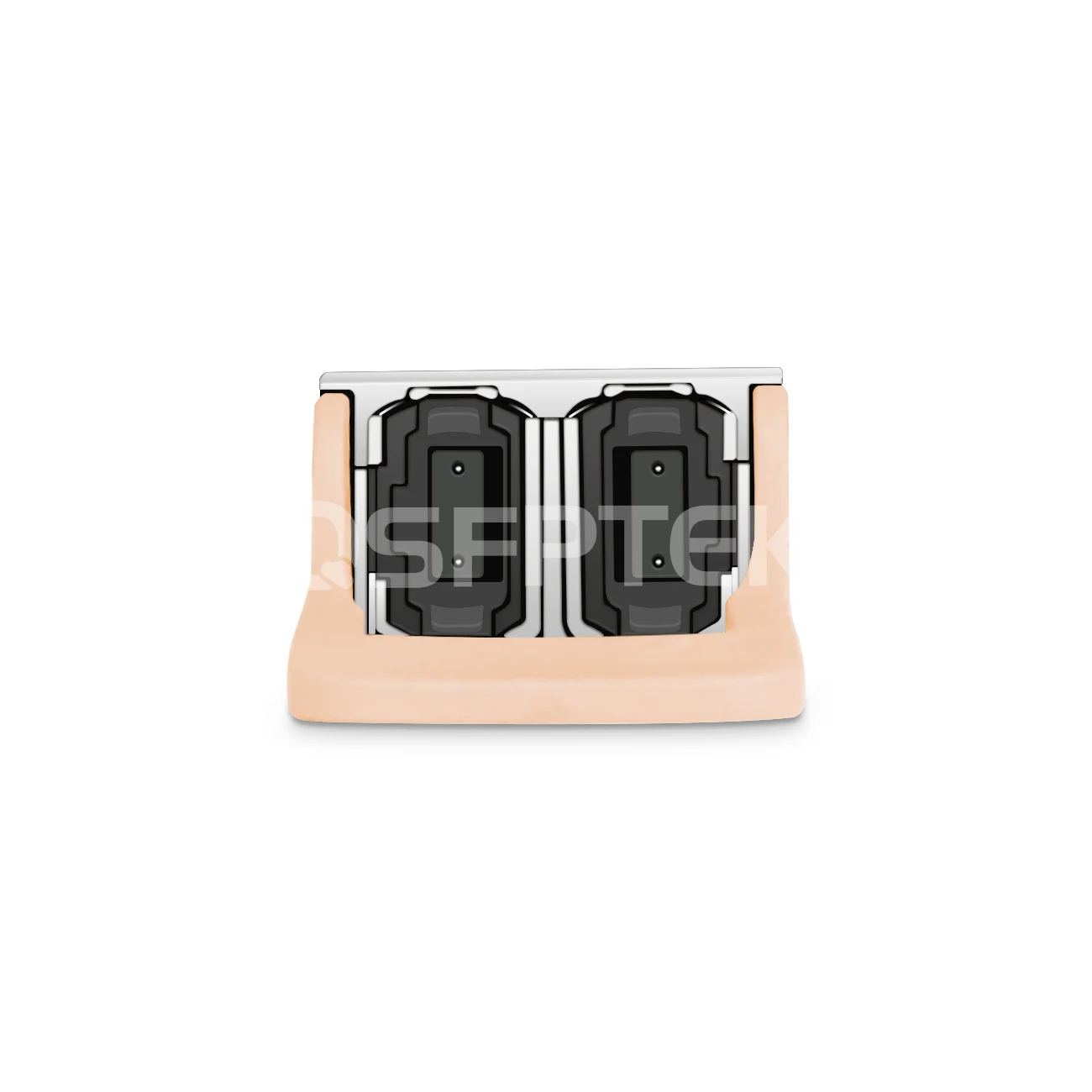

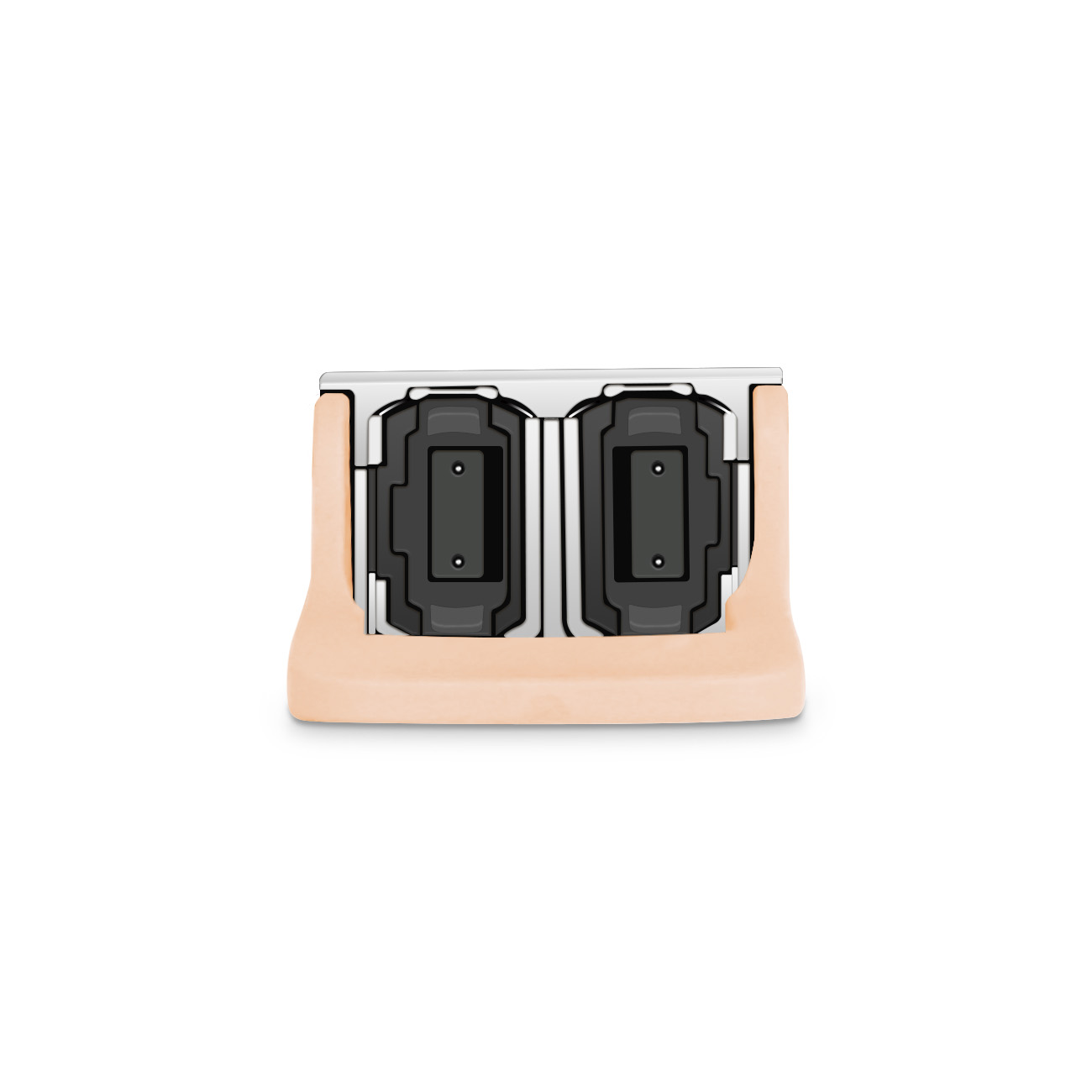

4. Hot-pluggable OSFP with dual MPO-12/APC connectors
5. Support 850Gb/s aggregate bit rate, Power consumption < 16W
6. Two wire serial Interface with digital diagnostic monitoring (DDM)
7. Compliant with InfiniBand Trade Association (IBTA) Specification 1.6 - InfiniBand NDR electrical and optical interface
8. Complies with EU Directive 2011/65/EU (RoHS compliant)
See more

Specifications

NVIDIA/Mellanox MMA4Z00-NS Compatible 800GBASE-SR8 (2x400G SR4) OSFP IHS/Closed Finned Top PAM4 InfiniBand NDR Optical Transceiver Module (850nm, 50m, 2x MPO-12/APC Connectors, MMF, 0℃ to +70℃, DDM)



NVIDIA/Mellanox MMA4Z00-NS Compatible 800G OSFP SR8 (2x400G SR4) transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 50m over multi-mode fiber (MMF) with dual MPO-12 APC connectors. QSFPTEK manufactured 800GBASE-SR8 (2x 400GBASE SR4) OSFP complies with IEEE 802.3-2022 8x100GBASE-VR1 optical interface, IEEE 802.3ck-2022 8x100GAUI-1 C2M electrical interface, OSFP MSA Specification Rev 5.0 Type 2, CMIS Rev 5.0.



DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the SR8 OSFP achieves 800 Gigabit Ethernet through 8x 106.25 PAM4. The 800G SR8 OSFP supports Infiniband (IB) and Ethernet (ETH) protocols. With a finned top design, the OSFP-IHS is used in Quantum-2 InfiniBand and Spectrum-4 Ethernet air-cooled switches to switches, ConnectX-7 and BlueField-3 DPUs. QSFPTEK NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA InfiniBand host devices, ideal for InfiniBand NDR end-to-end systems.



Part Number QT-OSFP-800G-2VR4-IHS Vendor Name QSFPTEK
Form Factor Twin-port OSFP-IHS/Closed Finned Top Max Data Rate 850Gbps (8x 106.25Gbps)
Wavelength 850nm Distance 50m
Connector Dual MTP/MPO-12/APC Cable Type MMF
Transmitter Type VCSEL Receiver Type PIN PD
TX Power -4.6 to 4 dBm Receiver Sensitivity < -6.3 dBm
Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
Power Consumption < 16W Modulation Format 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
Extinction Ratio >2.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
Application Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches MTBF 3676471 Hours
DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3-2022, IEEE 802.3ck-2022, OSFP MSA, CMIS Rev 5.0 Warranty 5 Years
Quality Testing Program
Quality Certifications

Applications

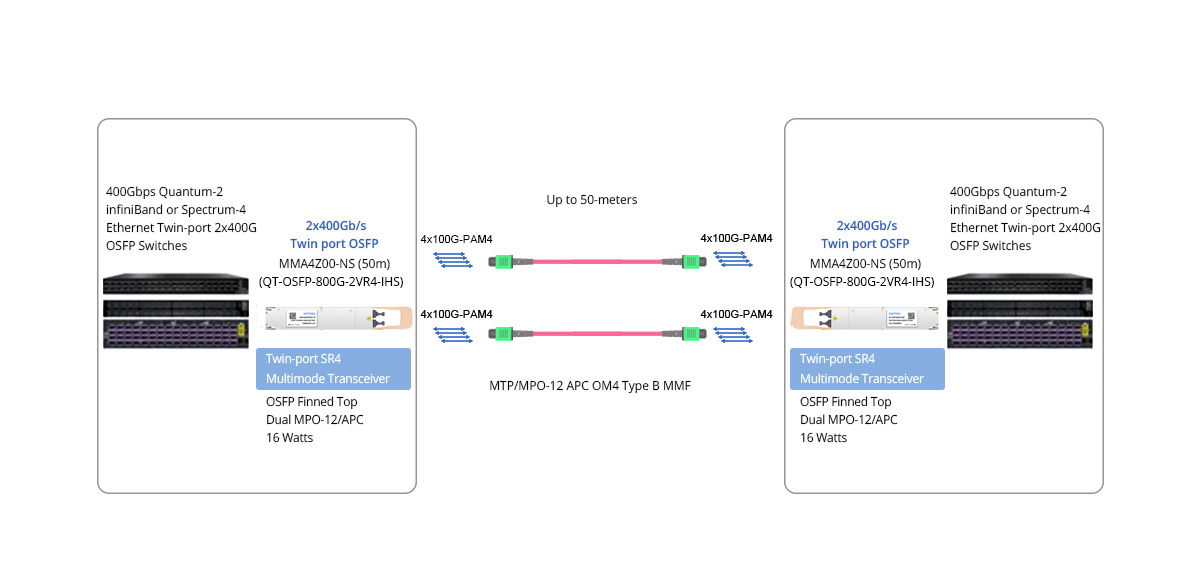

Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

Twin-port 800G (2x400G) OSFP IB/ETH Switches Direct Connectivity or to Two Switches at 400Gb/s

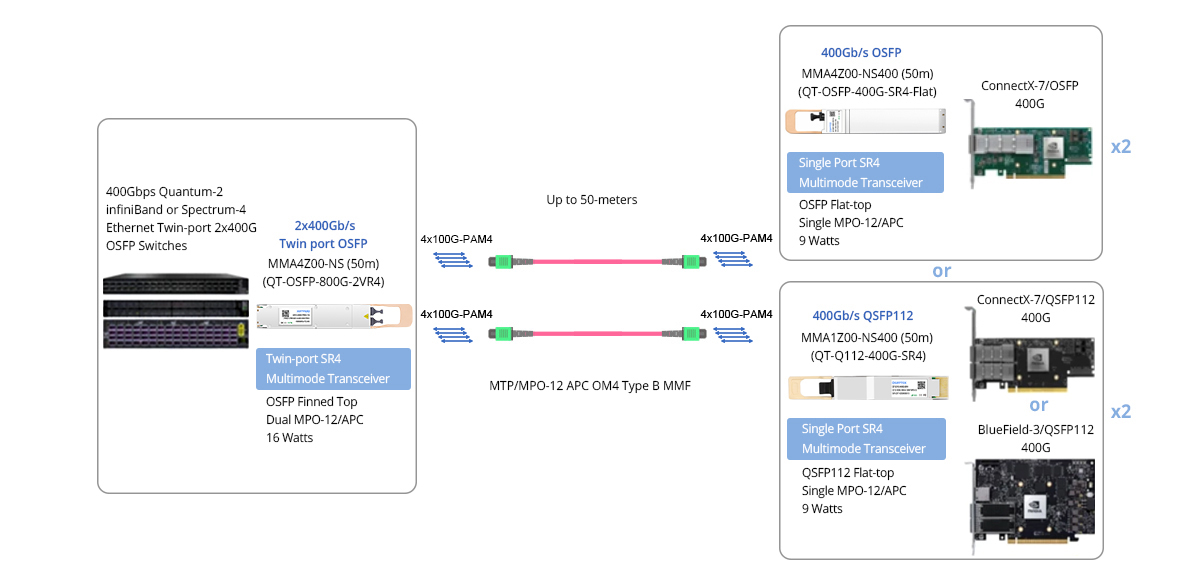

Scenario 2: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

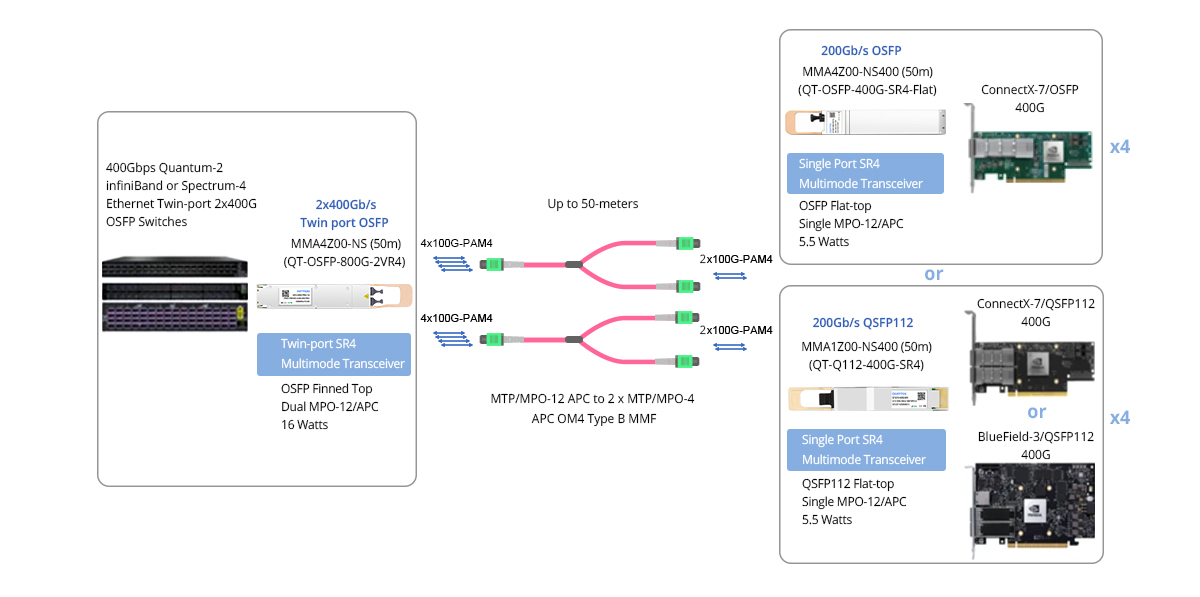

Scenario 3: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3

Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3




Product details

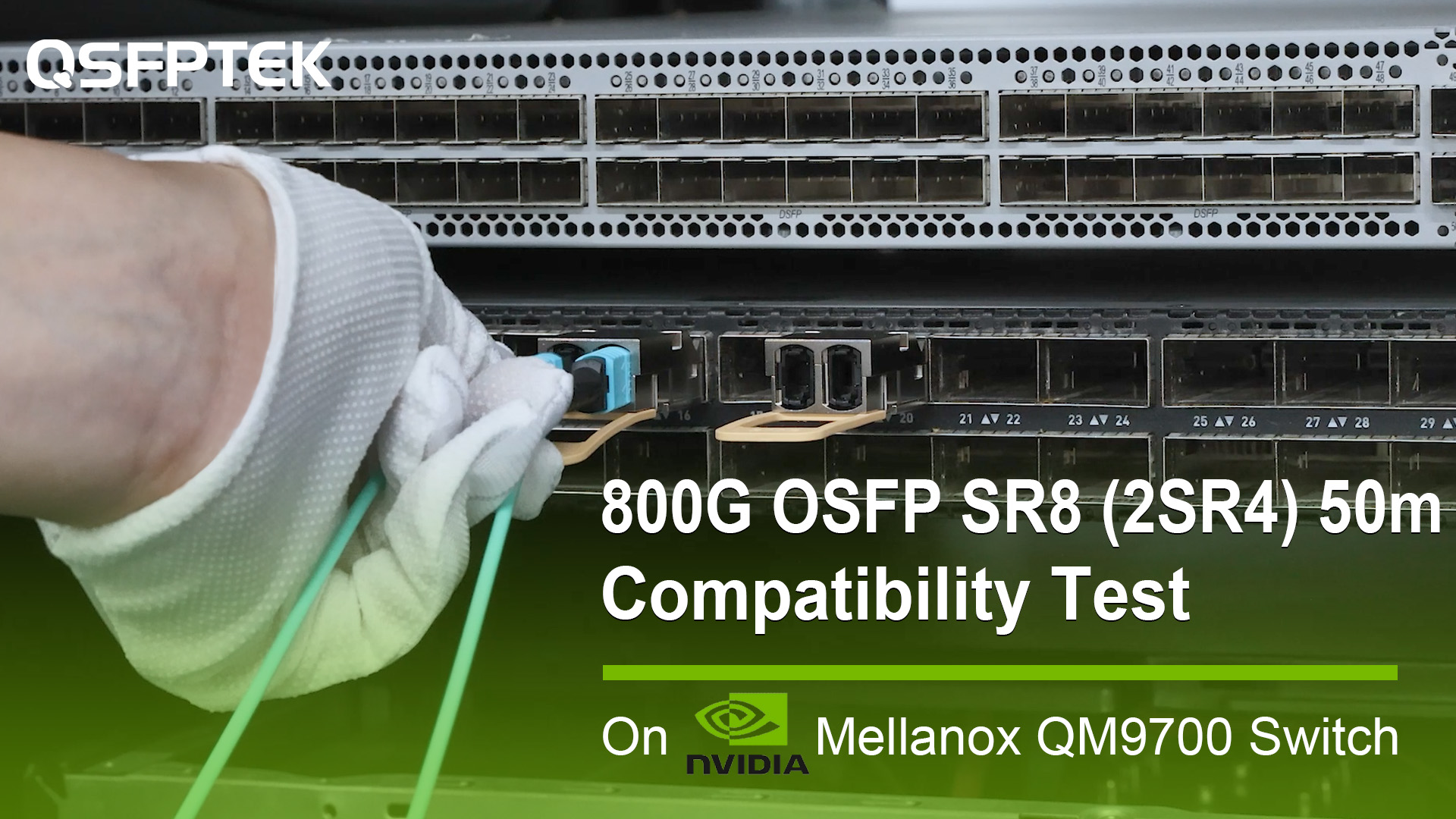

100% Verified in the NVIDIA InfiniBand Environment to Ensure Interoperability



Every 800G OSFP 2SR4 module undergoes rigorous compatibility tests and simulated transmission tests on the original NVIDIA Quantum-2 switches in the InfiniBand environment to ensure optics-to-device interoperability and perfect operation.

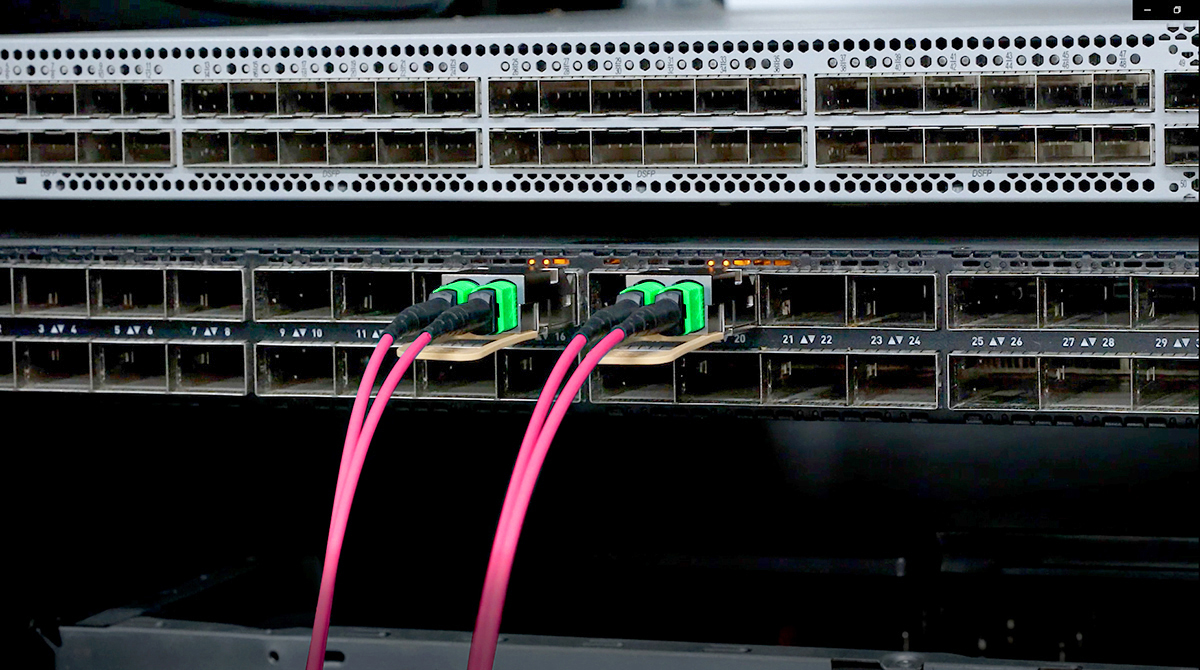

QT-OSFP-800G-2VR4-IHS compatibility test on NVIDIA QM9700




Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



Performance test devices






Select a Proper Heat Dissipation Design for Your Needs

Open Finned Top vs Closed Finned Top vs Flat Top

Open Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used only in Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled switches. Closed Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used for both Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled and liquid-cooled systems. Flat top 800G OSFP optics with Riding Heat Sink (RHS) design are used in Liquid-cooled and DGX H100 Cedar7 Systems.






Broadcom DSP & Broadcom VCSEL Unlock High-Efficiency AI Data Center Interconnect

This 800GBASE-SR8 (2x400G SR4) OSFP module utilizes Broadcom's high-performance DSP chipset and Broadcom's VCSEL lasers to natively optimize signal integrity, significantly reduce power consumption and latency, and meet the high stability requirements of demanding environments. It provides an extremely energy-efficient and reliable 800G/400G interconnect solution for AI clusters and data centers.

Broadcom DSP

Broadcom VCSEL

Excellent Performance

Top-tier PAM-4 DSP for Ultra-Low BER


High Energy Efficiency

Industry's Lowest Power Consumption, Supporting Sustained High-Speed operation


Advanced Equalization

Powerful Impairment Compensation, Supporting High-Density Deployment


High Integration

Built-in Voltage Regulation and FEC Ensure Link Reliability

Stable Output

Highly Stable Signal Across the Full Temperature Range


Efficient and Energy-Saving

High-Speed transmission with Low Power Consumption and Low Temperature Rise


Long-Term Reliability

Validated in Harsh Environments to Ensure Long-Term Stability


High-Density Design

7nm Process and Compact Structure for Optimized Port Density



Broadcom DSP & Broadcom VCSEL Unlock High-Efficiency AI Data Center Interconnect

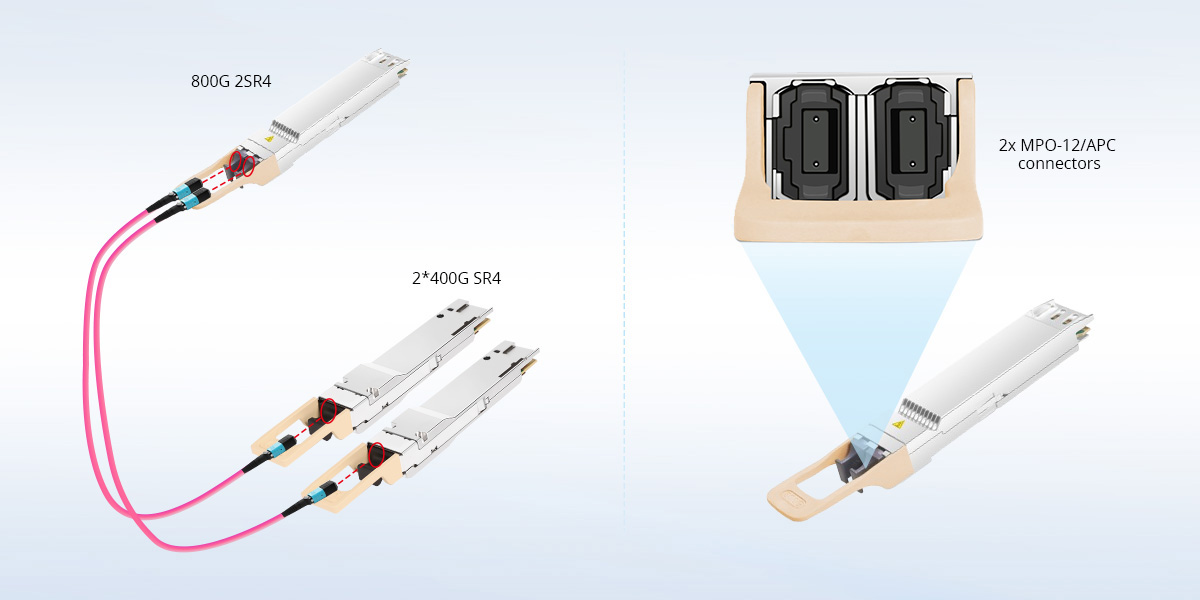

Easy 800G to 2x 400G breakout with MMFs

The 800G OSFP 2SR4 module is designed with dual MPO-12/APC connectors, while each connector can connect to a physically separate 400G SR4 OSFP/QSFP-DD/QSFP112 module via an MTP/MPO-12 APC OM4 MMF. This enables 800G to 2x 400G breakout links without the need for using breakout fiber optic cables.



Easy 800G to 2x 400G Breakout with OS2 SMFs






8x 100Gbps PAM4 Modulation Technology

Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.



8x 100Gbps PAM4 Modulation Technology

Questions & Answers

  • ALL (15)
  • QT-OSFP-800G-2SR4 (2)
  • QT-OSFP-800G-2VR4 (4)
  • QT-OSFP-800G-2FR4 (2)
  • QT-OSFP-800G-2DR4 (1)
  • 800G InfiniBand NDR (4)

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

37 Reviews

4 stars

1 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (21)
  • Excellent Quality (2)
  • Shopping Experience (1)
  • Plug-and-Play (1)
  • DDM Monitoring (1)
  • Stable (4)
  • High Reliability (3)
  • High Performance (4)
  • Short-range Connection (1)
  • Good Price (2)
  • Good Packaging (1)
  • Repurchase (2)
  • Fast Delivery (1)
  • Compatibility (6)
  • Tom08 United States of America
    2026-06-05

    Arrived a bit later than expected, ngl. But once they showed up? Solid modules. Zero link drops. Would've been 5 stars if they'd gotten here sooner.

    Transceivers typeMMA4Z00-NS OSFP 2SR4 | 50m | Dual MPO-12/APC | IHS/Closed Finned Top

    CompatibleNVIDIA (InfiniBand/Ethernet)

    Verified Purchase

    Helpful

    0

  • Olive Woolley United States of America
    2026-06-02

    At this point, buying from QSFPTEK feels a little like ordering from a supplier you already know. No surprises, no unnecessary drama. The packaging was neat, the modules felt solid, and every unit worked out of the box. After dealing with networking equipment for years, I've learned that reliability is worth more than marketing claims.

    Transceivers typeMMA4Z00-NS OSFP 2SR4 | 50m | Dual MPO-12/APC | IHS/Closed Finned Top

    CompatibleNVIDIA (InfiniBand/Ethernet)

    Verified Purchase

    Helpful

    0

  • Trista Babbitt United States of America
    2026-05-28

    This closed finned version was recommended to us by Talia for a rack with less-than-ideal airflow. Been running nonstop for a couple weeks now and no overheating alarms or random disconnects.

    Transceivers typeMMA4Z00-NS OSFP 2SR4 | 50m | Dual MPO-12/APC | IHS/Closed Finned Top

    CompatibleNVIDIA (InfiniBand/Ethernet)

    Verified Purchase

    Helpful

    0

  • Dunn Grey United States of America
    2026-05-27

    This wasn’t originally the brand we planned to buy, but lead times from another supplier were getting ridiculous. Ended up trying the QSFPTEK version instead and honestly no regrets so far. Arrived in about 4 days, packed well, and all units passed testing on the first try.

    Transceivers typeMMA4Z00-NS OSFP 2SR4 | 50m | Dual MPO-12/APC | IHS/Closed Finned Top

    CompatibleNVIDIA (InfiniBand/Ethernet)

    Verified Purchase

    Helpful

    0

  • Toby United States of America
    2026-05-27

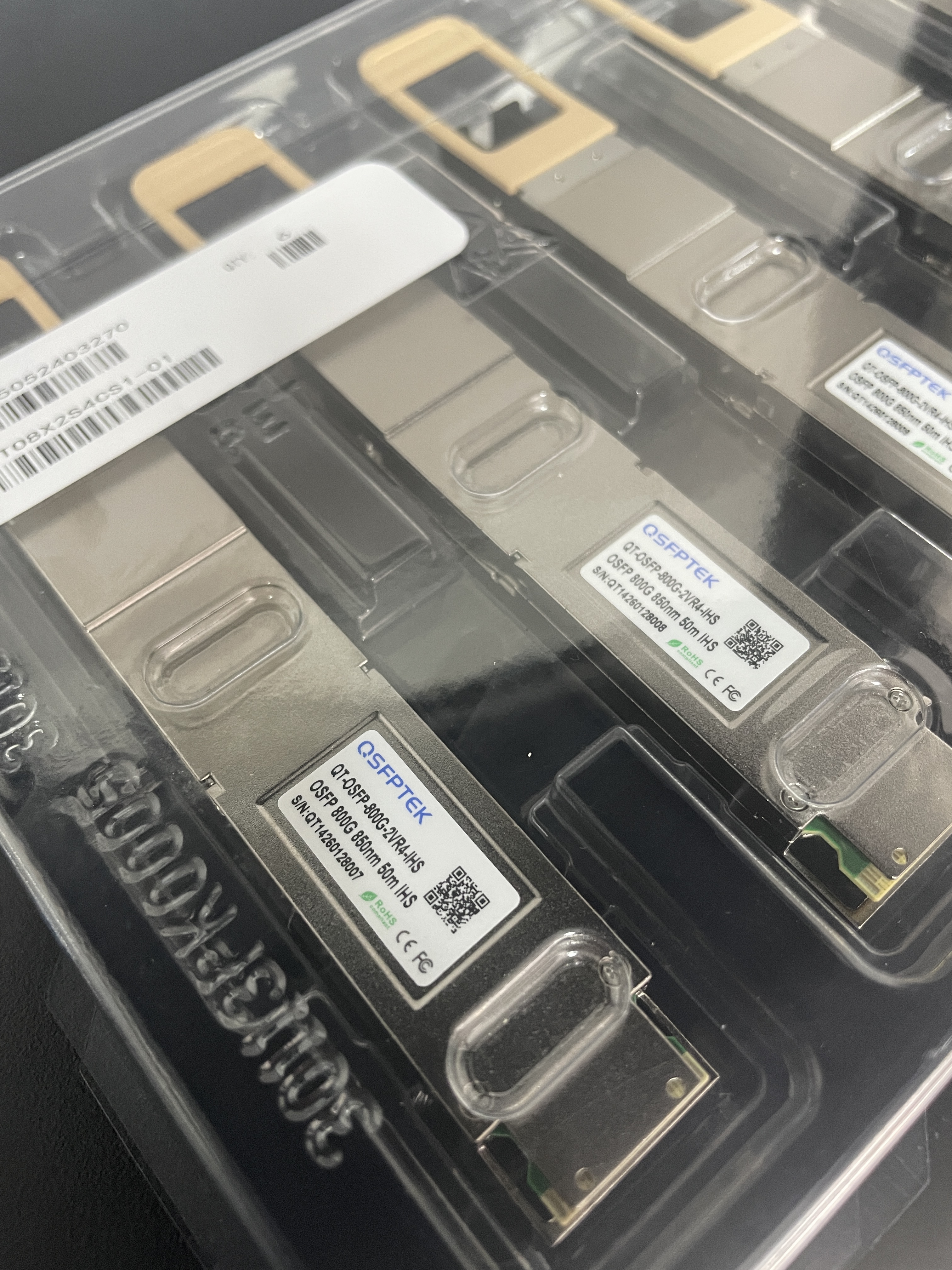

    Packaging was professional and every module arrived with clean connectors and clear labeling.
