    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 400G QSFP112 / 103686
    Product image
    Product image

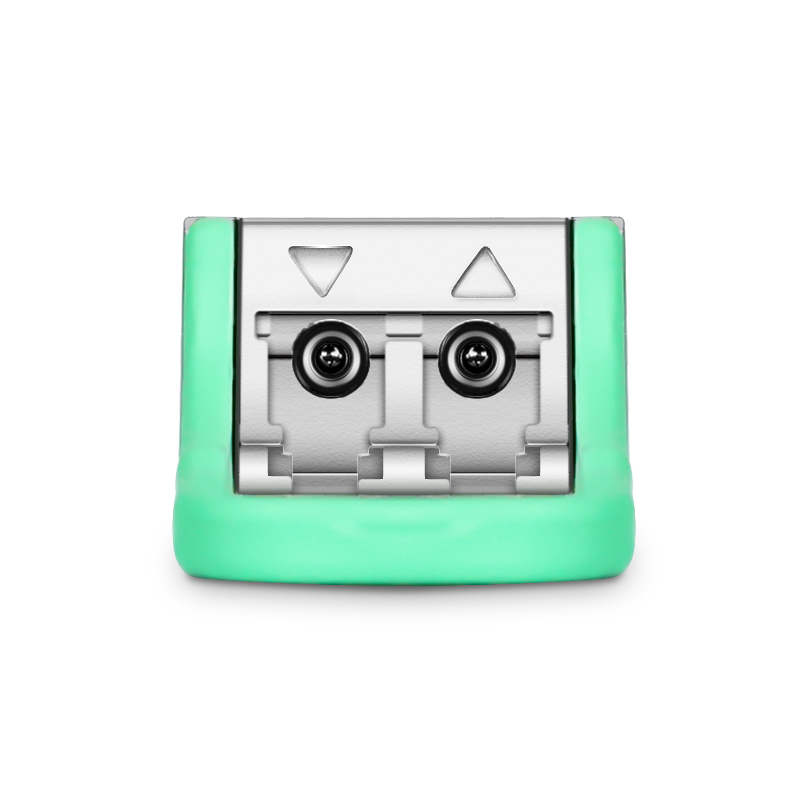

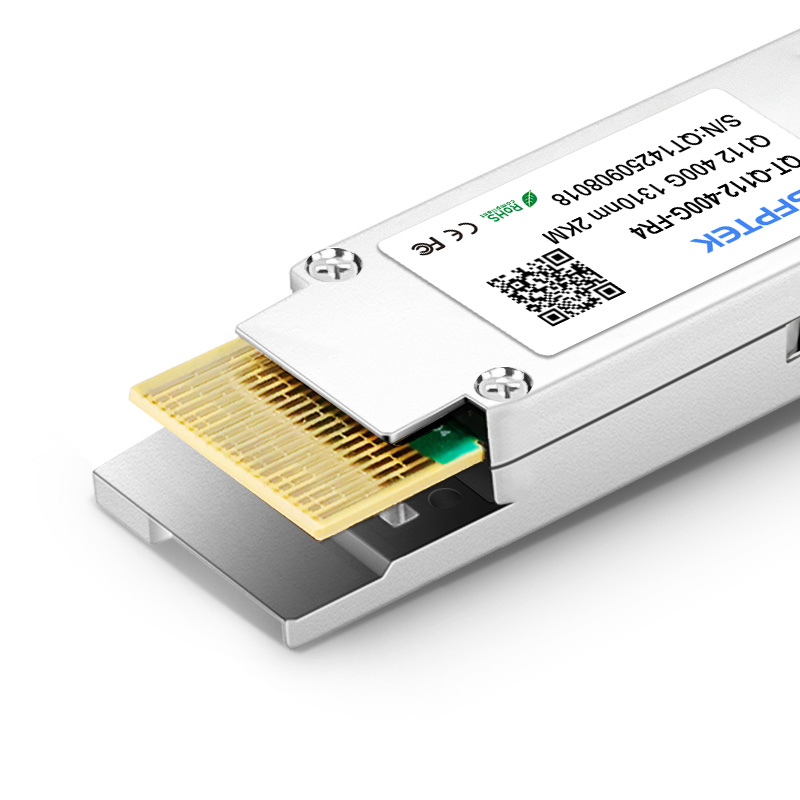

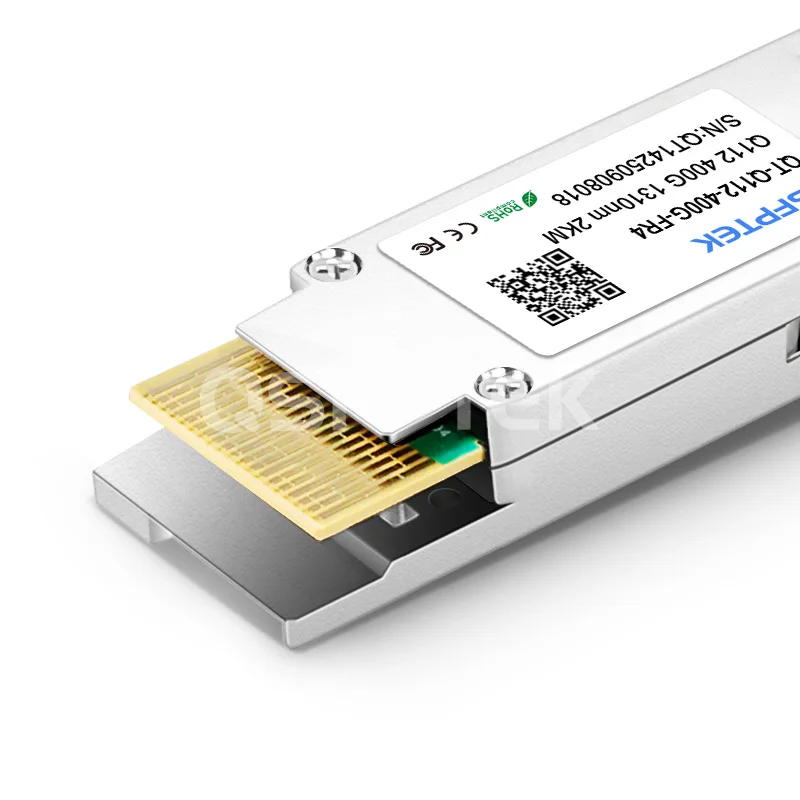

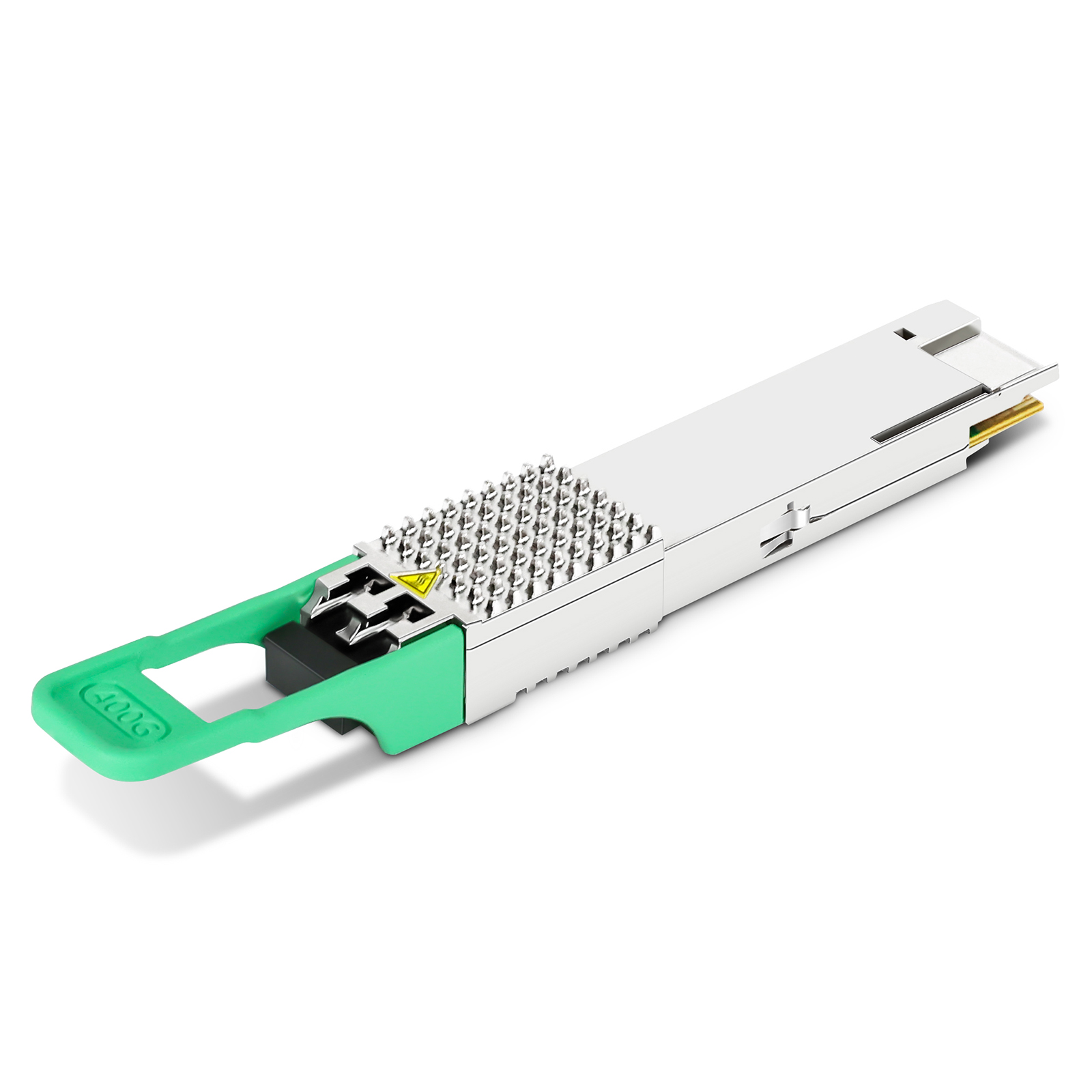

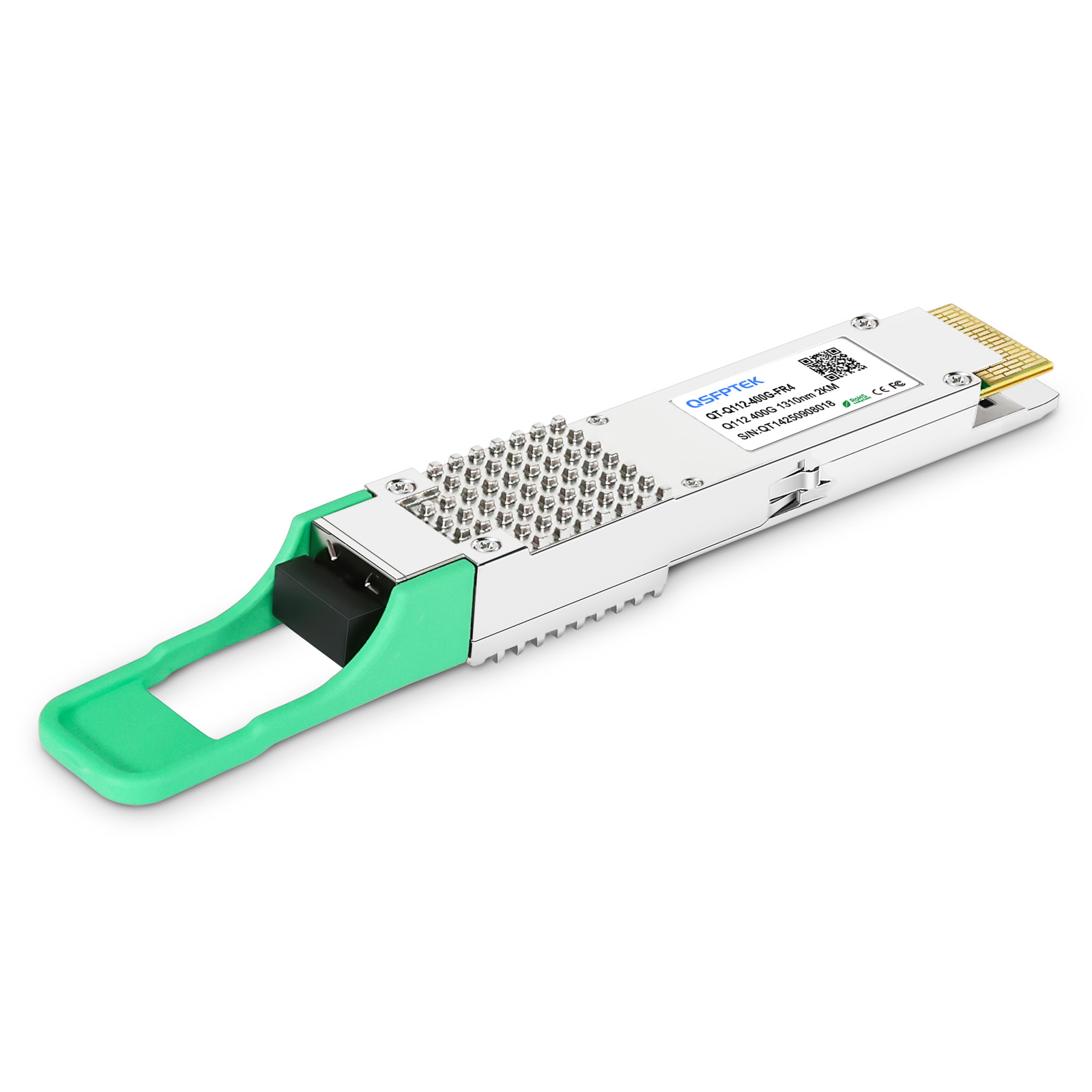

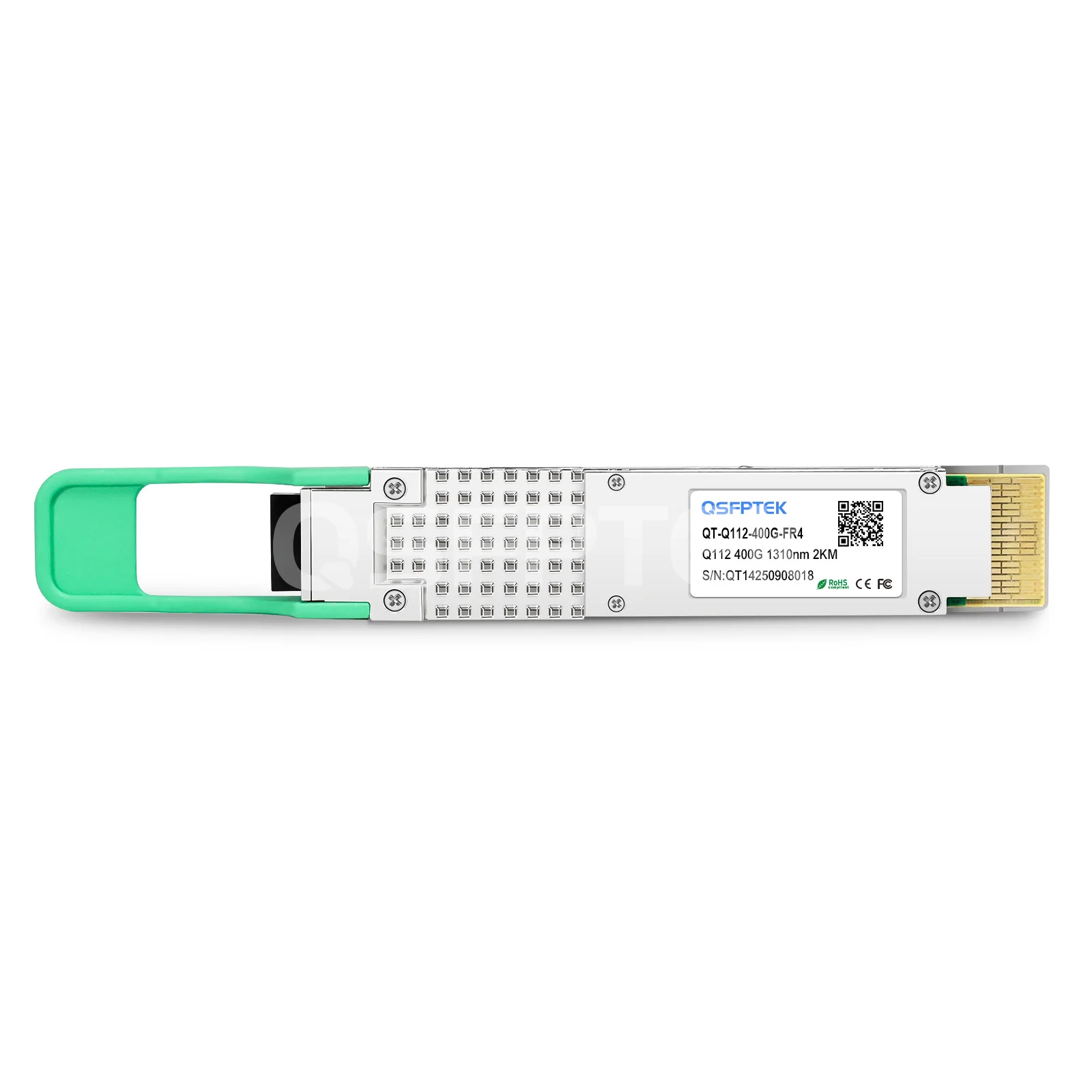

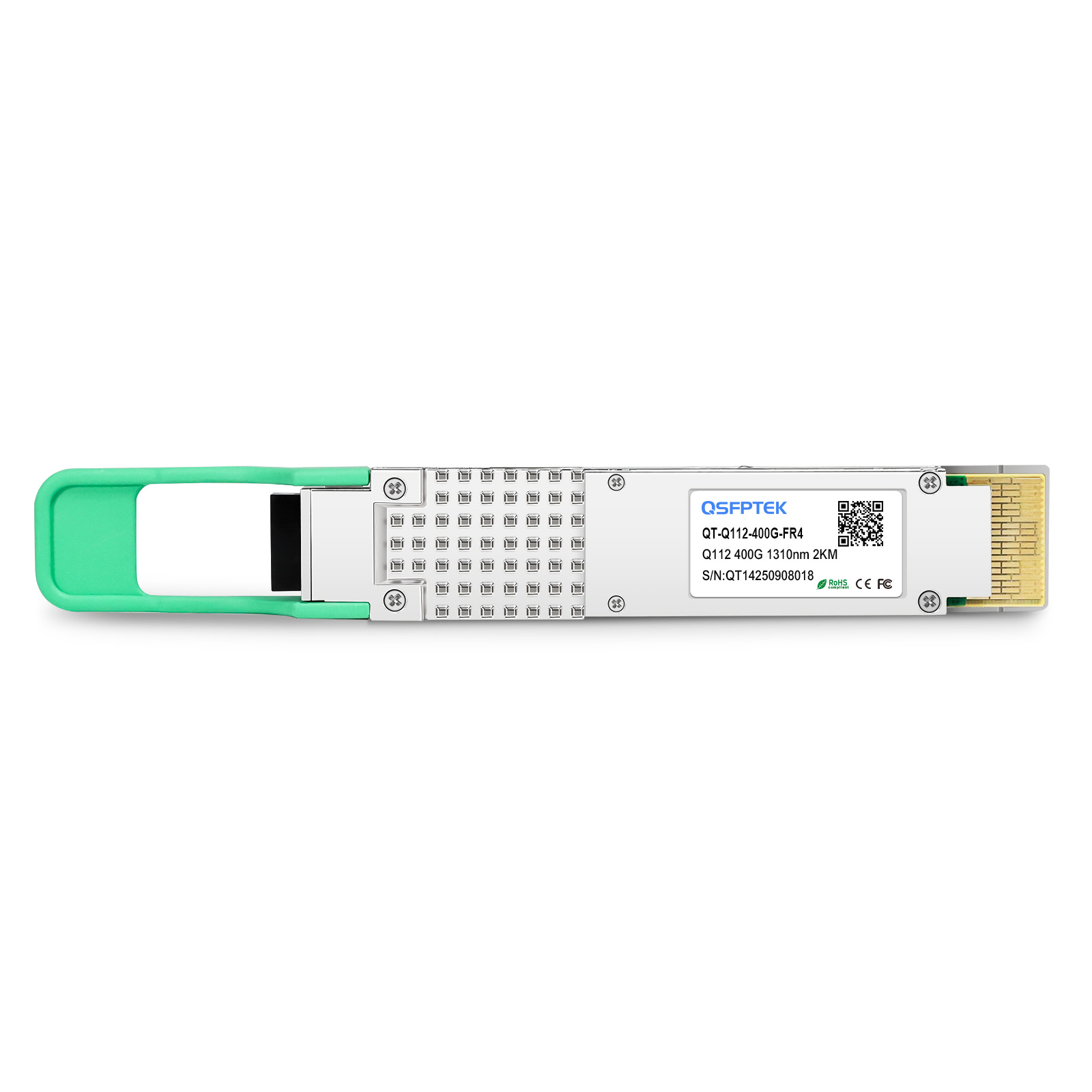

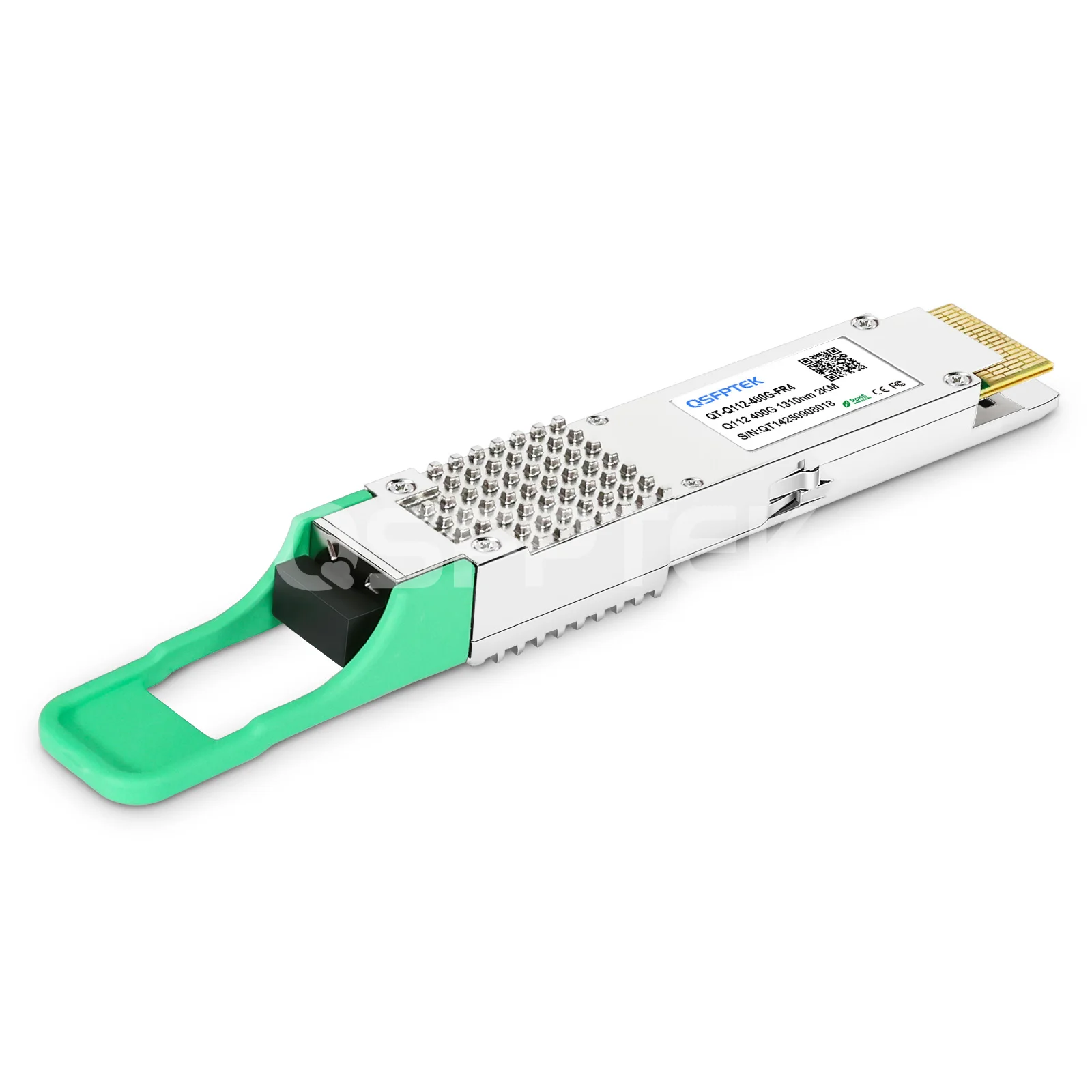

    NVIDIA/Mellanox Compatible 400GBASE-FR4 QSFP112 RHS/Flat Top PAM4 1310nm 2km DDM Duplex LC/UPC SMF Optical Transceiver Module

    Product No: 103686
    0 Reviews
    1 Sold
    $599.00
    Compatible
    Transceivers type
    9 in real-time stock, 25Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Used in ConnectX-7/QSFP112 adapters or BlueField-3/QSFP112 DPUs
2. Built-in Broadcom DSP chip
3. InfiniBand NDR support
4. Max power consumption ≤10W
5. Compliant with QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0
    See more

    Specifications

    NVIDIA/Mellanox Compatible 400G QSFP112 FR4 InfiniBand NDR Optical Transceiver Module (1310nm, 2km, 2x Duplex LC/UPC Connectors, SMF, 0℃ to +70℃, DDM)



    The NVIDIA/Mellanox Compatible 400GBASE-FR4 QSFP112 transceiver module supports a max data rate of 425Gbps. It enables the fiber link of 2km over SMF with duplex LC/UPC connectors. QSFPTEK manufactured  400GBASE-FR4 QSFP112 complies with QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0. DDM function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the FR4 QSFP112 achieves 400 Gigabit Ethernet through 4x 106.25 PAM4 Retimed 400GAUI-4 C2M electrical interface. The 400G FR4 QSFP112 is widely used for 400 gigabit Ethernet, 800G to 2x 400GBASE-FR4 breakout, data center and InfiniBand NDR applications.



    Part Number QT-Q112-400G-FR4 Vendor Name QSFPTEK
    Form Factor QSFP112 Max Data Rate 425 Gbps (4x 106.25 Gbps)
    Wavelength 1310nm Distance 2km
    Connector Duplex LC UPC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -3.2 to +4.4dBm Receiver Sensitivity < -7.2dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4.4 dBm
    Power Consumption ≤10W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable 1m

    $3.16
    10.0K Sold
    79 Reviews

    NVIDIA/Mellanox MMS4X50-NM (980-9I30L-00N000) Compatible 800G 2FR4 Twin-port OSFP IHS/Finned Top PAM4 1270-1330nm 2km DDM Dual Duplex LC/UPC SMF InfiniBand NDR Optical Transceiver for Quantum-2 InfiniBand or Spectrum-4 Ethernet Air-Cooled Switches

    $1255.50
    26 Sold
    37 Reviews

    Features

    • 1. Advanced Technology
      Features with PAM4 modulation technology, DSP chip and COB packaging technology.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0 standard
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

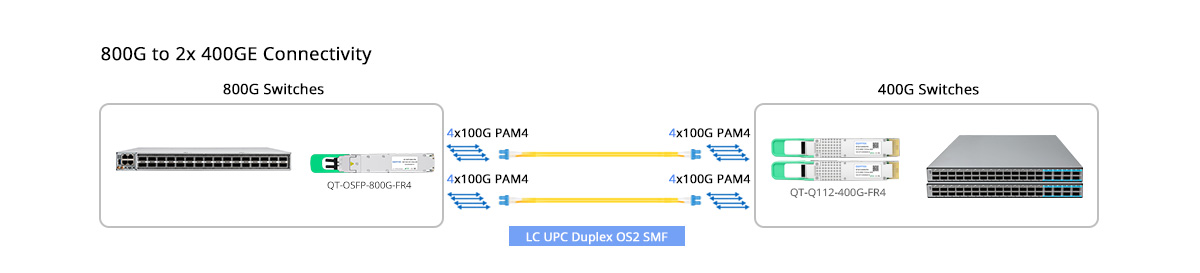

    800G to 2x 400G Breakout Connectivity:

    QT-Q112-400G-FR4 Direct Connectivity

    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







    400G QSFP112 Optical Transceivers Contrast Table



    Part Number

    QT-Q112-400G-SR4

    QT-Q112-400G-DR4

    QT-Q112-400G-DR4+

    QT-Q112-400G-FR4


    NVIDIA Part Number

    MMA1Z00-NS400

    MMS1X00-NS400

    —

    —

    Data Rate

    400Gb/s

    400Gb/s

    400Gb/s

    400Gb/s

    Optical Connector

    MPO-12/APC

    MPO-12/APC

    MPO-12/APC

    Duplex LC/UPC

    Cable Type

    MTP/MPO-12/APC OM4 MMF

    MTP/MPO-12/APC OS2 SMF

    MTP/MPO-12/APC OS2 SMF

    LC UPC Duplex OS2 SMF

    Wavelength

    850nm

    1310nm

    1310nm

    1310nm

    Reach

    30m@OM3

    50m@OM4

    500m

    2 KM

    2 KM

    Modulation

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    Max Power Consumption

    9W

    10W

    10W

    10W

    Matching 800G Transceivers

    MMA4Z00-NS (Finned top)

    MMS4X00-NM (Finned top)

    OSFP800-XDR8-B2

    MMS4X50-NM (Finned top)

    Application

    800G-to-two 400G Links

    800G-to-four 200G Links

    800G-to-two 400G Links

    800G-to-four 200G Links

    800G-to-two 400G Links

    800G-to-two 400G Links



    Questions & Answers

    • All (9)
    • QT-Q112-400G-SR4 (4)
    • QT-Q112-400G-DR4 (4)
    • QT-Q112-400G-DR4+ (4)
    • QT-Q112-400G-FR4 (3)
    • What does QSFP112 mean?
      A 400G QSFP uses 4 x 100Gb/s PAM-4 elec lanes. "112" refers to the the max data rate (112Gb/s) each electrical interface can handle.
    • Can I use the QSFP112 optical transceivers in OSFP switches?
      You cannot directly use QSFP112 module in OSFP switch, because QSFP112 and OSFP are physically different, incompatible form factors.
    • Can 400G QSFP112 SR4 module be used as 200G?
      Yes, it can be used as 200G module.
