    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 400G QSFP112 / 103684
    Product image
    Product image
    Product image

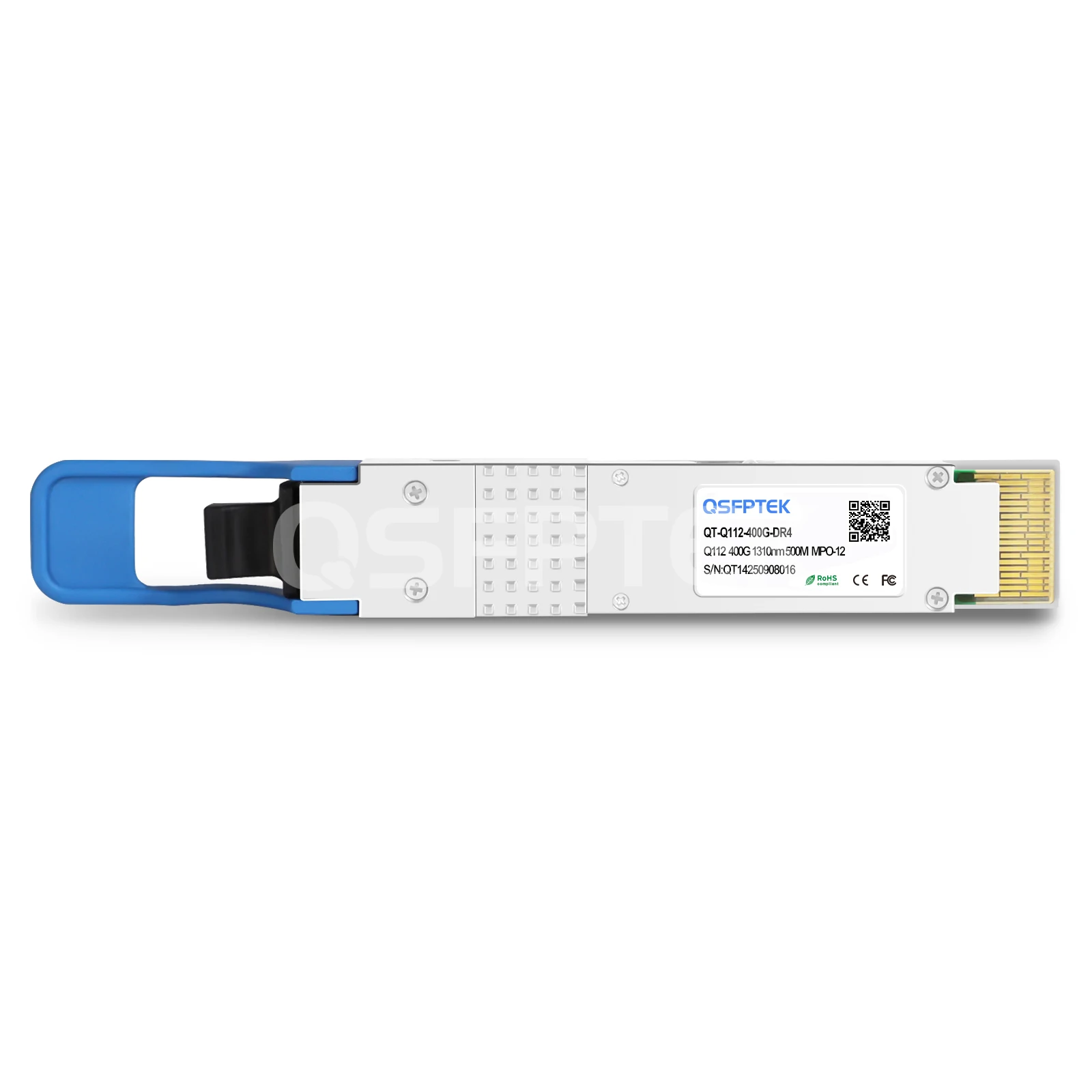

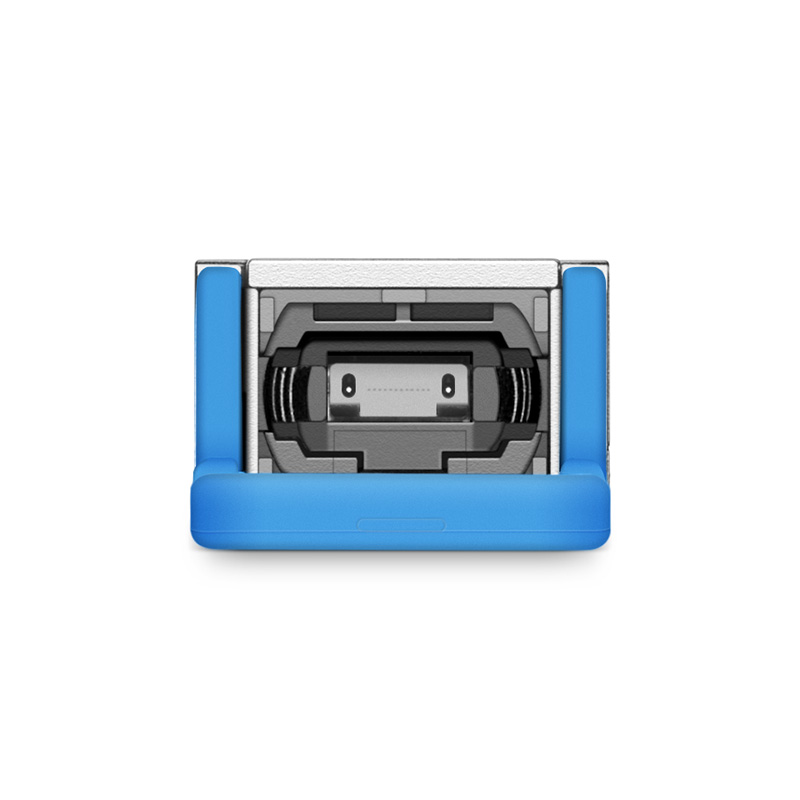

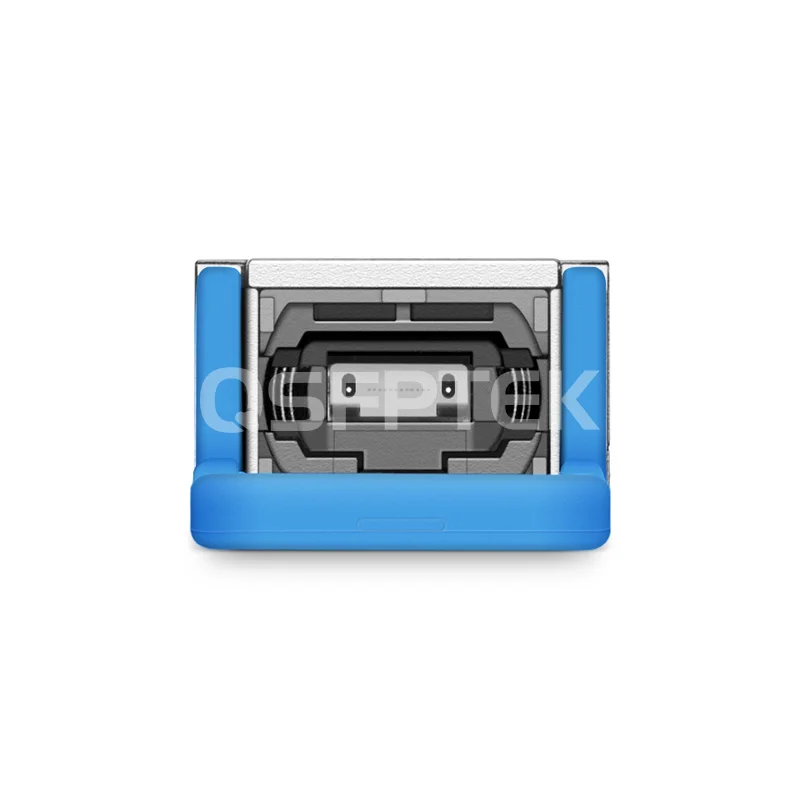

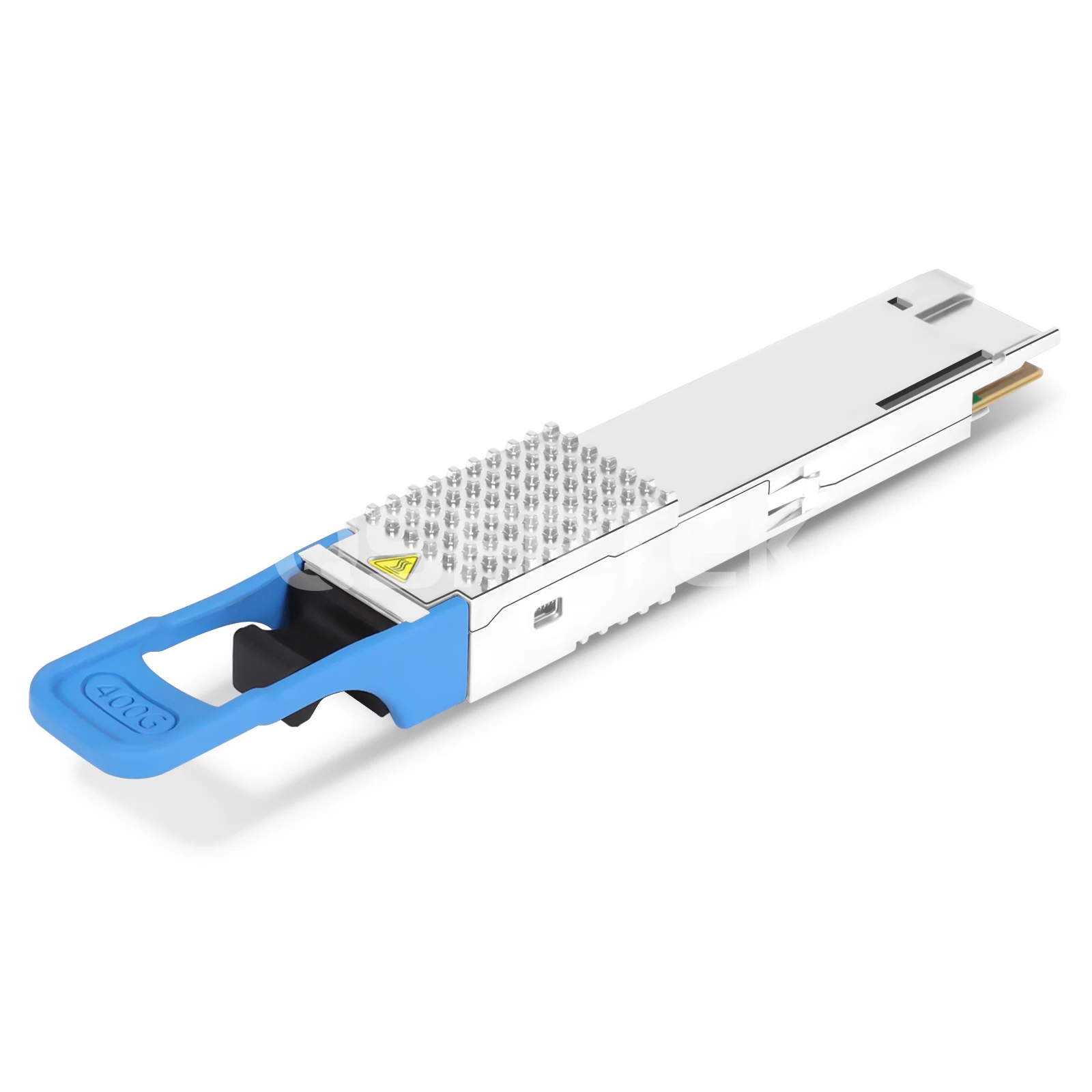

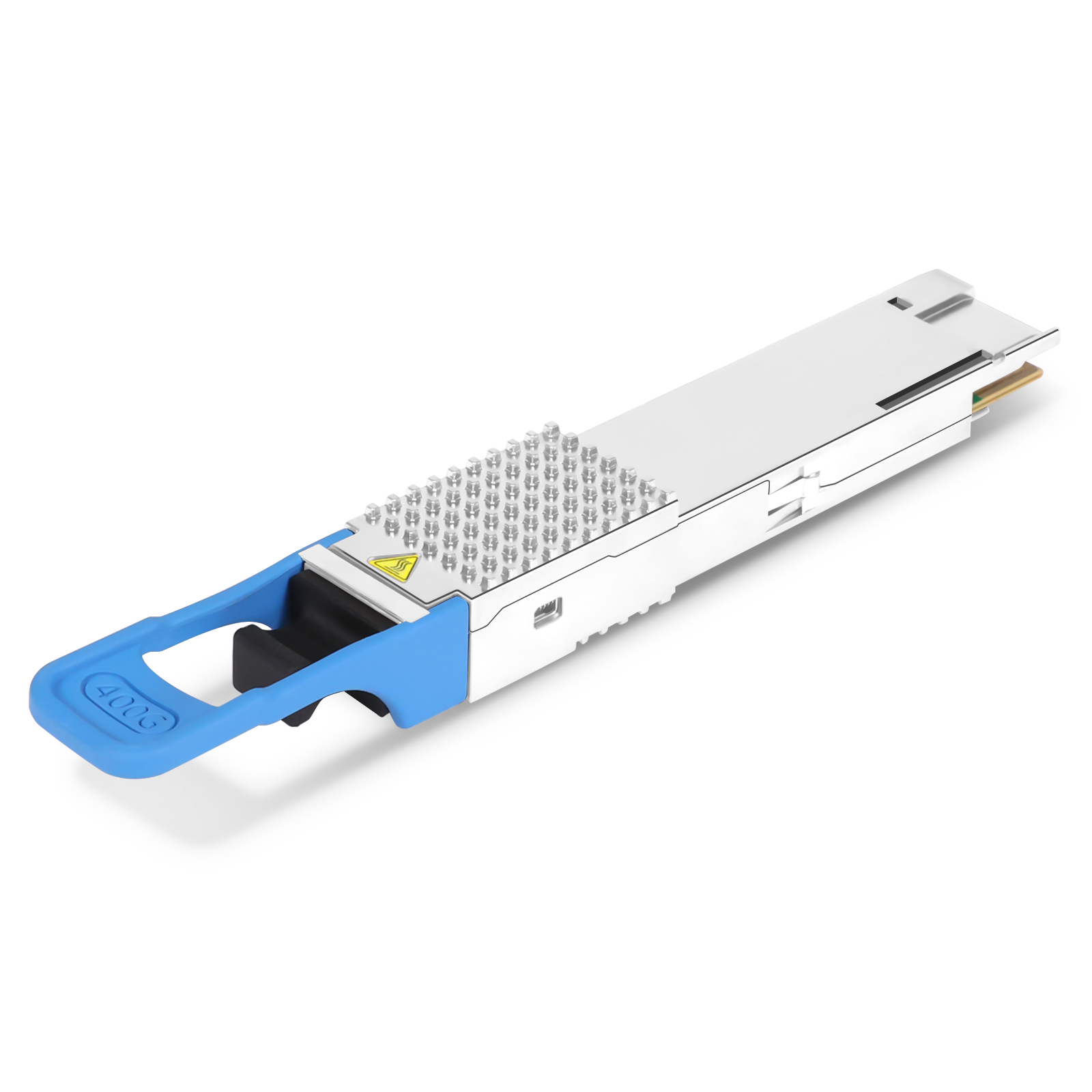

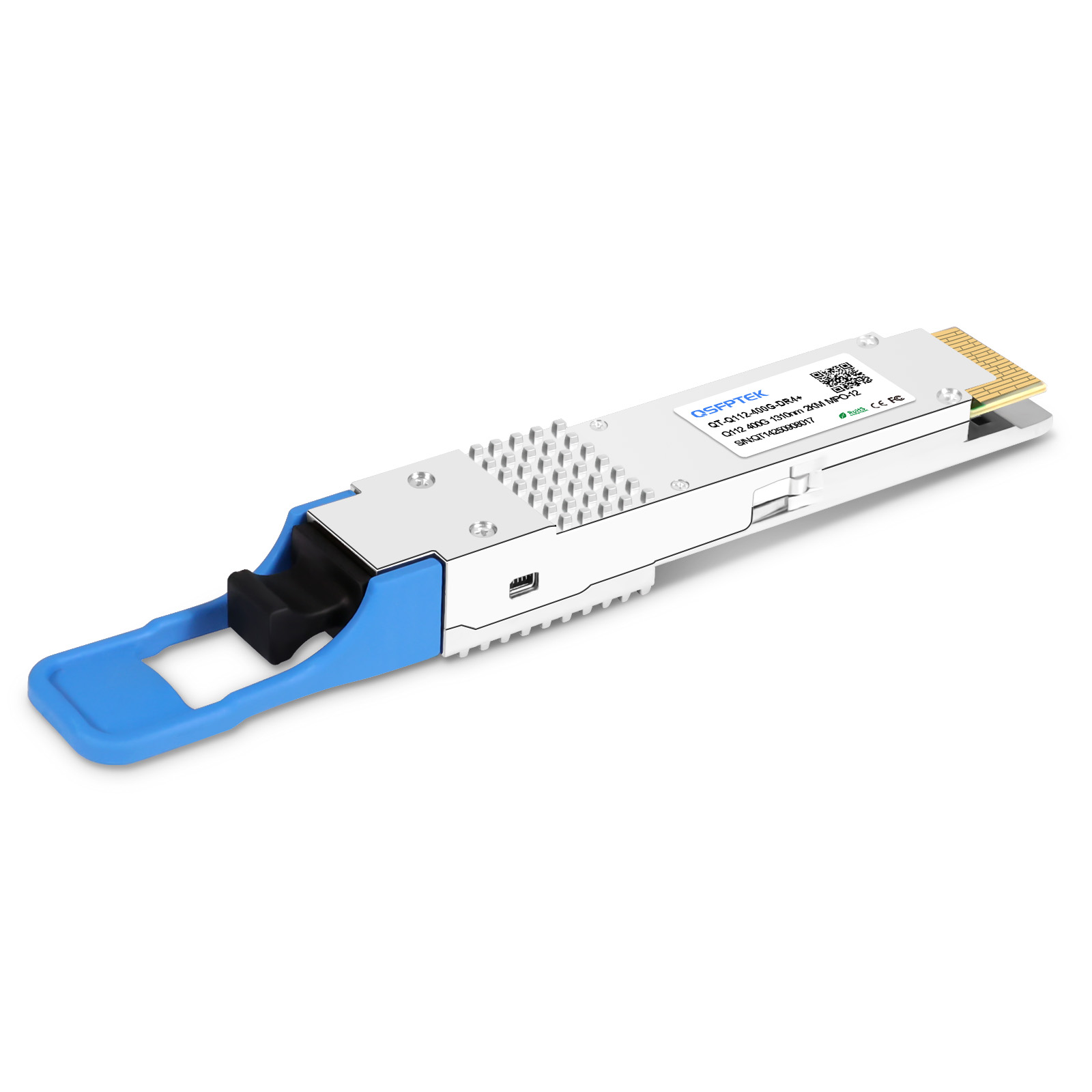

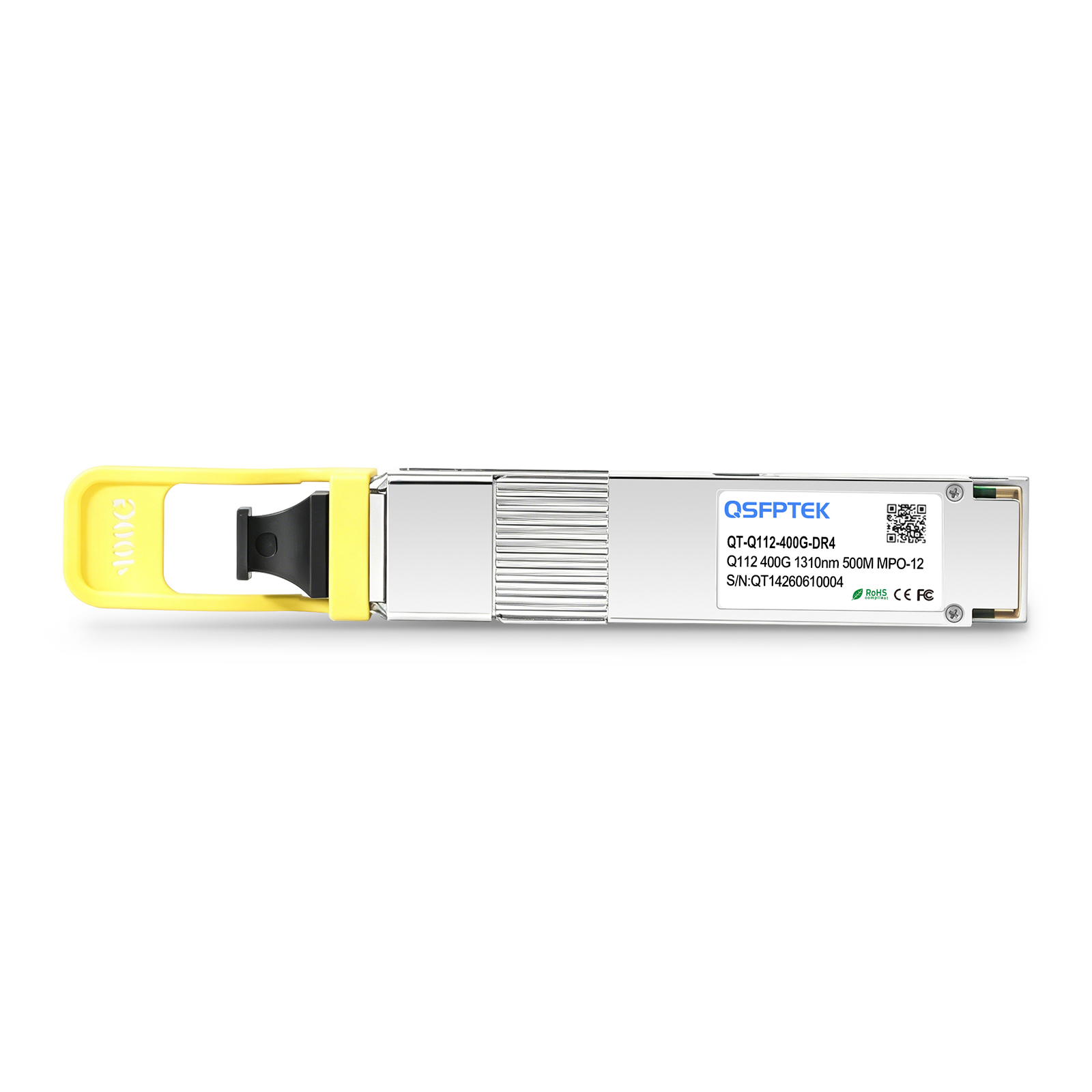

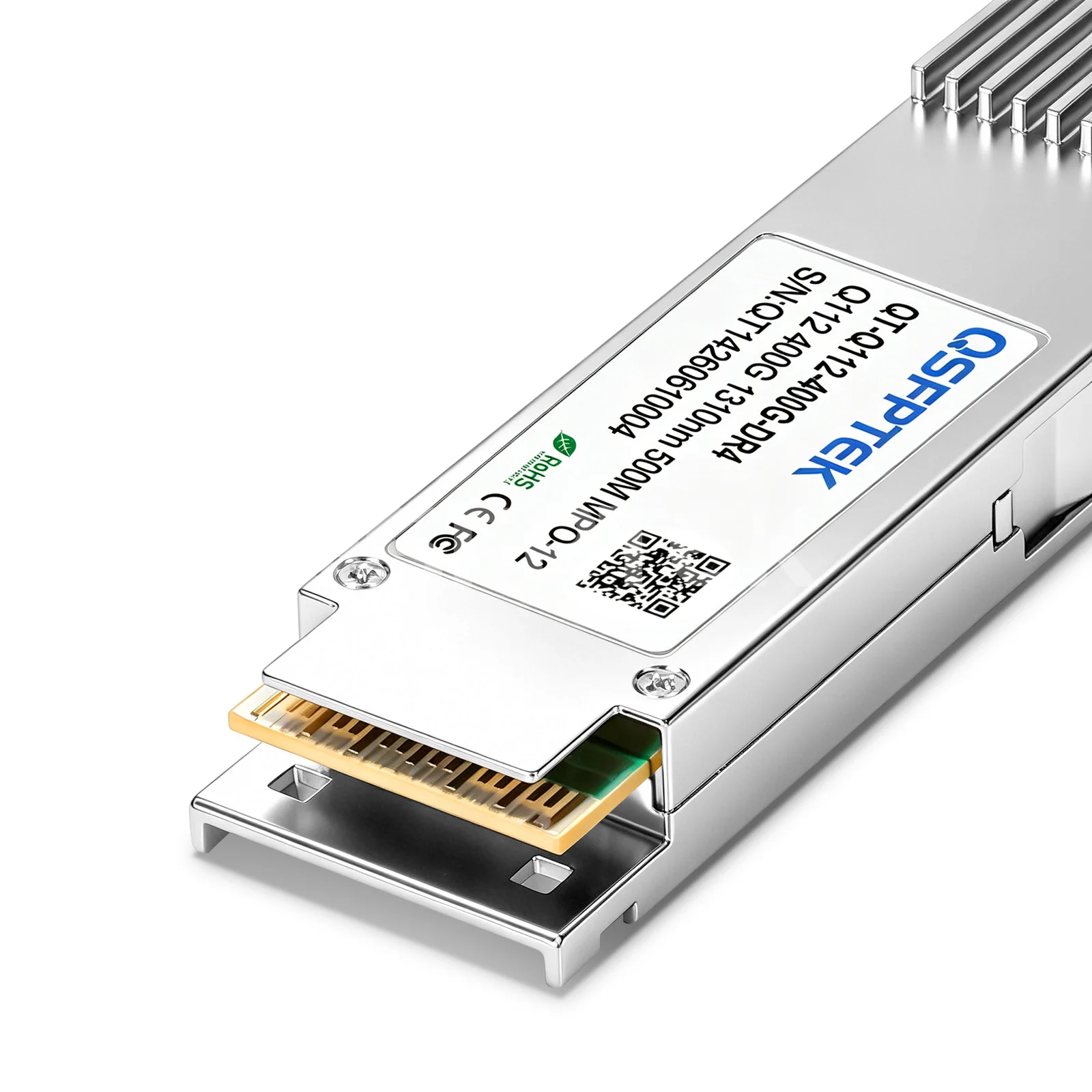

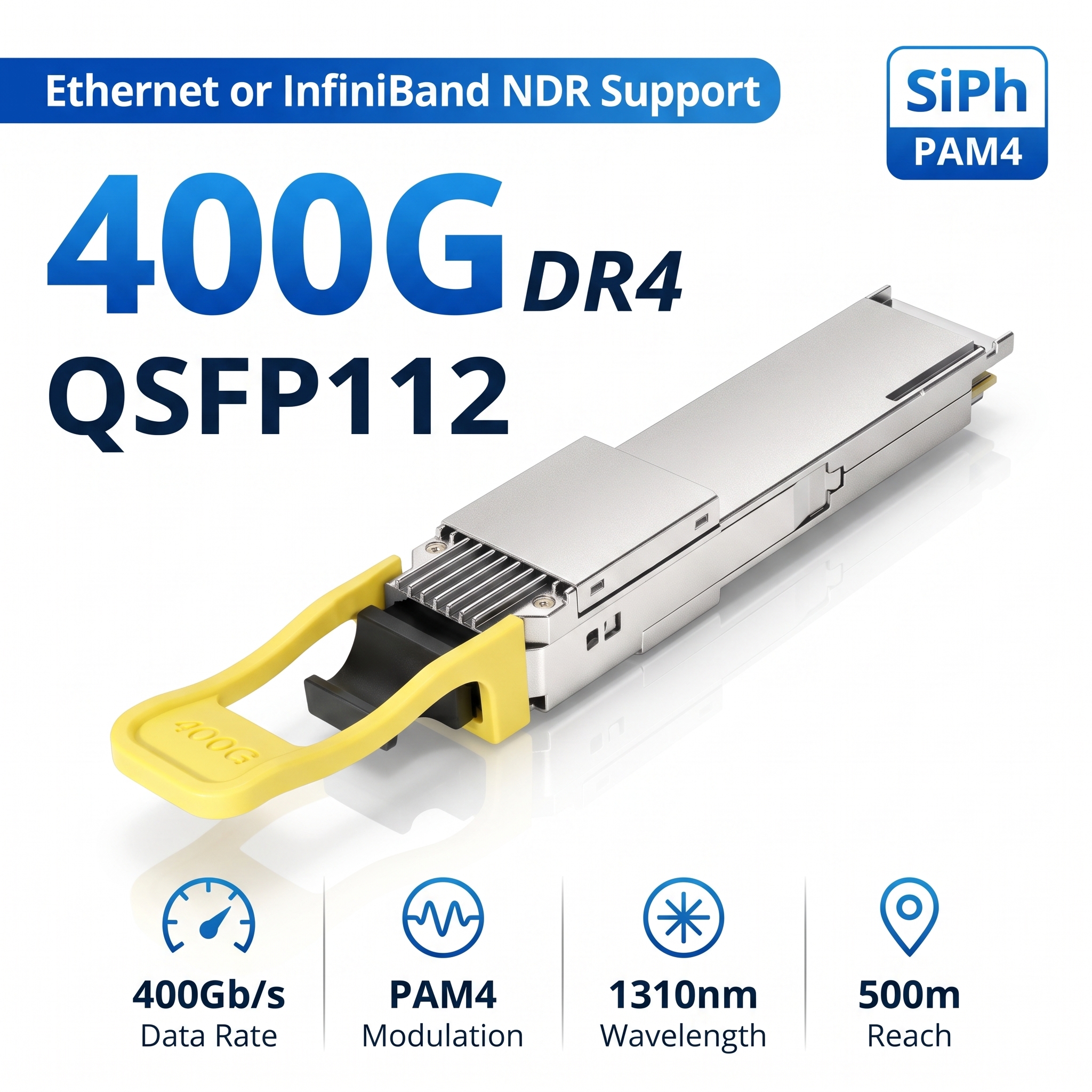

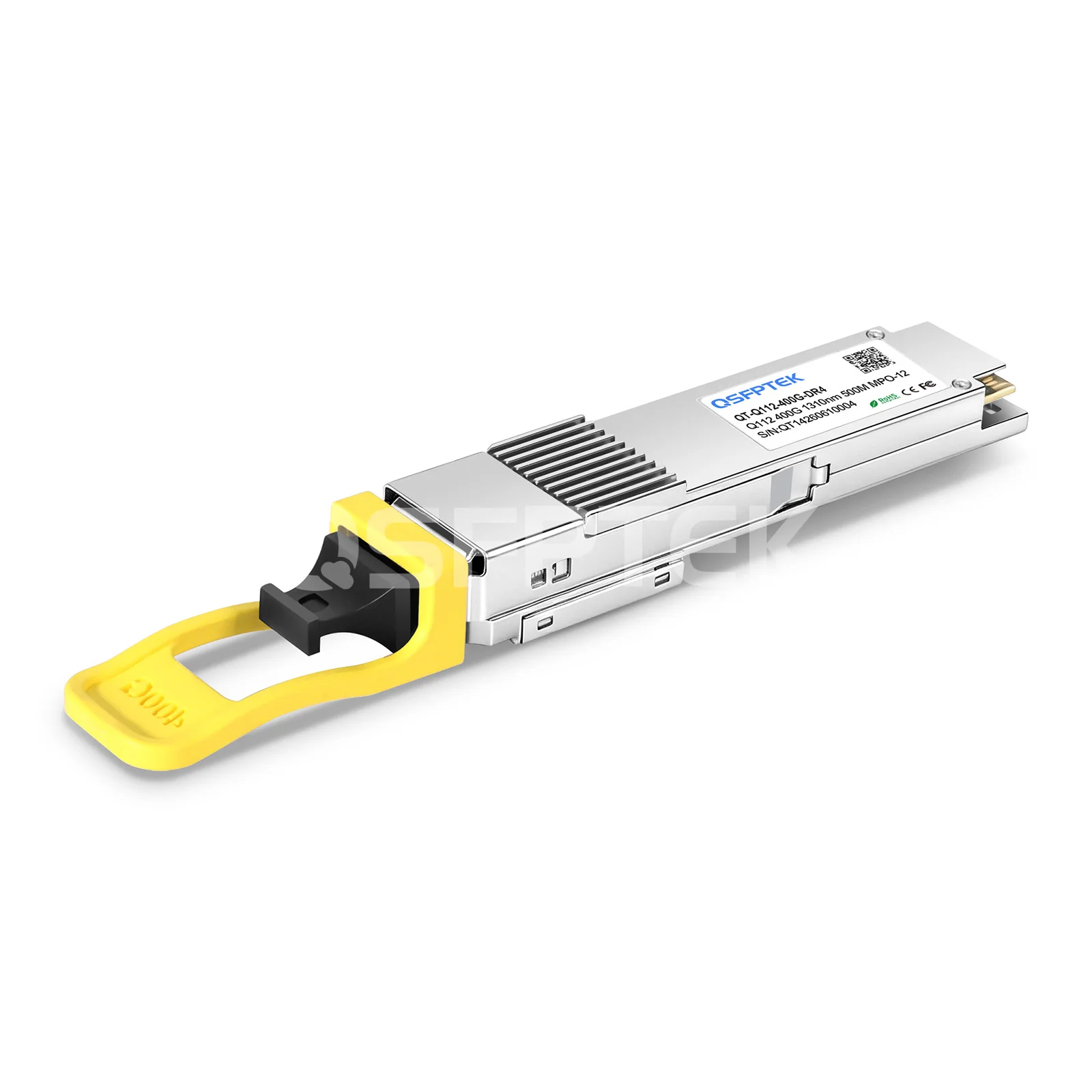

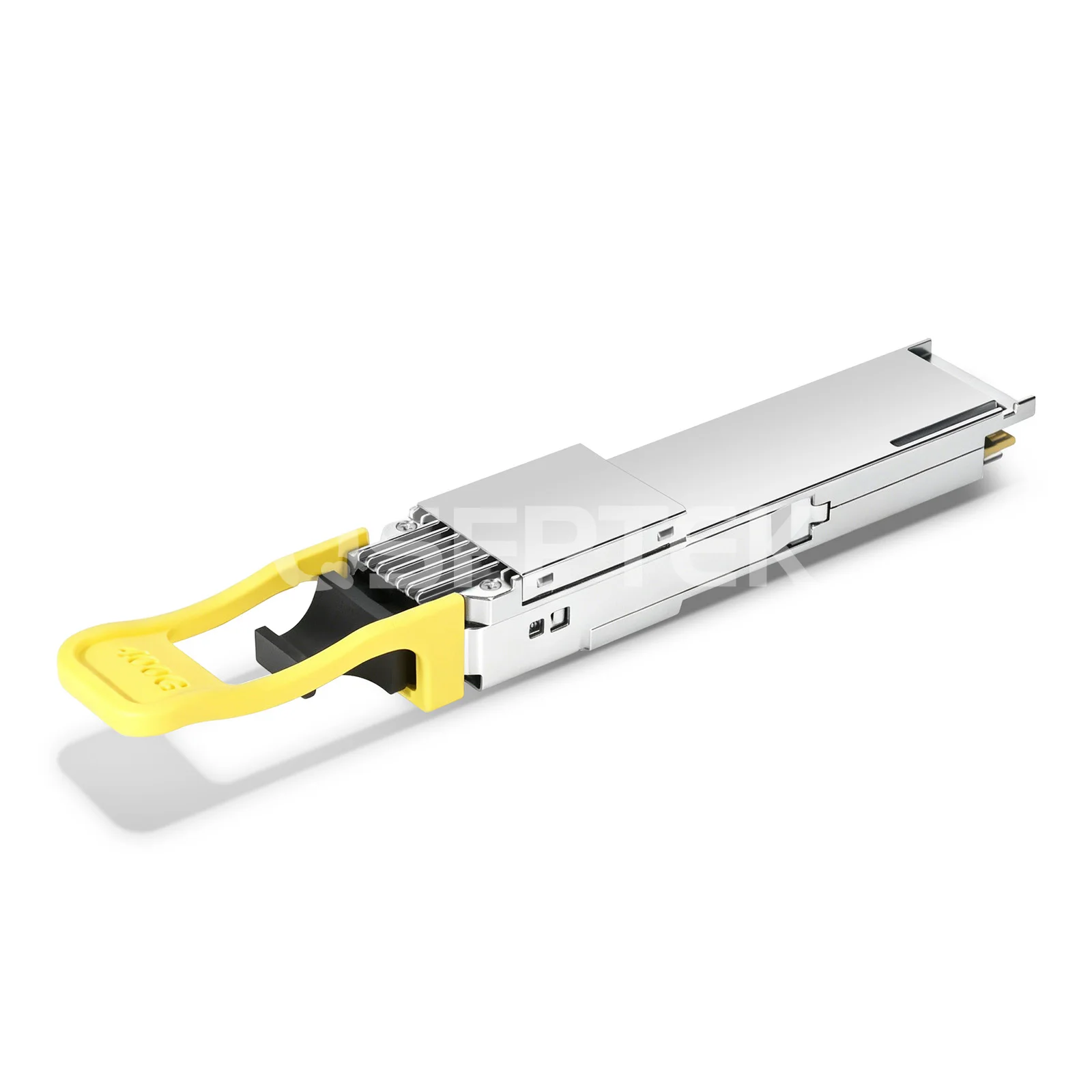

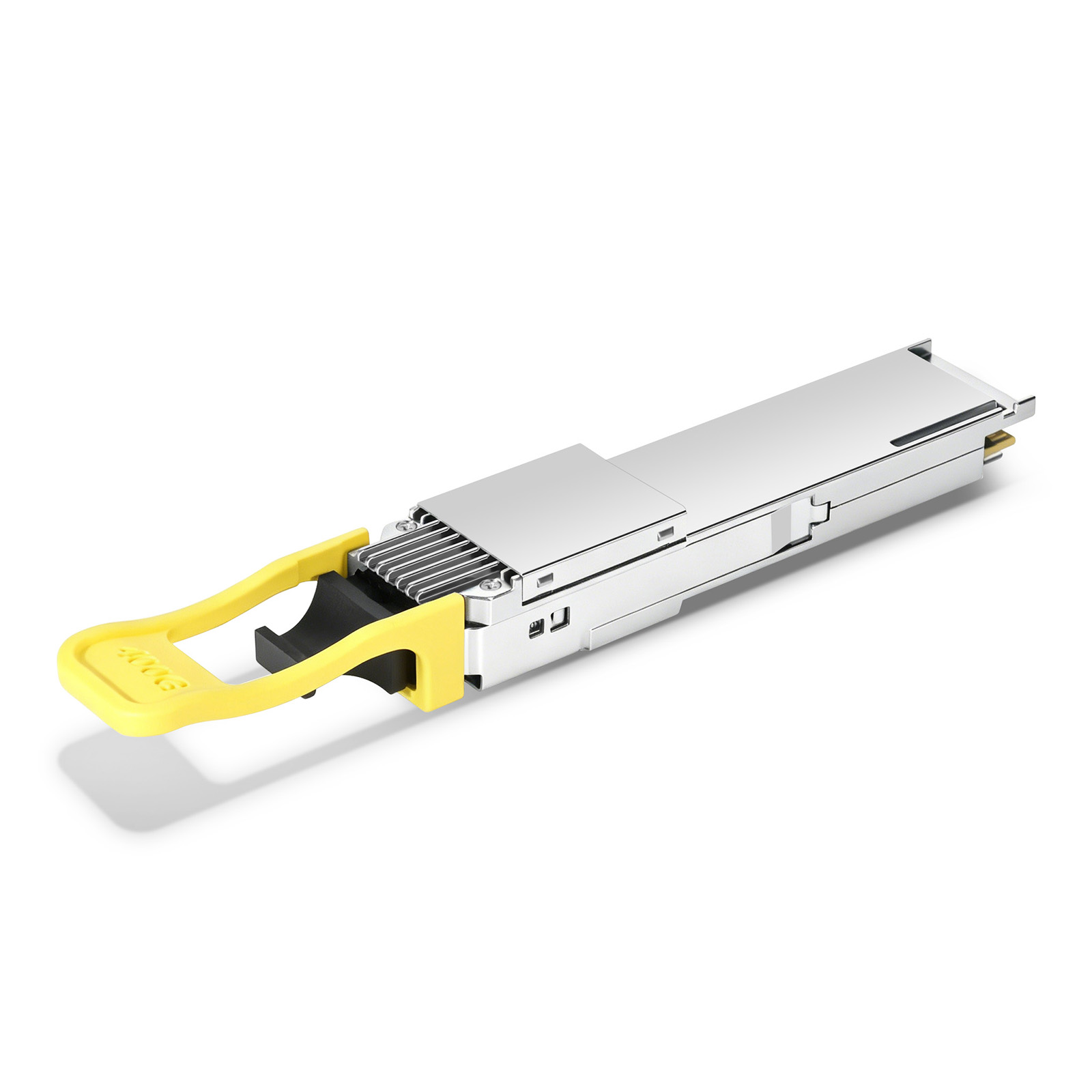

    NVIDIA/Mellanox MMS1X00-NS400 (980-9I068-00NM00) Compatible SiPh 400GBASE-DR4 QSFP112 RHS/Flat Top PAM4 1310nm 500m DDM MPO-12/APC SMF Optical Transceiver Module

    Product No: 103684
    1 Reviews
    1 Sold
    $599.00
    Compatible
    Transceivers type
    10 in real-time stock, 14Nov, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Used in ConnectX-7/QSFP112 adapters or BlueField-3/QSFP112 DPUs
2. Built-in Broadcom DSP chip
3. Ethernet or InfiniBand NDR support
4. Max power consumption ≤9W
5. Compliant with QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0
    See more

    Specifications

    NVIDIA/Mellanox MMS1X00-NS400 Compatible 400G QSFP112 DR4 Ethernet Optical Transceiver Module (1310nm, 500m, MPO-12 APC Connectors, SMF, 0℃ to +70℃, DDM)



    The NVIDIA/Mellanox MMS1X00-NS400 Compatible 400GBASE-DR4 QSFP112 transceiver module supports a max data rate of 425Gbps. It enables the fiber link of 500m over SMF with MPO-12 APC connectors. QSFPTEK manufactured  400GBASE-DR4 QSFP112 complies with QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0. DDM function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the DR4 QSFP112 achieves 400 Gigabit Ethernet through 4x 106.25 PAM4 Retimed 400GAUI-4 C2M electrical interface. The 400G DR4 QSFP112 is widely used for 400 gigabit Ethernet, 800G to 2x 400GBASE-DR4 breakout, data center and InfiniBand NDR applications.



    Part Number QT-Q112-400G-DR4 Vendor Name QSFPTEK
    Form Factor QSFP112 Max Data Rate 425 Gbps (4x 106.25 Gbps)
    Wavelength 1310nm Distance 500m
    Connector MPO-12/APC Cable Type SMF
    Transmitter Type SiPh Receiver Type PIN PD
    TX Power -2.9 to +4dBm Receiver Sensitivity < -5.9dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤9W Modulation Format PAM4
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols QSFP112 MSA Specification Rev2.0, IEEE 802.3ck and CMIS Rev5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $68.60
    9.5K Sold
    81 Reviews

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $15.60
    11.0K Sold
    81 Reviews

    NVIDIA/Mellanox MMS4X00-NS (980-9I30H-00NM00) Compatible 800GBASE-DR8 Twin-port OSFP IHS/Finned Top PAM4 1310nm 100m Dual MPO-12/APC DDM SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches

    $799.00
    82 Sold
    57 Reviews

    NVIDIA/Mellanox MMS4X00-NS400 (980-9I31N-00NM00) Compatible 400GBASE-DR4 OSFP RHS/Flat Top PAM4 1310nm 500m DDM MPO-12/APC SMF Optical Transceiver Module for InfiniBand NDR (IB) and Ethernet (ETH) Used in ConnectX-7/OSFP Adapter Cards

    $599.00
    128 Sold
    8 Reviews

    Features

    • 1. Advanced Technology
      Features with PAM4 modulation technology, DSP chip and COB packaging technology.
    • 2. Best Price and High Quality
      Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
    • 3. Protocols
      QSFP112 MSA Specification Rev2.0, IEEE 802.3df-2024 and CMIS Rev5.0 standard
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

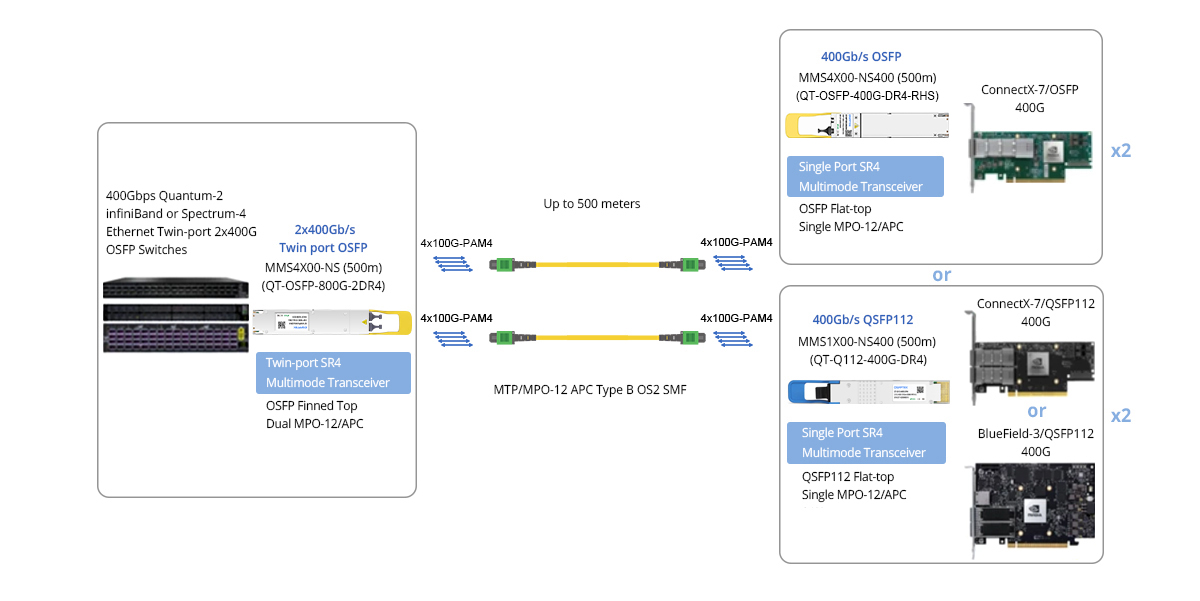

    Scenario 1: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x 400G ConnectX-7 or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 2x 400G ConnectX-7 or BlueField-3

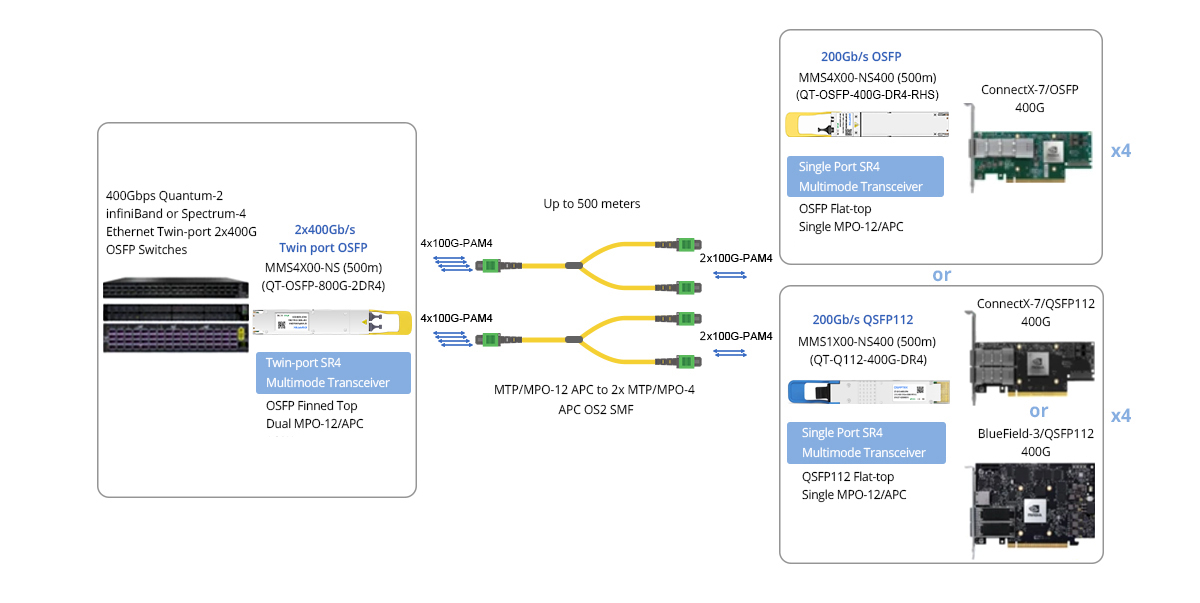

    Scenario 2: Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 or BlueField-3

    Twin-port 800G (2x400G) OSFP IB/ETH Switch to 4x 200G ConnectX-7 or BlueField-3

    Product details

    Various Switch Tests



    Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







    Tested in The Host Device to Prove Interoperability



    Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



    QSFPTEK Test Rack





    Comprehensive Testing



    Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.







    400G QSFP112 Optical Transceivers Contrast Table



    Part Number

    QT-Q112-400G-SR4

    QT-Q112-400G-DR4

    QT-Q112-400G-DR4+

    QT-Q112-400G-FR4


    NVIDIA Part Number

    MMA1Z00-NS400

    MMS1X00-NS400

    —

    —

    Data Rate

    400Gb/s

    400Gb/s

    400Gb/s

    400Gb/s

    Optical Connector

    MPO-12/APC

    MPO-12/APC

    MPO-12/APC

    Duplex LC/UPC

    Cable Type

    MTP/MPO-12/APC OM4 MMF

    MTP/MPO-12/APC OS2 SMF

    MTP/MPO-12/APC OS2 SMF

    LC UPC Duplex OS2 SMF

    Wavelength

    850nm

    1310nm

    1310nm

    1310nm

    Reach

    30m@OM3

    50m@OM4

    500m

    2 KM

    2 KM

    Modulation

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    4x 100G-PAM4 Electrical to 4x 100G-PAM4 Optical Parallel

    Max Power Consumption

    9W

    10W

    10W

    10W

    Matching 800G Transceivers

    MMA4Z00-NS (Finned top)

    MMS4X00-NM (Finned top)

    OSFP800-XDR8-B2

    MMS4X50-NM (Finned top)

    Application

    800G-to-two 400G Links

    800G-to-four 200G Links

    800G-to-two 400G Links

    800G-to-four 200G Links

    800G-to-two 400G Links

    800G-to-two 400G Links



    Questions & Answers

    • All (9)
    • QT-Q112-400G-SR4 (4)
    • QT-Q112-400G-DR4 (4)
    • QT-Q112-400G-DR4+ (4)
    • QT-Q112-400G-FR4 (3)
    • What does QSFP112 mean?
      A 400G QSFP uses 4 x 100Gb/s PAM-4 elec lanes. "112" refers to the the max data rate (112Gb/s) each electrical interface can handle.
    • Can I use the QSFP112 optical transceivers in OSFP switches?
      You cannot directly use QSFP112 module in OSFP switch, because QSFP112 and OSFP are physically different, incompatible form factors.
    • Can 400G QSFP112 SR4 module be used as 200G?
      Yes, it can be used as 200G module.
