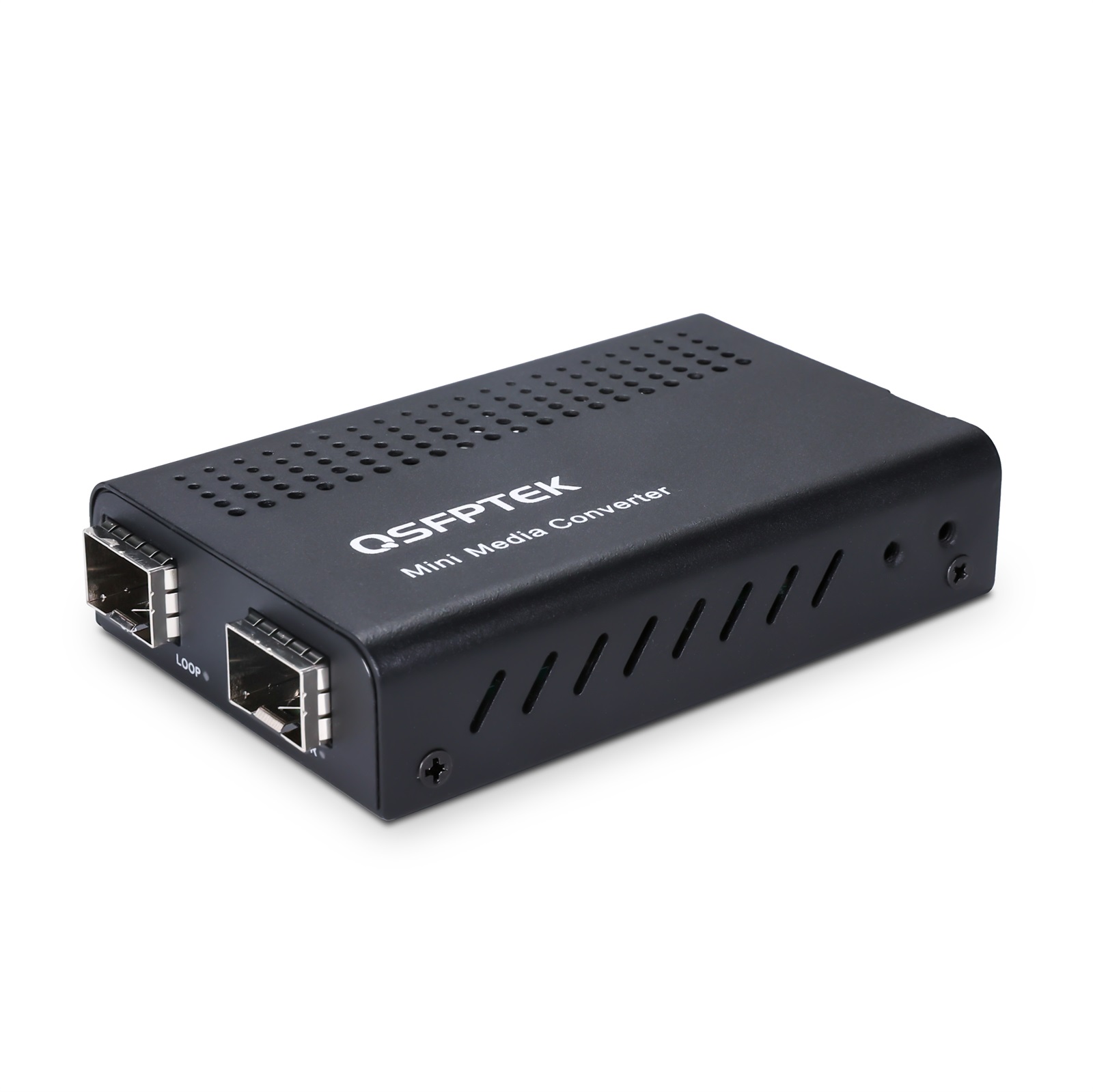

QT-10G-UMC-SFP, 1x 10GBase-X to 1x 10GBase-X 2SFP+ Slots 10 Gigabit Ethernet Mini Unmanaged Media Converter, DC 5~12V

Product No :99869
US$ 109.90  US$ 169.00
100 in stock
;jsessionid=2335407C368D181F1D648AA1BE520A03
-
+
1. Mini Size, Dimensions 0.79''x2.36''x3.54'' (20x60x90mm)
2. Equipped with LED Indicates Diagnostic & DIP-switch Configurations Status
3. Support LOOP/LFP/ ALS Function, Transmission mode
4. Support 1U 12 Slots Chassis & Stand-alone Use
5. Complies with 10Gbase-T,10Gbase-SR/LR/ER/ZR
See more

Specifications

1x 10GBase-X to 1x 10GBase-X 2SFP+ Slots 10 Gigabit Fiber Media Converter(10G, SFP+ to SFP+, AC 100V~240V or DC 5~12V)



This mini 10G sfp+ to sfp+ media converter , adpoted Optical - Electrical - Opticalconversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration. On the existing network infrastructure, it can quickly improve the communication capacity in a cost-effective way, expand the bandwidth, while using ultra low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

We also supply Media Converter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters. The media converters are compatible with a wide range of SFP/SFP+ transceivers, such as 1000BASE SFP, 10G BIDI SFP, 10G CWDM SFP, 10G DWDM SFP+ transceiver modules, etc.



Ports

2 x SFP/SFP+ Slots

Standards and Protocols

IEEE802.3an, IEEE802.3ae

Cable Type (Fiber)

Multimode 50/125µm, 62.5/125µm
Single-mode 9/125µm

Cable Type (Copper)

UTP 6,6a Cable (Maximum 100m)

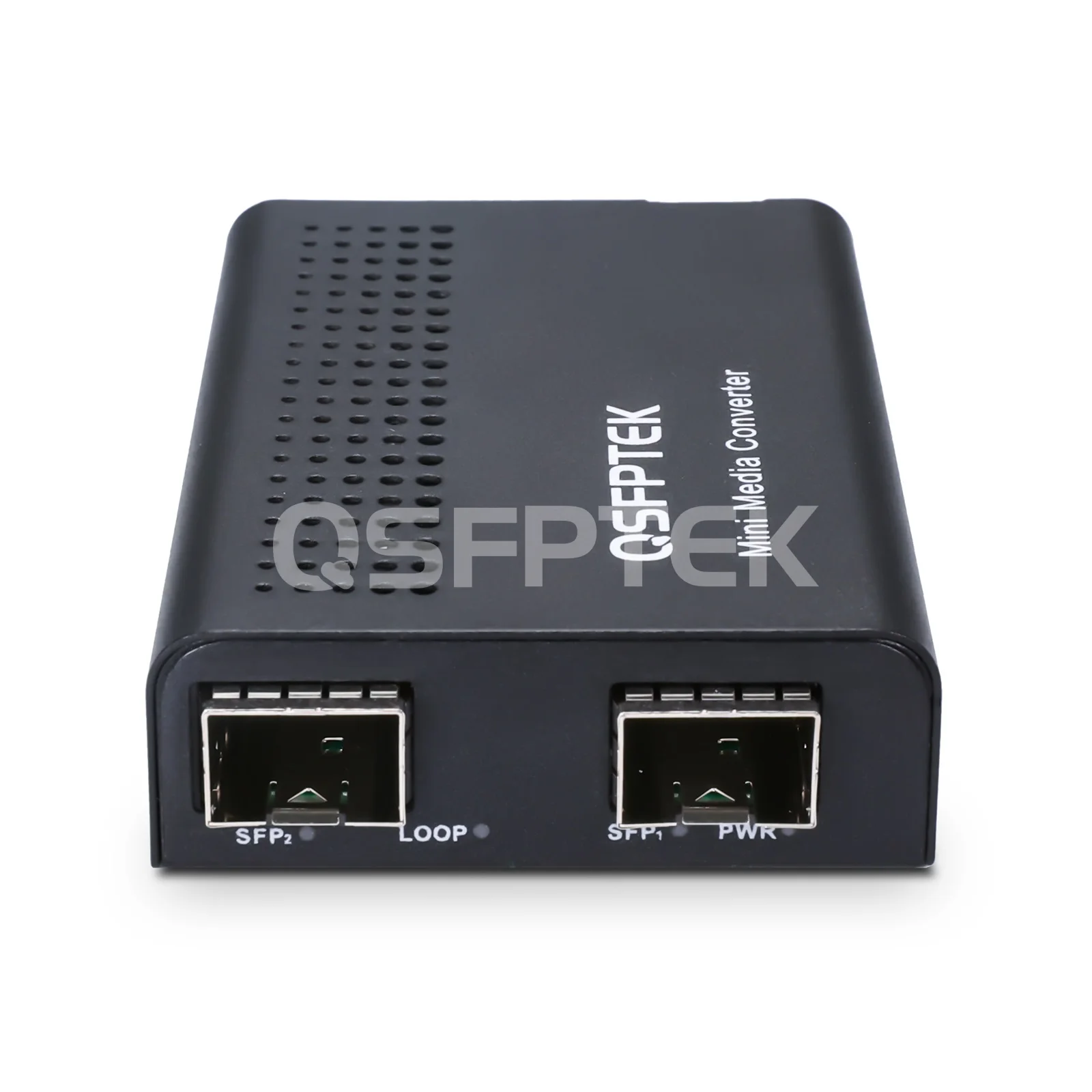

LED Indicators

SFP2, LOOP, SFP1, PWR

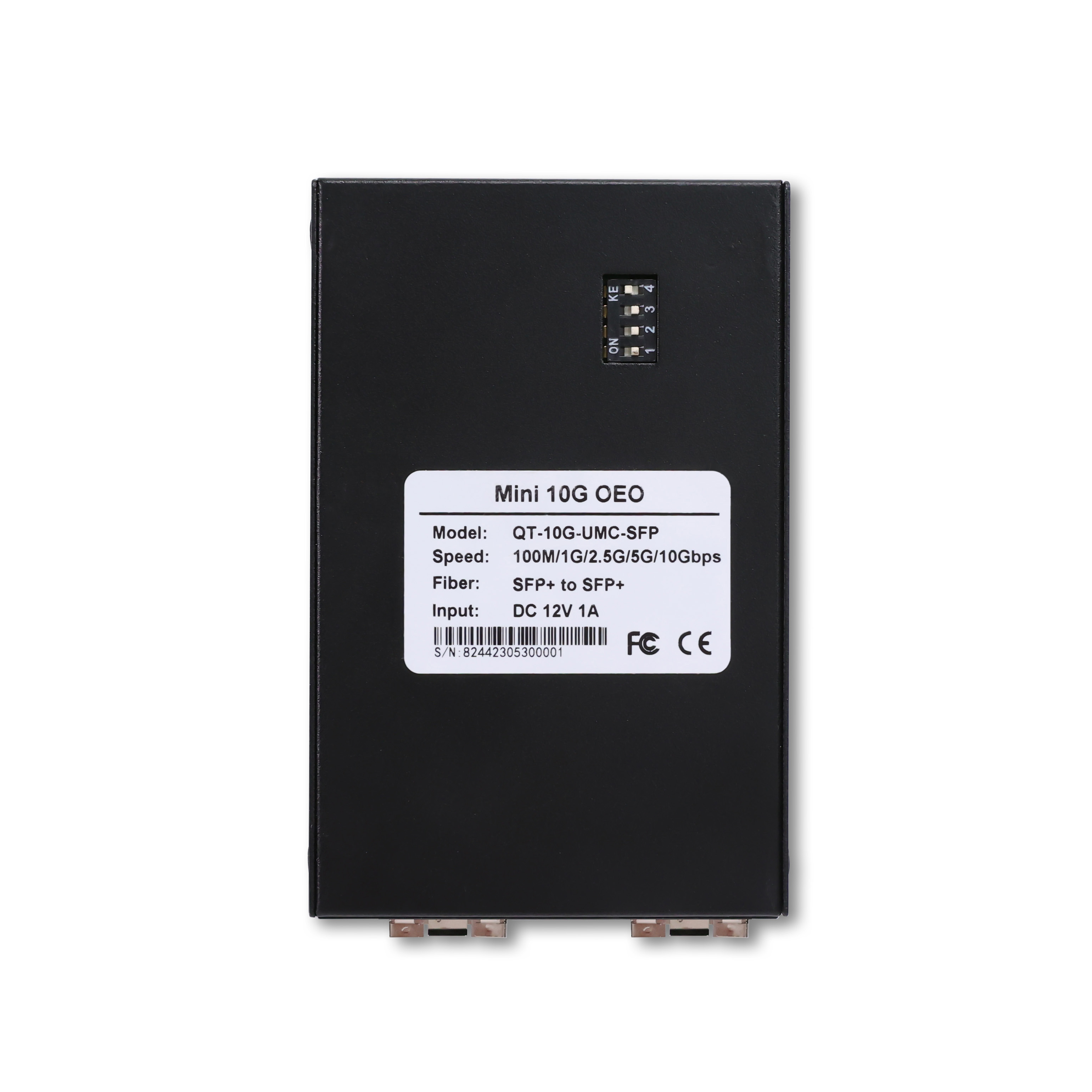

DIP Switch

Loopback/LFP/ALS Function

Power Consumption

Full-load<5W
Without Module≤2W

Jumbo Frame

16k

Operation Mode

100M/1.25G/8.5G/10G for Full Duplex

Dimensions (HxWxD)

0.79''x2.36''x3.54'' (20x60x90mm)

MTBF (hrs)

>50,000Hrs

Latency

3us Ultra-low

Operating Temperature

0°C to 50°C

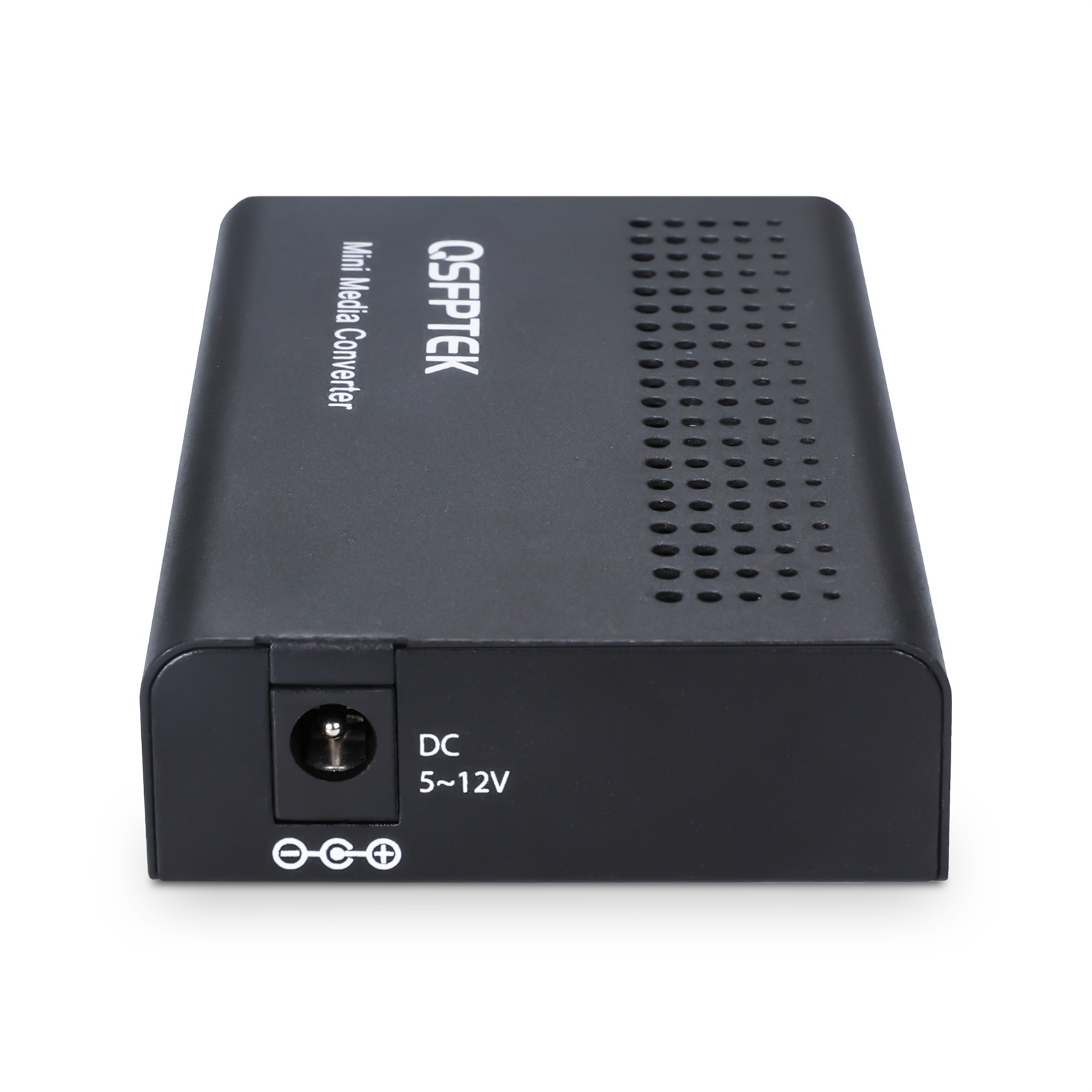

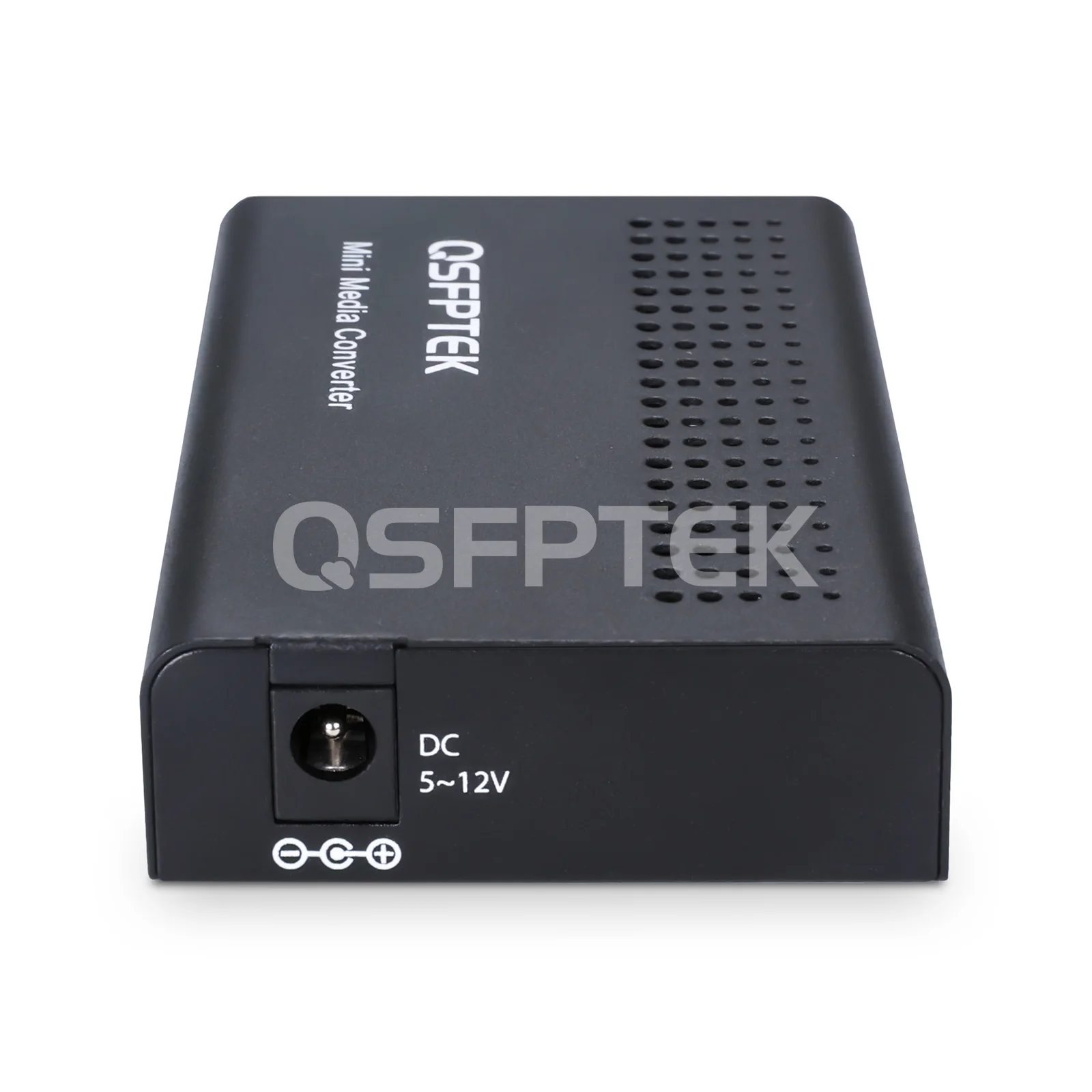

Input Power

DC 5-12V

Relative Humidity

5%~90% (Non-condensation)

Warranty

1 year

Quality Testing Program
Quality Certifications

Applications

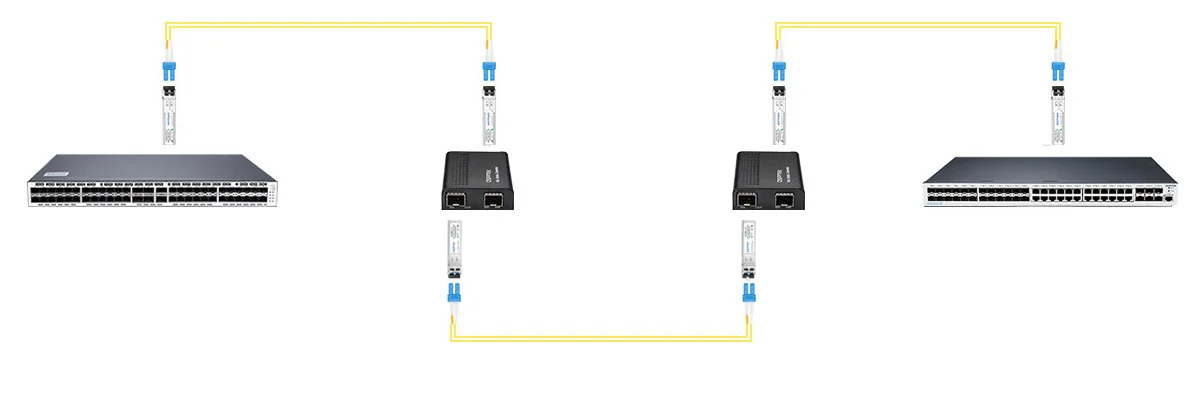

Scenario 1:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48x 10GE SFP+, with 2x 40GE QSFP+ and 4x 100GE QSFP28 Uplinks, Stackable

Mini Unmanaged 1x 10GBase-X to 1x 10GBase-X 2SFP+ Slots 10Gigabit Fiber Media Converter, AC 100V~240V or DC 5~12V optional

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable

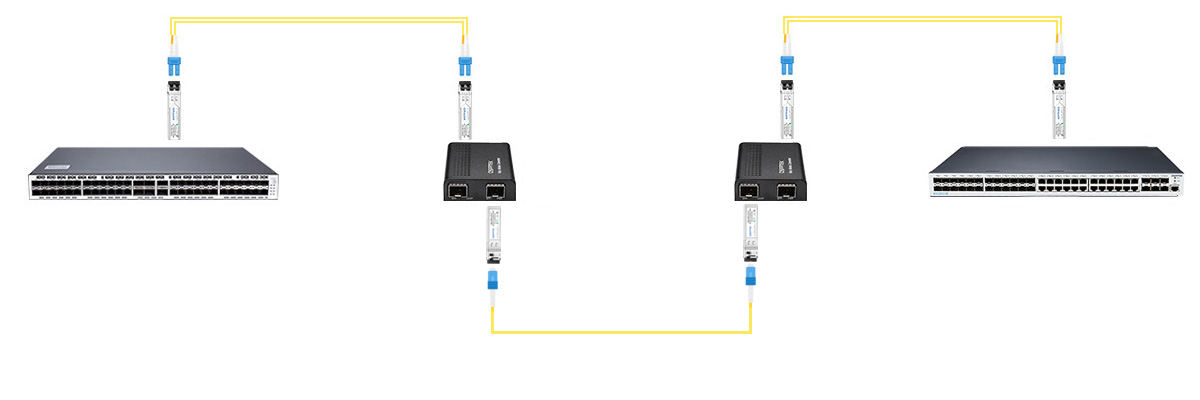

Scenario 2:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48x 10GE SFP+, with 2x 40GE QSFP+ and 4x 100GE QSFP28 Uplinks, Stackable

Mini Unmanaged 1x 10GBase-X to 1x 10GBase-X 2SFP+ Slots 10Gigabit Fiber Media Converter, AC 100V~240V or DC 5~12V optional

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

Cisco SFP-10G-BXU Compatible 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DDM LC SMF Transceiver

Cisco SFP-10G-BXD Compatible 10GBASE-BX10-D BiDi SFP+ 1330nm-TX/1270nm-RX 10km DDM LC SMF Transceiver

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

LC UPC to LC UPC Simplex OS2 2.0mm PVC Fiber Optic Patch Cable

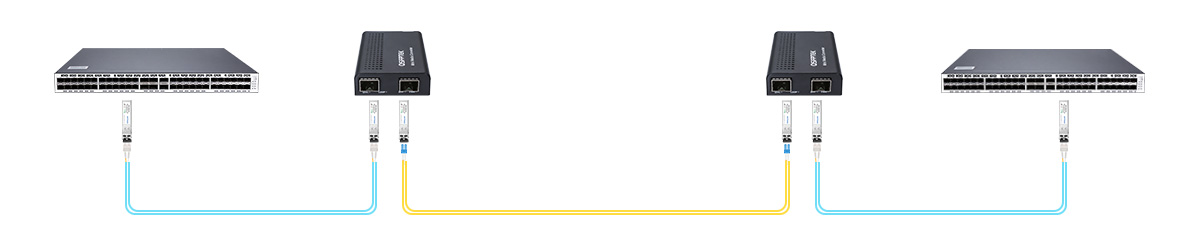

Scenario 3:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48x 10GE SFP+, with 2x 40GE QSFP+ and 4x 100GE QSFP28 Uplinks, Stackable

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

Cisco SFP-10G-LR Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic Patch Cable

Product details

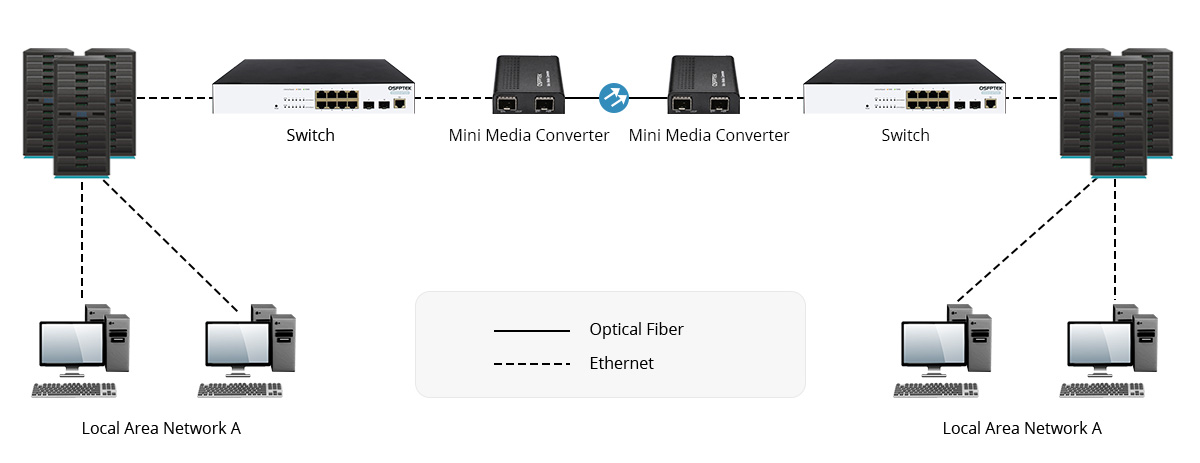

Flexible signal extension and conversion



By utilizing media converters and fiber optic cables, the link can be extended to longer distances, allowing for the migration of the network to fiber while leveraging the existing copper cable infrastructure.

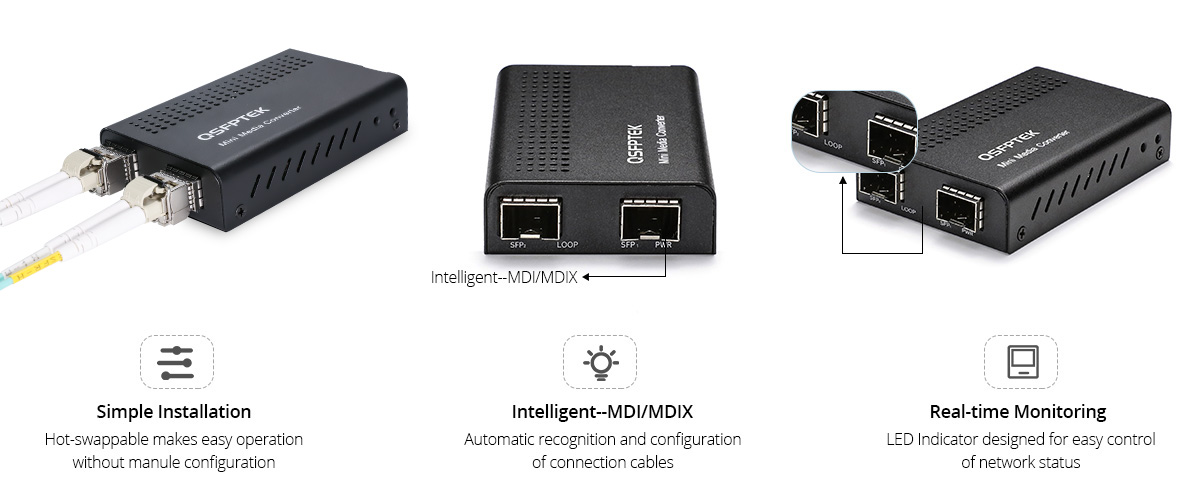

Easy and Efficient Operation



Hot-swappable design, plug-and-play. Easy to install and troubleshoot, no additional configuration is required for connectivity.





LFP Rapid Alarm Link Failure



LFP (Link Fault Pass-through) functionality enables quick detection of failed links within a short timeframe, minimizing potential losses caused by link failures.





Questions & Answers

more+
  • Does this allow the passage of no VLANs or all VLANs?
    Indeed, it supports data transmission for all VLANs. However, configuring VLANs is not feasible.
  • Is it possible to operate this device in a way where DWDM is utilized on one port and a standard 1310 LR SFP on the other?
    Absolutely, you can employ DWDM on one port and a regular 1310 LR SFP on the other. Please be assured of its compatibility.
  • Can this be used with 1g bd sfp? such as T1310/R1490 Bidirectional SFP module.
    Yes, it is. The media converter can support a wide range of transceiver modules, including BIDI SFP, CWDM SFP, DWDM SFP.
