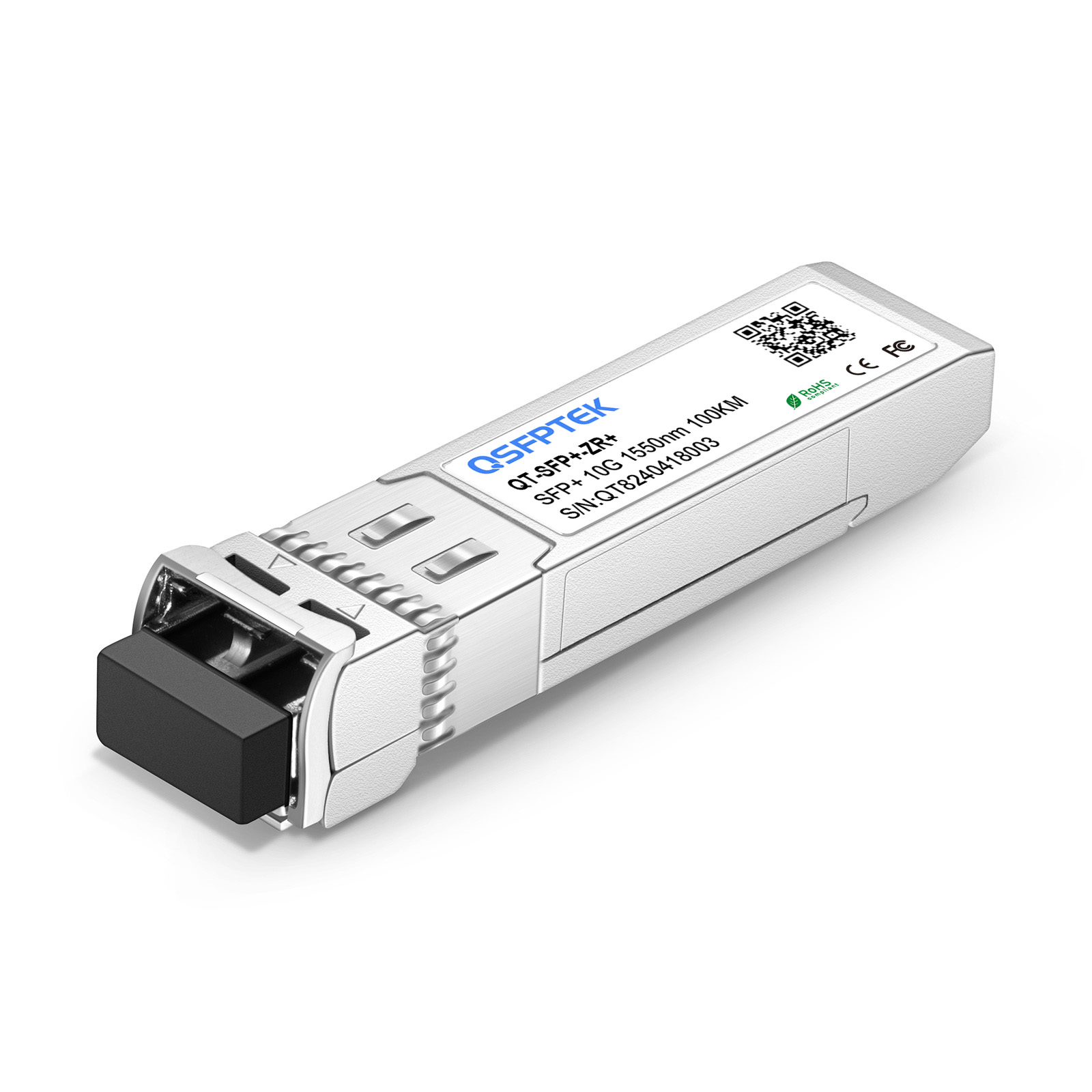

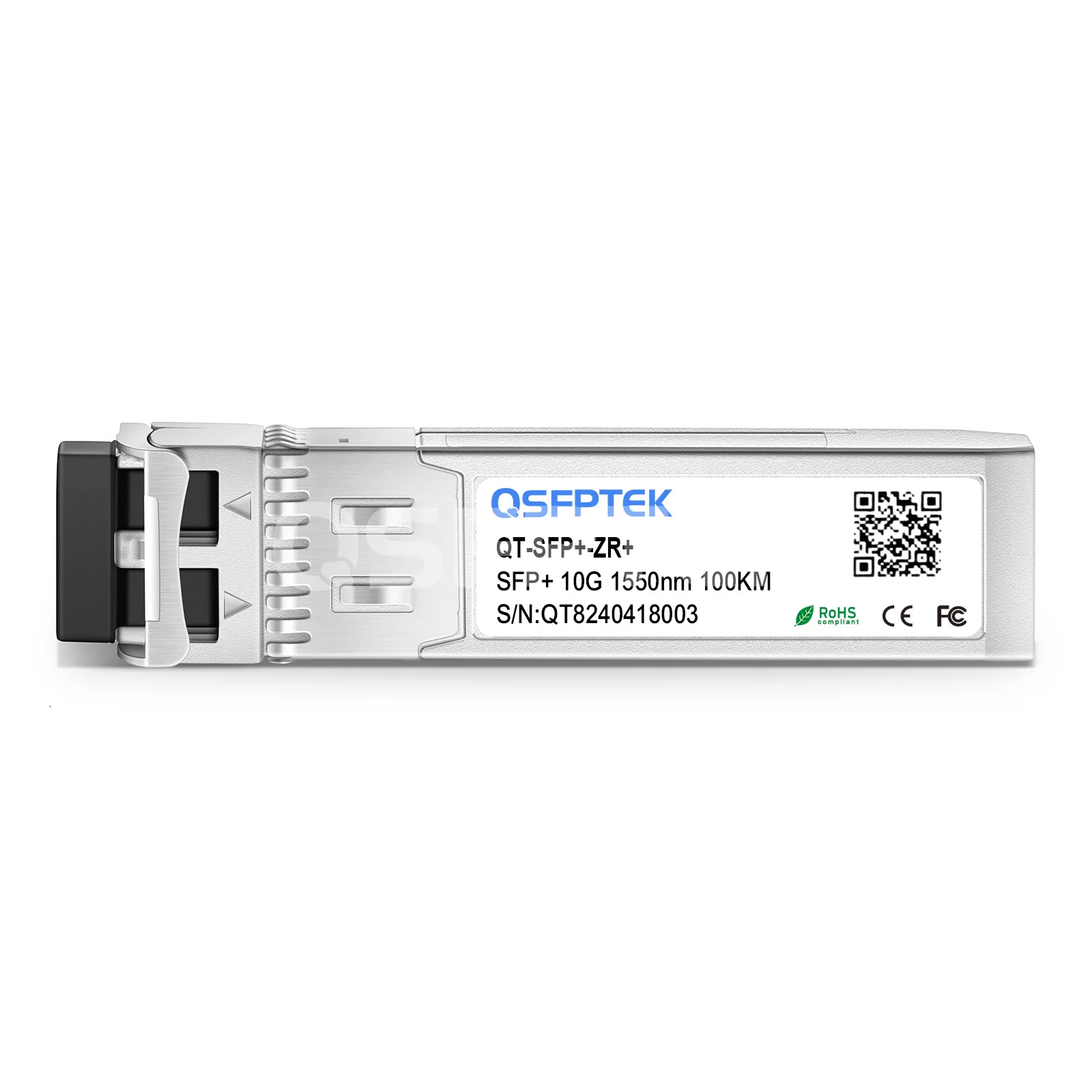

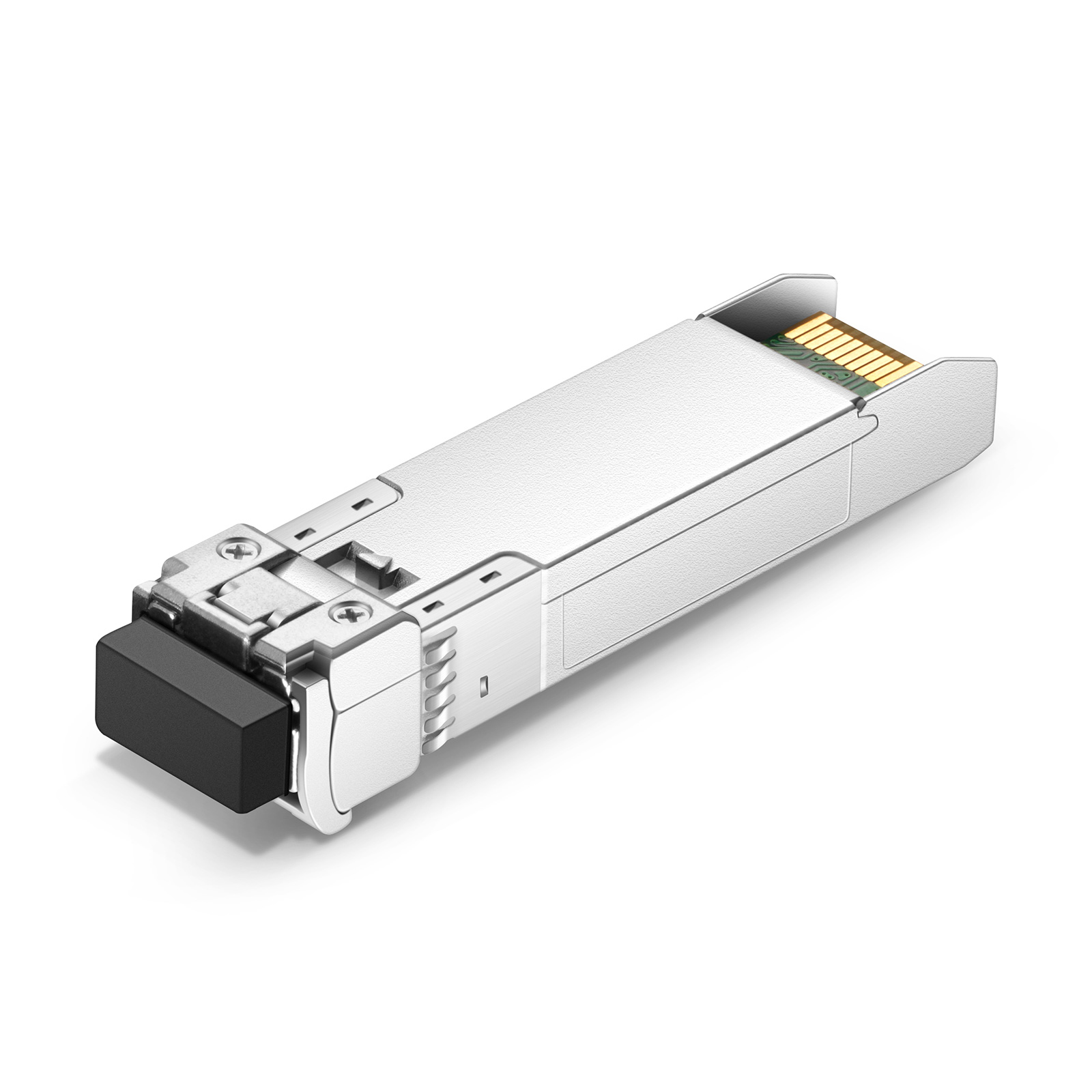

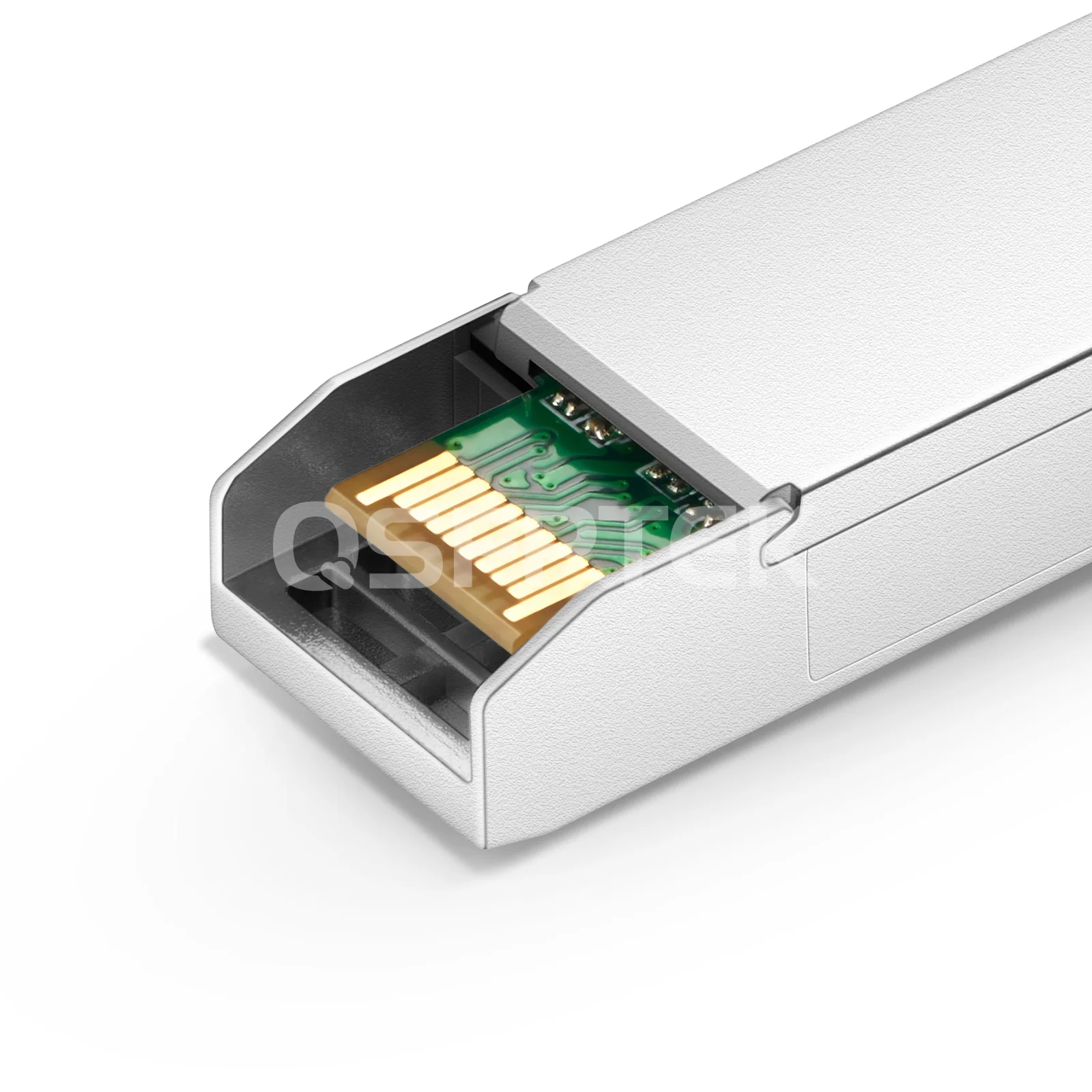

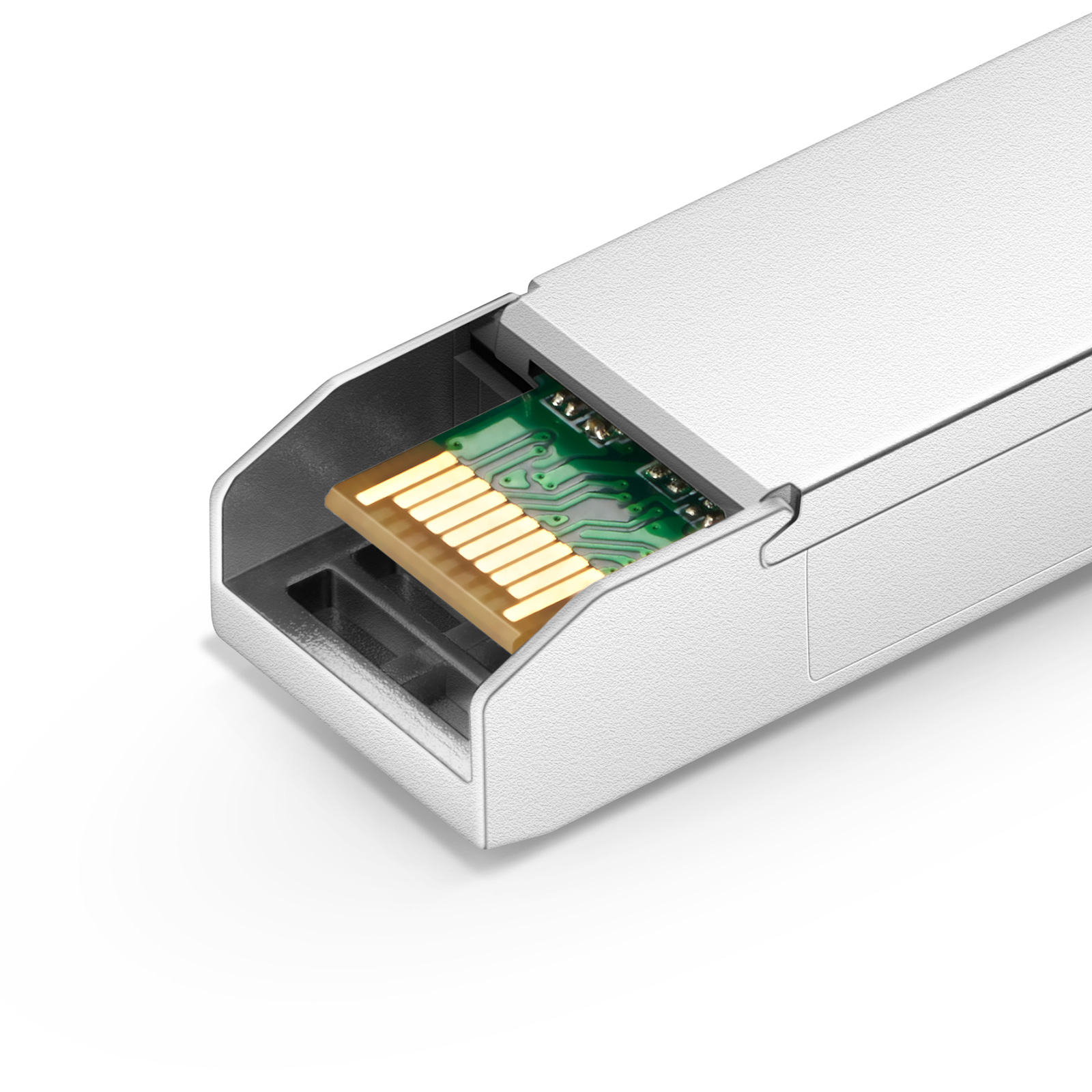

Ciena (ex.Nortel) 12434 Compatible 10GBASE-ZR SFP+ 1550nm 100km DOM LC SMF Transceiver Module

Product No :100054

US$ 189.00 ~~US$ 229.00~~

Specifications

Ciena (ex.Nortel) 12434 Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 100km, LC, DOM)

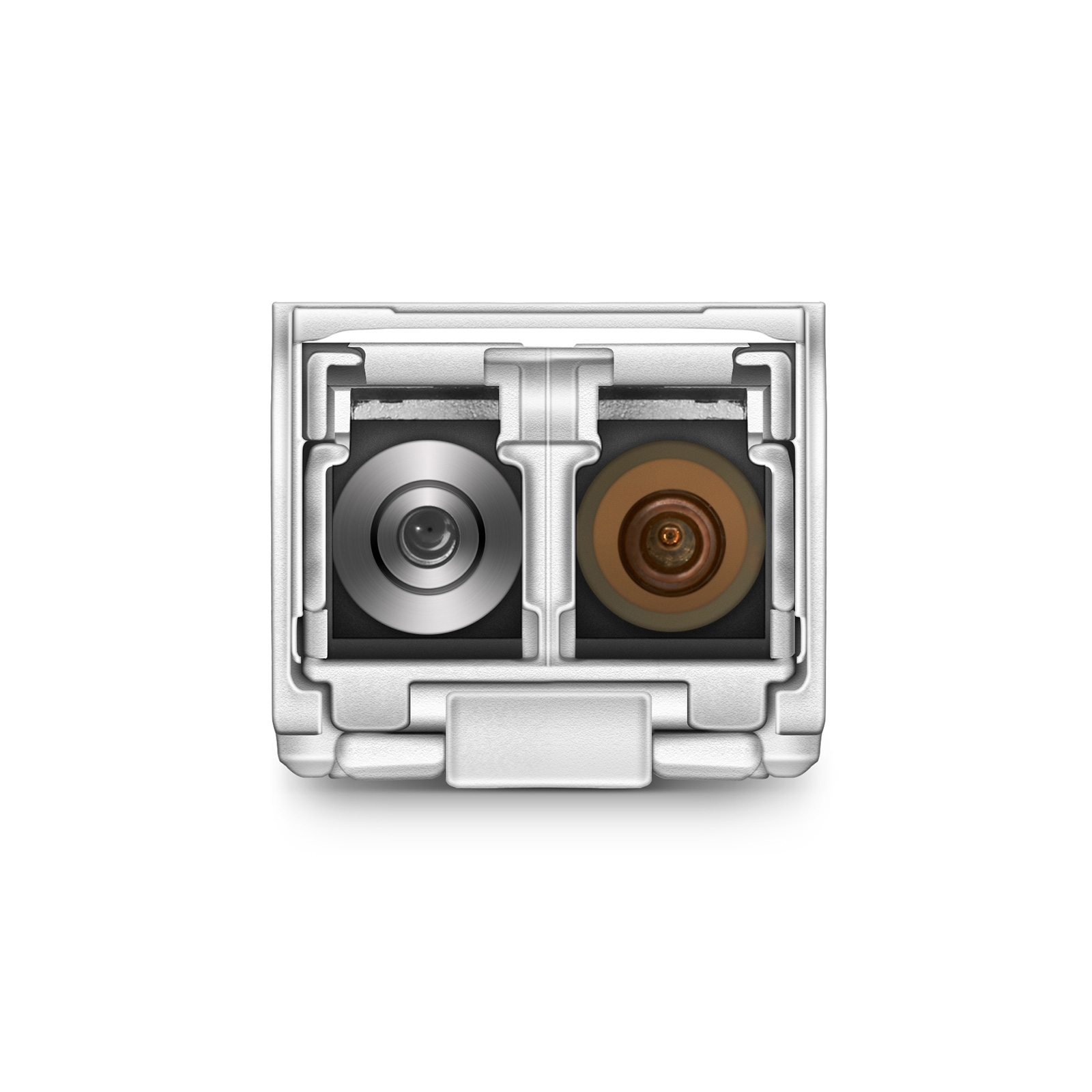

The Ciena (ex.Nortel) 12434 compatible SFP+ optical transceiver is equipped with an LC duplex connector, reaching a link up to 100km over OS2. QSFPTEK manufactured 10GBASE-ZR SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8472, SFF-8431 and SFF-8432. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G SFP+ transceiver caters to long-haul or point-to-point network, etc. It's also fully compatible with almost all Ciena devices.

Part Number	QT-SFP+-ZR+	Vendor Name	QSFPTEK
Form Factor	SFP+	Data Rate	10 Gbps
Wavelength	1550nm	Distance	100km
Connector	LC Duplex	Cable Type	SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	1~5dBm	Receiver Sensitivity	<-25dBm
Power Consumption	<1.5W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636, Infiniband 40G QDR	Warranty	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Ideal for metro or long-haul network.
3. Protocols

Compliant with IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

Long-haul network Solution for 10G Gigabit Ethernet Switches

The 10GBASE-ZR Optical Module Connectivity Testing on Switches

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

10G SFP+ Model Contrast Table

Part Number	QT-SFP+-T QT-SFP+-IT	QT-SFP+-T-80	QT-SFP+-SR	QT-SFP+-IR	QT-SFP+-LR	QT-SFP+-LH	QT-SFP+-ER	QT-SFP+-ZR	QT-SFP+-ZR+
Wavelength	—	—	850nm	1310nm	1310nm	1310nm	1550nm	1550nm	1550nm
Max Distance	30m@Cat6a/7	80m@Cat6a/7	300m	2km	10km	20km	40km	80km	100km
Cable Type	Copper	Copper	OM3/OM4 MMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF	OS2 SMF
Connector	RJ45	RJ45	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex	LC Duplex
Tx Power(dBm)	—	—	-6.5~-0.5	-8.2 ~ -0.5	-6.5~-0.5	-6~-1	-2~4	0 ~ 5	1 ~ 5
Rx Sensitivity(dBm)	—	—	-11.1	-12.6	-12.6	-14.4	-15.8	-24	-25
Power Consumption	<2.5W	<2.5W	<0.8W	<0.8W	<0.8W	< 1W	<1.5W	<1.5W	<1.5W
Source	—	—	VCSEL + PIN	FP + PIN	DFB + PIN	DFB + PIN	EML + PIN	EML + APD	EML + APD
Operating Temperature	0 to 70°C -40 to 85°C (IND)	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
