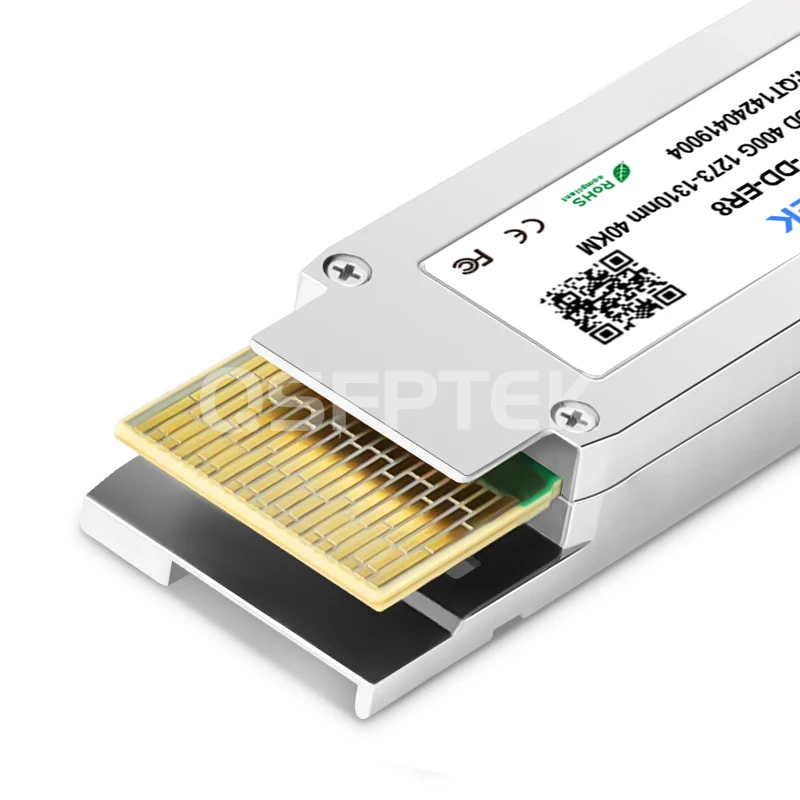

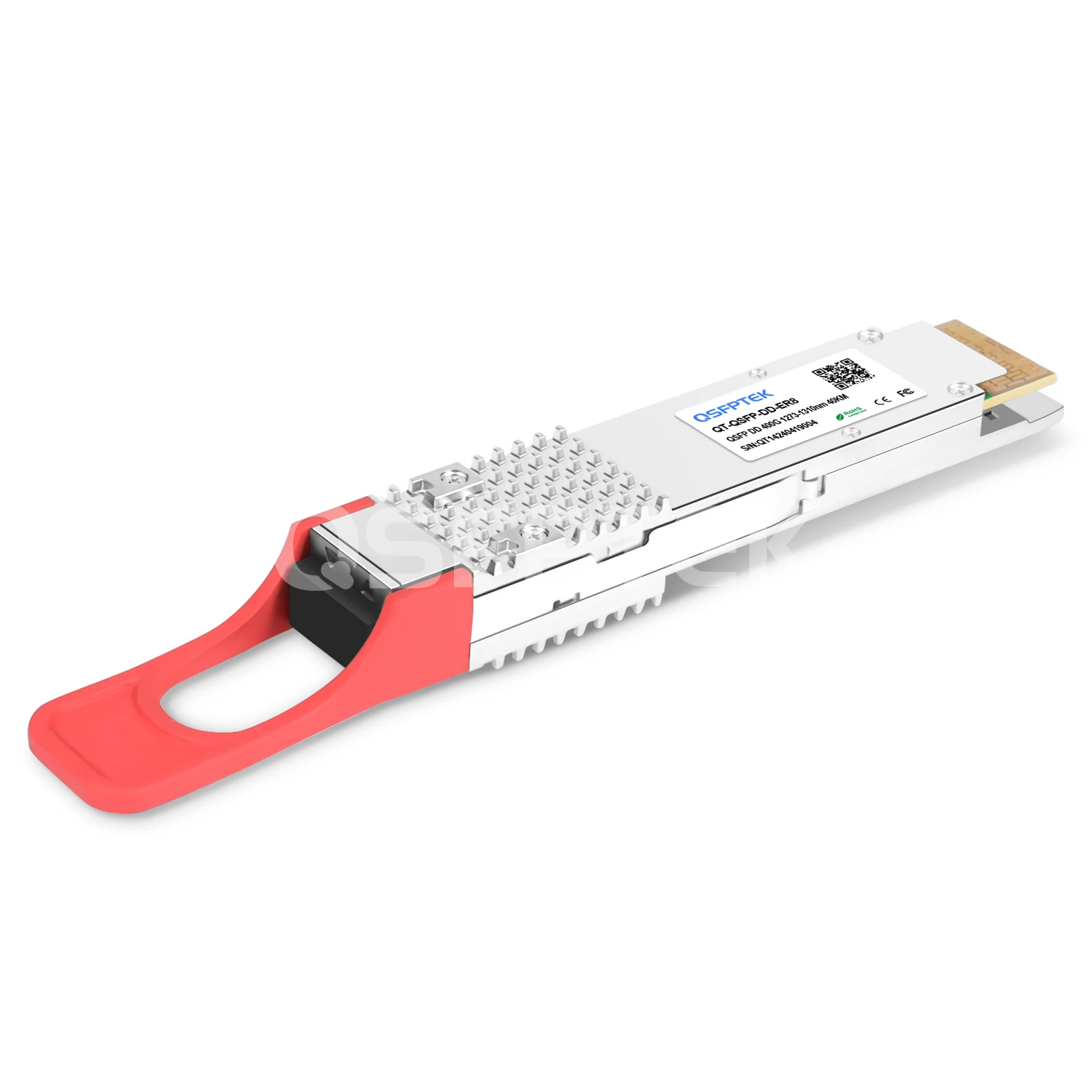

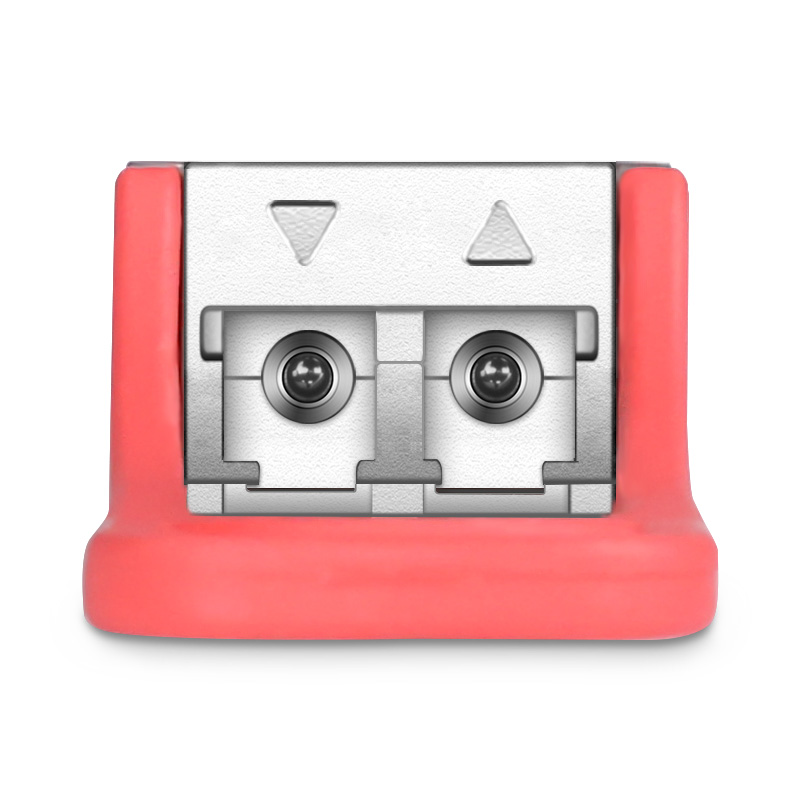

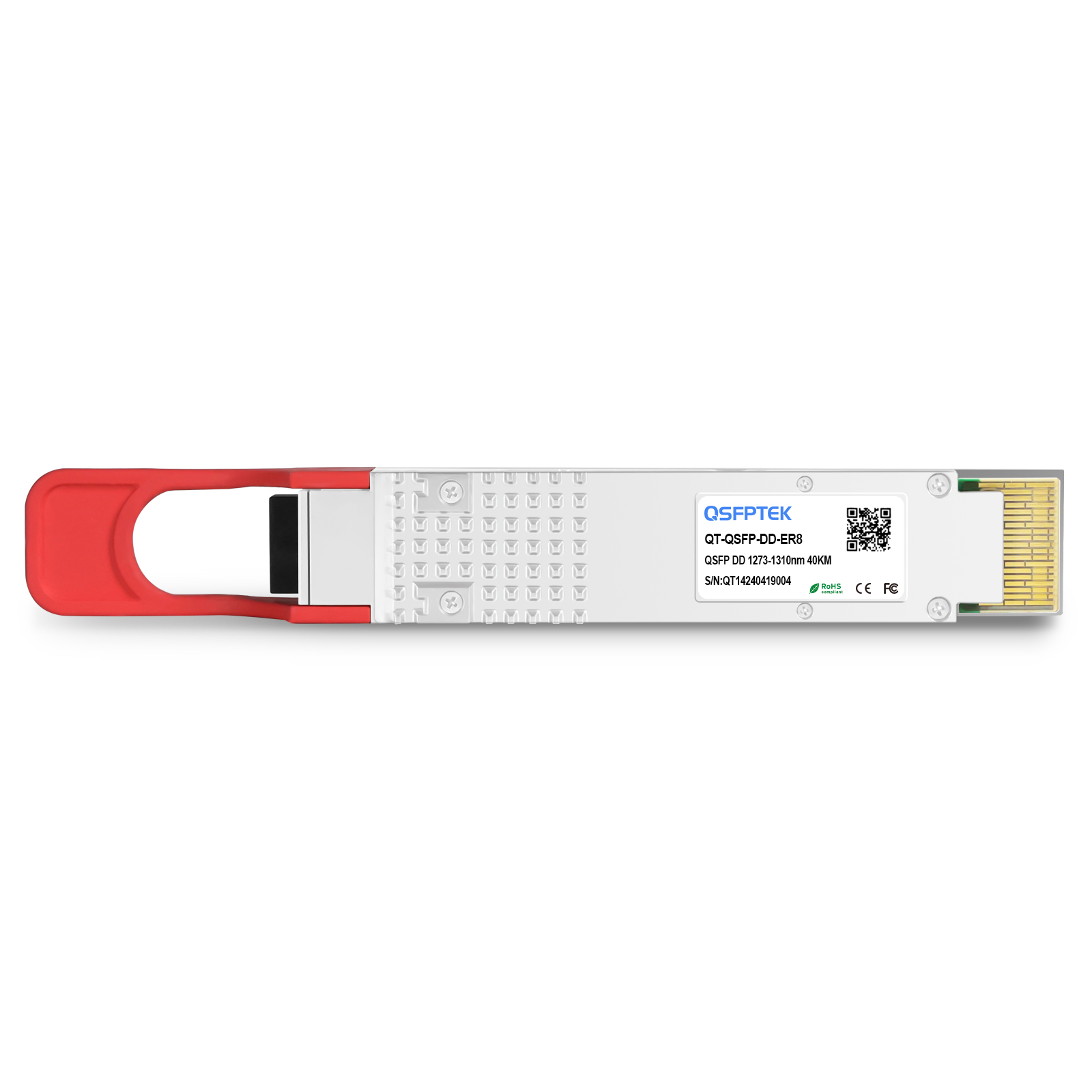

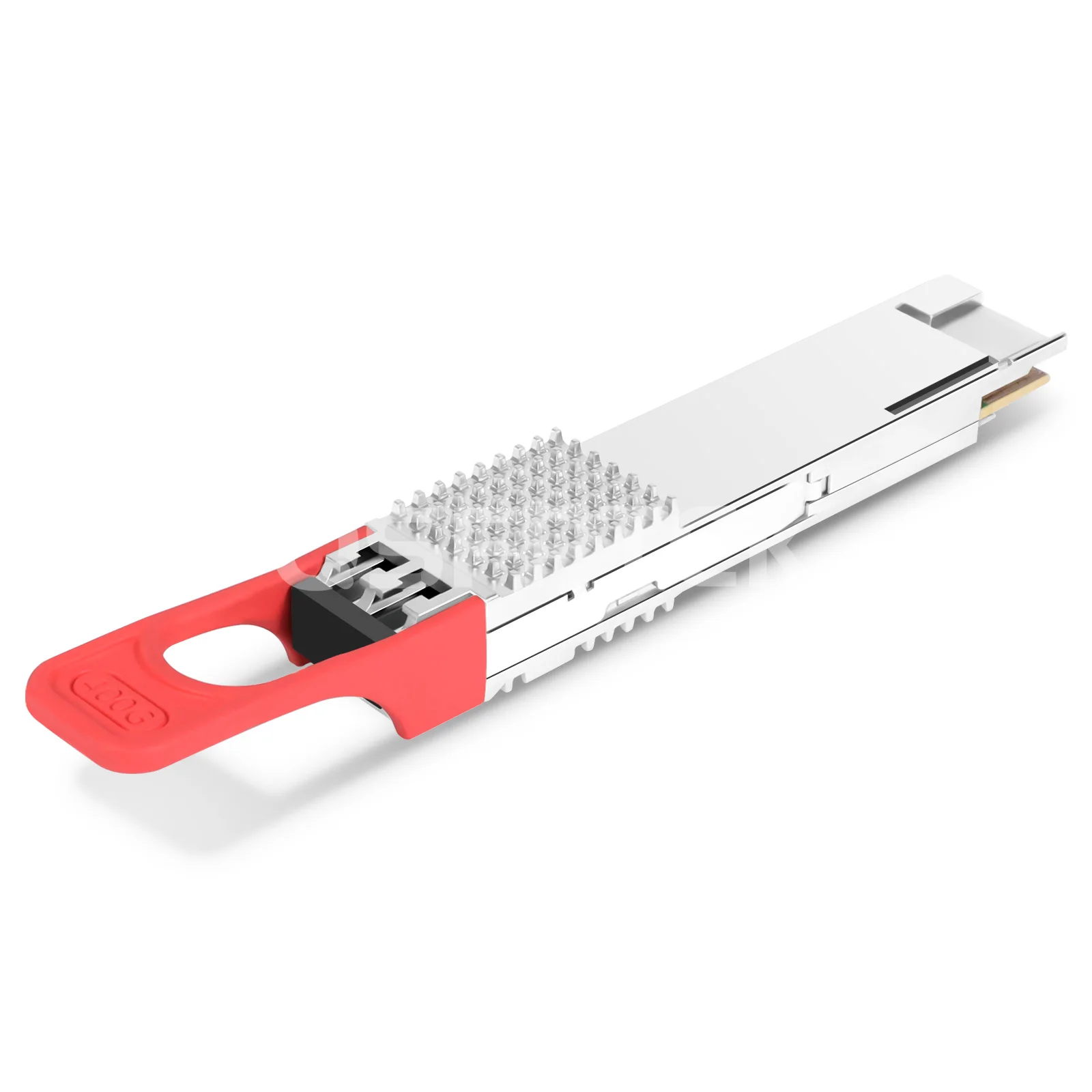

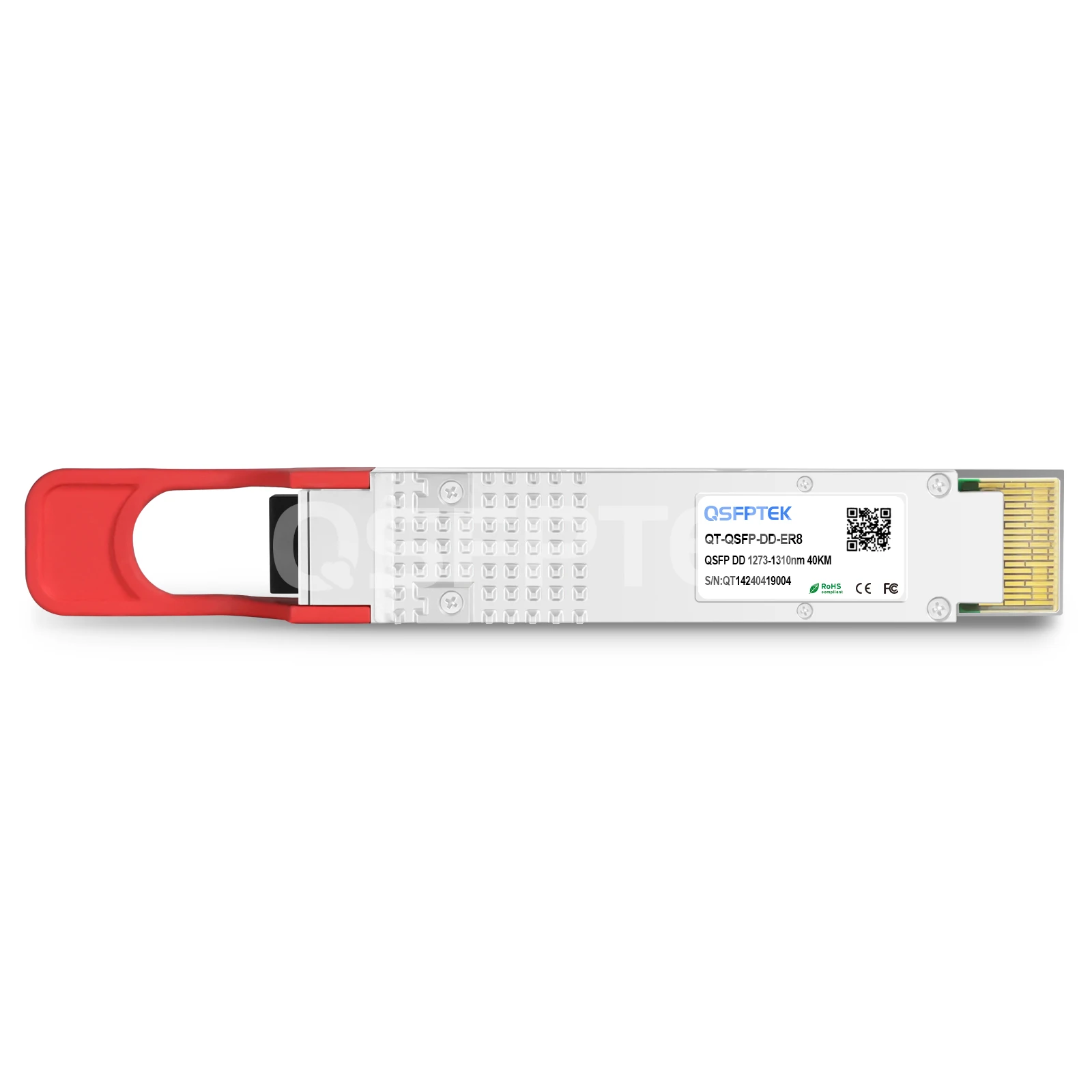

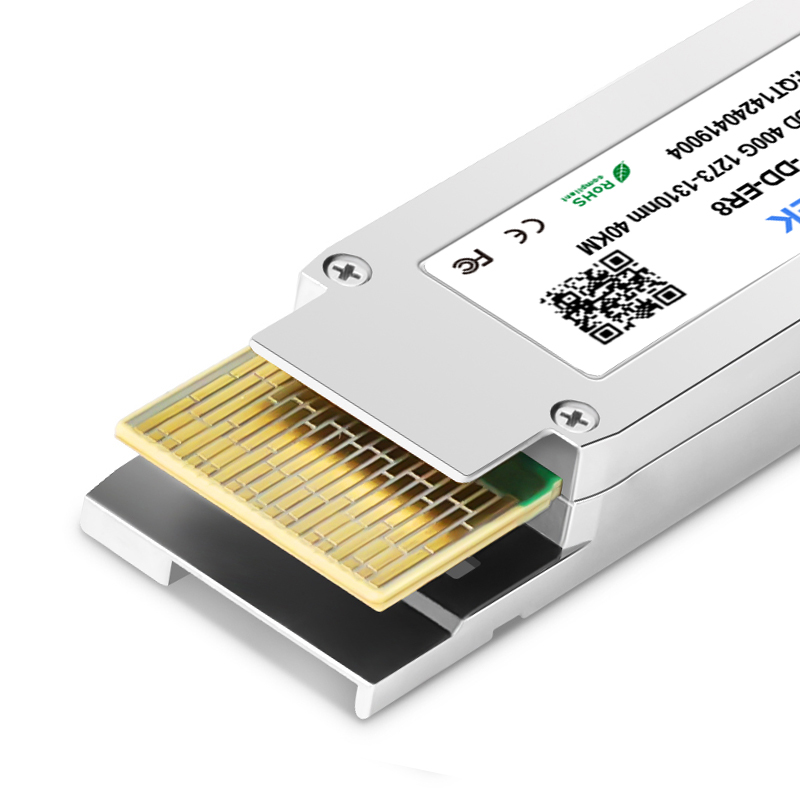

Juniper Compatible 400GBASE-ER8 400G QSFP-DD ER8 PAM4 1310nm 40km DOM Duplex LC SMF Optical Transceiver Module

Product No :100249
US$ 5071.90
Compatible
13 in real-time stock, 01Jul, 2025

Free Shipping over US$ 79.8

Global warehouses in stock

-
+
1. Max data rate up to 425Gbps. QSFP-DD form factor.
2. Reach up to 40km over OS2.
3. Macom DSP Chip.
4. 8x 50G PAM4 modulation.
5. Compliant to IEEE 802.3cn protocol and 400GAUI-8 standard.
See more

Specifications

Juniper Compatible 400GBASE-ER8 400G QSFP-DD-ER8 PAM4 1310nm 40km DOM Optical Transceiver Module (SMF, 1310nm, 40km, LC Connector, DOM)



The Juniper 400GBASE-ER8 compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 40km over a standard pair of G.652 single-mode fiber(OS2). QSFPTEK manufactured 400GBASE-ER8 QSFP-DD transceiver module is compliant with IEEE 802.3cn protocol and 400GAUI-8, QSFP-DD HW Rev 5.0 and QSFP-DD CMIS Rev 4.0 standard. Besides, 400G ER8 is designed based on PAM4 (Pulse Amplitude Modulation 4-level) modulation technology, DSP (Digital Signal Processing) chip, and QSFP-DD form factor. With these features, this 400G QSFP-DD transceiver is widely applied in 400G telecom connections, DCI, metro network, long-haul, and high-performance computing networks application.



Part Number QT-QSFP-DD-ER8 Vendor Name QSFPTEK
Form Factor QSFP-DD Interface Type ER8
Max Data Rate 425Gbps Wavelength 1310nm
Connector Duplex LC Cable Type SMF
Max Cable Distance 40km Modulation PAM4
TX Power -0.6~5.6dBm Receiver Sensitivity <-16.1dBm(SECQ–17.5dBm)
Transmitter Type LWDM EML Receiver Type APD
Power Consumption ≤15.4W Temperature Range 0 to 70°C (32 to 158°F)
DDM/DOM Supported Forward Error Correction (FEC) Host FEC Supported
Protocols QSFP-DD MSA, IEEE 802.3cn Warranty 1 Year
Quality Testing Program
Quality Certifications

Features

  • 1. Advanced Technology
    Features with PAM4 modulation technology, DSP chip and COB packaging technology.
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    IEEE 802.3cn protocol and 400GAUI-8, QSFP-DD HW Rev 5.0 and QSFP-DD CMIS Rev 4.0 standard
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

400G to 400G Direct Connectivity:

Related Products:

LC UPC to LC UPC Duplex OS2 SMF

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.








Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QDD-400G-ER8-S compatibility test






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.








Long-Haul 400G QSFP-DD Optics Contrast Table



Part Number

QT-QSFP-DD-FR4

QT-QSFP-DD-LR4

QT-QSFP-DD-PLR4

QT-QSFP-DD-LR8

QT-QSFP-DD-ER8


Center Wavelength

1310nm

1310nm

1310nm

1310nm

1310nm

Connector

Duplex LC

Duplex LC

MTP/MPO-12

Duplex LC

Duplex LC

Cable Distance (Max.)

2km

10km

10km

10km

40km

Modulation

PAM4

PAM4

PAM4

PAM4

PAM4

Transmitter + Receiver Type

CWDM EML + PIN

CWDM EML + PIN

EML + PIN

LWDM EML + PIN

LWDM EML + APD

TX Power

-3.2~3.5dBm

-2.7~1.5dBm

-1.9~4.8dBm

-2.8~5.3dBm

-0.6~5.6dBm

Receiver Sensitivity

<-7.3dBm

<-9.0dBm

<-8.2dBm

<-9.1dBm

<-16.1dBm (SECQ–17.5dBm)

Power Consumption

≤12W

≤12W

≤12W

≤13W

≤15.4W

Temperature

0 to 70°C (32 to 158°F)

0℃ to 70℃

0℃ to 70℃

0℃ to 70℃

0℃ to 70℃

Application

Data Center

800G to 2x400G Breakout

Data Center

Data Center

400G to 4x100G Breakout

Data Center

Data Center
