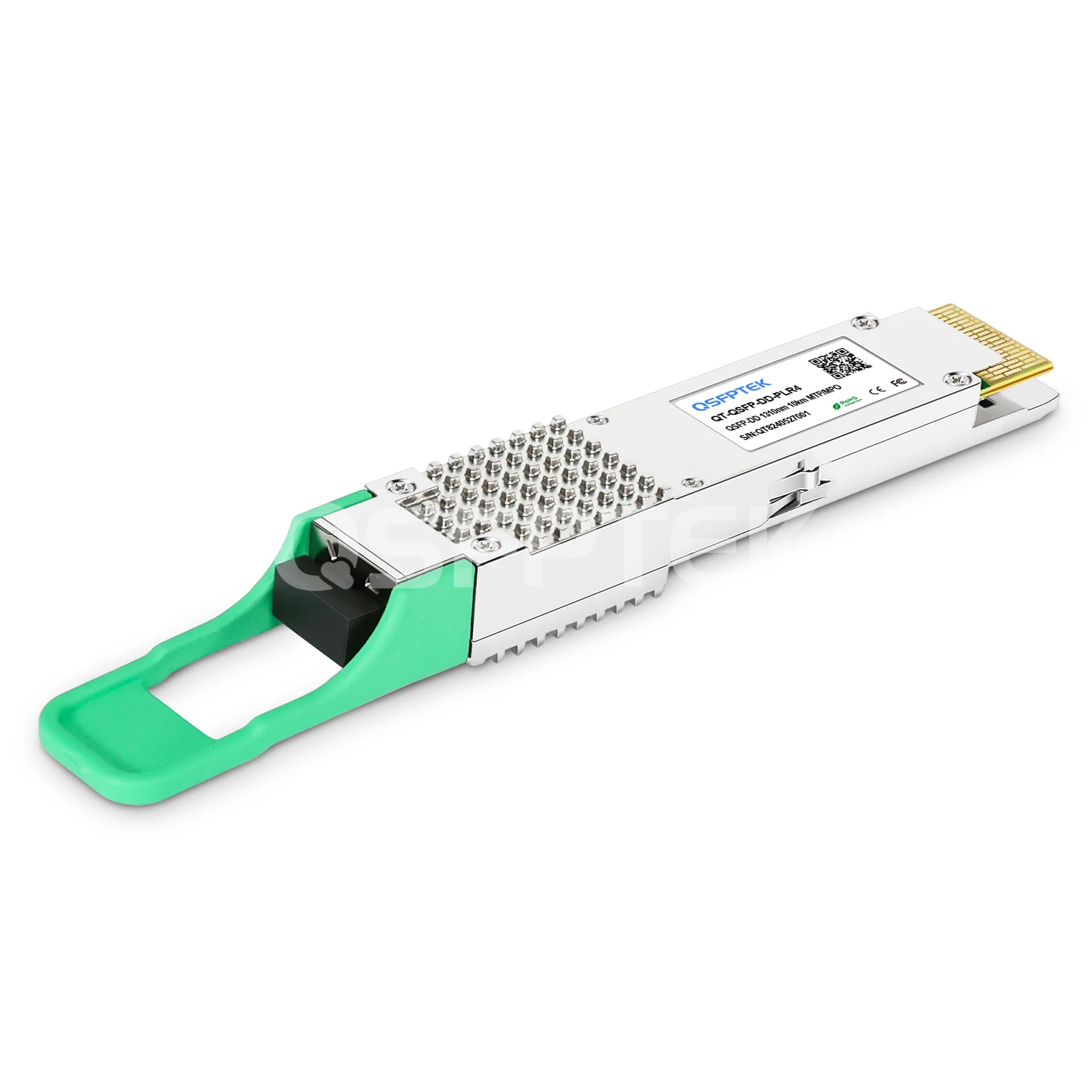

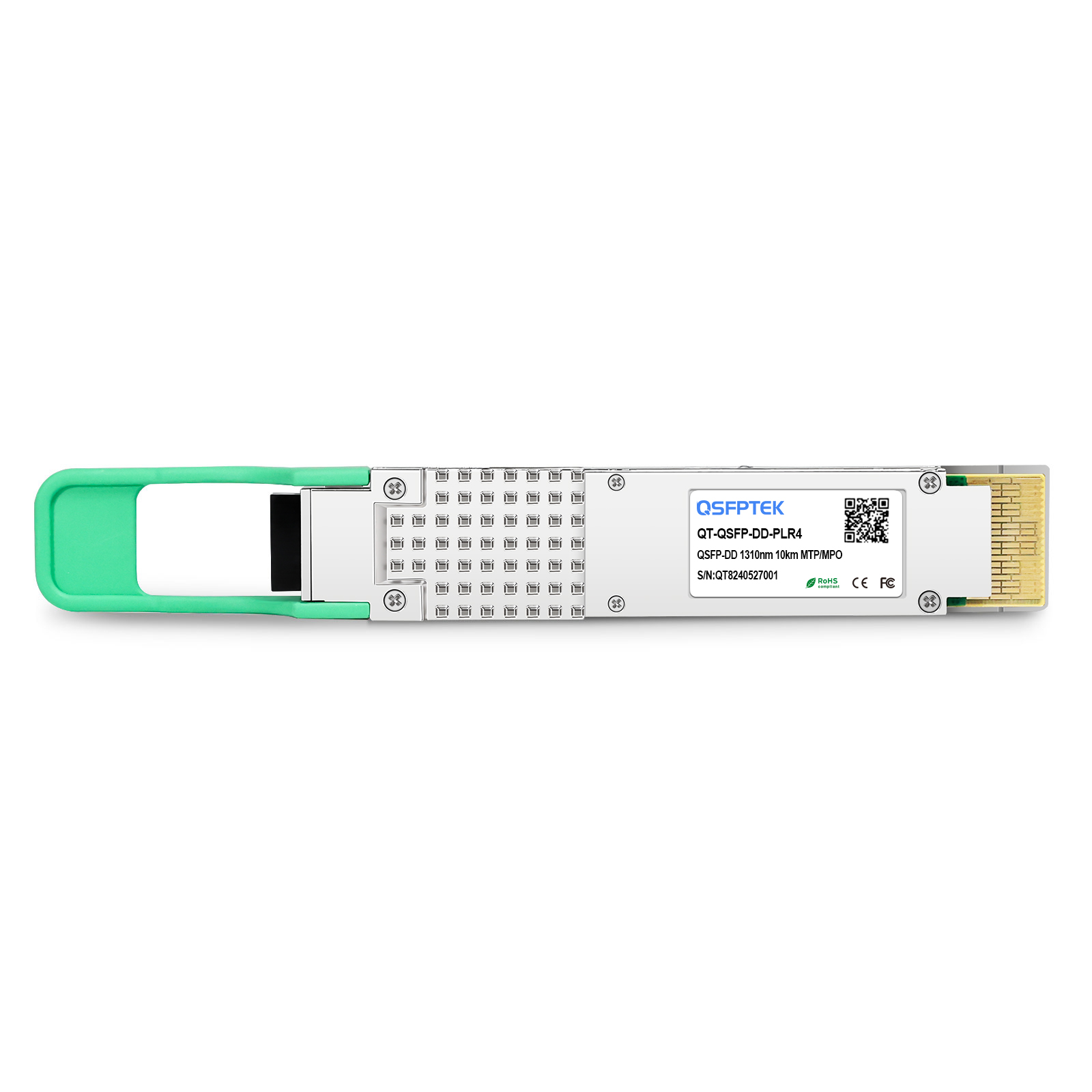

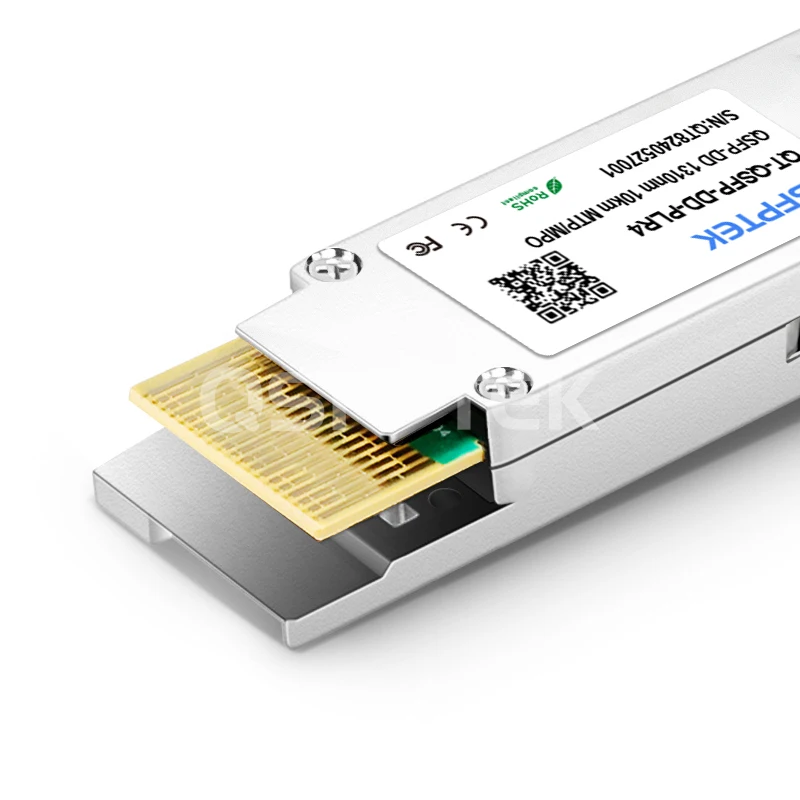

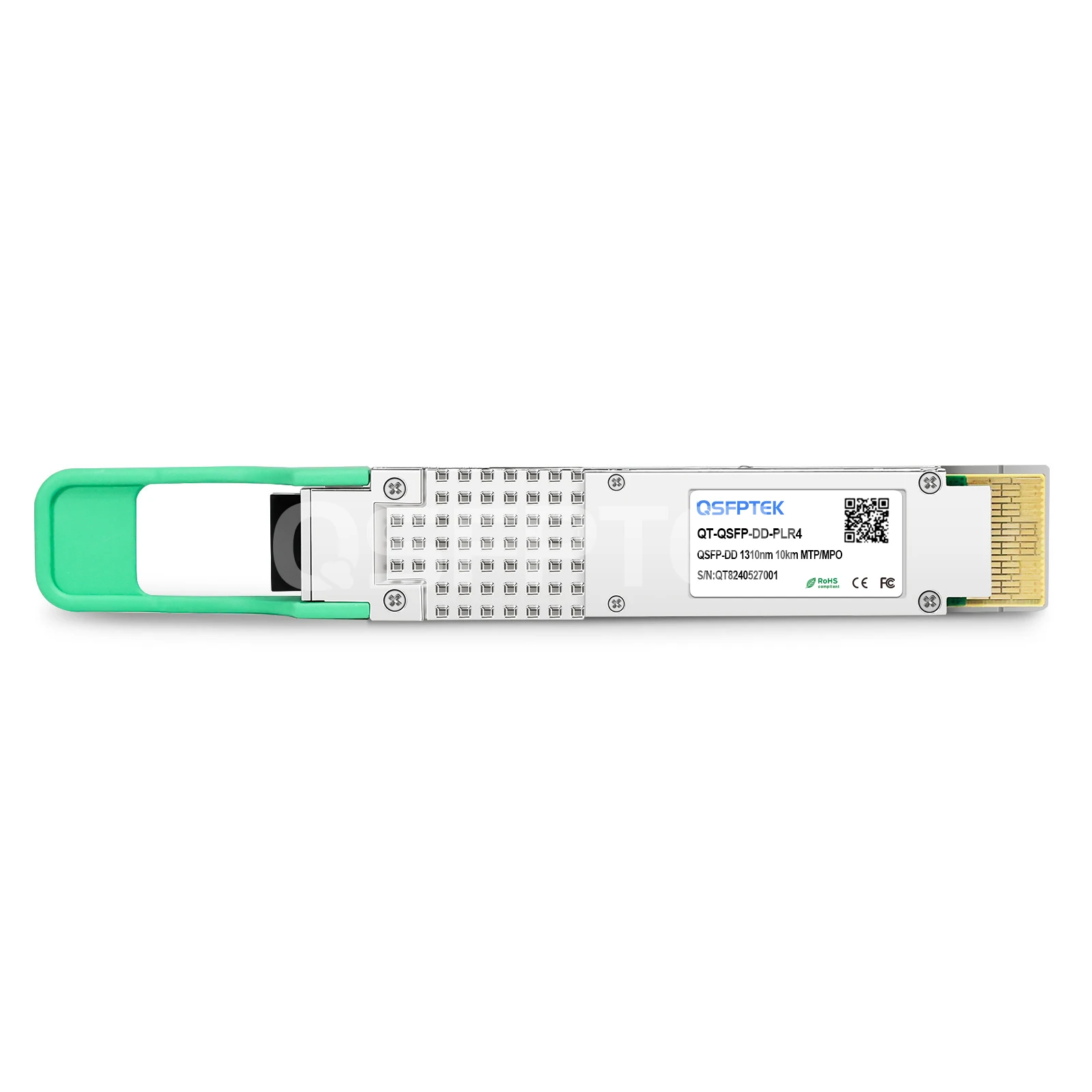

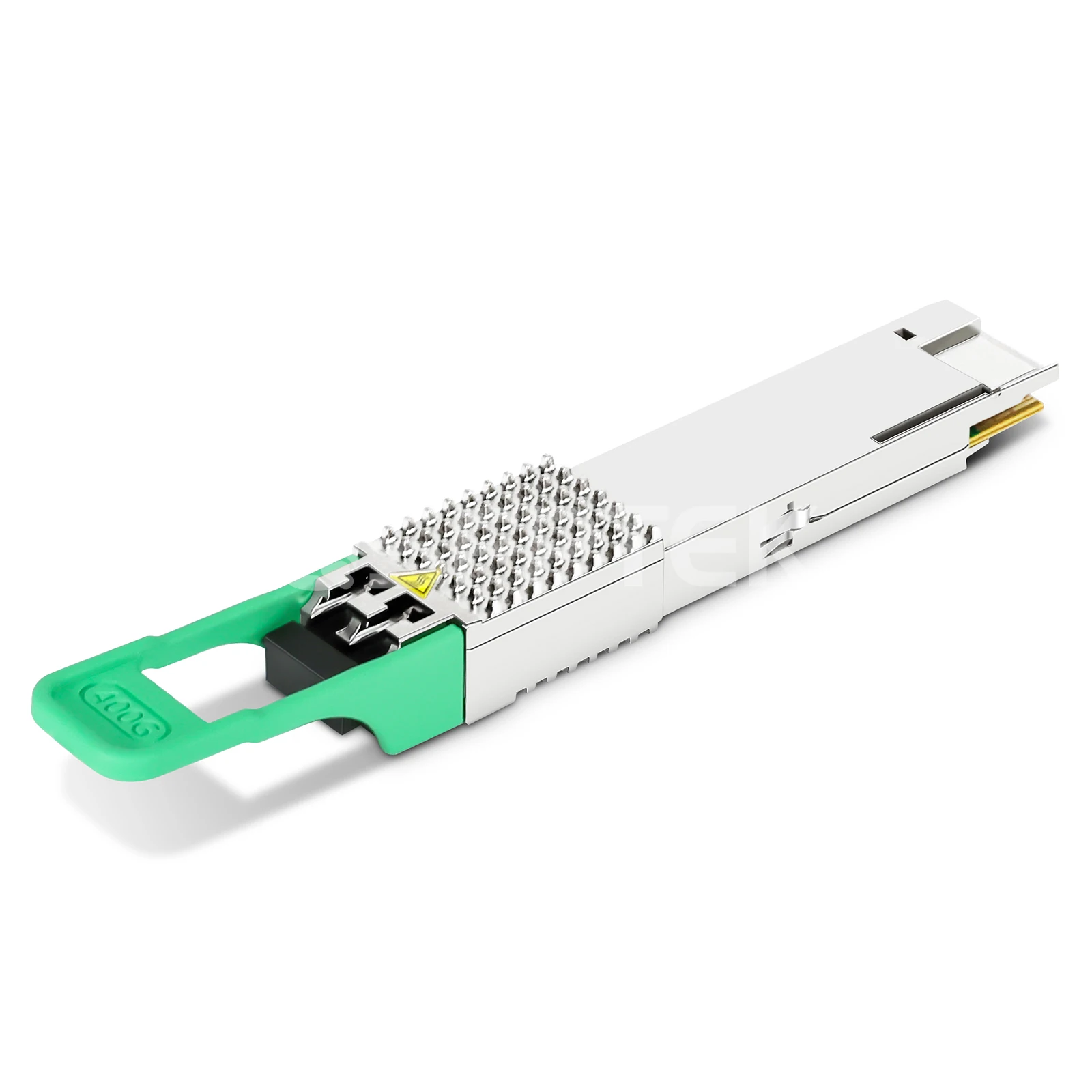

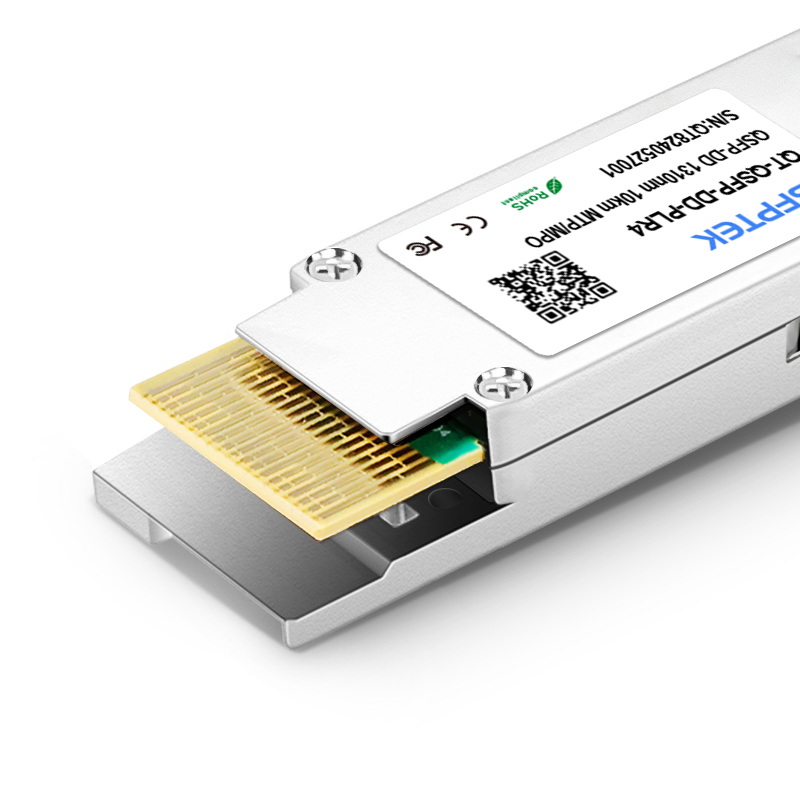

Cisco QDD-4X100G-LR-S Compatible 4x100GBASE-LR QSFPDD 1310nm 10km DOM MTP/MPO-12 SMF Optical Transceiver Module

Product No :100259
US$ 1444.00
0 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=F1E1956B81F91247E366A45F304EEC3B
-
+
1. Hot Pluggable QSFP-DD form factor
2. Max power consumption 12W

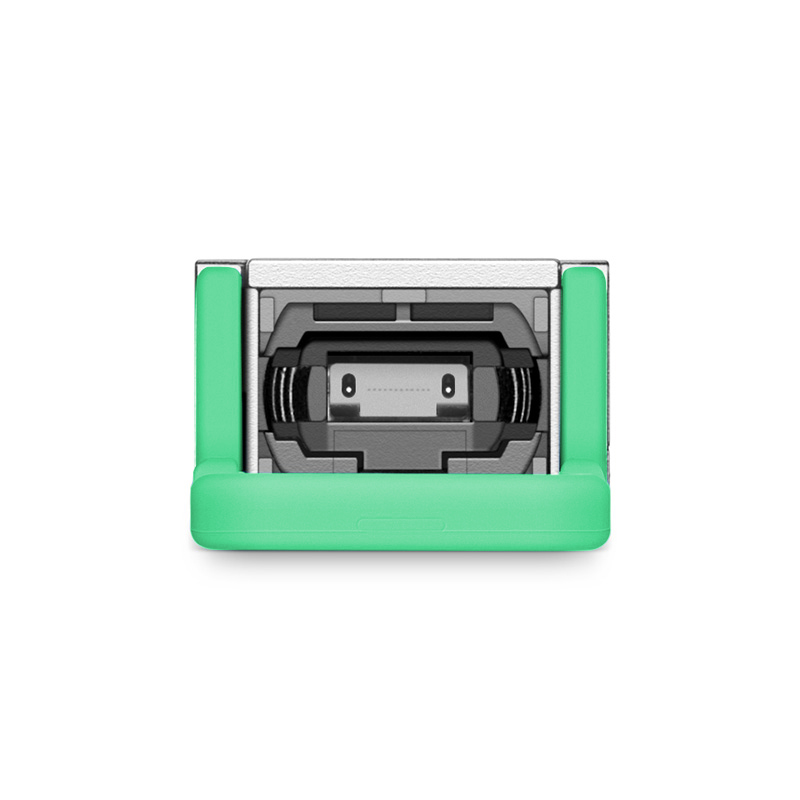

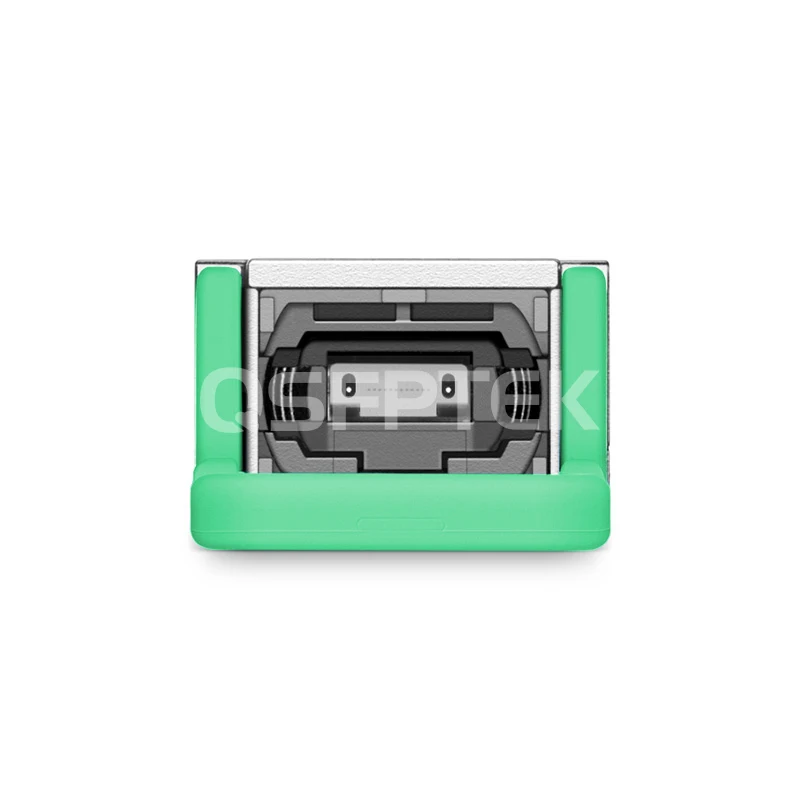

3. Link length up to 10km via MTP/MPO-12 connector
4. Support 4x100G breakout connectivity
5. Compliant to QSFP-DD MSA, 100G Lambda MSA, OIF 56G PAM4, IEEE 802.3cu
See more

Specifications

Cisco QDD-4X100G-LR-S Compatible 4x100GBASE-LR QSFP-DD PAM4 1310nm 10Km DOM Transceiver Module (SMF, 1310nm, 10Km, MTP/MPO, DOM)



The Cisco QDD-4X100G-LR-S 400GBASE-PLR4 module is designed to reach 10km distances over single-mode fiber (SMF) for 400 Gigabit Ethernet transmission. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. The 4x100GBASE-LR module uses MTP/MPO-12 connector, supporting breakout mode. It can be applied in the 4x100G breakout connectivity of QSFP-DD to QSFP28 100G-DR, 100G-FR, and 100G-LR. QSFPTEK QDD-4X100G-LR 4x100GBASE-LR QSFP-DD module is compliant with QSFP-DD MSA, 100G Lambda MSA, OIF 56G PAM4, and IEEE 802.3cu for 100GBASE- LR1 and is mainly applied in 400G Ethernet, Data Center and Cloud Networks.



Part Number QT-QSFP-DD-PLR4 Vendor Name QSFPTEK
Form Factor QSFP-DD Data Rate 425 Gbps
Wavelength 1310nm Distance 10km
Connector MTP/MPO-12 Cable Type SMF
Transmitter Type EML Receiver Type PIN
TX Power -1.9~4.8dBm Receiver Sensitivity <-8.2dBm
Transmitter Type CWDM EML Receiver Type PIN
Power Consumption ≤12W Temperature Range 0 to 70°C (32 to 158°F)
DDM/DOM Supported Forward Error Correction (FEC) Host FEC Supported
Protocols QSFP-DD MSA, IEEE 802.3cu, 400GBASE-PLR4 spec, 100G Lambda MSA, 400GAUI-8/CEI-56G-VSR-PAM4 Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • 2. Super High-density
    Industry’s highest bandwidth density 400G optical module for 400 Gigabit Ethernet connectivity.
  • 3. Protocols
    Compliant with QSFP-DD MSA, 100G Lambda MSA , OIF 56G PAM4, and IEEE 802.3cu for 100GBASE- LR1.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

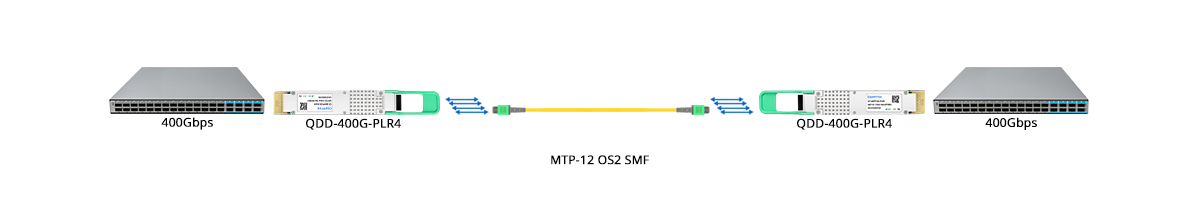

Scenario 1: 400G to 400G Direct Connectivity

Related Products:

MTP-12 (Female) OS2 Elite Trunk SMF

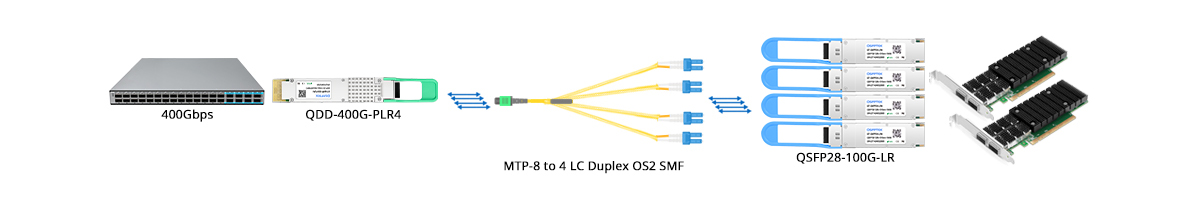

Scenario 2: 400G to 4x 100GE Breakout Connectivity

Related Products:

Intel E810-CAM2 Based 100G Dual Port QSFP28 Network Interface Card



Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.








Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Questions & Answers

more+
  • Does 400GBASE-SR8 support DSP?
    Yes, The 400GBASE-SR8 incorporates DSP (Digital Signal Processing) technology, offering greater flexibility than CDR. DSP allows for tailored configuration adjustments to accommodate diverse application requirements.
  • I want to build a 850m optical link, can I use The 400GBASE-FR4?
    Yes, The 400GBASE-FR4 optical module's maximum transmission distance is 2 km, so it can be used for an 850m connection.
  • What type of optical cable should be used with 400G-SR8?
    The 400G-SR8 optical module employs a single-row, angled (APC) MTP16 connector to establish a connection with parallel multi-mode fiber, facilitating the linkage of 8 fiber pairs. We recommend utilizing the QSFPTEK MTP-16 APC OM4 Cable for optimal performance.
