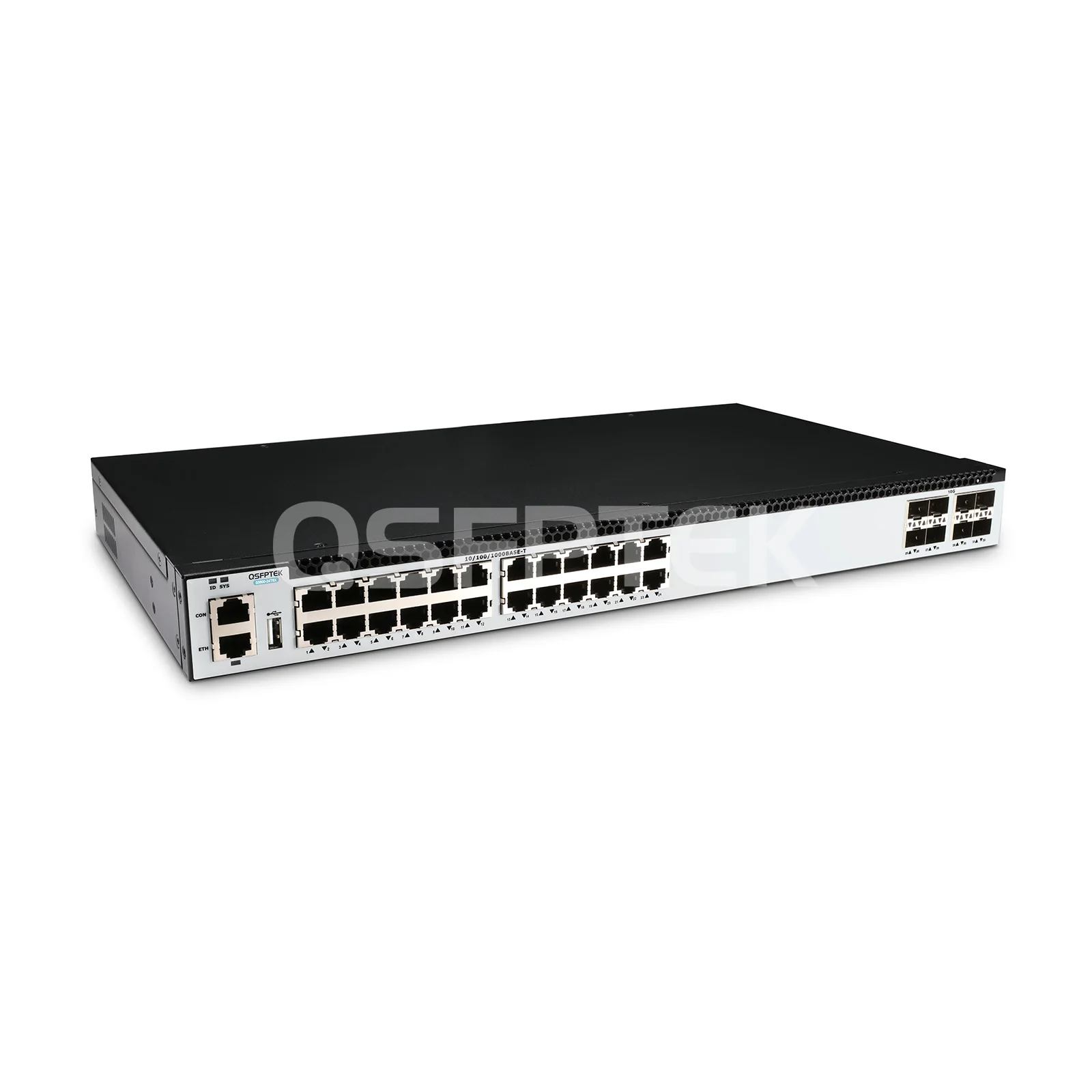

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support MLAG

Product No :100486
US$ 835.90  US$ 1099.00
50 in stock
1. 24x 10/100/1000BASE-T RJ45, 8x 10G SFP+ uplink ports.
2. Features high stacking capability.
3. RDMA reduces latency and CPU consumption.
4. Support data center features include MLAG/VXLAN/EVPN/VARP/PFC.
5. Support CLI/WEB/SNMP/SSH2.0/SSL for easy management.
6. Support QoS/ACL/DHCP for high security.
7. Support LACP/VRRP/ERPS/MSTP/BFD/Smart Link for high reliability.


See more

Specifications

S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks



QSFPTEK S5600-24T8X L3+ switch has 24x Gigabit RJ45, and 8x 10GE SFP+ uplink ports. It delivers 176 Gbps switching capacity and 132 Mpps forwarding rate based on a carrier-lever high-performance switching chip. It supports mature IPv6 features and multiple data center features including Priority-based Flow Control (PFC), Multi-Chassis Link Aggregation (MLAG), VXLAN, EVPN, and VARP.



S5600-24T8X is suitable for deployment at the access and aggregation layers, delivering high-performance and reliable operation to end-user devices and campus networks. Simple to deploy and manage, this switch lets you easily scale port density, bandwidth, and network services.





Ports

24x 10/100/1000BASE-T RJ45 | 8x 10G SFP+

Packet Buffer

9 MB

Switching Capacity

176 Gbps

Forwarding Rate

132 Mpps

MAC Address

98304

ARP Table

12288

VLAN IDs

4K

Jumbo Frame

9600 bytes

IPv4 Routes

57344

IPv6 Routes

4096

FLASH

8 GB

RAM

2 GB

Latency

660ns

Airflow

Front-to-Back

Power Supply

AC built-in

Fan Number

3 build-in fans

Max. Power Consumption

55 W

MTBF

198,000 hours

Operating Temperature

0°~45°C (32°~113°F)

Weight

6kg

Dimensions (H×W×D)

4.36 x 44.0 x 37.0cm

(1.73 x 17.5 x 14.6 in.)

Warranty

5 Years

Features

  • Convenient and Secure Management
    Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to offer easy management. Support QoS, ACL, and DHCP to ensure high security.
  • Complete Layer 2/3 Functionality
    Support complete L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Multiple Data Center Features
    Support data center features including MLAG/VXLAN/EVPN/VARP/PFC.
  • Mature IPv6 Technology
    Supports IPv4/IPv6 dual stack, IPv6 PIPng, and IPv6 over IPv4 TUNNEL. It can be deployed on a pure IPv4/IPv6 network, or a shared IPv4/IPv6 network.

Applications

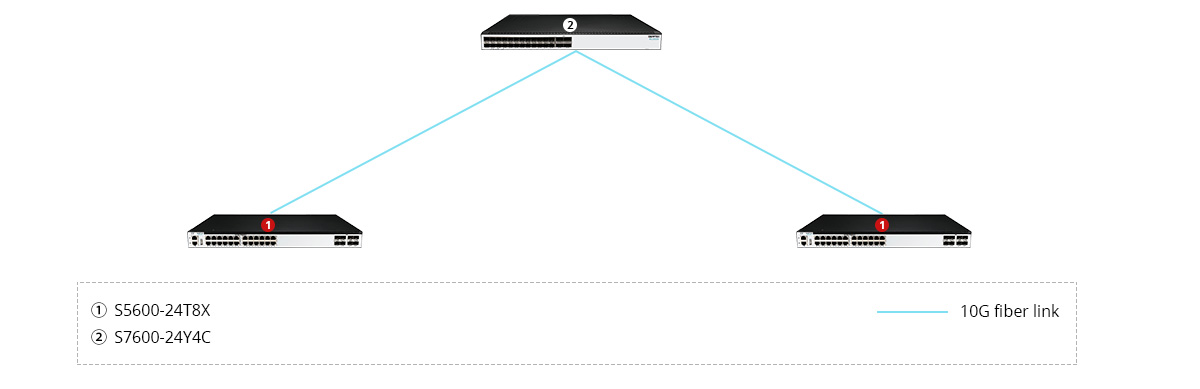

Scenario 1:

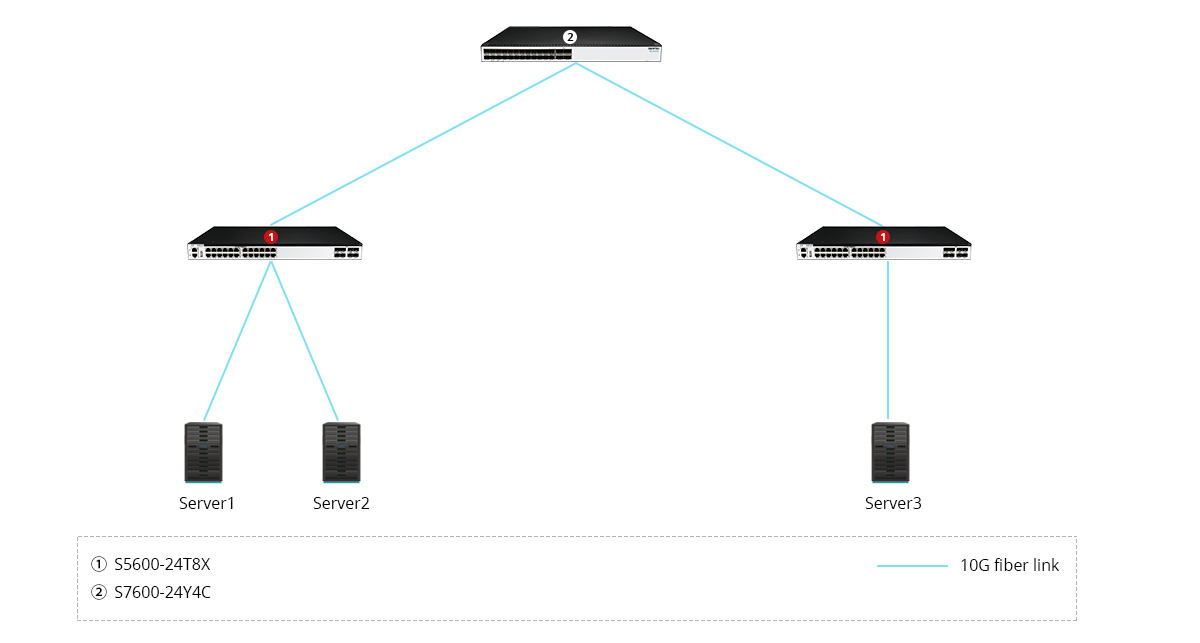

Scenario 2:





Related Products:



10G SFP+ Optical Transceiver Modules



S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24x 25GE SFP28, with 4x 100GE QSFP28, Support MLAG





Product details

High-density Gigabit Access Capability with 10GE Uplink



S5600-24T8X switch provides 24*RJ45 10/100/1000 ports, allowing for high-density Gigabit access. 8*10GE uplink ports provide 10G high bandwidth to the backbone through the 10G SFP+ SR/LR modules. Its 176 Gbps switching capacity and 132 Mpps forwarding rate also help to ensure smooth and reliable data transfers. This can be used as an ideal access or aggregation layer switch for large-scale campus and enterprise networks.






ECN and PFC Ensure Lossless Transmission of End-To-End Data



RDMA(Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead. Once end-to-end network connectivity is established, PFC(Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.




Advanced Security Feature for Enterprise



S5600-24T8X is equipped with advanced security features perfect for enterprises to neutralize threats such as APR spoofing prevention, IP-MAC-Port Binding to prevent Man-in the middle attacks, and DoS attack prevention.

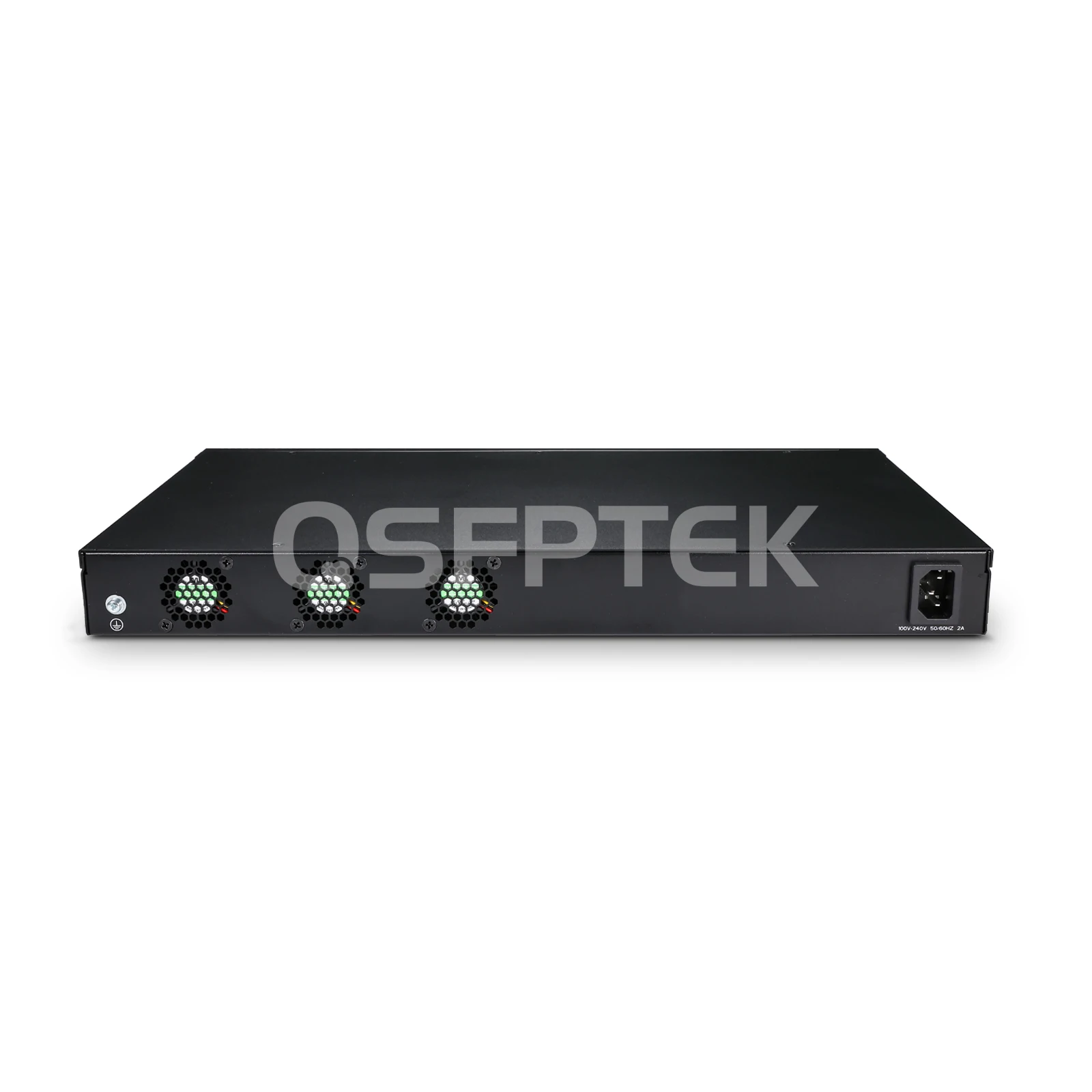

Intelligent FAN Design, Energy-saving Technology



S5600-24T8X switch features front-to-back airflow that optimizes air circulation inside the rack. This design meets heat dissipation requirements in equipment rooms. Power consumption monitoring technology can measure system power consumption in real-time, reducing power consumption and O&M costs.

Questions & Answers

more+
  • Do your S5600 or S7600 series switches support NG-mVPN?
    Sorry, Our S5600 and S7600 series switches support BGP EVPN, L2VPN, and L3VPN, but don't support NG-mVPN.
  • What is the difference between S7600-48Y8C and S7600-48X8C?
    The main difference between the two is that the downstream port of 48Y8C is SFP28 port, which supports 10G/25G, while the downstream port of 48X8C is SFP+ port. The rest of the features and functions are basically the same.
  • What is MLAG? What are the advantages of MLAG?
    MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all ports can transmit the data traffic.
