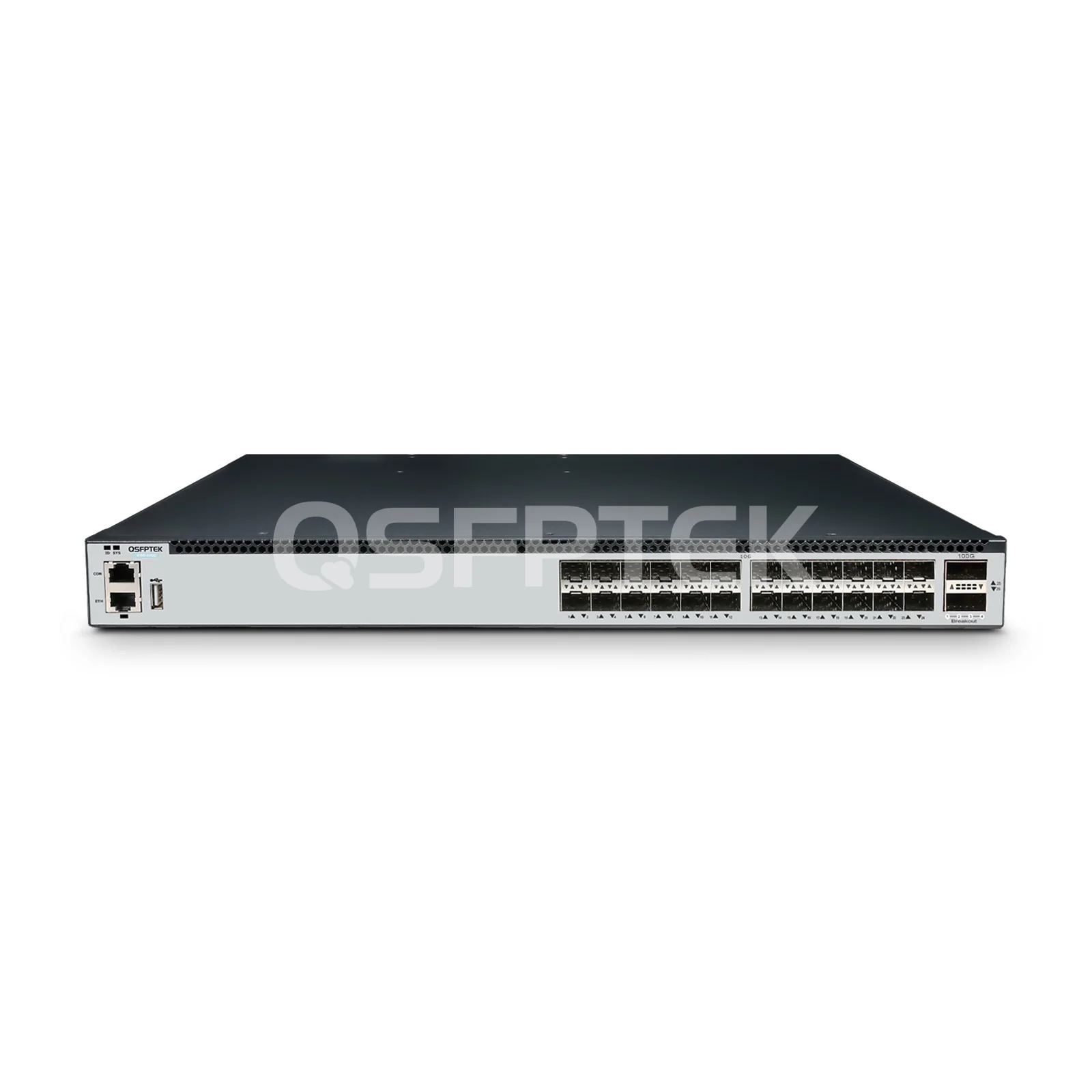

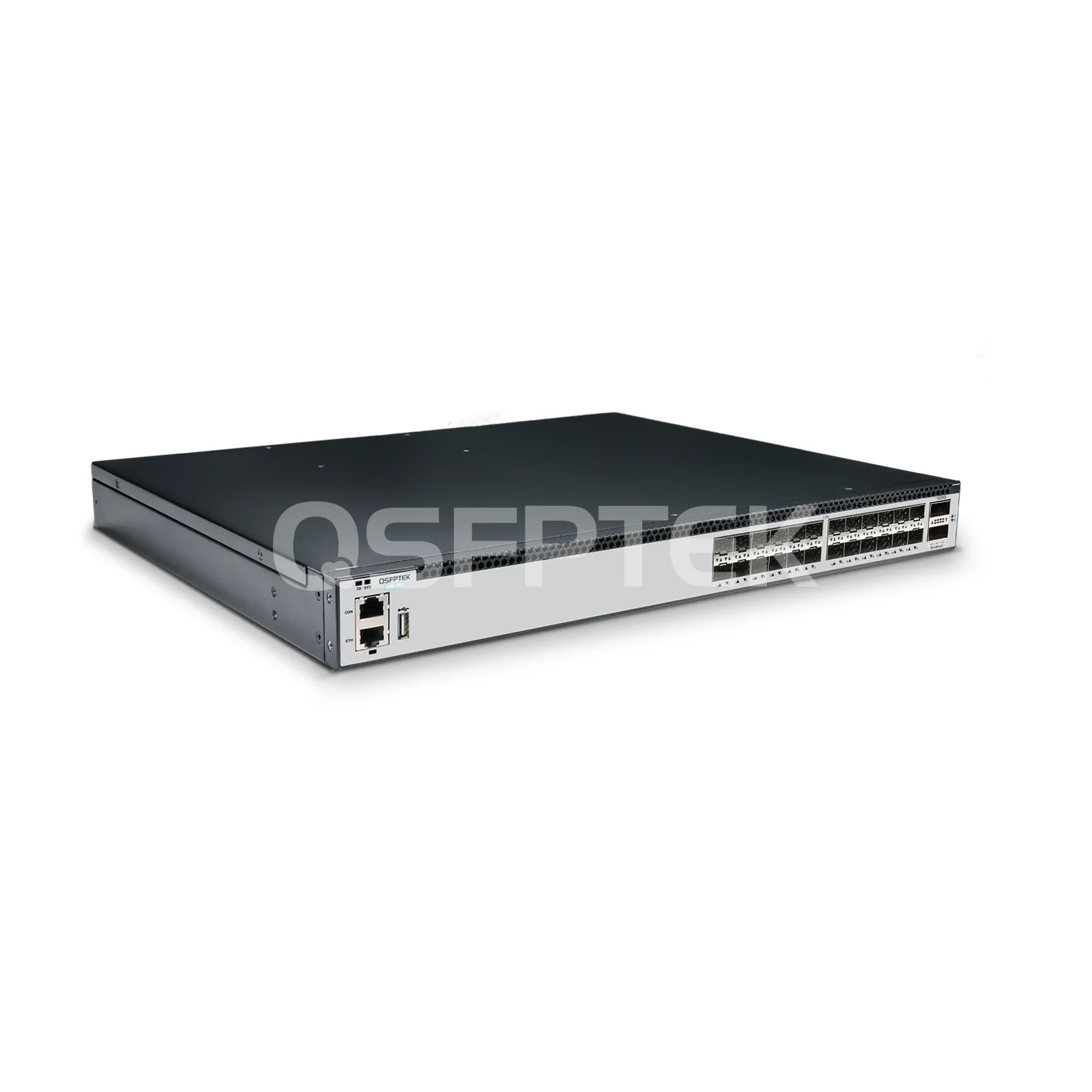

S7600-24X2C, 24-Port Ethernet L3+ Switch, 24x 10G SFP+, with 2x 100G QSFP28 Uplinks, Support MLAG, VXLAN

Product No :100501
US$ 2635.90  US$ 2694.90
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=AD92591F587A579DEB0152DB1B07E2D0
-
+
1. 24x 10G SFP+ ports and 2X 100G QSFP28 uplink ports
2. 2 hot-swap AC power supplies (1+1 redundancy), 3 built-in smart fans (2+1 redundancy)
3. Support data center features incl. MLAG/VXLAN/EVPN/VARP/PFC
4. Support RDMA for lower latency, lower CPU load and higher bandwidth
5. Support CLI/WEB/Telnet/SSH/SSL/SNMP for Flexible Management
6. Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
7. Supports Port Isolation, and ACL, QoS, DHCP Snooping for Access and Traffic Control
8. Support MSTP/ERPS/VRRP/LACP for High Reliability
See more

Specifications

S7600-24X2C, 24-Port Ethernet L3+ Switch, 24x 10Gb SFP+, with 2x 100Gb QSFP28 Uplinks, Support MLAG, VXLAN



QSFPTEK S7600-24X2C L3+ aggregation switch is designed with 24x 10G SFP+ ports and 2x 40/100G QSFP28 uplinks. Each QSFP28 port can be split into 4x 10G ports or 4x 25G ports, providing converged 10G, 25G, 40G, and 100G fiber links. This 24-port switch delivers an 880 Gbps switching capacity and 540 Mpps forwarding rate to meet high-performance aggregation layer requirements. The 10GbE network switch is equipped with 2 hot-swap AC power supplies (1+1 redundancy) and 3 built-in smart fans (2+1 redundancy), providing hardware redundancy for enhanced reliability.



As a layer 3+ managed switch, it supports full layer 3 features (static routing, RIP, OSPF, BGP, etc.) and advanced data center features such as MLAG for high-reliability and VXLAN, NVGRE, GENEVE tunnel technology for virtual networking.



S7600 series aggregation switches support remote direct memory access (RDMA), which over other network APIs for lower latency, CPU load, and higher bandwidth. This 24-port 10Gb switch caters to the Ethernet aggregation platform to HCI (hyper-converged infrastructure), cloud networking, data center, and enterprise applications.



Part Number S7600-24X2C Vendor Name QSFPTEK
Ports 24x 10G SFP+ | 2x 100G QSFP28 Packet Buffer 9MB
Switching Capacity 880 Gbps Forwarding Rate 540 Mpps
MAC Address 98,304 ARP Table 12,288
VLAN IDs 4K Jumbo Frame 9600
IPv4 Routes 57,344 IPv6 Routes 4096
FLASH 8GB (eMMC) RAM 2GB
Latency Min: 660ns Airflow Front-to-Rear
Power Supply 2 hot-swap AC power supply (default), DC optional Fan Number 3 built-in smart fans (2+1 redundancy)
Power Consumption 59W (full-load); 44W (no-load) MTBF > 206,988 Hours
Operating Temperature 0ºC to 45ºC (32° to 113°F) Weight 5.95 kg
Dimensions (H x W x D) 43.6 x 440 x 370 mm
(1.72 x 17.32 x 14.57″)
Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • Convenient and Secure Management
    Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to offer easy management. Support QoS, ACL, and DHCP to ensure high security.
  • Complete Layer 2/3 Functionality
    Support complete L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Multiple Data Center Features
    Support data center features including MLAG/VXLAN/EVPN/VARP/PFC.
  • Energy-efficient Technology
    Intelligent FAN design and real-time power consumption monitoring technology for power and O&M cost savings.

Product details

High-Performance L3+ 10G Aggregation Switch with 40G/100G Uplinks



S7600-24X2C has 24x 10G SFP+ ports and 2x 40G/100G QSFP28 uplinks. As each QSFP28 port can be expanded to 4x 10G/25G ports, the 10Gb switch provides converged 10G/25G/40G/100G fiber connections. With a switching capacity of 880 Gbps and a forwarding rate of 540 Mpps, it also meets high-performance requirements at the layer 3+ aggregation platform

to next-generation Enterprise, Data Center, Metro and HCI (Hyper-Converged Infrastructure) networks.

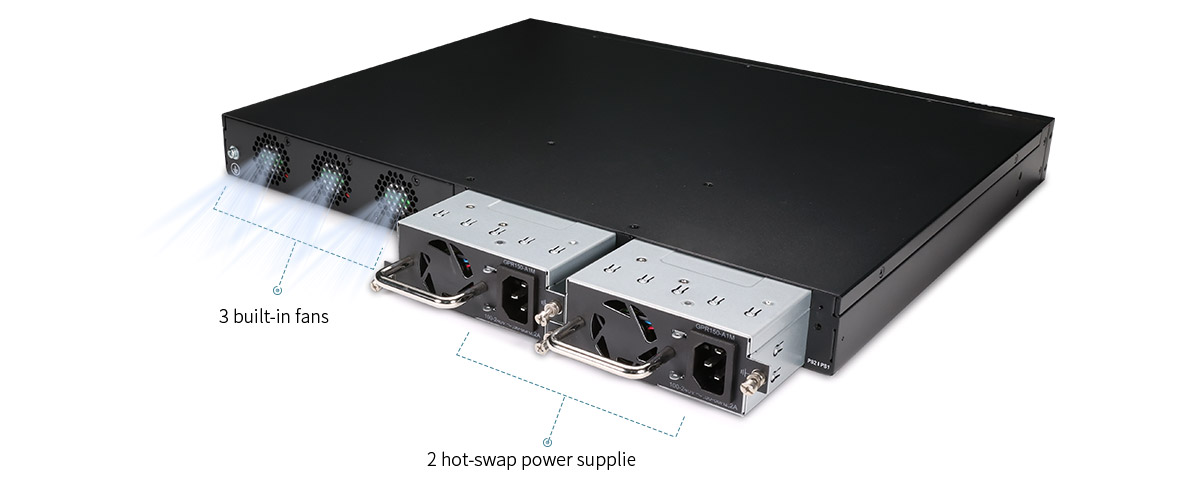

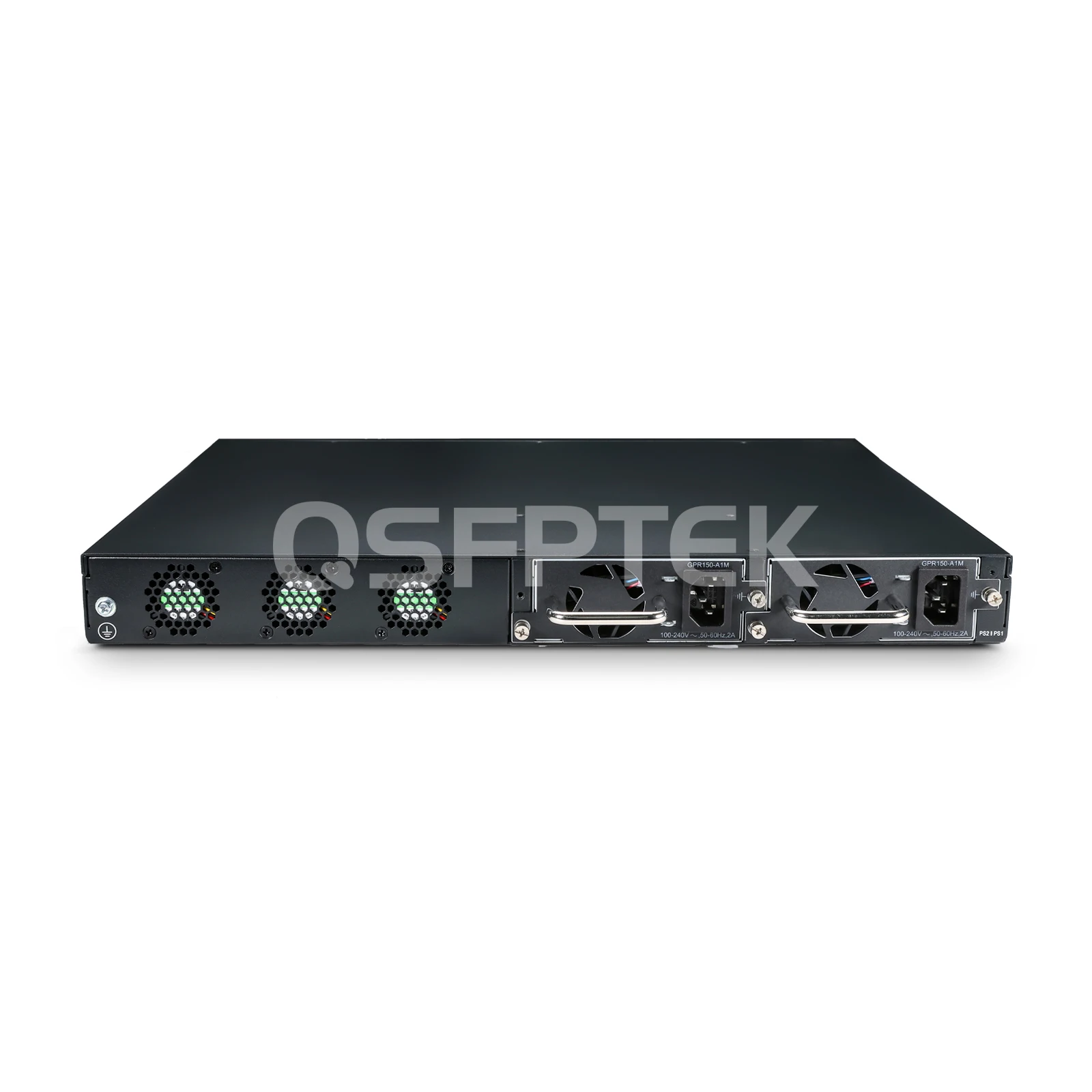

1+1 Redundant Power Supplies and 2+1 Built-in Fans for Hardware Redundancy

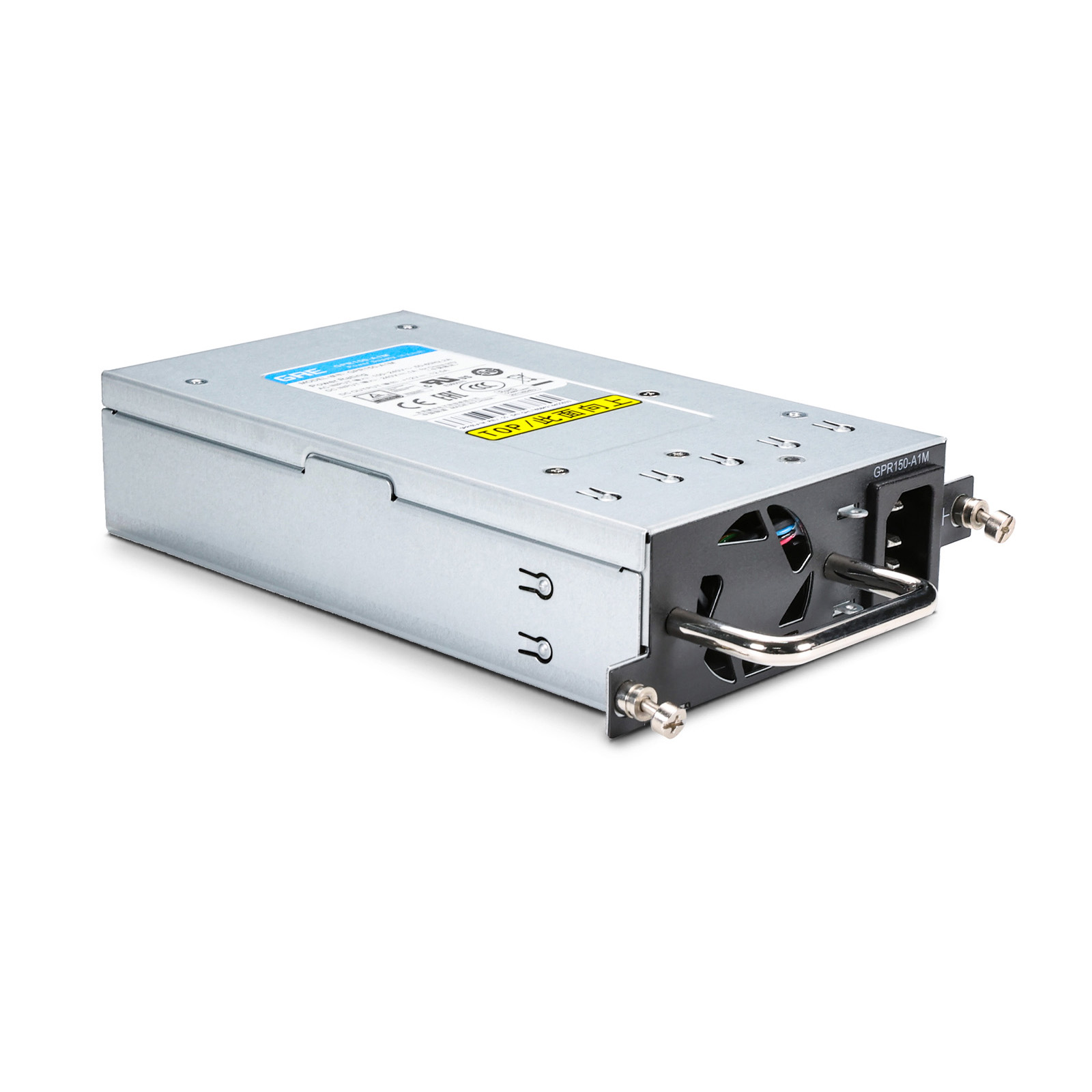

1+1 redundant power supplies allow power supplies to be replaced without shutting down the system.

The front-to-rear airflow of 2+1 fans can automatically adjust speed to control noise and power consumption.








ECN and PFC Ensure Lossless Transmission of End-To-End Data



RDMA (Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead. Once end-to-end network connectivity is established,

PFC (Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

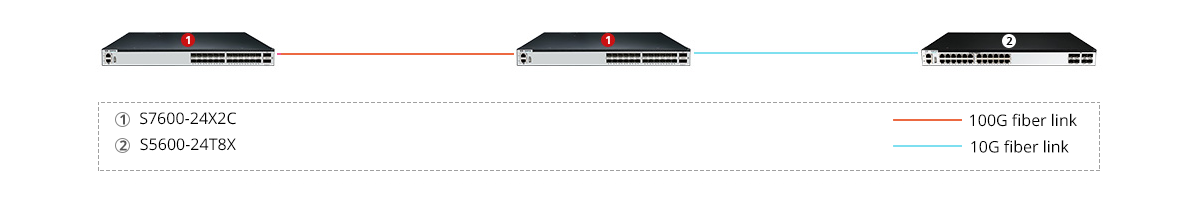

Applied for Traditional 3-Tier Architecture as Aggregation Layer Switch



S7600-24X2C can be used as an aggregation switch in the traditional 3-tier architecture to downlink 10G access layer switches and uplink 100G core layer switches.










MLAG Ensures Equipment Reliability and Link Redundancy



MLAG (Multi-Chassis Link Aggregation) aggregates links across different devices to achieve device-level redundancy and high-reliability network solution.






S7600 Series L3+ Switches



Model S7600-24X2Q S7600-24X2C S7600-24Y4C S7600-48X8C S7600-48Y8C
RJ45 Ports
Fiber Ports 24x 10G SFP+ | 2x 40G QSFP+ 24x 10G SFP+ | 2x 100G QSFP28 24x 25G SFP28 | 4x 100G QSFP28 48x 10G SFP+ | 8x 100G QSFP28 48x 25G SFP28 | 8x 100G QSFP28
Management Layer L3+ Managed L3+ Managed L3+ Managed L3+ Managed L3+ Managed
1+1 Hot-Swap Power Supplies
Fan 3 Built-in Fans 3 Built-in Fans 4 Hot-Swap Fans 4 Hot-Swap Fans 4 Hot-Swap Fans
MLAG
Data Link Layer VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN VXLAN, QinQ, VPLS, L2VPN, private VLAN VXLAN, QinQ, VPLS, L2VPN, private VLAN VXLAN, QinQ, VPLS, L2VPN, private VLAN
Routing RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN RIP v1/v2, OSPF, BGP, IS-IS, L3VPN
Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, Dot1x, Port Security IGMP snooping, MLD Snooping, MAC security, Dot1x IGMP snooping, MLD Snooping, MAC security, Dot1x IGMP snooping, MLD Snooping, MAC security, Dot1x
IPv6 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3 IPv6 Static routings, RIPng, BGP4+, OSPFv3, IS-IS, VRRPv3
Reliability MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN MLAG, VRRP, MPLS LDP, BFD, SDN



Questions & Answers

more+
  • What's the airflow of the S7600-48X8C switch's fan?
    The switch comes with 2+2 redundant intelligent fans for front-to-back air flow. In addition, these 4 fans all support hot swapping.
  • Can the S7600-48X8C support advanced features such as VXLAN/EVPN?
    Yes, the switch supports VXLAN and EVPN. You can check all the functions it supports through the datasheet.
  • What is MLAG? What are the advantages of MLAG?
    MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all ports can transmit the data traffic.
See more
