1. Ultra-low Inset Loss≤ 0.25dB 2. G.652D, 10mm Min. Bend Radius 3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc) 4. High Temperature Stability 5. Compliant with IEC-61754 and TIA-604See more

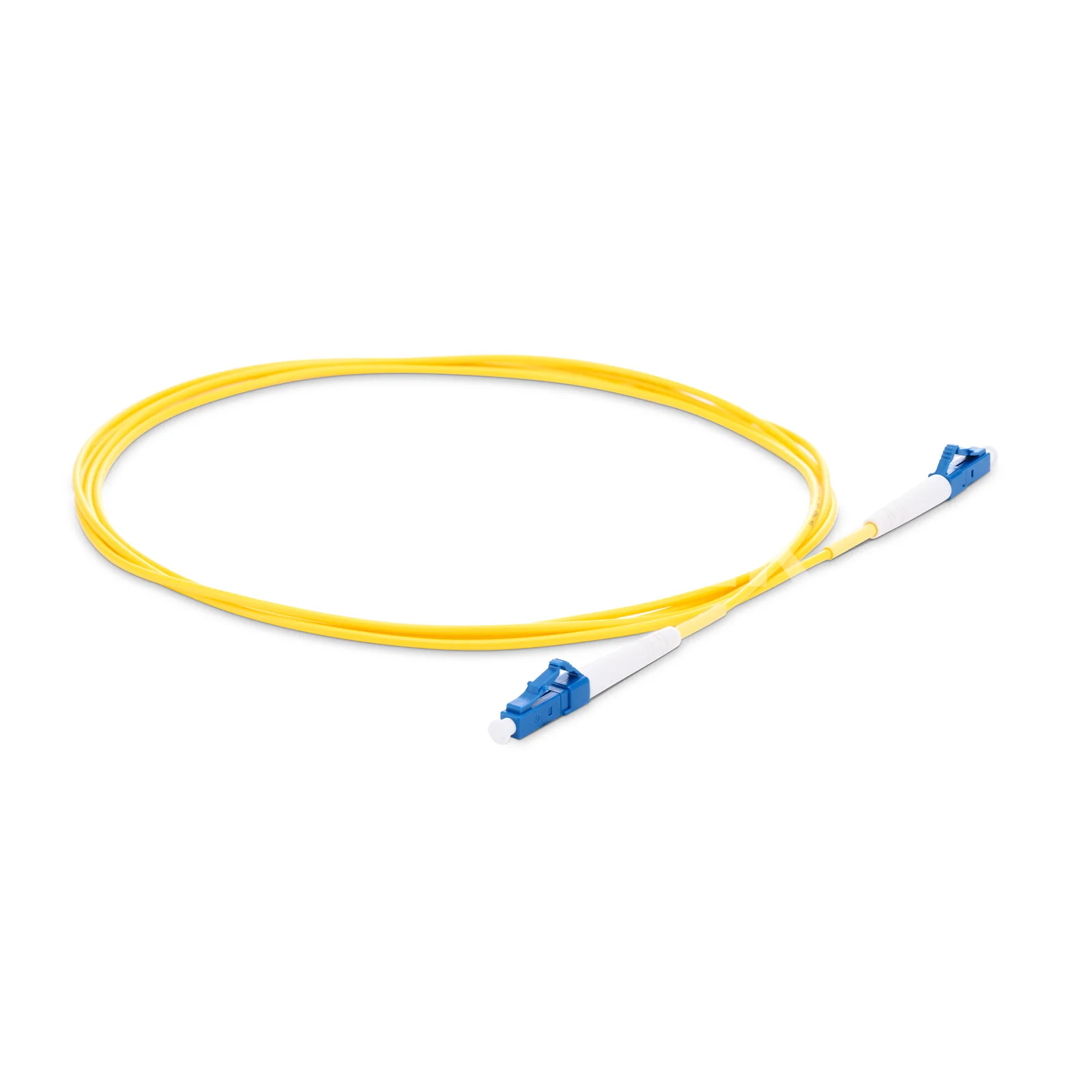

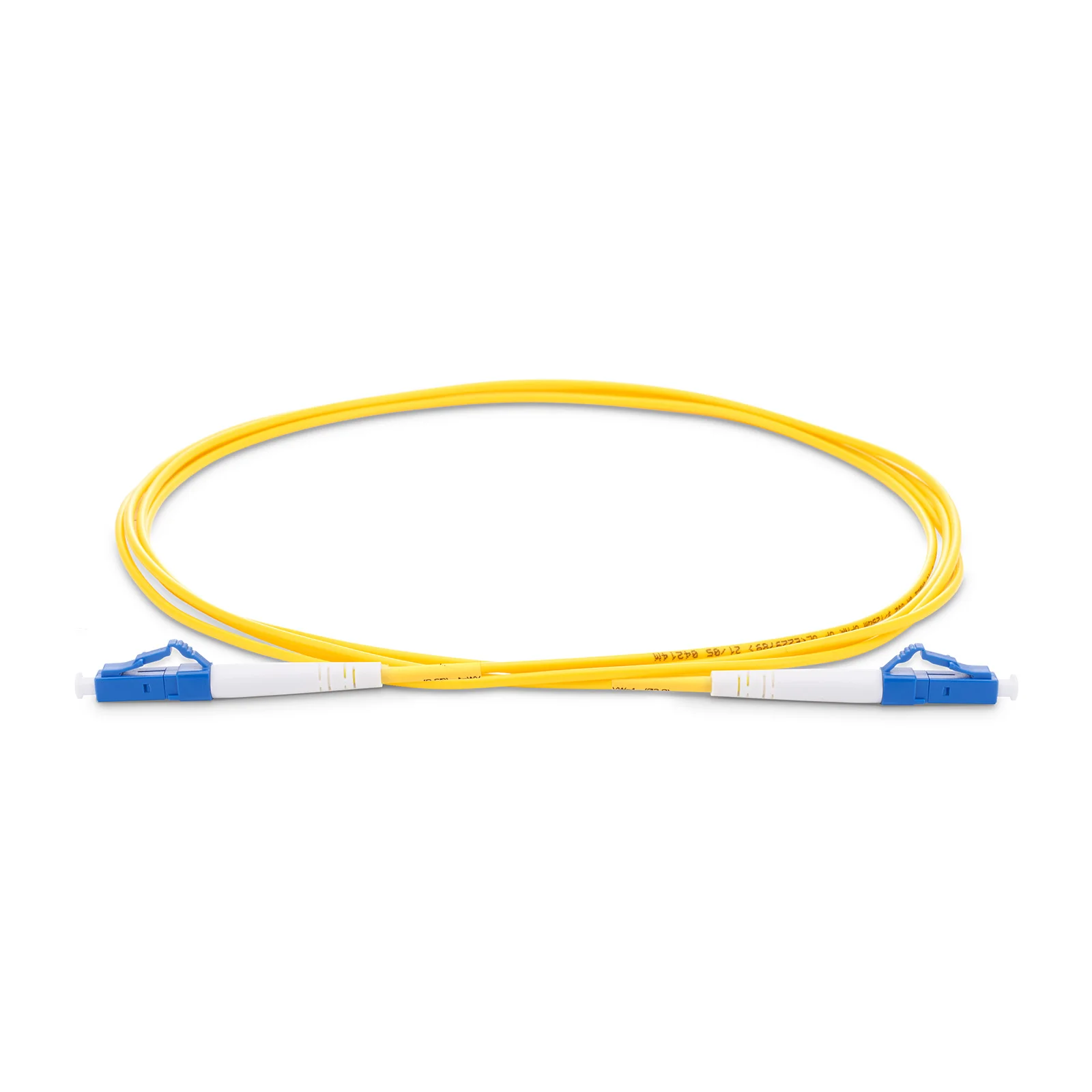

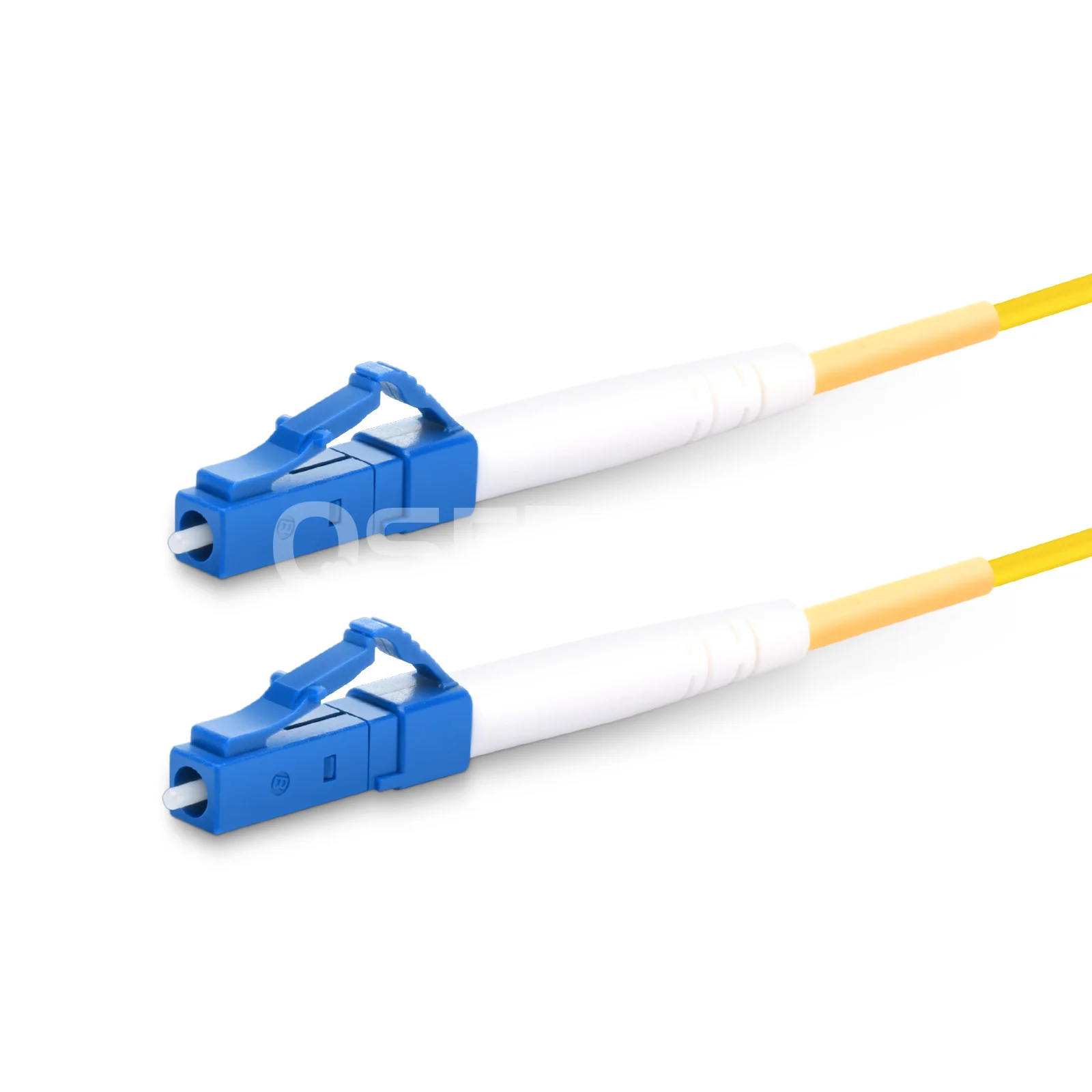

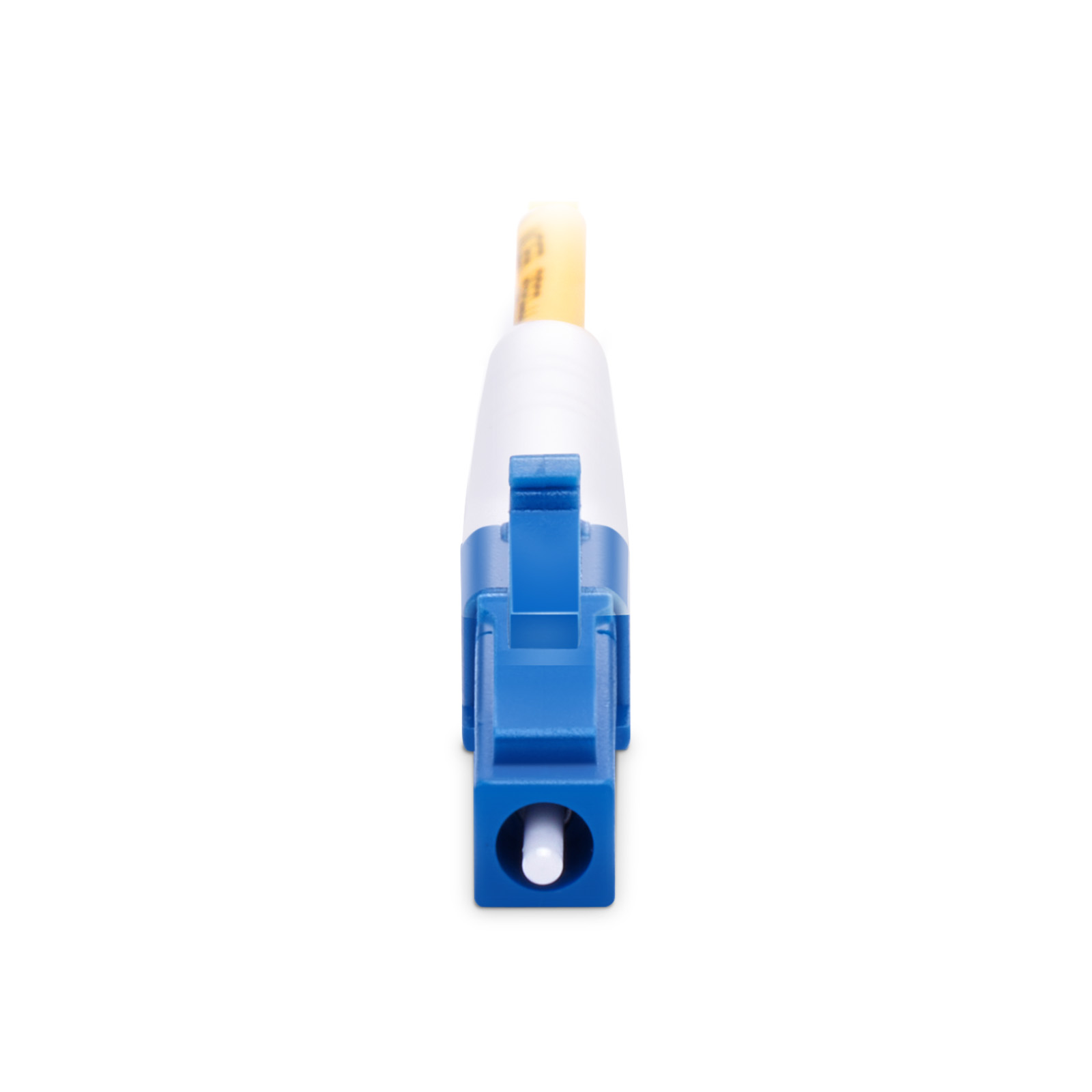

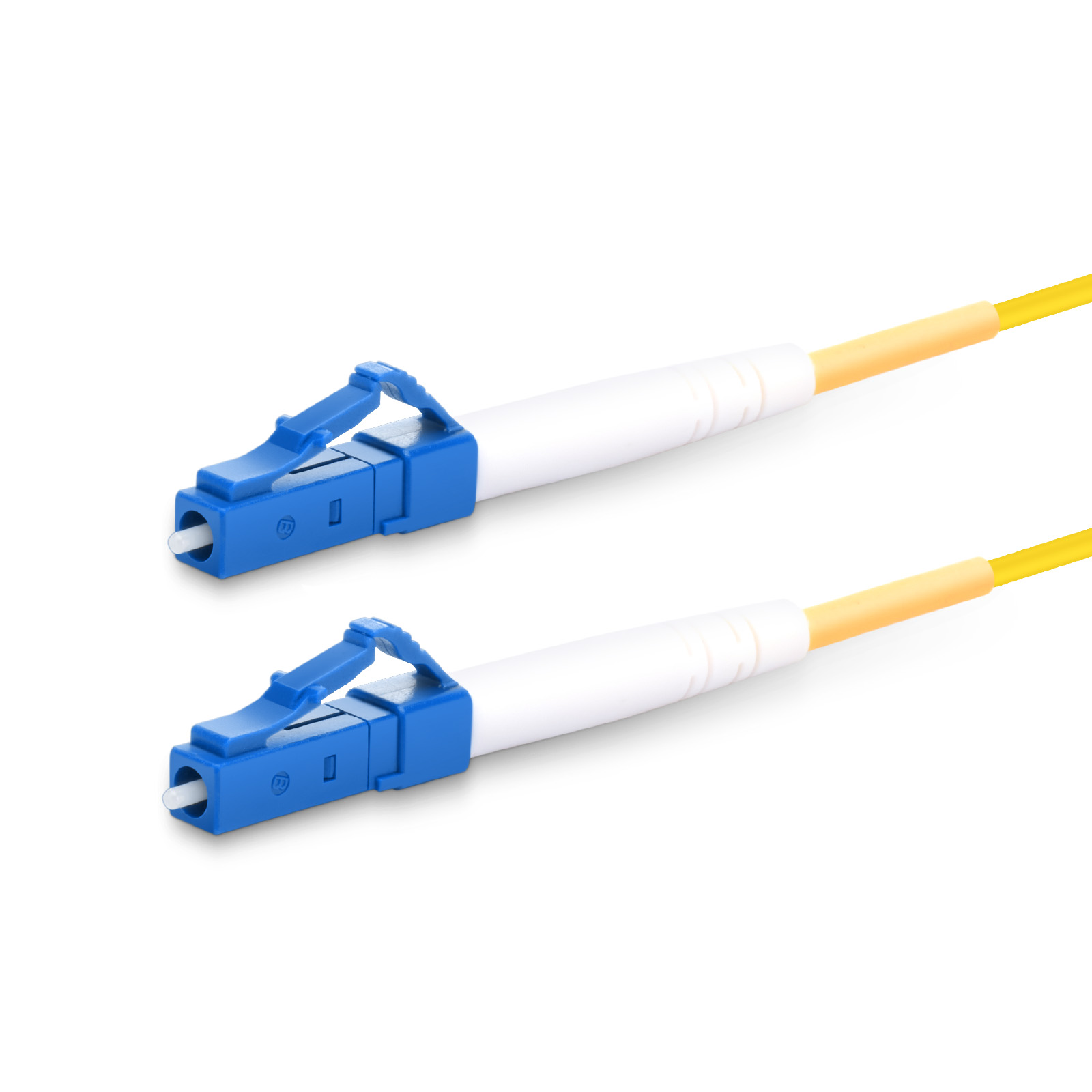

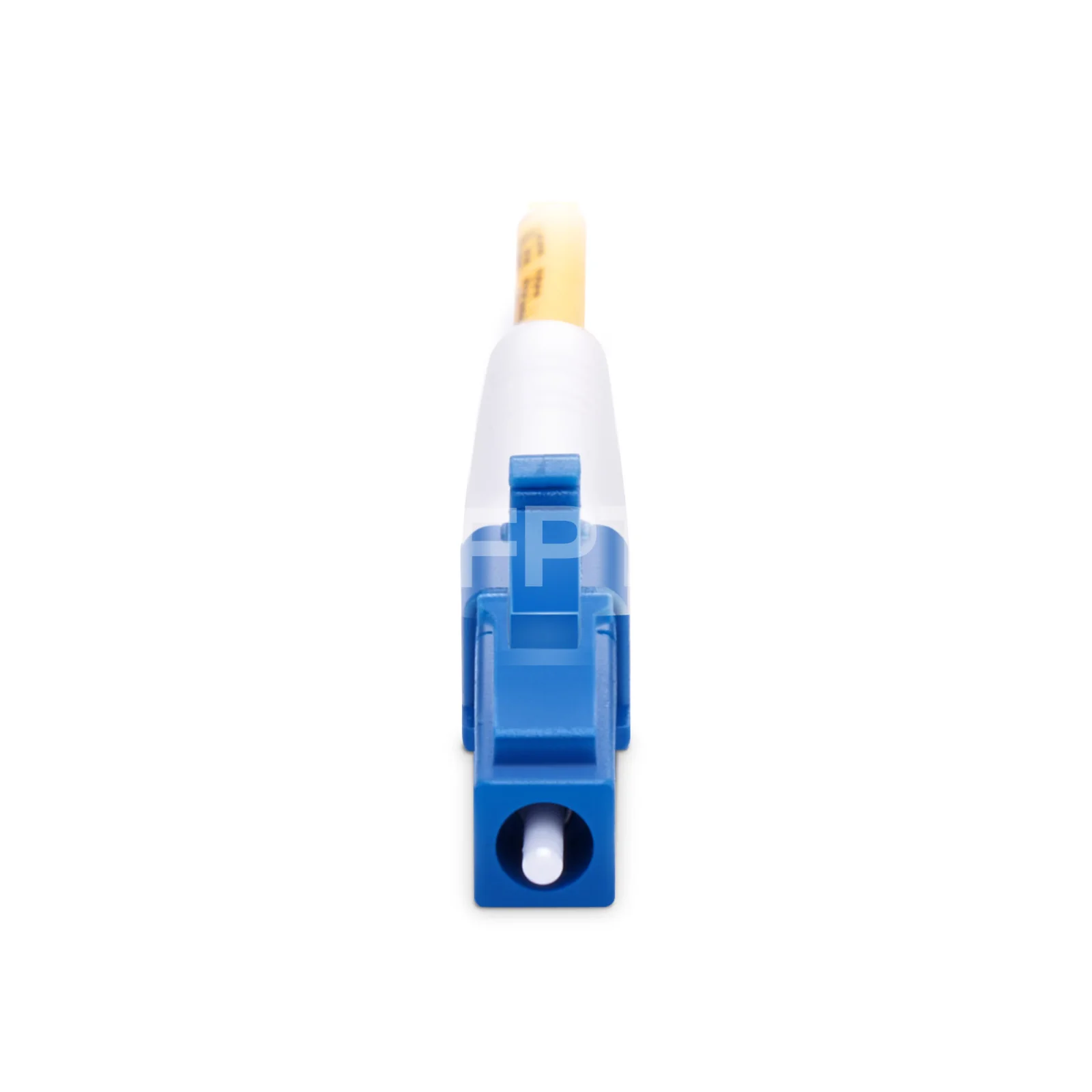

The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.
|
Fiber Count |
1 Fiber |
Fiber Type |
OS2 SMF 9/125μm |
|
Connector Type |
LC UPC to LC UPC |
Wavelength |
1310nm/1550nm |
|
Armoured |
No |
Cable Material |
PVC |
|
Insert Loss |
0.25dB |
Return Loss |
≥50dB |
|
Approximate Diameter |
2.0mm |
Length |
0.5m/1m/2m/3m/4m/5m/6m/7m/8m/10m/12m/15m/20m |
|
Min. Bend Radius (Fiber Cable) Dynamic |
10mm |
Min. Bend Radius (Fiber Cable) Static |
10mm |
|
Operating Temperature |
-20~+70°C |
Storage Temperature |
-40~+80°C |
.svg)
Connection 1: 10G BIDI Connectivity
Connection 2: 10G BIDI Connectivity With NIC
With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission
Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.
Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.
