    Products / Fiber Optic Cables / Fiber Patch Cables / OS2 9/125 SMF Simplex / 100947
    Product image
    Product image

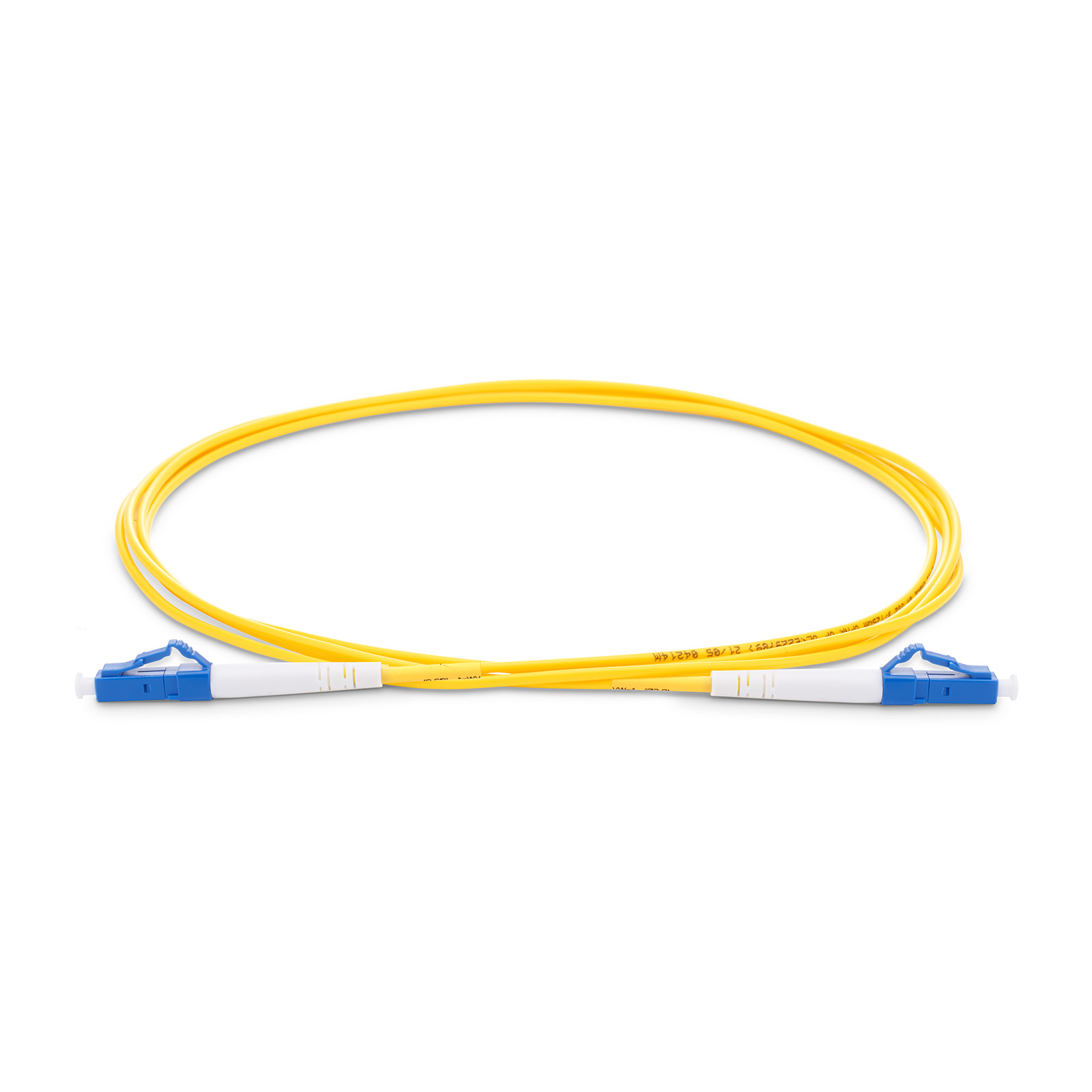

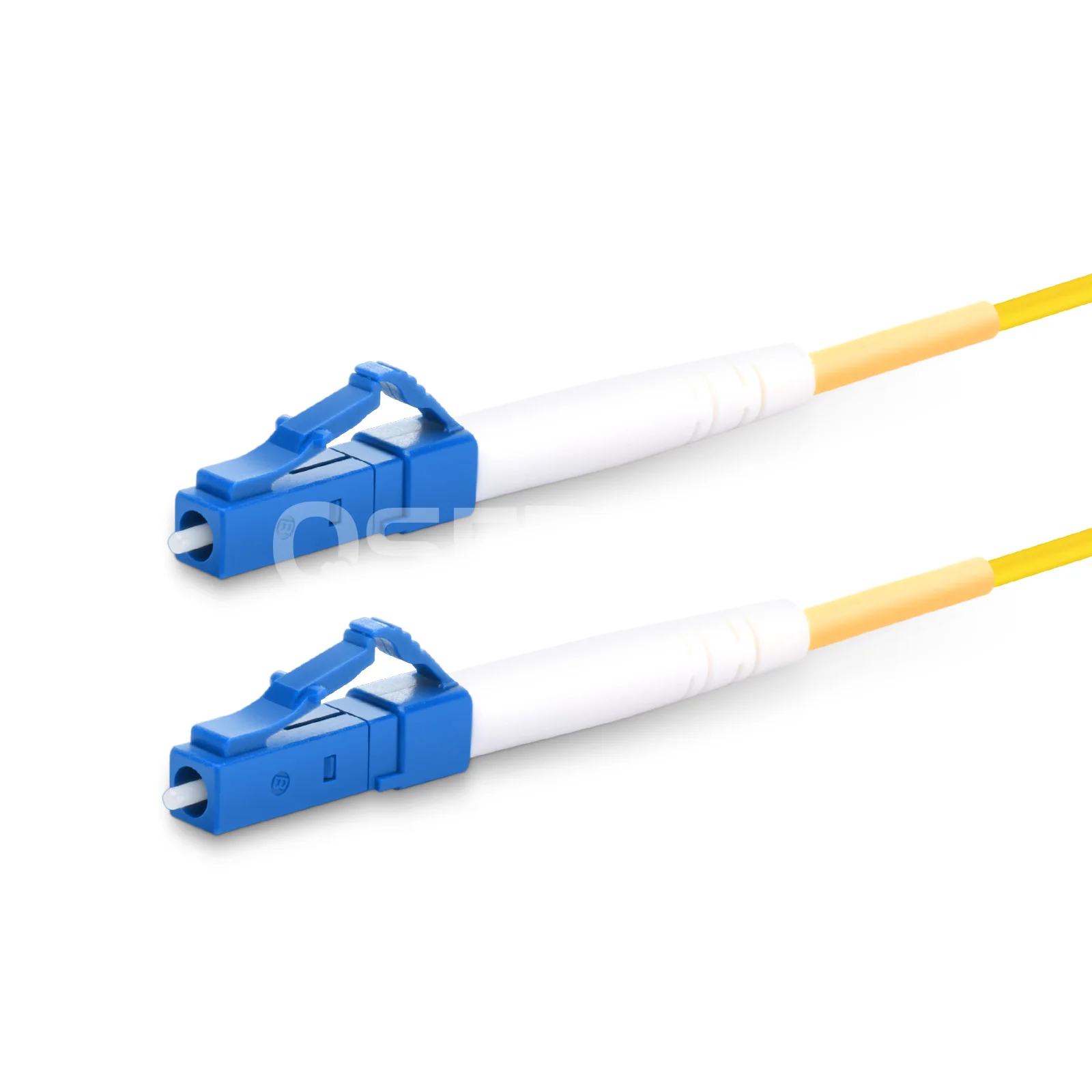

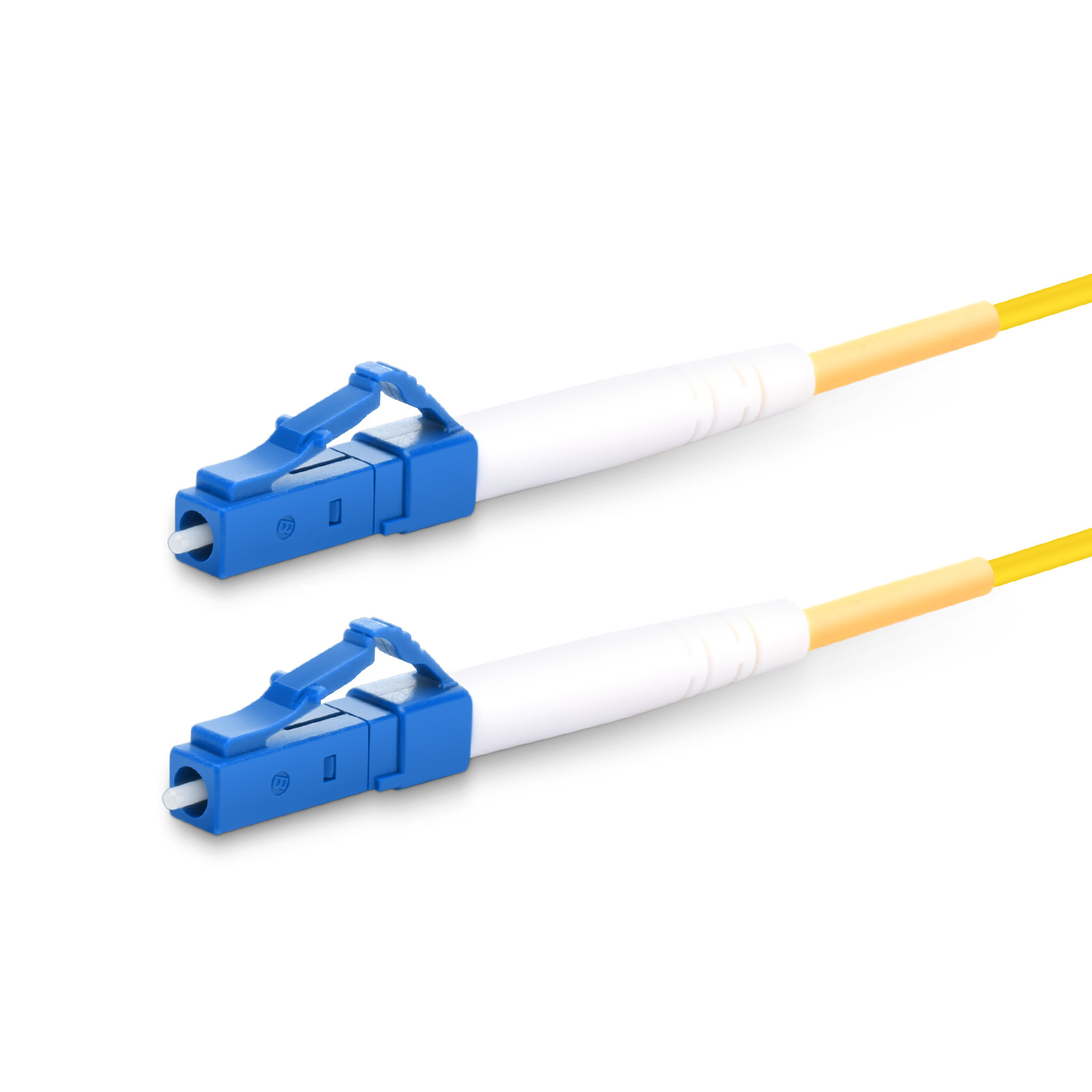

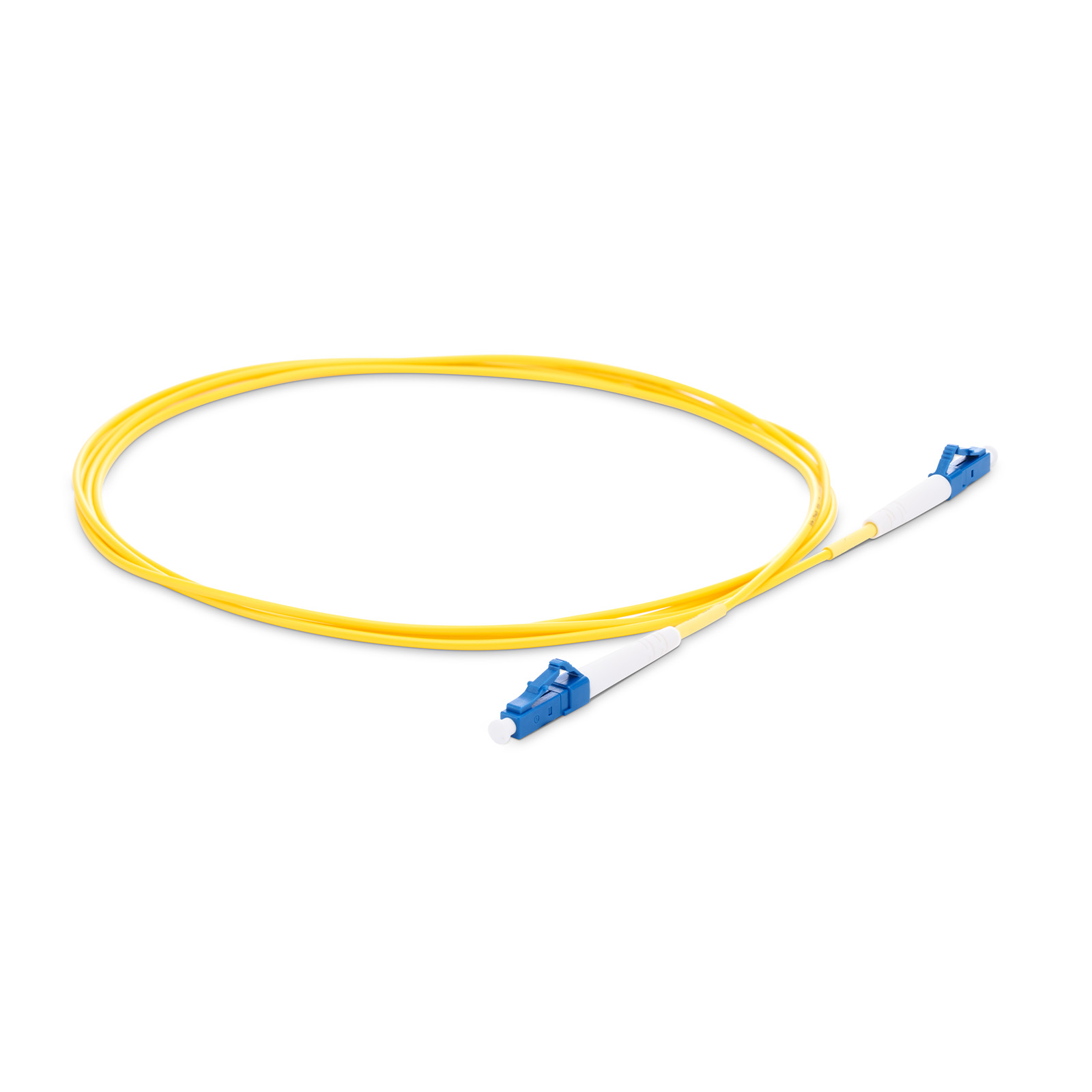

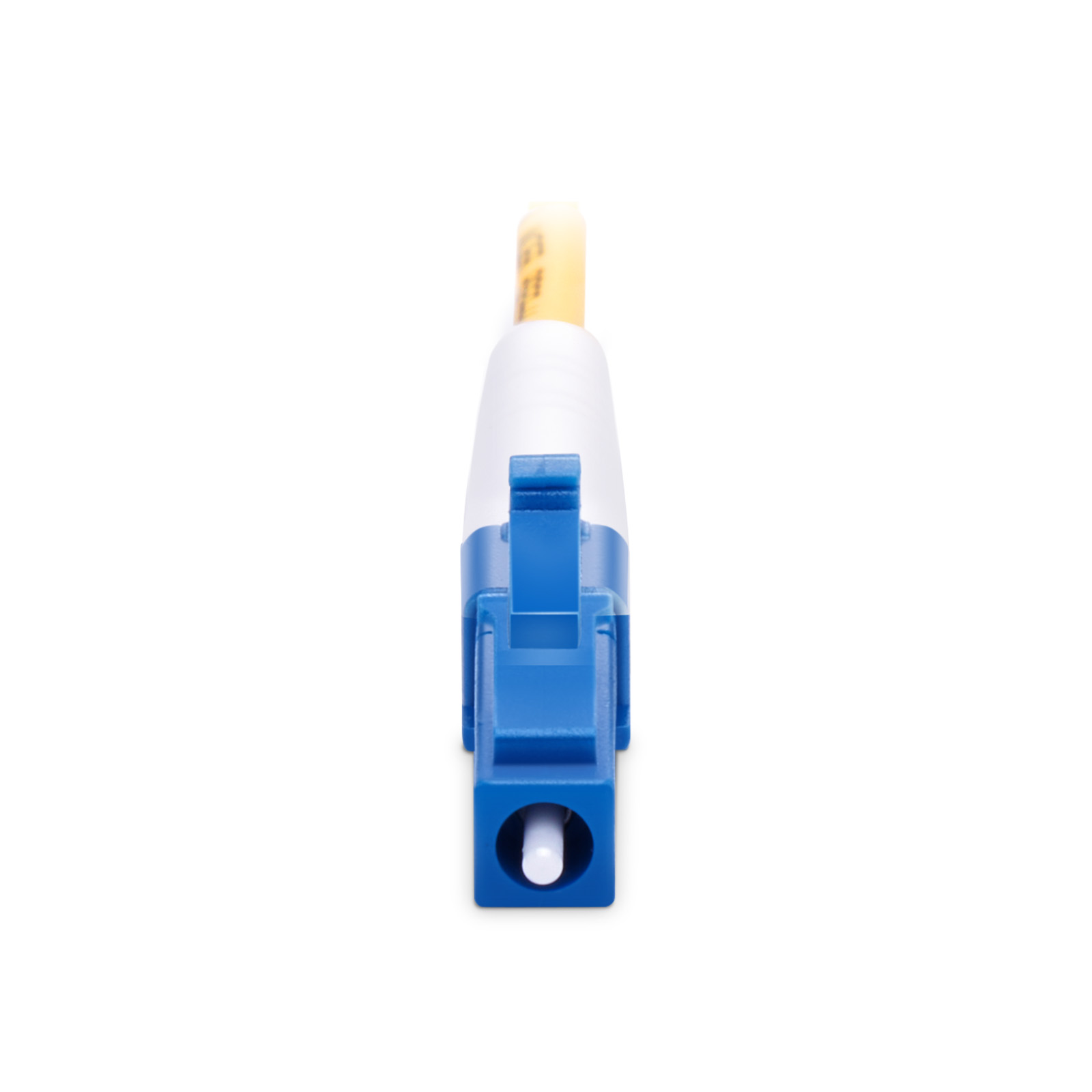

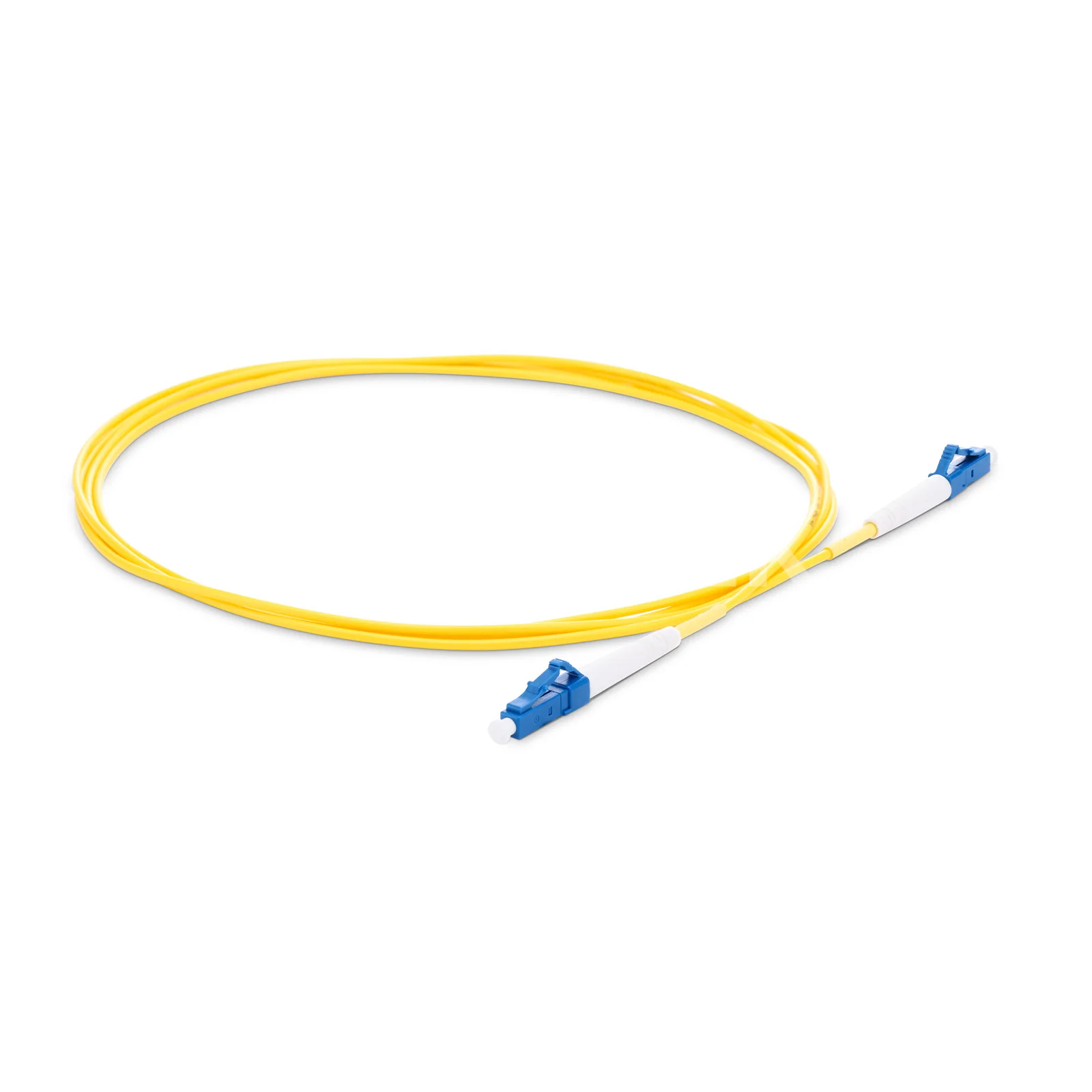

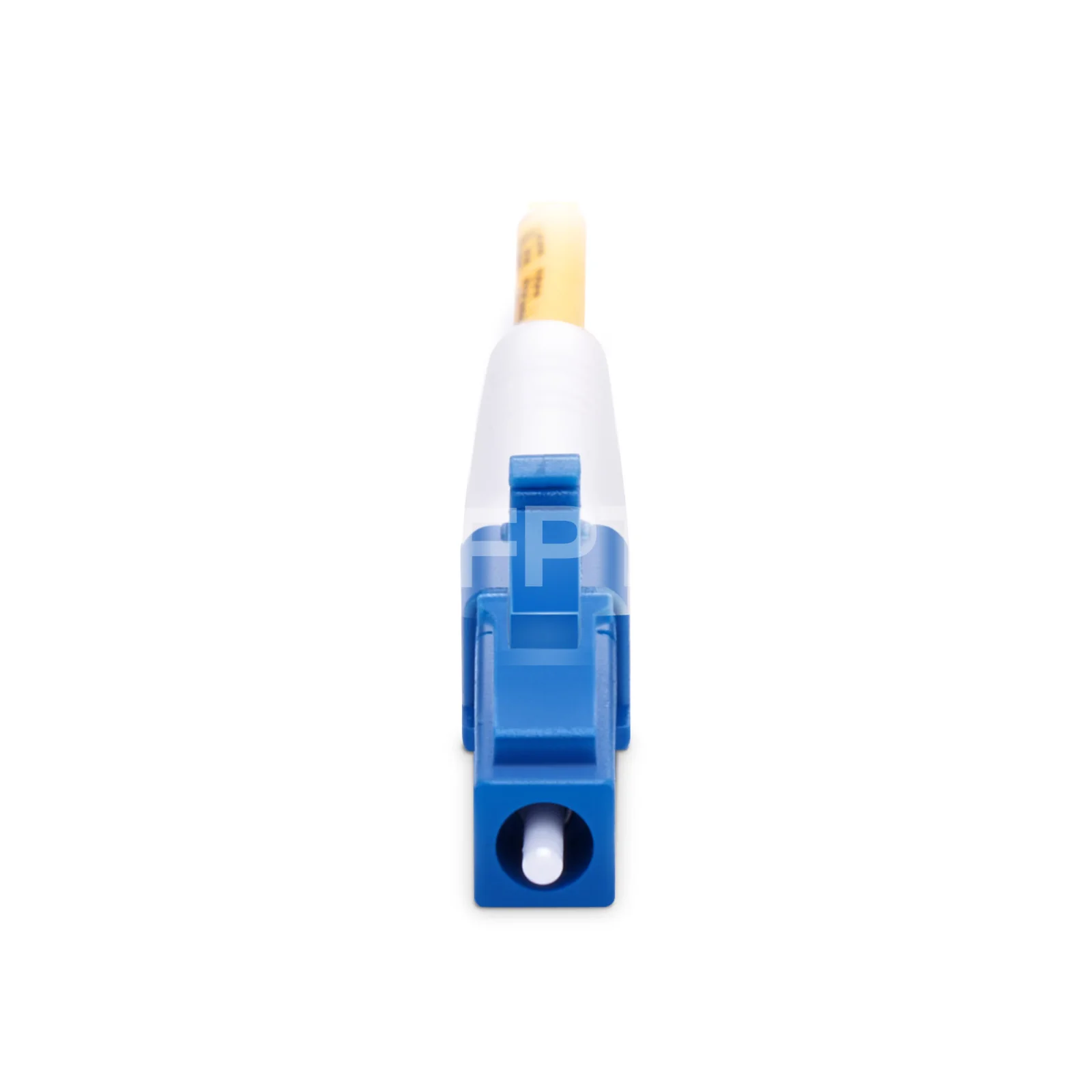

    LC UPC to LC UPC Simplex OS2 2.0mm LSZH Fiber Optic Patch Cable 4m

    Product No: 100947
    0 Reviews
    2.3K Sold
    $3.01
    Series
    Length
    14 in real-time stock, 23Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 30-Day Returns 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Ultra-low Inset Loss≤ 0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with IEC-61754 and TIA-604
    See more

    Specifications

    LC UPC to LC UPC Simplex OS2 2.0mm LSZH Fiber Optic Patch Cable (0.5m/1m/2m/3m/4m/5m/6m/7m/8m/10m/12m/15m/20m)



    The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.



    Fiber Count

    1 Fiber

    Fiber Type

    OS2 SMF 9/125μm

    Connector Type

    LC UPC to LC UPC

    Wavelength

    1310nm/1550nm

    Armoured

    No

    Cable Material

    LSZH

    Insert Loss

    0.25dB

    Return Loss

    ≥50dB

    Approximate Diameter

    2.0mm

    Length

    0.5m/1m/2m/3m/4m/5m/6m/7m/8m/10m/12m/15m/20m

    Min. Bend Radius (Fiber Cable) Dynamic

    10mm

    Min. Bend Radius (Fiber Cable) Static

    10mm

    Operating Temperature

    -20~+70°C

    Storage Temperature

    -40~+80°C



    Quality Certifications

    Related Products

    Cisco SFP-10G-BXU Compatible 10GBASE-BX10-U BiDi SFP+ 1270nm-TX/1330nm-RX 10km DDM LC SMF Transceiver

    $18.90 $31.90
    2.6K Sold
    26 Reviews

    Cisco SFP-10G-BXD Compatible 10GBASE-BX10-D BiDi SFP+ 1330nm-TX/1270nm-RX 10km DDM LC SMF Transceiver

    $18.90 $31.90
    778 Sold
    9 Reviews

    S5300-48T4X, 48-Port Gigabit Ethernet L2+ Managed Switch, 48x 1G RJ45 Ports, with 4x 10G SFP+ Uplinks, Support Stacking

    $507.90 $549.00
    131 Sold
    157 Reviews
    Hot

    S5300-48T6X, 48-Port Gigabit Ethernet Managed L3 Switch, 48x 1G RJ45 Ports, with 6x 10G SFP+ Uplinks, Support Stacking

    $457.00 $799.00
    93 Sold
    171 Reviews

    S5300-24S8T6X, 24-Port Gigabit Ethernet Managed L3 Switch, 24x 1G SFP, 8x 1G RJ45, with 6 x10GE SFP+ Uplinks, Support Stacking

    $849.00 $969.00
    158 Sold
    157 Reviews

    Intel X710-BM2 Network Interface Card, 10G 2 × SFP+ Port , PCIe 3.0 X 8, Half & Full Bracket

    $121.10 $265.00
    130 Sold
    1 Reviews

    Features

    • 1. Wide Application
      LC to LC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
    • 2. Exceptional Transmission Performance
      Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
    • 3. Rigorously Quality Test
      Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
    • 4. Quality Certifications
      Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications. Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

    Applications

    Connection 1: 10G BIDI Connectivity

    Connection 1: 10G BIDI Connectivity



    Connection 2: 10G BIDI Connectivity With NIC



    Connection 2: 10G BIDI Connectivity With NIC



    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission



    Excellent Transmission Stability Ensured by Superior Craftsmanship

    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



    Reliable Transmission Quality with Carrier-Grade Cables

    Addressing Various Indoor Installation Requirements



    Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.



    Addressing Various Indoor Installation Requirements

    Questions & Answers

    • All (9)
    • I want to transfer the duplex cable to a simplex cable, what should I do?
      You can remove the buckle on the connector of the LC duplex fiber cable so that you can get the simplex cable immediately.
    • Which is more commonly used, OS1 or OS2 fiber cable?
      OS2 is the preferred choice due to its superior performance and reduced signal loss, making it ideal for long-distance transmissions. In contrast, OS1 cables have a maximum distance limitation of 10 km.
    • What's the difference between simplex and duplex?
      In simple terms, a simplex jumper has a single connector at each end, allowing communication in only one direction. On the other hand, a duplex cable features two interfaces at both ends, enabling simultaneous bidirectional communication.
