    Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO OS2 Single Mode Trunk Cables / 100815
    Product image
    Product image

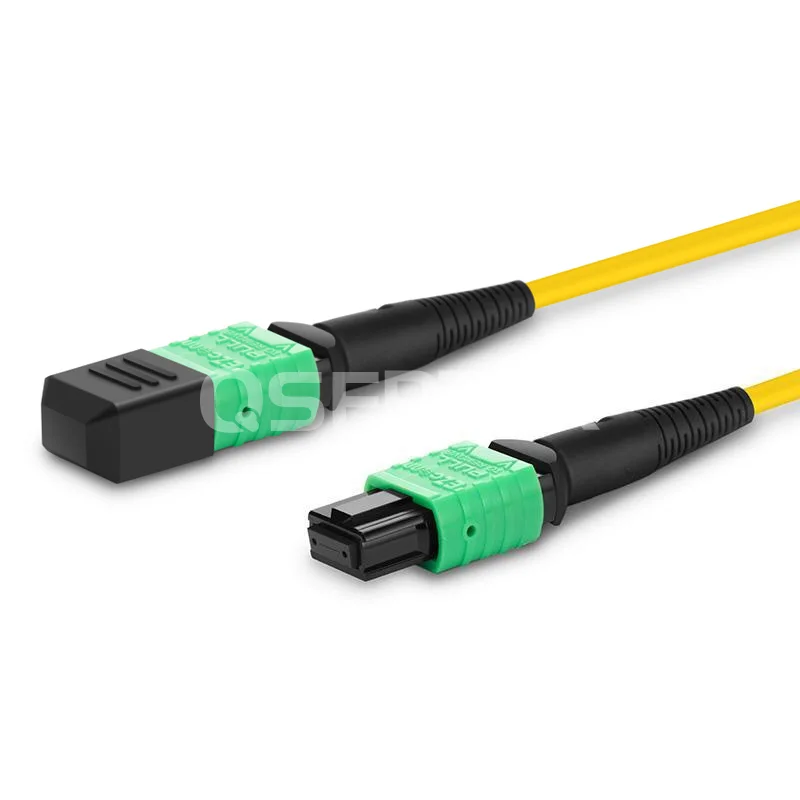

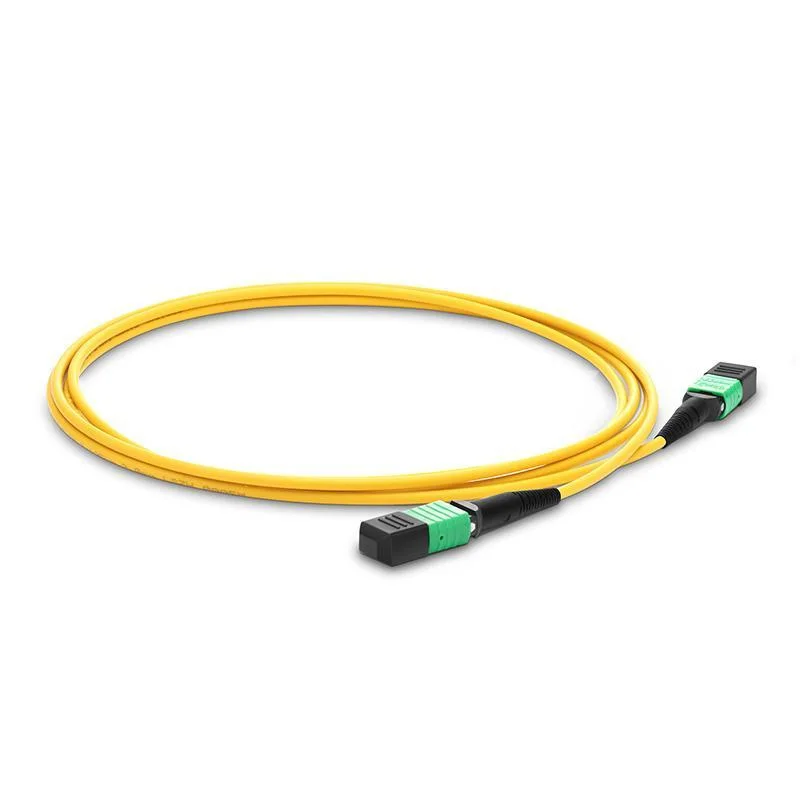

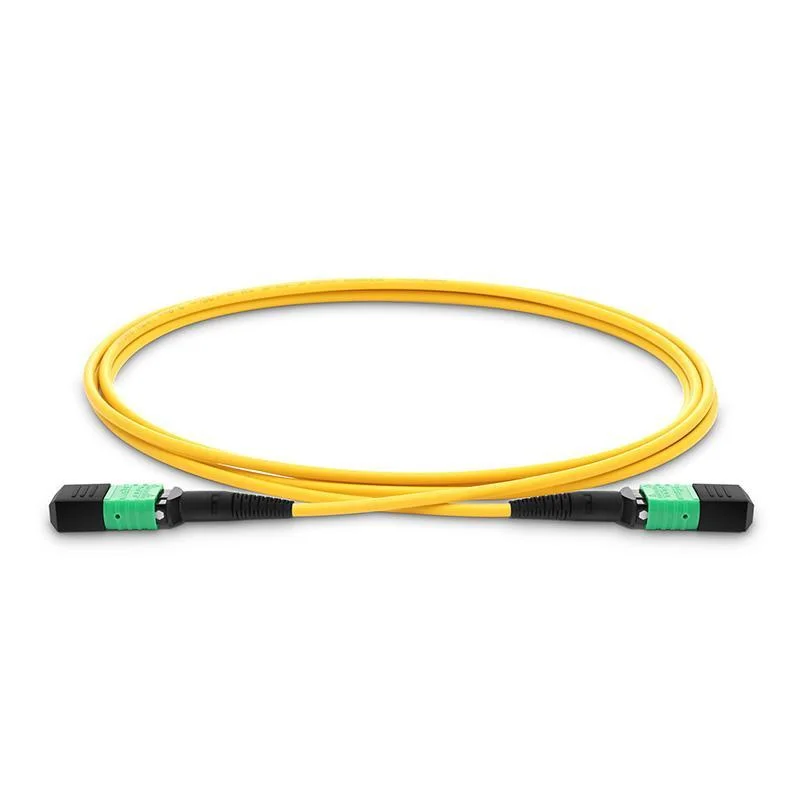

    4m MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    Product No: 100815
    0 Reviews
    2.1K Sold
    $77.60
    Series
    Length
    22 in real-time stock, 22Oct, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Flexible 10mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
    See more

    Specifications

    MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable



    The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of a standard duplex fiber optic cable connector. This MTP female to MTP female OS2 single mode trunk cable is specially optimized for 100G QSFP28 PSM4 optics direct connection, data centers and telecommunications systems applications.

    Connector A:

    MTP Female

    Connector B:

    MTP Female

    Fiber Count:

    12 Fibers

    Fiber Type:

    OS2 SMF 9/125μm

    Polish Type:

    APC to APC

    Wavelength:

    1310nm/1550nm

    Armoured:

     No

    Cable Material:

     LSZH

    Insert Loss:

    0.35dB

    Return Loss:

    ≥60dB

    Approximate Diameter:

    3.0mm

    Length:

    0.5m/1m/1.5m/2m/3m/5m/7m/10m

    Min. Bend Radius

    (Fiber Core)

    10mm

    Min. Bend Radius

    (Fiber Cable)

    20/10D (Dynamic/Static)

    Operating Temperature:

     -20℃~+70℃

    Storage Temperature:

    -40℃~+80℃
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 1310nm 500m MTP/MPO-12 SMF DDM Optical Transceiver Module

    $153.90
    384 Sold
    5 Reviews
    Hot

    S7600-48X8C, 48-Port Ethernet L3+ Switch, 48x 10G SFP+, 8x 100G QSFP28, Support MLAG, VXLAN

    $4157.00 $5099.00
    200 Sold
    171 Reviews

    Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100m LC DDM MMF Optical Transceiver Module

    $16.90 $35.00
    8.8K Sold
    71 Reviews

    LC UPC to LC UPC Duplex OM4 2.0mm LSZH Multimode Fiber Optic Patch Cable 1m

    $3.16
    8.6K Sold
    79 Reviews

    1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch

    $6.00 $10.00
    110 Sold
    1 Reviews

    S7300-24X2C, 24-Port Ethernet L3 Switch, 24x 10G SFP+, with 2x 100G QSFP28 Uplink, Support Stacking

    $1024.80 $1299.00
    107 Sold
    157 Reviews

    Features

    • 0.35dB Max. IL
      Designed for low insertion loss links, flexible and robust.
    • 10mm Min. Bend Radius
      Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
    • 6kg Tensile Strength
      Extremely tensile resistant to prevent cable breakage and extend service life.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    MTP-MPO-12 APC Female to MTP-MPO-12 APC Female

    Connection 2:

    MTP-MPO-12 APC Female to MTP-MPO-12 APC Female 2

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

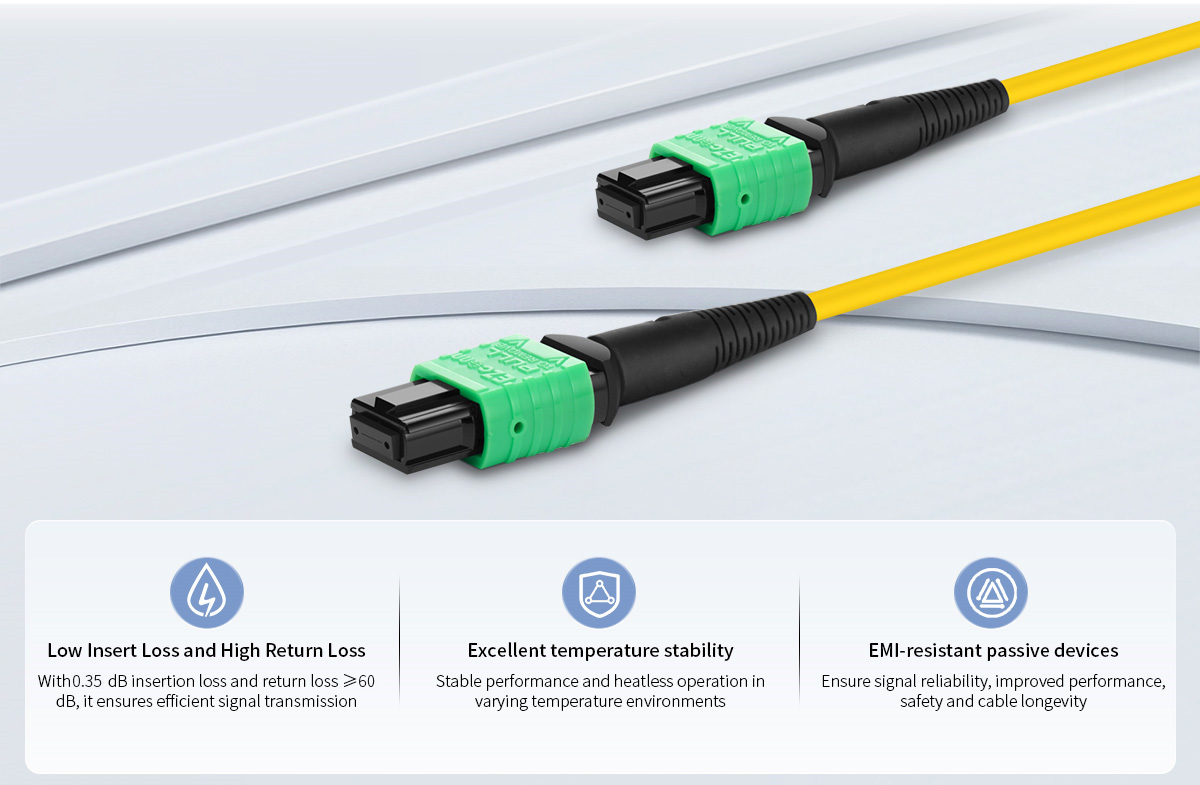

    MTP OS2 cable with Excellent Transmission Stability



    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.

    High-Performance Fiber with Superior Durability



    Flexible High-Density Cabling Solutions



    Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.

    High-Density Cabling Solutions



    Spine-Leaf Architecture for Scalable Networks



    Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.

    Spine-Leaf Architecture for Scalable Networks



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    MTP cables cleaner

    Questions & Answers

    • All (6)
    • What distinguishes between male and female MTP connectors?
      MTP connectors are categorized as male or female. The male variant of the connector features pins, while the female version lacks pins. To establish a connection, pins are matched with non-pinned counterparts. Thus, when employing adapters to link two cables, it's essential to have one male and one female connector.
    • What are the advantages of LSZH cable jacket？
      LSZH cable jackets, or "Low Smoke Zero Halogen" cable jackets, offer key benefits. They emit minimal smoke and toxic fumes during fires, reducing health risks. They also limit environmental impact by decreasing halogen gas release. LSZH jackets are essential in confined spaces and comply with safety regulations.
    • Will the MTP-12 (Female) trunk cable work with my JNP-QSFP-100G-PSM4 optical module?
      Yes, they can work well together.
