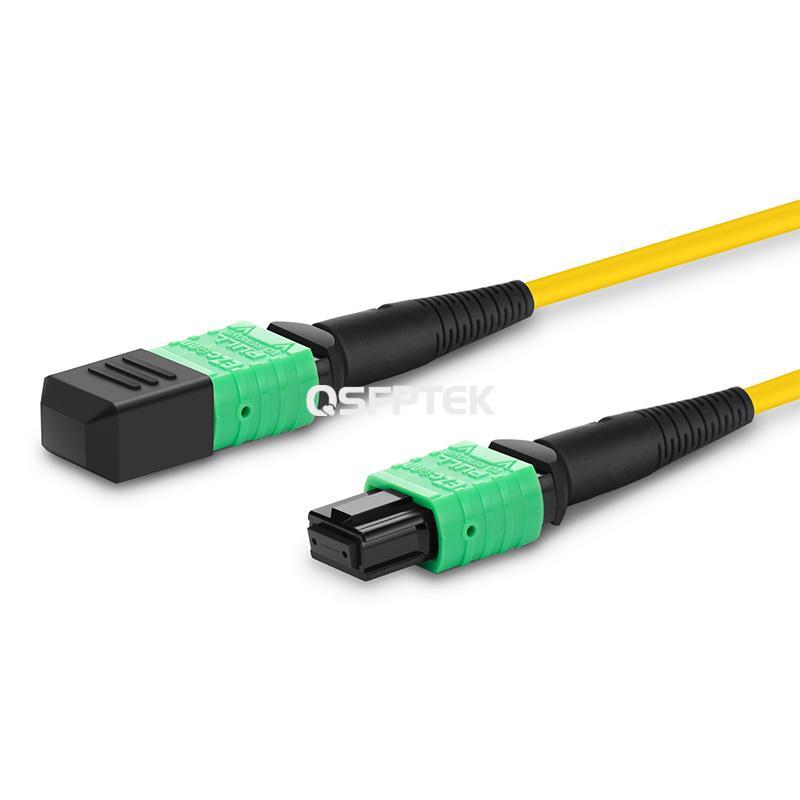

2m (7ft) MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable, 12 Fibers, Type B, Plenum (LSZH)

Product No :99505
US$ 61.60  US$ 70.00
1594 in stock

461 In US Warehouse

679 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=5E1E5709BD8BC43118E5DD92FF453EA6
-
+
1. Flexible 7.5mm Min. Bend Radius
2. Optimized for 40G/100G/200G/400G Transmission
3. MTP Connector with 12 Fibers
4. Compliant with ROSH 2.0 and MCD
5. LSZH jacket
See more

Specifications

MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable



The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of a standard duplex fiber optic cable connector. This MTP female to MTP female OS2 single mode trunk cable is specially optimized for 100G QSFP28 PSM4 optics direct connection, data centers and telecommunications systems applications.

Connector A:

MTP Female

Connector B:

MTP Female

Fiber Count:

12 Fibers

Fiber Type:

OS2 SMF 9/125μm

Polish Type:

APC to APC

Wavelength:

1310nm/1550nm

Armoured:

 No

Cable Material:

 LSZH

Insert Loss:

0.35dB

Return Loss:

60dB

Approximate Diameter:

3.0mm

Length:

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius

(Fiber Cable) Dynamic:

10mm

Min. Bend Radius (Fiber Cable) Static:

10mm

Operating Temperature:

 -20℃~+70

Storage Temperature:

-40~+80









Quality Testing Program
Quality Certifications

Features

  • 0.25dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 10mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 6kg Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

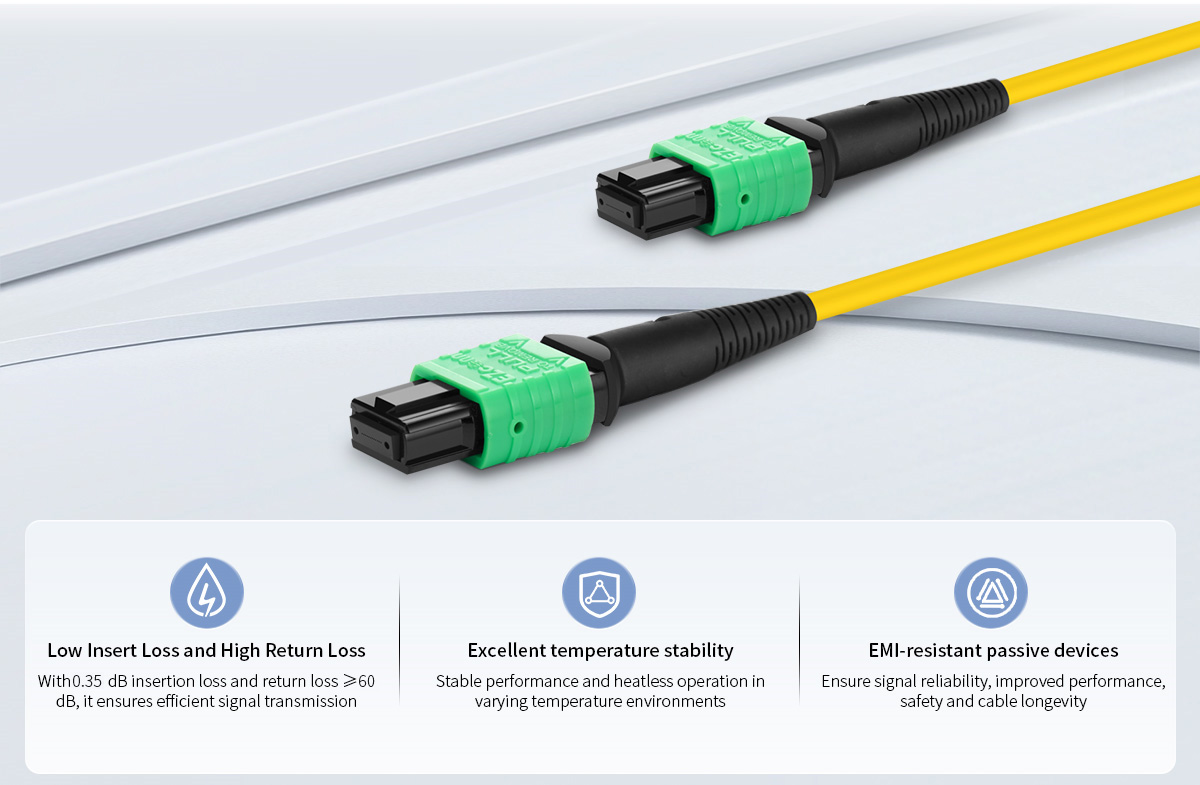

MTP OS2 cable with Excellent Transmission Stability




High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.

High-Performance Fiber with Superior Durability




Flexible High-Density Cabling Solutions



Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.

High-Density Cabling Solutions




Spine-Leaf Architecture for Scalable Networks



Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.

Spine-Leaf Architecture for Scalable Networks




Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.

MTP cables cleaner

;jsessionid=5E1E5709BD8BC43118E5DD92FF453EA6

Questions & Answers

more+
  • I want to customize some MPO OS2 single mode trunk cables, do you offer customization services? Where can I customize?
    We offer customization of these cables, you can click on this link to go to the customization page,https://www.qsfptek.com/product/101098.html
  • What does MTP elite stand for?
    The MTP Elite offers reduced insertion loss in comparison to standard MTP fiber cables.
  • Will the MTP-12 (Female) trunk cable work with my JNP-QSFP-100G-PSM4 optical module?
    Yes, they can work well together.
