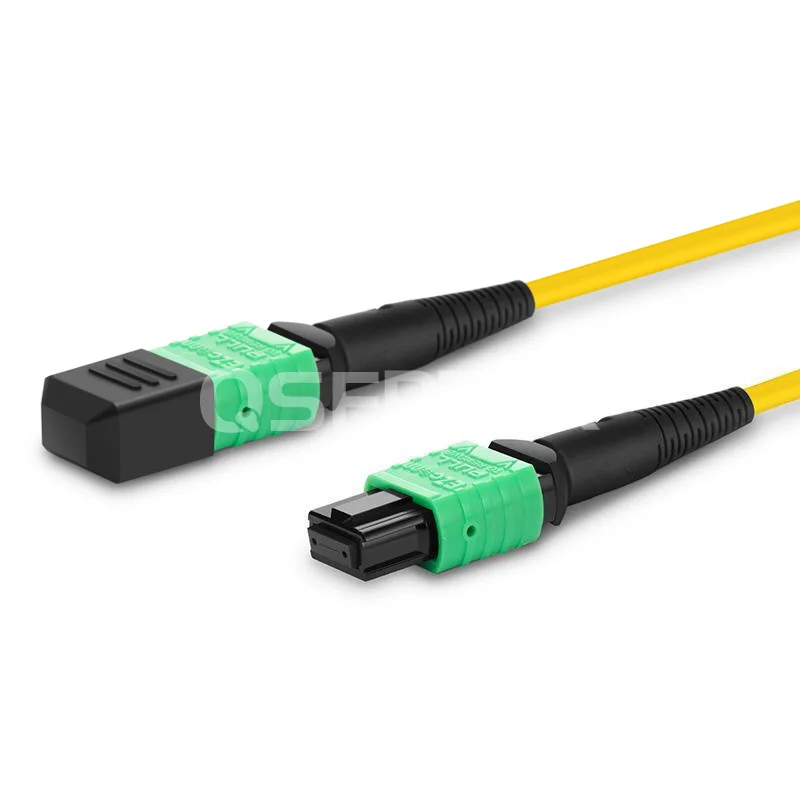

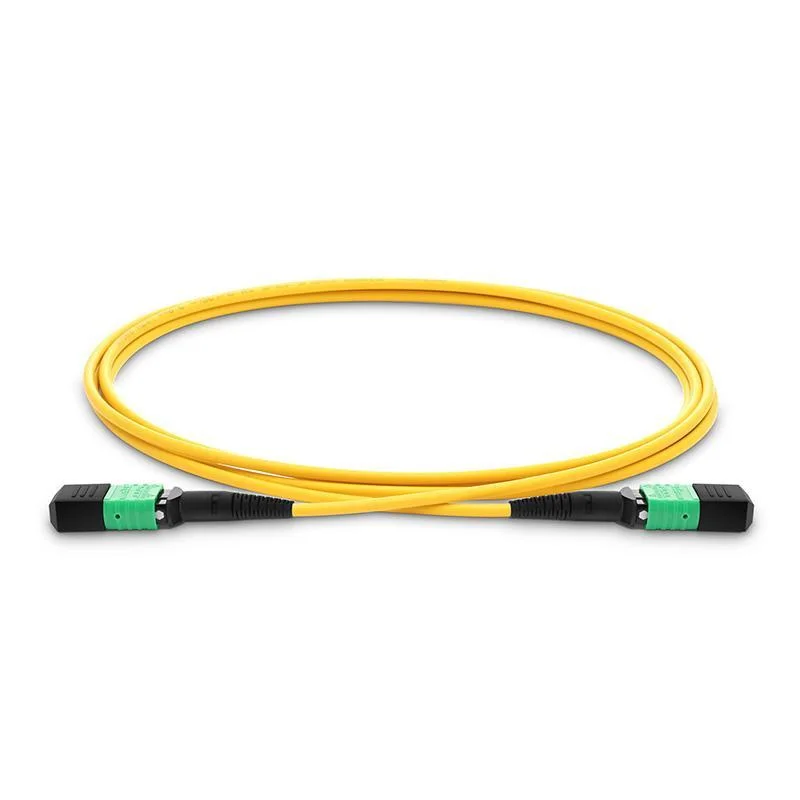

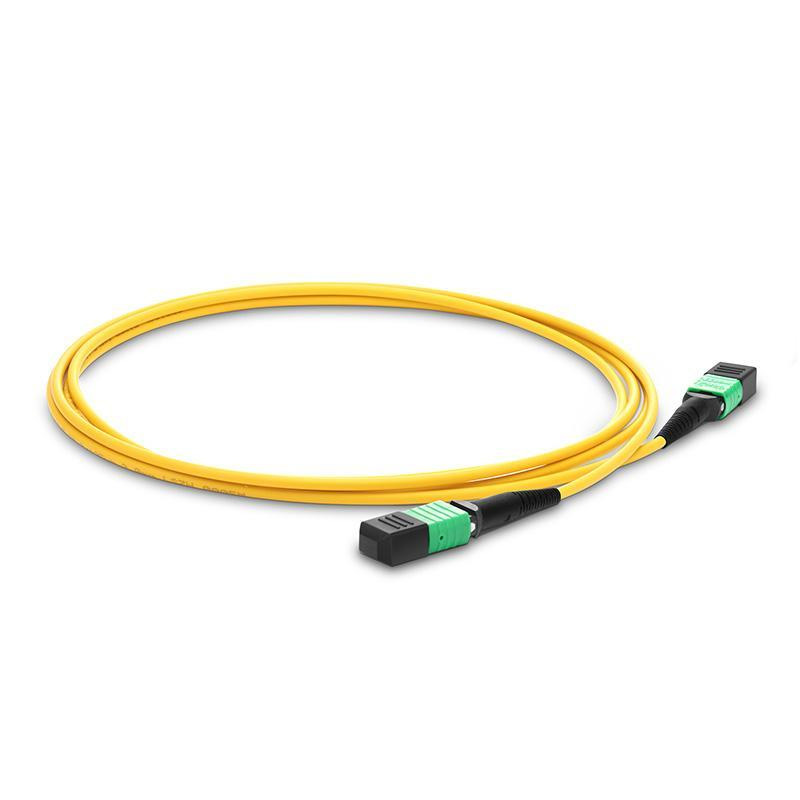

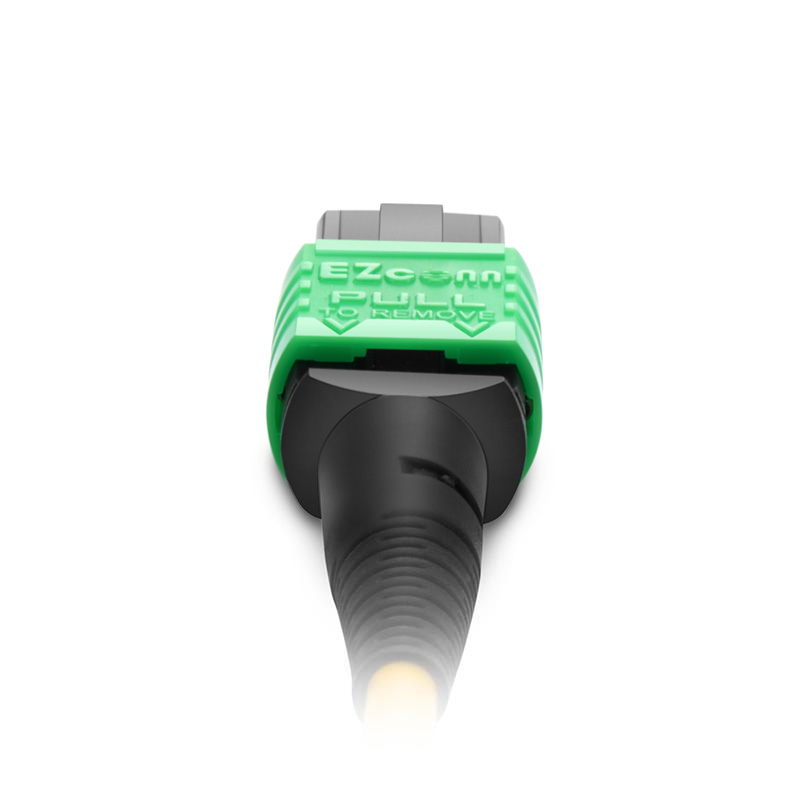

MTP-12 (Female) to MTP-12 (Female) OS2 Single Mode Elite Trunk Cable
The MTP trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of a standard duplex fiber optic cable connector. This MTP female to MTP female OS2 single mode trunk cable is specially optimized for 100G QSFP28 PSM4 optics direct connection, data centers and telecommunications systems applications.
Connector A: |
MTP Female |
Connector B: |
MTP Female |
Fiber Count: |
12 Fibers |
Fiber Type: |
OS2 SMF 9/125μm |
Polish Type: |
APC to APC |
Wavelength: |
1310nm/1550nm |
Armoured: |
No |
Cable Material: |
LSZH |
Insert Loss: |
0.35dB |
Return Loss: |
≥60dB |
Approximate Diameter: |
3.0mm |
Length: |
0.5m/1m/1.5m/2m/3m/5m/7m/10m |
Min. Bend Radius (Fiber Core) |
10mm |
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
Operating Temperature: |
-20℃~+70℃ |
Storage Temperature: |
-40℃~+80℃ |
Connection 1:
Related Products:
S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG
Connection 2:
Related Products:
S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24 x25GE SFP28, with 4 x100GE QSFP28 Uplinks, Support MLAG
Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 850nm 100M optical transceiver Module
LC UPC to LC UPC Duplex OM4 2.0mm PVC Multimode Fiber Optic Patch Cable
1U 19" Modular Rack Mount Enclosure Unloaded, Holds up to 4 Fiber Adapter Panels, 96 Fibers (LC)
1U Horizontal Cable Management with 5 D-Rings, Rackmount, Single-Sided, 19 inch

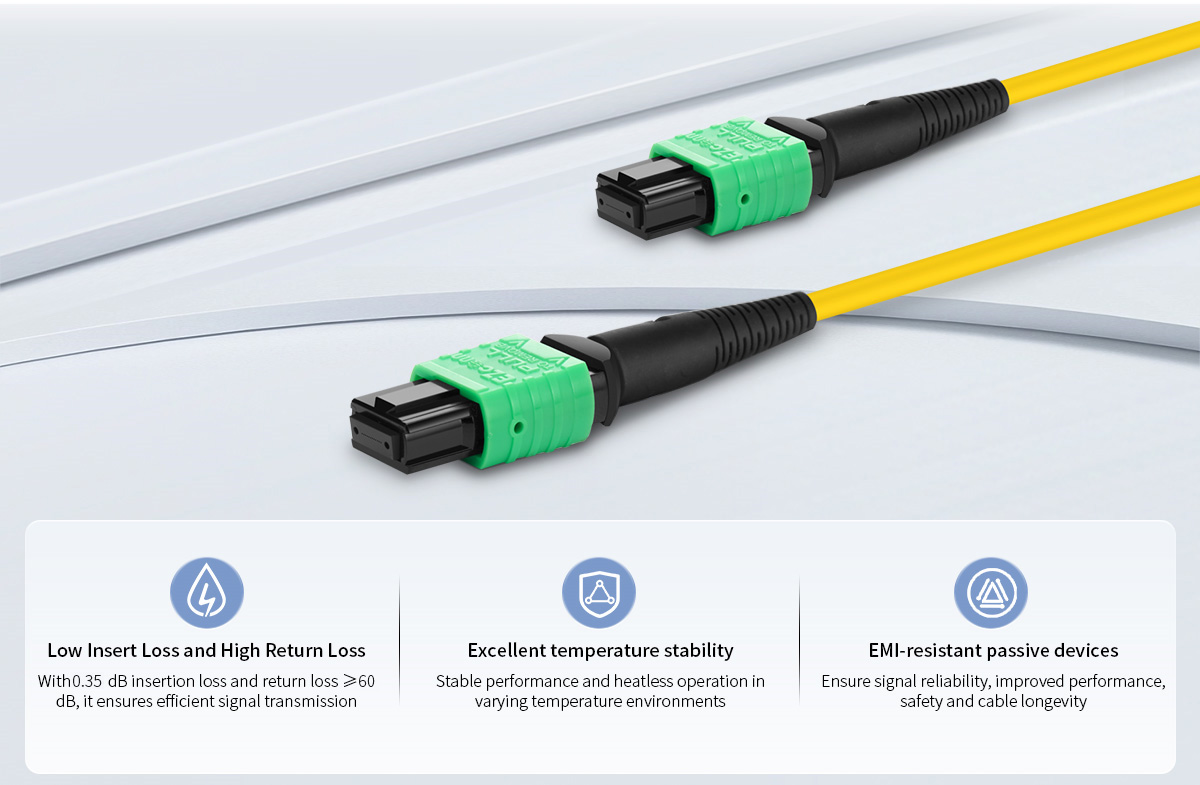

With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.
This fiber offers exceptional performance and is the ideal choice for high-density cabling due to its excellent bending and compression resistance.
Excellent bend radius minimizes space wastage, optimizes cable management, improves deployment speed, simplifies cable management, and reduces installation costs.
Overcome network bottlenecks, minimize latency, and enhance bandwidth and scalability with the Spine-Leaf architecture, enabling larger network scales and facilitating future expansions.
Ensure high reliability and performance connections by maintaining clean fiber end-faces.
