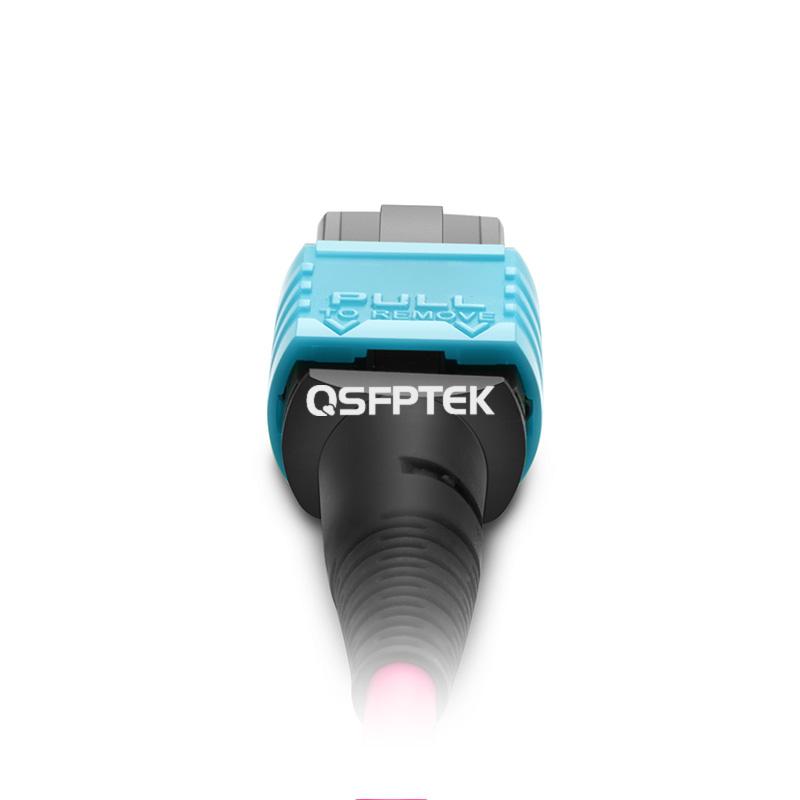

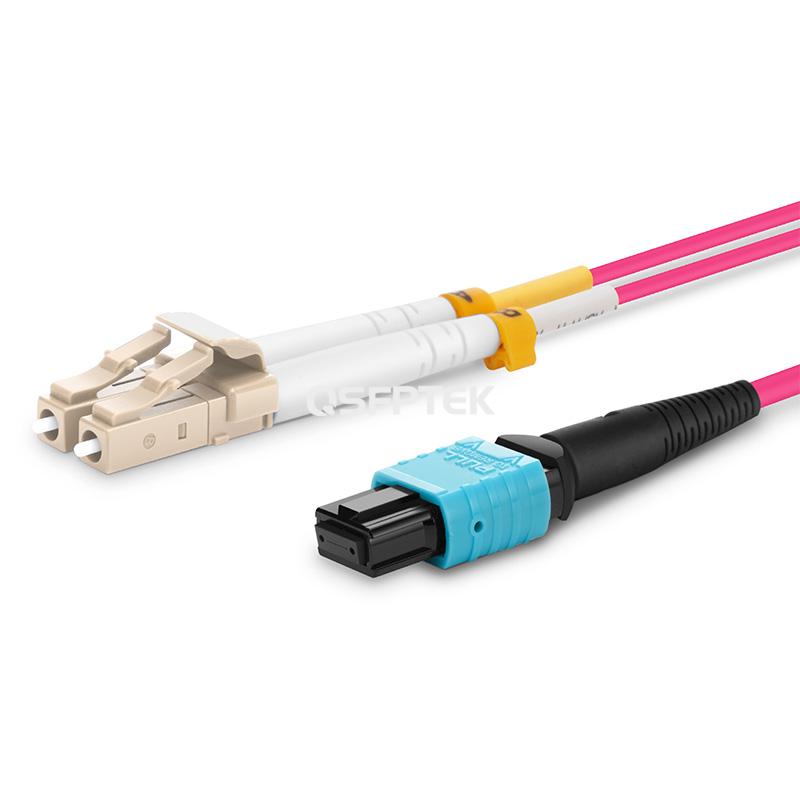

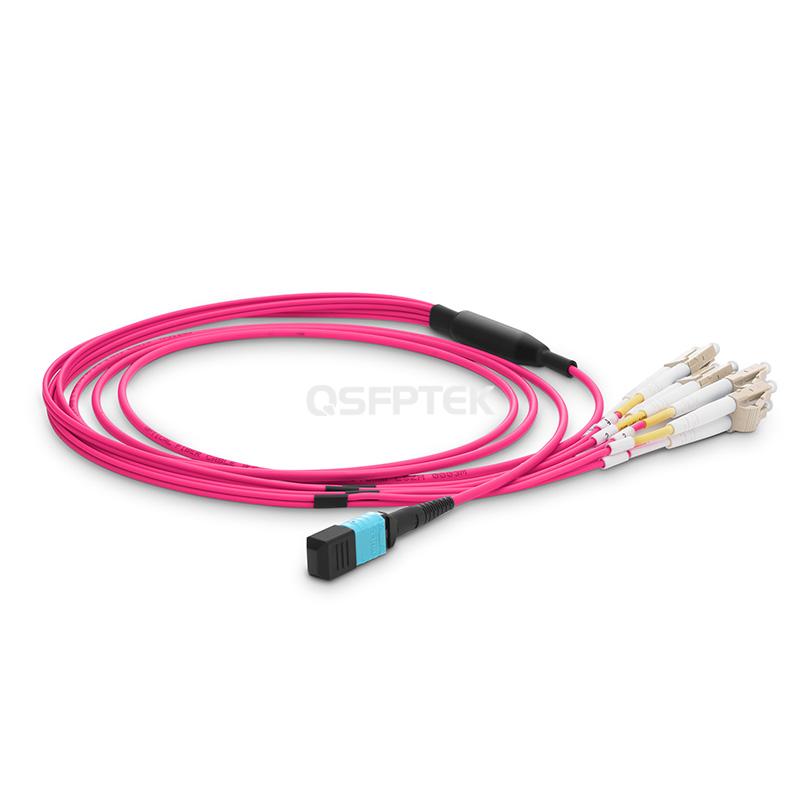

5m (16ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable

Product No :99672
US$ 34.92  US$ 39.19
Length
1260 in stock

348 In US Warehouse

912 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

;jsessionid=ED464E8CF3813463ADE04B6114055711
-
+
1. LSZH Jacket
2. Flexible 10mm Min. Bend Radius
3. Optimized for 40G/100G/200G/400G Transmission
4. MTP Connector with 12 Fibers
5. Compliant with ROSH 2.0 and MCD
See more

Specifications

5m (16ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OM4 50/125 Multimode Elite Breakout Cable



The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 4 LC UPC Duplex OM4 multimode breakout cable is specially optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP28 SR optics direct connection, data centers, and telecommunications systems applications.



Connector A:

MTP Female

Connector B:

LC UPC Duplex

Fiber Count:

8 Fibers

Fiber Type:

OM4 50/125μm

Polish Type:

UPC to UPC

Wavelength:

850nm/1300nm

Armoured:

No

Cable Material:

LSZH

MTP Connector Insert Loss:

 0.35dB

Return Loss:

≥30dB

Trunk Diameter:

3.0mm

Fan-Out Diameter:

2.0mm

Min. Bend Radius (Fiber Cable) Dynamic:

10mm

Min. Bend Radius (Fiber Cable) Static:

10mm

Operating Temperature:

-20~+70

Storage Temperature:

-40~+80

Quality Testing Program
Quality Certifications

Features

  • 10mm Min. Bend Radius
    Allow tighter cable bends for slack storage and routing.
  • 0.35dB Max. IL
    Always provide stable signal and realize flexible system design.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

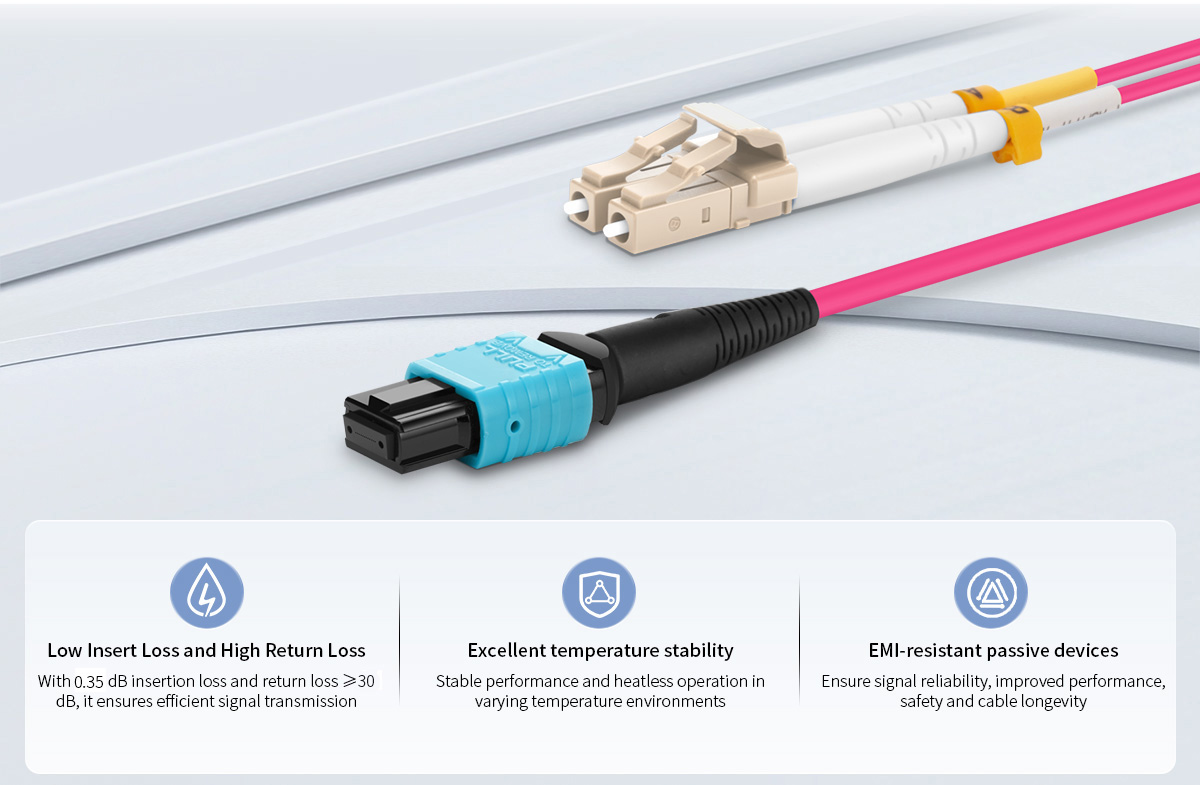

MTP Breakout OM4






High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.








Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



MTP Breakout OM4 Transmission




Optimizing Network Upgrade Solutions for Superior Efficiency



Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.




Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.

Fiber Clean

;jsessionid=ED464E8CF3813463ADE04B6114055711

Questions & Answers

more+
  • Does the fiber optic cable need to clean the end face?
    The fiber optic cable needs to clean the end face, similar to the module, if the dust on the end face is not cleaned in time, it will affect the signal transmission and equipment performance.
  • What's the different between LSZH and PVC?
    LSZH cables generate less smoke and toxic gases during combustion, while PVC cables release toxic smoke and acidic gases when burned.
  • What's the difference between APC and UPC
    APC and UPC are two standard designs for fiber optic connector end faces. APC connectors feature an angled end face, providing lower return loss and better reflection performance, making them suitable for applications that require high precision and low loss. On the other hand, UPC connectors have a flat end face, offering lower insertion loss and moderate reflection performance, making them suitable for general fiber optic transmission needs. Therefore, when selecting fiber optic connectors, choosing between APC or UPC connectors is essential based on specific application requirements.
