Home / Products / Fiber Optic Cables / Fiber Patch Cables / OS2 9/125 SMF Duplex / 100914

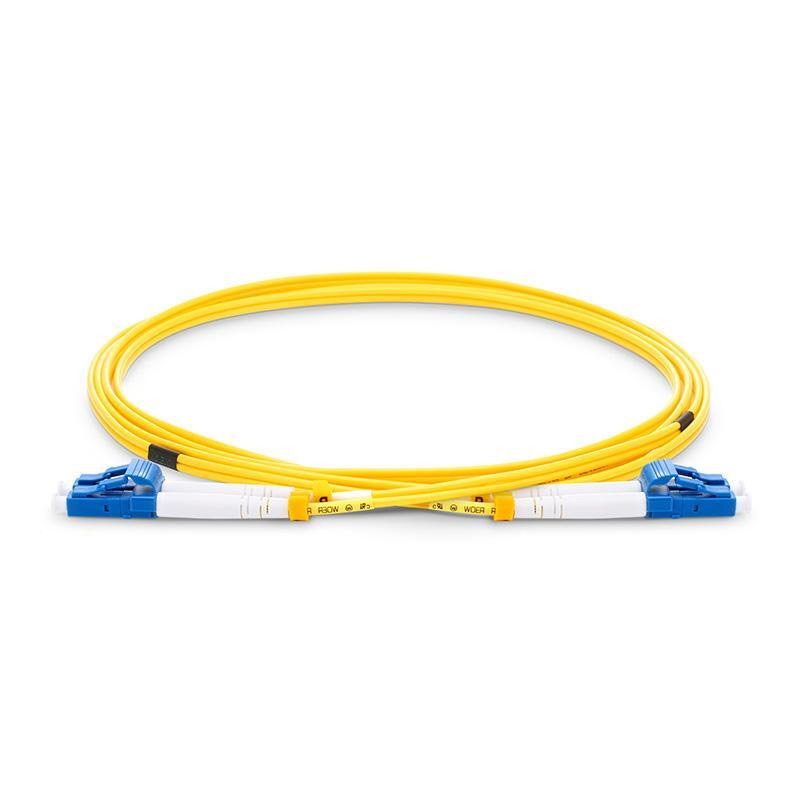

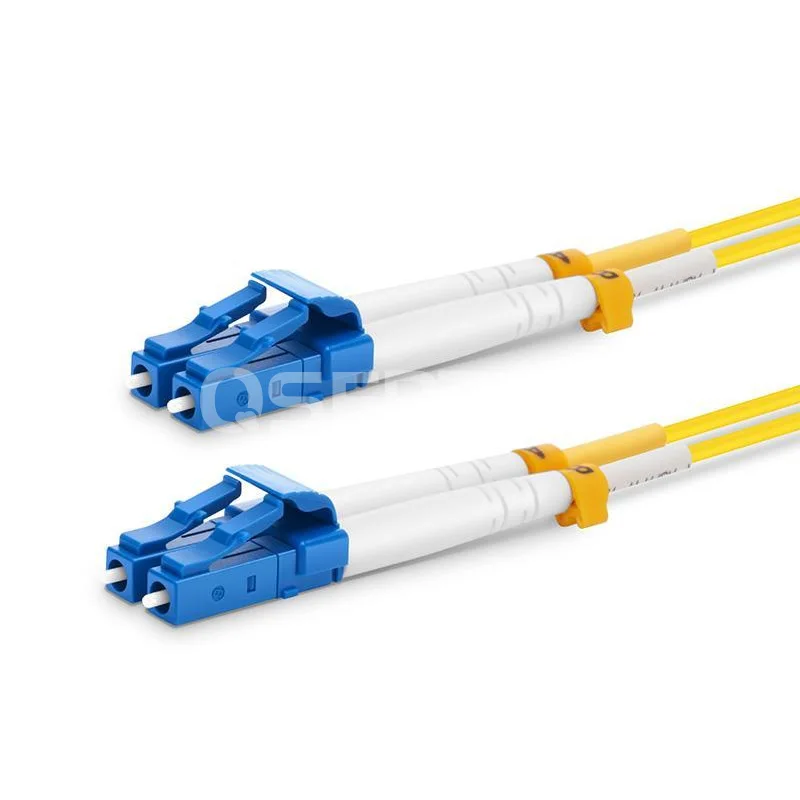

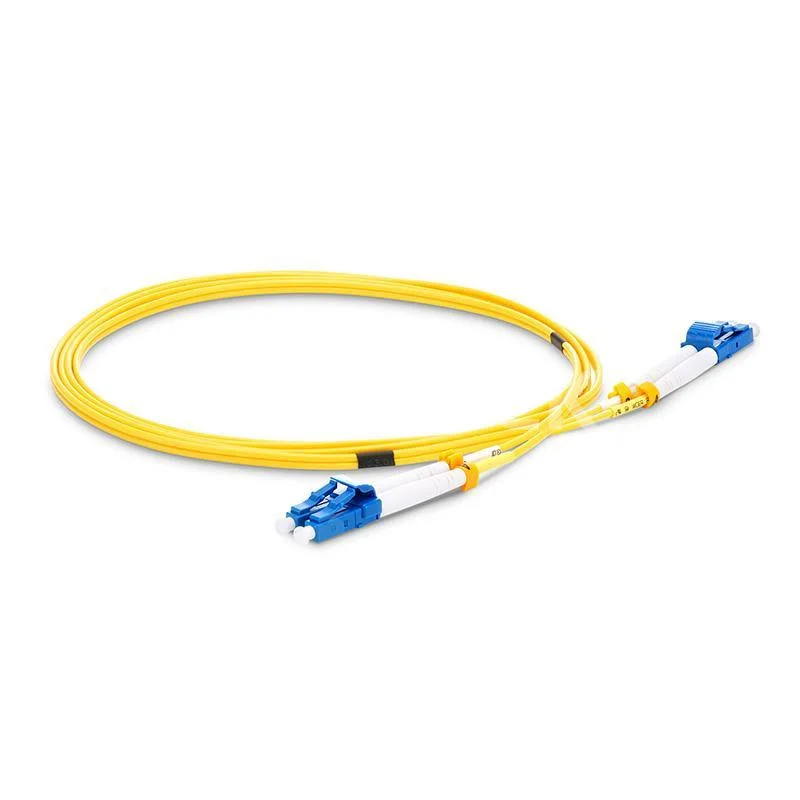

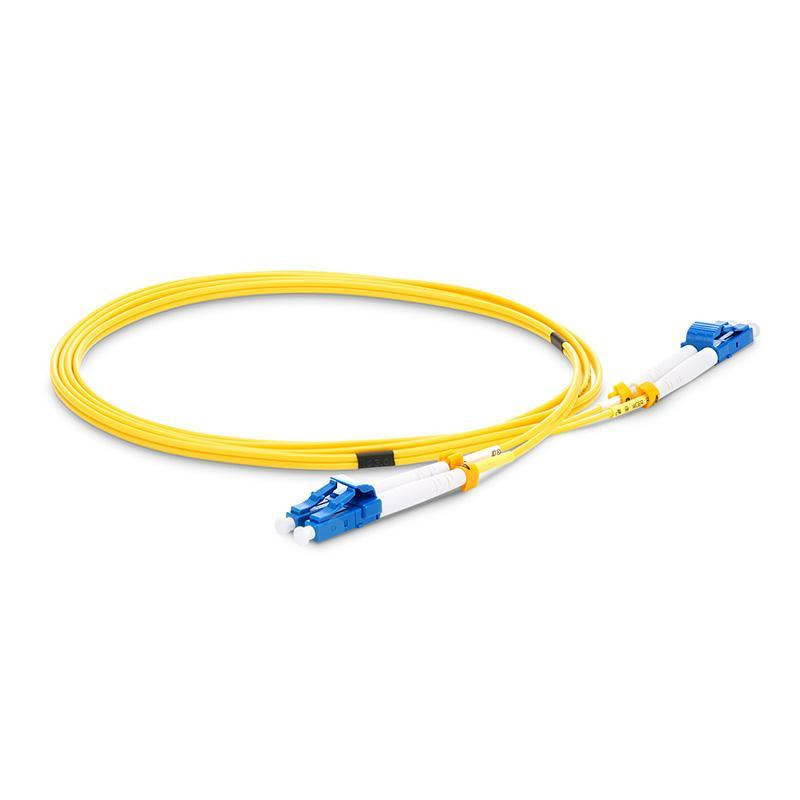

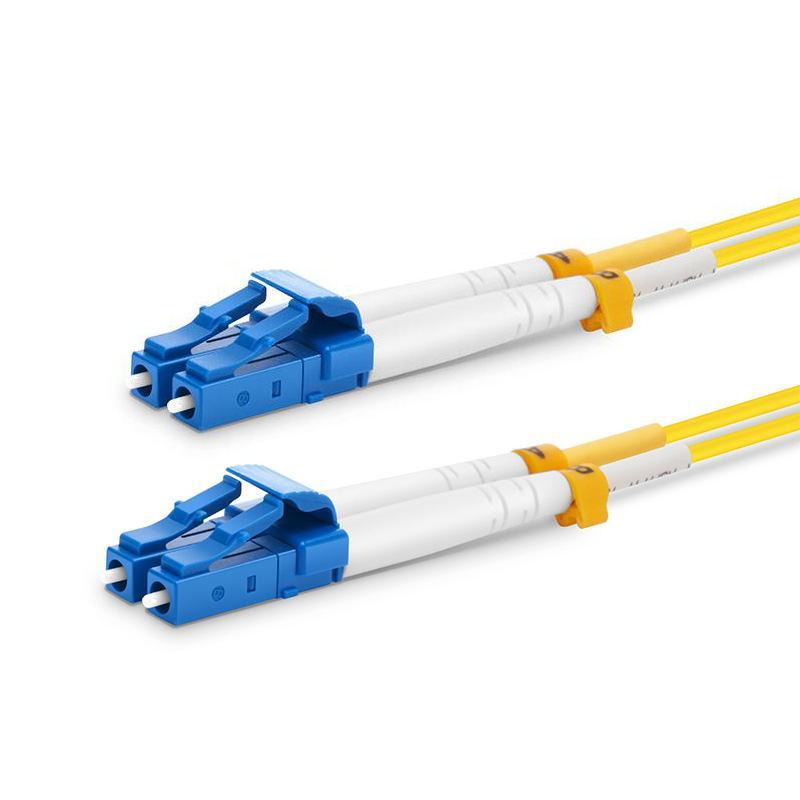

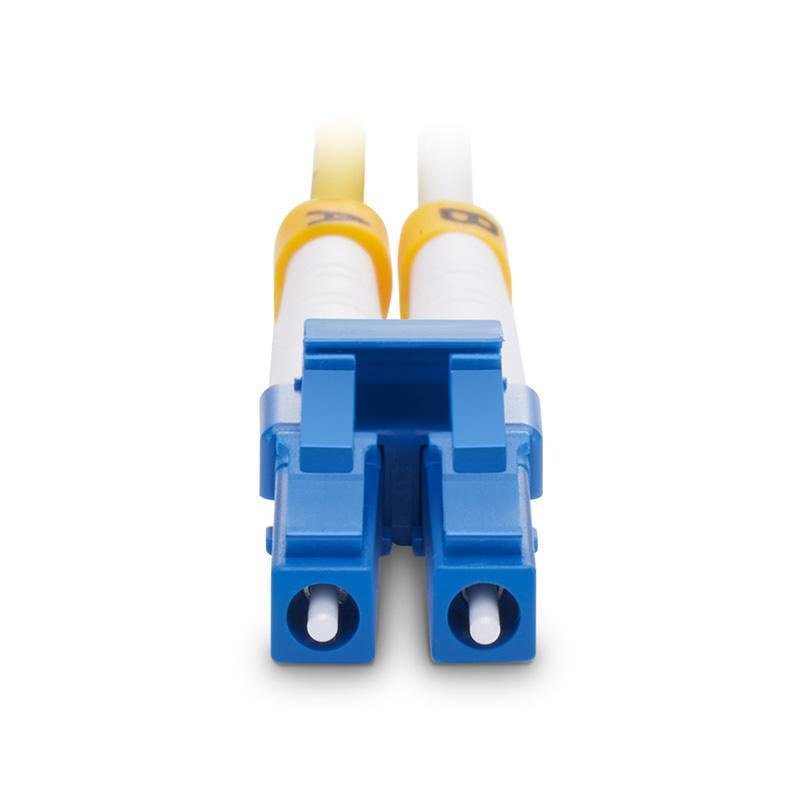

LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 4m

Product No :100914
US$ 3.16
Series
Length
45 in real-time stock, 19Jun, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Ultra-low Inset loss ≤0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with ROSH 2.0 and MCD
See more

Specifications

LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 4m



The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.



Fiber Count

2 Fibers

Fiber Type

OS2 SMF 9/125μm

Connector Type

LC UPC to LC UPC

Wavelength

1310nm/1550nm

Armoured

No

Cable Material

LSZH

Insert Loss

0.25dB

Return Loss

≥50dB

Approximate Diameter

2.0mm

Length

0.5m/1m/1.5m/2m/3m/5m/7m/10m

Min. Bend Radius (Fiber Cable) Dynamic

10mm

Min. Bend Radius (Fiber Cable) Static

10mm

Operating Temperature

-20~+70°C

Storage Temperature

-40~+80°C



Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • Wide Application
    LC to LC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
  • Exceptional Transmission Performance
    Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
  • Rigorously Quality Test
    Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
  • Quality Certifications
    Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Applications

Scenario 1:



Related Products:

Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Optical Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

S7600-24X2Q, 24-Port Ethernet L3+ 10G Switch, 24 x10Gb SFP+, with 2 x40Gb QSFP+ Uplinks, Support MLAG, VXLAN

Cisco SFP-10G-LRM2 Compatible 10GBASE-LRM2 SFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Intel X710-BM2 Network Interface Card, 10G 2 × SFP+ Port , PCIe 3.0 X 8, Half & Full Bracket



Scenario 2:

Related Products:

S7300-48X2Q4C, 48-Port Gigabit Ethernet L3 Campus SFP+ Switch, 48 x10GE SFP+, with 2 x40GE QSFP+ and 4 x100GE QSFP28 Uplinks, Support Stacking

Cisco QSFP-40G-LR4 Compatible 40GBASE-LR4 QSFP+ 1310nm 10km Optical Transceiver Module

LC UPC to LC UPC Duplex OS2 2.0mm PVC Fiber Optic Patch Cable

S7300-48TE4X2Q, 48-Port Multi-Gigabit Ethernet L3 Switch, 48 x100M/1000M/2.5GBASE-T, with 4 xGE/10GE SFP+ and 2 x40GE QSFP+ Uplink, Support BGP

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission







Reliable Transmission Quality with Carrier-Grade Cables


Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.





Addressing Various Indoor Installation Requirements



Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.



Questions & Answers

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

105 Reviews

4 stars

0 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (2)
  • Connector (1)
  • Excellent Quality (1)
  • High Reliability (1)
  • Good Packaging (1)
  • Fast Delivery (1)
  • Miguel United States of America
    2024-06-07

    We acquired these fiber patch cables to facilitate our fiber network upgrade. They functioned seamlessly straight out of the package and were of excellent craftsmanship.

    Length4m

    SeriesLC to LC OS2 LSZH

    Verified Purchase

    Helpful

    0

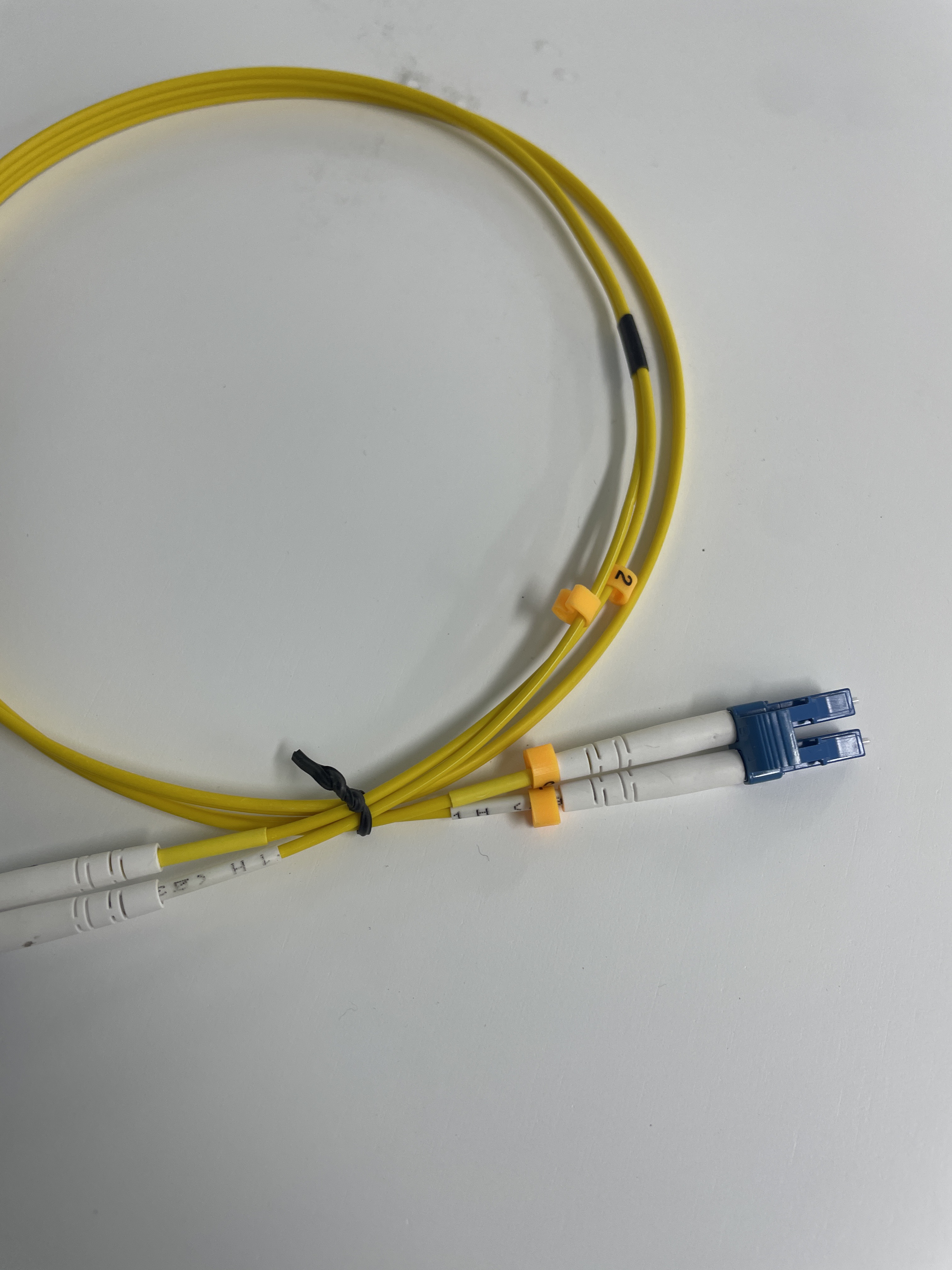

  • willy beti Brazil
