LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 15m

Product No :100935
US$ 4.97  US$ 5.90
771 in real-time stock, 17Jul, 2024

560 In US Warehouse

211 In EU Warehouse

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

1. Ultra-low Inset loss ≤0.25dB
2. G.652D, 10mm Min. Bend Radius
3. Durable for Indoor Use (e.g. Data Centers, Enterprise Networks, etc)
4. High Temperature Stability
5. Compliant with ROSH 2.0 and MCD
See more

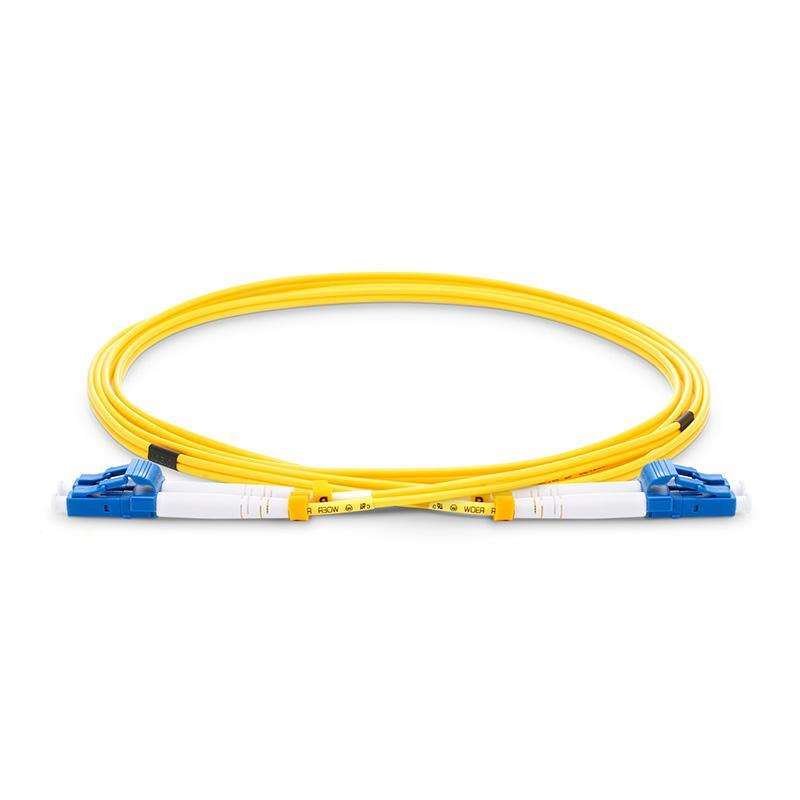

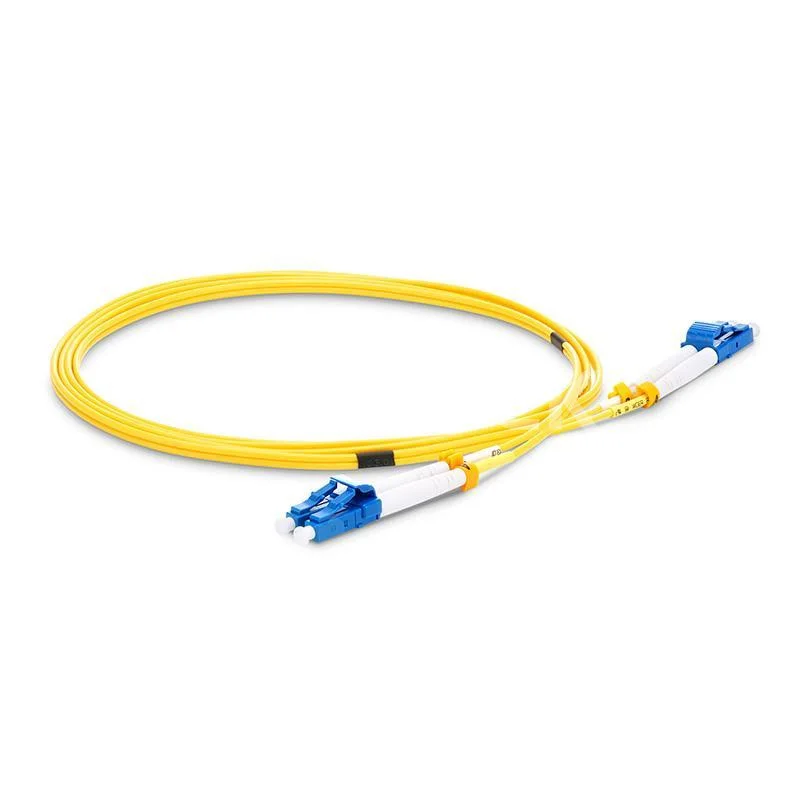

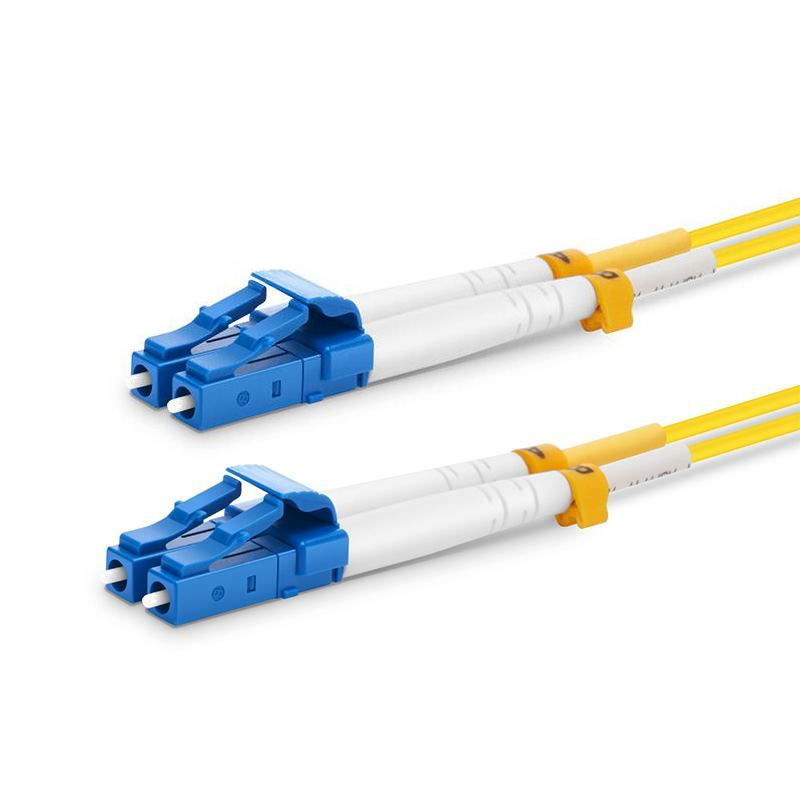

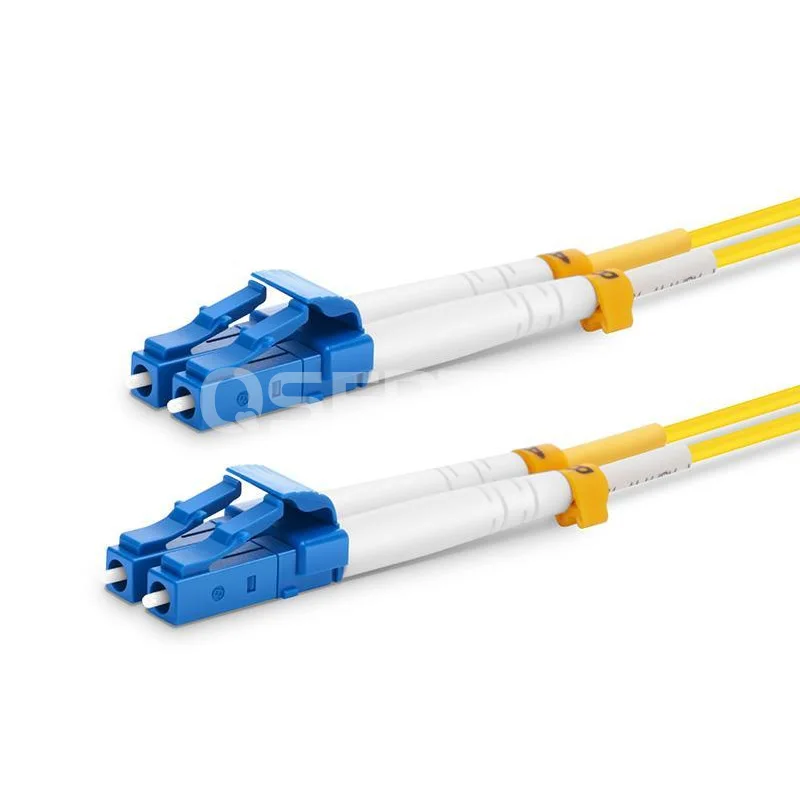

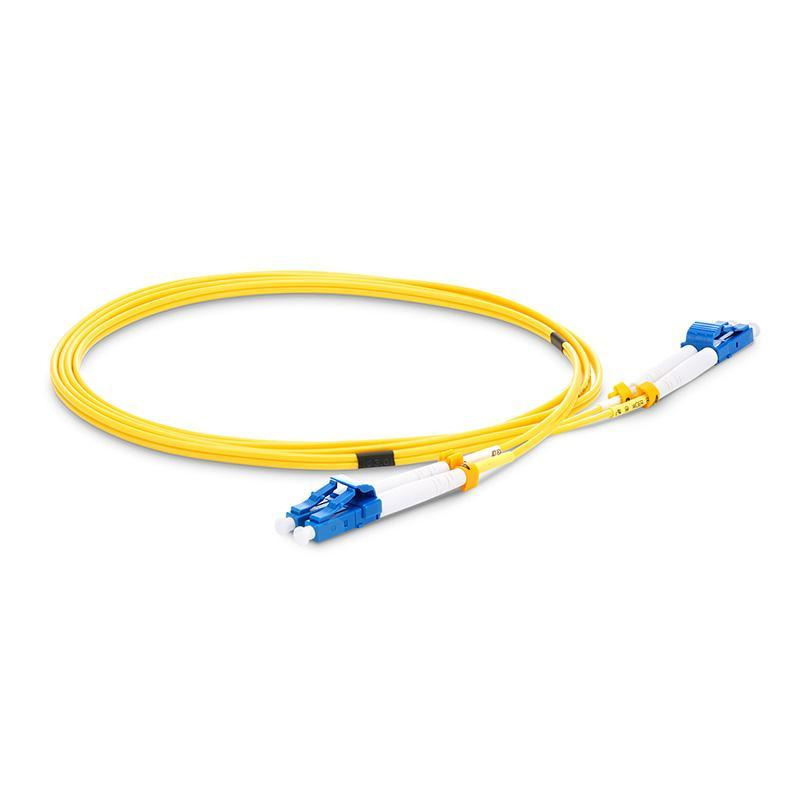

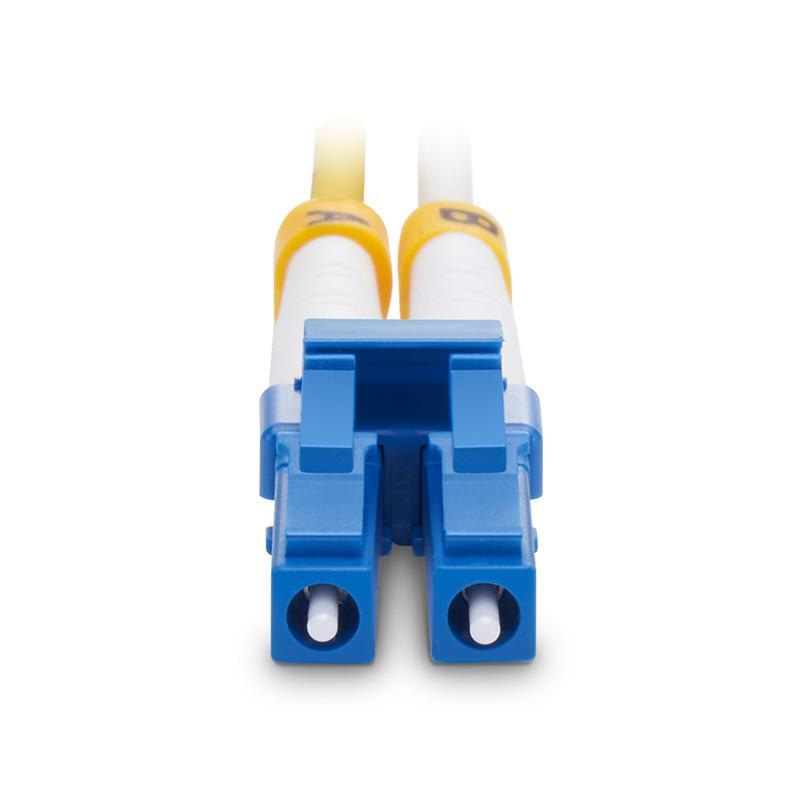

LC UPC to LC UPC Duplex OS2 2.0mm LSZH Fiber Optic Patch Cable 15m


The 9/125μm OS2 SMF fiber optic patch cable, featured with ultra-low insert loss (0.36dB/km via 1310nm and 0.22dB/km via 1550nm), is specially optimized for 1G/10G/40G/100G/400G Ethernet connections. This single-mode fiber optic cable is widely applied in high-density application scenarios such as data centers, enterprise networks, telecommunication rooms, server rooms, etc., which helps to save rack space by a wide margin and maintain a neat cabling center.


Fiber Count

2 Fibers

Fiber Type

OS2 SMF 9/125μm

Connector Type






Cable Material


Insert Loss


Return Loss


Approximate Diameter




Min. Bend Radius (Fiber Cable) Dynamic


Min. Bend Radius (Fiber Cable) Static


Operating Temperature


Storage Temperature



Quality Testing Program
Quality Certifications


  • Wide Application
    LC to LC OS2 Single-mode fiber is specially designed for reliable, long-distance, Ethernet connectivity between switches, servers, routers, Firewalls, SFP+ transceivers, media converters, patch panels, and other SMF optical equipment.
  • Exceptional Transmission Performance
    Low insertion loss less than 0.25dB, return loss more than 50dB. Carrier-grade cable assemblies reduce bending loss to ensure good transmission performance.
  • Rigorously Quality Test
    Each OS2 Single-mode fiber is individually and rigorously tested to be within accurate optical insertion loss.
  • Quality Certifications
    Conforms with TIA/EIA-604, ITU-652.D, and IEC-61754 standards and complies with RoHS specifications.

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship


With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission




Reliable Transmission Quality with Carrier-Grade Cables

Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



Addressing Various Indoor Installation Requirements


Perfect for network cabinet connectivity, ceiling wiring, and under-floor wiring within the data center environment.


Questions & Answers

  • What are the maximum transmission distances for 100G data using OS2 fiber?
    When utilizing a 1310nm transceiver, OS2 fiber can transmit 100G data up to a distance of 10km. However, with a 1550nm transceiver, the maximum transmission distance increases to 40km for the same data rate.
  • Is OS2 better than OS1?
    Yes, OS2 is considered better than OS1. OS1 cables have a higher attenuation rate of 0.36 dB/km, whereas OS2 cables have a lower attenuation rate of 0.22 dB/km. This lower attenuation rate allows OS2 cables to maintain a stronger signal over longer distances, making them the preferred choice for longer-distance applications.
  • I already bought 10G BIDI modules from your website, should I buy OS2 simplex patch cables or duplex patch cables?
    For your purchased 10G BIDI modules, opt for OS2 simplex patch cables.
See more
