1. Rate: 10G; Connector: Duplex LC 2. FP+PIN; Low Power Consumption <0.8W 3. Applied in Data Center and Campus Networks 4. Fully Compatible with 100+ Vendors 5. SFP+ MSA CompliantSee more
The HW OSXD22N00 compatible 10GBASE-LRM SFP+ optical transceiver is equipped with an LC duplex connector, reaching a link up to 220m over OM3 MMF. QSFPTEK manufactured 10GBASE-LRM SFP+ transceiver module is compliant with SFP+ MSA, IEEE 802.3ae, SFF-8472, SFF-8431 and SFF-8432. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G SFP+ transceiver is applied in various application scenarios such as data centers, and campus networks. It's also fully compatible with almost all Huawei devices.
|
Model Name: |
SFPP-10GE-LRM |
Vendor Name: |
QSFPTEK |
|
Form Factor: |
SFP+ |
Data Rate: |
10Gbps |
|
Wavelength: |
1310nm |
Distance: |
220m@OM3 MMF |
|

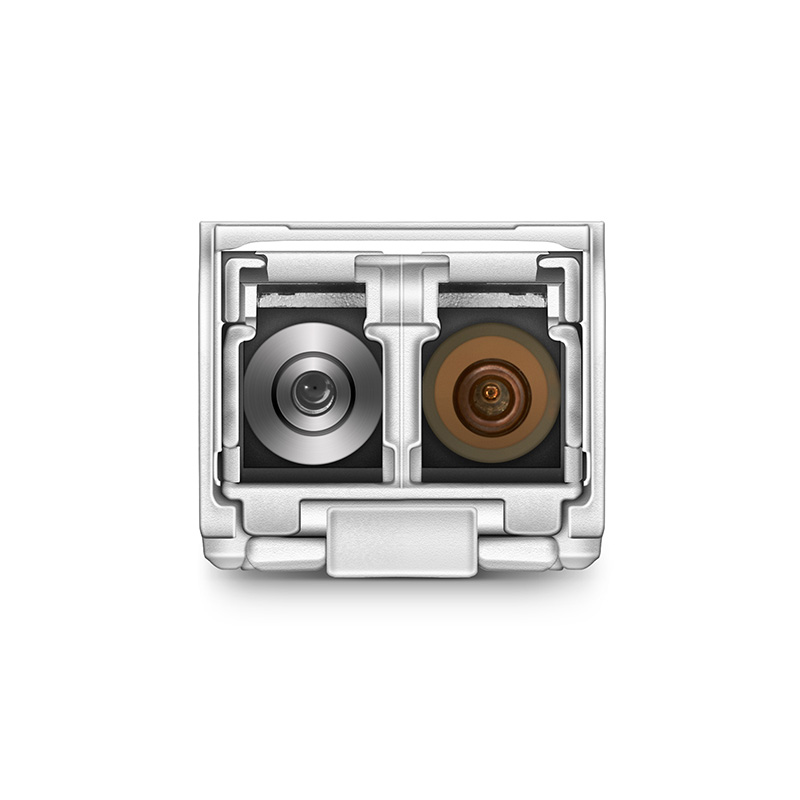

Connector: |
LC Duplex |
Cable Type: |
OS2 SMF |
|
Transmitter Type: |
FP |
Receiver Type: |
PIN |
|
TX Power: |
-6.5~-0.5dBm |
Receiver Sensitivity: |
<-6.5dBm |
|
Power Consumption: |
<0.8W |
Modulation Format: |
NRZ |
|
DDM: |
Support |
Bit Error Ratio (BER): |
1.00E-12 |
|
Protocols: |
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 |
Warranty: |
5 Years |
Take a look at our test program to get the reliable and high-performance optical transceivers.
.svg)

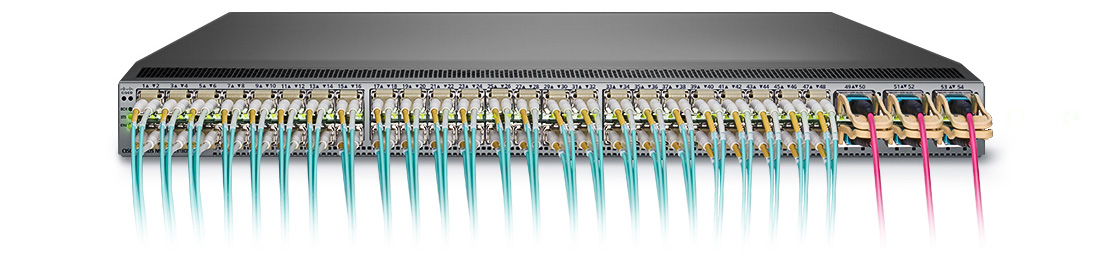

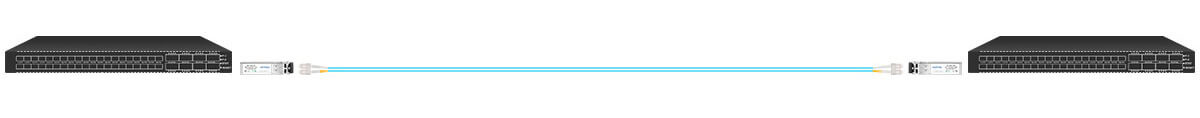

Data Center and Campus network Solution for 10G Gigabit Ethernet Switches
10G Connection for Data Center, Campus Networks; Cost-effective choice for SMB users.
Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.
Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
