1. DWDM multiplexer and demultiplexer 4 channels over single SMF. 2. 100% passive, no power supply and no temperature control required. 3. Low insert loss ≤ 2.4dB. 4. Monitor port for easy troubleshooting. 5. Expansion port for expanding with additional wavelengths.See more
Crafted by QSFPTEK, the Single Fiber 4-channel DWDM MUX/DEMUX covers wavelengths from C21 to C24 (1560.61nm to 1558.17nm), with customization options available for alternative wavelengths. This device complies with the ITU-T G.694.1 standard for a 100GHz channel spacing, optimizing the utilization of the C-band spectrum.

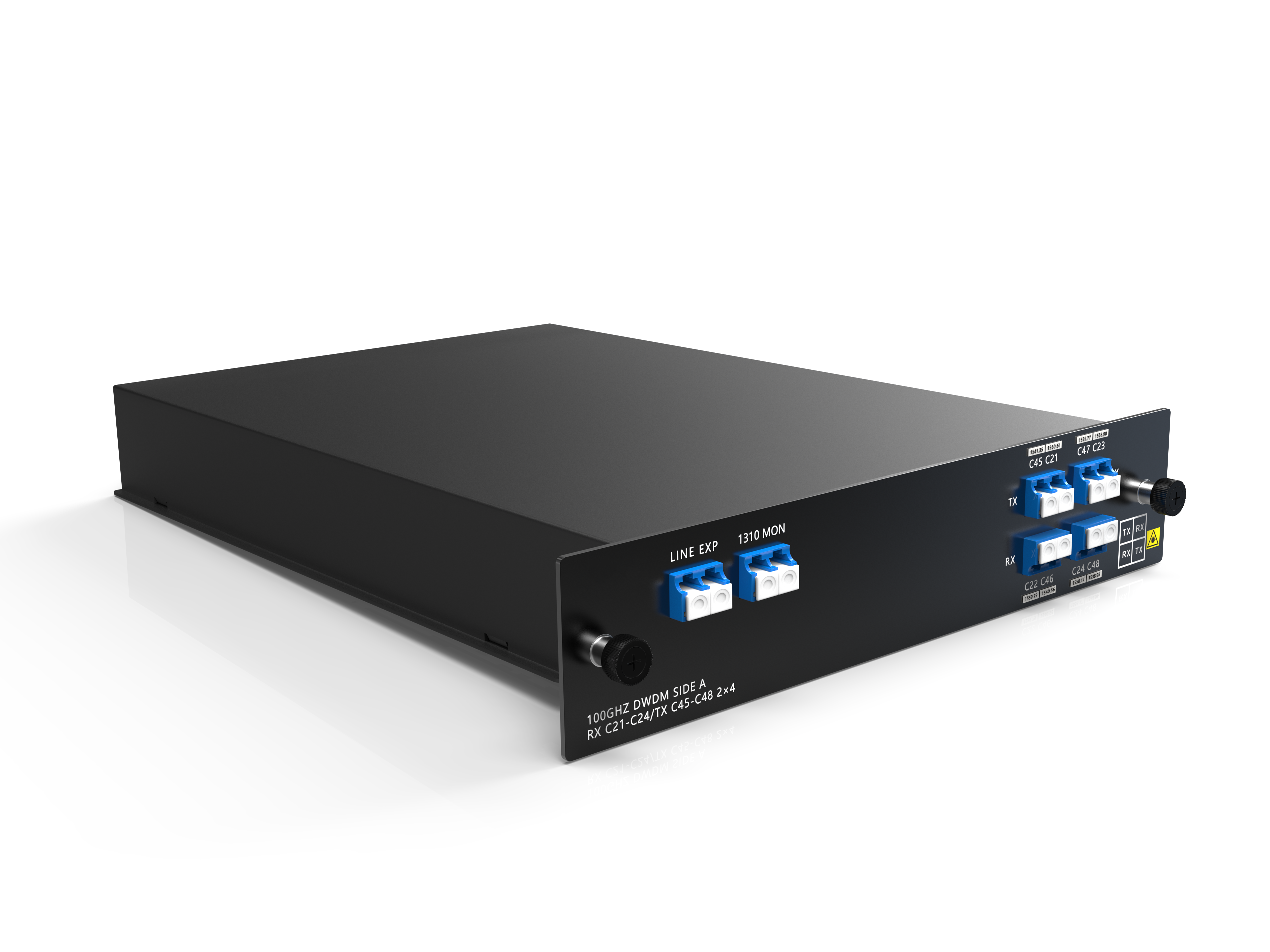

Functioning as a completely passive unit, this DWDM component integrates effortlessly as an FMUC plug-in module, suitable for a 2-slot 1U rack. It boasts a minimal insertion loss of less than 1.5dB, enhancing performance efficacy.
In synergy with DWDM amplifiers, DCM modules and R/B Filters, it becomes an integral part of an 4-channel DWDM one core fiber transmission system, facilitating extended communication ranges. This seamless integration amplifies its capacity for long-distance transmissions, underscoring its efficiency and reliability in advanced network architectures.
Take a look at our test program to get the reliable and high-performance optical transceivers.

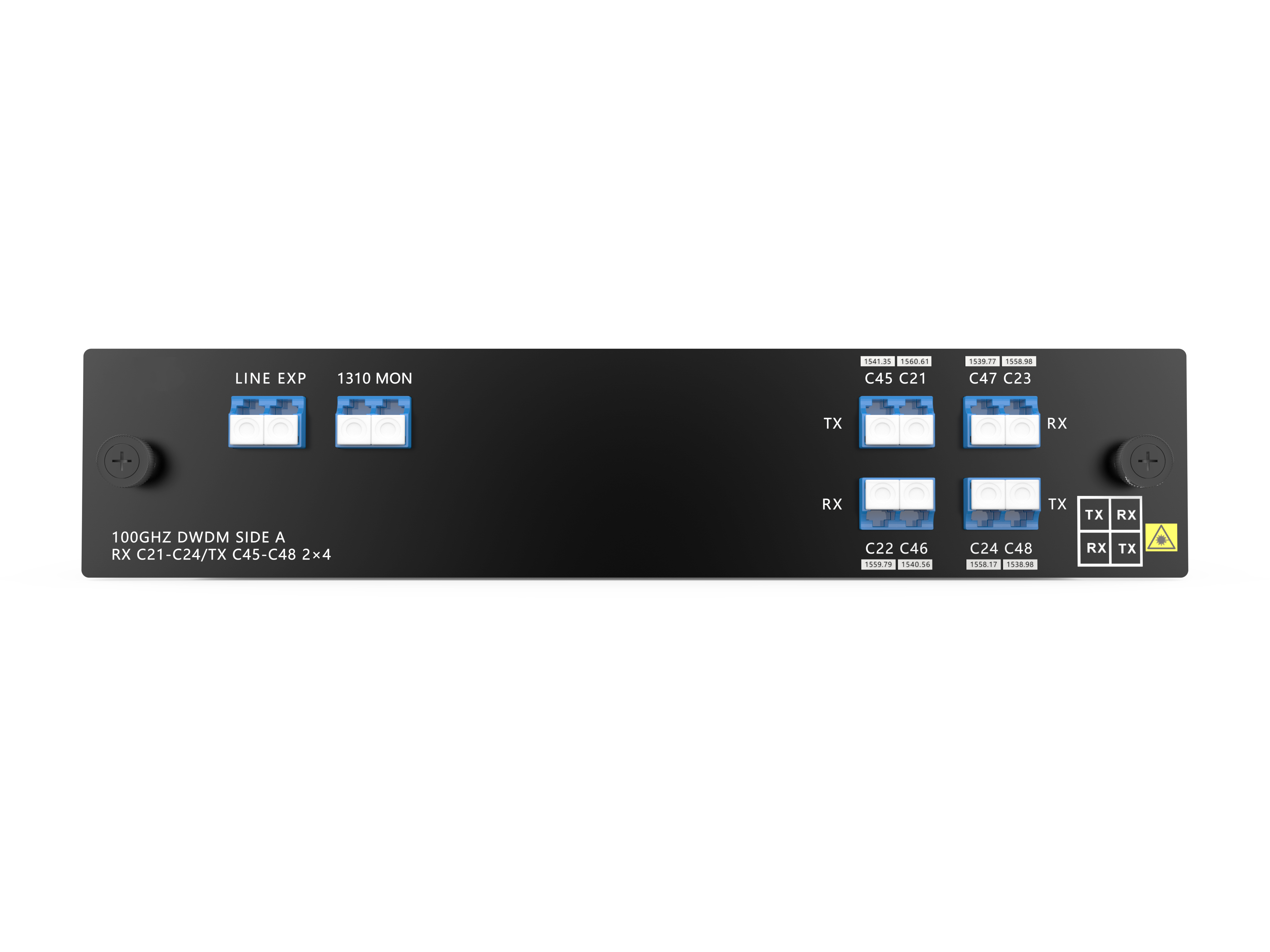

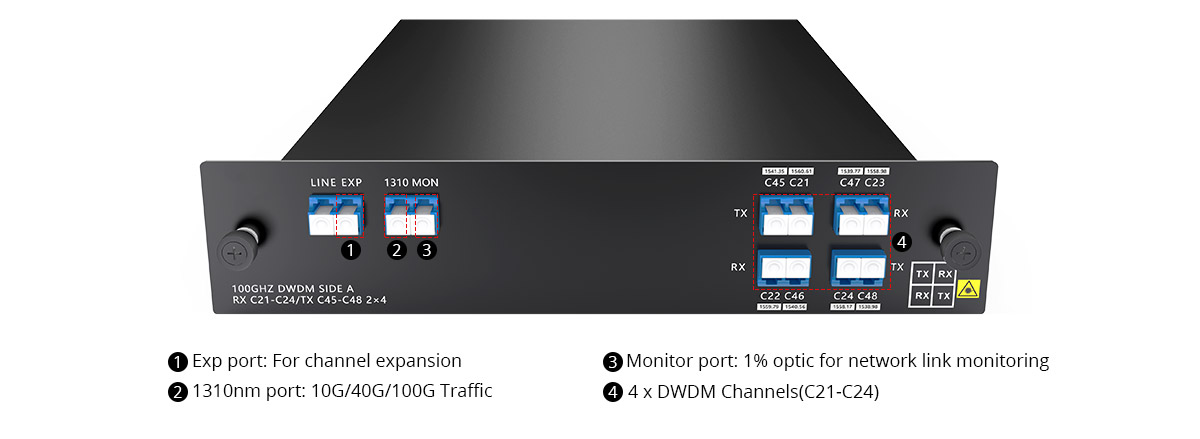

The channel port C21-C24 is designed for DWDM traffic, with the EXP port allowing network expansion, and the MON port for link monitoring.
The DWDM Mux Demux essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.
WDM technology enables diverse data transmissions over a single fiber, reducing the need for multiple dedicated fibers per service.
It serves as a cost-effective network solution by optimizing the utilization of optical fibers.
