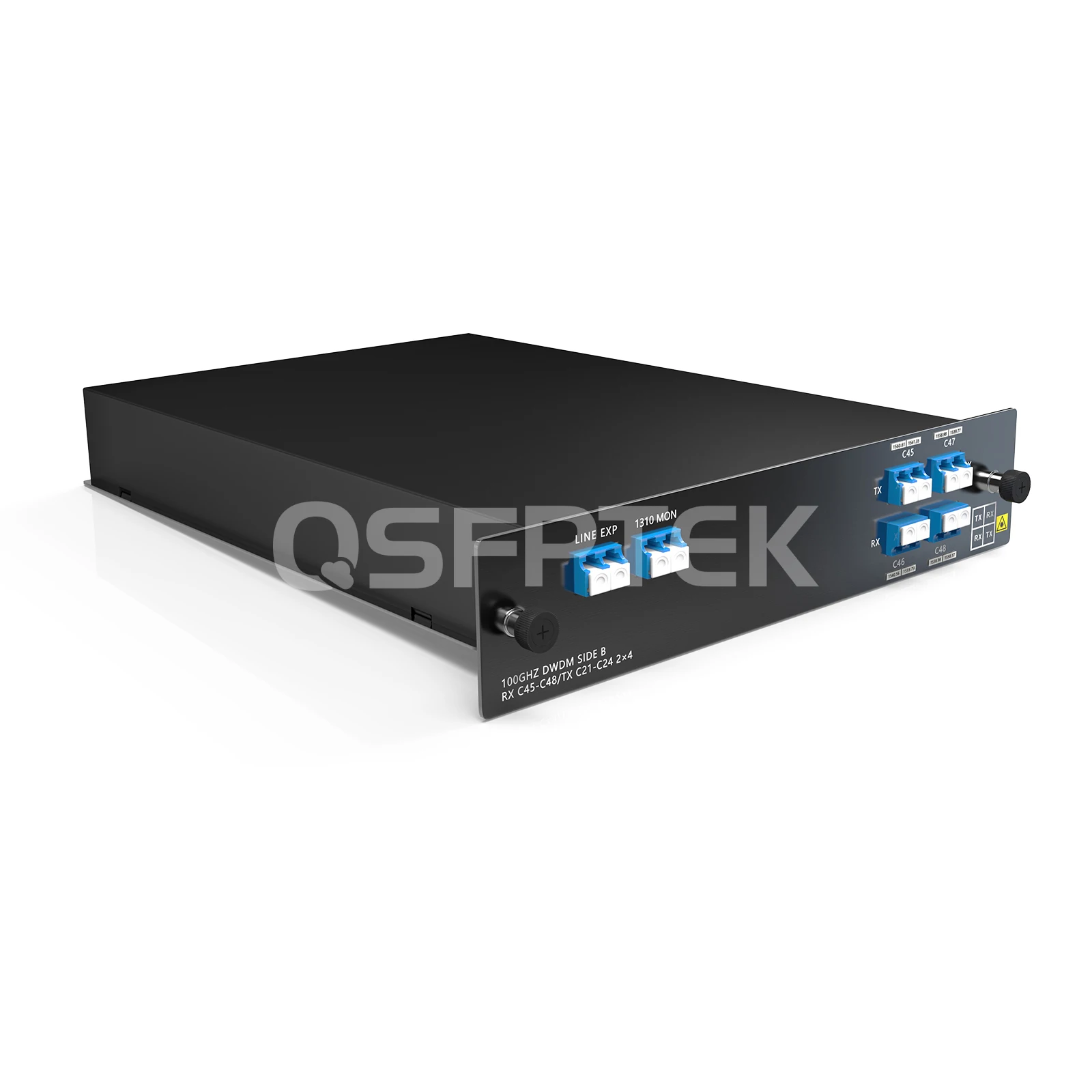

    4CH C45-C48 Single Fiber DWDM MUX DEMUX, Side B, With Monitor and 1310nm, EXP Port, LC/UPC, FMU

    Product No: 102393
    19 Reviews
    190 Sold
    US$ 212.90  US$ 229.90
    Series
    Model
    96 in real-time stock, 05 Jun, 2026
    3-Year Warranty 90-Day Returns 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. DWDM multiplexer and demultiplexer 4 channels over single SMF.
2. 100% passive, no power supply and no temperature control required.
3. Low insert loss  ≤ 2.4dB.
4. Monitor port for easy troubleshooting.
5. Expansion port for expanding with additional wavelengths.
    See more

    Specifications

    4CH C45-C48 Single Fiber DWDM MUX DEMUX, Side B, With Monitor and 1310nm, EXP Port, LC/UPC, FMU



    Crafted by QSFPTEK, the Single Fiber 4-channel DWDM MUX/DEMUX covers wavelengths from C45 to C48 (1541.35nm~1538.98nm), with customization options available for alternative wavelengths. This device complies with the ITU-T G.694.1 standard for a 100GHz channel spacing, optimizing the utilization of the C-band spectrum.



    Functioning as a completely passive unit, this DWDM component integrates effortlessly as an FMUC plug-in module, suitable for a 2-slot 1U rack. It boasts a minimal insertion loss of less than 1.5dB, enhancing performance efficacy.



    In synergy with DWDM amplifiers, DCM modules and R/B Filters, it becomes an integral part of a 4-channel DWDM one-core fiber transmission system, facilitating extended communication ranges. This seamless integration amplifies its capacity for long-distance transmissions, underscoring its efficiency and reliability in advanced network architectures.



    Part Number QT-FMU-D44548EM3B Installation Method FMU-C Plug-in
    Wavelength 4 Channels C45-C48 Channel Spacing 100GHz (0.8nm)
    Channel Passband ±0.11nm Passband Ripple ≤ 0.2dB
    Insertion Loss ≤ 2.4dB Technology TFF (Thin Film Filter)
    Insertion Loss @ 1310nm Port ≤0.8dB Insertion Loss @ 1% Mon ≤ 26dB
    Directivity ≥45dB Link Loss ≤3.2dB
    Polarization Mode Dispersion (PMD) ≤ 0.1ps Return Loss ≥ 45dB
    Polarization Dependent Loss (PDL) ≤ 0.3dB Channel Isolation Adjacent ≥25dB
    Non-adjacent ≥ 30dB
    1310nm Port Passband 1260nm~1360nm Operating Temperature -5 to 65°C (23 to 149°F)
    Center Wavelength Accuracy ±0.05dB Storage Temperature -40 to 85°C (-40 to 185°F)
    Net Weight FMU BOX: 0.5KG
    2 Slot 1U Rack: 3.5KG    		 Dimensions (H x W x D) FMU BOX: 44 x 212 x 255mm
    2 Slot 1U Rack: 44 x 442 x 261mm
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Optimal Optical Performance
      Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
    • 2. Widely Application Scenarios
      It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel.
    • 3. Integrated with MON Port and EXP Port
      The monitor port allows easy troubleshooting without downtime, the expansion port supports capacity expansion.
    • 4. Quality Certifications
      Backed by CE, FCC, ISO9001, ISO14001.

    Applications

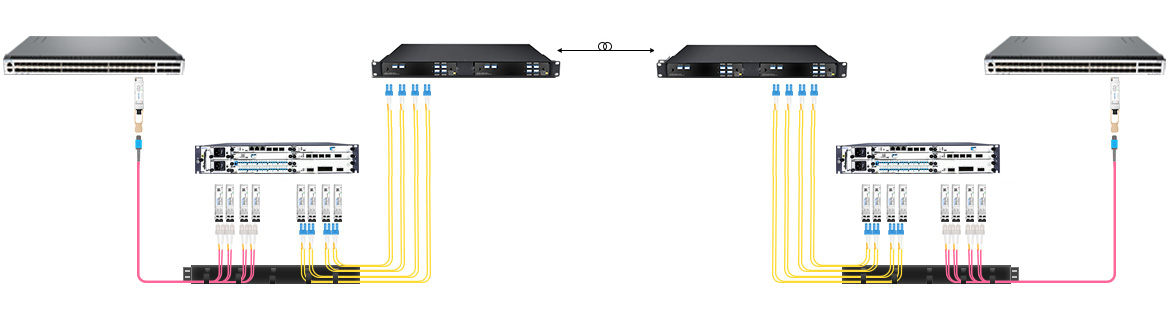

    Use Single Fiber DWDM Mux Demux for Bidirectional 10G DWDM Network up to 40KM



    Use Single Fiber DWDM Mux Demux for Bidirectional 10G DWDM Network up to 40KM

    Product details

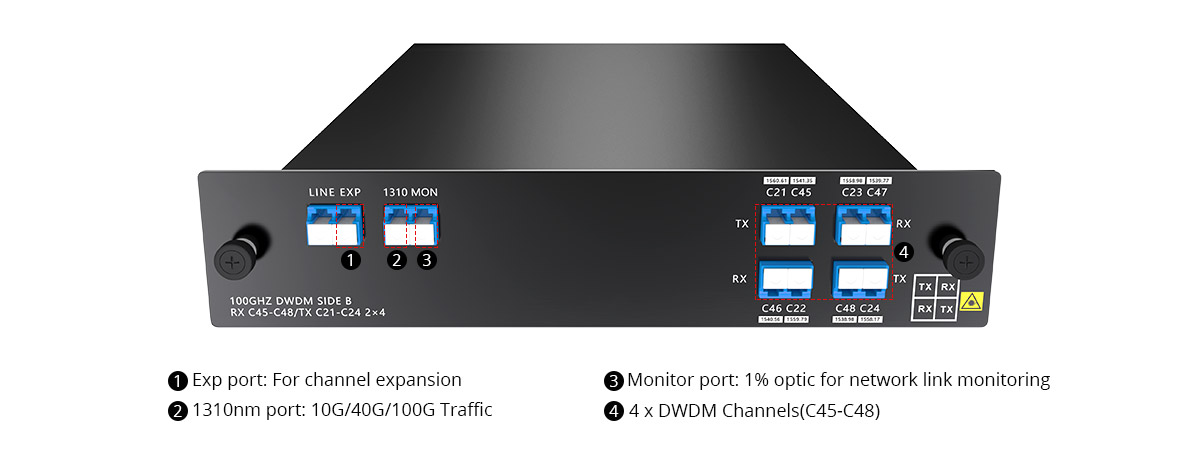

    Rich Ports for 4 Channels CWDM Mux Demux



    The channel port C45-C48 is designed for DWDM traffic, with the EXP port allowing network expansion, and the MON port for link monitoring.



    Rich Ports for 4 Channels CWDM Mux Demux

    Basic Principles of DWDM Multiplexing and Demultiplexing



    The DWDM Mux Demux essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.

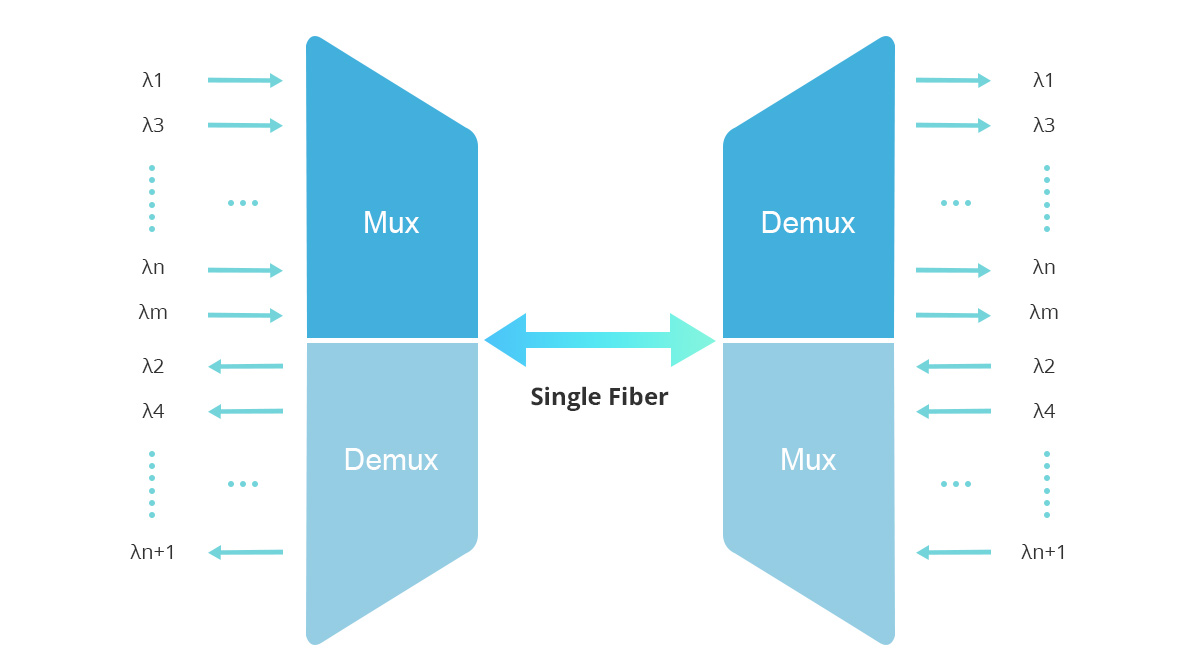

    Single Fiber Wavelength



    Maximize Your Fiber Resources with Passive WDM Network



    WDM technology enables diverse data transmissions over a single fiber, reducing the need for multiple dedicated fibers per service.

    It serves as a cost-effective network solution by optimizing the utilization of optical fibers.



    Maximize Your Fiber Resources with Passive WDM Network



    Comprehensive Network Solution Design for Free



    Individually crafted solutions meeting your specific requirements perfectly.

         Comprehensive Network Solution Design for Free
