Home / Products / Multiplexers / Mux Demux / DWDM Mux Demux / 100540

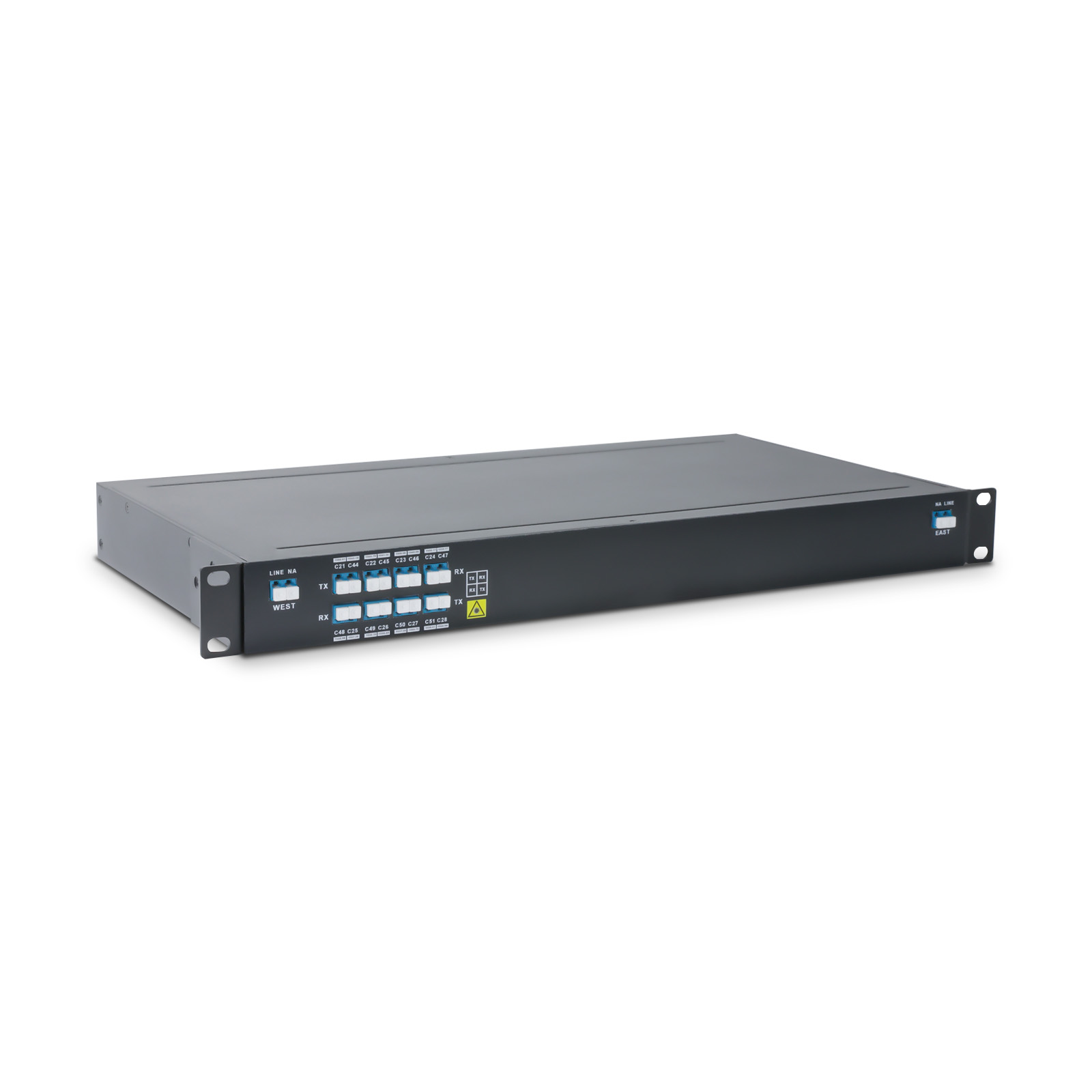

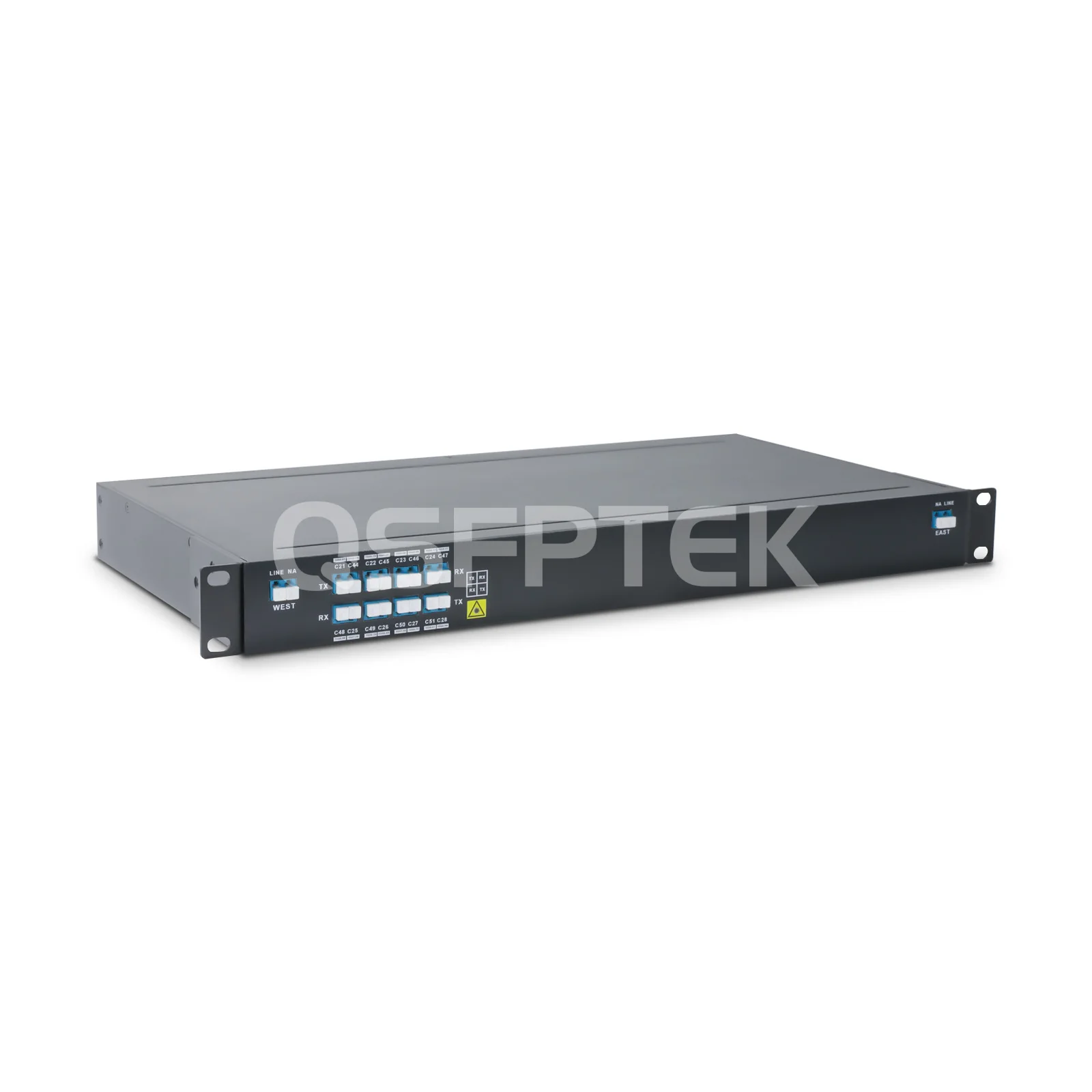

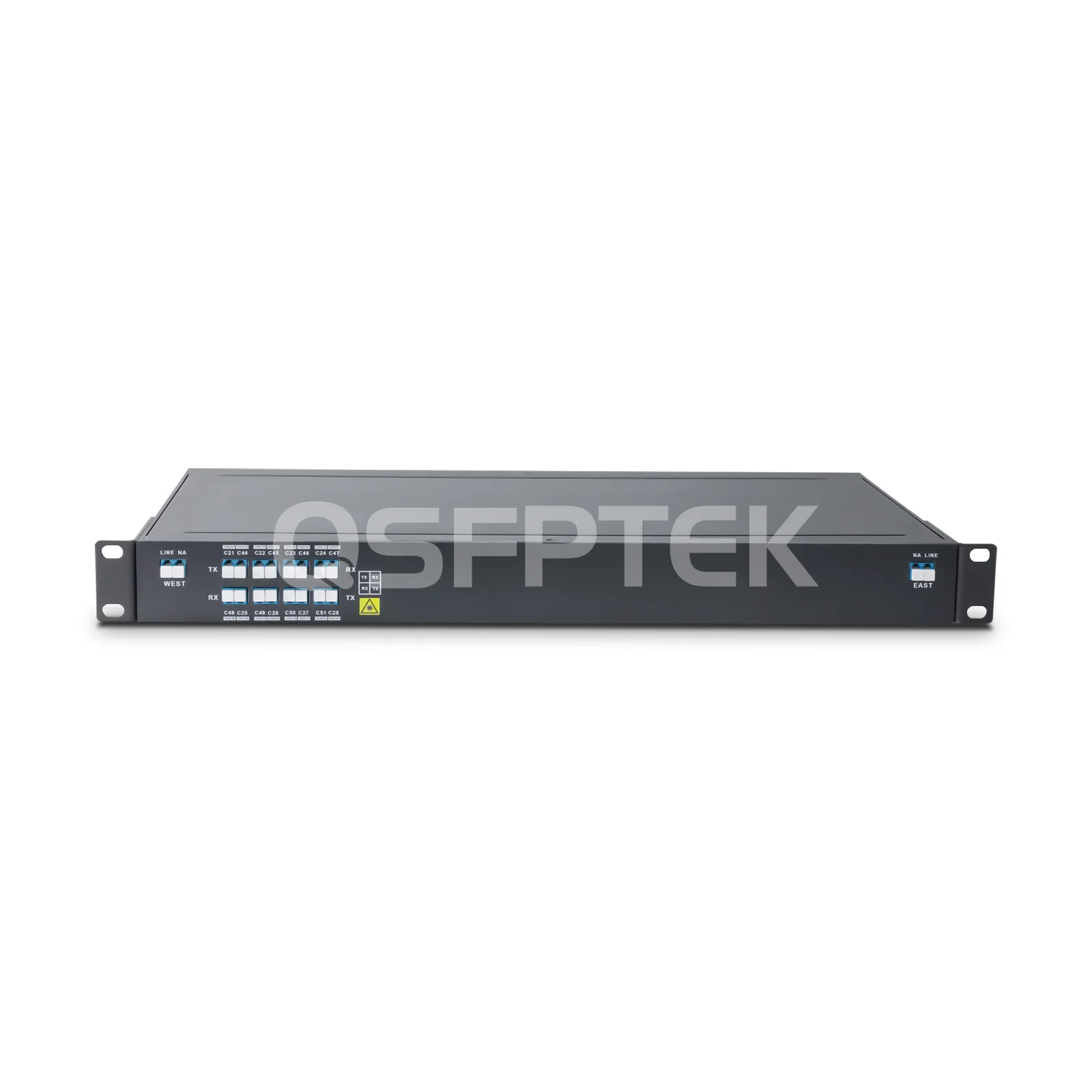

8CH C29-36 Dual Fiber Unidirectional DWDM OADM, East Or West, 1U Rack Mount

Product No :100540
US$ 296.90  US$ 349.00
Series
Model
100 in real-time stock, 28Mar, 2025
;jsessionid=91533C979753B2B877B35AA0C7D7FD7A
-
+
Add to Cart Bulk Order Quotes
1. This DWDM OADM MUX DEMUX has an insertion loss of less than 2.7dB at 100GHz.
2. A dark fiber network is used for dropping and adding 8 multiplexed channels.
3. All ITU-T 1G/10G/25G/40G/100G DWDM optics are fully compatible with this setup.
4. These are passive devices and do not require any power or cooling.
5. This setup supports DWDM networks for metro, regional, and long haul distances.
See more

Specifications

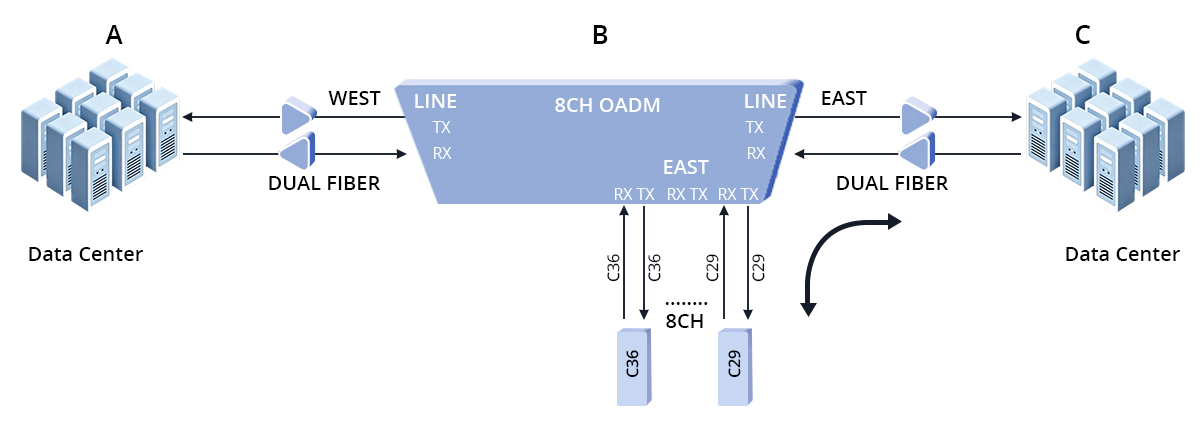

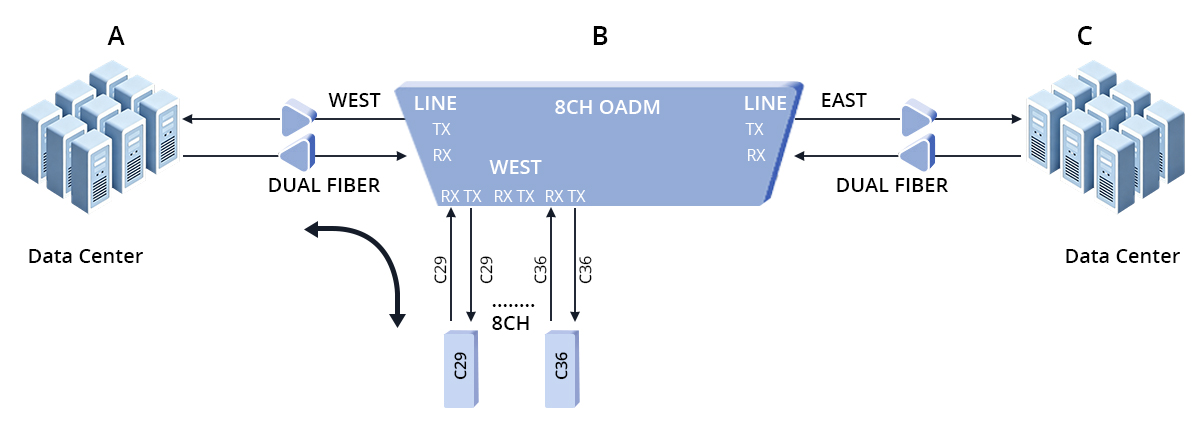

Dual Fiber 8CH C29-C36 DWDM OADM, EAST Or West, LC/UPC, 1U Rack



QSFPTEK has designed the 8-channel DWDM OADM with drop and add wavelengths ranging from C29 to C36, which correspond to 1554.13nm to 1548.51nm. The device supports a west-to-east wavelength range of 1270nm to 1547nm / 1553nm to 1620nm in accordance with the ITU-T G.694.1 100GHZ grid, allowing for maximum capacity within the C-band range.



This is a completely passive DWDM device with 8 channels available for both drop and add functions using two fibers. The loss of waves in the west or east direction is less than 2.7dB, while the line loss in either direction is less than 2.4 dB.





Wavelength OADM C29-C36
WEST TO EAST 1270nm to 1547nm / 1553nm to 1620nm		 Channel Spacing 100GHz (0.8nm)
Channel Passband ±0.11nm Technology TFF (Thin Film Filter)
Insertion Loss ≤2.7dB( waves to west or east) Link Loss ≤2.4dB ( west or east)
Return Loss ≥ 45dB Directivity ≥ 45dB
Polarization Mode Dispersion ≤ 0.1ps Polarization Dependent Loss ≤ 0.3dB
Channel Isolation Adjacent ≥30dB
Non-adjacent ≥ 45dB		 Temperature Operating -40 to 85°C (-40 to 185°F)
Storage -40 to 85°C (-40 to 185°F)
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. Optimal Optical Performance
    Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
  • 2. Widely Application Scenarios

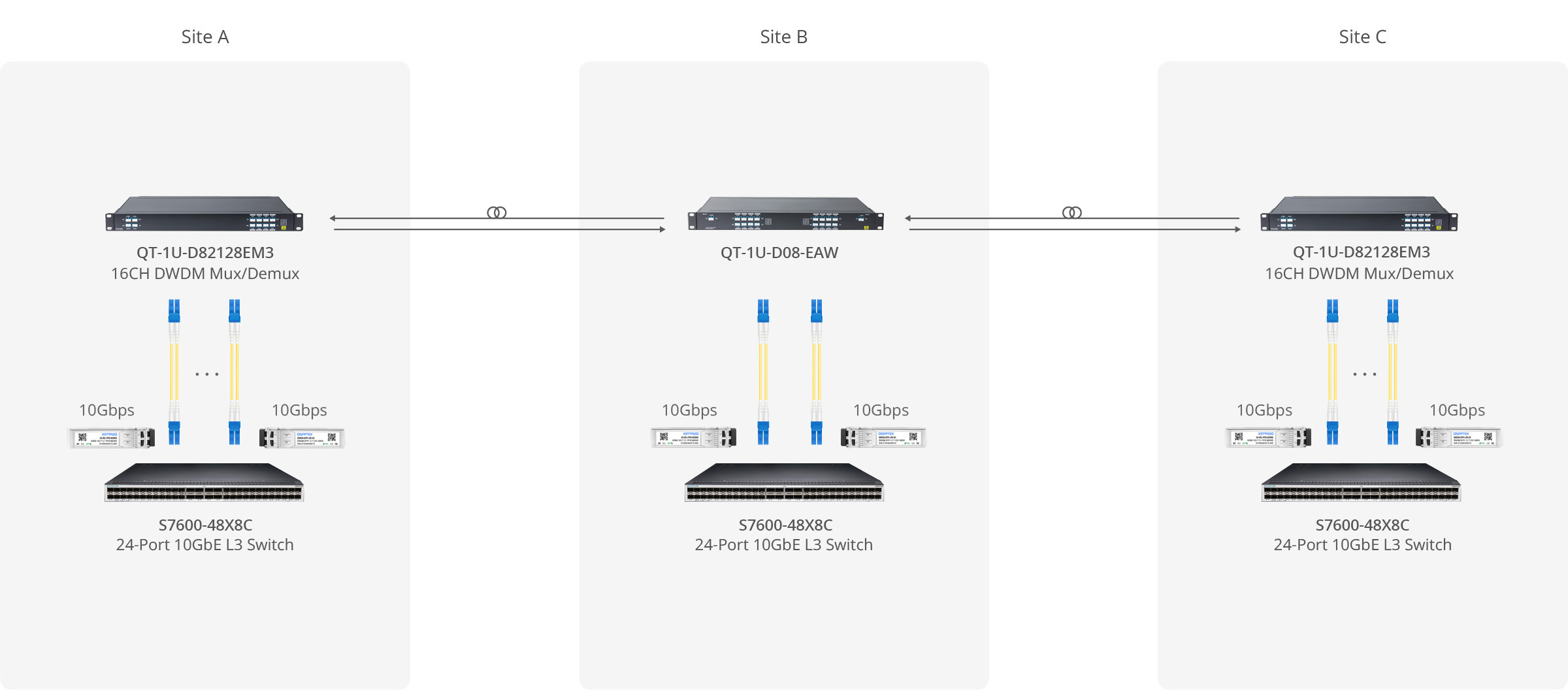

    It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET.

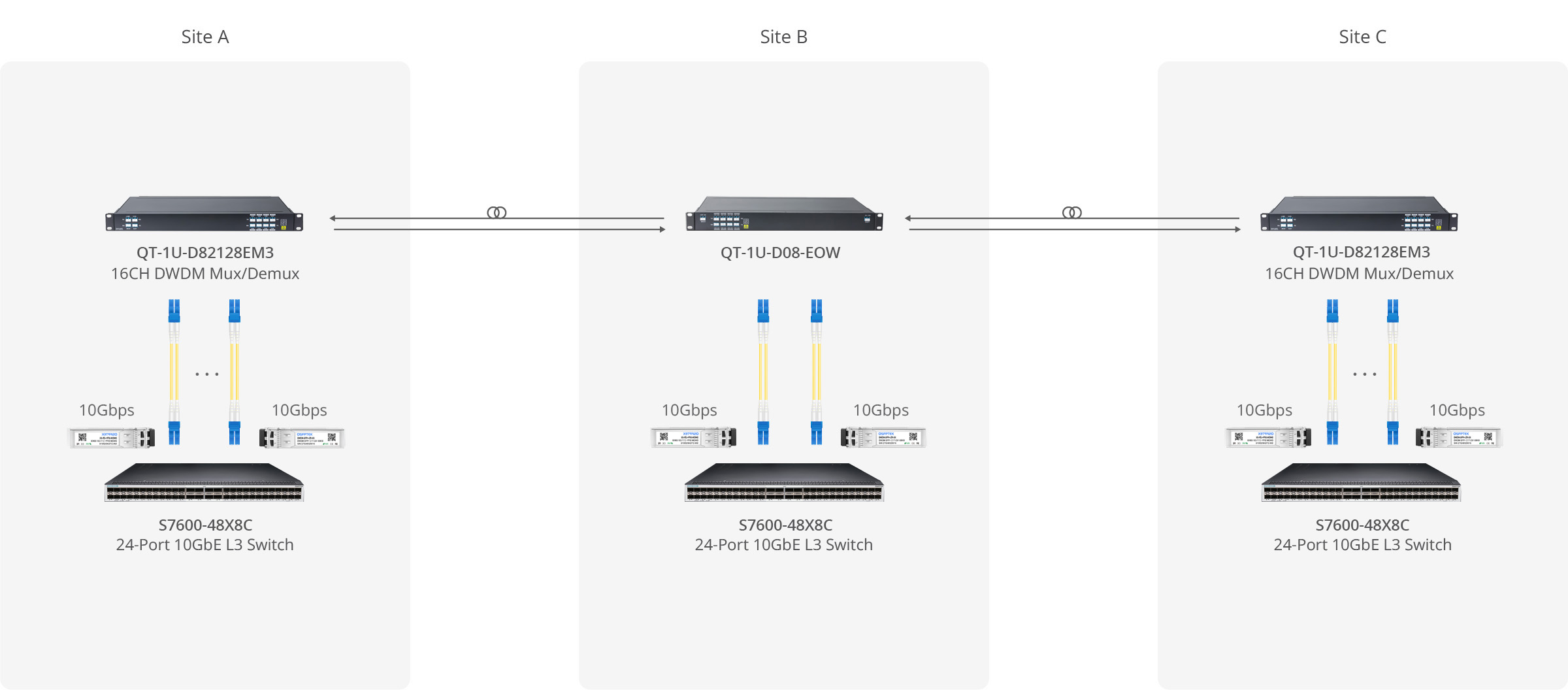

  • 3. Optimize Fiber Capacity with WDM Network.
    In WDM networks, a single fiber can be shared for multiple different data or services. This maximizes the usefulness of fiber and generates substantial savings.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Questions & Answers

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

19 Reviews

4 stars

0 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (1)
  • Good Price (1)
  • Riva United States of America
    2024-07-12

    This OADM seamlessly connected to my network. I used this device to expand my network. After testing, the network insertion loss was consistent with the description on the website.

    Model1U, C29-C36, 2.7dB

    SeriesDWDM OADM

    Verified Purchase

    Helpful

    0

Video

Resources

  • PDF Document
    QT-1U-D08-EOW Datasheet.pdf
  • PDF Document
    Mux Demux & OADM User Guide.pdf
Contact us
Write a Review
8CH C29-36 Dual Fiber Unidirectional DWDM OADM, East Or West, 1U Rack Mount

Series DWDM OADM

Model 1U, C29-C36, 2.7dB

* Review
0/1000
Allow files type of JPG, PNG, MP4. Maximum file size: 5MB

Maximum size: 5MB

Satisfaction
Customer Gallery
View All Customer Gallery

Mark

2023-12-15
This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!

Verified Purchase

Helpful

8

Sign in to vote
Added to Cart
8CH C29-36 Dual Fiber Unidirectional DWDM OADM, East Or West, 1U Rack Mount
US$ 296.90
Series
DWDM OADM
Model
1U, C29-C36, 2.7dB
Quantity
Subtotal
View Cart
Check Out
Continue shopping

Confirmation

Successfully added shopping cart

Bulk Order Quotes

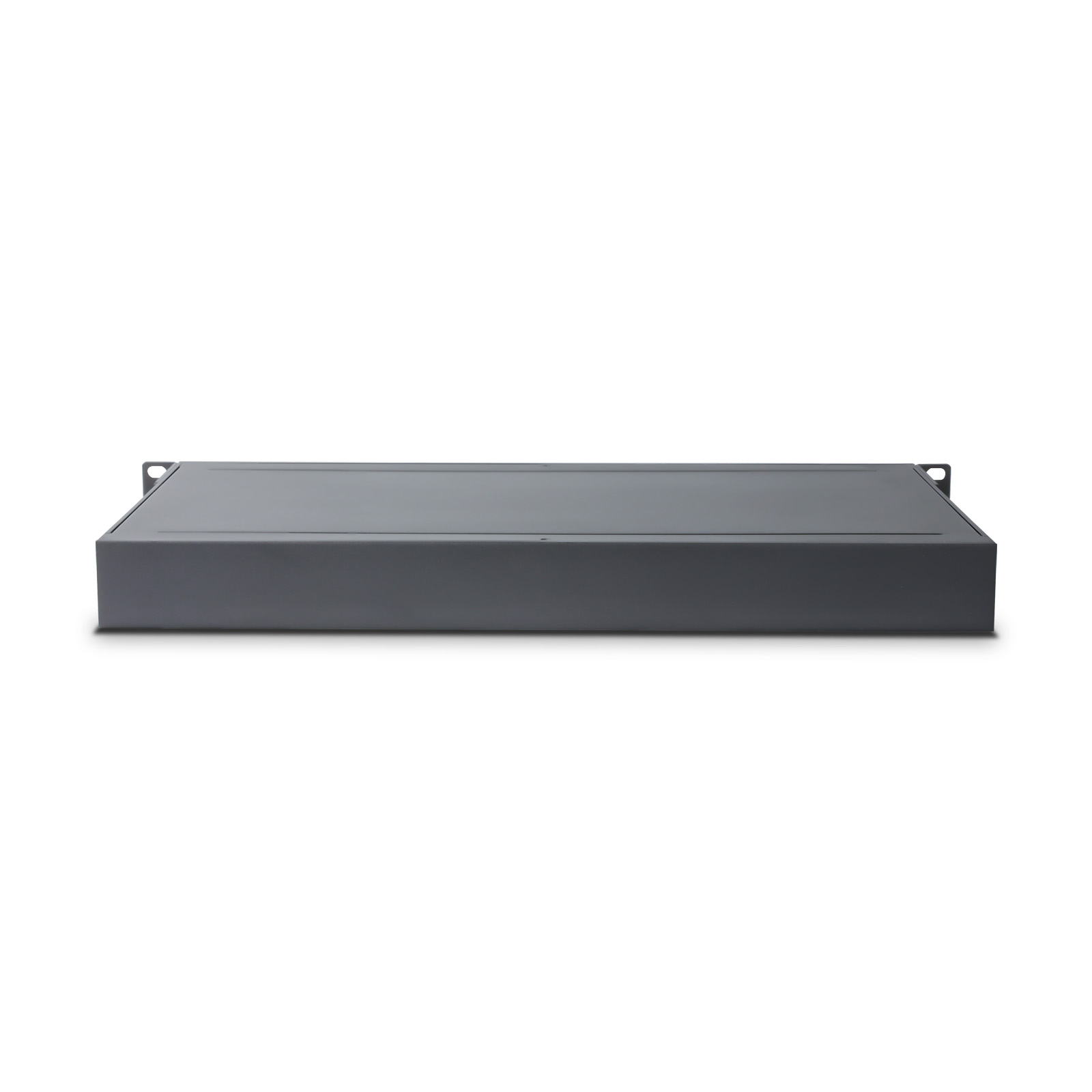

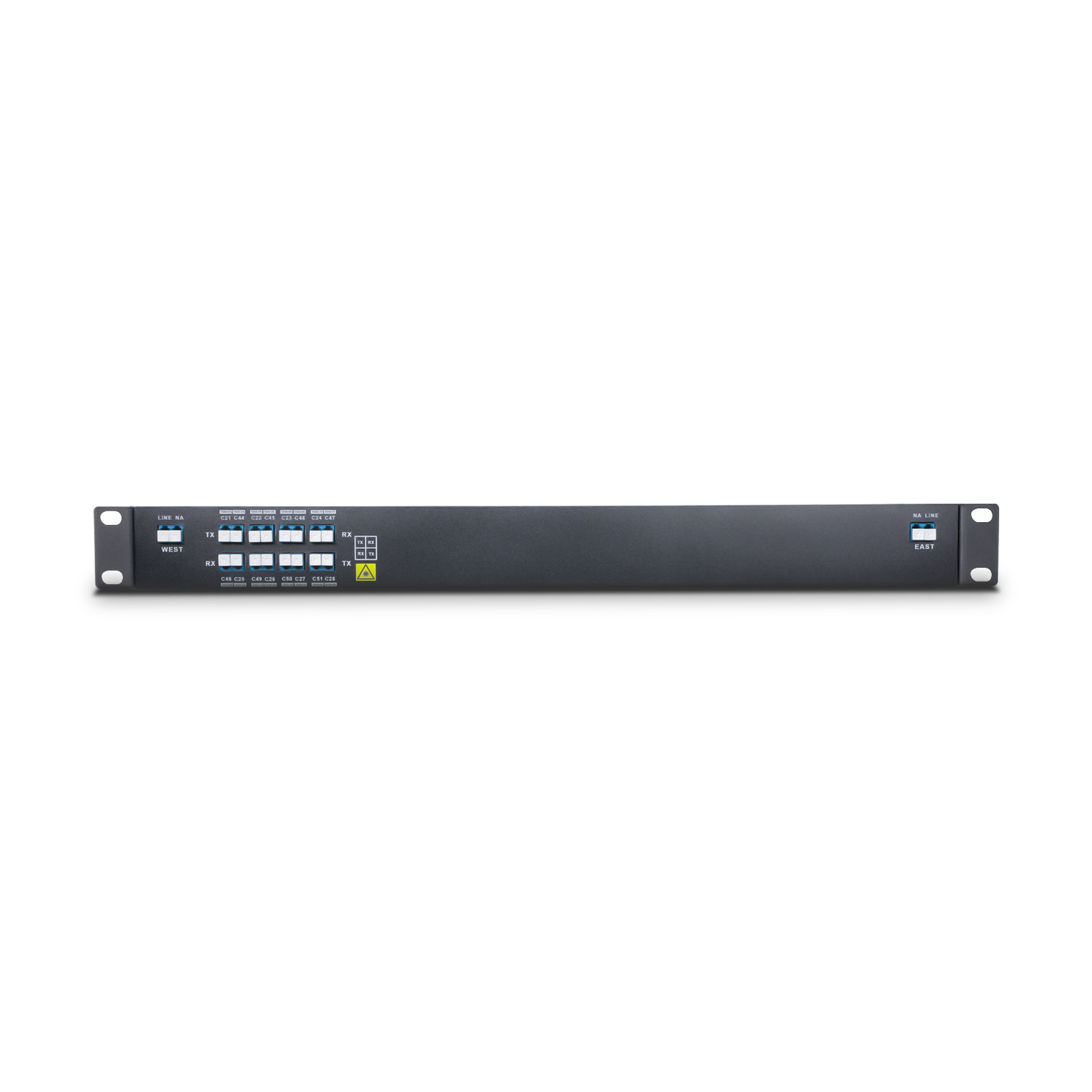

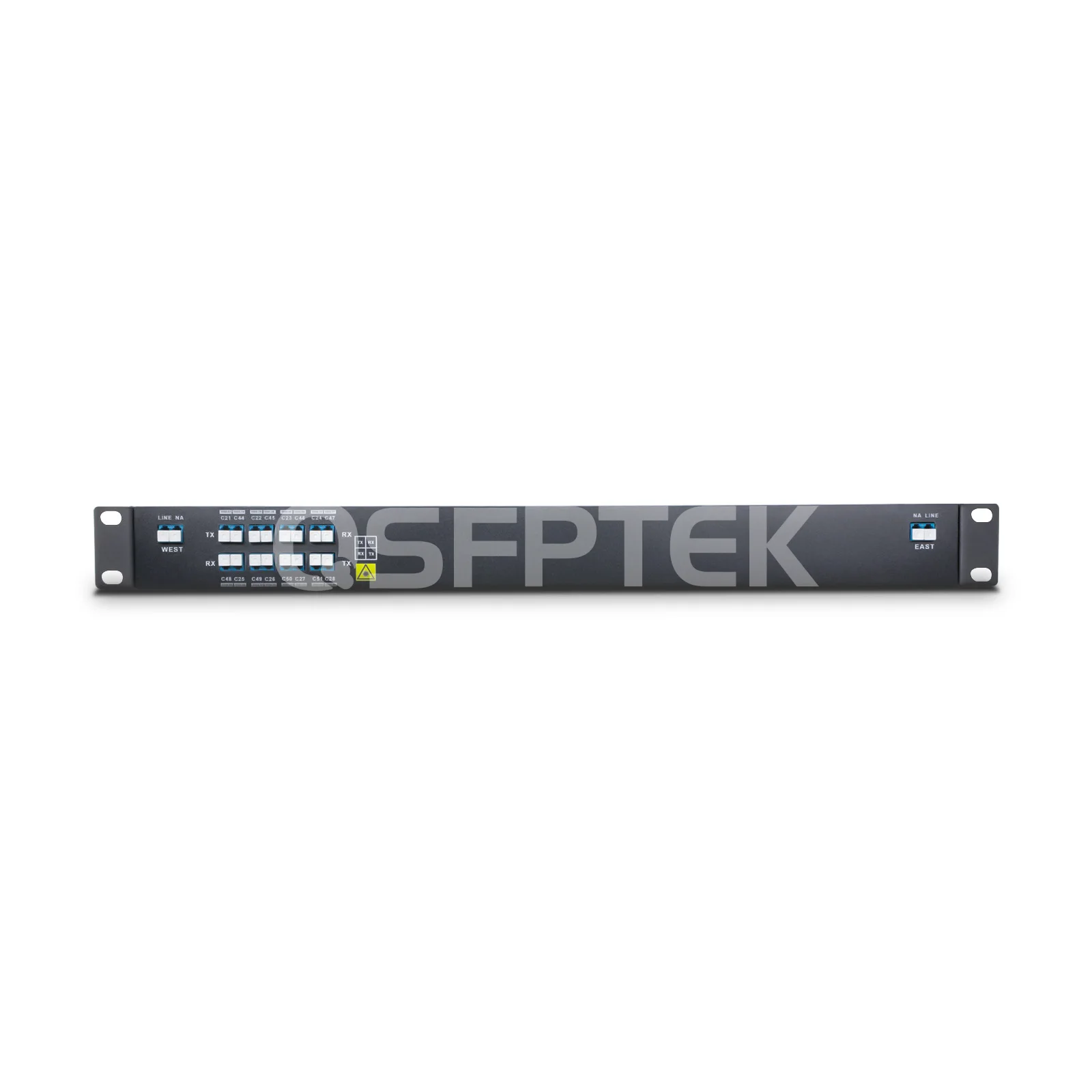

8CH C29-36 Dual Fiber Unidirectional DWDM OADM, East Or West, 1U Rack Mount ;jsessionid=91533C979753B2B877B35AA0C7D7FD7A

Series DWDM OADM ;jsessionid=91533C979753B2B877B35AA0C7D7FD7A

Model 1U, C29-C36, 2.7dB ;jsessionid=91533C979753B2B877B35AA0C7D7FD7A

  • Qty:

  • Name:

  • E-mail:

  • Country
