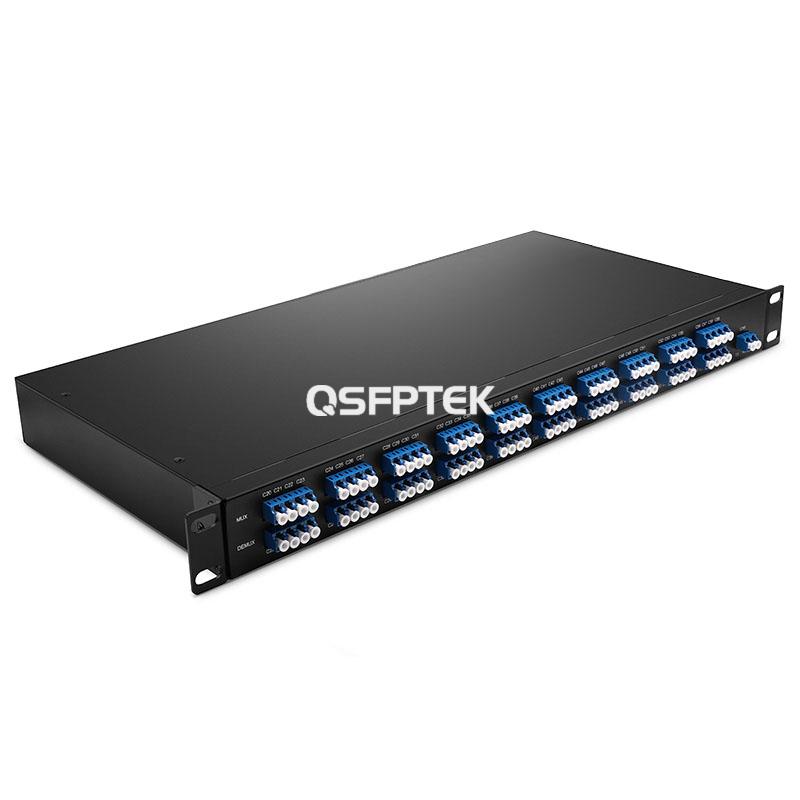

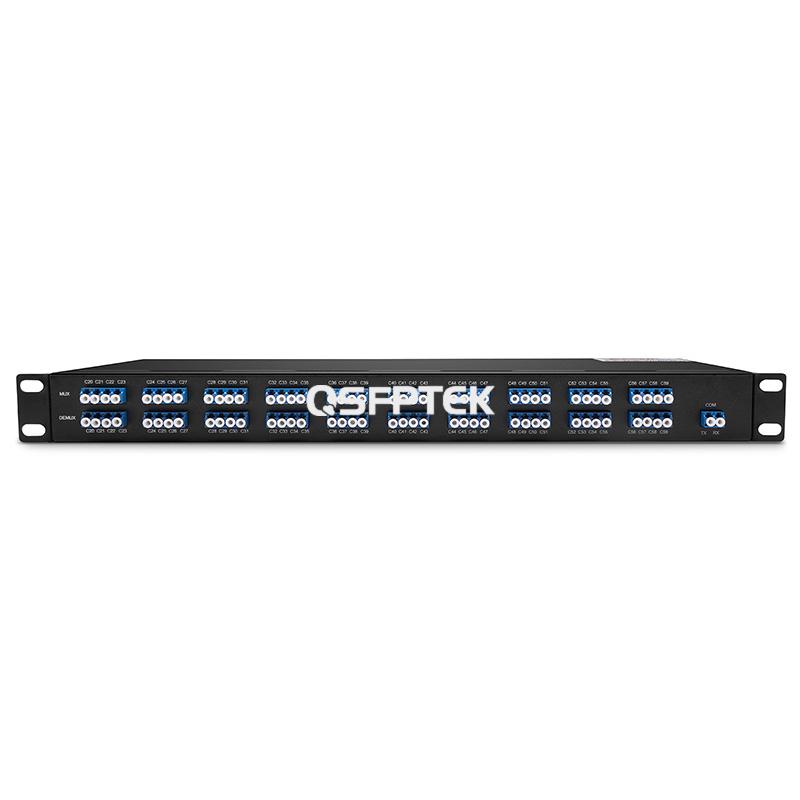

40 Channels Passive DWDM Mux Demux, 100GHz, C20-C59, Dual Fiber, LC Connector, 1U 19” Rack Mount

Product No :100075
US$ 699.00  US$ 799.00
30 in stock
1. DWDM multiplexer and demultiplexer 40 channels over dual SMF
2. 100% Passive, no power supply and no temperature control required
3. Low insert loss  ≤ 5dB
4. High channel isolation ≥ 25dB
5. Full ITU-T C-band 100 GHz coverage, Channels 20-59
6. Easy to be installed on 1U 19-inch standard racks
See more

Specifications

40 Channels Passive DWDM Mux Demux, 100GHz Spacing, ITU Wavelengths C20-C59, Dual Fiber



The 40 channels DWDM Mux Demux contains a 40-channel fiber optic multiplexer and a 40-channel optical demultiplexer, supporting signal multiplexing and demultiplexing in 100GHz channel spacing DWDM systems. Based on AAWG (Athermal Arrayed Waveguide Grating) technology, the DWDM Mux Demux device combines 40-channels of 100GHz ITU wavelengths to a denser DWDM signal and separate the combined DWDM signal into 40-channels of ITU wavelengths over a pair of single-mode optical fiber. DWDM Mux Demux is fully passive and requires no power supply and temperature control. It is also easy to be installed on 1U 19-inch standard racks without moving parts, thus recognized as an ideal and cost-effective solution for point-to-point data center interconnections.



Wavelength

40 channels C20-C59

Channel Spacing:

 100GHz (0.8nm)

Center Wavelength Accuracy:

±0.05nm

Channel Passband:

±0.11nm

Filter Technology:

AAWG (Athermal Arrayed Waveguide Grating)

Passband Ripple:

≤ 1.5dB

Insertion Loss:

≤ 5.0dB

Return Loss:

 ≥ 40dB

Drop Adjacent Channel Isolation:

≥ 25dB

Drop nonadjacent channel isolation

 ≥ 29dB

Polarization Dependent Loss (PDL)

≤ 0.7dB

Polarization Mode Dispersion (PMD):

≤ 0.5ps

Operating Temperature Range:

-5 to 65°C (23 to 149°F)

Storage Temperature Range:

 -40 to 85°C (-40 to 185°F)

Power Handling:

≤ 23dBm

Dimensions (HxWxD):

 1.73"x19"x10.28" (44x481.8x261.2mm)

Quality Certifications

Features

  • 1. Optimal Optical Performance
    Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
  • 2. Widely Application Scenarios
    It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel.
  • 3. High-quality with Cost-effectiveness
    QSFPTEK always insists on producing high-quality products at a competitive price.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

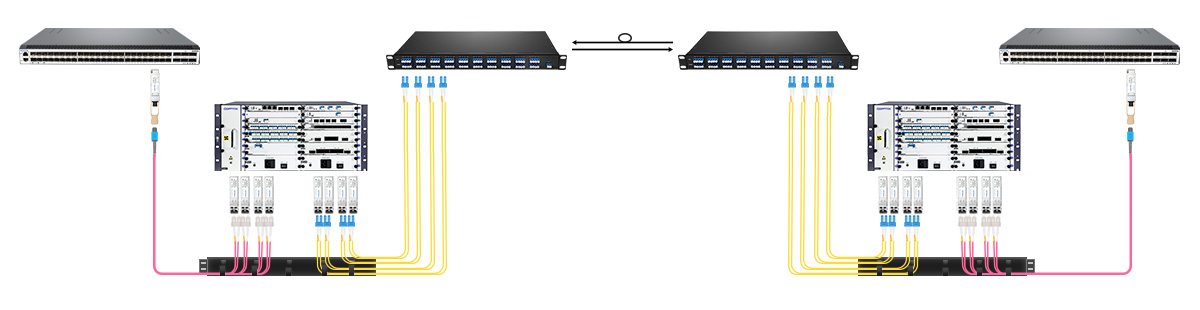

Use DWDM Mux Demux for Multiple 40G DWDM Network up to 40KM
