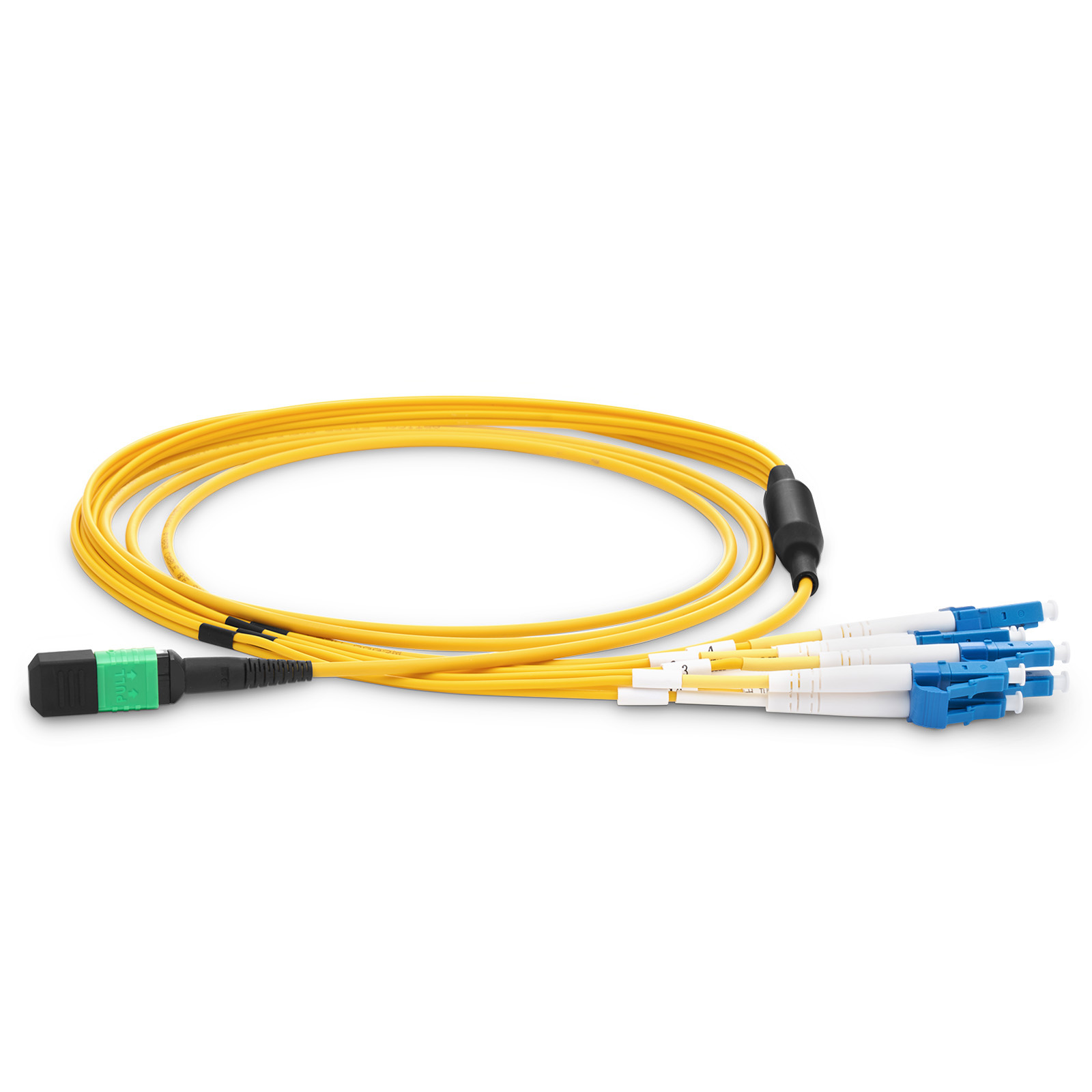

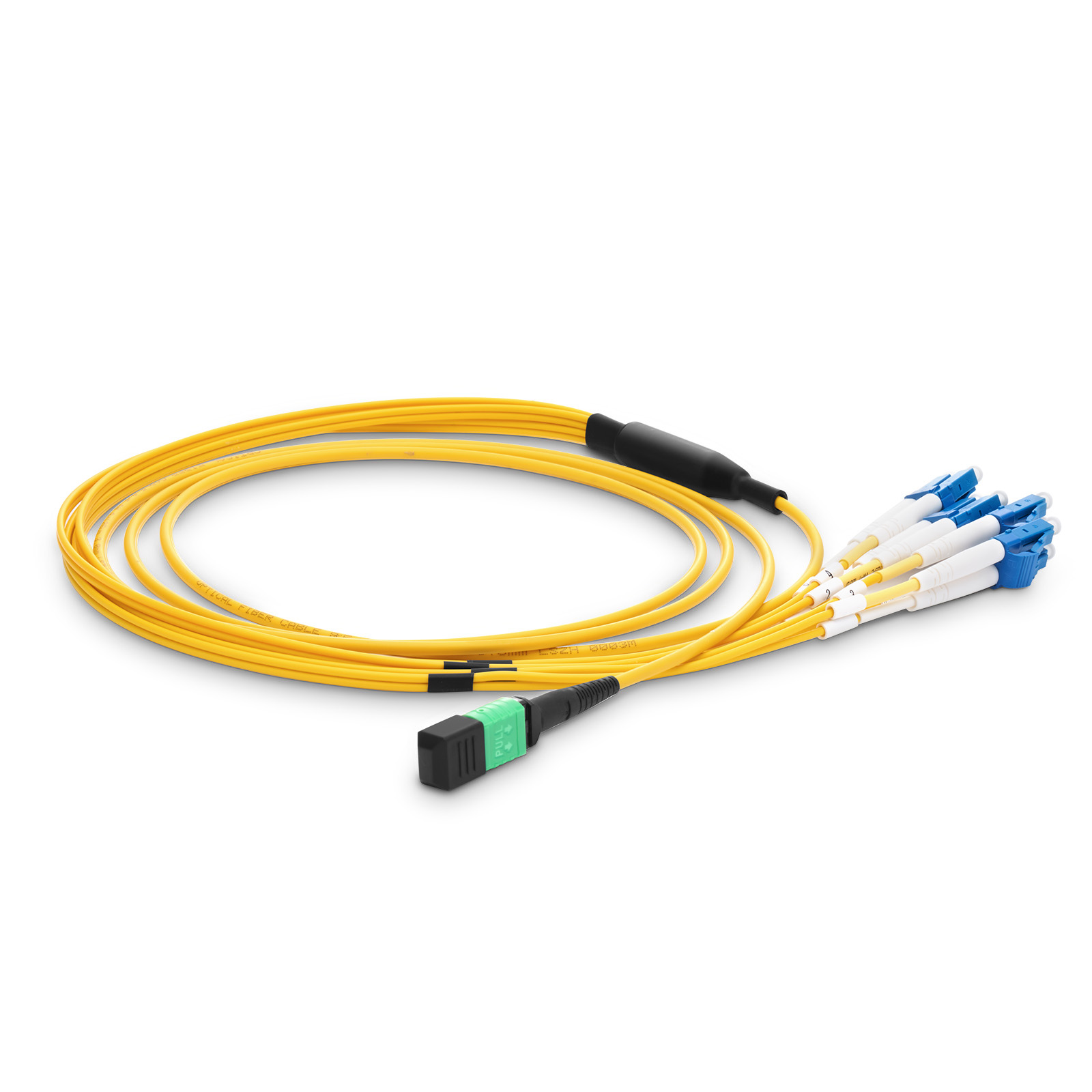

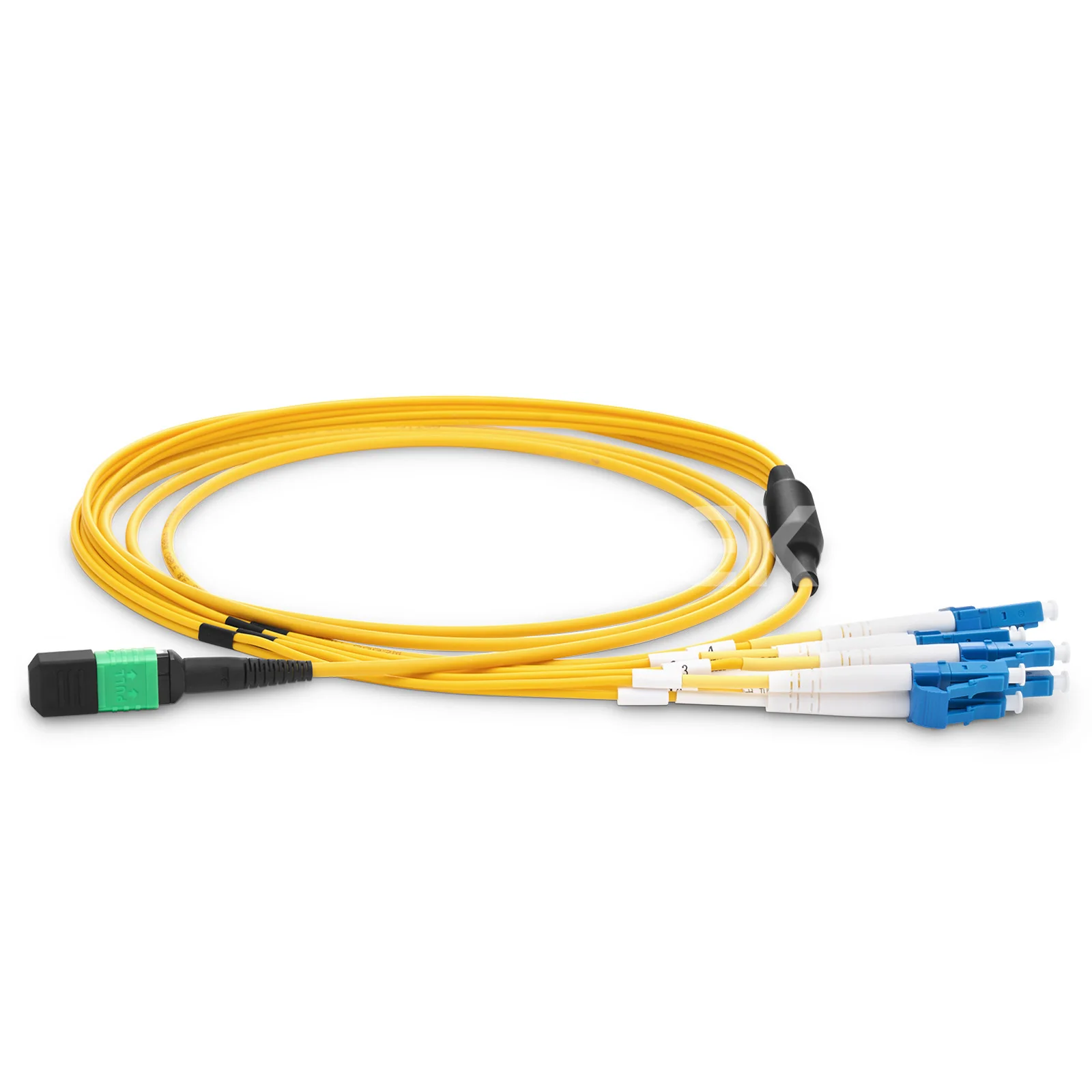

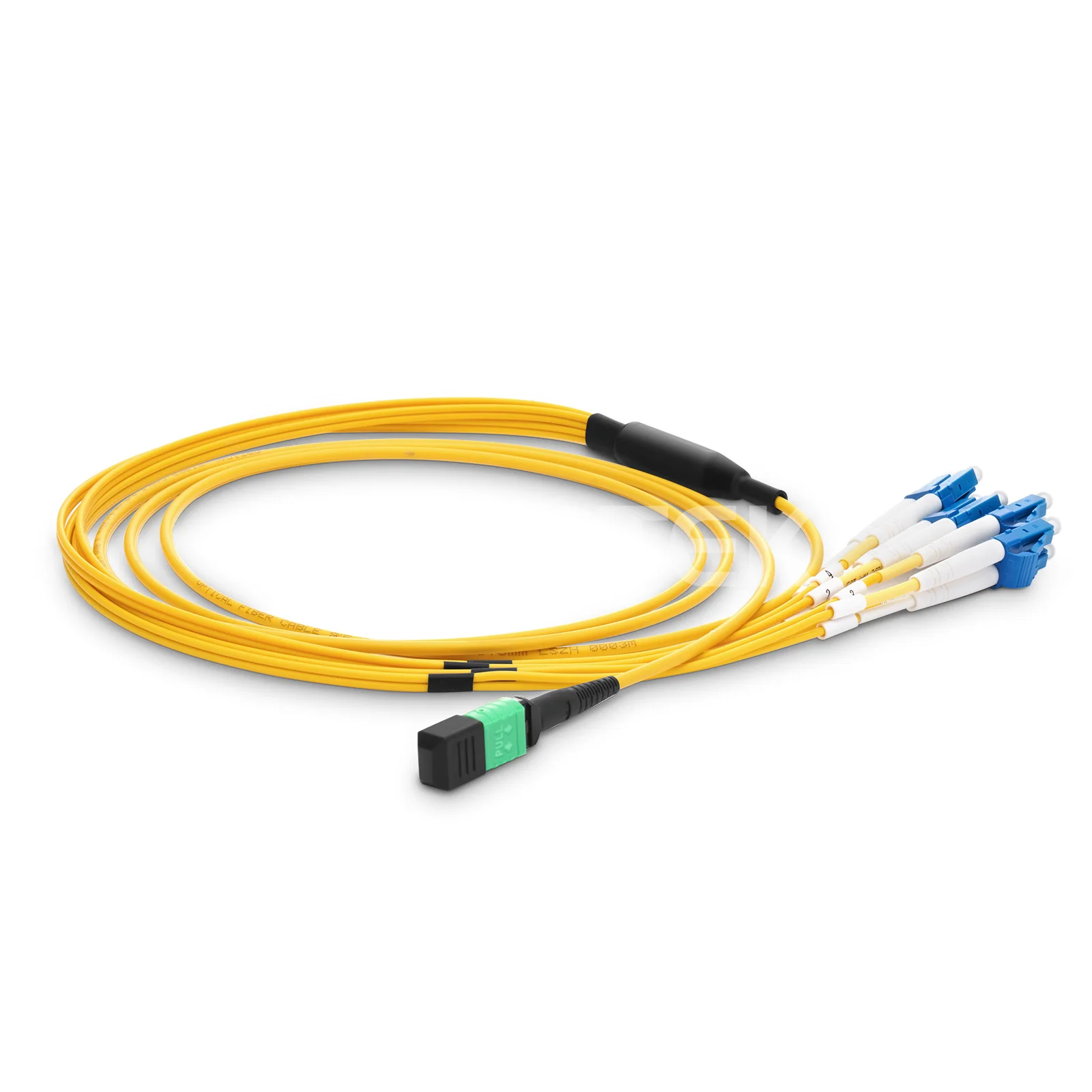

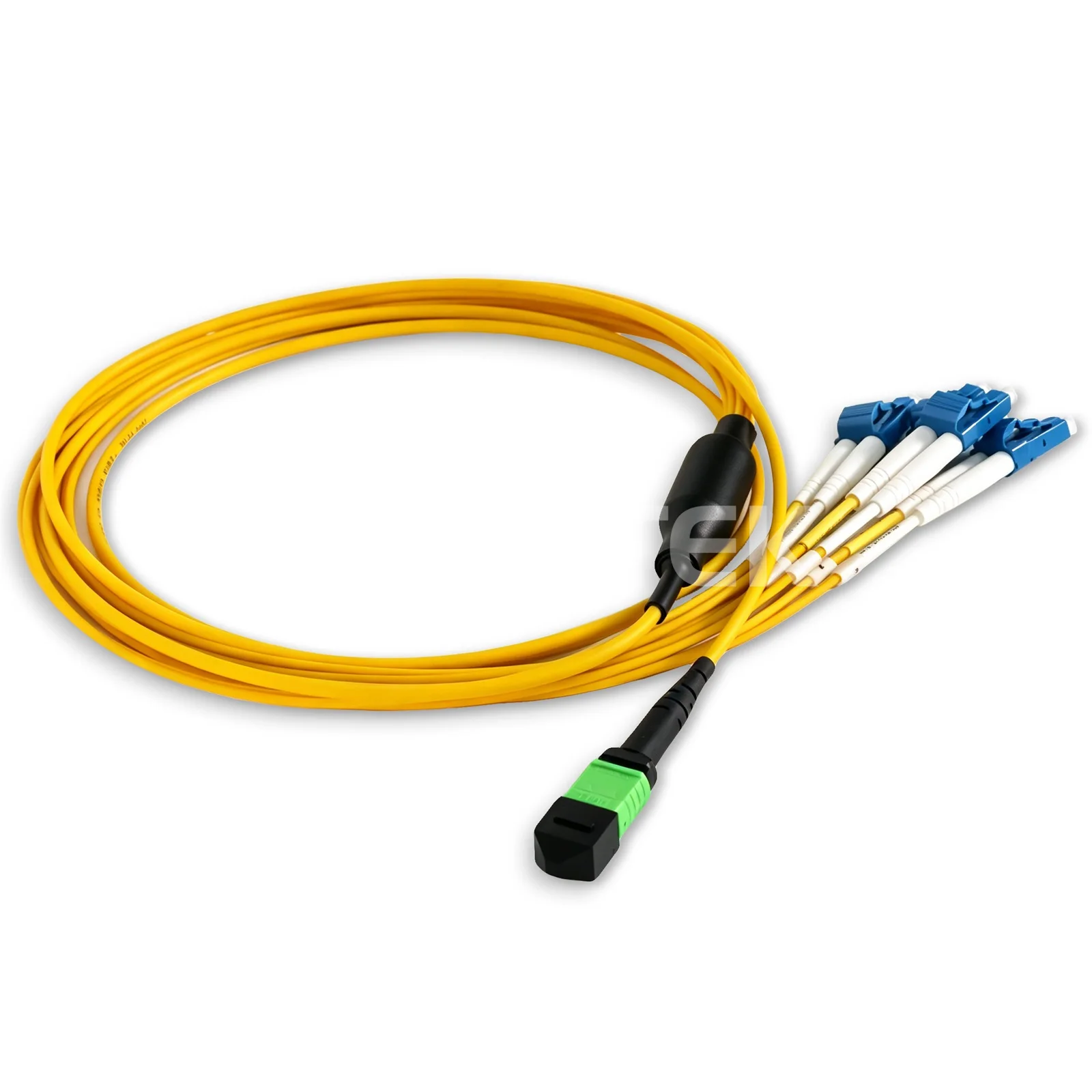

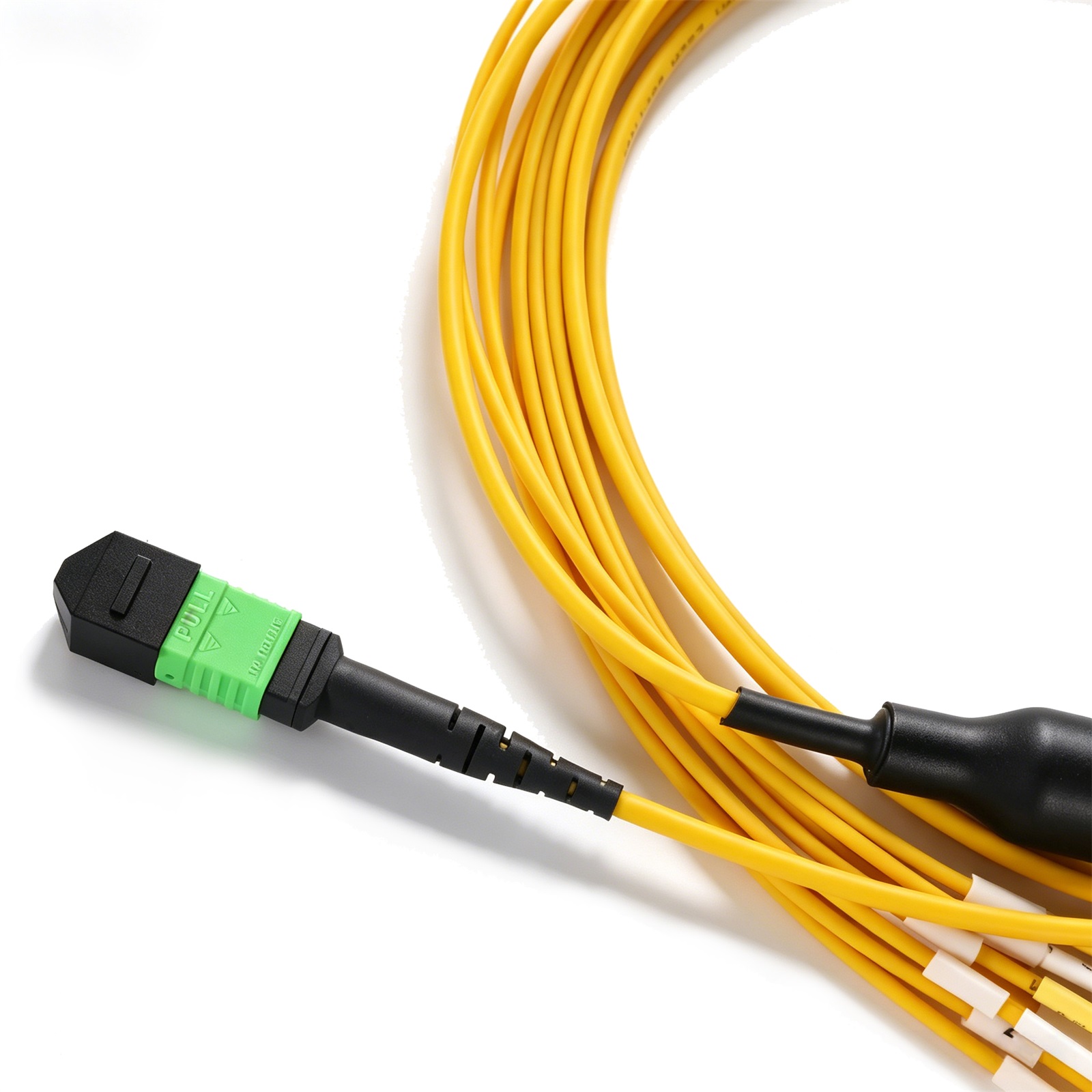

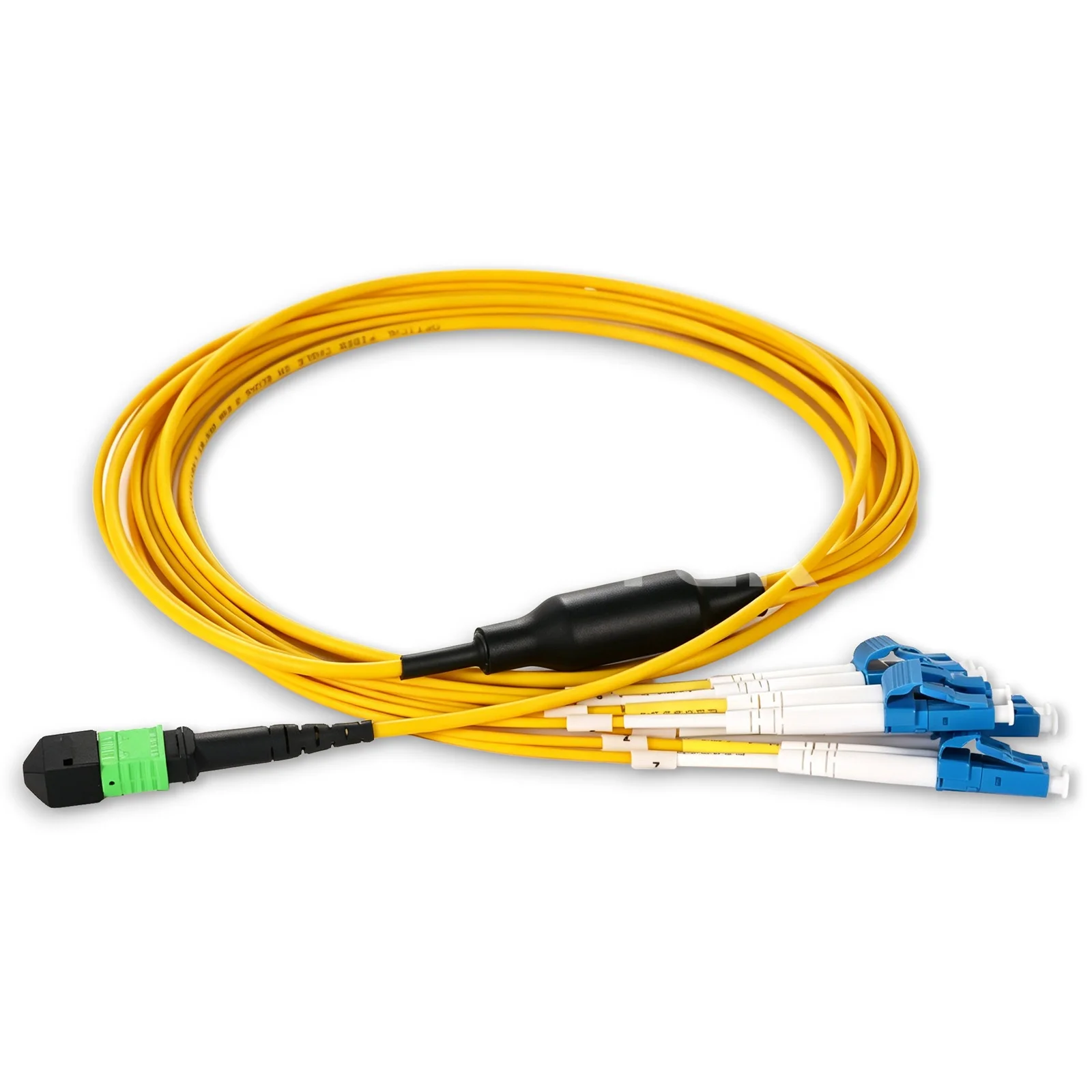

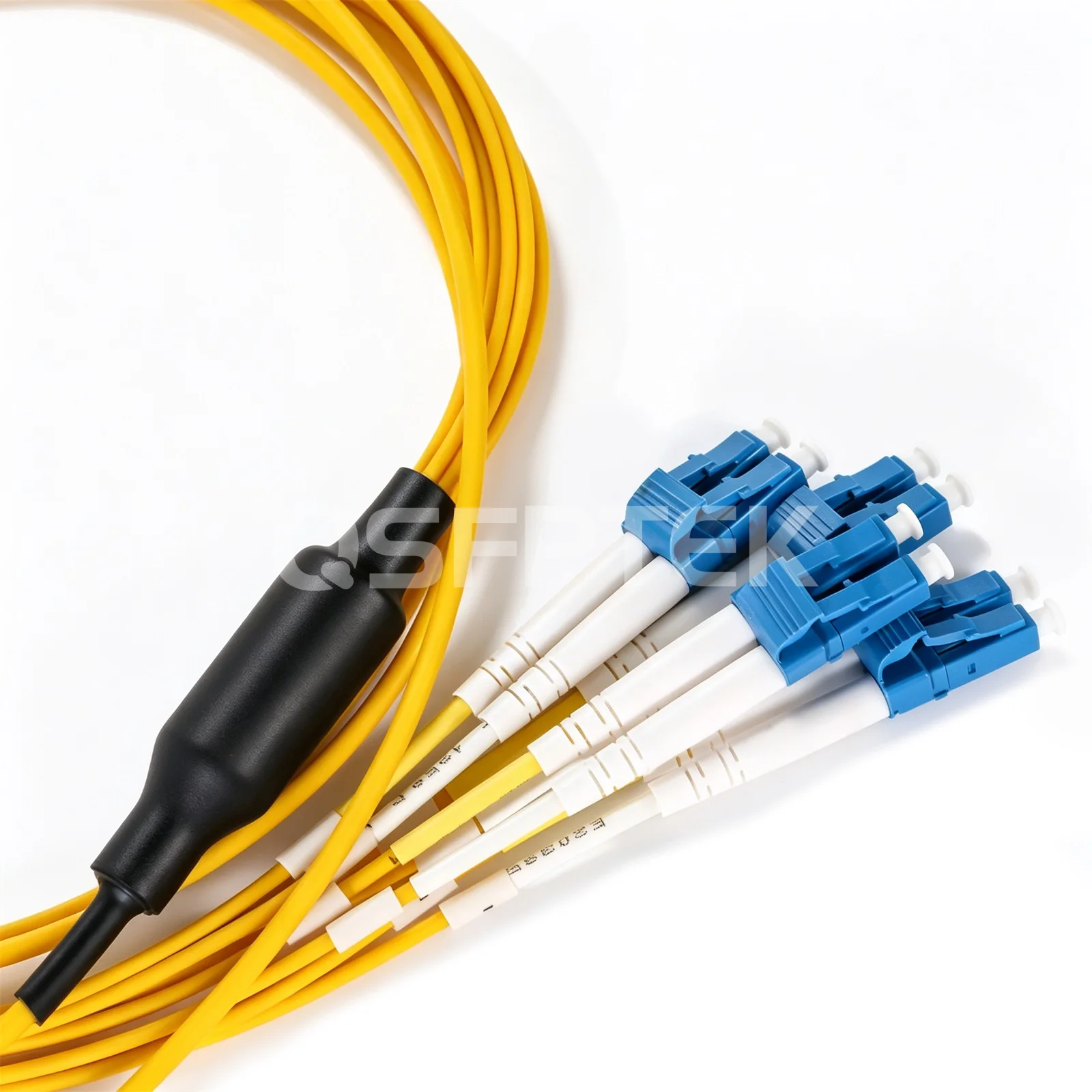

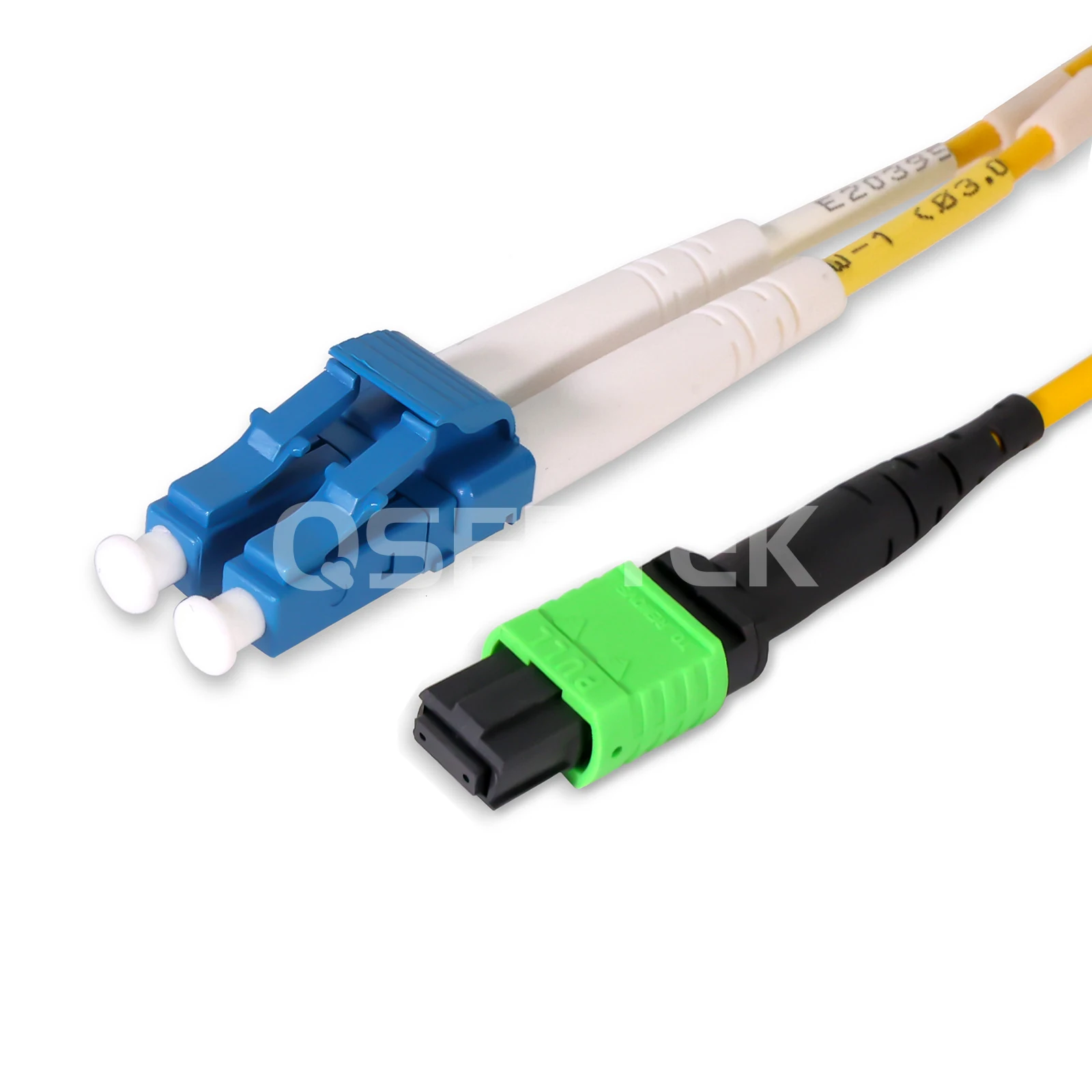

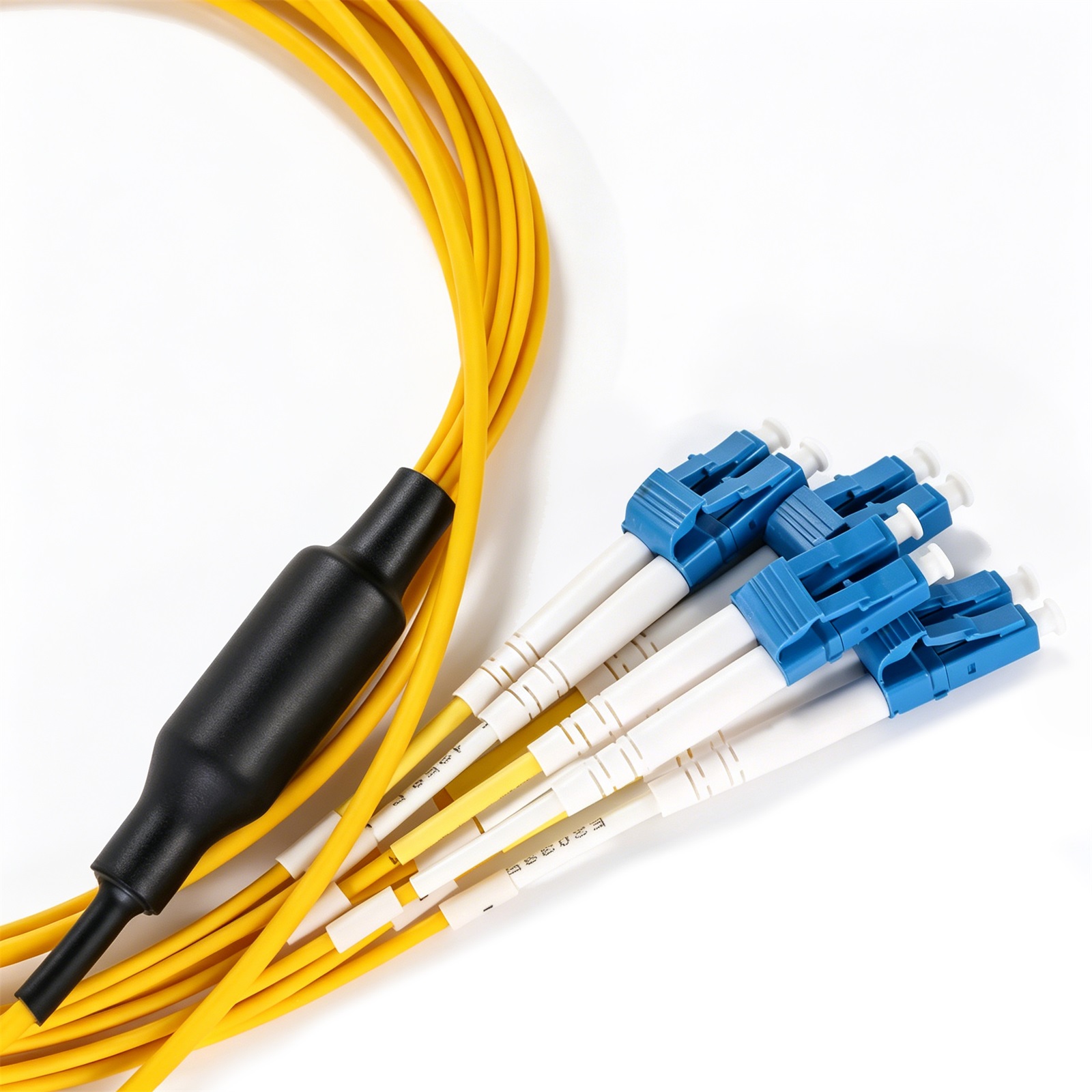

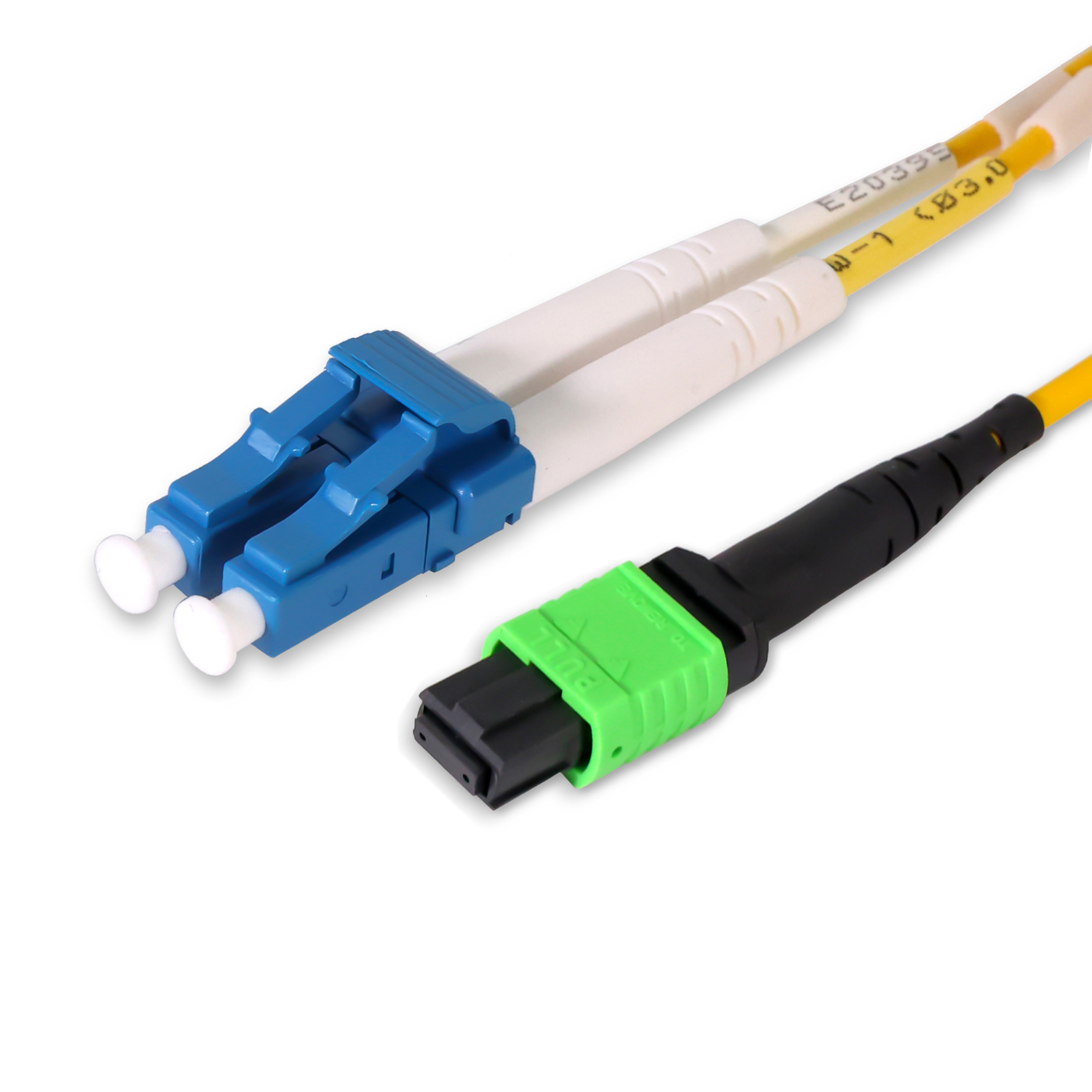

20m (66ft) MPO-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

Product No :103159
US$ 23.30
Series
Length
73 in real-time stock, 01Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 10mm Min. Bend Radius.
2. With 0.35dB low insertion loss.
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
4. Optimized for 40G/100G/200G/400G Transmission.
5. Meticulous design and standard testing ensure stable high-speed data transmission.
See more

Specifications

20m (66ft) MPO-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers Jumper, Type B, LSZH



The MPO breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MPO connector to LC duplex connectors. This MPO female to 4 LC UPC Duplex OS2 single-mode breakout cable is specially optimized for 40G QSFP28 PSM4 to 10G SFP+ LR, 100G QSFP28 PSM4 to 25G SFP28 LR optics direct connection, data centers, and telecommunications systems applications.

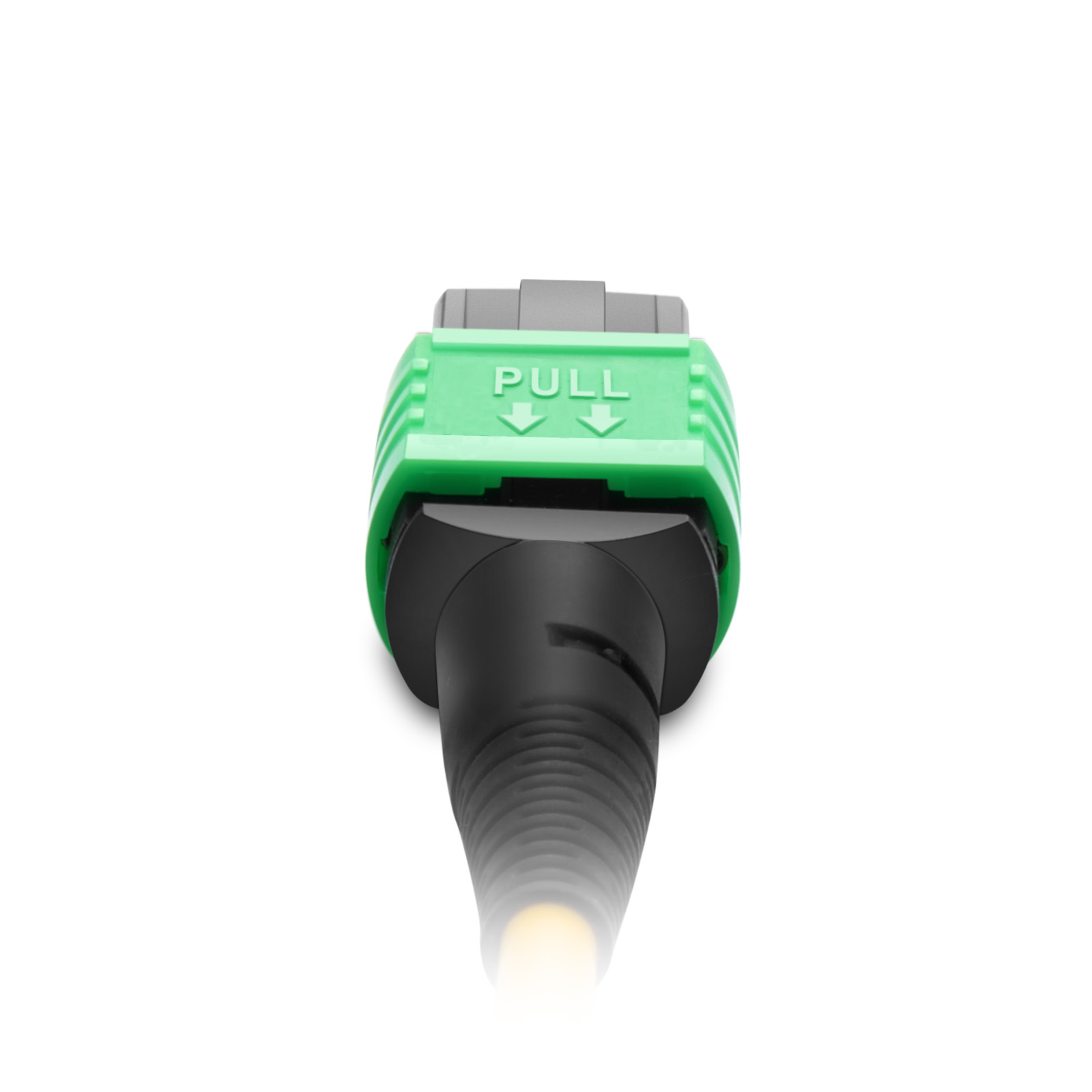

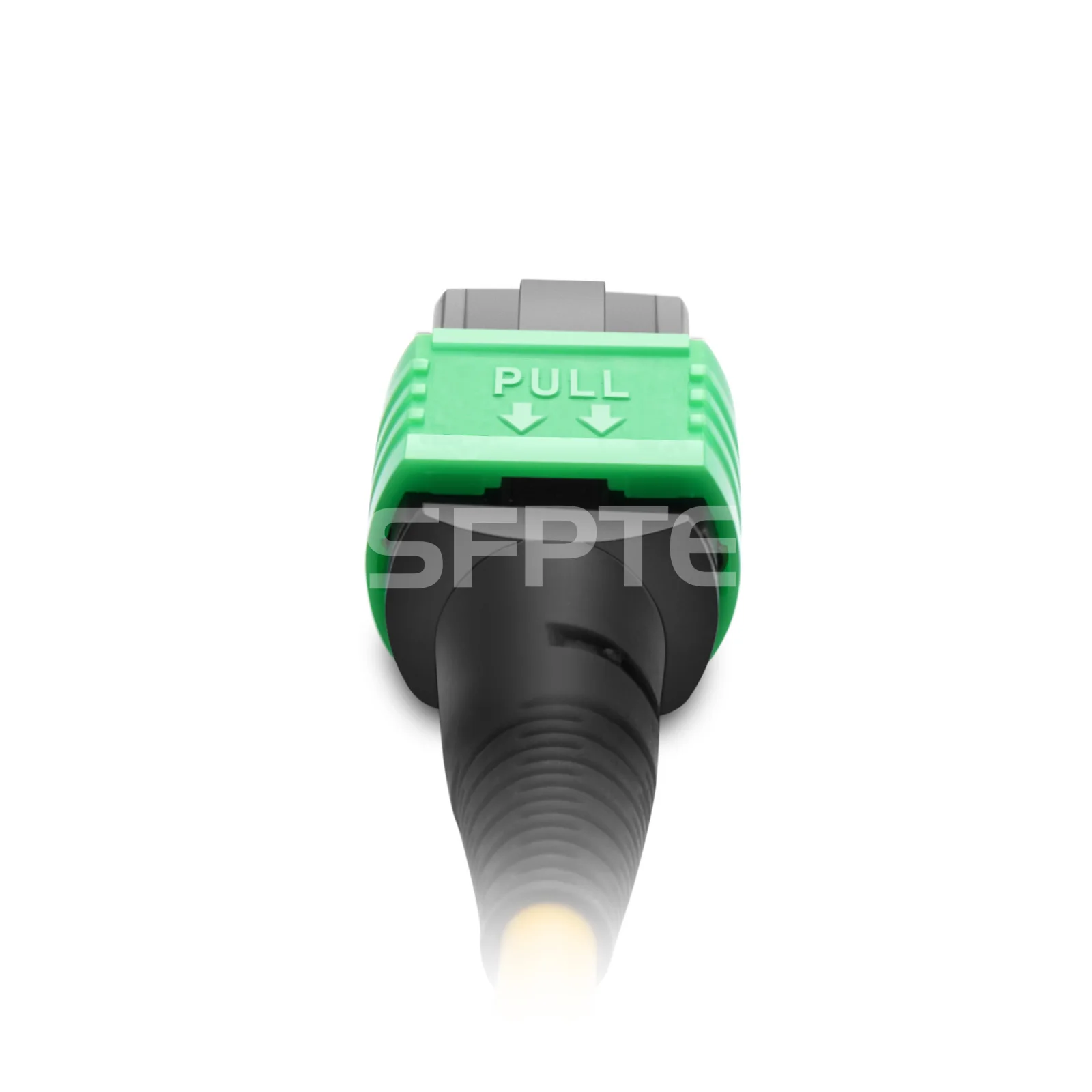

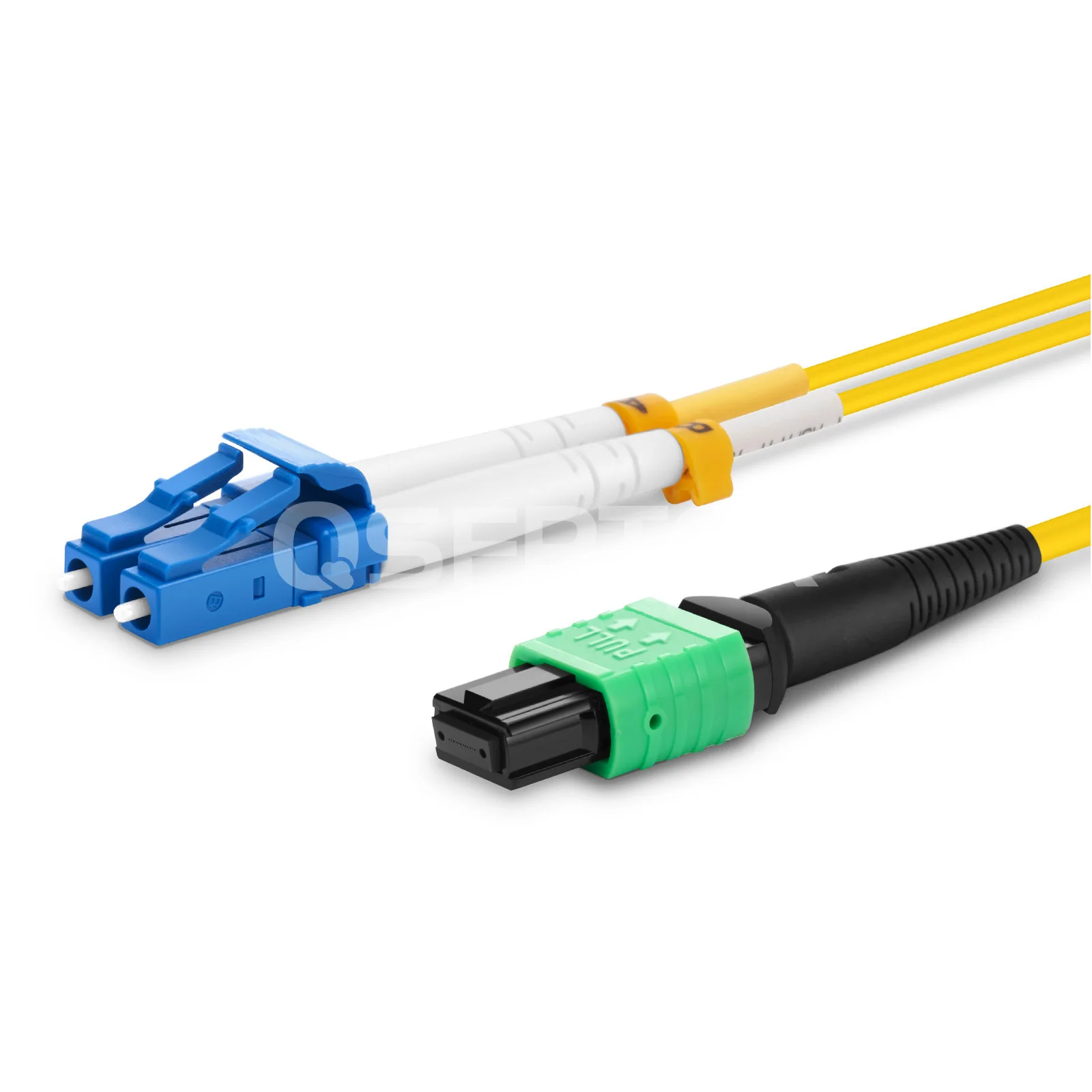

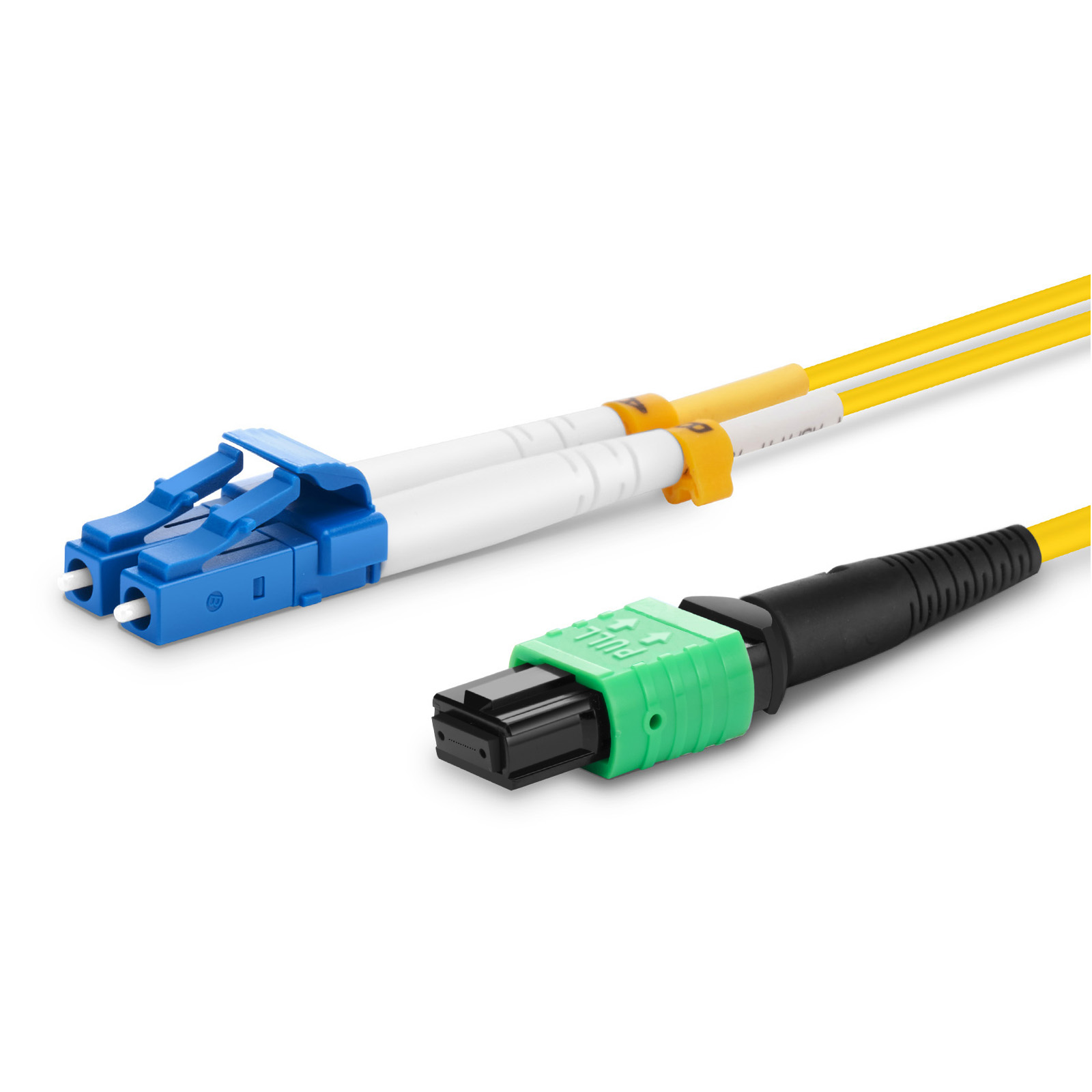

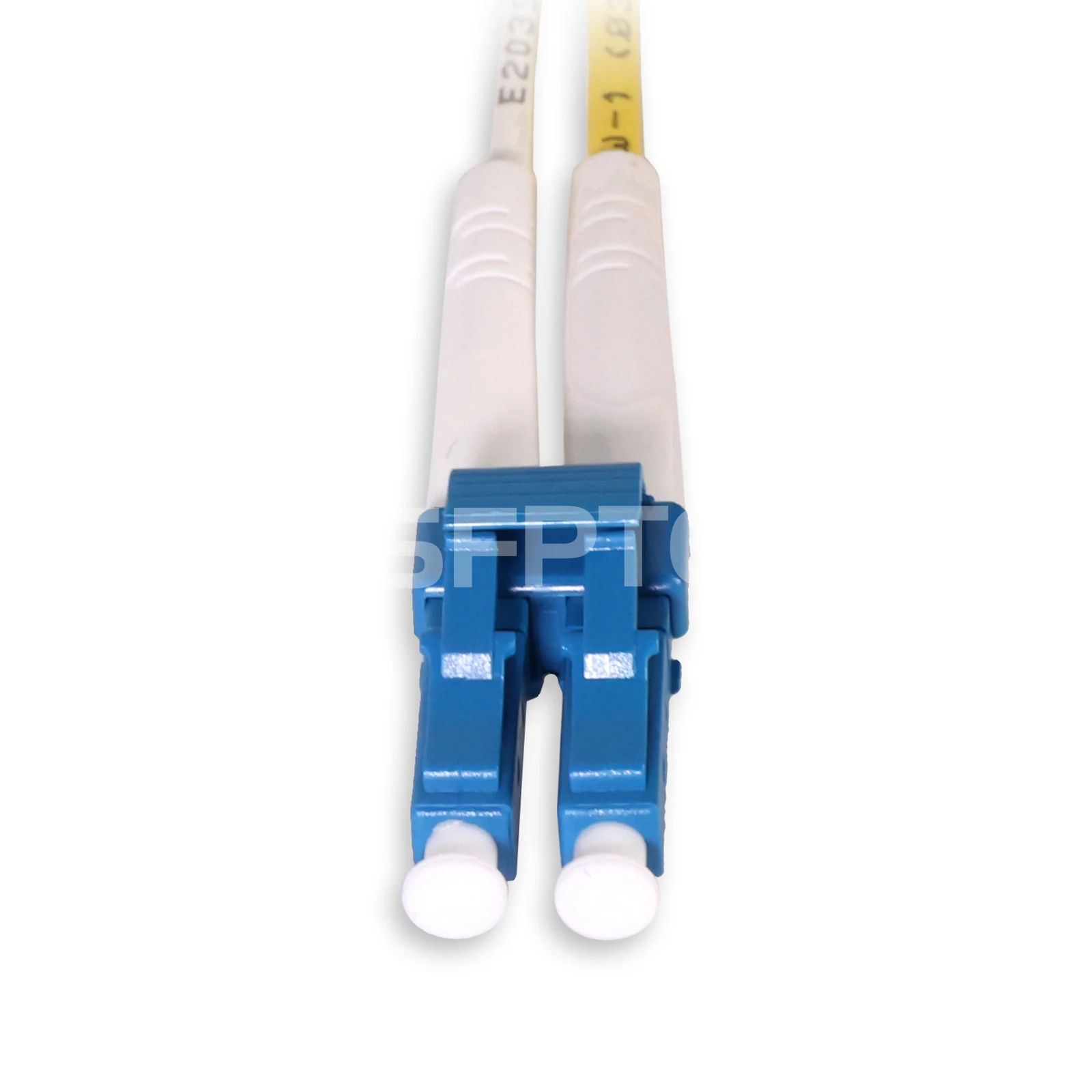

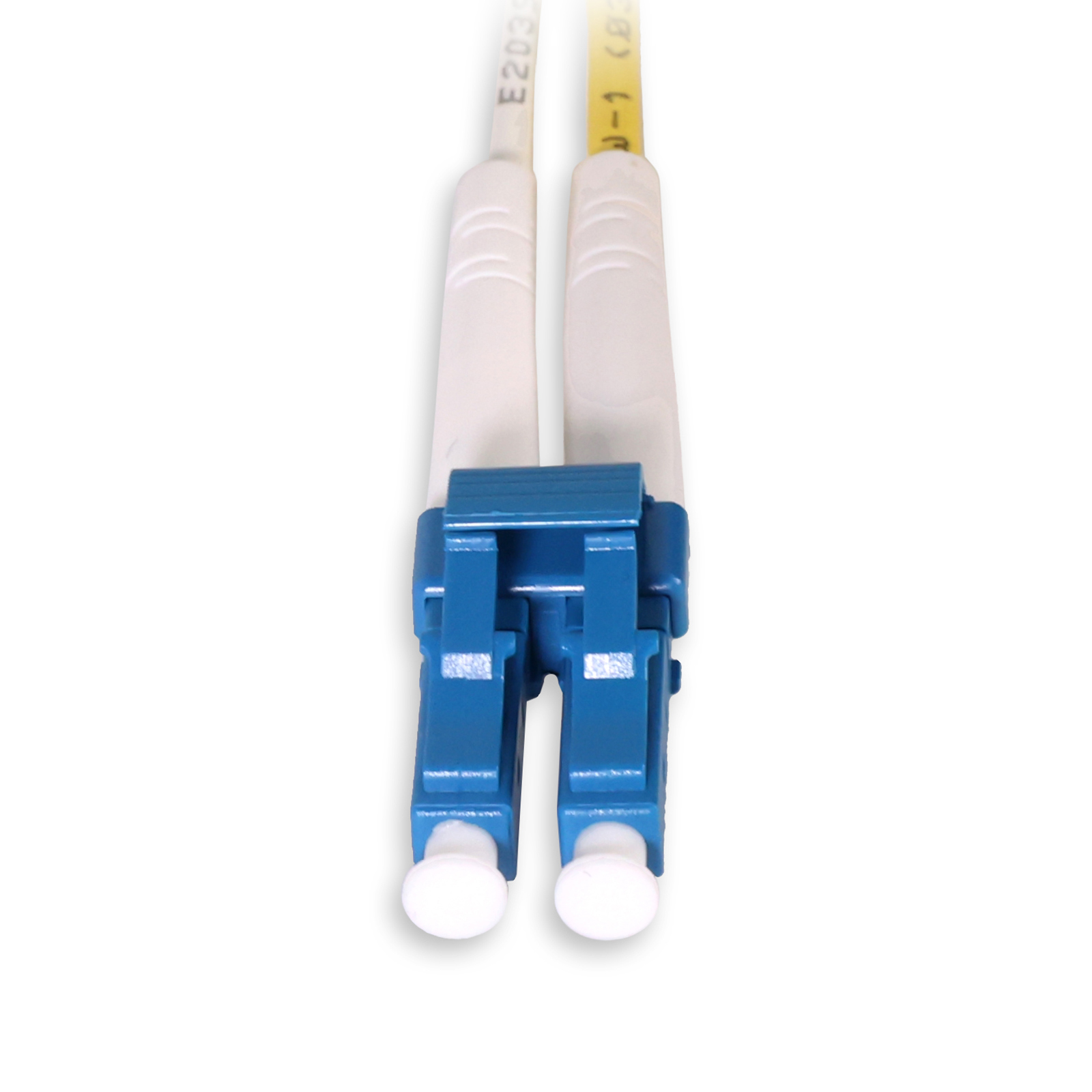

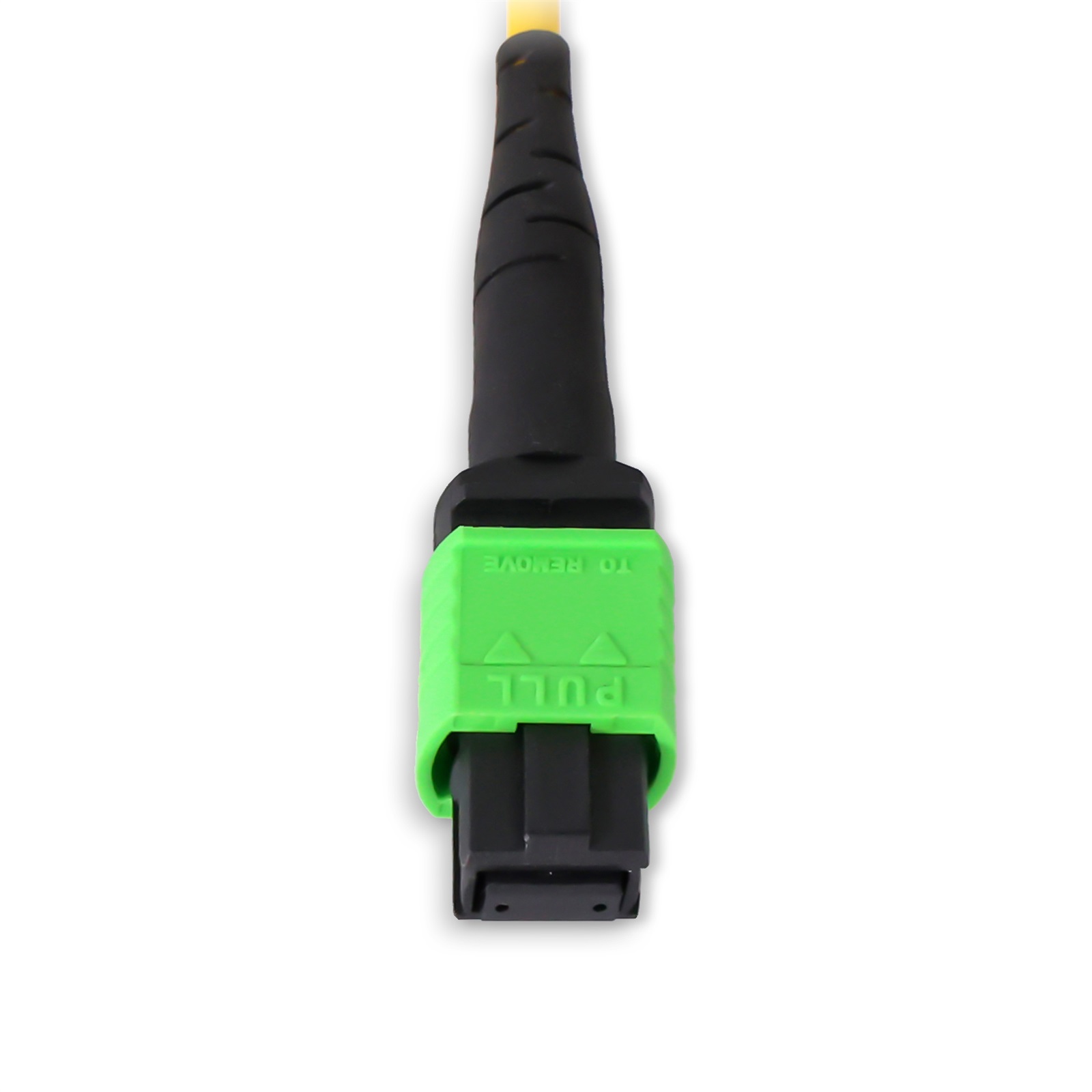

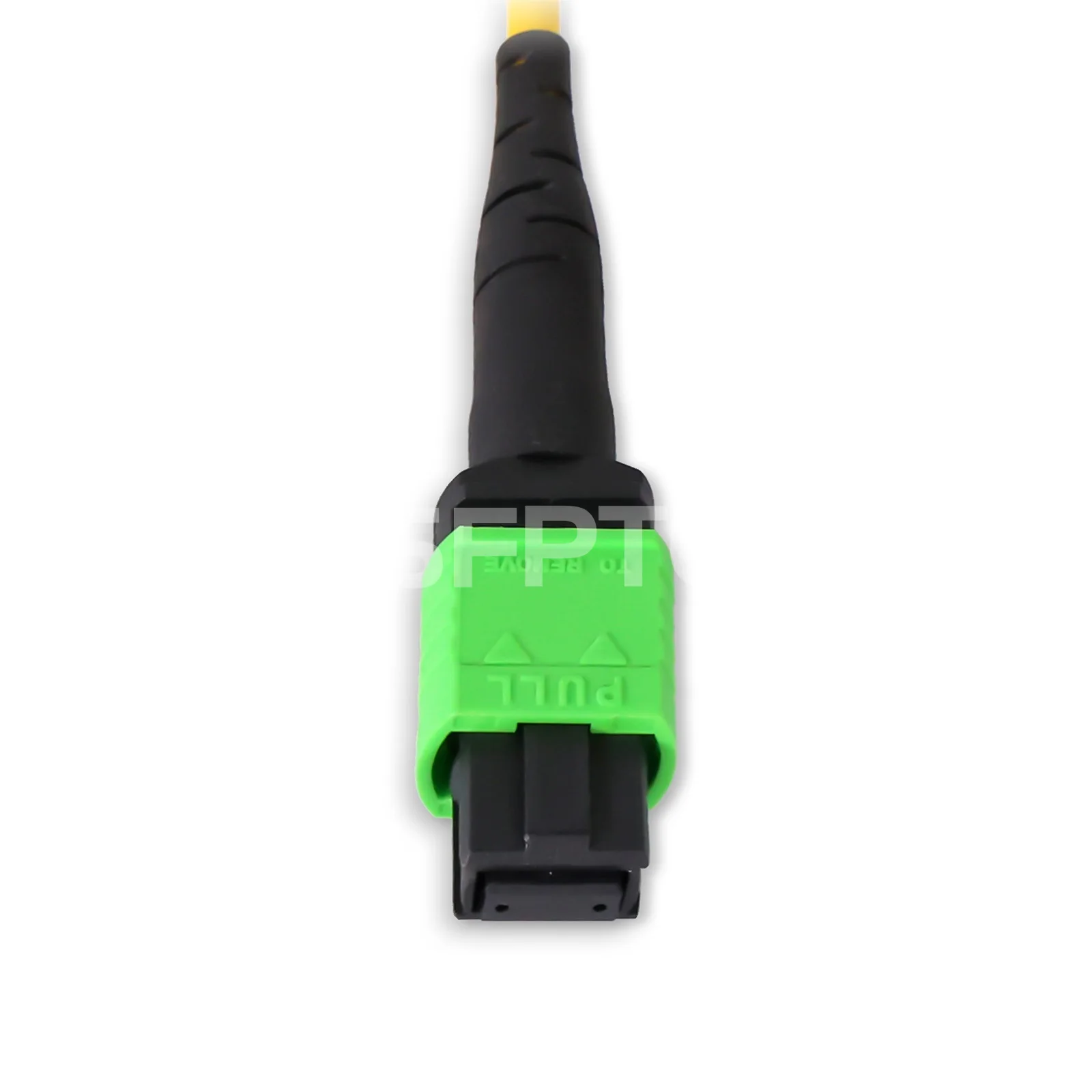

Connector A MPO Female Connector B LC UPC Duplex
Fiber Count 8 Fibers Fiber Type OS2 SMF 9/125μm
Polish Type APC to UPC Cable Material LSZH
Armoured No Wavelength 1310/1550nm
Insert Loss ≤0.35dB Return Loss ≥60dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius
(Fiber Core)		 10mm Min. Bend Radius
(Fiber Cable)		 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤0.32 at 1310nm, ≤0.18 at 1550nm Polarity Type B
Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 10mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term) Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

MTP Breakout OS4 Connection 1

Related Products:

S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24 xGE RJ45, 24 xGE SFP Ports, with 6 x10GE SFP+, Support Stacking

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48 xGE RJ45, with 6 x10GE SFP+, Support Stacking

Cisco QSFP-4X10G-LR-S Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km MTP/MPO Optical Transceiver Module

Cisco SFP-10G-LR-S Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver

Connection 2:

100G to 40G Breakout Connection

Related Products:

S7600-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48 x25Gb SFP28, 8 x100Gb QSFP28, Support MLAG, VXLAN

Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF Optical Transceiver Module

Cisco SFP-25G-LR Compatible 25GBASE-LR SFP28 1310nm 10KM DDM LC SMF Optical Transceiver Module

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.







High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.



OS2 Cable





Reliable Transmission Quality with Carrier-Grade Cables



Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



MTP Breakout OS2 Transmission



Optimizing Network Upgrade Solutions for Superior Efficiency



Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
