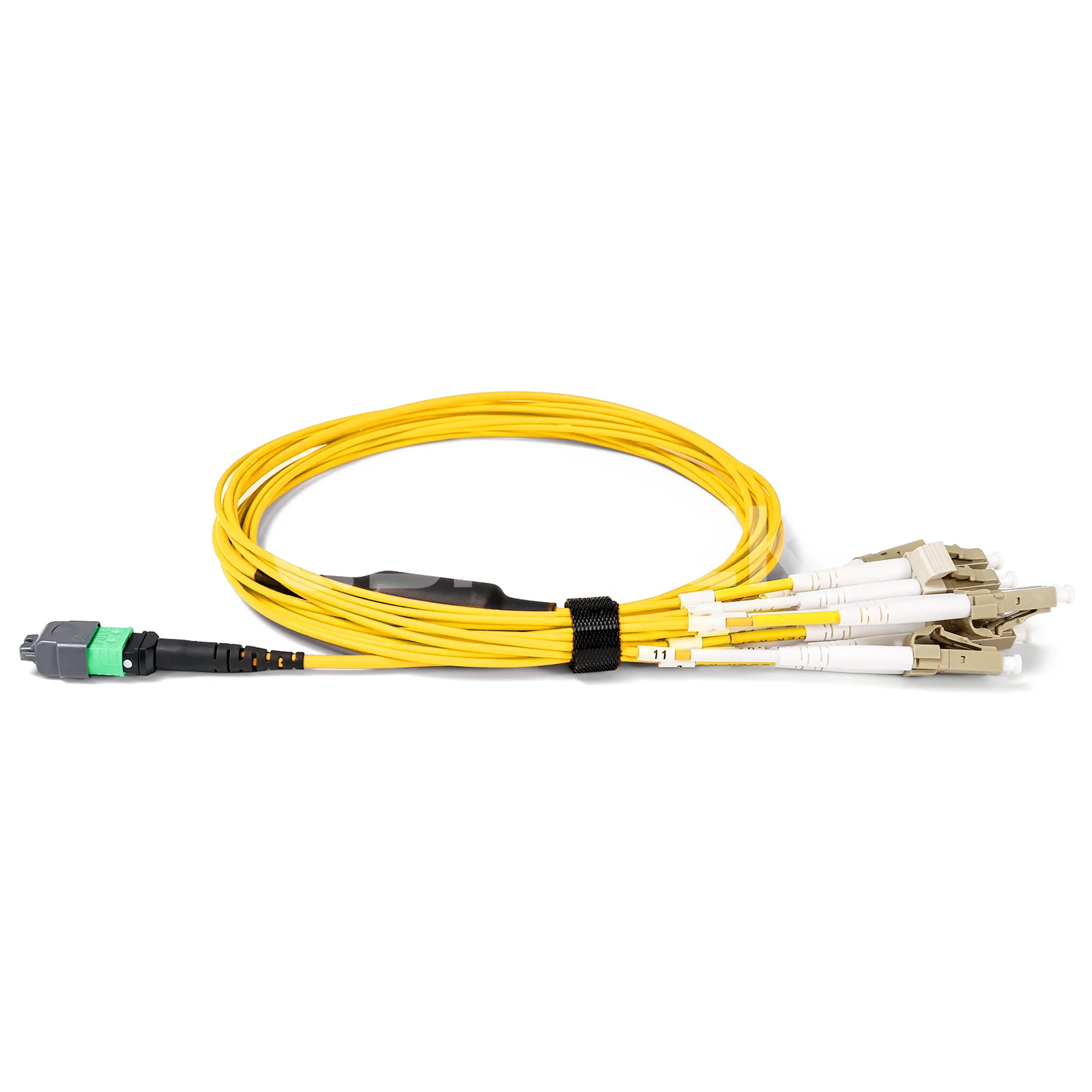

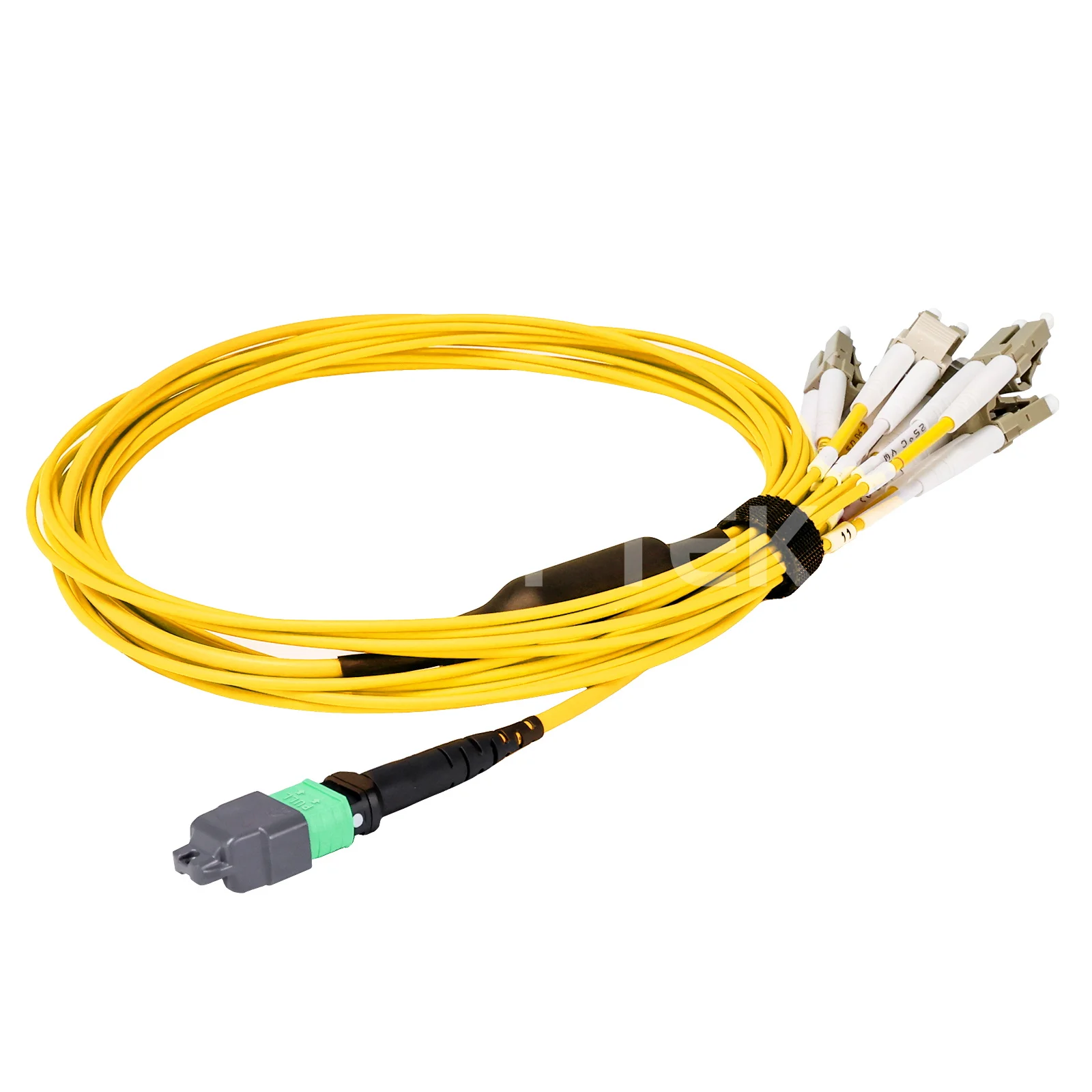

6m (20ft) MPO-12 APC (Female) to 6x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 12 Fibers, Type B, LSZH, Yellow

Product No :103201
US$ 24.80
Series
Length
83 in real-time stock, 01Jul, 2025

30-Day Returns & Exchange

Buy switch & cables for free shipping. Cables alone are not eligible.

Contact sales for more free shipping policies

-
+
Add to Cart Bulk Order Quotes
1. Flexible 10mm Min. Bend Radius.
2. With 0.35dB low insertion loss.
3. LSZH Jacket, reduces smoke by over 50% during combustion, significantly cuts toxic gas emissions, flame-retardant and environmentally friendly.
4. Optimized for 10G/25G/40G/100G Transmission.
5. Meticulous design and standard testing ensure stable high-speed data transmission.
See more

Specifications

6m (20ft) MPO-12 APC (Female) to 6x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 12 Fibers Jumper, Type B, LSZH



The 12 fibers MPO trunk cable provides a worry-free and cost-effective solution for high-density cabling for its connector delivering up to 6 times the density of a standard duplex fiber optic cable connector. Since the MPO-12 also supports the MPO-8 fiber system, it is specially optimized for 40G QSFP28 PSM4 to 10G SFP+ LR, 100G QSFP28 PSM4 to 25G SFP28 LR optics direct connection, data centers, and telecommunications systems applications.

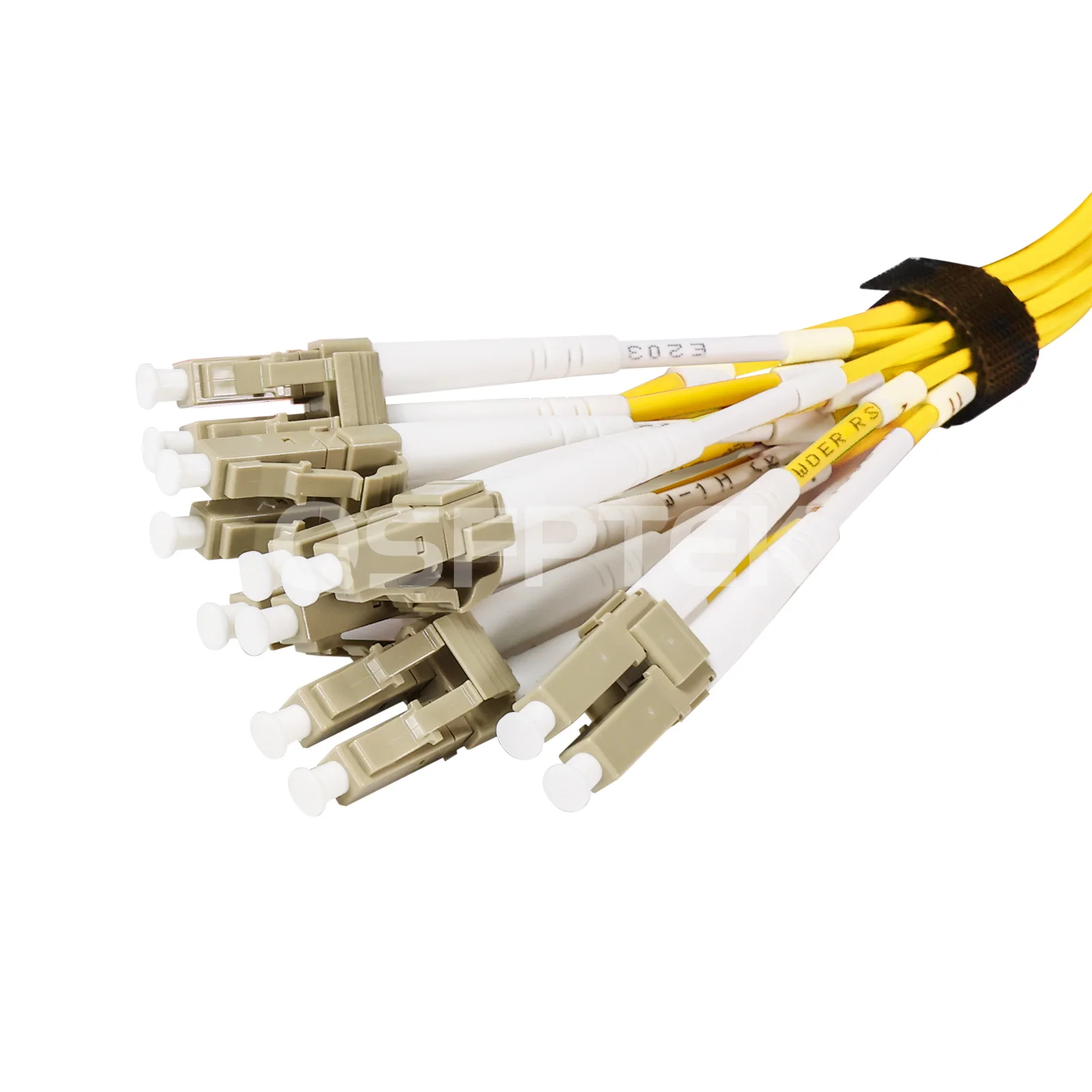

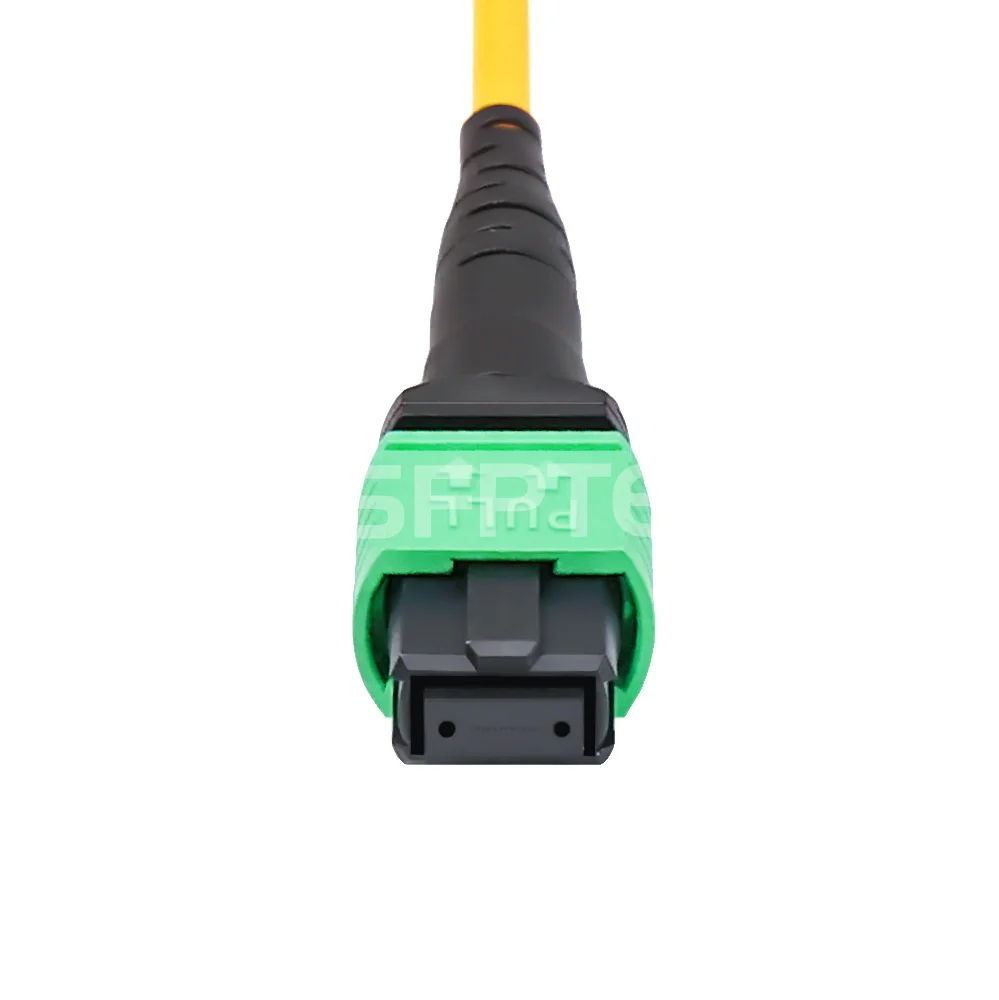

Connector A MPO Female Connector B LC UPC Duplex
Fiber Count 12 Fibers Fiber Type OS2 SMF 9/125μm
Polish Type APC to UPC Cable Material LSZH
Armoured No Wavelength 1310/1550nm
Insert Loss ≤0.35dB Return Loss ≥60dB
Cable Diameter 3.0mm Tensile Strength 80/150N (Long/Short Term)
Min. Bend Radius
(Fiber Core)		 10mm Min. Bend Radius
(Fiber Cable)		 20/10D (Dynamic/Static)
Attenuation (dB/km) ≤0.32 at 1310nm, ≤0.18 at 1550nm Polarity Type B
Operating Temperature -10℃~+70℃ Storage Temperature -40℃~+85℃
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 0.35dB Max. IL
    Designed for low insertion loss links, flexible and robust.
  • 10mm Min. Bend Radius
    Allows the cable to be bent at a larger angle, reducing bending losses and facilitating wiring and storage.
  • 80/150N (Long/Short Term) Tensile Strength
    Extremely tensile resistant to prevent cable breakage and extend service life.
  • LSZH Jacket
    Low smoke, low toxicity, low corrosion, and high flame retardant.

Applications

Connection 1:

MTP Breakout OS4 Connection 1

Related Products:

S5300-48M6X, 48-Port Gigabit Ethernet L3 Switch, 24 xGE RJ45, 24 xGE SFP Ports, with 6 x10GE SFP+, Support Stacking

S5300-48T6X, 48-Port Gigabit Ethernet L3 Switch, 48 xGE RJ45, with 6 x10GE SFP+, Support Stacking

Cisco QSFP-4X10G-LR-S Compatible 40GBASE-PSM4 QSFP+ 1310nm 10km MTP/MPO Optical Transceiver Module

Cisco SFP-10G-LR-S Compatible 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver

Connection 2:

100G to 40G Breakout Connection

Related Products:

S7600-48Y8C, 48-Port Ethernet L3 Data Center Switch, 48 x25Gb SFP28, 8 x100Gb QSFP28, Support MLAG, VXLAN

Cisco QSFP-100G-PSM4-S Compatible 100GBASE-PSM4 QSFP28 1310nm 500m DOM MTP/MPO SMF Optical Transceiver Module

Cisco SFP-25G-LR Compatible 25GBASE-LR SFP28 1310nm 10KM DDM LC SMF Optical Transceiver Module

Product details

Excellent Transmission Stability Ensured by Superior Craftsmanship



With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.





High-Performance Fiber with Superior Durability



This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.



OS2 Cable



Maintain Performance by Cleaning Fiber



Ensure high reliability and performance connections by maintaining clean fiber end-faces.
