    NVIDIA/Mellanox MMS4X00-NM-T (980-9I30G-F4NM00) Compatible 800GBASE-DR8 (2x 400GBASE DR4) Twin-port OSFP IHS/Closed Finned Top PAM4 1310nm 500m DDM Dual MPO-12/APC SMF Optical Transceiver Module Used in Spectrum-4 Ethernet Air-Cooled Switches

    Product No: 202946
    0 Reviews
    38 Sold
    US$ 899.00
    Compatible
    Transceivers type
    18 in real-time stock, 03 Jun, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Built-in Broadcom DSP Chip
2. Support 1x 800G/2x 400G/4x 200G Ethernet
3. Maximum link length 500m on SMF
4. Support 850Gb/s aggregate bit rate, Power consumption < 14W

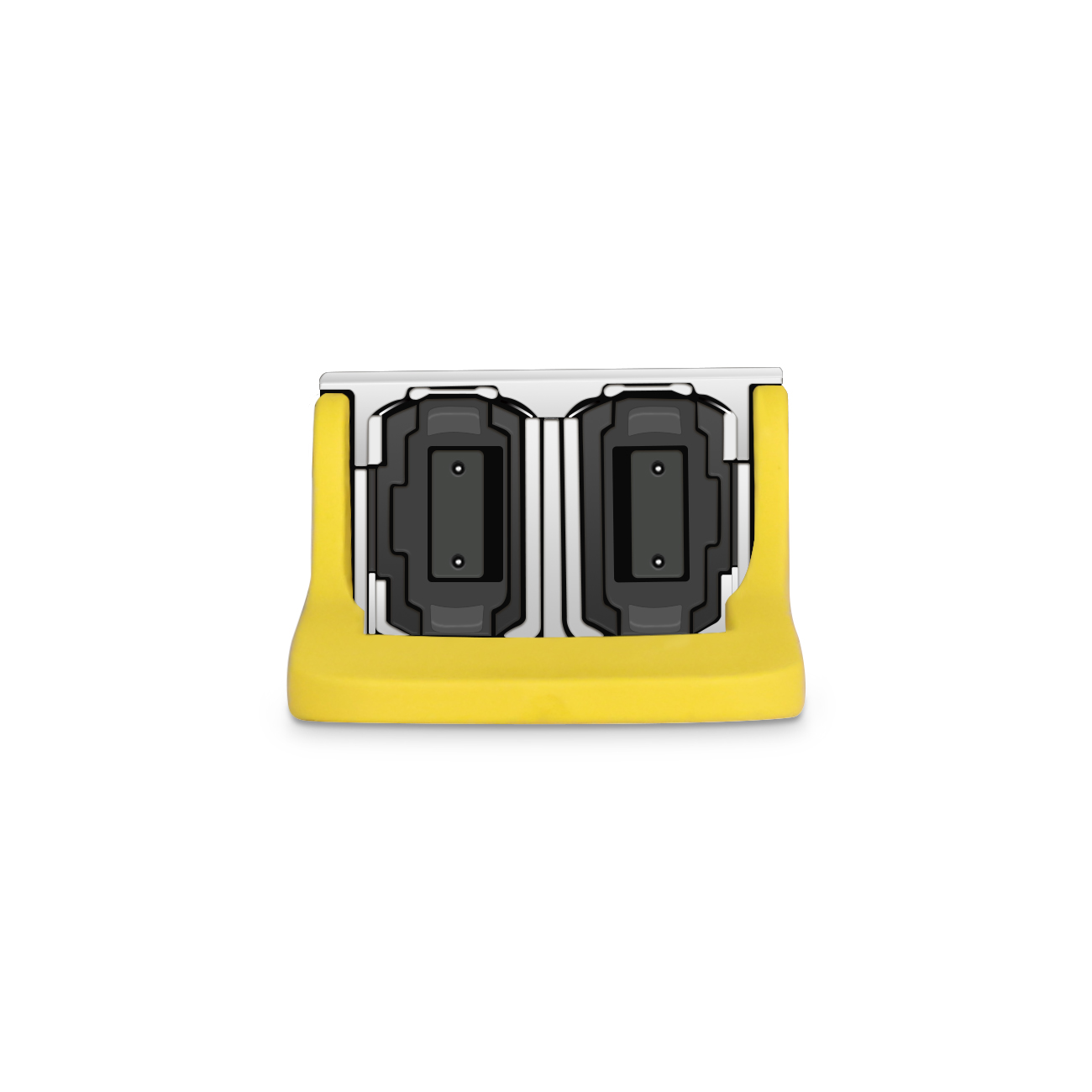

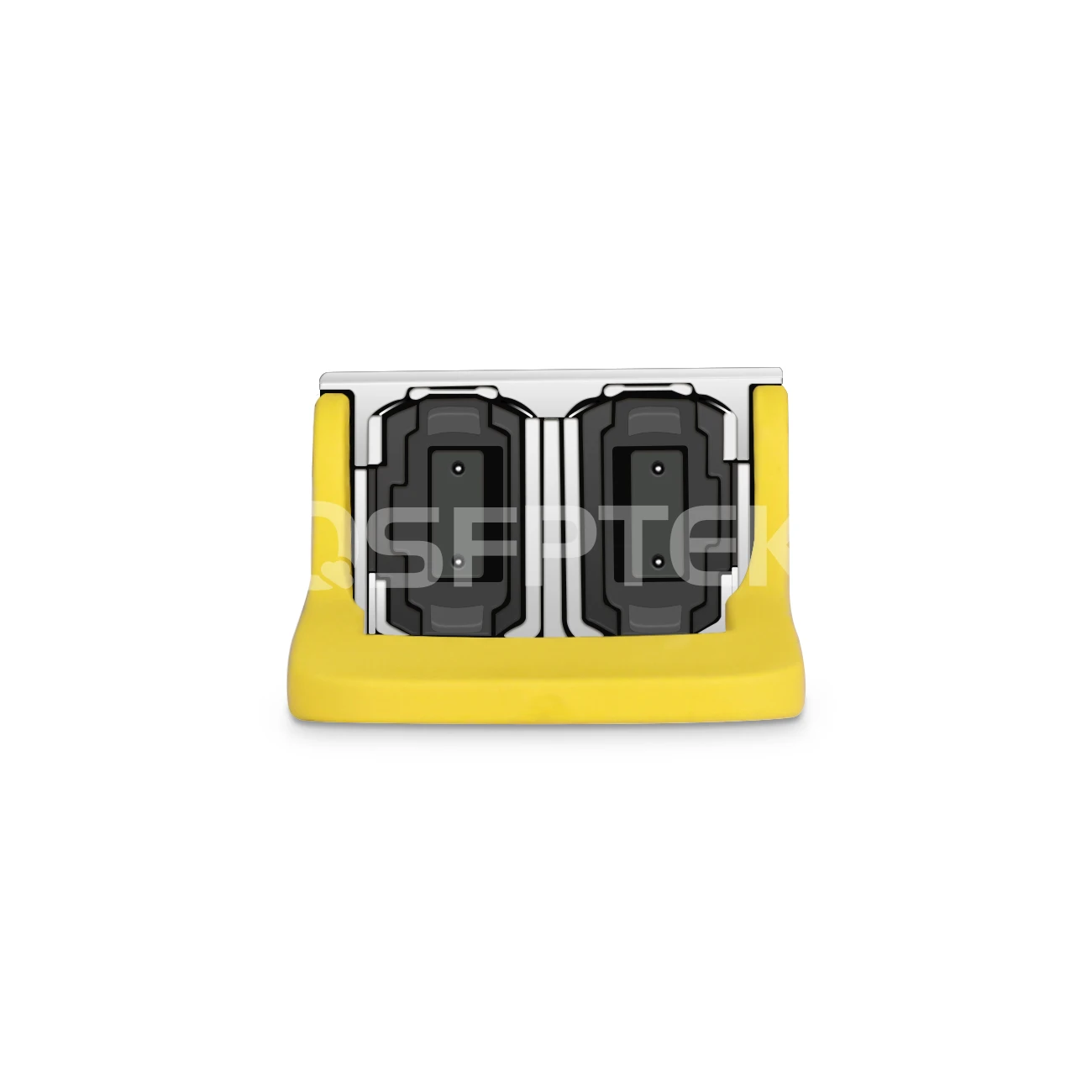

5. Hot-pluggable OSFP with dual MPO-12/APC connectors
4. EML transmitter + PIN PD receiver, Class 1 Laser
7. Two wire serial Interface with digital diagnostic monitoring (DDM)
8. Complies with EU Directive 2011/65/EU (RoHS compliant)
    See more

    Specifications

    NVIDIA/Mellanox MMS4X00-NM-T (980-9I30G-F4NM00) Compatible 800GBASE-DR8 (2x400G DR4) OSFP IHS/Finned Top PAM4 Optical Transceiver Module (1310nm, 500m, 2x MPO-12/APC Connectors, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox MMS4X00-NM-T (980-9I30G-F4NM00) Compatible 800GBASE-DR8 (2x400G DR4) OSFP finned-top transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 500m over single-mode fiber (SMF) with dual MPO-12 APC connectors. QSFPTEK manufactured  800GBASE-DR8 (2x 400GBASE DR4) OSFP complies with IEEE 802.3cu-2021 8x100GBASE-DR optical interface, IEEE P802.3ck D3.0 8x100GAUI-1 C2M electrical interface, OSFP MSA HW Rev 4.1, CMIS Rev 5.0. DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the 2DR4 OSFP achieves 800 Gigabit Ethernet through 8x 106.25 PAM4 Retimed 2x400GAUI-4 C2M electrical interface.



    The 800G DR8 is an Ethernet (EN) 800Gb/s 2x400Gb/s Twin-port OSFP. The OSFP-IHS with finned top design is used in Spectrum-4 Ethernet air-cooled switches to switches, ConnectX-7 and BlueField-3 DPUs. QSFPTEK NVIDIA compatible optics are 100% tested in NVIDIA Ethernet host devices, ideal for Ethernet NDR end-to-end systems.



    Part Number QT-OSFP-800G-2DR4-IHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-IHS/Finned Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m
    Connector Dual MTP/MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN
    TX Power -2.9 to 4 dBm Receiver Sensitivity < -5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption <14W Modulation Format 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
    Extinction Ratio >3.5dB CDR (Clock and Data Recovery) TX and RX Built-in CDR
    Application Spectrum-4 Ethernet Air-Cooled Switches MTBF 1472017 Hours
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols IEEE 802.3cu-2021, IEEE P802.3ck D3.0, OSFP MSA HW Rev 4.1, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Applications

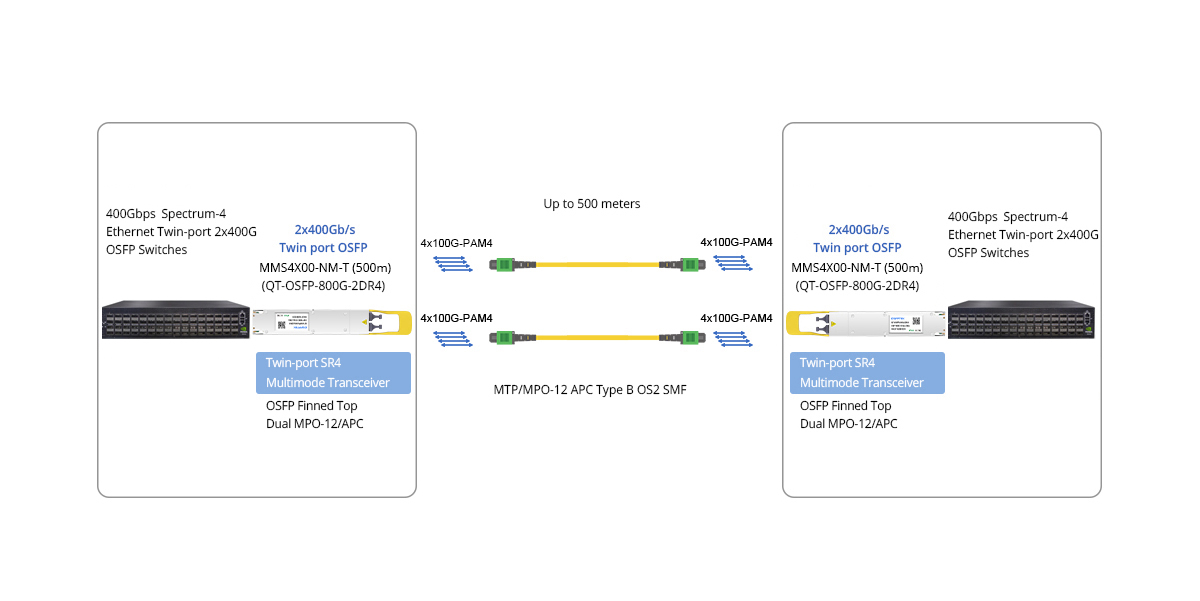

    Scenario 1: Twin-port 800G (2x400G) OSFP ETH Switches Direct Connectivity or to Two switches at 400Gb/s

    Twin-port 800G (2x400G) OSFP ETH Switches Direct Connectivity or to Two switches at 400Gb/s





    Scenario 2: Twin-port 800G (2x400G) OSFP ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP ETH Switch to 2x400G ConnectX-7 and/or BlueField-3

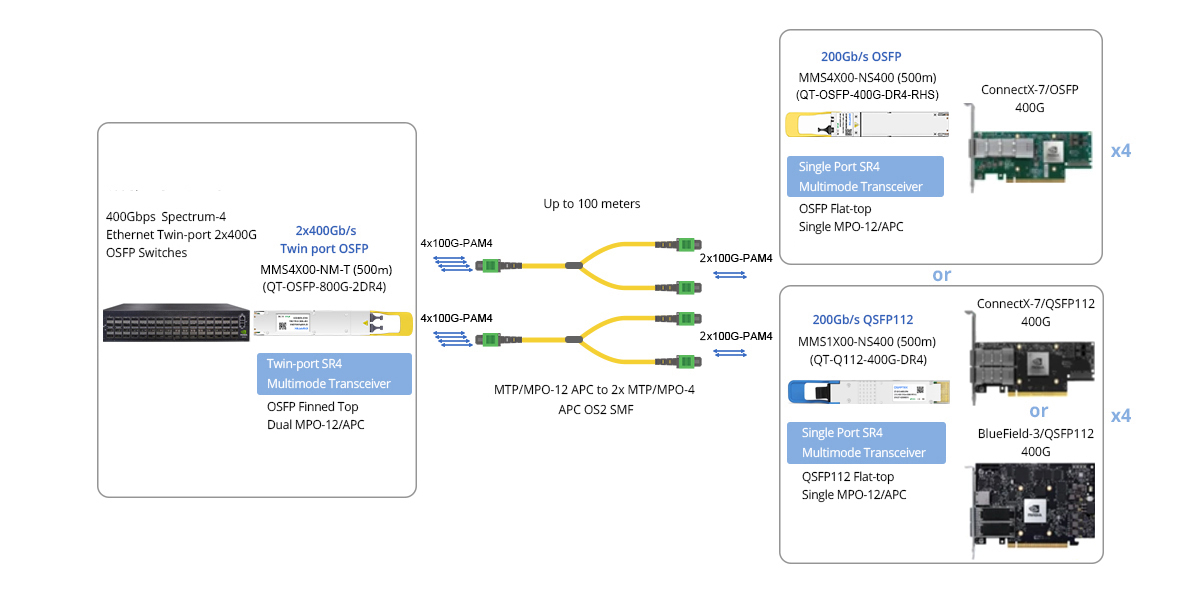

    Scenario 3: Twin-port 800G (2x400G) OSFP ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3

    Twin-port 800G (2x400G) OSFP ETH Switch to 4x 200G ConnectX-7 and/or BlueField-3

    Product details

    100% Verified in the NVIDIA Hosts to Ensure Interoperability



    Every 800G OSFP 2DR4 module undergoes rigorous compatibility tests and simulated transmission tests on the original NVIDIA switches to ensure optics-to-device interoperability and perfect operation.

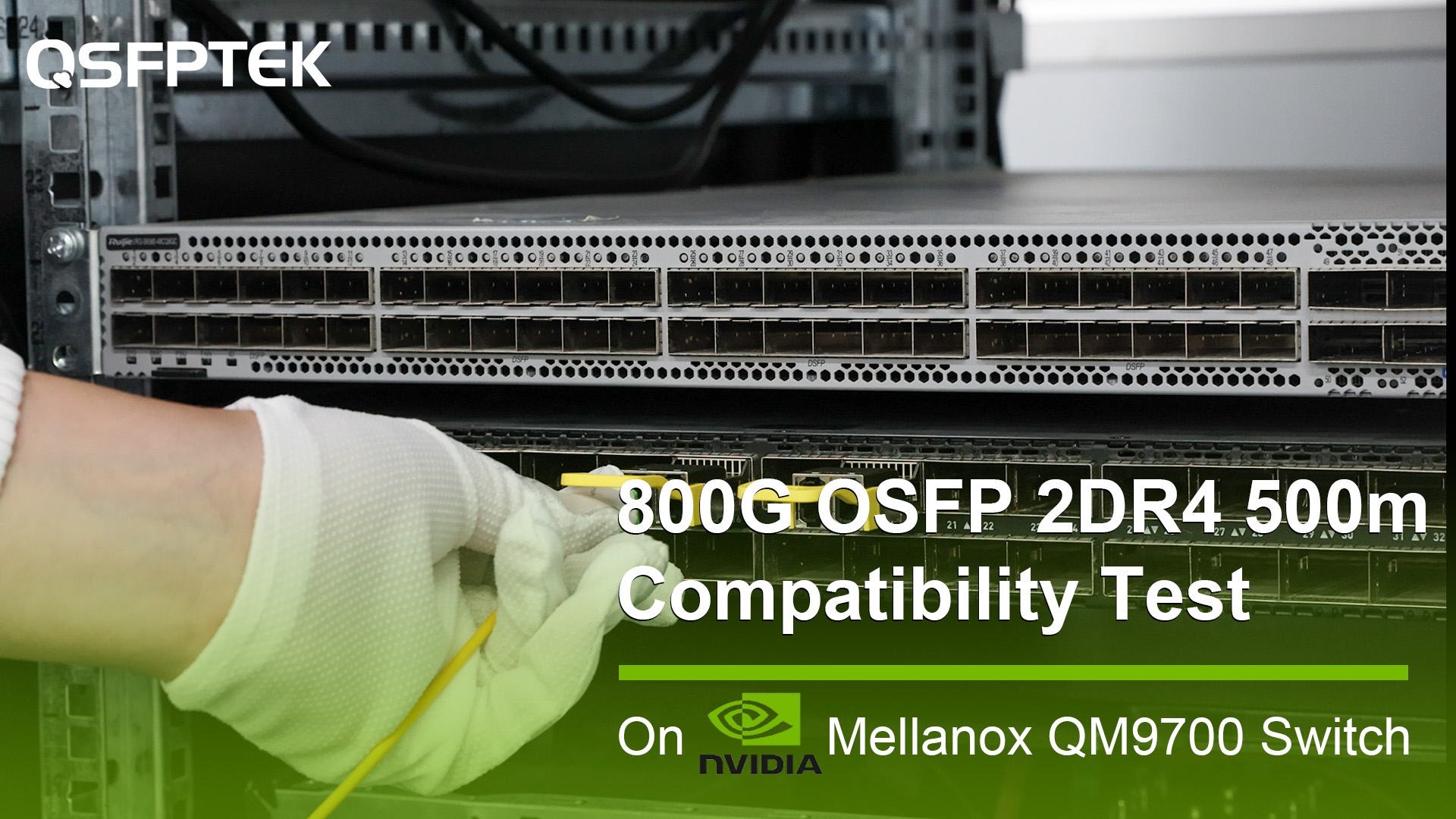

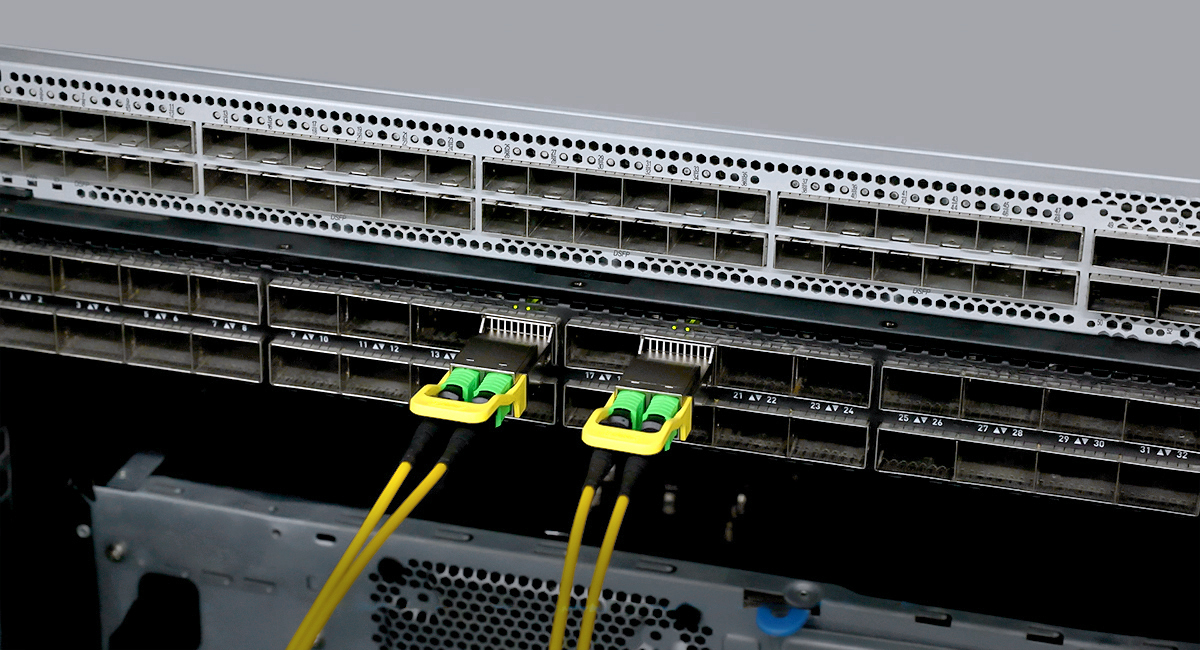

    QT-OSFP-800G-2DR4-IHS compatibility test on NVIDIA QM9700



    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.

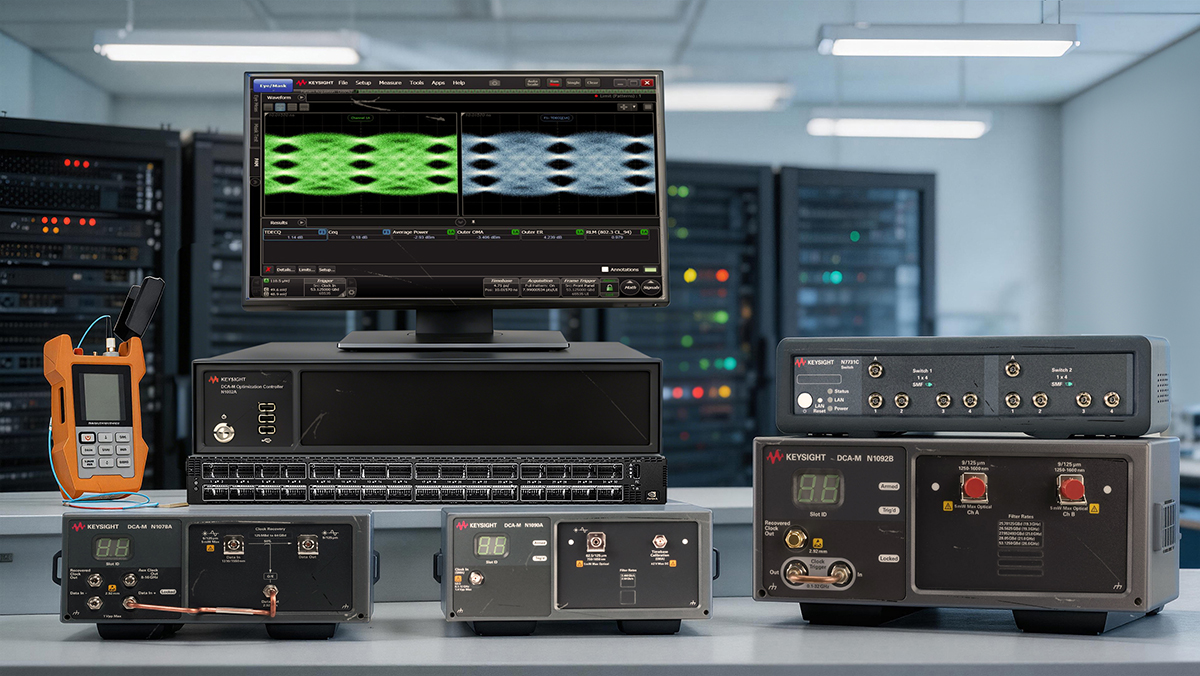

    Performance test devices





    Select a Proper Heat Dissipation Design for Your Needs

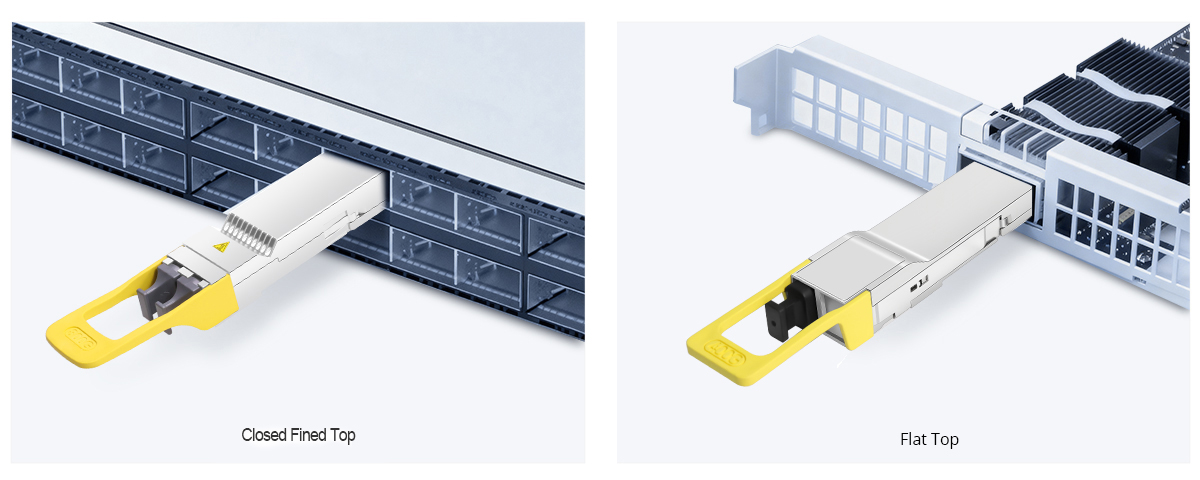

    Finned Top vs Flat Top

    Closed Finned Top 800G OSFP optics with Integrated Heat Sink (IHS) design are used for both Quantum-2 InfiniBand or Spectrum-4 Ethernet air-cooled and liquid-cooled systems. Flat top 800G OSFP optics with Riding Heat Sink (RHS) design are used in Liquid-cooled and DGX H100 Cedar7 Systems.





    Broadcom DSP Chip Reshapes 800G High-Speed ​​Interconnect

    This 800GBASE-DR8 OSFP module utilizes Broadcom's top-tier PAM-4 DSP chip combines ultra-low bit error rate with the industry's lowest power consumption. It uses advanced equalization technology to compensate for optical impairments and integrates FEC functions to ensure link reliability, providing core support for high-speed data centers and AI clusters.



    Broadcom DSP Chip Reshapes 800G High-Speed ​​Interconnect

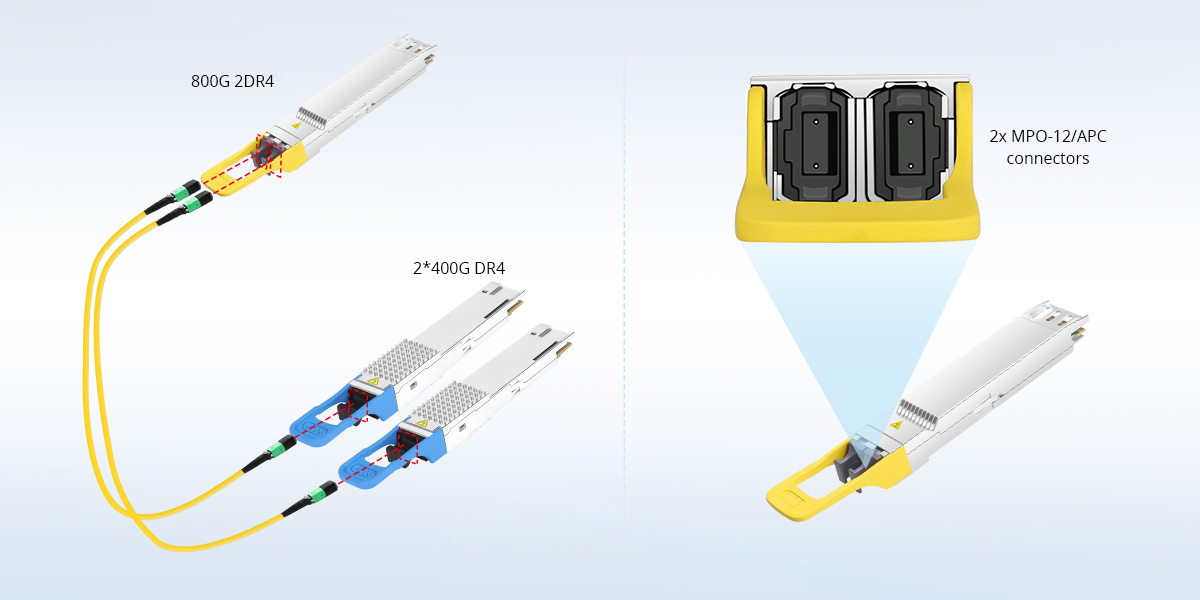

    Easy 800G to 2x 400G breakout with MTP/MPO SMFs

    The 800G OSFP 2DR4 module is designed with dual MPO-12/APC connectors, while each connector can connect to a physically separate 400G DR4 OSFP/QSFP-DD/QSFP112 module via an MTP/MPO-12 APC OS2 SMF. This enables 800G to 2x 400G breakout links without the need for using breakout fiber optic cables.



    Easy 800G to 2x 400G Breakout with OS2 SMFs





    8x 100Gbps PAM4 Modulation Technology

    Utilize 8x electrial lanes and 8x optical lanes modulated at 100G PAM-4 per lane. On the output side, it convert 8x 106.25Gb/s electrical signal to 8x 106.25Gb/s optical signals. On the receiver side, it convert 8x 100Gb/s optical signal to 8x 100Gb/s electrical signals.



    8x 100Gbps PAM4 Modulation Technology
