    Products / Transceivers / 400G/800G/1.6T Ethernet Transceivers / 800G OSFP / 203221
    Product image
    Product image

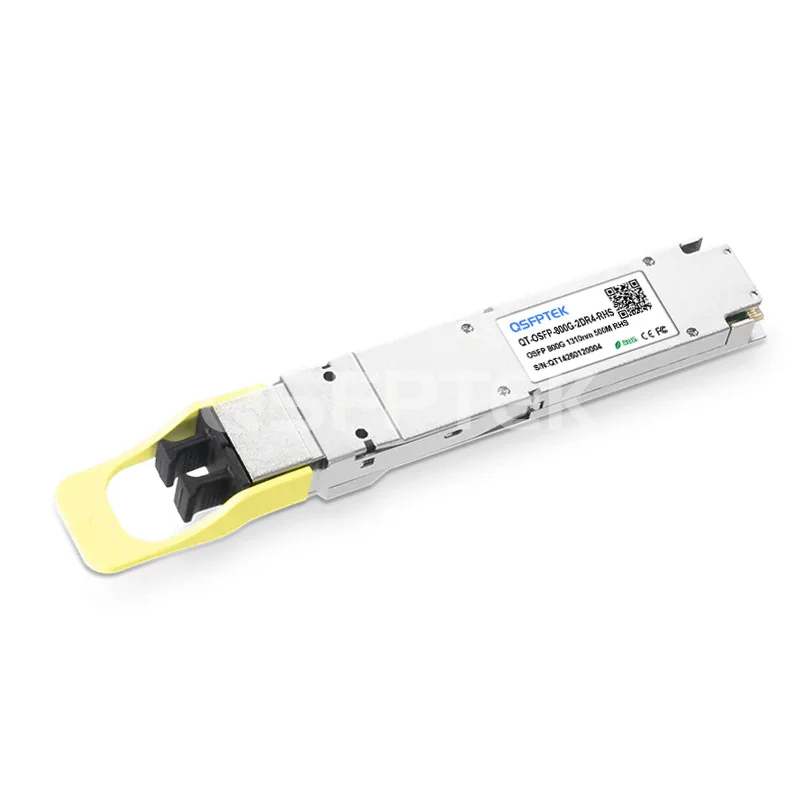

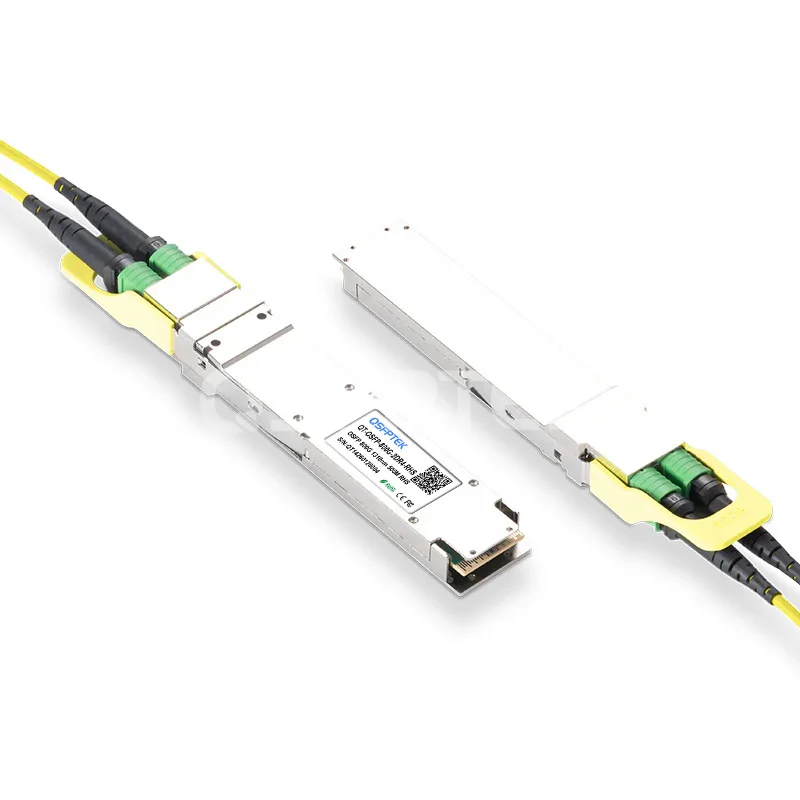

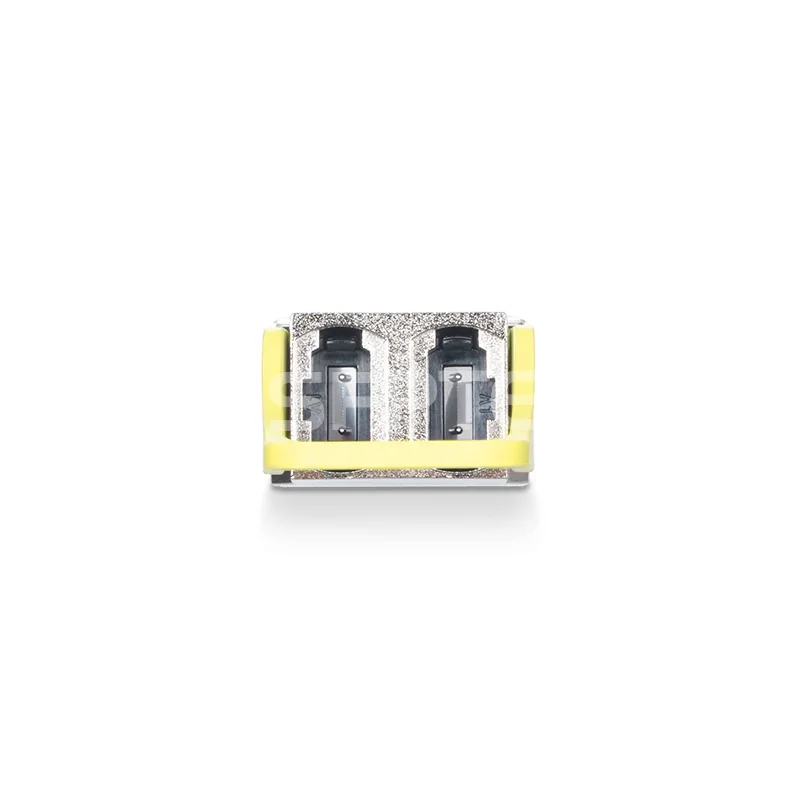

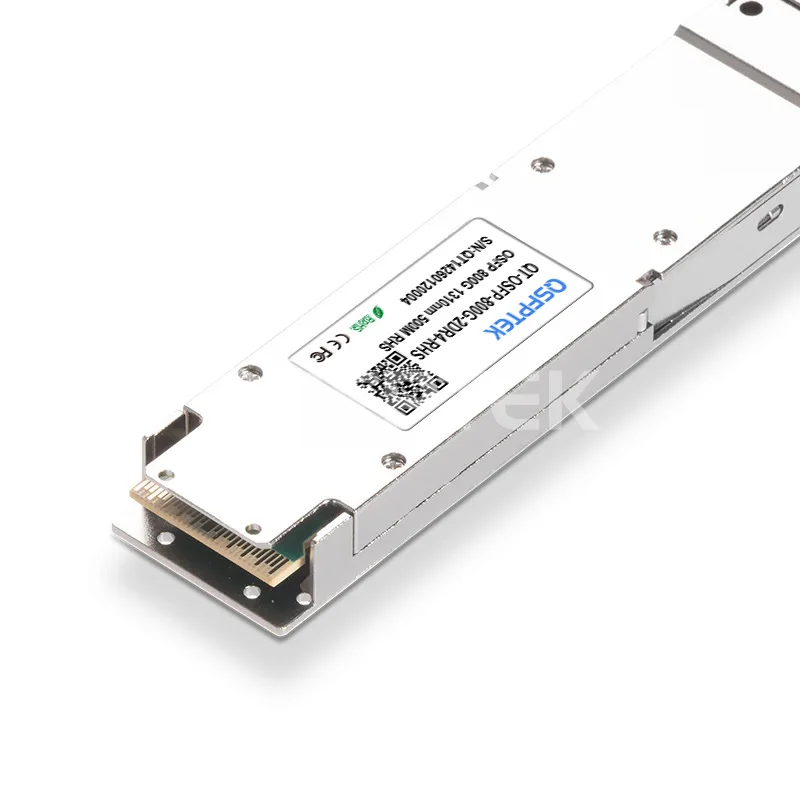

    NVIDIA/Mellanox MMS4X00-NM-HGX (980-9I302-00NM00) Compatible 800GBASE-DR8 (2xDR4) Twin-port OSFP RHS/Flat Top PAM4 1310nm 500m Dual MPO-12/APC DDM SMF Ethernet Optical Transceiver Module for Rubin NVL8 Systmes

    Product No: 203221
    0 Reviews
    11 Sold
    $799.00
    Compatible
    Transceivers type
    7 in real-time stock, 22Oct, 2026

    Free Shipping over US$ 79.8

    Global warehouses in stock

    5-Year Warranty 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. 100% verified by the original
2. Flat top design for Rubin NVL8 Systmes
3. Support the Ethernet protocols
4. 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
5. Maximum power consumption ≤14.5W
    See more

    Specifications

    NVIDIA/Mellanox MMS4X00-NM-HGX (980-9I302-00NM00) Compatible 800G DR8 OSFP RHS/Flat Top PAM4 Twin-port Ethernet Optical Transceiver Module (1310nm, 500m, 2x MPO-12/APC Connectors, SMF, 0℃ to +70℃, DDM)



    NVIDIA/Mellanox MMS4X00-NM-HGX (980-9I302-00NM00) compatible 800G DR8 (2x400G DR4) OSFP is an Ethernet twin-port transceiver module with dual MPO-12 APC connectors at 400Gb/s each. It enables the fiber link of 500m at 2x400Gb/s over single-mode fiber (SMF). With the Pulse-amplitude Modulation (PAM4) modulation, the 2xDR4 OSFP adopts 8-channels of 100G-PAM4 electrical modulation and two ports of 4-channel 100G-PAM4 optical Parallel modulation.



    With a flat top design, the OSFP-RHS is offered for Rubin NVL8 Systmes. Its main application is to link the NVIDIA DGX Rubin NVL8 Systmes to Spectrum-4 and Spectrum-5 switches. QSFPTEK NVIDIA InfiniBand compatible optics are 100% tested in NVIDIA host devices, ideal for Ethernet end-to-end systems.



    Part Number QT-OSFP-800G-2DR4-RHS Vendor Name QSFPTEK
    Form Factor Twin-port OSFP-RHS/Flat Top Max Data Rate 850Gbps (8x 106.25Gbps)
    Wavelength 1310nm Distance 500m
    Connector Dual MPO-12/APC Cable Type SMF
    Transmitter Type EML Receiver Type PIN PD
    TX Power -2.9 to 4 dBm Receiver Sensitivity < -5.9 dBm
    Packaging Technology COB (Chip on Board) Packaging Receiver Overload 4 dBm
    Power Consumption ≤14.5W Modulation Format 8x 100G-PAM4 electrical to Dual 4x 100G-PAM4 optical Parallel
    Extinction Ratio >3.5dB CDR (Clock and Data Recovery) TX & RX Built-in DSP
    Application NVIDIA DGX Rubin NVL8 Systmes MTBF 4016064 Hours
    DDM/DOM Supported Temperature 0 to 70°C (32 to 158°F)
    Protocols OSFP MSA, IEEE 802.3ck-2022, CMIS Rev 5.0 Warranty 5 Years
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Related Products

    Hot

    1m (3ft) MTP-12 APC (Female) to MTP-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $68.60
    9.5K Sold
    79 Reviews

    1m (3ft) MPO-12 APC (Female) to MPO-12 APC (Female) OS2 Singlemode Elite Trunk Cable, 12 Fibers, Type B, LSZH, Yellow

    $15.60
    11.0K Sold
    79 Reviews

    NVIDIA/Mellanox MMS4X00-NM (980-9I30G-00NM00) Compatible 800GBASE-DR8 Twin-port OSFP IHS/Finned Top PAM4 1310nm 500m Dual MPO-12/APC DDM SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 InfiniBand and Spectrum-4 Ethernet Air-Cooled Switches

    $799.00
    82 Sold
    37 Reviews

    Applications

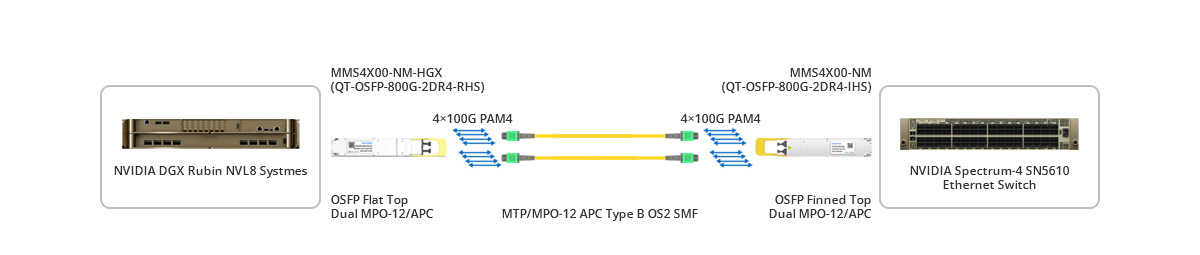

    Scenario: Linking Rubin NVL8 to Spectrum-4 and Spectrum-5 switches

    Linking Rubin NVL8 to Spectrum-4 and Spectrum-5 switches

    Product details

    Undergoes Comprehensive Performance Testing to Guarantee Optimal Reliability



    The QSFPTEK test center conducts complete testing procedures with advanced professional test equipment, including BER test, eye diagram test, Optical Spectrum test, jitter test, etc. Each module has been stringently tested by world-class test devices from Keysight and Anritsu to guarantee flawless operation and optimal reliability.



    Performance test devices



    Questions & Answers

    • All (11)
    • QT-QSFP-DD-800G-2FR4 (3)
    • QT-OSFP-800G-2FR4 (2)
    • 400G OSFP (1)
    • QT-QSFP-DD-800G-DR8 (1)
    • QT-OSFP-800G-2DR4 (1)
    • I want to connect this QSFP-DD 800G 2FR4 module to my 400G switches, which 400G optics and fiber patch cable should I use?
      Hello, to connect the QSFP-DD 800G 2FR4 module to 400G switches, you can use QSFP-DD-400G-FR4 for 400G switches. Since QSFP-DD 800G 2FR4 has two duplex CS connectors while QSFP-DD-400G-FR4 has a single duplex LC connector, you should link QSFP-DD 800G 2FR4 to two QSFP-DD-400G-FR4 via two CS to LC Duplex OS2 single mode fiber. Please kindly check the application section of the product details page.
    • The 800G 2FR4 optical module has two separate connectors, can I use only one port of the module?
      Yes, if only one of the ports is used, the rate is 400G.
    • Can I plug 400G OSFP modules into 800G OSFP ports?
      Yes, 800G OSFP ports are backward compatible with 400G OSFP as long as the physical form factor is compatible.
