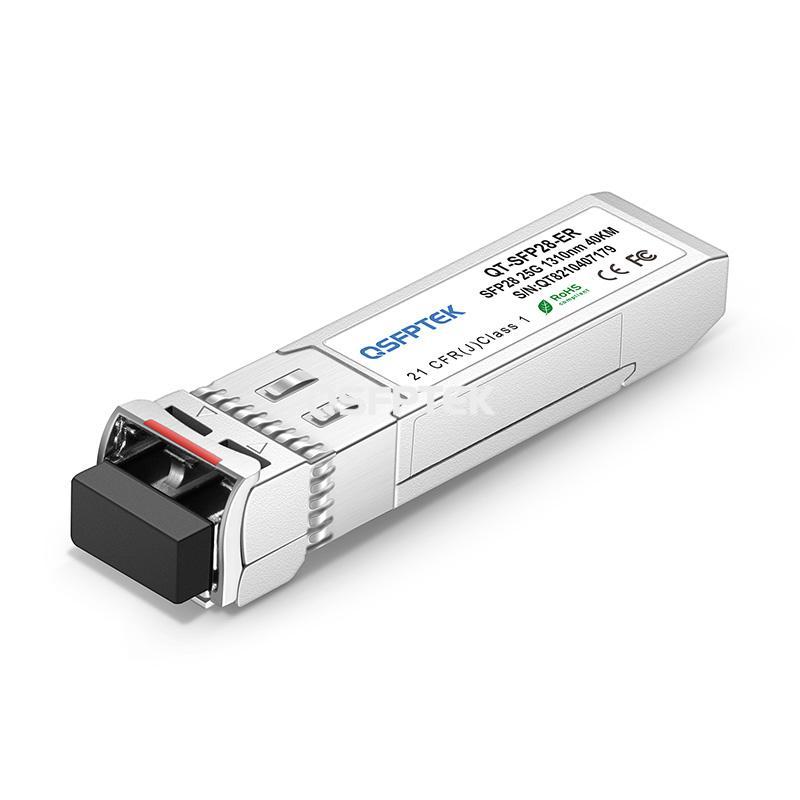

Cisco SFP-25G-ER Lite Compatible 25GBASE-ER SFP28 1310nm 40KM optical transceiver Module

Product No :32964

US$ 99.00 ~~US$ 145.00~~

Compatible

Brocade Cisco Generic

Transceivers type

SFP-25G-SR-S SFP-25G-LR SFP-25G-ER Lite SFP-10/25G-CSR-S SFP-10/25G-LR-S

100 in stock

Free Shipping over US$ 84.9

US/EU Warehouses in stock

14-day Return and Refund

-

+

Add to Cart Bulk Order Quotes

1. Rate: 25G; Connector: Duplex lC
2. DFB+PIN; Low Power Consumption <2W
3. Applied in Metro and Long-Haul network
4. Fully Compatible with 100+ Vendors
5. SFP28 MSA Compliant

Specifications

Cisco SFP-25G-ER Lite Compatible 25GBASE-ER SFP28 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DDM)

The Cisco SFP-25G-ER lite compatible 25G SFP28 transceiver module is equipped with LC duplex connectors, reaching a link up to 40km over OS2 single-mode fiber with FEC (30km over G.652 SMF without FEC). This 25G optical transceiver comes with an SFP28 connector, enabling 25 Gbps bandwidth. DOM/DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring.

QSFPTEK manufactured 25GBASE-ER SFP28 module is compliant with SFP28 MSA, IEEE 802.3by SFP28 specifications. Besides, the small form-factor pluggable 28 (SFP28) ER optic has been tested on host devices to ensure full compatibility with Cisco equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 25G SFP module is an ideal substitute to the Cisco SFP-25G-ER SFP28 25G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 25G connectivity.

ER 25G SFP28 transceiver caters to 25 Gigabit Ethernet (25GbE) optical fiber connections, ideal for long-distance applications in the campus, metro networks, ISP operators, etc.

Model Name	SFP-25G-ER	Vendor Name	QSFPTEK
Form Factor	SFP28	Data Rate	25 Gbps
Wavelength	1310nm	Distance	40km@OS2 with FEC
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-3~6dBm	Receiver Sensitivity	<-18dBm
Power Consumption	<2W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	IEEE 802.3ba, SFP28 MSA	Warranty	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2. Wide Application Scenarios

Fully compatible with almost all Cisco devices. Ideal for metro and long-haul networks.
3. Protocols

Compliant with IEEE 802.3ba, SFP28 MSA.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

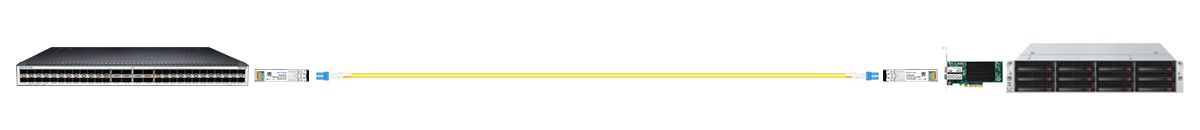

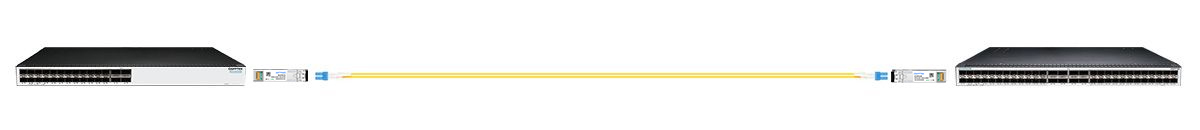

Direct Connection for 25G SFP28 25GBASE-ER Transceivers

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

Questions & Answers

more+

Can this 25G transceiver run at 10G? On your product page, I see it is connected with OM3/OM4 cables, but I only have OM2 cables, can I use OM2 directly?

I'm sorry. It can only work at 25Gbps. However, you can use the OM2 cables to connect this 25G transceiver, but pls know the transmission distance would be less than 100m over OM2 cables.
Is it compatible with my Cisco C9500 series switch?

You need to check whether the device is equipped with sfp28 ports or not by youself. Or tell us the specific switch model name (like C9500-48Y-4C) and then we'll check it for you. If the swich has bulit-in sfp28 ports, there will be no issue.
Have undergone any test programs? If yes, what are they?

This module usually has the following tests: Normal/High Temperature Testing, Power Testing, Eye Diagram Testing, Sensitivity Testing, DDM Monitoring and Ping Package Testing.
