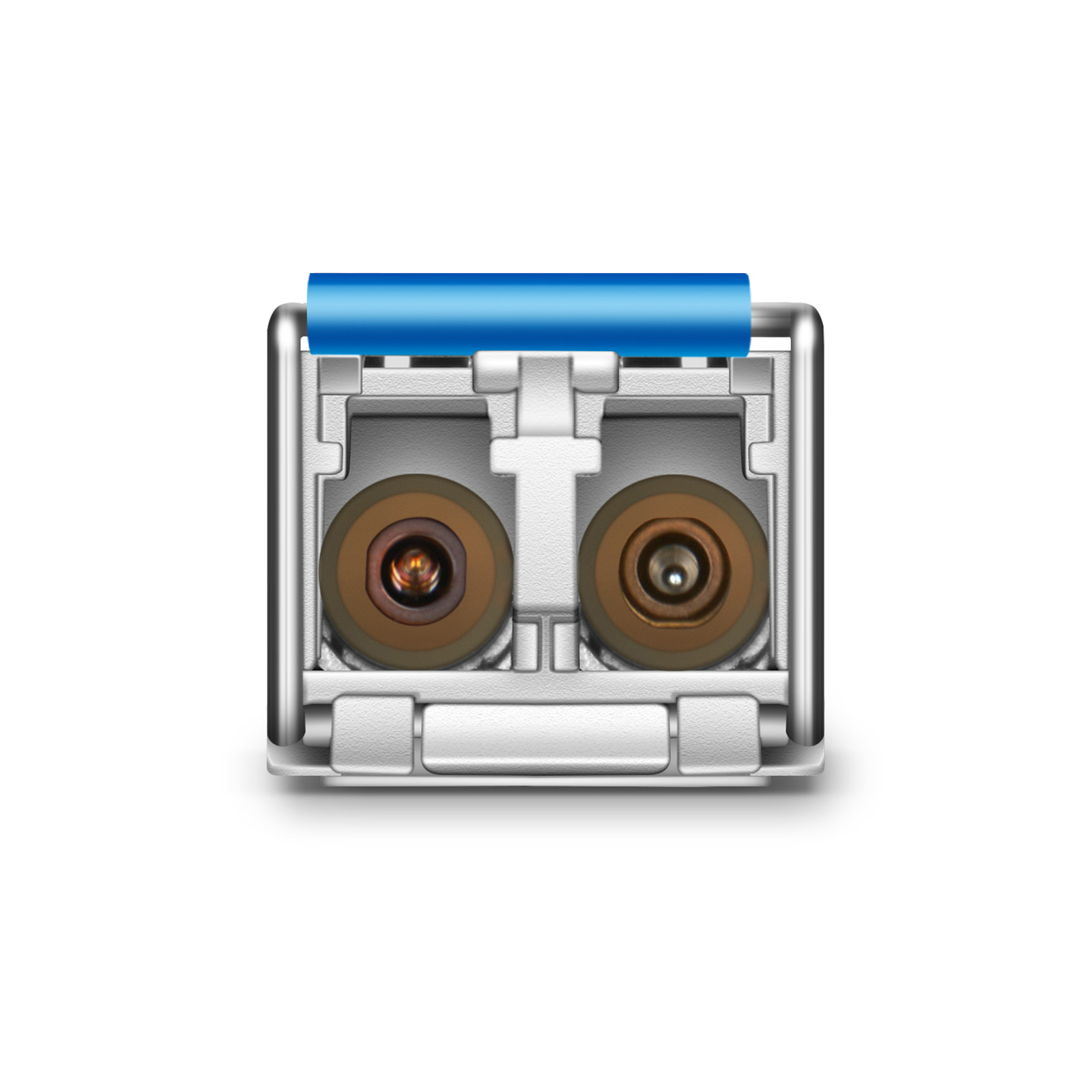

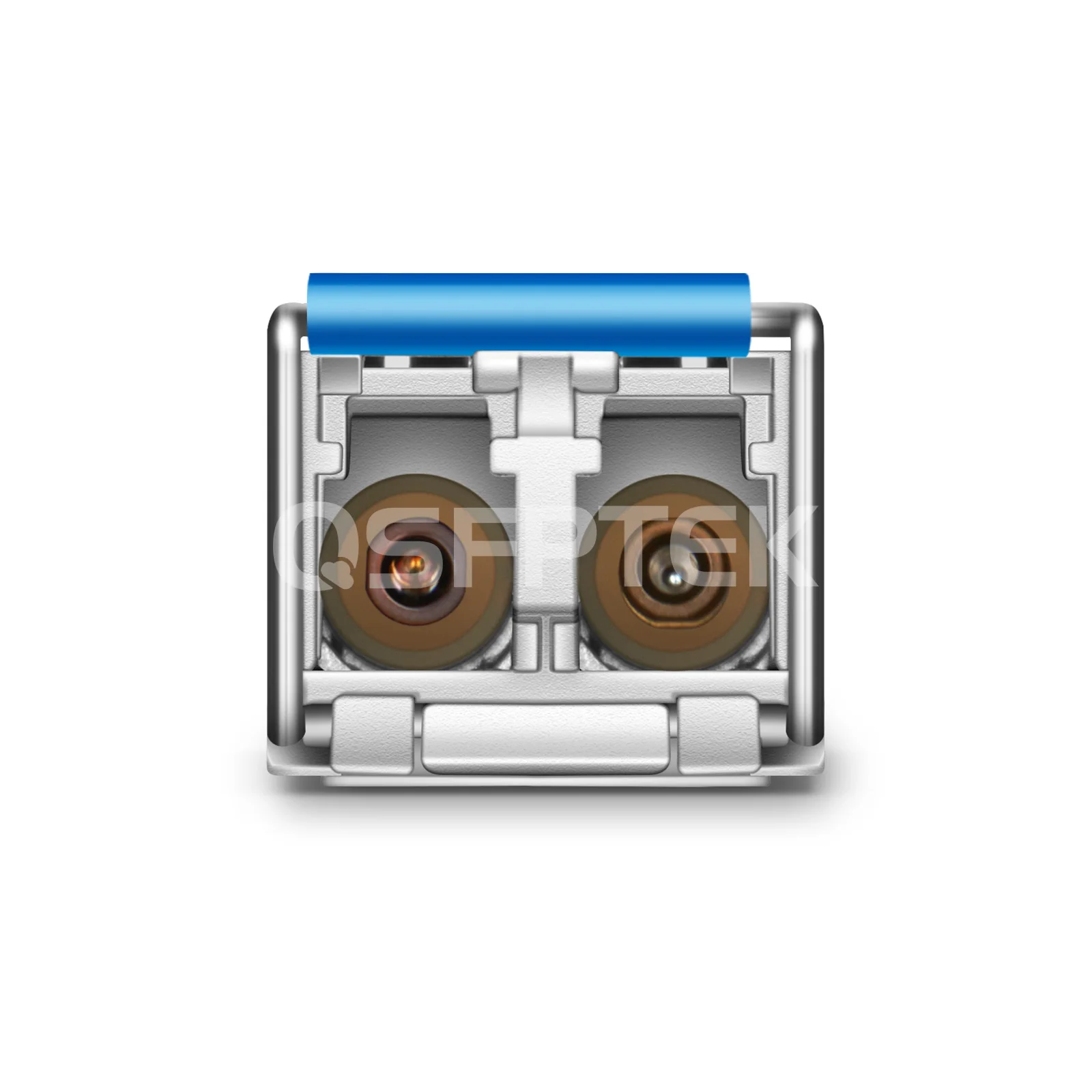

Brocade E1MG-LX-A Compatible 1000BASE-LX SFP 1310nm 10km DOM LC MMF/SMF Transceiver Module

Product No :99456
US$ 6.90  US$ 6.13
2000 in stock
Free Shipping over US$ 84.9 US/EU Warehouses in stock.
1. Connector: Duplex LC; with DDM
2. Low Power Consumption <1W
3. Ideal for Campus Network, Enterprise LAN Networks and other optical links
4. Compatible with 200+ Vendors
5. Hot Pluggable SFP MSA Compliant
See more

Specifications

Brocade E1MG-LX-A Compatible 1000BASE-LX/LH SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)



Brocade E1MG-LX-A Compatible 1000BASE LX/LH SFP transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting dual data rates of 1.25Gbps and 1.0625Gbps at the link distance up to 10km over single-mode fiber (SMF). QSFPTEK 1000BASE LX transceiver is compatible with the IEEE 802.3z 1000BASE-LX standard.



This Compatible 1000BASE-LX/LH SFP fiber optic transceiver module consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All QSFPTEK manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.



Part Number

SFP-1G-LX (10km)

Vendor Name

QSFPTEK

Form Factor

SFP

Data Rate

1.25Gbps

Wavelength

1310nm

Distance

10km

Connector

LC Duplex

Cable Type

OS2 SMF

Transmitter Type

FP

Receiver Type

PIN

TX Power

-9 ~ -3dBm

Receiver Sensitivity

< -22dBm

Power Consumption

< 1W

Modulation Format

NRZ

DDM

Support

Bit Error Ratio (BER)

1E-12

Protocols

IEEE 802.3z, SFF-8472, SFP MSA Compliant

Warranty

3 Years



Quality Certifications

Features

  • 1. High Reliablility and Best Price
    Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
  • Convenient and Flexible Use, Easy to Install, Plug and Play.
  • EMC Support, Anti Electro-Static Discharge and Radiation Resistant.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

1000BASE-LX SFP Transceiver Interconnection Solution



Related Products:

• LC UPC to LC UPC Duplex OS2 Single-mode Fiber Optic Patch Cable (SMF)



The 1000BASE-LX SFP-1G-LX Optical Module Connectivity Testing on Switches



Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.



transceiver compatibility tests






Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





Each SFP transceiver module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.







SFP transceiver module installation guide:

Questions & Answers

more+
  • Can this SFP+ module work at lower data rates (155Mbps) than specified?
    Yes, it can work at 155Mbps.
  • What is the Tx power and Receiver Overload of 1G EX?
    TX Power: -5 ~-0 dBm. Receiver Overload: -3 dBm
  • I notice that the 1G LX/LH supports both SMF and MMF. So what's the diffrence?
    If you use MMF cables like OM2/OM3/OM4, the max diatance is 550m. If you use SMF cables, it can reach up to 10km. So you can choose cable type according to your application.
