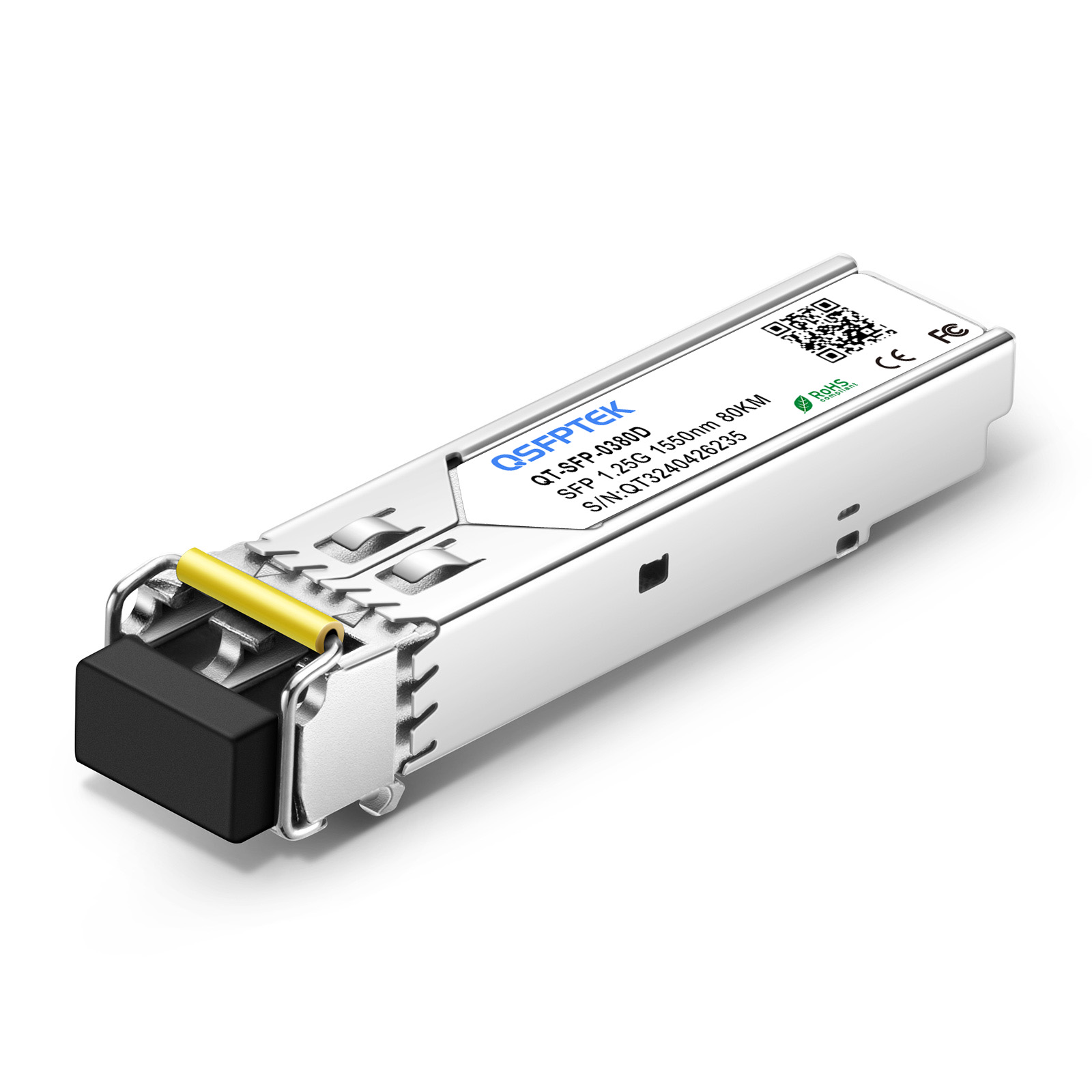

Brocade E1MG-LHA Compatible 1000BASE-ZX SFP 1550nm 80km Transceiver Module

Product No :2088

US$ 19.90 ~~US$ 24.88~~

Specifications

Brocade E1MG-LHA Compatible 1000BASE-ZX SFP Transceiver Module (SMF, 1550nm, 80KM, LC)

Brocade E1MG-LHA compatible 1000BASE ZX SFP transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting 1.25Gbps data rate and 80KM transmission distance over single-mode fiber (SMF). QSFPTEK 1000BASE ZX transceiver is compatible with the IEEE 802.3z 1000BASE-ZX standard.

This compatible 1000BASE-ZX SFP fiber optic transceiver module consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All QSFPTEK manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.

Part Number	SFP-1G-ZX	Vendor Name	QSFPTEK
Form Factor	SFP	Data Rate	1.25Gbps
Wavelength	1550nm	Distance	80km
Connector	LC Duplex	Cable Type	OS2 SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	0 ~ 5dBm	Receiver Sensitivity	< -24dBm
Power Consumption	< 1W	Modulation Format	NRZ
DDM	Support	Bit Error Ratio (BER)	1E-12
Protocols	SFF-8472 MSA Compliant, IEEE 802.3ah-2004	Warranty	3 Years

Quality Certifications

Features

1. High Reliablility and Best Price

Proudly self-producing and rigorous testing, QSFPTEK is dedicated to delivering cost-effective products with high reliability and performance at trade price.
2.Convenient and Flexible Use, Easy to Install, Plug and Play.
3.EMC Support, Anti Electro-Static Discharge and Radiation Resistant.
4. Quality Certifications

Backed by CE, FCC, ROSH, ISO9001.

Applications

1000BASE-ZX SFP Transceiver Interconnection Solution

Product details

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.

transceiver compatibility tests

Tested in The Host Device to Prove Interoperability

Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.

Comprehensive Testing

Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.

SFP transceiver module installation guide:

Questions & Answers

more+

Can this SFP+ module work at lower data rates (155Mbps) than specified?

Yes, it can work at 155Mbps.
What is the Tx power and Receiver Overload of 1G EX?

TX Power: -5 ~-0 dBm. Receiver Overload: -3 dBm
I notice that the 1G LX/LH supports both SMF and MMF. So what's the diffrence?

If you use MMF cables like OM2/OM3/OM4, the max diatance is 550m. If you use SMF cables, it can reach up to 10km. So you can choose cable type according to your application.
