    Home / Products / Fiber Optic Cables / MTP/MPO Cables / MTP/MPO Breakout Cables / 99675

    2m (7ft) MTP-8 APC (Female) to 4x LC UPC Duplex OS2 Singlemode Elite Breakout Cable, 8 Fibers, Type B, LSZH, Yellow

    Product No: 99675
    27 Reviews
    3.4K Sold
    US$ 48.56
    Series
    Length
    45 in real-time stock, 17 Jun, 2026

    Buy switch & cables for free shipping. Cables alone are not eligible.

    Contact sales for more free shipping policies

    3-Year Warranty 90-Day Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. LSZH Jacket
2. Flexible 10mm Min. Bend Radius
3. Optimized for 40G/100G/200G/400G Transmission
4. MTP Connector with 12 Fibers
5. Compliant with ROSH 2.0 and MCD
    See more

    Specifications

    2m (7ft) MTP Female to 4 LC UPC Duplex 8 Fibers Type B Plenum (LSZH) OS2 9/125 Single Mode Elite Breakout Cable



    The MTP breakout cable provides a worry-free and cost-effective solution for high-density cabling to convert an MTP connector to an LC duplex connector. This MTP female to 4 LC UPC Duplex OS2 single-mode breakout cable is specially optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP PLR4 to 25G SFP28 LR optics direct connection, data centers, and telecommunications systems applications.



    Connector A:

    MTP Female

    Connector B:

    LC UPC Duplex

    Fiber Count:

    8 Fibers

    Fiber Type:

    OS2 9/125μm

    Polish Type:

    APC to UPC

    Wavelength:

    1310nm/1550nm

    Connector:

    LC Duplex

    Cable Material:

    LSZH

    MTP Connector Insert Loss:

    0.35dB

    LC Connector Insert Loss:

    0.2dB

    Breakout Length:

    0.5m

    Return Loss:

    ≥60dB

    Trunk Diameter:

    3.0mm

    Fan-Out Diameter:

    2.0mm

    Min. Bend Radius (Fiber Cable) Dynamic:

    10mm

    Min. Bend Radius (Fiber Cable) Static:

    10mm

    Operating Temperature:

    -20~+70℃

    Storage Temperature:

    -40~+80℃



    Quality Certifications

    Features

    • 10mm Min. Bend Radius
      Allow tighter cable bends for slack storage and routing.
    • 0.35dB Max. IL
      Always provide stable signal and realize flexible system design.
    • LSZH Jacket
      Low smoke, low toxicity, low corrosion, and high flame retardant.

    Applications

    Connection 1:

    MTP Breakout OS2 Connection 40G to 10G

    Connection 2:

    MTP Breakout OS2 Connection 100G to 25G

    Product details

    Excellent Transmission Stability Ensured by Superior Craftsmanship



    With meticulous attention to detail and high-quality construction, these cables ensure reliable and uninterrupted data transmission.

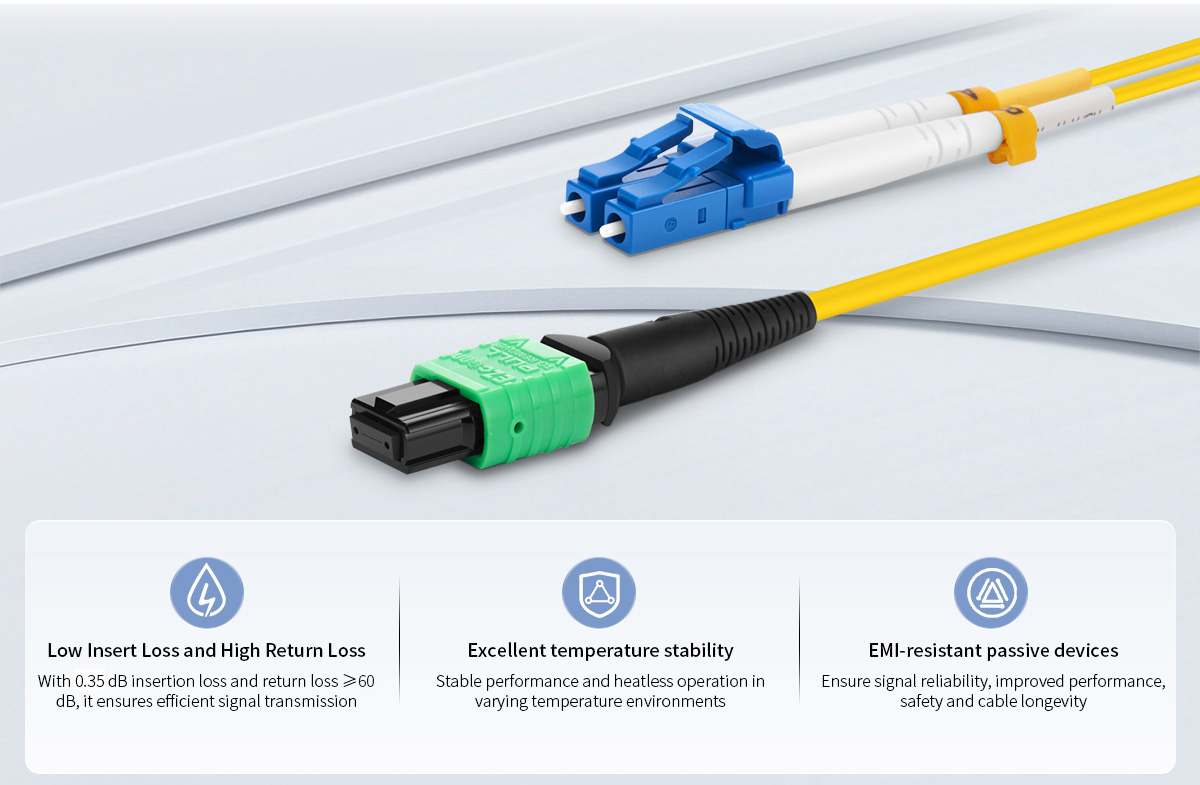

    MTP Breakout OS2





    High-Performance Fiber with Superior Durability



    This fiber offers exceptional performance and is ideal for high-density cabling due to its excellent bending and compression resistance.



    OS2 Cable





    Reliable Transmission Quality with Carrier-Grade Cables



    Achieve dependable transmission quality with carrier-grade cables that excel at minimizing light loss and meeting diverse cabling needs, ensuring an enhanced transmission experience.



    MTP Breakout OS2 Transmission



    Optimizing Network Upgrade Solutions for Superior Efficiency



    Simply the network configuration enables migration from 10G to 40G effortlessly, ensuring low insertion loss and perfect performance.



    Maintain Performance by Cleaning Fiber



    Ensure high reliability and performance connections by maintaining clean fiber end-faces.

    Fiber Clean
