Home / Products / Network switches / Campus Switches / 1G/10G Switches / 100503

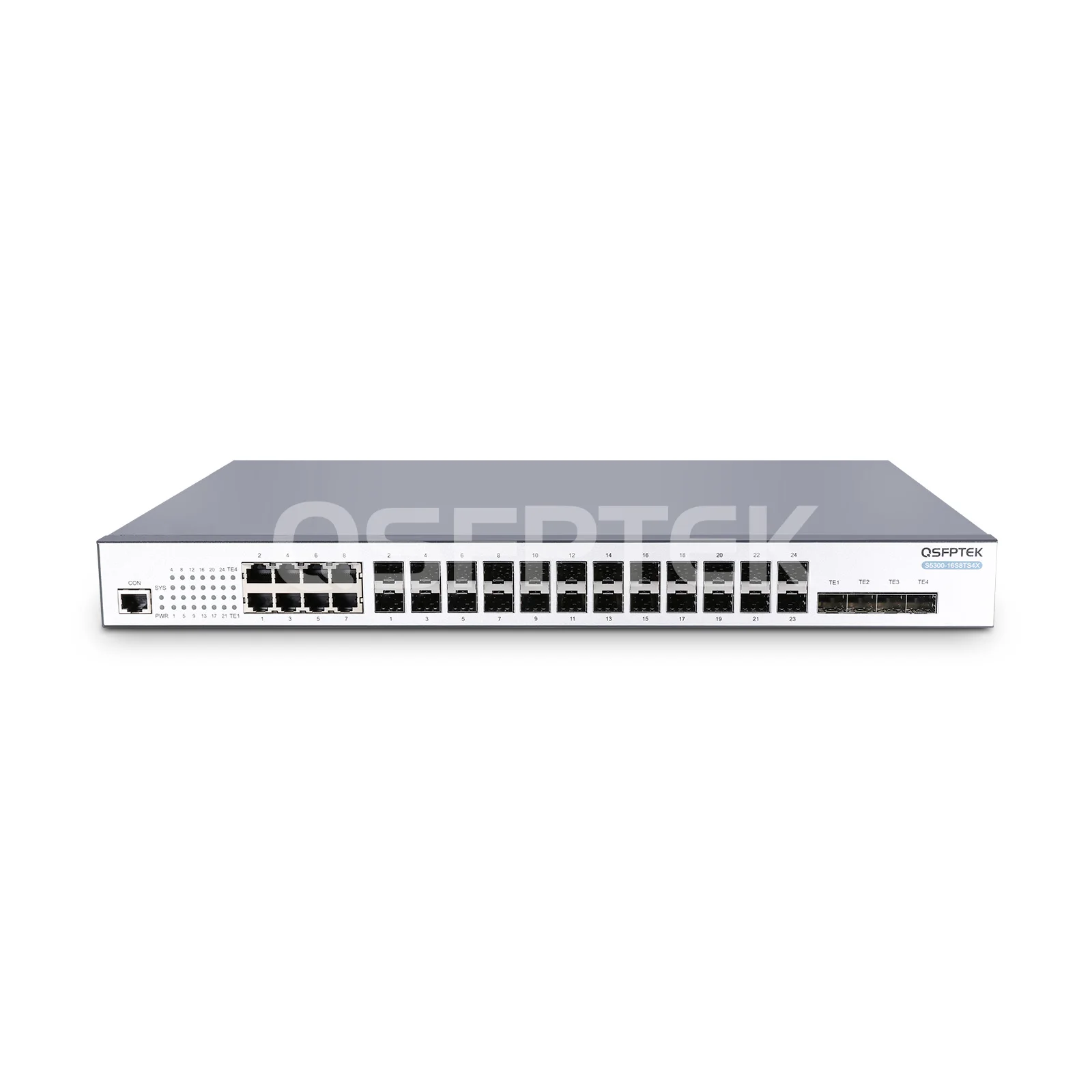

S5300-16S8TS4X, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking

Product No :100503
US$ 460.90  US$ 549.00
Series
Models
69 in real-time stock, 22Apr, 2025
US/EU/Global warehouses in stock | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=409CA367978DBF92FC6E4BC4A03D4D0C
-
+
Add to Cart Bulk Order Quotes
1. Support 2 Units of S5300-16S8TS4X Stacking
2. 1+1 redundant power supplies and 2 built-in smart fans
3. Rich L2+ Features: Static Routing, RIP, OSPF, VRRP
4. Support IPv4/v6 dual stack Protocol
5. Support LACP, MSTP, EAPS, ERPS, VRRP, ISSU for High Reliability
6. Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
7. Supports Port Isolation, and ACL, QoS, DHCP Snooping for Access and Traffic Control
8. Support CLI/WEB/Telnet/SSH/SSL/SNMP for Flexible Management
See more

Specifications

S5300-16S8TS4X, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking



The S5300-16S8TS4X is a managed Gigabit access layer switch with 16x 1G SFP, 8x 1G RJ45/SFP combo, 4x 10G SFP+ uplink ports, supports stacking of up to 2 switches. It has built-in two intelligent fans, which can automatically adjust the fan speed to save on usage costs. The switch can be easily controlled and managed through both CLI and WEB interfaces, allowing for real-time monitoring and improved management efficiency. This makes the S5300-16S8TS4X an ideal choice for SMBs, enterprise networks, and campus networks.



Part Number S5300-16S8TS4X Vendor Name QSFPTEK
Ports 16x 1G SFP, 8x 1G RJ45/SFP Combo | 4x 10G SFP+ Packet Buffer 1.5 MB
Switching Capacity 128 Gbps Forwarding Rate 96 Mpps
MAC Address 16K ARP Table 2036
VLAN IDs 4K Jumbo Frame 9K
Flash Memory 16 MB RAM 256 MB
Airflow Left-to-right Fan 2 built-in fans

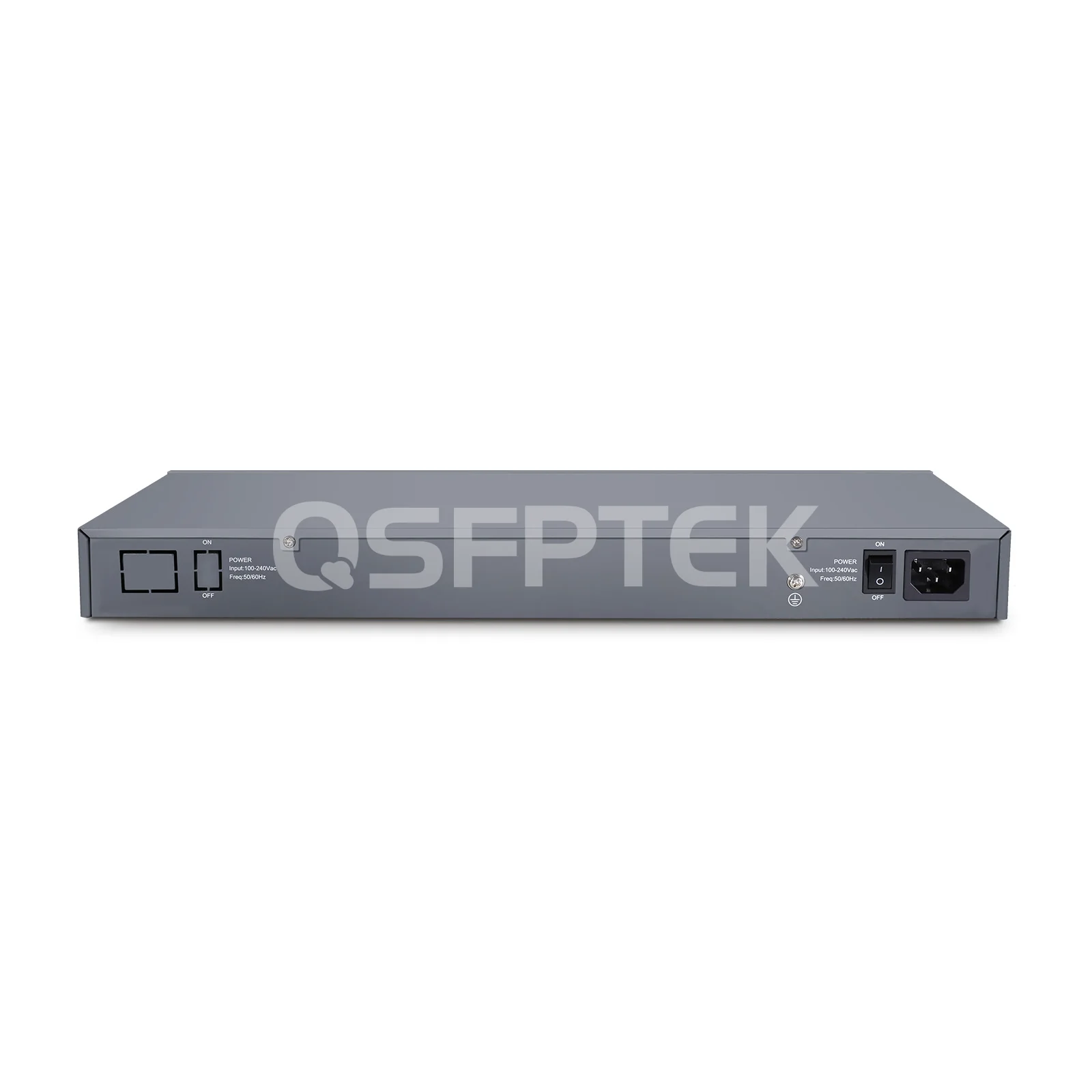

Input Voltage 100 to 240 VAC, 50Hz±10% Power Supply 1 built-in AC power supply (default)
1+1 redundant power slots, DC optional
Stackability 2 MTBF ＞200,000 hours
Dimensions (H x W x D) 44 x 440 x 280 mm
(1.73 x 17.32 x 11.02")		 Weight 3.5 kg
Operating Temperature -10 to 45℃ (14 to 113℉) Warranty 5 Years
Quality Testing Program
Optical Transceivers Testing

Take a look at our test program to get the reliable and high-performance optical transceivers.

Quality Certifications

Features

  • 1. High Port Density & Diversity
    24x 1G ports with 8 for SFP or RJ45 connection for access layer, 4x 10G ports uplink for aggregation layer.
  • 2. Cost-Effecitive
    Cost-effective stackable switch with VRRP, DHCP Server for SMB, enterprise, and campus networks.
  • 3. Easy Management
    Supports CLI, WEB, Telnet, FTP, SSH, SSL, SNMP, etc.
  • 4. High Reliabiliity
    Support LACP, MSTP, EAPS, ERPS, VRRP, ISSU, etc.

Applications

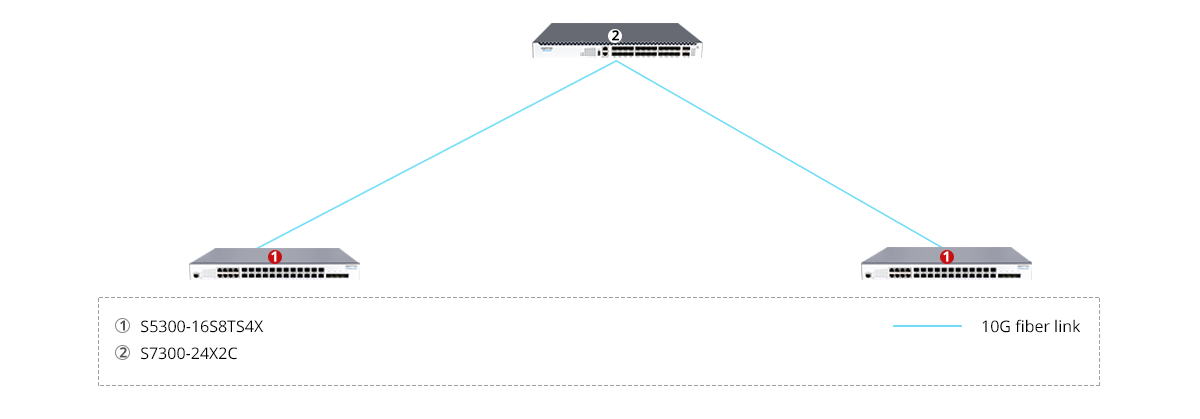

Scenario 1:



Related Products:

Network switches:

S7300-24X2C 24-Port Ethernet L3 Campus Switch, 24x 10Gb SFP+, 2x 100Gb QSFP28, Support Stacking



10G fiber link:

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OM3 Multimode Fiber Patch Cable

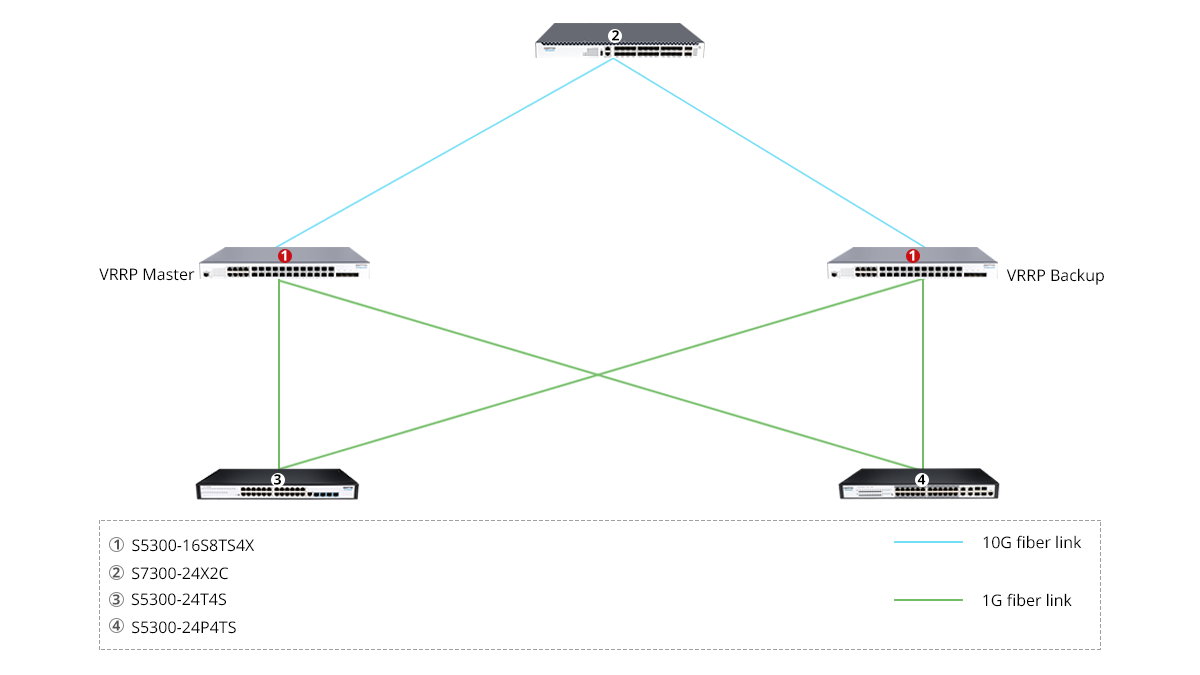

Scenario 2:

Related Products:

Network switches:

S7300-24X2C 24-Port Ethernet L3 Campus Switch, 24x 10Gb SFP+, 2x 100Gb QSFP28, Support Stacking

S5300-24T4S 24-Port Fanless Gigabit Ethernet L2+ Access Switch, 24x 10/100/1000BASE-T RJ45 Ports with 4x 100/1000M SFP Uplinks

S5300-24P4TS 24 x Gigabit  L2+ Switch, 24 x PoE+ Ports @370W, with 4 x 1Gb RJ45/SFP Combo Uplinks, Support OSPF



10G fiber link:

Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DDM LC MMF Transceiver Module

LC UPC to LC UPC Duplex OM3 Multimode Fiber Patch Cable



1G fiber link:

Cisco GLC-SX-MM Compatible 1000BASE-SX SFP 850nm 550m DOM LC MMF Transceiver Module

1m LC UPC to LC UPC Duplex OM4 Multimode Fiber Patch Cable







Product details

High Port Diversity Gigabit L2+ Access Switch with 6x 10G Uplinks

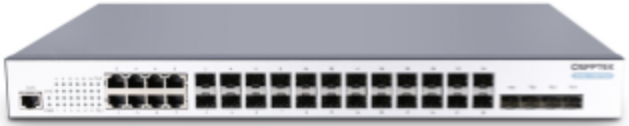

S5300-16S8TS4X has 16x 1Gb SFP, 8x Gigabit RJ45/SFP Combo and 4 x 10Gb SFP+ uplinks, providing converged fiber and copper connections downlink to 1G access and uplink to 10G aggregation. With a switching capacity of 128 Gbps and a forwarding rate of 96 Mpps, it also meets high-performance requirements at the layer 2+ access.







Support 2 Units Stacking to Expand Network Capacity and Simplify Management



Use 10G uplink ports to stack two S5300-16S8TS4X into a logically one unit, making management more convenient and delivering a scalable solution for expanding the network environment.







Applied for Traditional 3-Tier Architecture as Access Layer Switch



S5300-16S8TS4X can be used as an access switch in the traditional 3-tier architecture to downlink end clients and uplink to 10G aggregation.







 QSFPTEK S5300 Series L2+ Stackable Switches Options

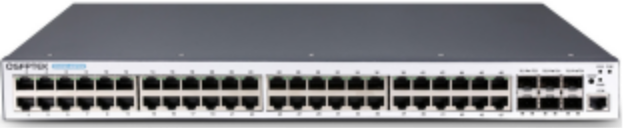

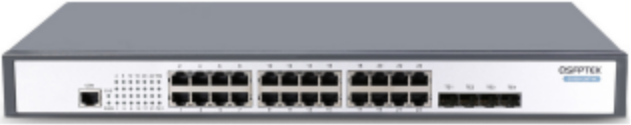

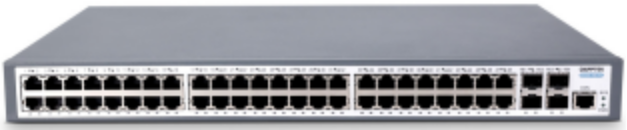

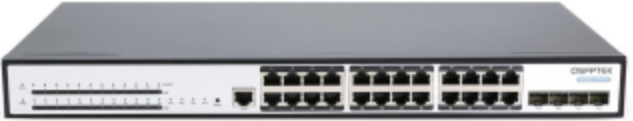

Model S5300-24T4X S5300-16S8TS4X S5300-24P4X S5300-48P6X S5300-48T4X S5300-48S6X
RJ45 Ports 24x 10/100/1000BASE-T 8x 1G RJ45/SFP Combo 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T —
Fiber Ports 4x 10G SFP+ 16x 1G SFP | 4x 10G SFP+ 4x 10G SFP+ 6x 10G SFP+ 4x 10G SFP+ 48x 1G SFP | 6x 10G SFP+
PoE Not Support Not Support IEEE 802.3af/at IEEE 802.3af/at Not Support Not Support
Management Layer L2+ Managed L2+ Managed L2+ Managed L2+ Managed L2+ Managed L2+ Managed
Power Supply 1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional		 1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional		 1 Built-in AC Power Supply 1 + 1 Redundant Power Supplies (1 Built-in AC + 1 Built-in DC) 1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional		 1 Built-in AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
Fan Fanless 2 Built-in Fans 2 Built-in Fans 2 Built-in Fans 2 Built-in Fans 3 Built-in Fans
Stackability 2 Units 2 Units 2 Units 8 Units 2 Units 8 Units
Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF
Security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, MLD Snooping, DHCP snooping, Port Security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, MLD Snooping, DHCP snooping, Port Security IGMP Snooping, MLD Snooping, DHCP Snooping, DAI, IPSG, Port Security
IPv6 IPv6 Static Routing, RIPng,
OSPFv3		 ICMPv6, DHCPv6, ACLv6, IPv6 Telnet IPv6 Static Routing, RIPng,
OSPFv3		 IPv6 Static Routing, RIPng,
OSPFv3		 ICMPv6, DHCPv6, ACLv6, IPv6 Telnet ICMPv6, DHCPv6, ACLv6, IPv6 Telnet
Reliability QoS, VRRP, ISSU VRRP, QoS, ISSU QoS, VRRP, ISSU QoS, VRRP, ISSU VRRP, QoS, ISSU VRRP, QoS, ISSU



Questions & Answers

Customer Reviews

Write a Review
Sign in to write a review
Write a Review

5 stars

259 Reviews

4 stars

2 Reviews

3 stars

0 Reviews

2 stars

0 Reviews

1 stars

0 Reviews

Reviews with images

See all photos

Read reviews that mention

  • ALL (5)
  • Timothy United States of America
    2023-03-27

    I was looking forward a Layer 2 access switch, thanks for the command from the sales manager,S5300-16S8TS4X switch with performance exceeded my expectations, it also supports some of the routing functions, such as RIP, OSPF, VRRP.Of course. I would like introduce QT to my friends.

    ModelsS5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+

    Series1G/10G Switches

    Helpful

    0

  • Mario United States of America
    2023-03-13

    QSFPTEK meets my requirement of a limited Budget, the shopping process goes well with Talia's help, and I got the products in 3 days after placing the order, it weightier than expected but works stably and efficiency, so I give the 5 stars.

    ModelsS5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+

    Series1G/10G Switches

    Helpful

    0

  • Ward France
    2023-03-07

    My colleagues in the technician team prefer that I procure items from the QSFPTEK website, and the number of technicians requesting me to make purchases from the site has increased. The website offers competitive prices and efficient shipping. It is effortless for me to navigate through the site and quickly purchase the required items for my team. QSFPTEK is a fantastic website, and both I and my colleagues find it very useful for purchasing items necessary to complete our work.

    ModelsS5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+

    Series1G/10G Switches

    Helpful

    0

  • Rohit Kumar India
    2023-02-20

    Upgraded to a managed switch with 802.3ad LACP LAG support. QSFPTEK's switch has extra features at a great price point, and their customer and tech support is a bonus. This purchase was long overdue but worth it.

    ModelsS5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+

    Series1G/10G Switches

    Helpful

    0

  • Jacob Dorothy United States of America
    2023-02-10

    I purchased two switches for my home network, these switches support stacking capabilities, giving me the added convenience of 32 switch interfaces. QSFPTEK technical support also gave me a lot of technical support, I am not particularly proficient in networking applications and I had a lot of confusion regarding SSH functionality, but the QSFPTEK technical team gave me remote assistance, a new firmware solved my problem.

    ModelsS5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+

    Series1G/10G Switches

    Helpful

    0

Video

Resources

  • PDF Document
    S5300-16S8TS4X Datasheet.pdf
  • PDF Document
    S5300-16S8TS4X User Guide.pdf
  • PDF Document
    S5300 Layer 2 Series Switch Configuration and Commands Manual.pdf
Contact us
Write a Review
S5300-16S8TS4X, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking

Series 1G/10G Switches

Models S5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+

* Review
0/1000
Allow files type of JPG, PNG, MP4. Maximum file size: 5MB

Maximum size: 5MB

Satisfaction
Customer Gallery
View All Customer Gallery

Mark

2023-12-15
This product works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent value fo ct works well with my switch, and I plan to buy some DWDM transceivers from QT. Excellent valur money!

Verified Purchase

Helpful

8

Sign in to vote
Added to Cart
S5300-16S8TS4X, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking
US$ 460.90
Series
1G/10G Switches
Models
S5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+
Quantity
Subtotal
View Cart
Check Out
Continue shopping

Confirmation

Successfully added shopping cart

Bulk Order Quotes
S5300-16S8TS4X, 16-Port Gigabit Ethernet Managed L2+ Switch, 16x 1G SFP, with 8x 1G RJ45/SFP Combo, 4x 10G SFP+ Uplinks, Support Stacking ;jsessionid=409CA367978DBF92FC6E4BC4A03D4D0C

Series 1G/10G Switches ;jsessionid=409CA367978DBF92FC6E4BC4A03D4D0C

Models S5300-16S8TS4X | 16x 1G SFP | 8x 1G RJ45/SFP Combo | 4x 10G SFP+ | L2+ ;jsessionid=409CA367978DBF92FC6E4BC4A03D4D0C

  • Qty:

  • Name:

  • E-mail:

  • Country
