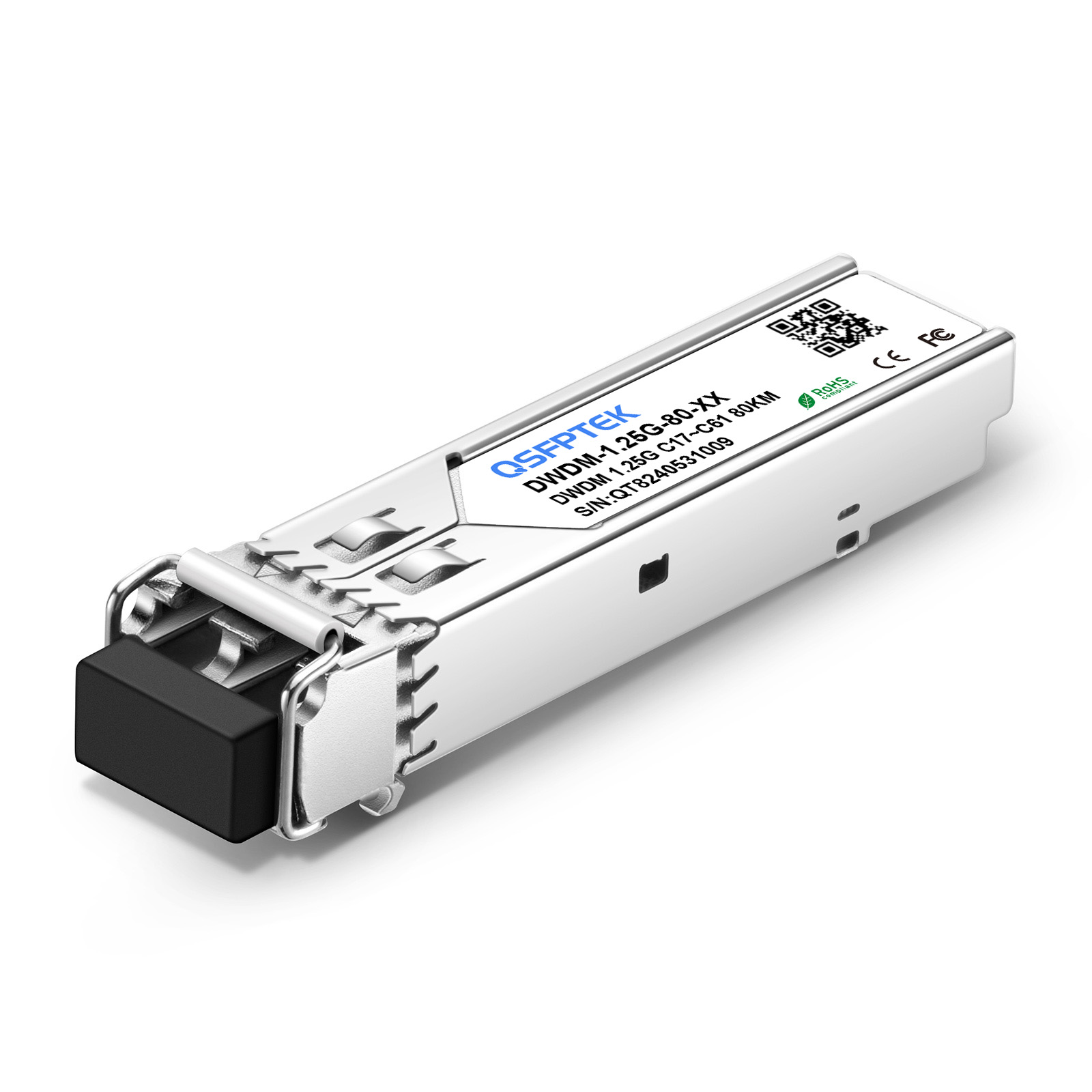

Cisco C61 DWDM-SFP-2877-80 Compatible 1000BASE-DWDM SFP 1528.77nm 80km Optical Transceiver Module

Product No :99996
US$ 99.00  US$ 249.00
Compatible
Transceivers type
100 in stock
Free Shipping over US$ 84.9 US/EU Warehouses in stock, Overnight Shipping
Bulk Order Quotes Shop Online
1.Connector: Duplex LC; with DDM
2.Low Power Consumption <1W
3.Ideal for Campus network, Metro network, Long-Haul etc
4.Compatible with 200+ Vendors
5.Hot Pluggable SFP MSA Compliant
See more

Specifications

Cisco C61 DWDM-SFP-2877-80 Compatible 1000BASE-DWDM SFP 1528.77nm 80km Optical Transceiver Module  (1528.77nm, 80km, DOM, LC, SMF)



The Cisco DWDM-SFP-80 series SFP optical transceiver module is equipped with an LC duplex connector, reaching a link up to 80km over SMF. This 1000BASE-DWDM 1G SFP transceiver, operating at a normal DWDM wavelength from 1528nm to 1566nm as specified by the ITU-T, is designed to deploy in the DWDM networking equipment in metropolitan access and core networks. All QSFPTEK manufactured 1G SFP optical transceivers are compliant with the SFF-8431 MSA and SFF8432 MSA. It's also fully compatible with most Cisco devices.



Part Number:

SFP-1G-DWDM 80km

Vendor Name

QSFPTEK

Form Factor

SFP

Data Rate:

1.25Gbps

Wavelength:

C17~61

Distance:

80km@G.652

Connector

LC Duplex

Cable Type

OS2 SMF

Transmitter:

DML

Receiver Type:

PIN

TX Power

0~+5dBm

Receiver Sensitivity

<-24dBm

Power Consumption:

≤1W

Modulation Format:

NRZ

DDM:

Supported

Bit Error Ratio (BER):

1.00E-12

Protocols:

MSA Compliant, CPRI, eCPRI

Warranty:

2 Years
Quality Certifications

Features

  • 1. High Reliablility and Best Price
  • 2.Convenient and Flexible Use, Easy to Install, Plug and Play.
  • 3.EMC Support, Anti Electro-Static Discharge and Radiation Resistant.
  • 4. Quality Certifications Backed by CE, FCC, ROSH, ISO9001.

Applications

Questions & Answers

more+
  • I want to order some DWDM SFP+ modules, and I found that there are two different transceivers tunable DWDM SFP+ and fixed-wavelength DWDM SFP+ in QSFPTEK. What's the difference between these two DWDM modules?
    Actually, there is not much difference in their wavelengths. The tunable DWDM transceiver module works at a 50GHz C-band wavelength with a pitch of 0.4nm. The fixed-wavelength DWDM transceiver supports 50GHz (0.4nm spacing) and 100GHz (0.8nm spacing) C-band wavelengths. And 50GHz channel includes a 100GHz channel, so 50GHz tunable DWDM can also operate on a 100GHz wavelength. Tunable transceivers can reduce the need for inventory of DWDM SFP+ transceivers, to save costs and maximize network flexibility. You can use this module to link any port of the same DWDM MUX over an optical cable. If you buy a tunable module, you can also tune the wavelength of the tunable transceiver.
  • Can DWDM-SFP10G be worked with Multi-Mode fiber(MMF)?
    No, the DWDM SFP 10G can't be worked with MMF, they can only work with Single-mode fiber.
