    64CH DWDM Mux Demux, 1528.68nm-1566.42nm with Monitor Port, 75GHZ, Dual Fiber, LC/UPC,1U Rack Mount

    Product No: 100542
    19 Reviews
    57 Sold
    US$ 3,206.90  US$ 3,499.00
    Series
    Model
    100 in real-time stock, 22 Jun, 2026
    3-Year Warranty 90-Day Returns 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. Utilizing 75GHz DWDM AAWG Technology Achieves IL Below 6.5dB.
2. 64*400G DCI transfer system.
3. 64 multiplexed channels in a dark fiber network.
4. Passive devices that require no power or cooling.
5. Supports DWDM networks for metro, regional, and long haul applications.
    See more

    Specifications

    75GHz 64CH DWDM Mux Demux, with Monitor Port, LC/UPC,1U Rack Mount (1528.68nm-1566.42nm)



    The 64-channel DWDM MUX DEMUX operates at a frequency of 75GHz, which conforms to the ITU-T G.694.1 100GHZ grid and optimizes the C-band range's capacity. Its wavelength ranges from 1528.68nm-1566.42nm. This device is entirely passive and boasts low insertion loss, with the wavelength ports exhibiting a level of less than 5.5 dB. It can accommodate up to 400G x 64ch business in DWDM transfer systems.



    Part Number QT-1U-D6475GHZ Installation Method 1U Rack Mount
    Wavelength 64 Channels 1528.68nm-1566.42nm Channel Spacing 75GHz
    Channel Passband ±0.05nm Passband Ripple ≤ 0.5dB
    Insertion Loss ≤6.5dB Technology AAWG (Flat top)
    Insertion Loss @ 1% Mon ≤ 26dB Link Loss ≤11dB
    Directivity ≥ 40dB Return Loss ≥ 40dB
    Polarization Mode Dispersion (PMD) ≤1.0ps Channel Isolation Adjacent ≥30dB
    Non-adjacent ≥45dB
    Polarization Dependent Loss (PDL) ≤ 0.3dB Operating Temperature -5 to 65°C (23 to 149°F)
    Center Wavelength Accuracy ±0.05nm Storage Temperature -40 to 85°C (-40 to 185°F)
    Dimensions (H x W x D) 44 x 440 x 230mm Net Weight 3.5KG
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Quality Certifications

    Features

    • 1. Optimal Optical Performance
      Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
    • 2. Widely Application Scenarios
      It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G/400G Ethernet, SDH/SONET.
    • 3. Optimize Fiber Capacity with WDM Network.
      In WDM networks, a single fiber can be shared for multiple different data or services. This maximizes the usefulness of fiber and generates substantial savings.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

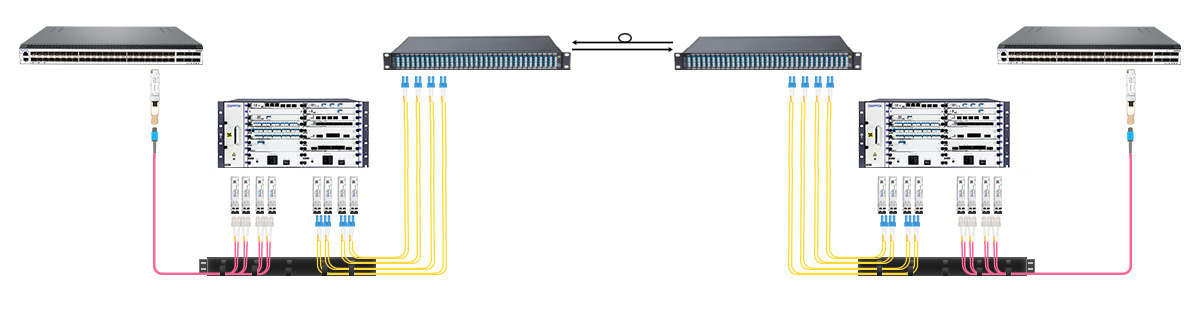

    Use DWDM Mux Demux for Multiple 40G DWDM Network up to 40KM

    Use DWDM Mux Demux for Multiple 40G DWDM Network up to 40KM

    Product details

    Rich Ports of the 64-Channel DWDM Mux Demux



    The 64-channel ports (CH1 to CH64) are designed for DWDM traffic. The monitor port (MON) is designed for monitoring either network links or power, enabling easy diagnostics without disrupting traffic.

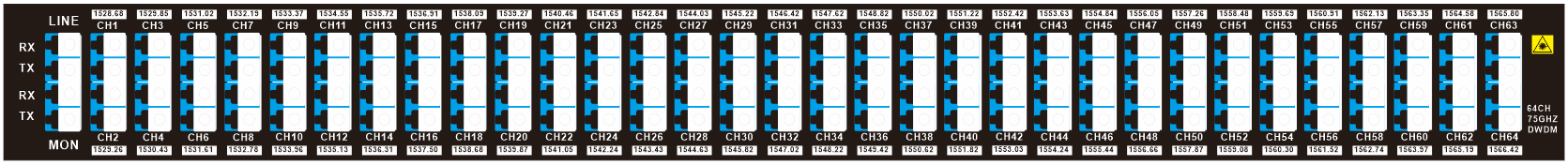

      Ports of QT-1U-D6475GHZ DWDM Mux Demux

    Basic Principles of DWDM Multiplexing and Demultiplexing



    The DWDM Mux Demux essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.



    Dual Fiber





    Maximize Your Fiber Resources with Passive WDM Network



    WDM technology enables diverse data transmissions over a single fiber, reducing the need for multiple dedicated fibers per service.

    It serves as a cost-effective network solution by optimizing the utilization of optical fibers.



    Maximize Your Fiber Resources with Passive WDM Network



    Comprehensive Network Solution Design for Free



    Individually crafted solutions meeting your specific requirements perfectly.

         Comprehensive Network Solution Design for Free
