QT860-M40/D40, 40 Channels 100GHz C21-C60 Active, Single Fiber DWDM Mux and Demux with Monitor Port, Pluggable Module, LC/UPC

Product No :100508
US$ 894.90  US$ 939.00
100 in stock
;jsessionid=364C1A6888B3B2C01424FBB2CB509D0B
-
+
1. Apply AAWG technology, the loss is constant when the temperature changes
2. Low insert loss:≤ 5.5dB; High isolation loss: ≥25dB
3. Multiplexing of up to 80Channels by Interleaver
4. Compact size, lighter weight, easy to plug and play
5. Compliant with All Optical Networking Products (ITU Grid)
See more

Specifications

40ch C21-C60 Active Single Fiber DWDM Mux and Demux Module



The pluggable 40 Channels Mux and Demux is an active module based on AAWG Gaussian technology, which uses different wavelengths to multiplex multiple signal streams on a single fiber without a large investment extend the capacity of existing optical fibers to the highest 80CH (using comb filters). It enables precise channel coupling, low insertion loss, high channel isolation and high stability. And It can be highly integrated with QT860 series 2U/5U management platform EDFA/DCM/OLP products to realize unified management.





Wavelength 40 Channels C21-C60 Channel Spacing 100GHz (0.8nm)
Channel Passband ± 0.11nm Center Wavelength Accuracy ≤ 0.05nm
Insertion Loss ≤5.5dB Flatness ≤1.5dB
Return Loss ≥45dB Technology AAWG
Channel Isolation Adjacent≥25dB
No Adjacent≥30dB
Temperature Operating-10 to 50°C
Power Consumption ≤3W Housing Pluggable Module (Occupies 4 slots in M6200 managed chassis)
Quality Testing Program
Quality Certifications

Applications

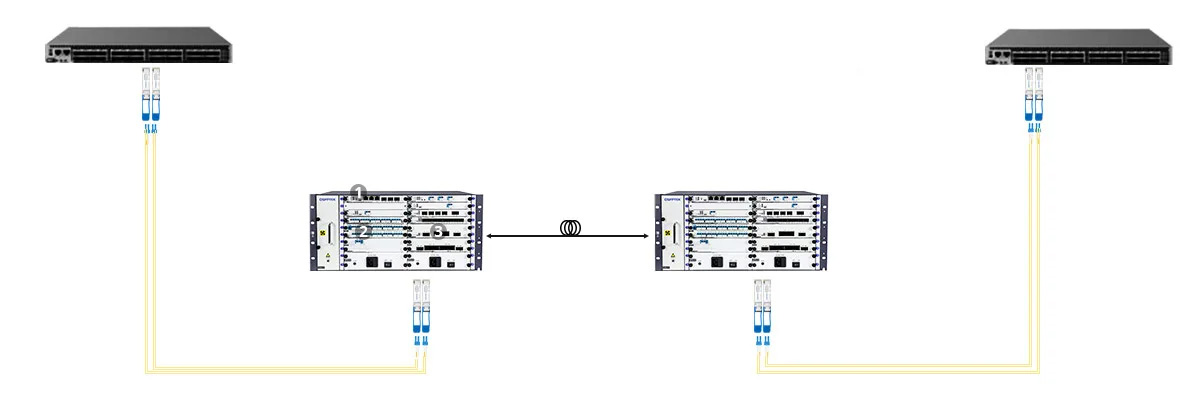

otn application



Related Product:



QT860 Series 5U Managed Chassis Platform

40 Channels Passive DWDM Mux Demux, Pluggable Module

200G OTN Muxponder, 2x QSFP28 to 1x CFP2

Product details

Diversified Ports for 40 Channels DWDM Mux Demux



QT860-M40/D40



Fully Integrated With QT860 Series 2U/5U OTN Platform



Occupies 2 slots in QT860 managed chassis

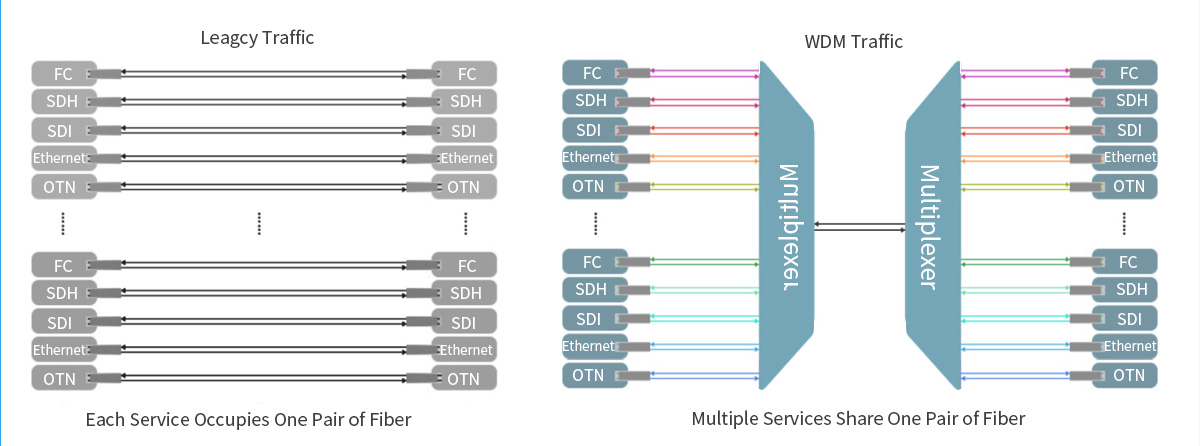

Maximize Fiber Optic Network Utilization with DWDM MUX/DEMUX



;jsessionid=364C1A6888B3B2C01424FBB2CB509D0B

Questions & Answers

more+
  • I noticed that the 40 Channels Passive DWDM Mux Demux device uses AAWG technology. What is the difference between AAWG and AWG?
    AAWG (Athermal Arrayed Waveguide Grating) remains stable across temperature variations without needing active control, making it ideal for harsh environments or where thermal control is impractical. AWG (Arrayed Waveguide Grating) lacks inherent thermal stability and may require additional thermal management. Both are used for wavelength multiplexing/demultiplexing in optical communication, but AAWG is preferred for temperature-sensitive applications.
  • I did not find the target model I need on the website, can I make a special customization?
    Sure, you can customize different channel numbers. We can provide 4/8/16/40/64, different line types with single fiber or Dual Fiber, and customize the functional ports you need. You can choose Monitor, 1310nm, and Expansion Port. Finally, you can also customize the Wavelength band you need.
  • What is the Filter Technology of the DWDM MUX DEMUX?
    We supply two types of TFF (Thin Film Filter), TAWG (Thermal Arrayed Waveguide Grating), and AAWG (Athermal Arrayed Waveguide Grating) for DWDM MUX DEMUX.
