    8 Channels 100GHz C21-C28, with Monitor, Expansion And 1310nm Port, 2.4dB Typical IL, LC/UPC, Dual Fiber DWDM Mux Demux, 1U Rack Mount

    Product No: 100543
    19 Reviews
    114 Sold
    US$ 366.90  US$ 399.00
    Series
    Model
    100 in real-time stock, 22 Jun, 2026
    3-Year Warranty 90-Day Returns 1-Year Exchange
    Warranty
    Providing industry-leading limited lifetime warranty.
    Please check our warranty policy for details.
    Returns & Exchange
    Exchanges caused by the customer's reasons will not be accepted.
    Please ensure that the item you're returning is repackaged with all the cords, adapters, and documentation included when you receive it.
    Please check our Return Policy for details.
    -
    +
    Add to Cart Bulk Order Quotes
    1. This DWDM OADM MUX DEMUX has an insertion loss of less than 2.4dB at 100GHz.
2. A dark fiber network is used for dropping and adding 8 multiplexed channels.
3. All ITU-T 1G/10G/25G/40G/100G DWDM optics are fully compatible with this setup.
4. These are passive devices and do not require any power or cooling.
5. This setup supports DWDM networks for metro, regional, and long haul distances."
    See more

    Specifications

    Dual Fiber 8CH C21-C28 DWDM Mux Demux, With Monitor, Expansion, And 1310nm Port, LC/UPC, 1U Rack Mount



    The DWDM Mux Demux is commonly utilized for long-distance transmission, where wavelengths are densely packed within the C-band. With a 100GHz grid (0.8nm), up to 48 wavelengths, and with a 50GHz grid (0.4nm), up to 96 wavelengths can be accommodated. This device is versatile, as it is protocol agnostic, and can support a range of applications, including 10/1G Ethernet, SDH/SONET, FTTx, and CATV. The QSFPTEK 8ch DWDM MUX DEMUX is designed with wavelengths spanning from C21 to C28. This device is completely passive and can be easily plugged into a 1U rack mount. Its insertion loss is 2.4dB. When connected with DWDM amplifiers and DCM equipment, the 8ch DWDM transmission system can support long-distance transmission.

    Part Number QT-1U-D82128EM3 Installation Method 1U Rack Mount
    Wavelength 8 Channels C21-C28 Channel Spacing: 100GHz (0.8nm)
    Channel Passband ±0.11nm Passband Ripple ≤ 0.2dB
    Insertion Loss ≤ 2.4dB Technology TFF (Thin Film Filter)
    Directivity ≥ 45dB Link Loss ≤ 3.2dB
    Polarization Mode Dispersion (PMD) ≤ 0.1ps Return Loss ≥ 45dB
    Polarization Dependent Loss (PDL) ≤ 0.3dB Channel Isolation Adjacent ≥30dB
    Non-adjacent ≥ 45dB
    Center Wavelength Accuracy ±0.05dB Temperature Operating -40 to 85°C (-40 to 185°F)
    Storage -40 to 85°C (-40 to 185°F)
    Net Weight 3.5KG Dimensions (H x W x D) 44 × 440 × 230 mm
    Quality Testing Program
    Optical Transceivers Testing

    Take a look at our test program to get the reliable and high-performance optical transceivers.

    Features

    • 1. Optimal Optical Performance
      Low optical insertion loss, zero electrical power, no temperature control requirements, and easy installation make the best-in-class operational efficiency.
    • 2. Widely Application Scenarios
      It works with colored transceivers and supports such applications as 1G/10G/25G/40G/100G Ethernet, SDH/SONET.
    • 3. Optimize Fiber Capacity with WDM Network.
      In WDM networks, a single fiber can be shared for multiple different data or services. This maximizes the usefulness of fiber and generates substantial savings.
    • 4. Quality Certifications
      Backed by CE, FCC, ROSH, ISO9001.

    Applications

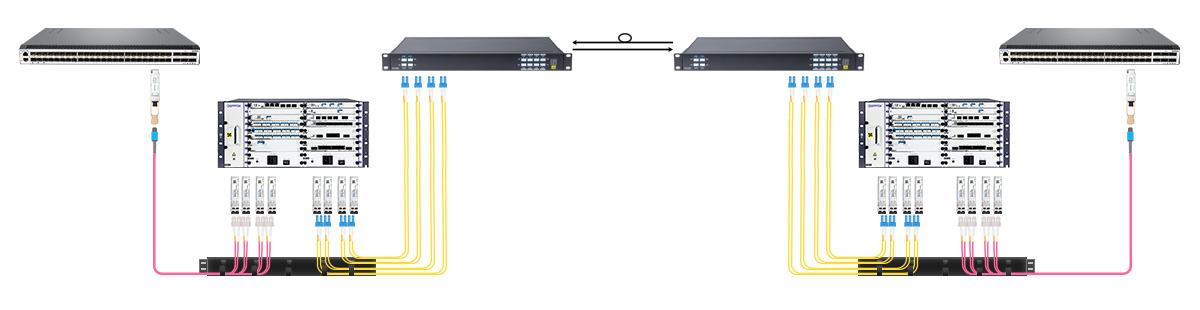

    Use DWDM Mux Demux for Multiple 40G DWDM Network up to 40KM

    Use DWDM Mux Demux for Multiple 40G DWDM Network up to 40KM

    Product details

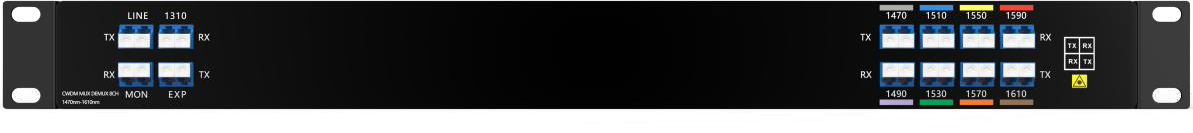

    Rich Ports for 8 Channels DWDM Mux Demux



    The channel port C21-C28 is designed for DWDM traffic, with the EXP port allowing network expansion, and the MON port for link monitoring.



    Rich Ports for 8 Channels DWDM Mux Demux



    Basic Principles of DWDM Multiplexing and Demultiplexing



    The DWDM Mux Demux essentially combines multiplexing (Mux) and demultiplexing (Demux) functions. At the transmitting end, the Mux combines optical signals of different wavelengths into the same fiber for transmission; at the receiving end, the Demux separates these mixed multi-wavelength signals and restores them to their individual channels. The overall process is one of "merging" at one end and "demultiplexing" at the other, corresponding to each other.

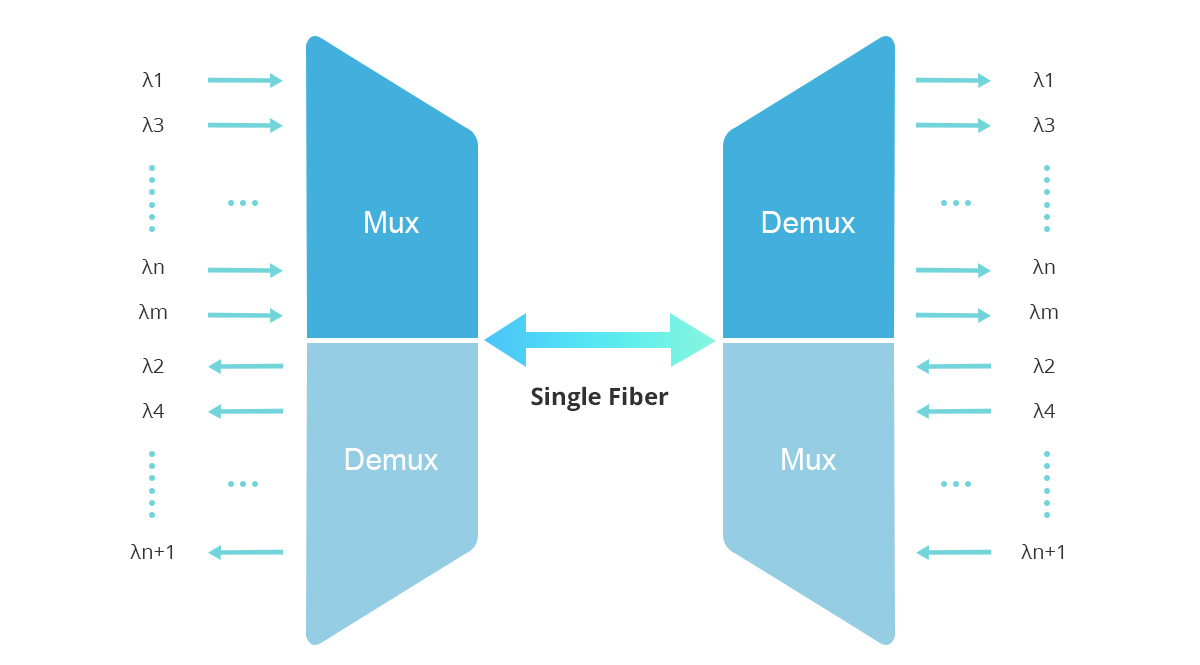

    Single Fiber Wavelength



    Maximize Your Fiber Resources with Passive WDM Network



    WDM technology enables diverse data transmissions over a single fiber, reducing the need for multiple dedicated fibers per service.

    It serves as a cost-effective network solution by optimizing the utilization of optical fibers.



    Maximize Your Fiber Resources with Passive WDM Network



    Comprehensive Network Solution Design for Free



    Individually crafted solutions meeting your specific requirements perfectly.

         Comprehensive Network Solution Design for Free
