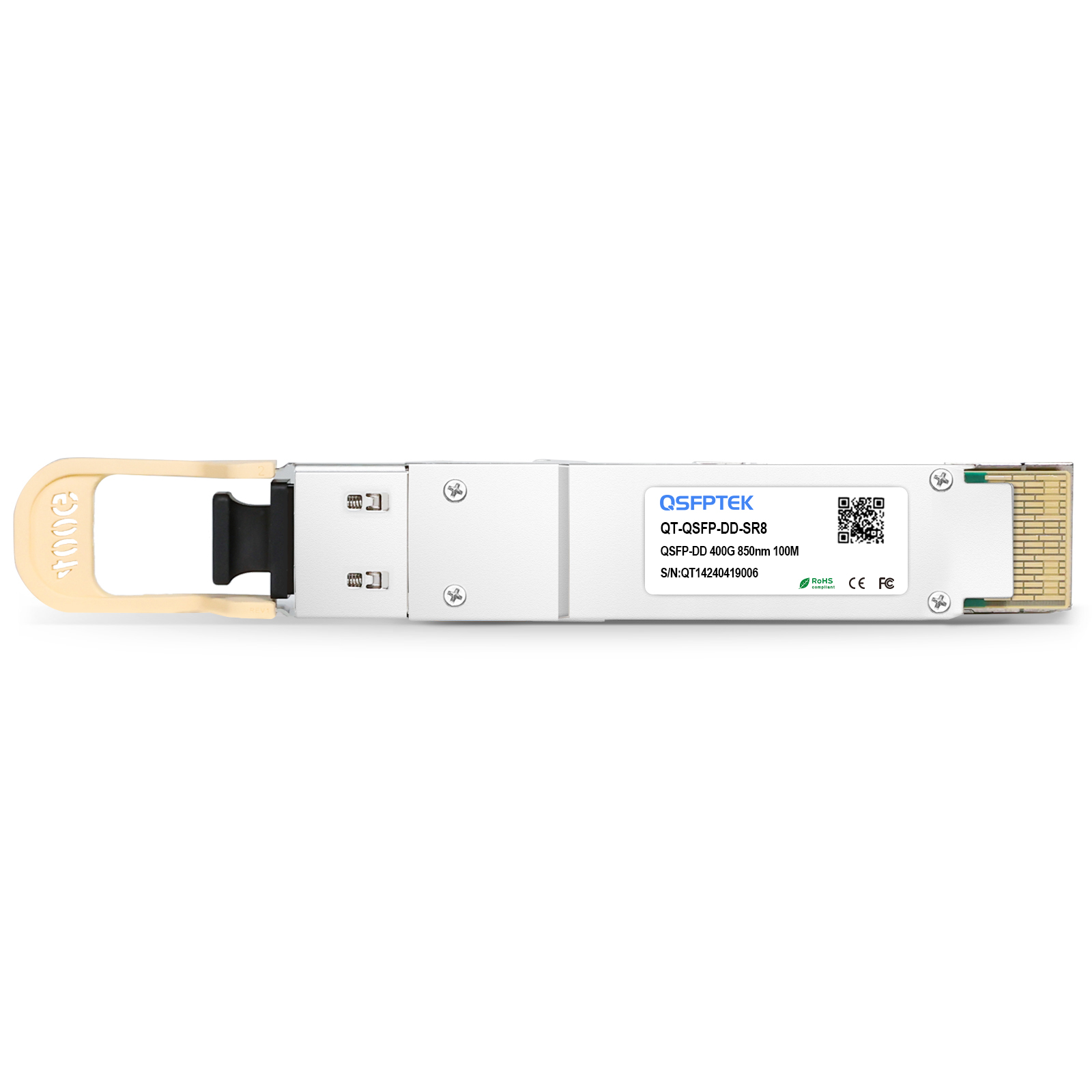

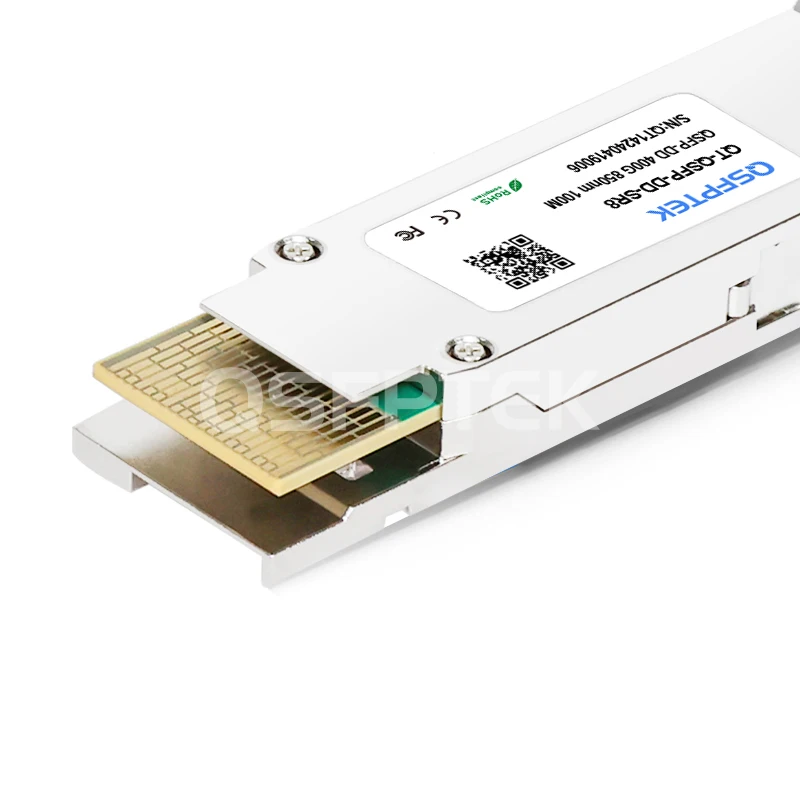

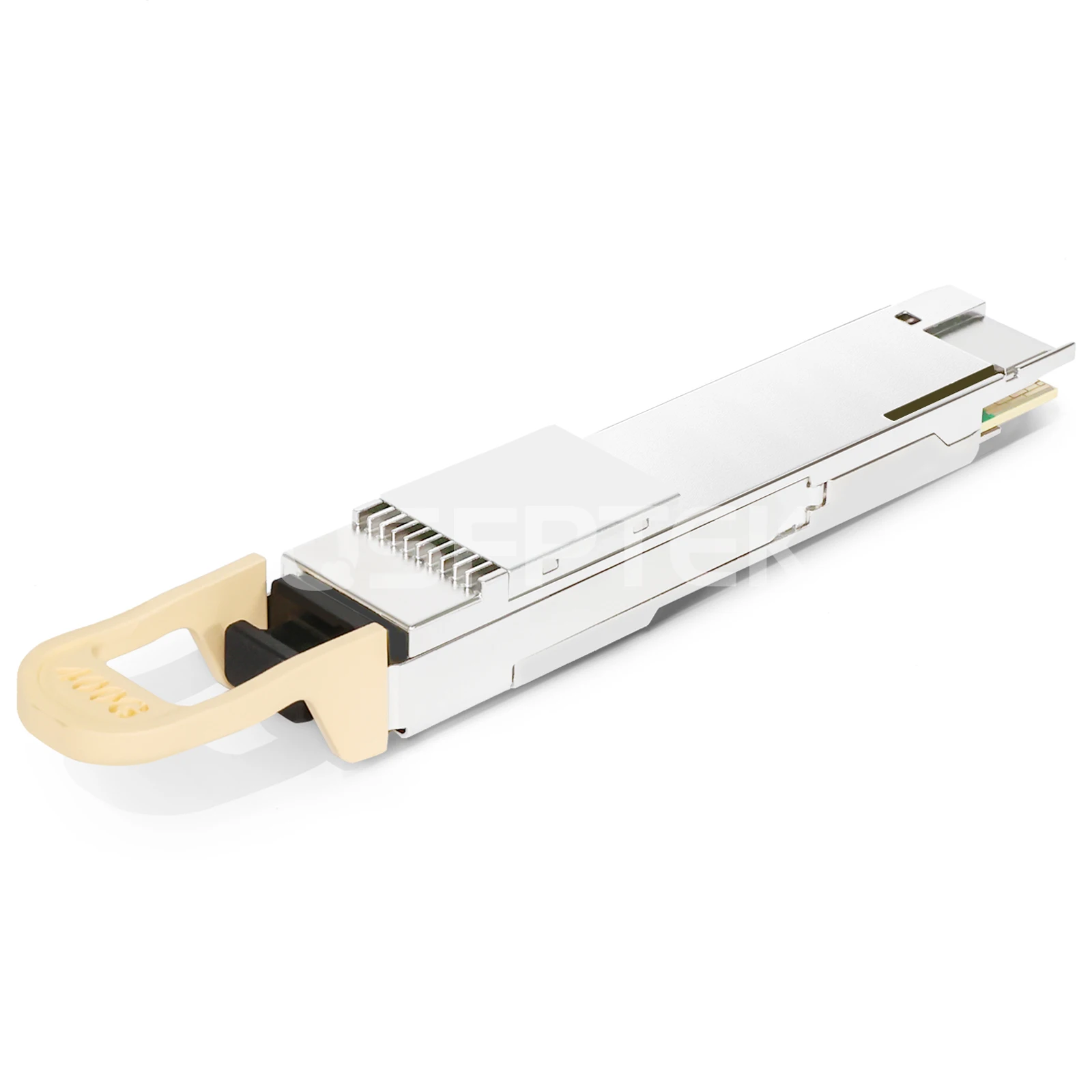

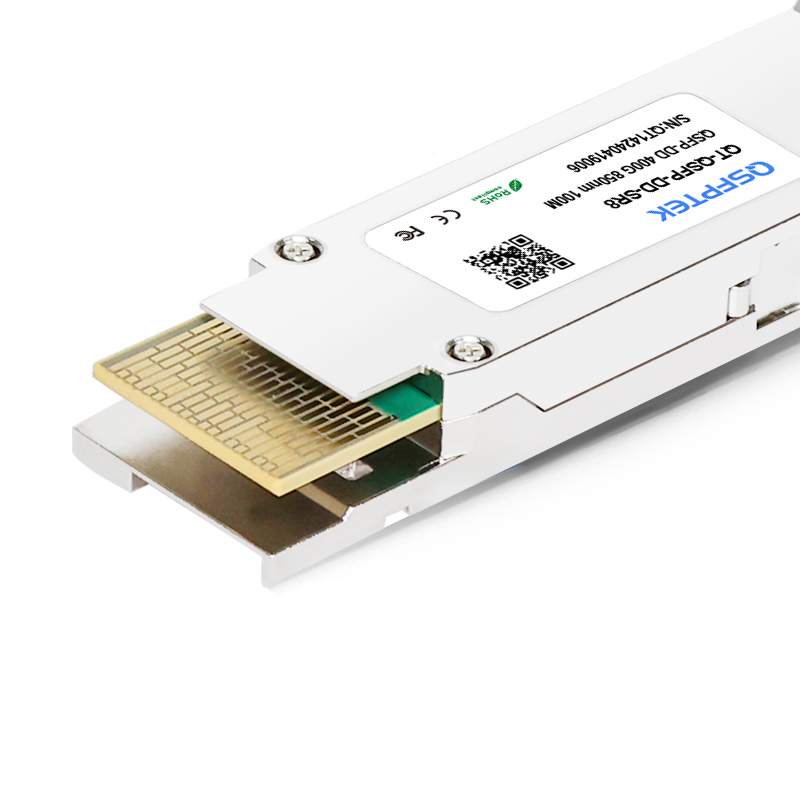

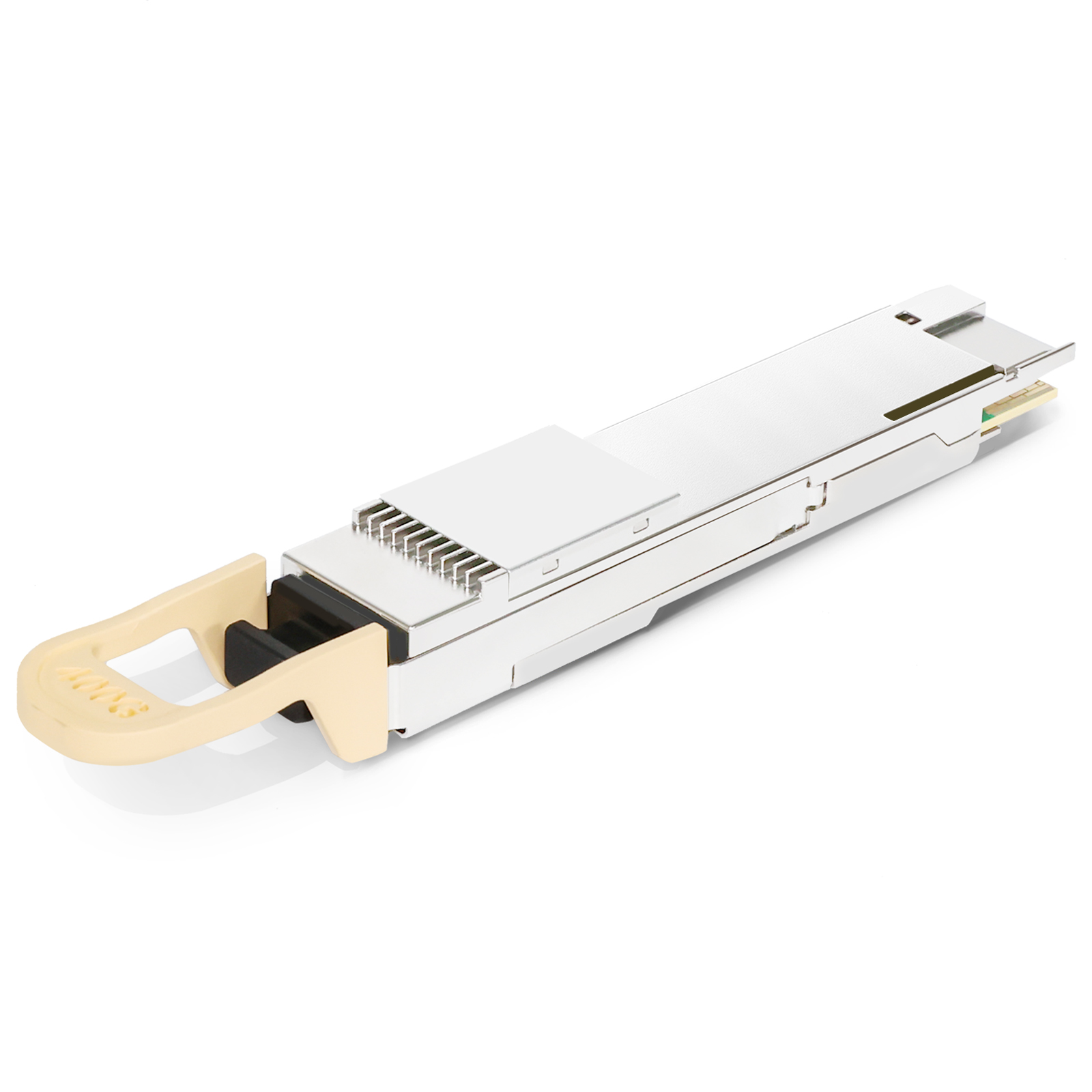

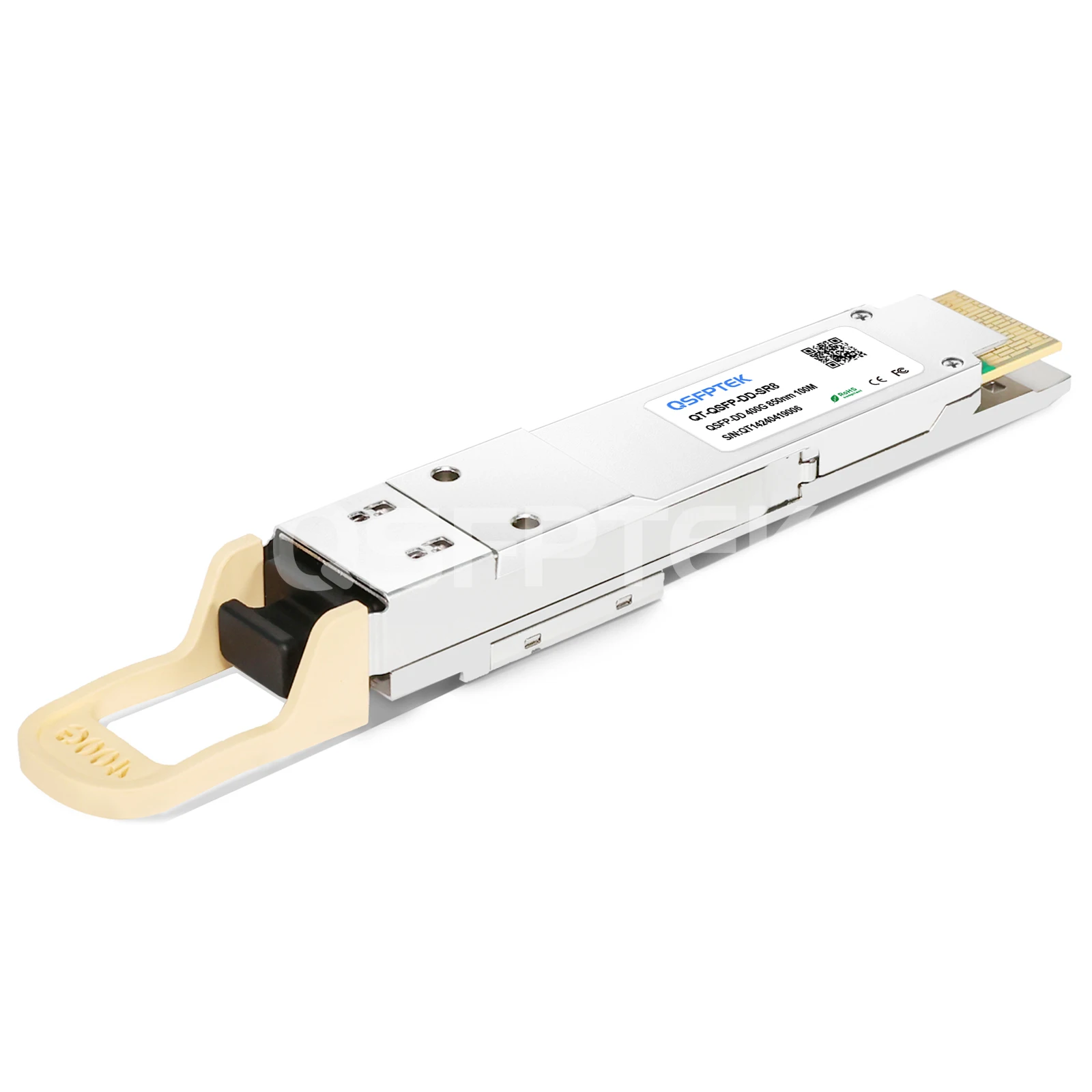

Dell Compatible Q56DD-400G-SR8 400G QSFP-DD SR8 PAM4 850nm 100m DOM MTP/MPO-16 MMF Optical Transceiver Module

Product No :100167
US$ 200.90  US$ 499.00
Compatible
0 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=5E81104DF798BD8363F8D3482AA6A44E
-
+
1. Max data rate up to 425Gbps. QSFP-DD form factor.
2. Reach up to 100m over OM4.
3. DSP Chip.
4. 8x 50G PAM4 modulation.
5. Compliant to QSFP-DD MSA, IEEE 802.3bs and 400GAUI-8/CEI-56G-VSR-PAM4.
See more

Specifications

Dell Compatible Q56DD-400G-SR8 400G QSFP-DD SR8 PAM4 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO-16 Connector, DOM)



The 400G QSFP-DD SR8 optical module supports speed up to 425Gbps, short-range distance reach up to 100m over 16 parallel multimode fiber (MMF) OM4. QDD-400G-SR8 has an MTP/MPO-16 connector. 400G SR8 is designed based on PAM4 (Pulse Amplitude Modulation 4-level) modulation technology, DSP (Digital Signal Processing) chip, and QSFP-DD form factor. QSFPTEK 400G QSFP-DD SR8 transceiver is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3bs protocol, and 400GAUI-8/CEI-56G-VSR-PAM4 standard.



Part Number QT-QSFP-DD-SR8 Vendor Name QSFPTEK
Form Factor QSFP-DD Interface Type SR8
Max Data Rate 425Gbps (8×53.125Gb/s) Wavelength 850nm

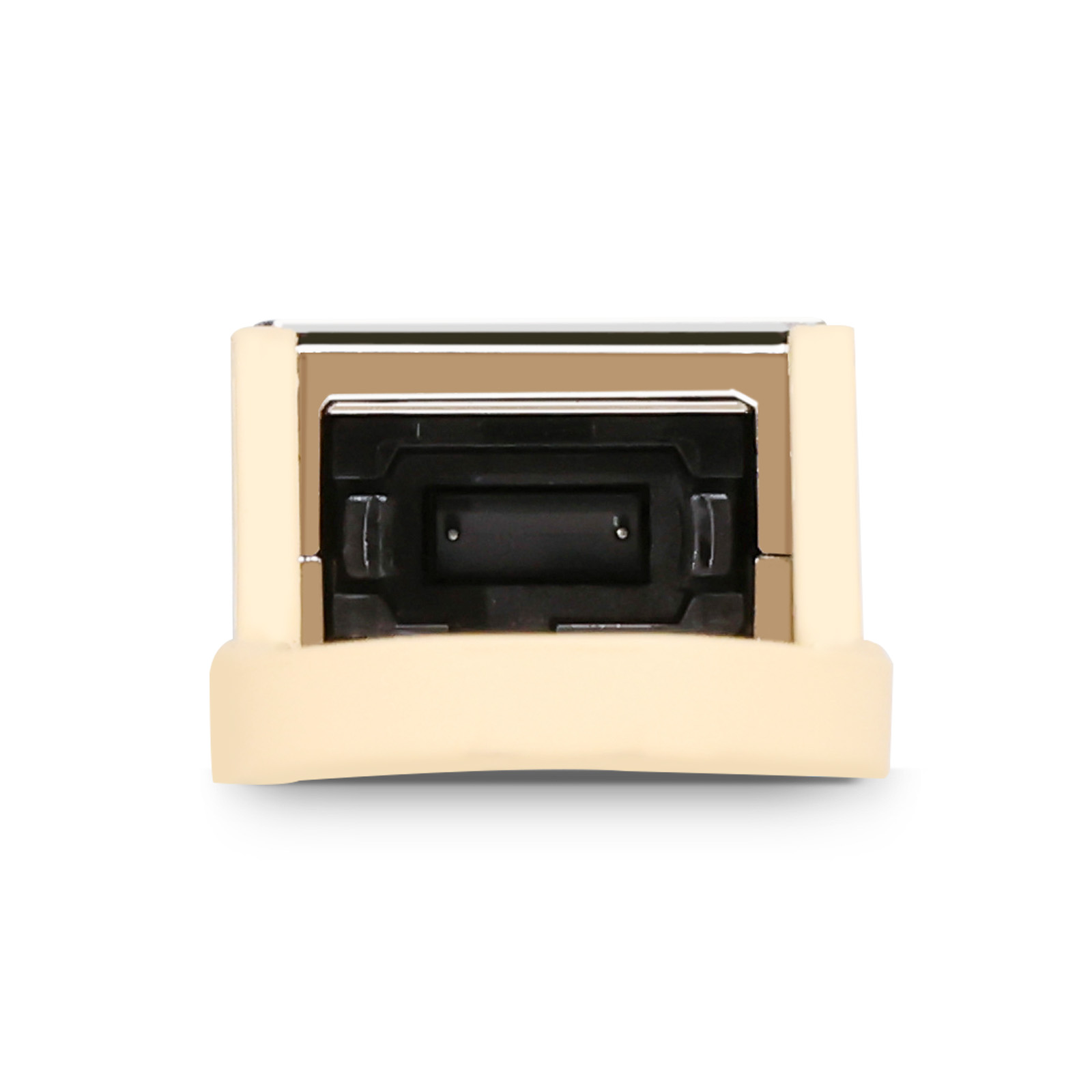

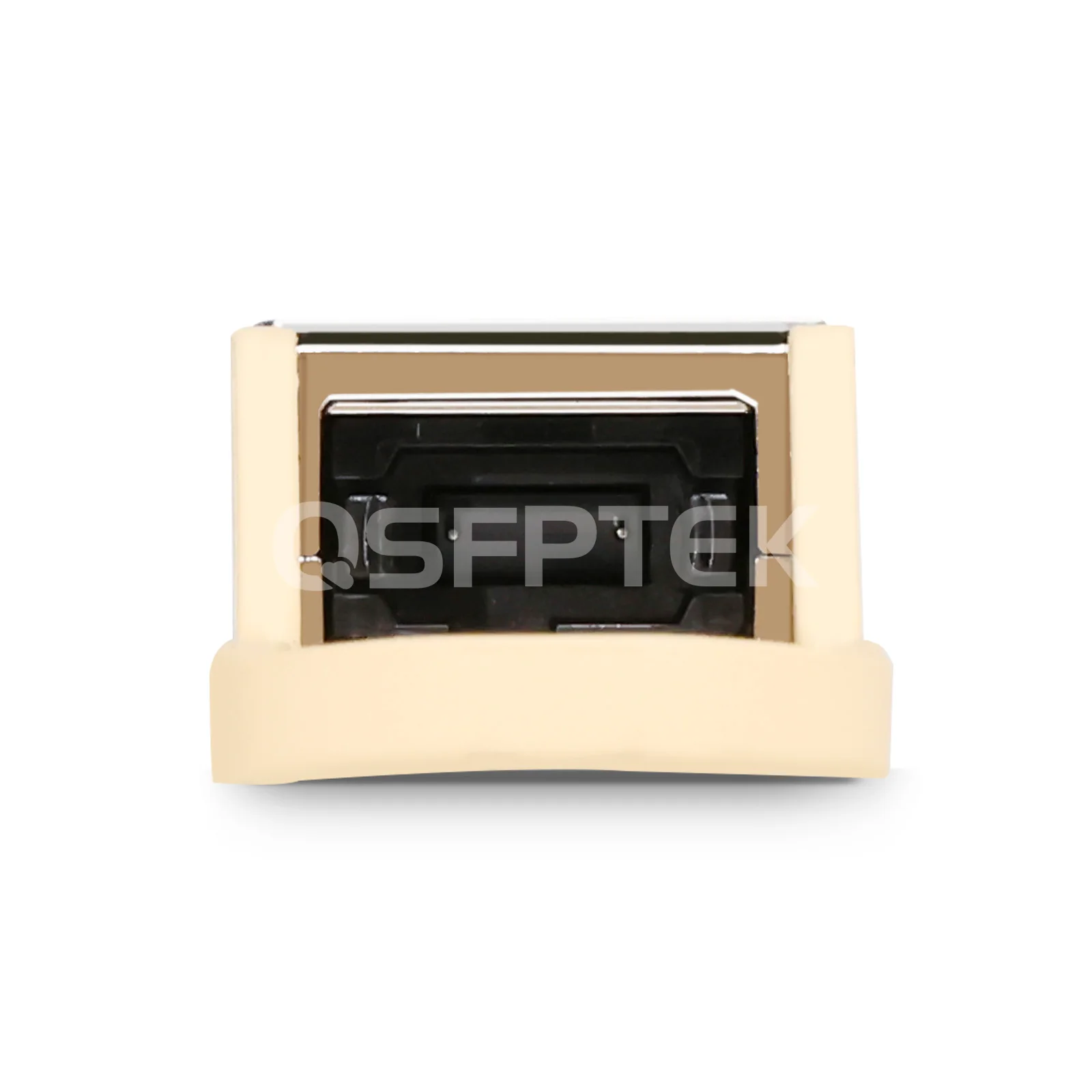

Connector MTP/MPO-16 Cable Type MMF
Max Cable Distance

70m (over OM3)

100m (over OM4)

Modulation PAM4
TX Power -6~4dBm Rx Power <-7.9dBm
Transmitter Type VCSEL 850nm Receiver Type PIN
Power Consumption ≤10W Temperature Range 0 to 70°C (32 to 158°F)
DDM/DOM Supported Forward Error Correction (FEC) Host FEC Supported
Protocols QSFP-DD MSA, IEEE 802.3bs Warranty 5 Years
Quality Certifications

Features

  • 1. Advanced Technology
    Features with PAM4 modulation technology, DSP chip and COB packaging technology.
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    Compliant with QSFP-DD MSA, IEEE 802.3bs and 400GAUI-8/CEI-56G-VSR-PAM4
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.








Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.








Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.





;jsessionid=5E81104DF798BD8363F8D3482AA6A44E

Questions & Answers

more+
  • Does 400GBASE-SR8 support DSP?
    Yes, The 400GBASE-SR8 incorporates DSP (Digital Signal Processing) technology, offering greater flexibility than CDR. DSP allows for tailored configuration adjustments to accommodate diverse application requirements.
  • I want to build a 850m optical link, can I use The 400GBASE-FR4?
    Yes, The 400GBASE-FR4 optical module's maximum transmission distance is 2 km, so it can be used for an 850m connection.
  • What type of optical cable should be used with 400G-SR8?
    The 400G-SR8 optical module employs a single-row, angled (APC) MTP16 connector to establish a connection with parallel multi-mode fiber, facilitating the linkage of 8 fiber pairs. We recommend utilizing the QSFPTEK MTP-16 APC OM4 Cable for optimal performance.
