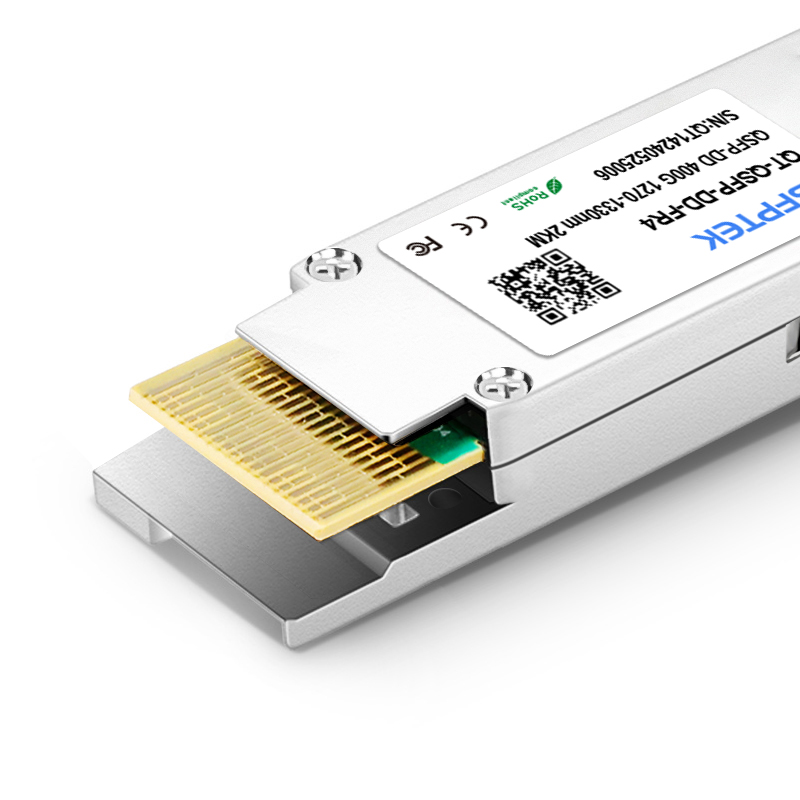

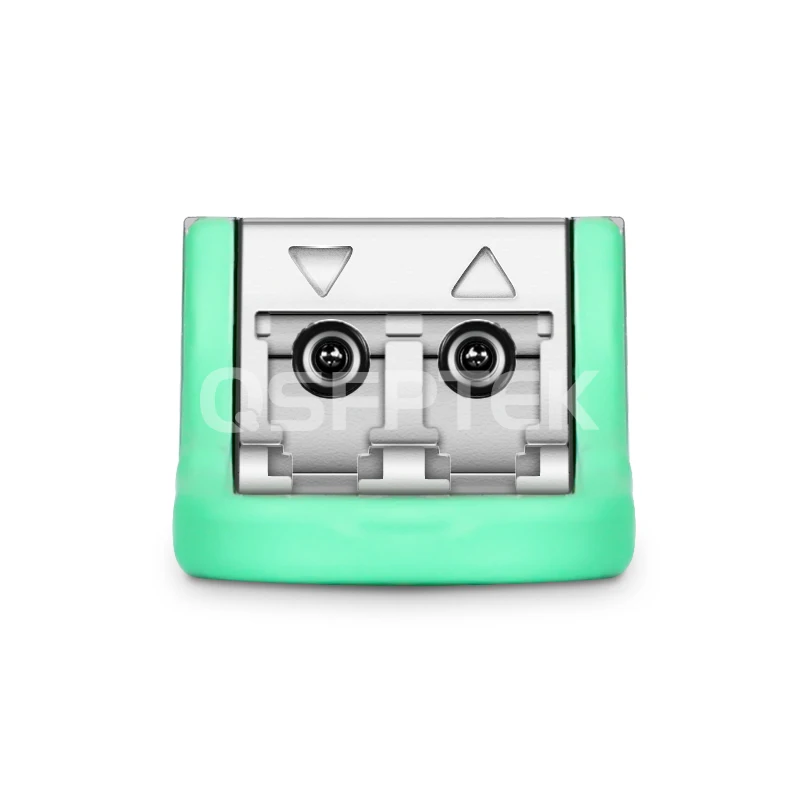

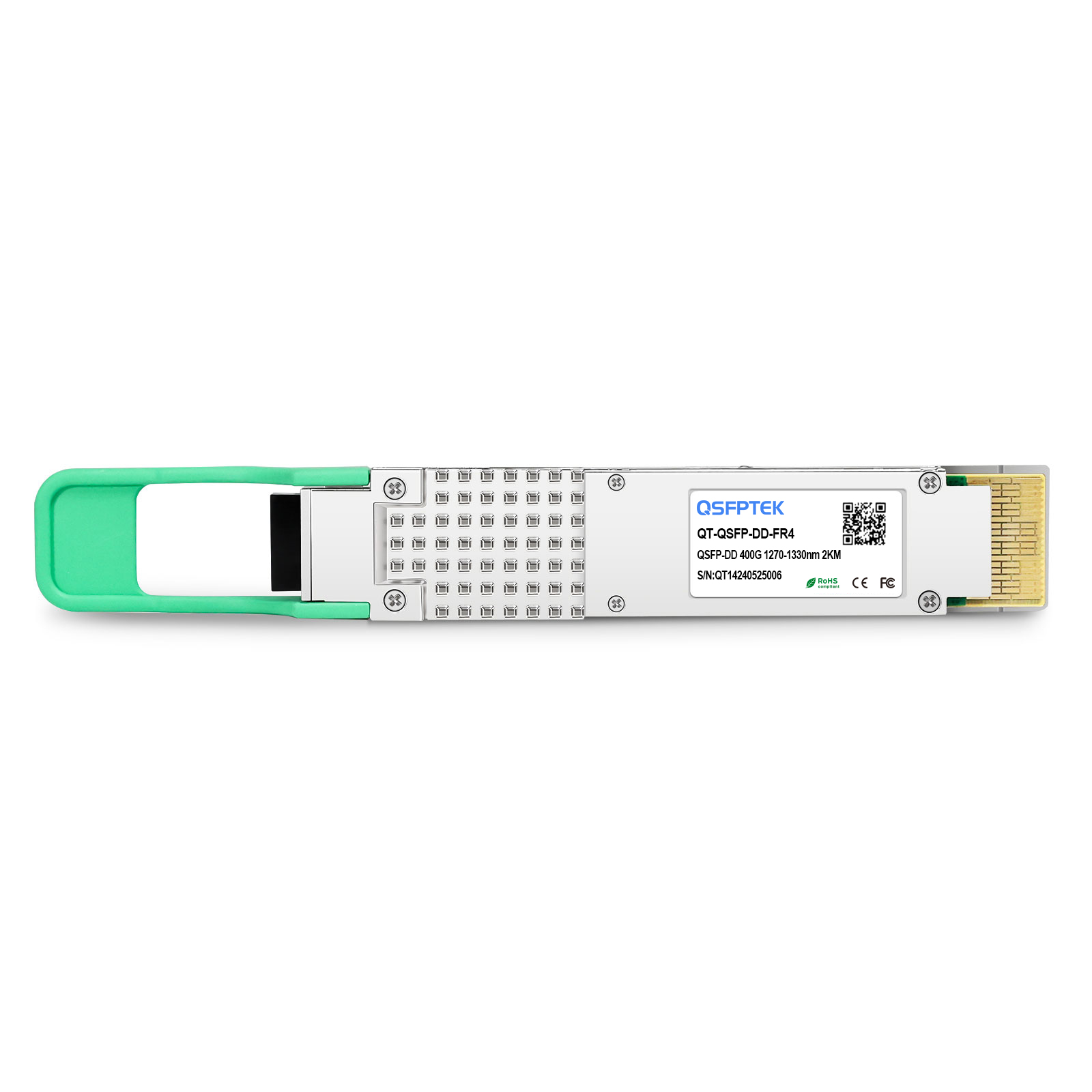

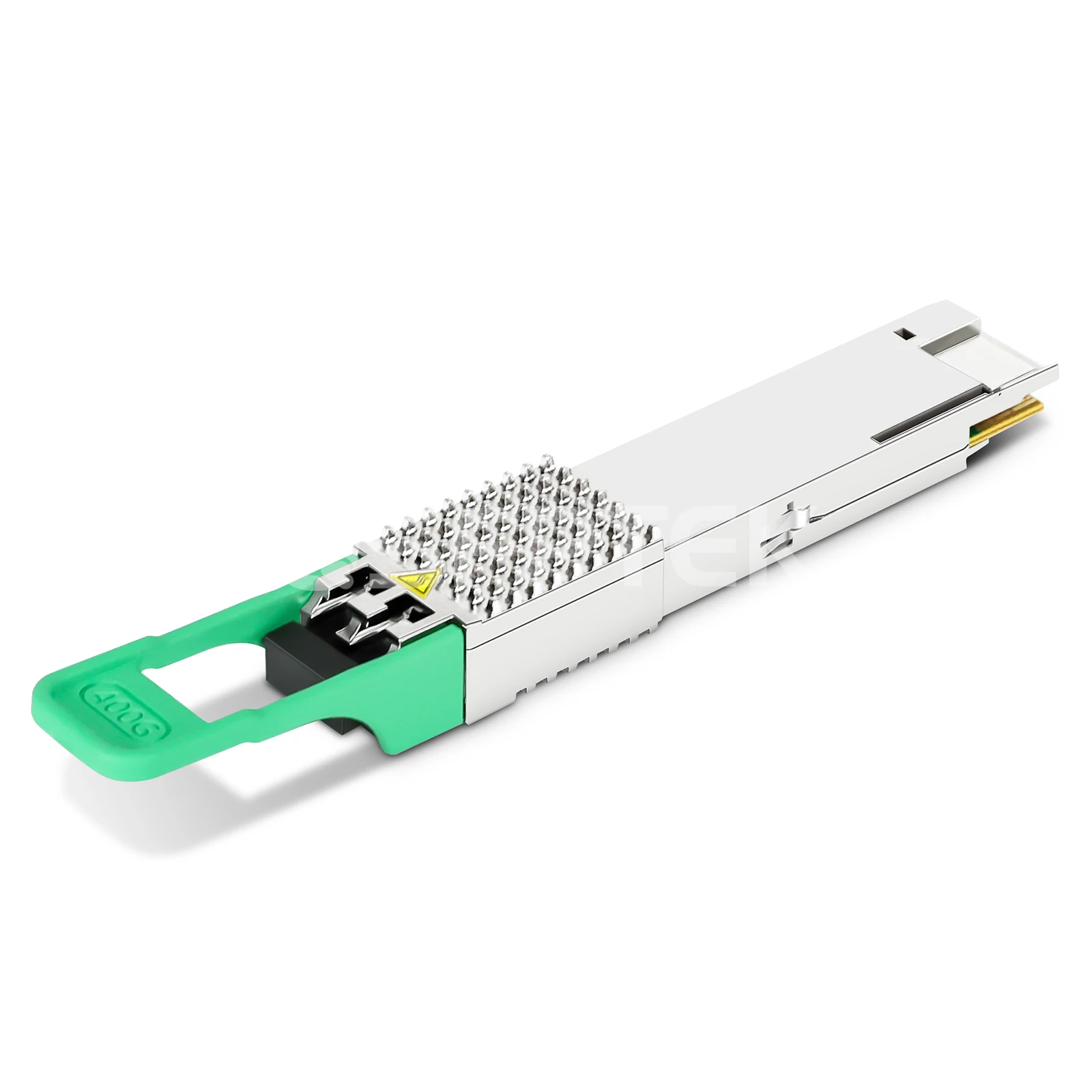

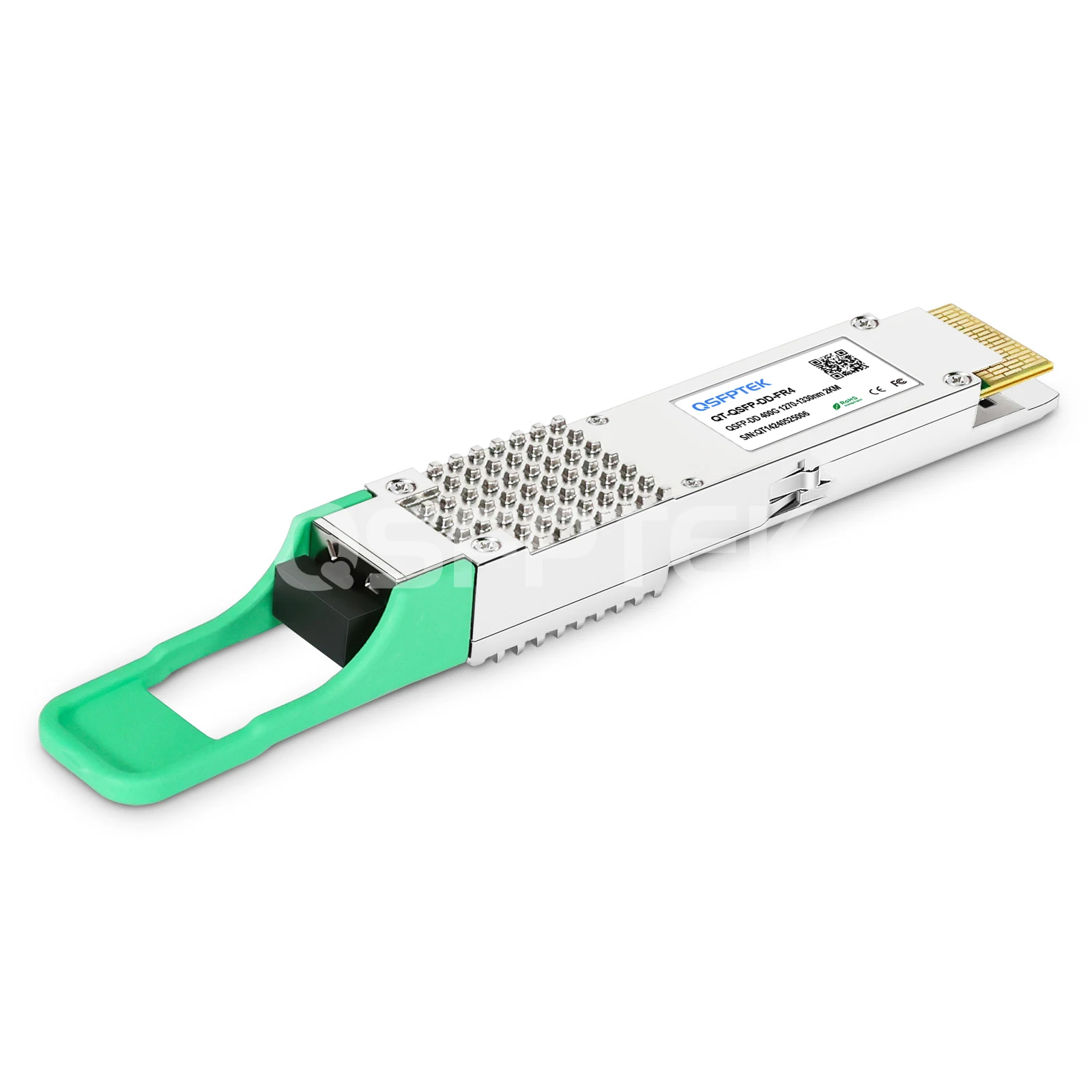

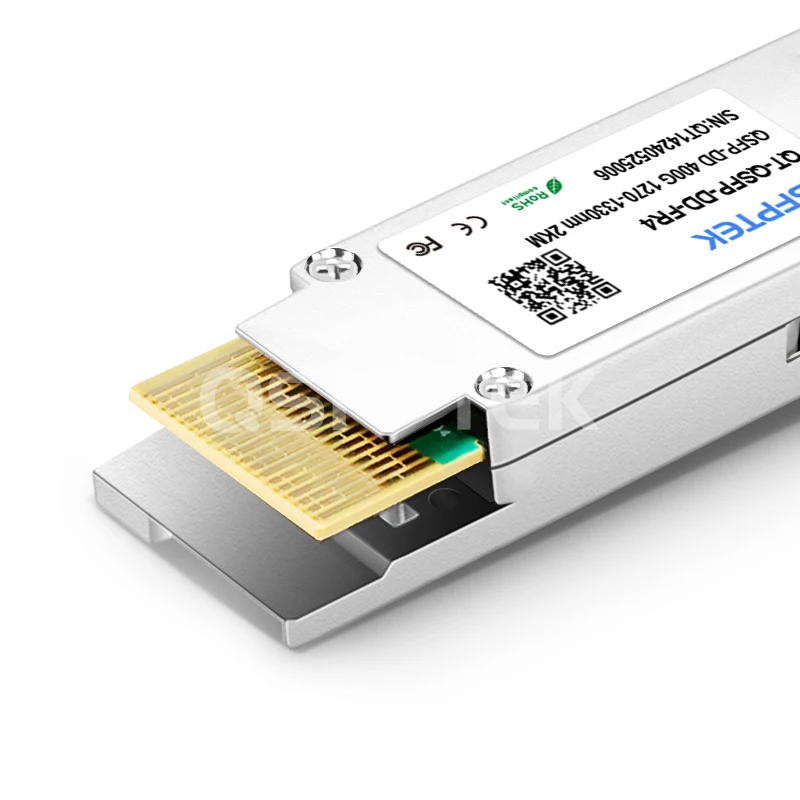

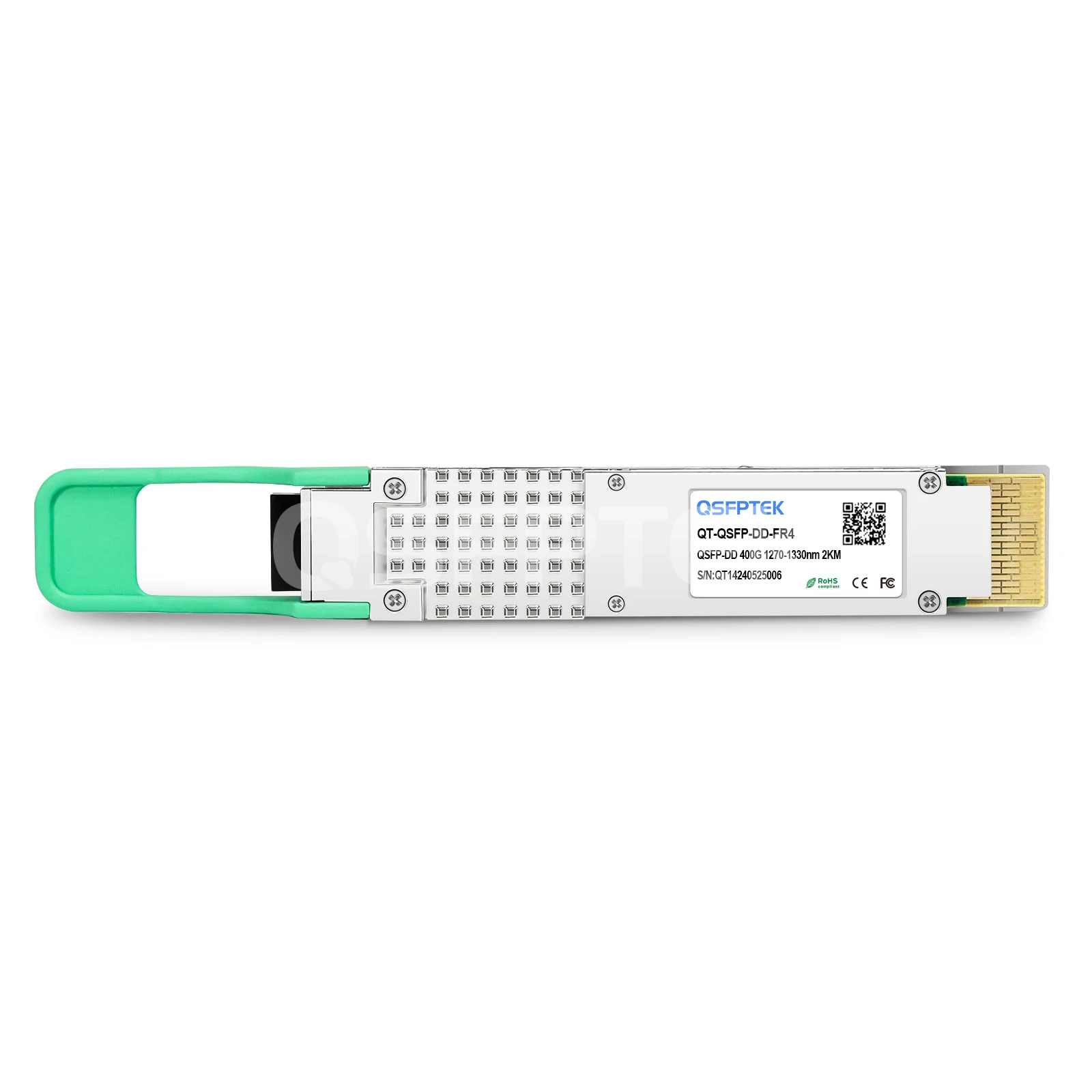

Dell Compatible 400GBASE-FR4 QSFP-DD PAM4 DDM 2km 1310nm Duplex LC SMF Optical Transceiver Module

Product No :100164
US$ 575.90  US$ 999.00
Compatible
0 in stock

Free Shipping over US$ 79.8

US/EU Warehouses in stock

14-day Return and Refund

;jsessionid=7A0B63FA827E329ABB298DFF98973B1E
-
+
1. PAM4 modulation technology.
2. CWDM EML + PIN, Duplex LC connector.
3. Low power consumption ≤12W.
4. 400GAUI-8/CEI-56G- VSR- PAM4, four CWDM optical lanes.
5. Applied in 400G Ethernet, Infiniband interconnects, DCI, etc.
See more

Specifications

Dell Compatible 400GBASE-FR4 QSFP-DD Transceiver (SMF, 1310nm, 2km, LC, DDM, 0 to 70C)



Dell Compatible QDD-400G-FR4-S delivers a max link length of 2km over single-mode fiber (SMF) with a duplex LC connector. The 400GBASE-FR4 transceiver is designed with a QSFP-DD form factor, which provides the industry's highest bandwidth of 400 Gigabit Ethernet (400GbE). The total 400G signal is carried over four CWDM grid optical wavelengths with a data rate of 106.25Gbps (PAM4) per channel. On the transmitter side, the FR4 converts the 8 lanes of 50G PAM4 electrical signals into 4 channels of CWDM optical signals, then Multiplex them into a single 400G signal. On the receiver side, the module will demultiplex the 400G input signal into 4 lanes of CWDM optical signals and convert them into 8 channels of 50G PAM4 electrical signal as output.



The QSFP-DD 400G modules are compliant with IEEE 802.3bs for 400GBASE-FR4 specification and 100G Lambda MSA, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. This 400G QSFP-DD FR4 module has wide adoption in data center interconnect (DCI), 400G Ethernet, Infiniband interconnects, enterprise networking, etc.



Part Number QT-QSFP-DD-FR4 Vendor Name QSFPTEK
Form Factor QSFP-DD Interface Type FR4
Max Data Rate 425Gbps (4x106.25Gb/s) Wavelength 1270nm,1290nm,1310nm,1330nm
Connector Duplex LC Cable Type SMF
Max Cable Distance 2km Modulation PAM4
TX Power -3.2~3.5dBm Receiver Sensitivity <-7.3dBm
Transmitter Type CWDM EML Receiver Type PIN
Power Consumption ≤12W Temperature Range 0 to 70°C (32 to 158°F)
DDM/DOM Supported Forward Error Correction (FEC) Host FEC Supported
Protocols QSFP-DD MSA, IEEE 802.3bs, 400GBASE-FR4 spec, 100G Lambda MSA, 400GAUI-8/CEI-56G-VSR-PAM4 Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. Advanced Technology
    Features with PAM4 modulation technology, DSP chip and COB packaging technology.
  • 2. Best Price and High Quality
    Based on self-producing capacity and rigorous testing, QSFPTEK can provide cost-effective products with high reliability and performance at a trade price.
  • 3. Protocols
    Compliant with QSFP-DD MSA, IEEE 802.3bs, 400GBASE-FR4 spec, 100G Lambda MSA, 400GAUI-8/CEI-56G-VSR-PAM4 standards.
  • 4. Quality Certifications
    Backed by CE, FCC, ROSH, ISO9001.

Applications

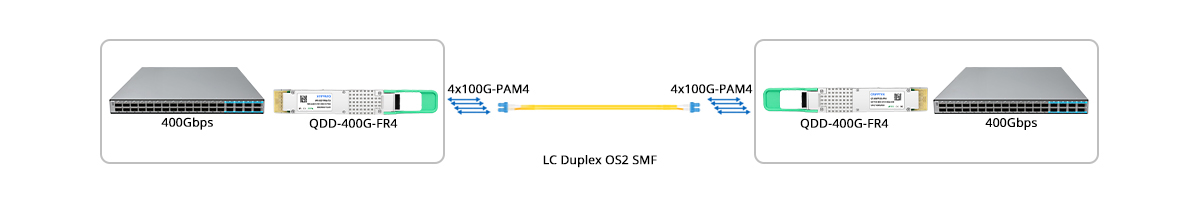

Scenario 1: 400G to 400G Direct Connectivity

Related Products:

LC UPC Duplex OS2 SMF

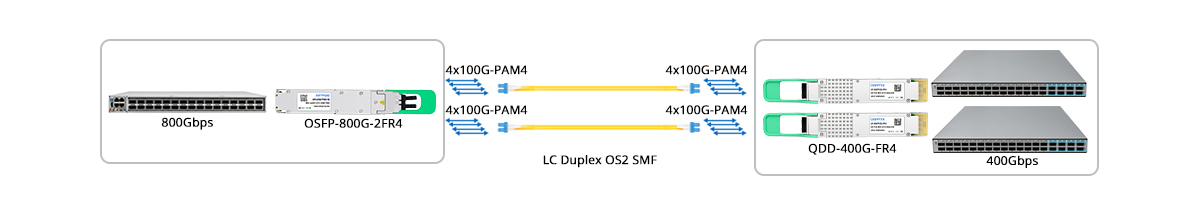

Scenario 2: 800G 2FR4 OSFP to 2x 400G-FR4 QSFP-DD Breakout Connectivity

Related Products:

OSFP-800G-2FR4 800GBASE-2FR4 OSFP PAM4 1270nm to 1330nm 2km Dual Duplex LC SMF Transceiver

LC UPC Duplex OS2 SMF

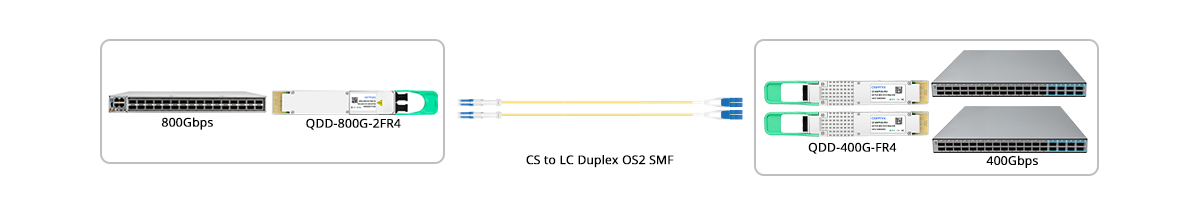

Scenario 3: 800G 2FR4 QSFP-DD to 2x 400G-FR4 QSFP-DD Breakout Connectivity

Related Products:

QDD-800G-2FR4 800GBASE-2FR4 QSFP-DD PAM4 1270nm to 1330nm 2km Dual Duplex CS UPC SMF Transceiver



Product details

Various Switch Tests



Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.








Tested in The Host Device to Prove Interoperability



Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.



QSFPTEK Test Rack






Comprehensive Testing



Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
