;jsessionid=BC938838A214C7B8749765BE7C09544E1. PAM4 modulation technology 2. EML + PIN, MTP/MPO-12 connector 3. Low power consumption < 10W 4. 8x 53.125Gb/s 400GAUI-8 electrical interface 5. Parallel 4 optical lanes, support 4x 100G breakout to QSFP28 100G-DR, 100G-FR, and 100G-LR 6. Applied in 400G Ethernet, Infiniband interconnects, data centers, high-performance computing networksSee more

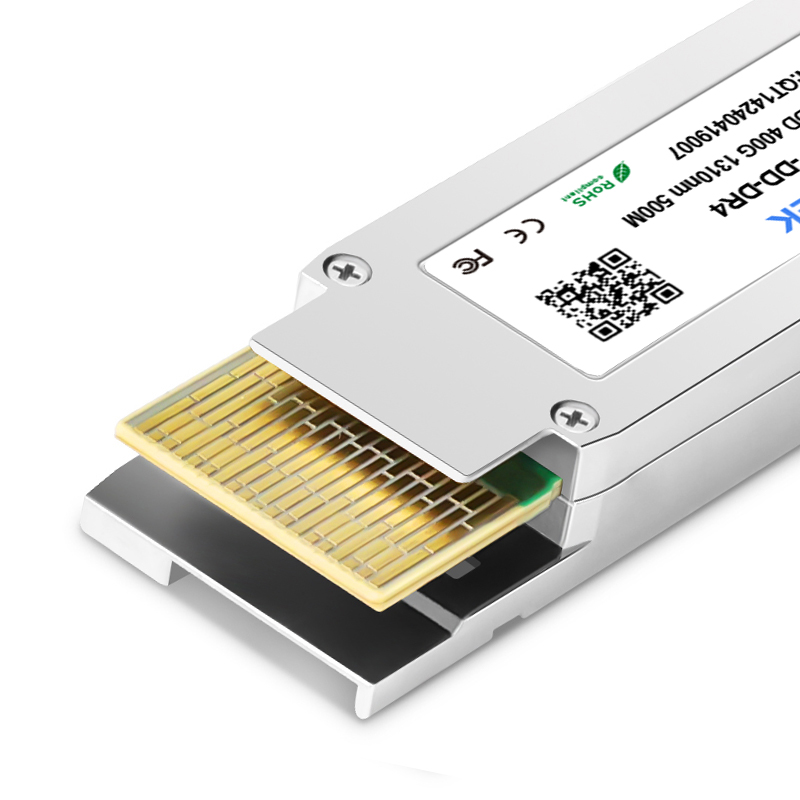

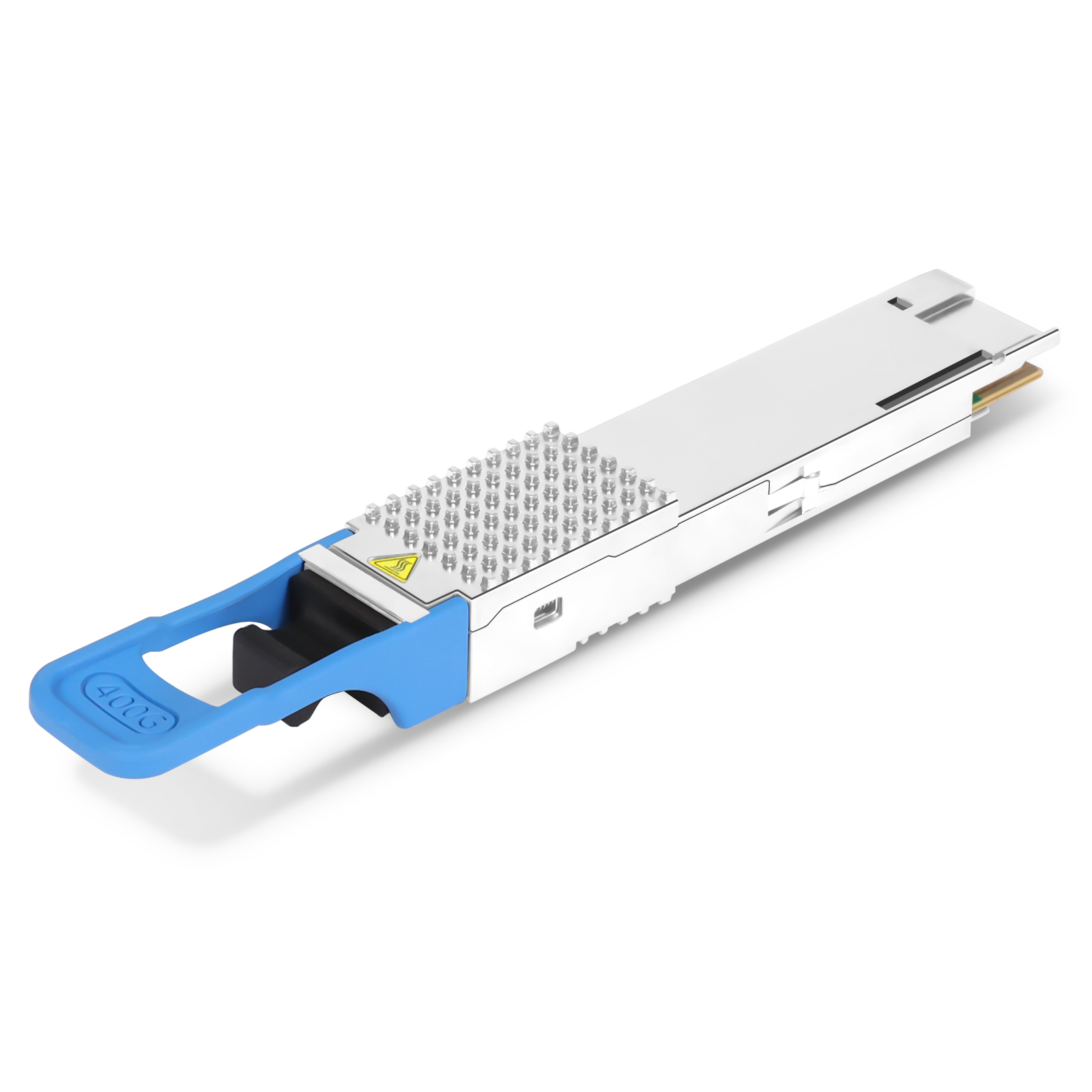

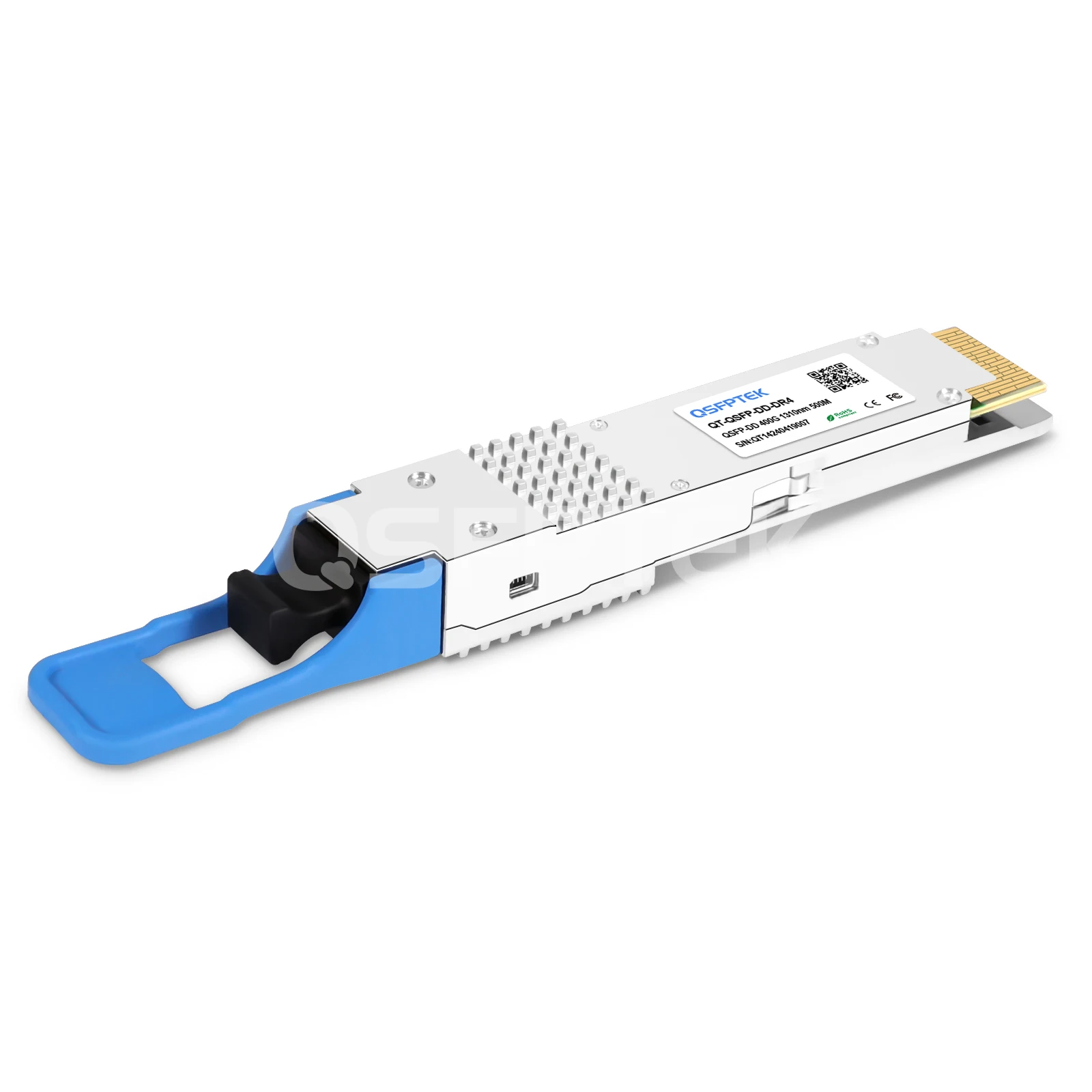

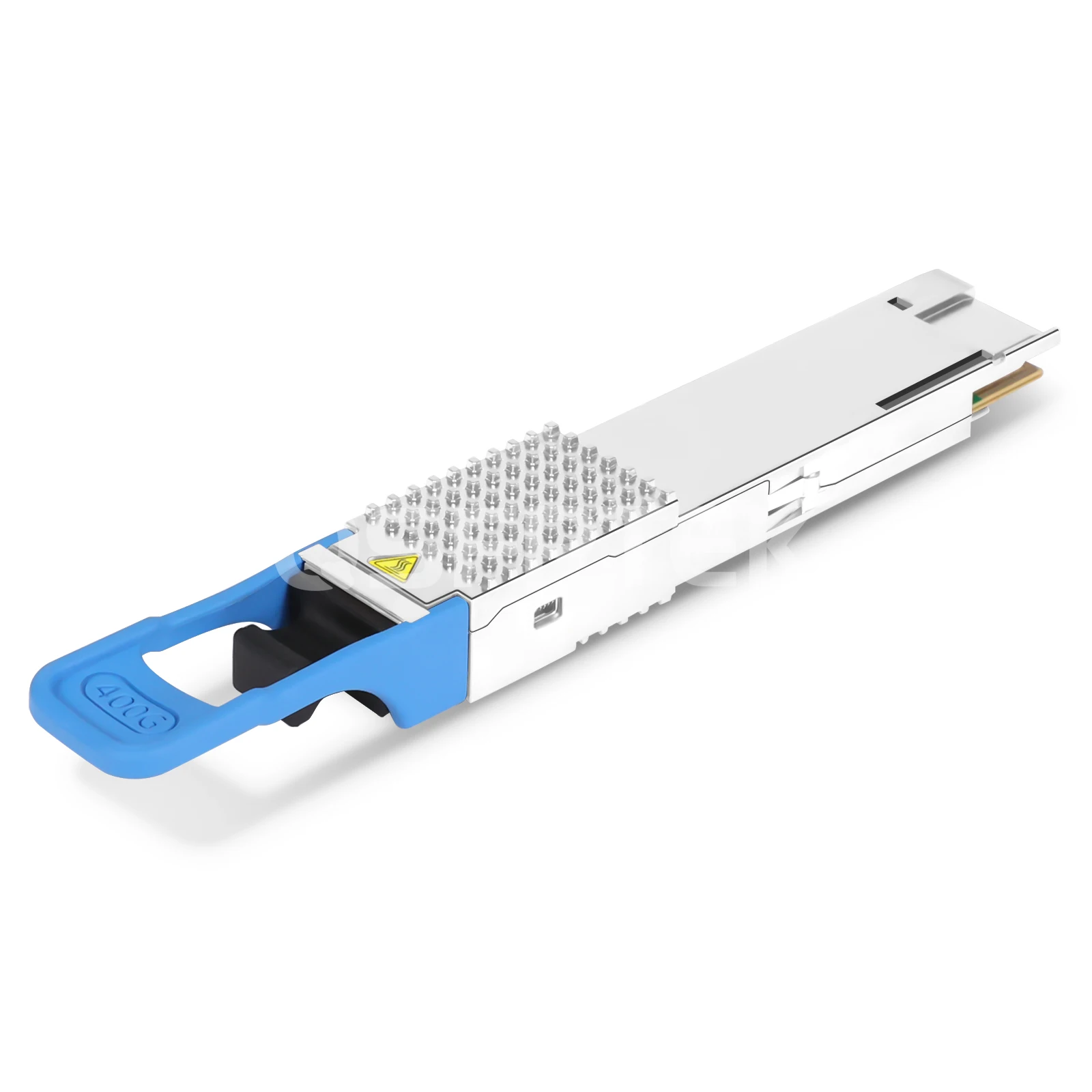

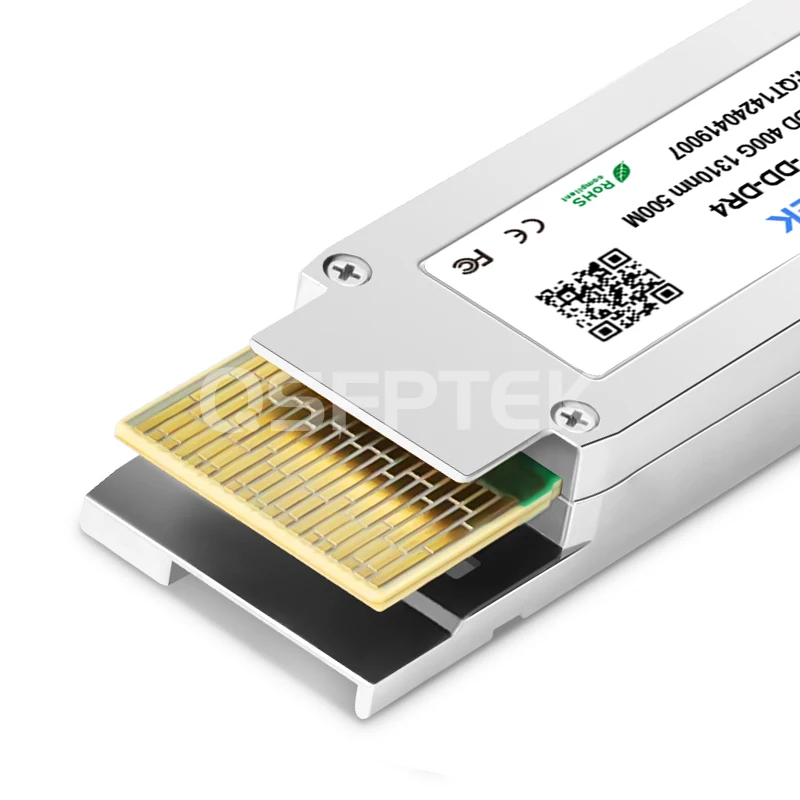

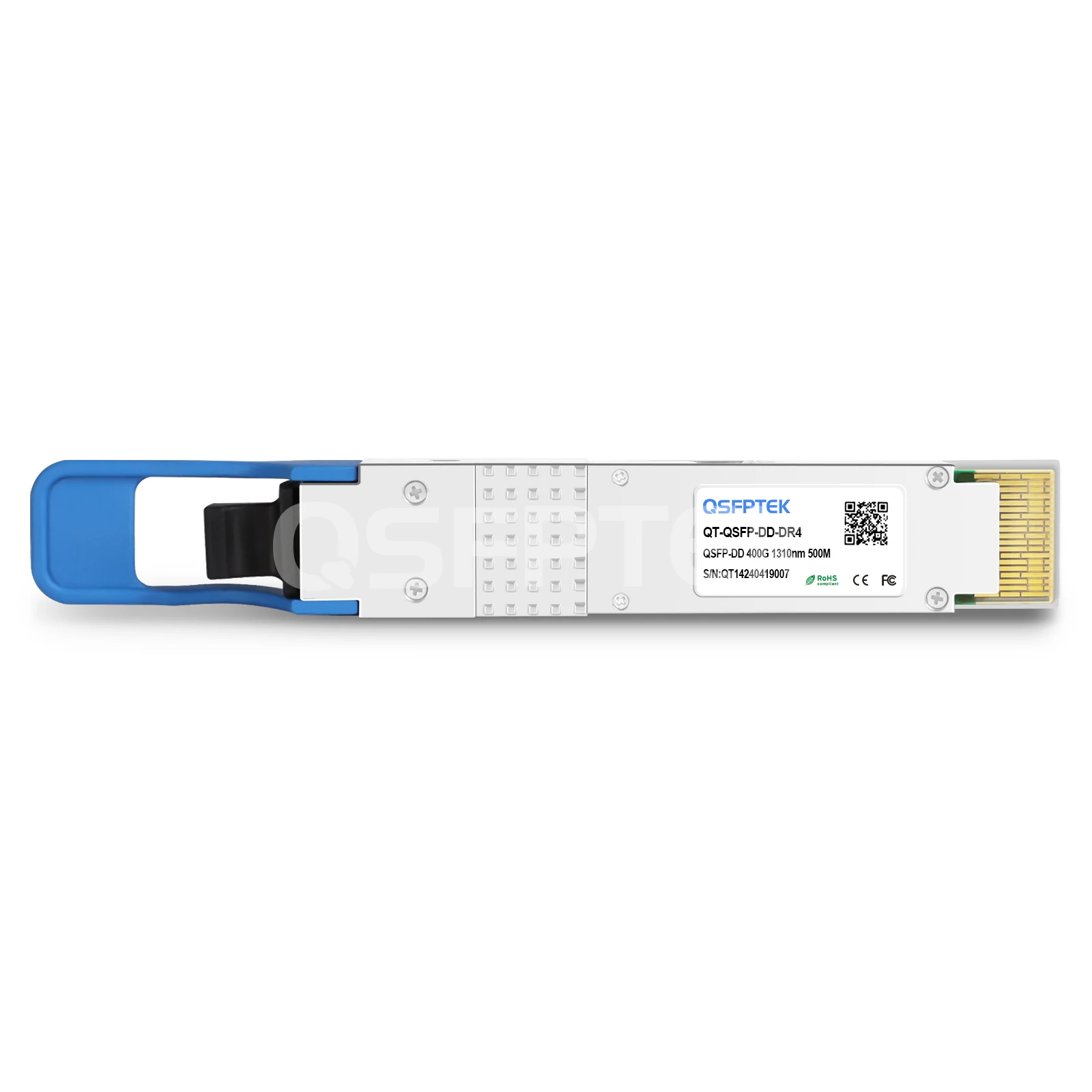

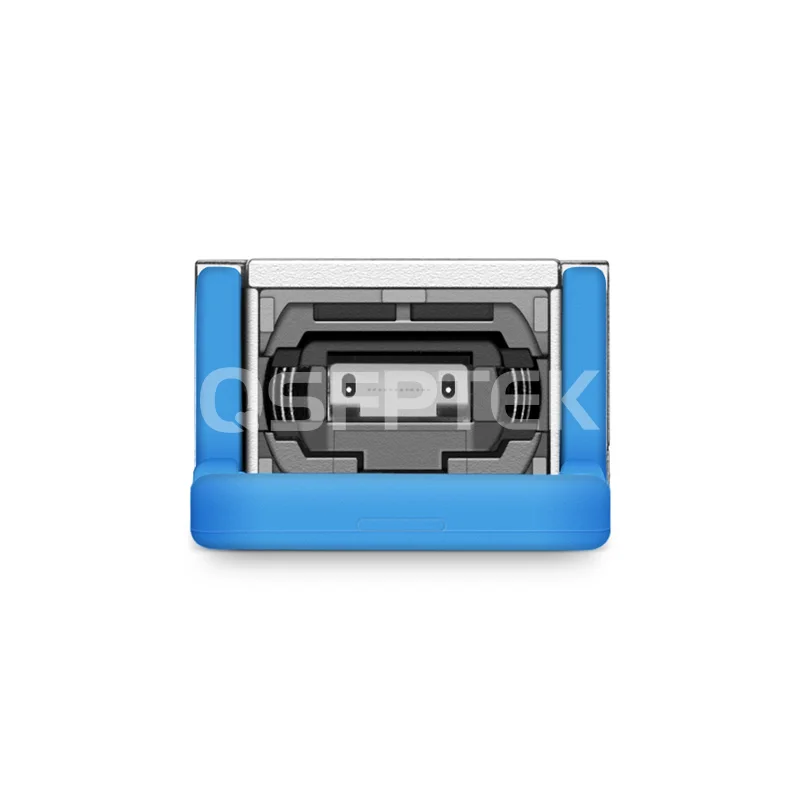

400GBASE-DR4 QSFP-DD transceiver is designed for 400G Ethernet interconnection, allowing link up length up to 500m over single-mode fiber (SMF) with MTP/MPO connector. It is compliant with the QSFP-DD MSA, IEEE 802.3bs standard. The 400GBASE DR4 module converts 8 channels of 50Gb/s (PAM4) electrical signals into four parallel lanes of optical signals, each lane capable of 100Gb/s. It supports 4x100G breakout to QSFP28 100G-DR, 100G-FR, and 100G-LR transceivers. Utilizing PAM4 modulation technology, 400GBASE-DR4 provides a cost-effective and low power consumption solution for 400G Ethernet applications, data centers, Infiniband interconnects, and high-performance computing networks.
Part Number |
QT-QSFP-DD-DR4 |
Vendor Name |
QSFPTEK |
Form Factor |
QSFP-DD |
Interface Type |
DR4 |
Max Data Rate |
425Gbps (4x106.25Gb/s) |
Wavelength |
1310nm |
Connector |

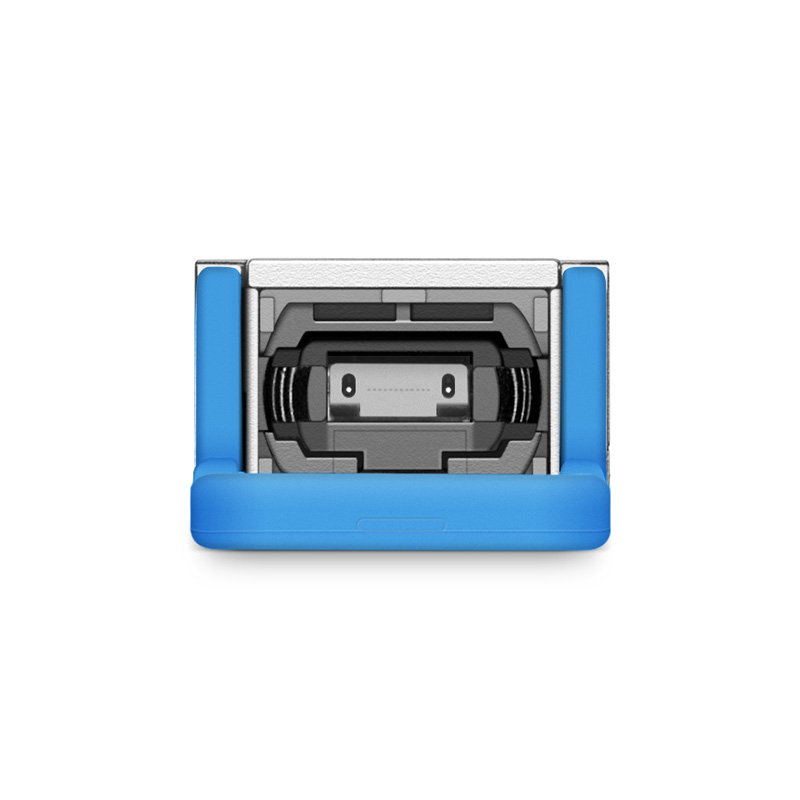

MTP/MPO-12 |
Cable Type |
SMF |
Max Cable Distance |
500m |
Modulation |
PAM4 |
TX Power |
-2.9~4.0dBm |
Receiver Sensitivity |
< -5.9dBm |
Transmitter Type |
EML |
Receiver Type |
PIN |
Power Consumption |
< 10W |
Temperature Range |
0 to 70°C (32 to 158°F) |
DDM/DOM |
Supported |
Forward Error Correction (FEC) |
Host FEC Supported |
Protocols |
QSFP-DD MSA, IEEE 802.3bs |
Warranty |
5 Years |

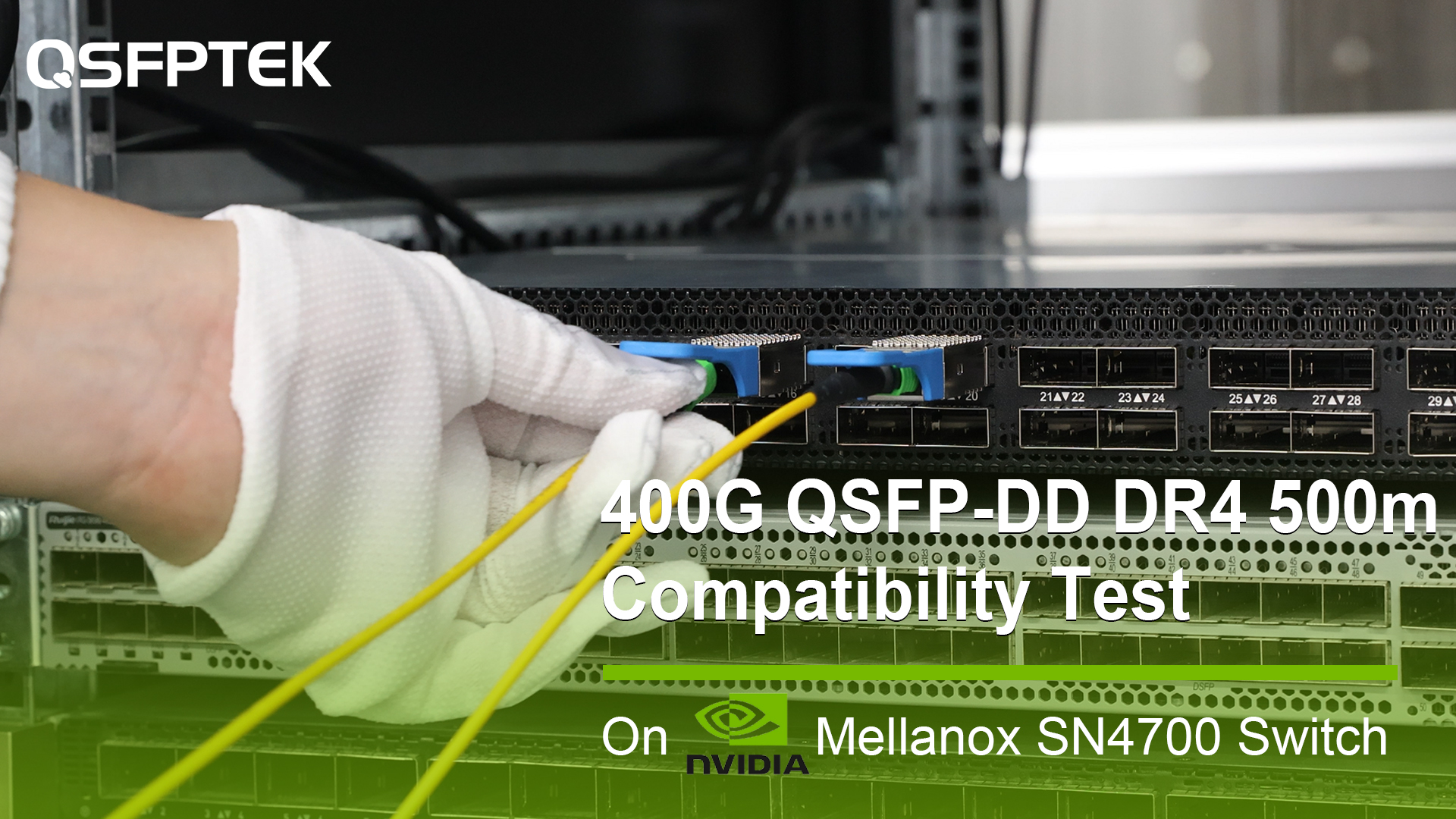

Every module is quality tested for compatibility in the multi-brand switches environment, which guarantees flawless operations.
Every unit sold undergoes rigorous quality testing, to ensure compatibility in the target switch environment, guaranteeing perfect operation.
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
