1. Connector: Duplex LC; with DDM 2. Low Power Consumption <1W 3. Ideal for Campus Network, Enterprise LAN Networks and other optical links 4. Compatible with 200+ Vendors 5. Hot Pluggable SFP MSA CompliantSee more

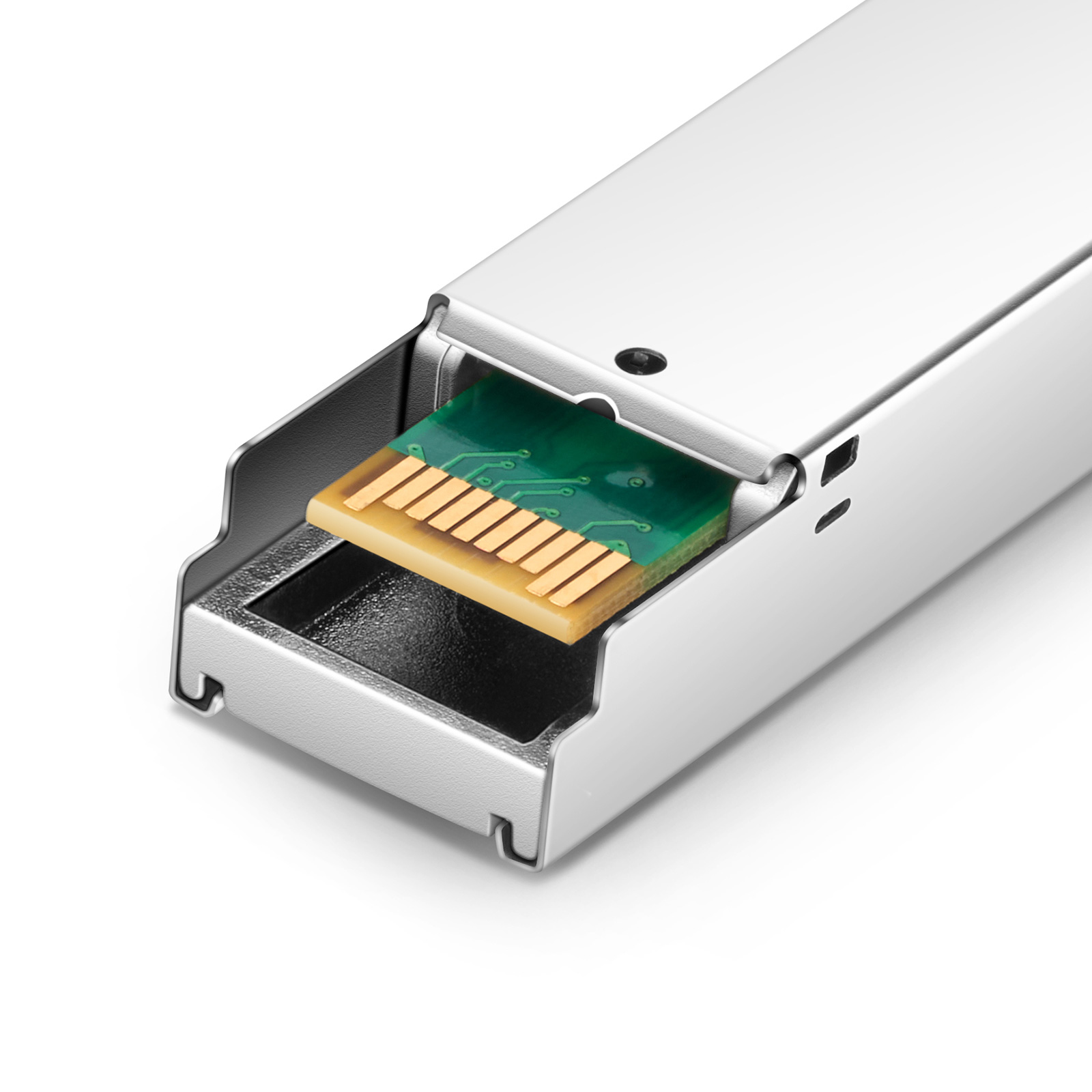

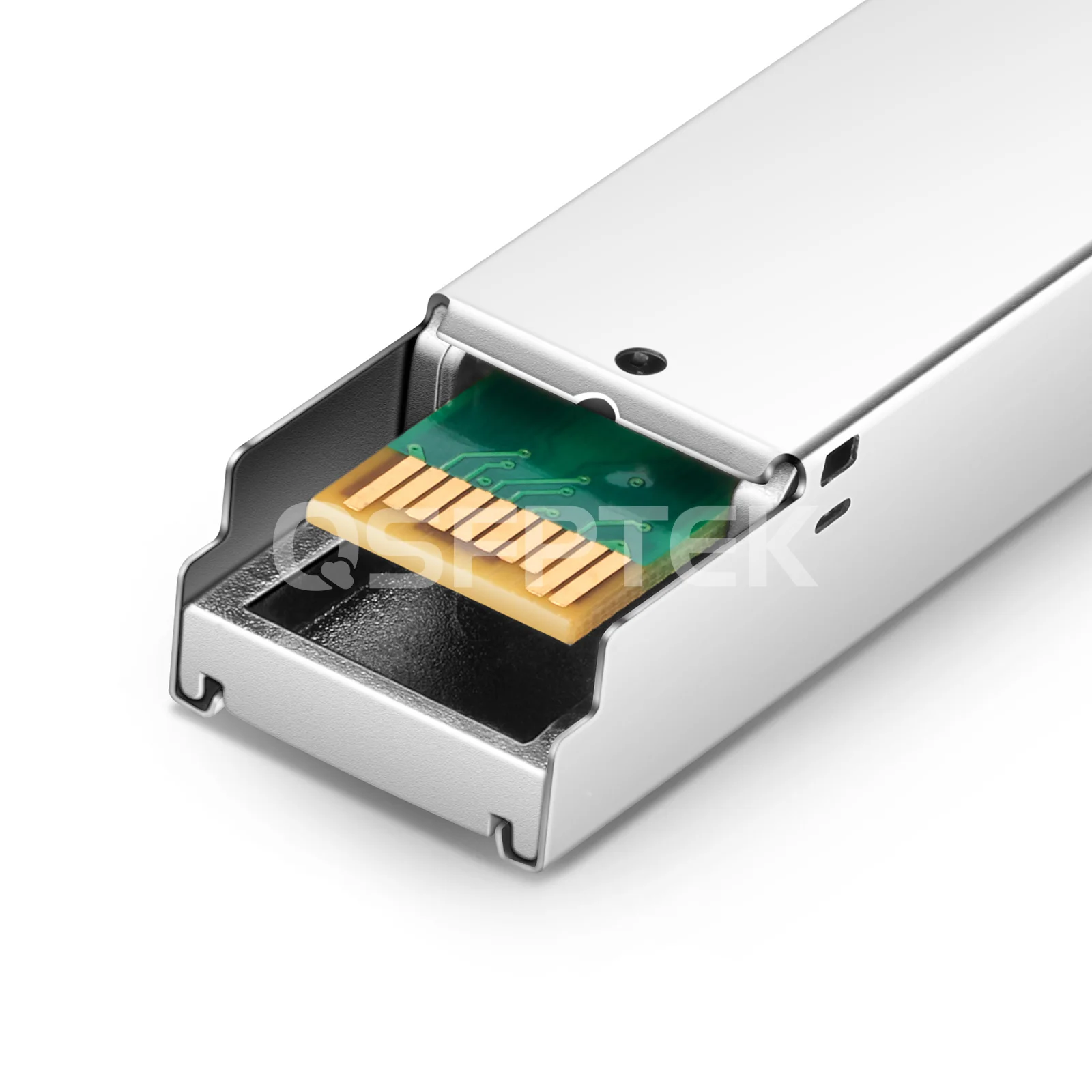

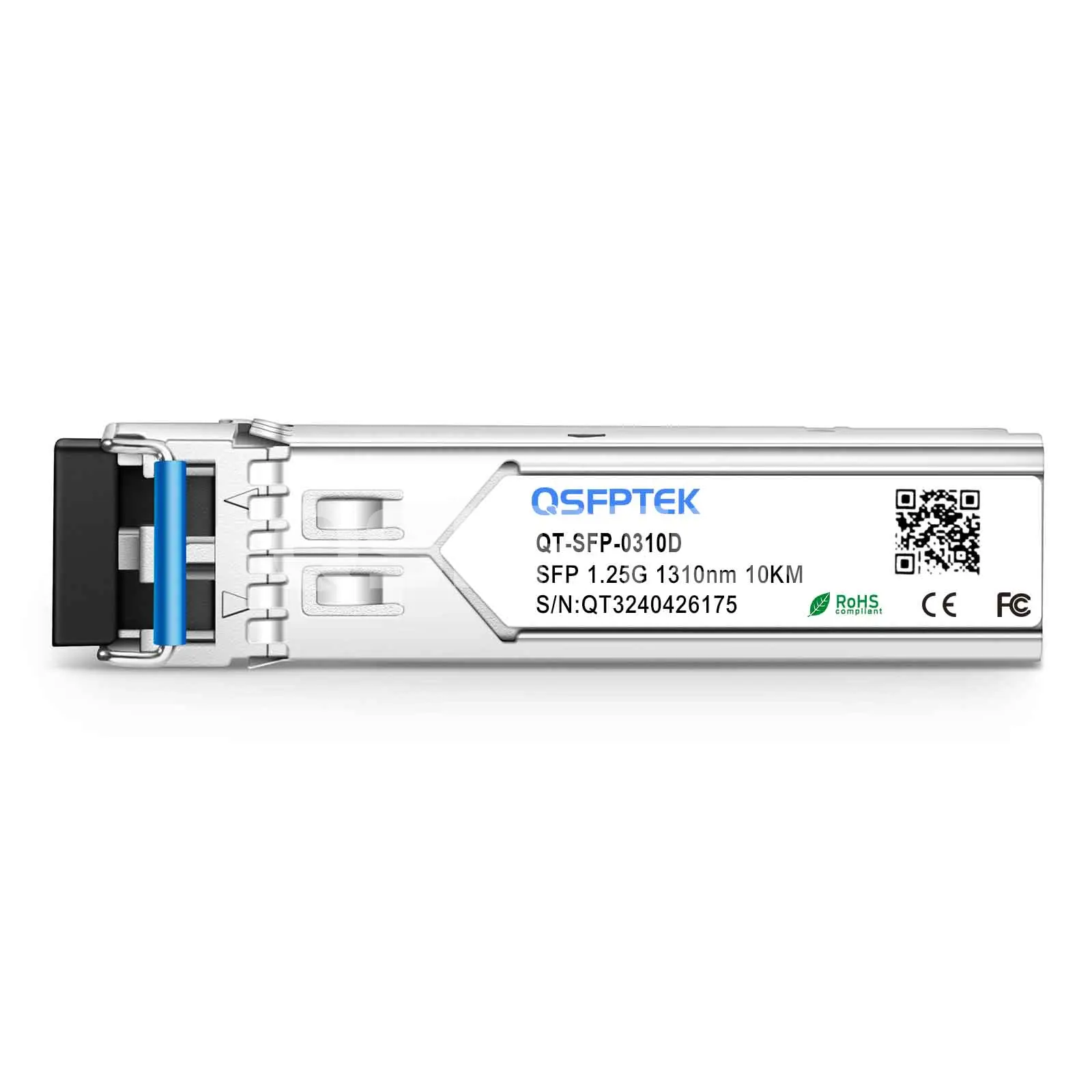

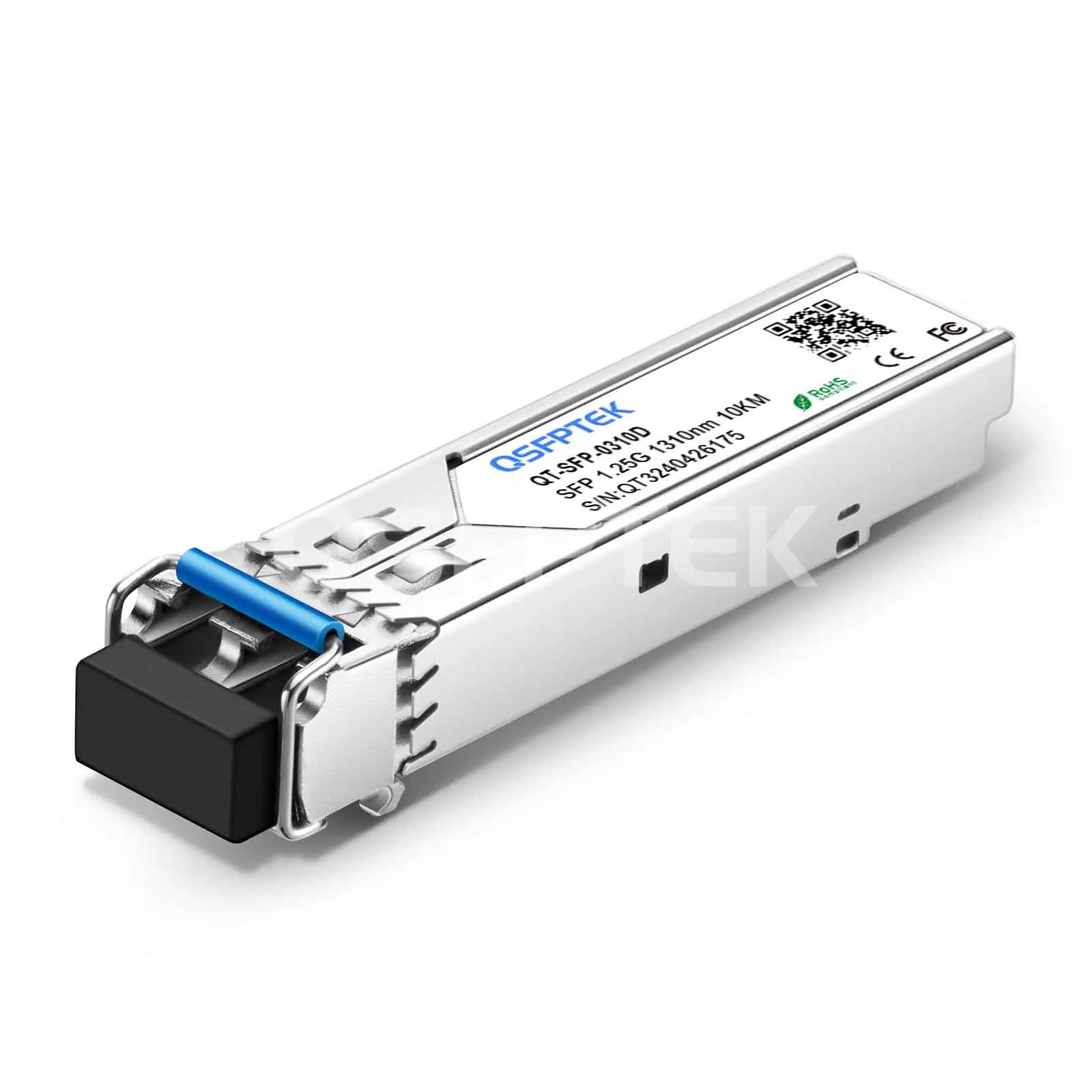

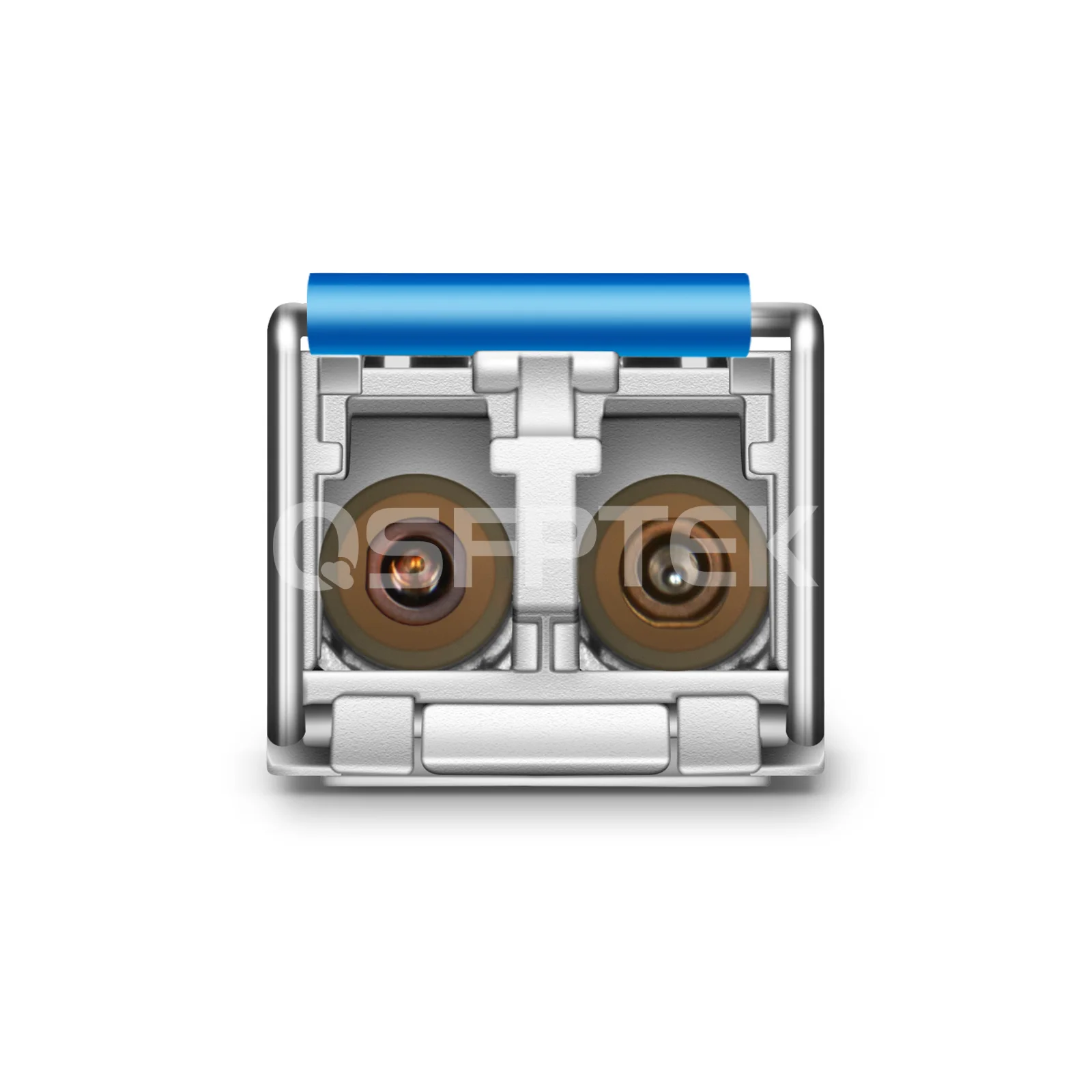

Cisco GLC-LH-SMD Compatible 1000BASE LX/LH SFP industrial transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting dual data rates of 1.25Gbps and 1.0625Gbps at the link distance up to 10km over single-mode fiber (SMF). The Cisco GLC-LH-SMD compatible module is verified to interoperate with original Cisco switches, including the Catalyst 9300X/9300/9400/9500/9600 series and Nexus 3000/9300/9500 series switches. QSFPTEK 1000BASE LX transceiver is compatible with the IEEE 802.3z 1000BASE-LX standard. The industrial transceiver module supports a -40 to 85°C industrial temperature range work environment.
This Compatible 1000BASE-LX/LH SFP fiber optic transceiver module consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All QSFPTEK manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.
|
Part Number: |
QT-SFP-0310D (IND) |
Vendor Name: |
QSFPTEK |
|
Form Factor: |
SFP |
Data Rate: |
1Gbps |
|
Wavelength: |
1310nm |
Distance: |
|
|
Connector: |
LC Duplex |
Cable Type: |
OS2 SMF & OM4 MMF |
|
Transmitter Type: |
FP |
Receiver Type: |
PIN |
|
TX Power: |
-9~-3dBm |
Receiver Sensitivity: |
<-22dBm |
|
Power Consumption: |
<1W |
Modulation Format: |
NRZ |
|
DDM: |
Support |
Bit Error Ratio (BER): |
1.00E-12 |
|
Industrial Temperature Range: |
-40 to 85°C (-40 to 185°F) |
Warranty: |
3 Years |
Take a look at our test program to get the reliable and high-performance optical transceivers.
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
Every unit sold undergoes rigorous quality testing to ensure compatibility in the target switch environment and guarantee perfect operation.
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices.
