1. Connector: Duplex LC; with DDM 2. Low Power Consumption <0.8W 3. Ideal for Campus Network, Enterprise LAN Networks and other optical links 4. Compatiible with 200+ Vendors 5. Hot Pluggable SFP MSA CompliantSee more

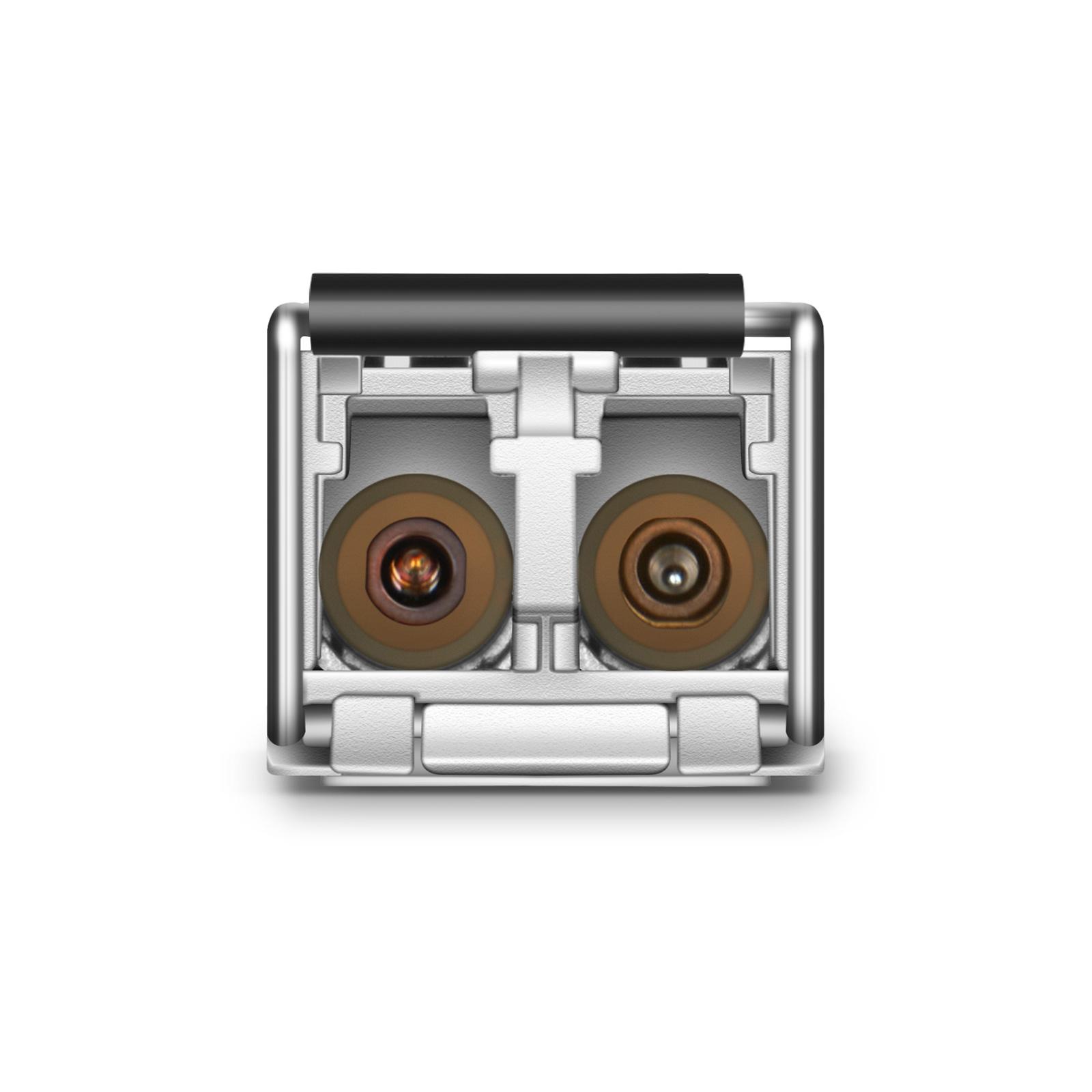

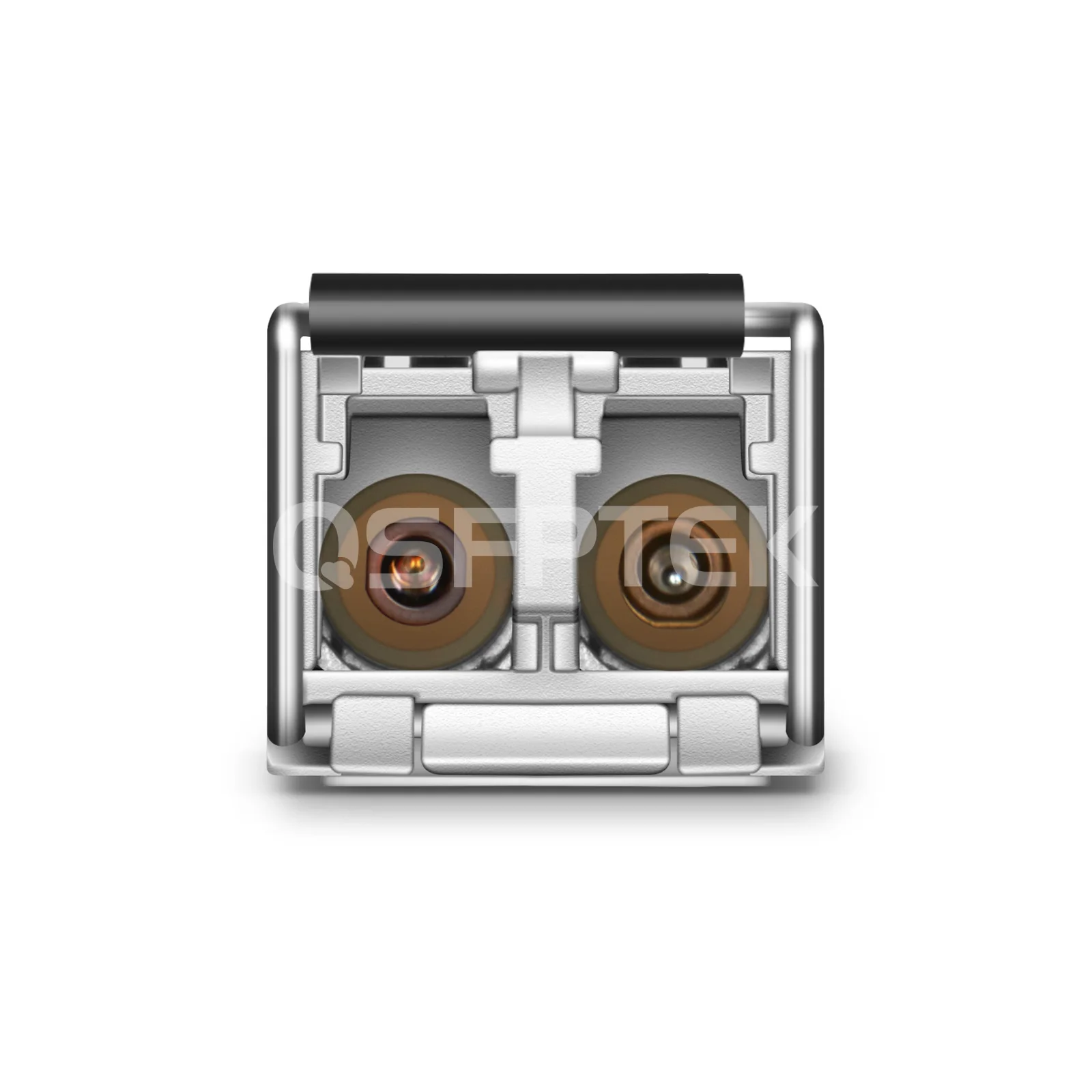

Cisco Meraki MA-SFP-1GB-SX Compatible 1000BASE SX SFP transceiver module is equipped with an LC duplex connector, which is high-performance, cost-effective, supporting 1.25Gbps data rate and 550m transmission distance over multimode fiber (MMF). It is verified to interoperate with original Cisco switches, including the Catalys 8500 series, and MS120/125/130/210/225/250/350/355/390/410/425, and MX/75/84/85/95/100/105/250/400/450/600/ series switches. QSFPTEK 1000BASE SX transceiver is compatible with the IEEE 802.3z 1000BASE-SX standard.
This Compatible 1000BASE-SX SFP fiber optic transceiver module consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All QSFPTEK manufactured 1G SFP optical transceivers satisfy class I laser safety requirements.
|
Part Number |
QT-SFP-0301D |
Vendor Name |
QSFPTEK |
|
Form Factor |
SFP |
Data Rate |
1.25Gbps |
|
Wavelength |
850nm |
Distance |
550m |
|
Connector |
LC Duplex |
Cable Type |
OM2 MMF |
|
Transmitter Type |
VCSEL |
Receiver Type |
PIN |
|
TX Power |
-9.5 ~ -3dBm |
Receiver Sensitivity |
< -18dBm |
|
Power Consumption |
< 0.8W |
Modulation Format |
NRZ |
|
DDM |
Support |
Bit Error Ratio (BER) |
1E-12 |
|
Protocols |
IEEE 802.3z, SFF-8472, SFP MSA Compliant |
Warranty |
5 Years |
Take a look at our test program to get the reliable and high-performance optical transceivers.
Connection 1: 1000BASE-SX SFP Transceiver Interconnection Solution
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
Every unit sold undergoes rigorous quality testing to ensure compatibility in the target switch environment and guarantee perfect operation.
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices.
