S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24x 25GE SFP28, with 4x 100GE QSFP28 Uplinks, Support MLAG

Product No :100485
US$ 3679.90  US$ 4099.00
Series
50 in stock
1. 24x 25G SFP28, 4x 100G QSFP28 uplink ports.
2. Features high stacking capability.
3. RDMA reduces latency and CPU consumption.
4. Support data center features include MLAG/VXLAN/EVPN/VARP/PFC.
5. Support CLI/WEB/SNMP/SSH2.0/SSL for easy management.
6. Support QoS/ACL/DHCP for high security.
7. Support LACP/VRRP/ERPS/MSTP/BFD/Smart Link for high reliability.
8. Modular four hot-pluggable fans design, support front-to-back airflow.
9. Dual AC hot-pluggable power supply modules for 1+1 redundancy.
See more

Specifications

S7600-24Y4C, 24-Port Ethernet L3+ Switch, 24x 25GE SFP28, with 4x 100GE QSFP28 Uplinks



QSFPTEK S7600-24Y4C L3+ switch has 24x 25GE SFP28, and 4x 100GE QSFP28 uplink ports, delivering 2 Tbps switching capacity and 1488 Mpps forwarding rate. Based on a carrier-lever high-performance switching chip, S7600-24Y4C is suitable for deploying at aggregation and core layers to meet the requirement of high-end enterprise campus networks.



It supports mature IPv6 features and multiple data center features including Priority-based Flow Control (PFC), Multi-Chassis Link Aggregation (MLAG), VXLAN, EVPN, and VARP. The MLAG feature enables links of multiple switches to aggregate into one to implement device-level link backup, sharing traffic and backing up each other, enhancing system reliability.



Ports

24x 25G SFP28 | 4x 100G QSFP28

Packet Buffer

36 MB

Switching Capacity

2 Tbps

Forwarding Rate

1488 Mpps

MAC Address

98304

ARP Table

16384

VLAN IDs

4K

Jumbo Frame

9600 bytes

IPv4 Routes

60K

IPv6 Routes

4096

FLASH

8 GB

RAM

2 GB

Latency

700ns

Airflow

Front-to-Back

Power Supply

2 (1+1 redundant)

Fan Number

4 hot-pluggable

 fans

Max. Power Consumption

160 W

MTBF

198,000 hours

Operating Temperature

0°~45°C (32°~113°F)

Weight

9.2kg

Dimensions (H×W×D)

4.36

x 44.0 x 48.0 cm

(1.73 x 17.5 x 18.9 in.)

Warranty

5 Years

Features

  • Multiple Data Center Features
    Support data center features including MLAG/VXLAN/EVPN/VARP/PFC.
  • Complete Layer 2/3 Functionality
    Support complete L2 and L3 features, including L2 switching, L2 multicast, QoS, advanced L3 routing, OSPF, BGP, Bidirectional Forwarding Detection (BFD), and L3 multicast, etc.
  • Convenient and Secure Management
    Support SNMP v1/v2/v3, CLI, web management, Telnet and FTP connection, OAM, SSH2.0, SSL, etc. to offer easy management. Support QoS, ACL, and DHCP to ensure high security.
  • Mature IPv6 Technology
    Supports IPv4/IPv6 dual stack, IPv6 PIPng, and IPv6 over IPv4 TUNNEL. It can be deployed on a pure IPv4/IPv6 network, or a shared IPv4/IPv6 network.

Applications

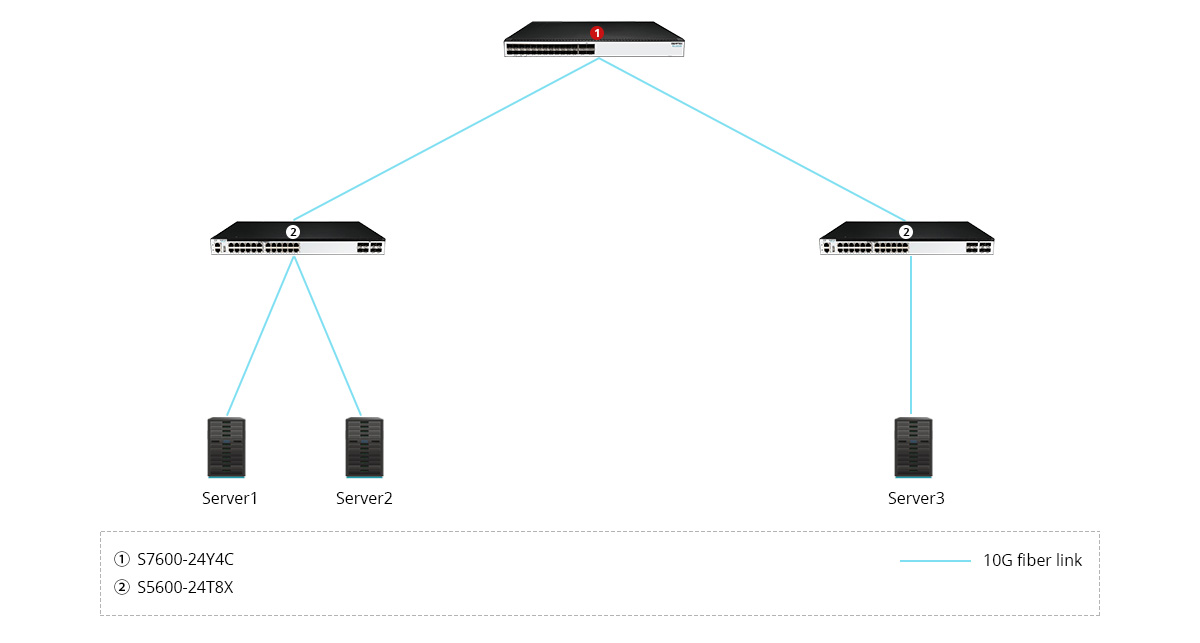

Scenario 1:

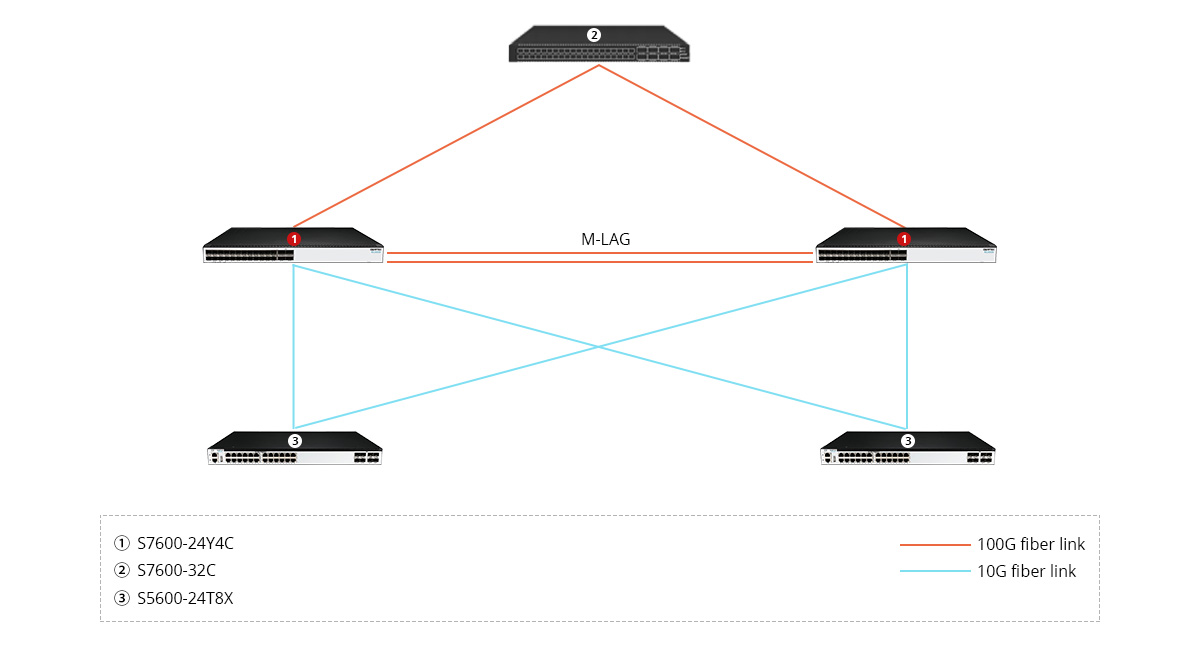

Scenario 2 (Two S7600-24Y4C Switches in an MLAG Pair):



Related Products:



10G SFP+ Optical Transceiver Modules



100G QSFP28 Optical Transceiver Modules



S5600-24T8X, 24-Port Gigabit Ethernet L3+ Switch, 24x GE RJ45, with 8x 10GE SFP+ Uplinks, Support iStack, MLAG





Product details

25G/100G High-capacity and High-flexible Interface Combinations



S7600-24Y4C switch is available in a variety of high-capacity interface combinations, including high-density 24x 25GE SFP28 ports and 4x 100GE QSFP28 uplink ports, providing 2 Tbps switching capacity and 1488 Mpps forwarding performance. Each 25GE ports support dual rates by inserting 25GBASE-SR/LR or 10GBASE-SR/LR optical modules. Each QSFP28 port can be extended as 4*25GE SFP28 ports, providing high-speed wired routing and forwarding with high-flexible port options.








MLAG Ensures High-Reliability



S7600-24Y4C switch supports data center service MLAG (Multi-Chassis Link Aggregation), which enables links of multiple switches to aggregate into one to implement device-level link backup. Switches in an MLAG pair share traffic and back up each other. When one of the switches fails, the other one can provide redundancy. And switches in an MLAG system can be upgraded independently without interruption. When one switch upgrading, the other switches in the MLAG system will take over traffic forwarding, enhancing network reliability.




ECN and PFC Ensure Lossless Transmission of End-To-End Data



RDMA(Remote Direct Memory Access) provides high throughput and ultra-low latency with low CPU overhead. Once end-to-end network connectivity is established, PFC(Priority Flow Control) and ECN (Explicit Congestion Notification) can be enabled to ensure lossless transport for RoCE traffic.

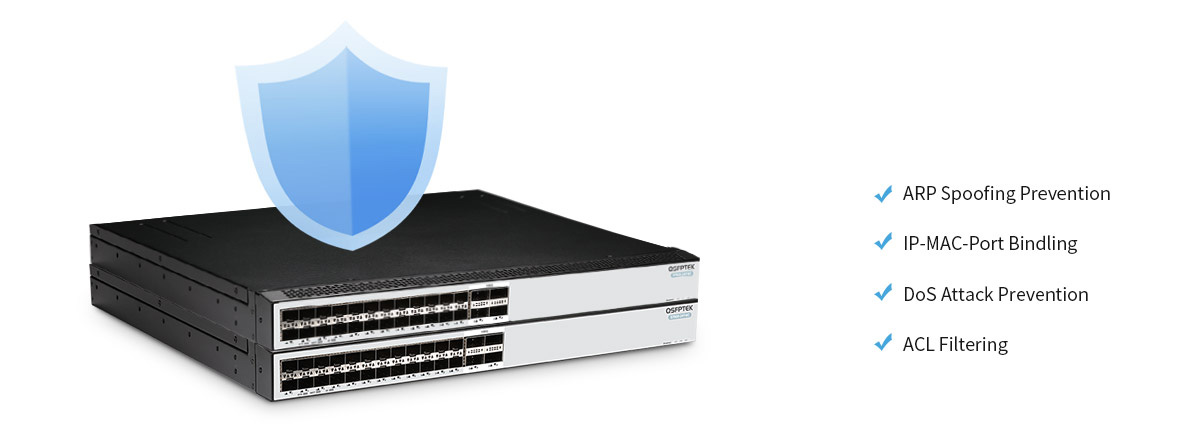

Advanced Security Feature for Enterprise



S5600-24Y4C is equipped with advanced security features perfect for enterprises to neutralize threats such as APR spoofing prevention, IP-MAC-Port Binding to prevent Man-in the middle attacks, and DoS attack prevention.

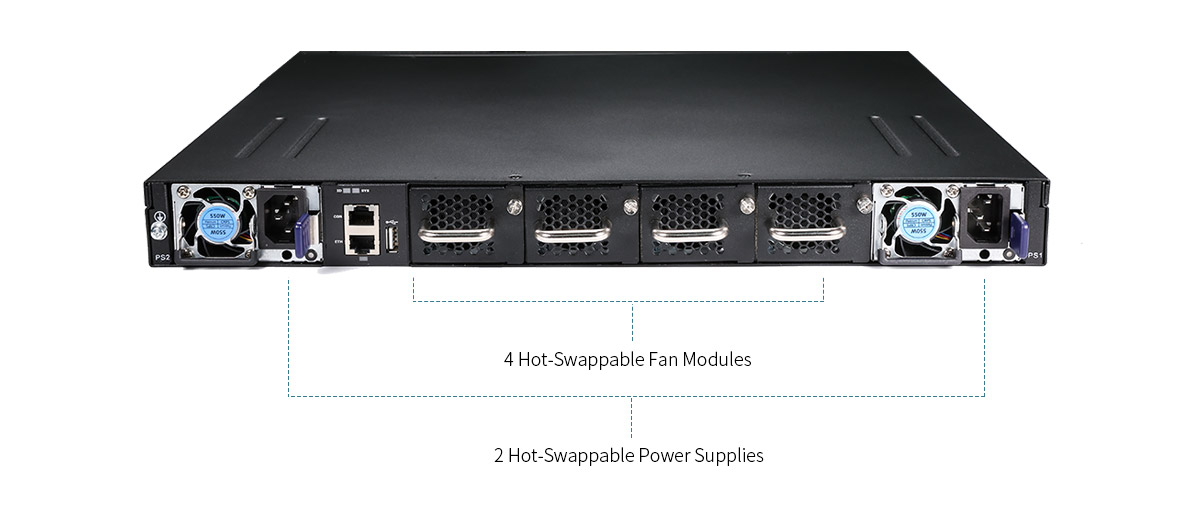

Hot-Swappable Fan and Power Design, Energy-Saving Technology

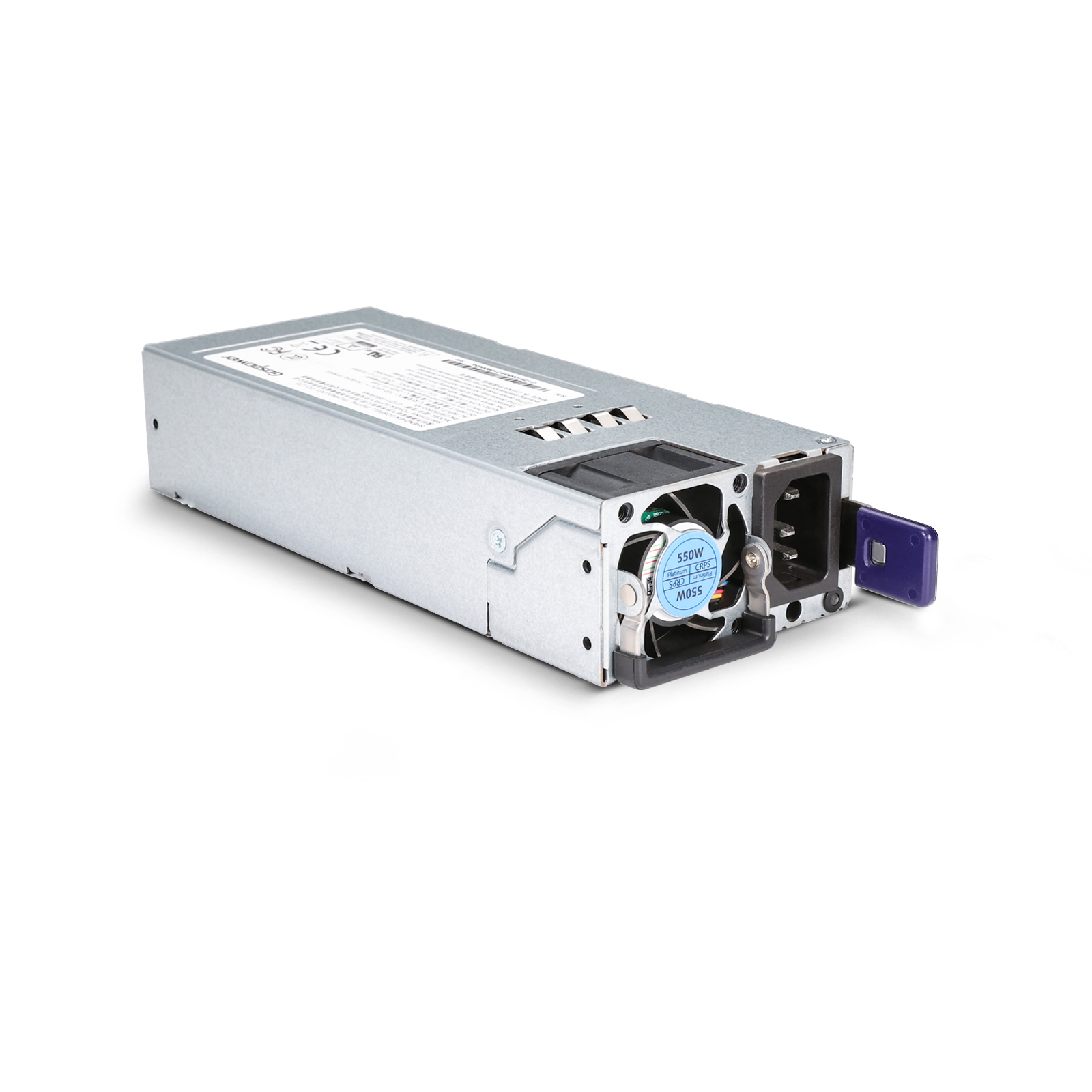

S7600-24Y4C switch features a modular and hot-pluggable fan and power supply design for high reliability and high availability. The hot-pluggable and redundant power modules and fans mean they can be replaced without affecting switch operation, ensuring uninterrupted service transmission. Flexible front-to-back airflow design isolates cold air channels from hot air channels. Real-time power consumption monitoring technology reduces power consumption and O&M costs.







Questions & Answers

more+
  • What is MLAG?What are the advantages of MLAG?
    MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG uses a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic.
  • What is the difference between S7600-48Y8C and S7600-48X8C?
    The main difference between the two is that the downstream port of 48Y8C is SFP28 port, which supports 10G/25G, while the downstream port of 48X8C is SFP+ port. The rest of the features and functions are basically the same.
  • Can the S7600-48Y8C support advanced features such as VXLAN/EVPN?
    Yes, the switch supports VXLAN and EVPN. You can check all the functions it supports through the datasheet.
