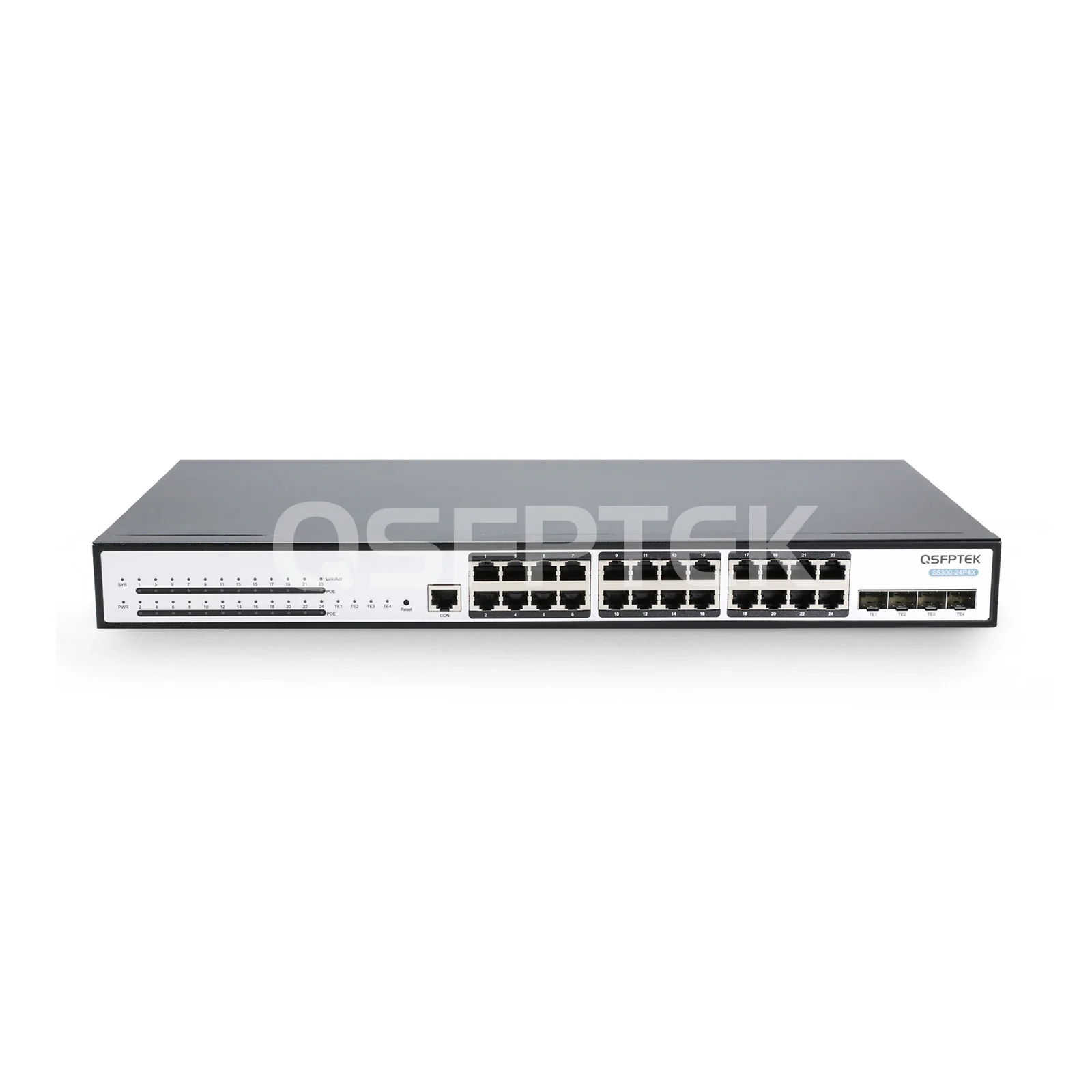

S5300-24P4X 24-Port Gigabit Ethernet L2+ PoE+ Switch, 24x PoE+ Ports@370W with 4x 10GE SFP+ Uplinks, Stackable Switch

Product No :100497
US$ 388.90  US$ 529.00
Series
50 in stock
• Low-power and Smart Fans design
• industry-level EAPS and ERPS for 50ms recovery time
• Up to 24 PoE+ Ports, Total Budget 370W
• Rich L2+ Features: Static Routing, RIP, OSPF, etc.
• Supports QinQ,  ISSU, IPv6, VLAN, LACP, etc.
• Supports CLI/WEB/Telnet/SSH/SNMP management
• Supports ACL, QoS, IEEE 802.1x, Radius, BDTacacs+, etc.for security
• Supports LACP, MSTP, EAPS, ERPS, VRRP, ISSU for reliability
See more

Specifications

24-Port Gigabit Ethernet L2+ PoE+ Switch, 24x PoE+ Ports@370W with 4x 10GE SFP+ Uplinks, Stackable Switch



The QSFPTEK S5300-24P4X is a next-gen PoE+ switch, with 24x GE RJ45 and 4x 10GE SFP+ uplinks. The 24x RJ45 ports support IEEE802.3af/at, supports powering connected IP phones, wireless access points, or other standards-compliant PoE and PoE+ end-network devices. It supports stacking of up to two S5300 series switches to deliver redundancy, simple management and resilience of network capacity.



The S5300-24P4X provides 128 Gbps switching capacity and 96 Mpps forwarding rate. The S5300 series L2+ managed switches support some data center features includes: Static route, RIP, OSPF, 512 routing table, IPv6 protocol suite, IPv6 neighbor discovery, ICMPv6, path MTU discovery, etc. and can be managed through the CLI command line or WEB management for easy manage. This switch features with OAM, MSTP, ERPS, VRRP, ISSU for high reliability. S5300-24P4X PoE switch is a good choice for next-generation IP metropolitan area network, government, enterprise networks and disk-less working environment.





Part Number S5300-24P4X Vendor Name QSFPTEK
Ports 24x 1G RJ45 | 4x 10G SFP Switching Capacity 128Gbps
Stackability Up to 2 Units VLAN IDs 4K
Packet Buffer 1.5MB MAC Address 16K
Forwarding Rate 96 Mpps DRAM 256MB
Jumbo Frame 9K PoE Standard IEEE802.3af/at
ARP Capacity 2040 Power Budget 370W
Input Voltage 100V-240V AC, 50Hz±10% Mounting Methods Rackmount
Dimensions (HxWxD)(mm) 44x440x210 Rack Space 1U
Flash Memory 16MB Fan Number 2
MTBF >200000 Hours Warranty 5 Years
Quality Certifications

Features

  • 1. Easy for Management
    Support SNMP v1/v2/v3, CLI, WEB management, Telnet, FTP, RMON, OAM, SSH v1/v2, etc. for a convenient management
  • 2. High Security
    Supports IEEE 802.1x, QoS, Radius, Tacacs+, DDoS, DHCP Snooping, IP+MAC+port binding, etc.
  • 3. Complete IPv6 Fuctions
    Supports IPv4/IPv6 dual-stack, IPv6 routing, IPv6 neighbor discovery, OSPFv3 Path MTU discovery, ICMPv6, DHCPv6, ACLv6.
  • 4. Reliability
    Support LACP, MSTP, EAPS, ERPS, VRRP, ISSU, etc.

Product details

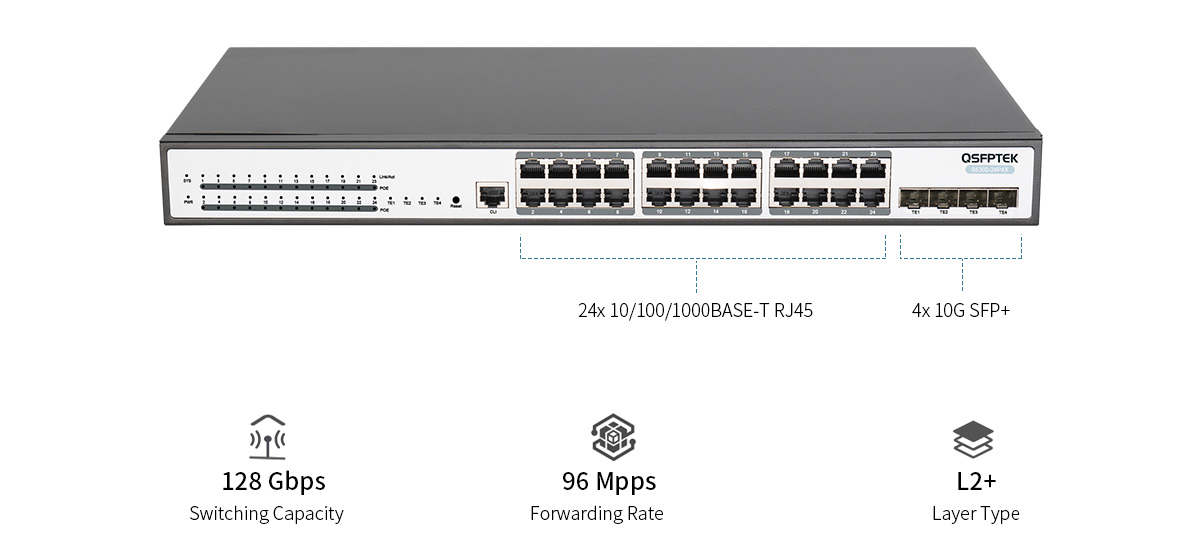

High-Performance L2+ Gigabit Managed Switch

S5300-24T4X has 24x 1G RJ45 ports and 4x 10G SFP+ ports, providing high-density and converged copper and fiber connections. With a switching capacity of 128 Gbps and a forwarding rate of 96 Mpps, it also meets high-performance requirements at the layer 2+ access.

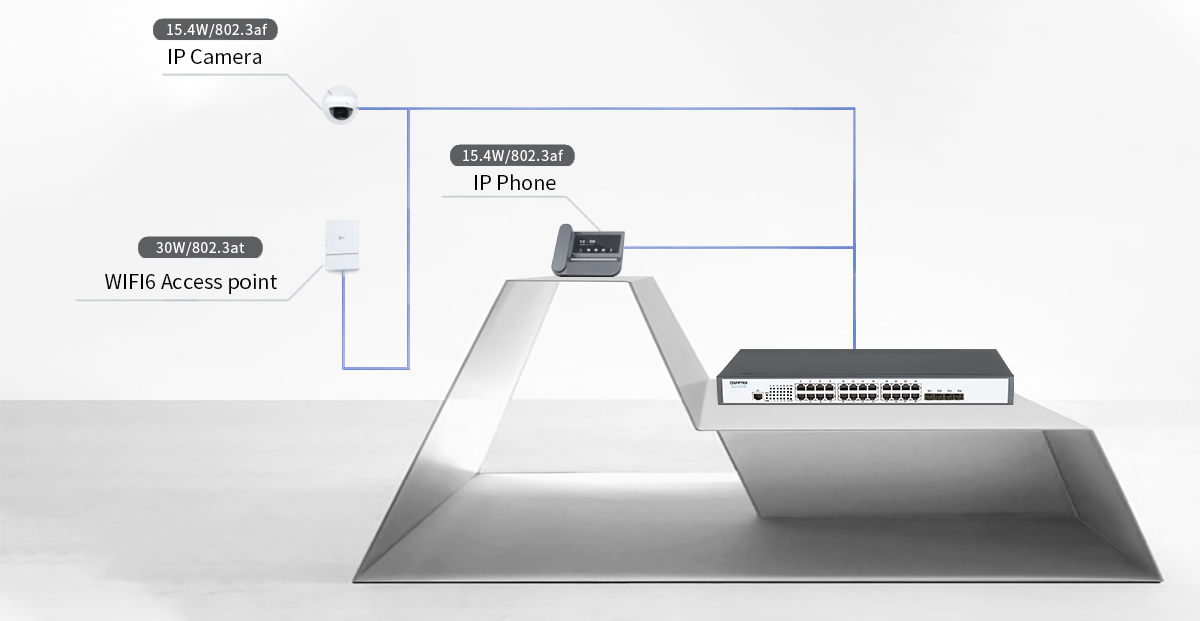

370W Power Budget Powers More Devices

24x PoE+ ports with a total power supply of 370W, provide flexibility for your network, allowing you to easily place endpoints anywhere in your enterprise, even locations where power outlets might be difficult to reach. For example, you can place the wireless access point in a wall or ceiling.



Questions & Answers

more+
  • What is the airflow direction of this switch?
    S5300 series switches use left-to-right airflow.
  • Can you confirm the noise value of S5300-24P4TS? I want a quiet switch.
    In general, the noise value is 37.5dB at 25°C in normal operation.

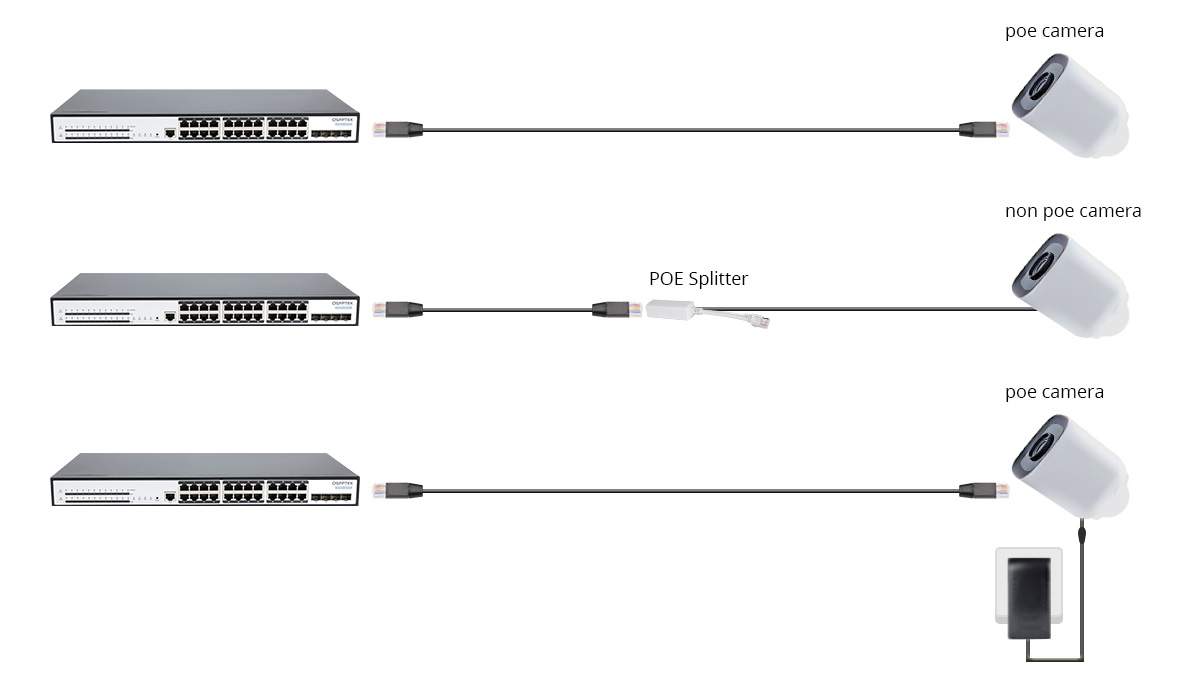

  • Can I use S5300-24P4TS to connect non-PoE devices such as computers?
    Yes, this switch will auto-detect whether the device is PoE or non-PoE. If not, it will run as a regular non-PoE switch.
