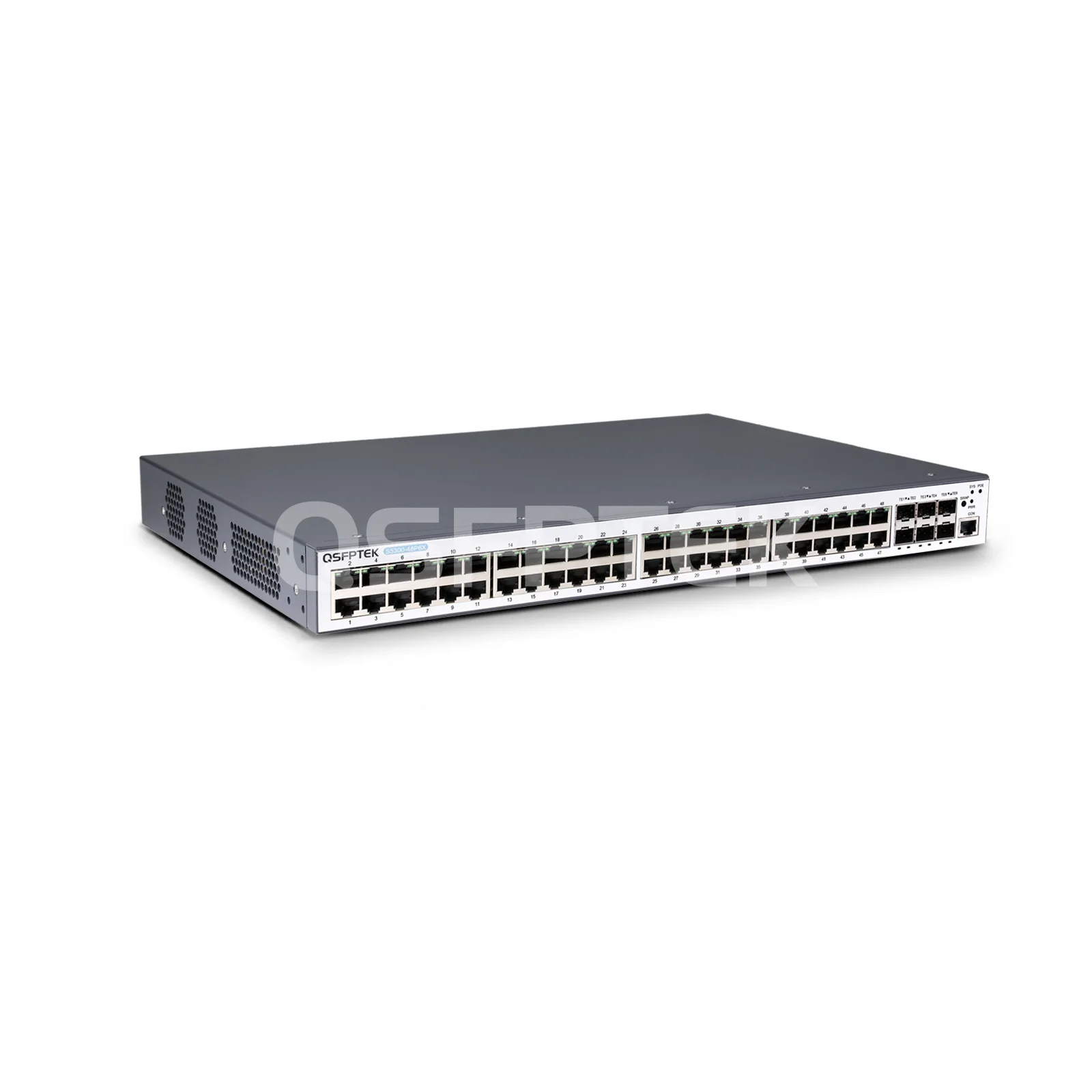

S5300-48P6X, 48-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Switch, 48x 10/100/1000BASE-T RJ45 PoE+ Ports @ 370w, with 6x 10G SFP+ Uplinks, Up to 100M Transmit, Support Stacking

Product No :100512
US$ 730.90  US$ 869.90
Series
100 in stock
20 in the U.S. Warehouse, 20 in the EU Warehouse | Free Shipping | 5-Year Warranty | 14-Day Return & Exchange ;jsessionid=845B6167D3C7023CFC4E143FE35083FF
-
+
1. 48x 10/100/1000BASE-T RJ45 PoE+ ports, total power budget 370W AC or 740W DC, 6x 10G SFP+ uplink ports
2. Active PoE switch compliant with IEEE 802.3 af/at, protects your equipment from damage

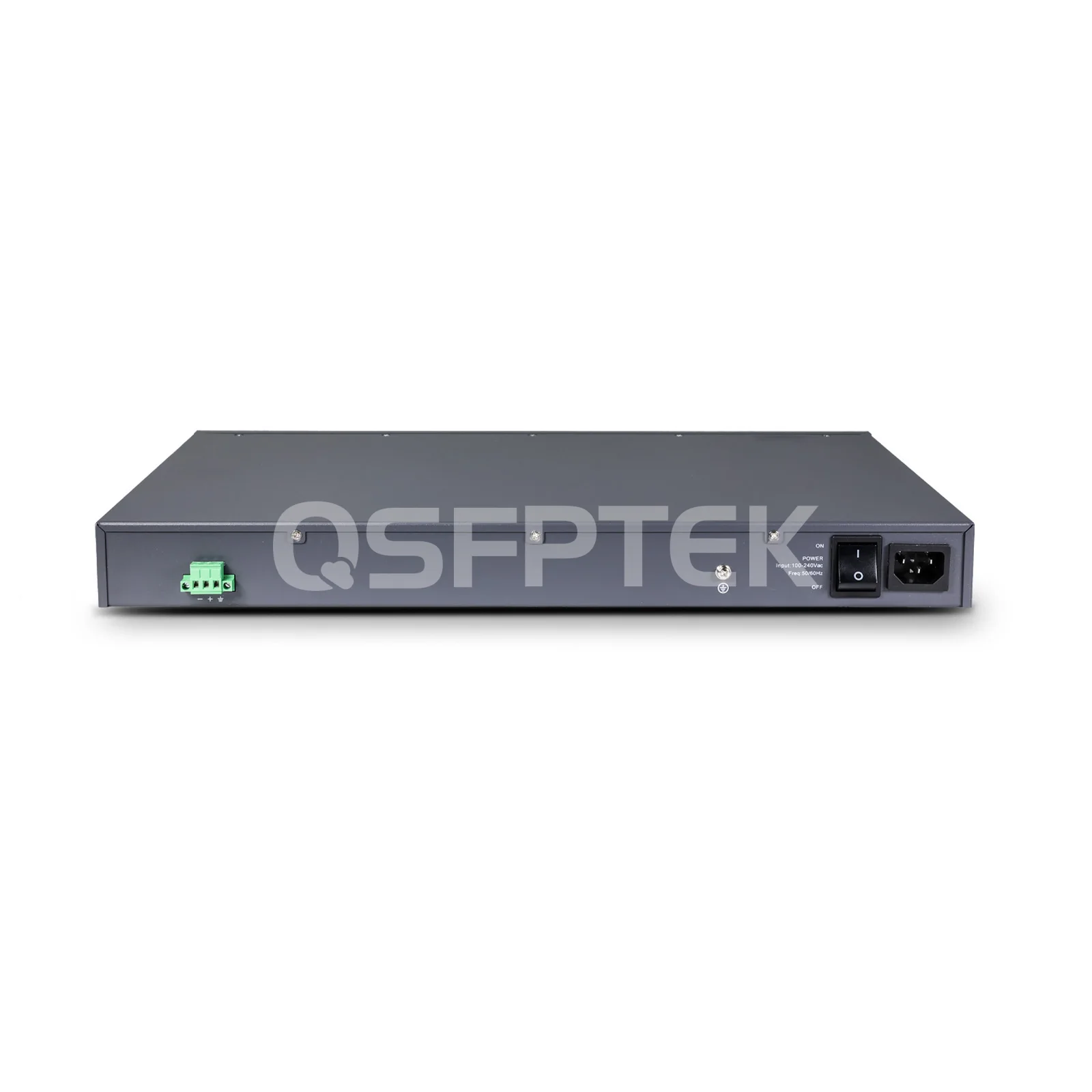

3. 1 built-in AC power supply and 1 built-in redundant DC power supply, 2 built-in fans
4. Supports ACL, QinQ, QoS, ISSU, IPv6, VLAN, LACP, etc.
5. Supports CLI/WEB/Telnet/SSH/SSL/SNMP management
6. Supports IEEE 802.1x, Radius, BDTacacs+, etc.for security
7. Supports LACP, BFD, MSTP, ERPS, VRRP, ISSU for reliability
See more

Specifications

S5300-48P6X, 48-Port Gigabit Ethernet L2+ Active 802.3af/at PoE+ Switch, 48x 10/100/1000BASE-T PoE+ Ports @ 370W, with 6x 10G SFP+ Uplinks, Up to 100M Transmit, Support Stacking





QSFPTEK S5300-48P6X L2+ access PoE+ switch is designed with 48x 10/100/1000BASE-T PoE+ ports @ 370W and 6x 10G SFP+ uplinks and supports stacking of up to 8 switches. This 48-port PoE switch has 2 built-in smart fans, which can automatically adjust the fan speed to save on usage costs. The switch can be easily controlled and managed through both CLI and WEB interfaces, allowing for real-time monitoring and improved management efficiency. This makes the S5300-48P6X an ideal choice for hotel networks, SMBs, and surveillance systems, providing a more stable and reliable network architecture for enterprises.



Part Number S5300-48P6X Vendor Name QSFPTEK
Ports 48x 10/100/1000BASE-T RJ45 PoE+| 6x 10G SFP+ MAC Address 8K
Switching Capacity 216 Gbps Forwarding Rate 162 Mpps
DRAM 512MB Packet Buffer 1.5MB
Jumbo Frame 9K VLANs IDs 4K
Flash Memory 16MB Input Voltage 100V-240VAC, 50Hz±10%
DC 48V
Fan Quantity 2 built-in fans Air Flow Front-to-Back
Power Supply 1 built-in AC and 1 built-in DC power supplies (default), DC optional Power Consumption 48W (without PoE); 370W (AC); 740W (DC)
PoE Standard IEEE 802.3af/at PoE Power Budget AC: 370W
DC: 740W
Stackability 8 Weight 5 kg
MTBF > 50,000 Hours Operating Temperature -10 to 45℃ (14 to 113℉)
Dimensions (H x W x D) 44 x 440 x 280 mm
(1.73 x 17.32 x 11.02″)
Warranty 5 Years
Quality Testing Program
Quality Certifications

Features

  • 1. IPv6
    Supports IPv4/IPv6 dual-stack, IPv6 routing, IPv6 neighbor discovery, ICMPv6, IPv6-based Telnet, Ping, Traceroute, ACL.
  • 2. Security+
    Anti-attack from DDoS and TCP/UDP Flood, and IEEE 802.1x, Radius, Tacacs+ for Security+
  • 3. Reliability
    Supports LACP, ERPS, ISSU, STP, RSTP, MSTP.
  • 4. Management
    Supports CLI, WEB, Telnet, FTP, SSH, SSL, SNMP.

Product details

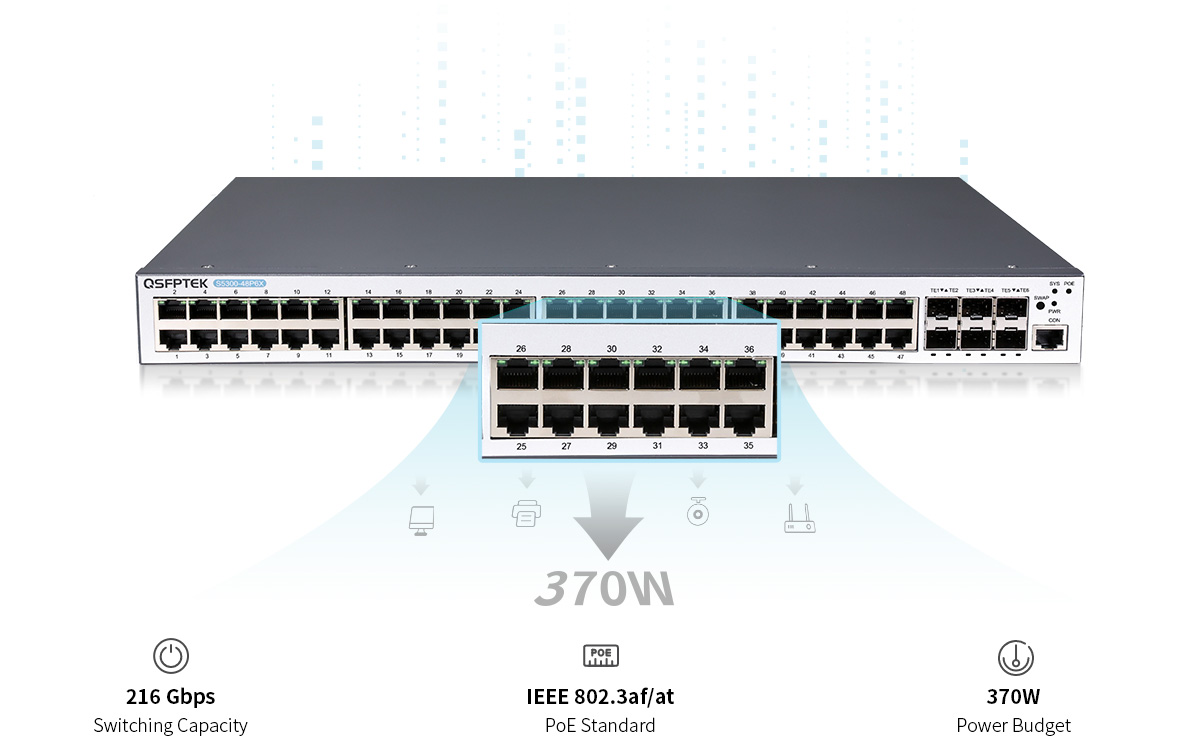

L2+ Gigabit PoE/PoE+ Access Switch for Different Power Applications



S5300-48P6X has 48x 1G RJ45 PoE ports and 6x 1G RJ45/SFP combo ports, providing high-density and converged copper and fiber connections.

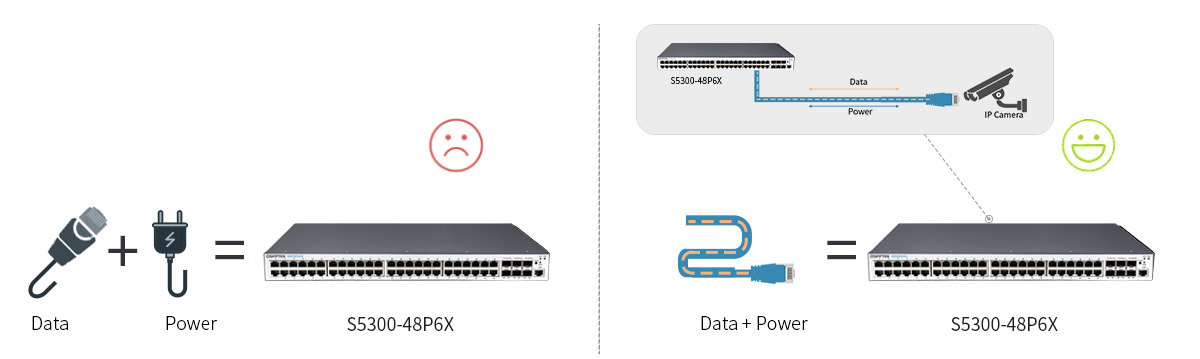

Compliant with PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) standards, it can auto-negotiate to the power required by the PDs and deliver a max 15.4W or 30W per port power and 370W total PoE budget.

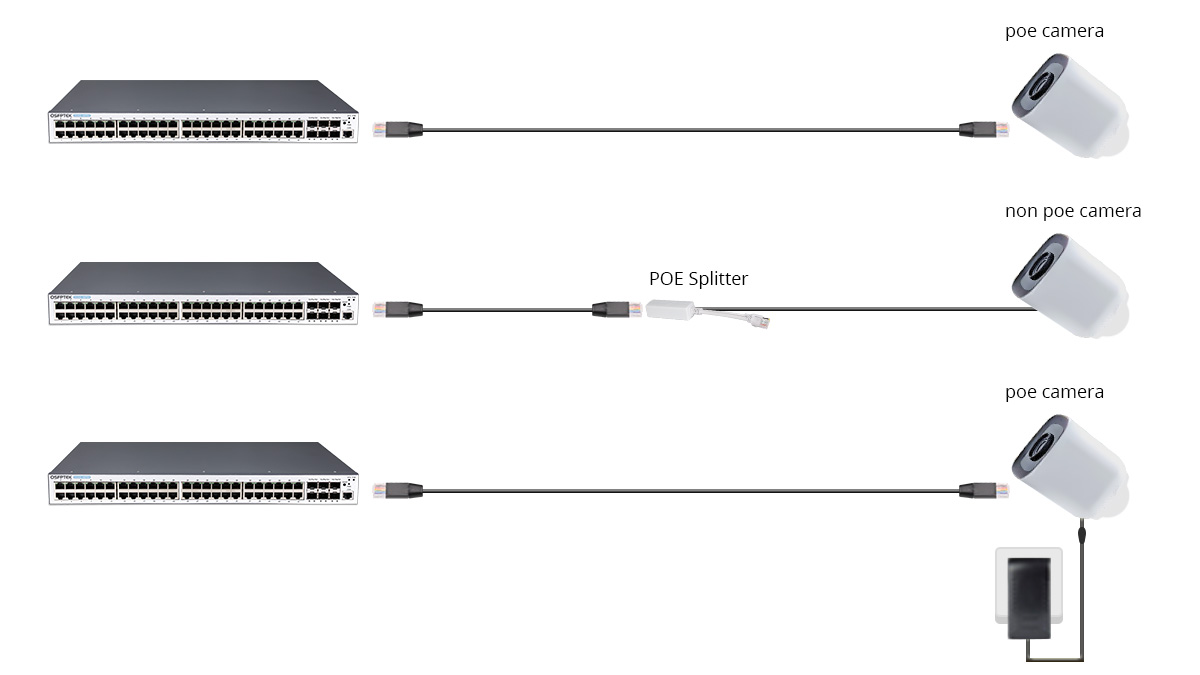

PoE and Non PoE Device Connection



PoE devices can be directly connected through cables. If non-PoE devices require simultaneous power and data transmission, a PoE splitter is needed. For data transmission only, an Ethernet cable can be used for direct connection. The PoE switch will identify whether the device is a PoE device, and if not, it will not deliver power to the device, preventing damage to the equipment.

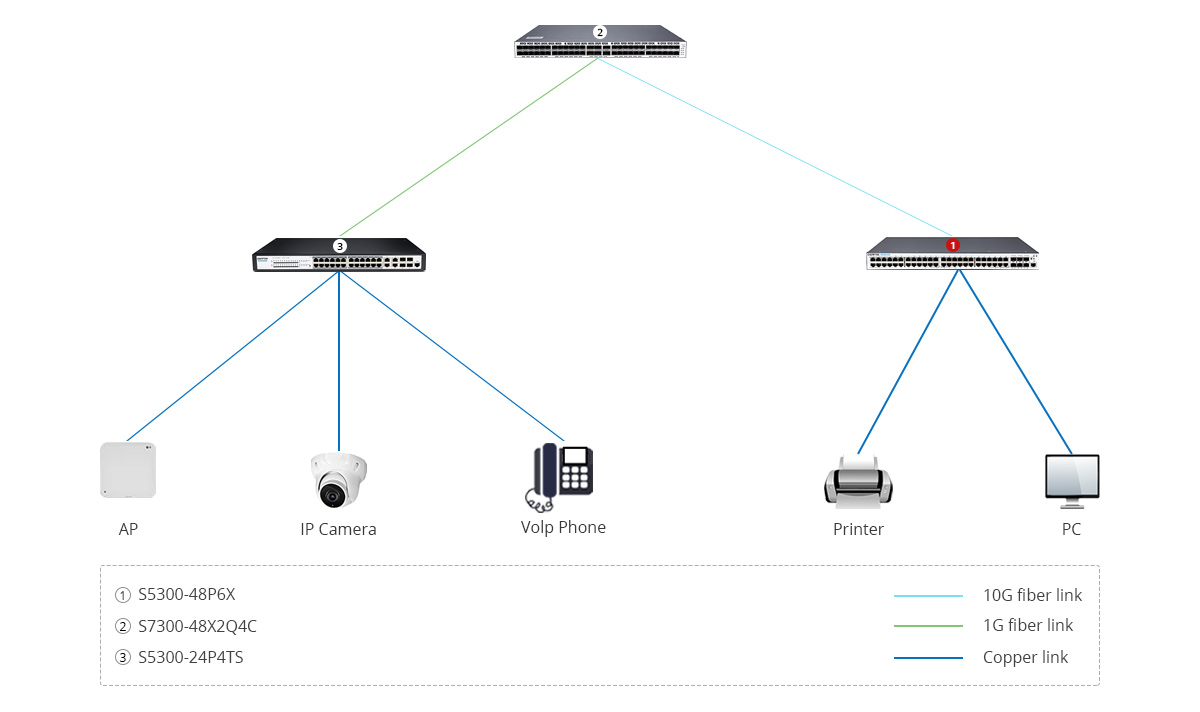

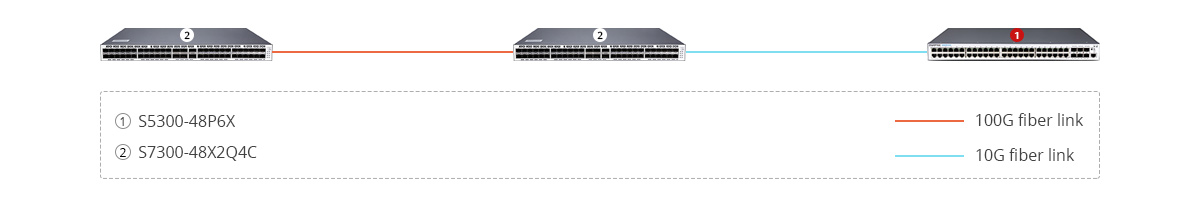

Cater to Multiple Application Scenarios



PoE switches are widely used to power PDs such as IP phones, IP cameras, wireless APs.

The most common applications are remote security solutions, VoIP solutions, surveillance solutions, wired and wireless deployment in almost all business scenarios.








GE PoE Switches Contrast Table



Model S5300-8P2S S5300-24P4TS S5300-24P4X S5300-48P6X S5310-48P6X
RJ45 Ports 8x 10/100/1000BASE-T 24x 10/100/1000BASE-T 24x 10/100/1000BASE-T 48x 10/100/1000BASE-T 48x 10/100/1000BASE-T
Fiber Ports 2x 1G SFP 4x 1G RJ45/SFP Combo 4x 10G SFP+ 6x 10G SFP+ 6x 10G SFP+
PoE IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at IEEE 802.3af/at
Management Layer L2+ Managed L2+ Managed L2+ Managed L2+ Managed L3 Managed
Power Supply 1 Built-in AC Power Supply 1 Built-in AC Power Supply 1 Built-in AC Power Supply 1 + 1 Redundant Power Supplies (1 Built-in AC + 1 Built-in DC) 1 Hot-Swap AC Power Supply (default)
1+1 Redundant Power Slots, DC Optional
Fan Fanless 3 Built-in Fans 2 Built-in Fans 2 Built-in Fans 3 Built-in Fans
Stackability / / 2 Units 8 Units 8 Units
Data Link Layer QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP QinQ, GVRP
Routing Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP, OSPF Static routing, RIP v1/v2, OSPF, BGP
Security IGMP Snooping, DHCP Snooping, DAI, Port security IGMP Snooping, DHCP Snooping, DAI, Port security IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, Portsecurit, DAI, DHCP snooping IGMP Snooping, DHCP snooping, Port security
IPv6 IPv4/v6 dual stack IPv4/v6 dual stack IPv6 Static Routing, RIPng,
OSPFv3
IPv6 Static Routing, RIPng,
OSPFv3
IPv6 Static Routing, RIPng, OSPFv3, BGP4+
Reliability QoS, ISSU QoS, ISSU QoS, VRRP, ISSU QoS, VRRP, ISSU BFD, QoS, LLDP, VRRP, PBR


Questions & Answers

more+
  • Can I use S5300-24P4TS to power 6x IP cameras at each up to 30w PoE+?
    Yes, this switch has a max of 370W PoE budget. It can power up to 12x 30W PoE+ cameras theoretically.
  • Is S5300-24P4TS stackable?
    No, this switch does not support stacking. If you need a stackable PoE+ switch, the S5300-24P4X PoE+ switch is recommended.
  • Can I use S5300-24P4TS to connect non-PoE devices such as computers?
    Yes, this switch will auto-detect whether the device is PoE or non-PoE. If not, it will run as a regular non-PoE switch.
